mp-561249/Ba17Er16Zn8Pt4O57/anharm

Space group: I4/m (87)
Link: Materials Project
Download: mp-561249.tar.gz

Harmonic properties

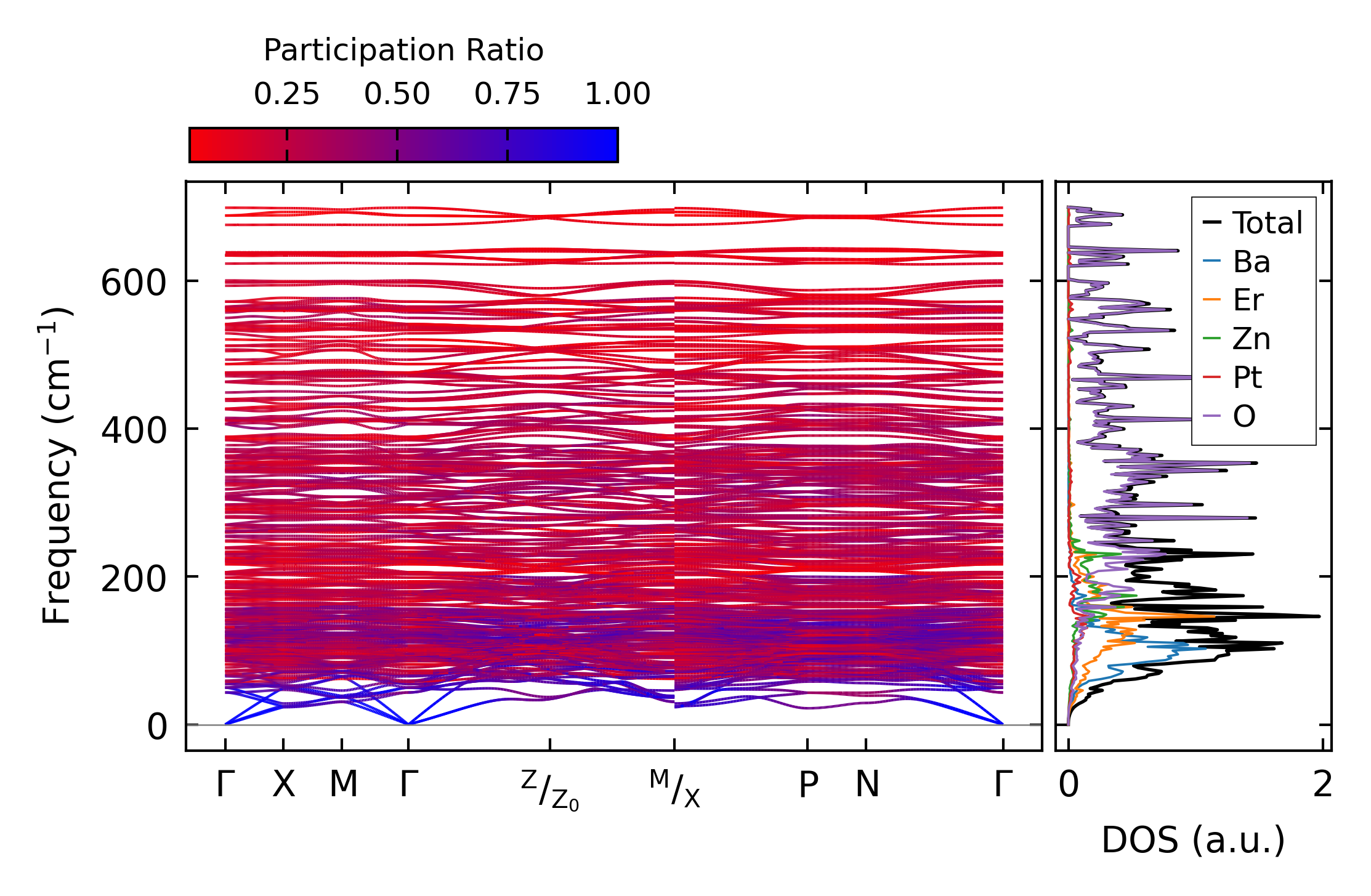

../../_images/fig_bandos_pr7349.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo7349.png — (b) Thermodynamic properties

Grüneisen parameters

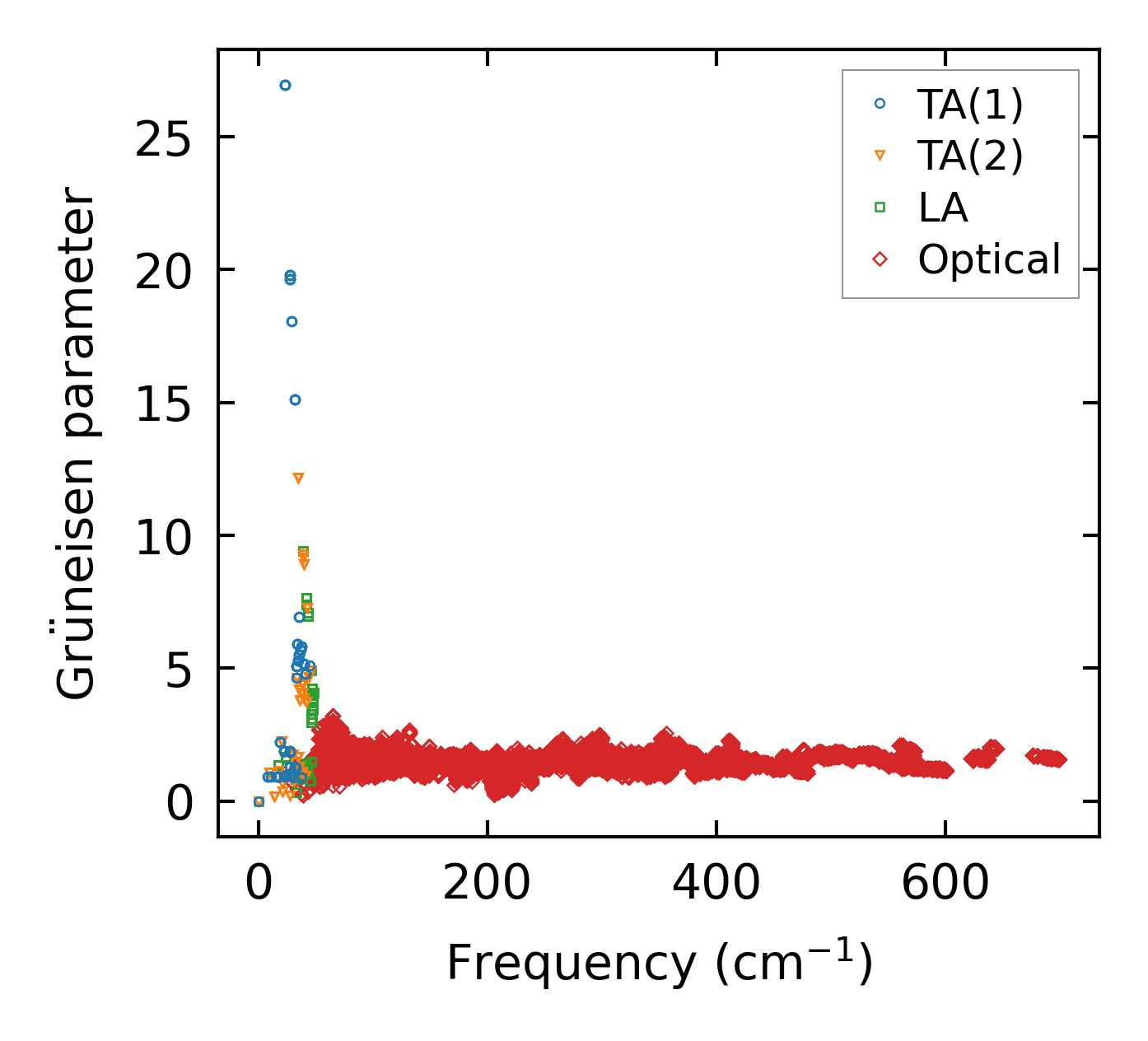

../../_images/fig_gru_all3096.png — (a) Grüneisen parameters

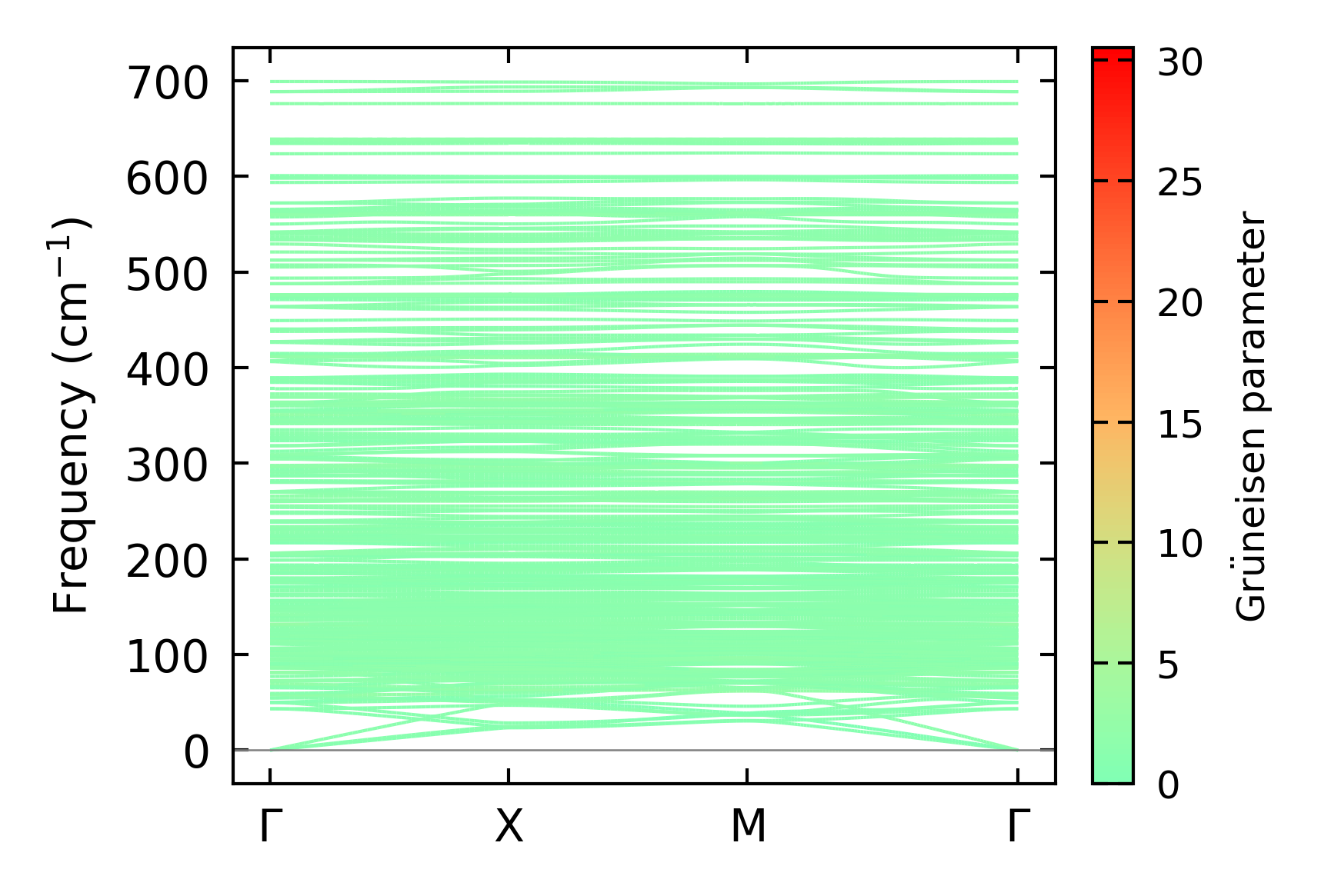

../../_images/fig_gruneisen3096.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 6x6x6, supercell: 1x1x1

../../_images/fig_kappa5863.png — (a) Temperature-dependent lattice thermal conductivity

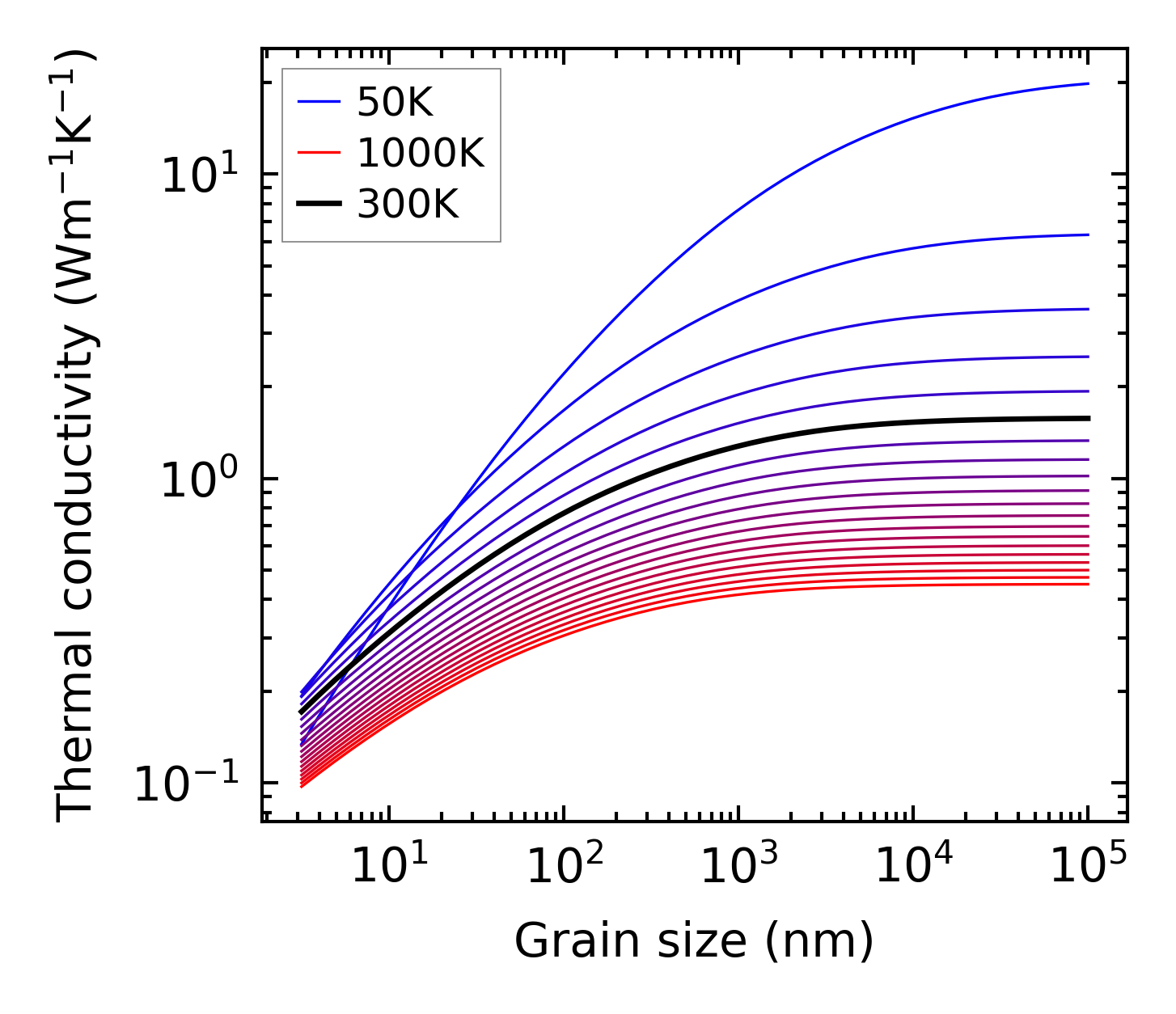

../../_images/fig_kappa_vs_grain_size3138.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

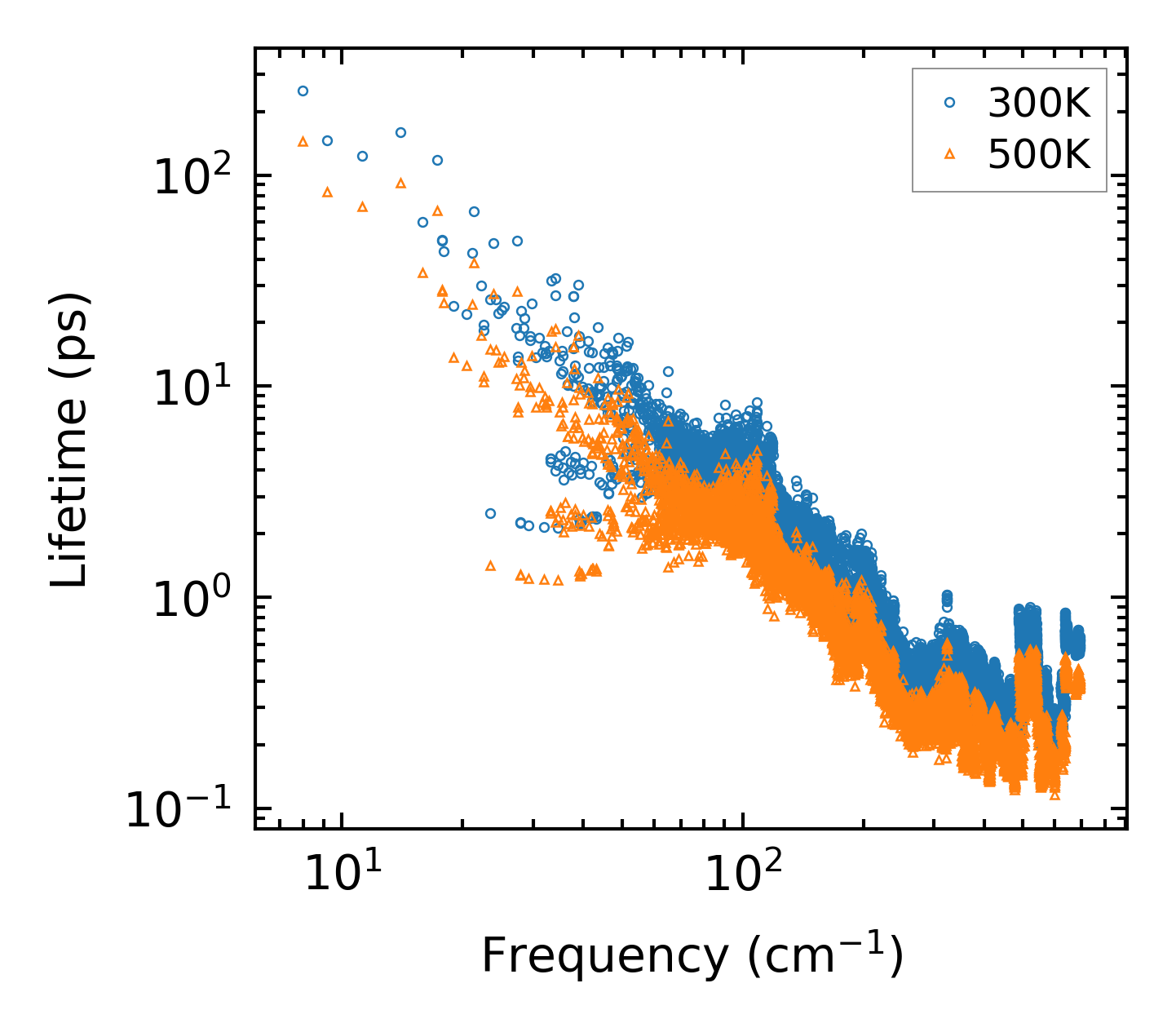

../../_images/fig_lifetime3070.png — (a) Phonon lifetime due to phonon-phonon scattering

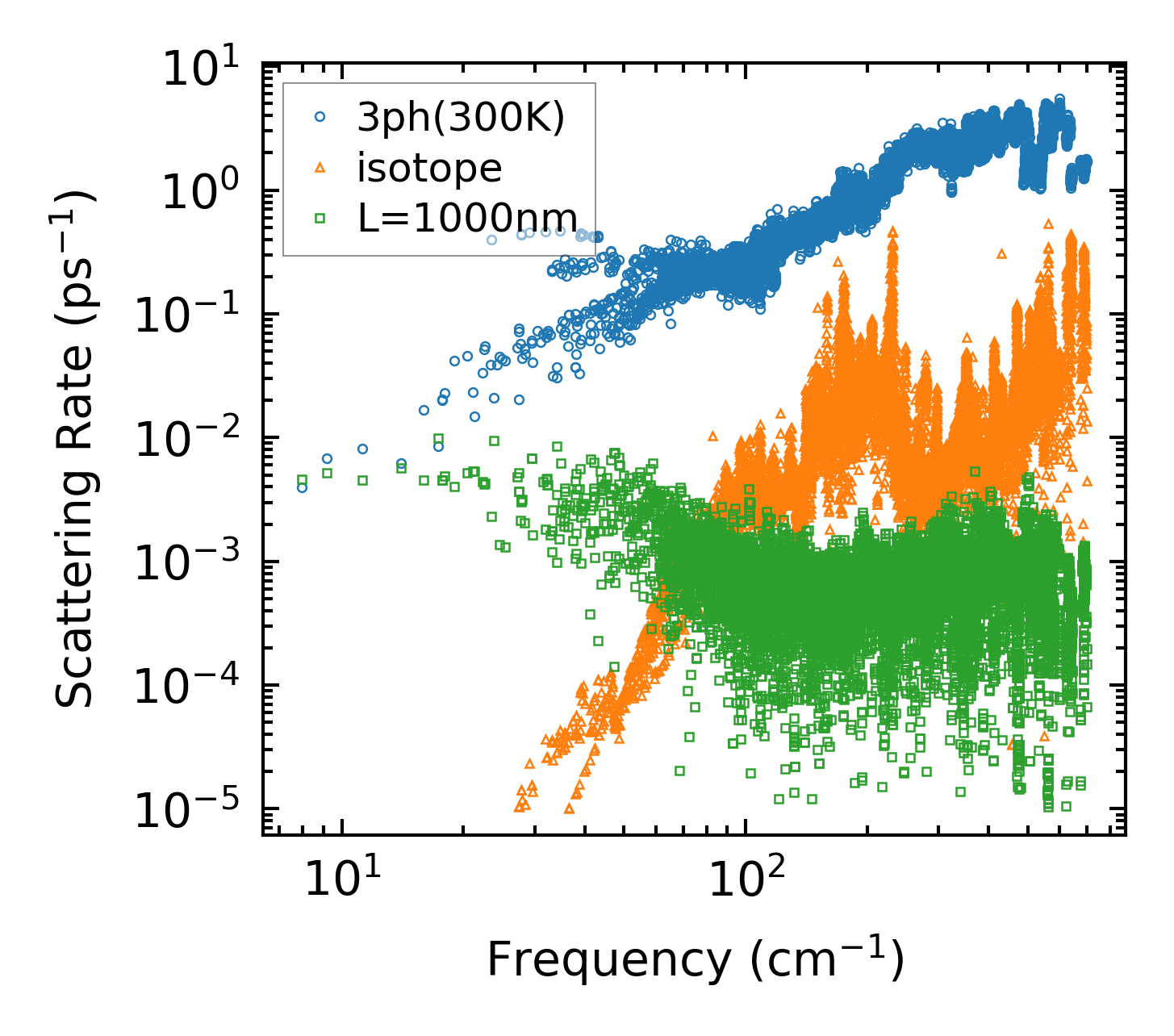

../../_images/fig_scat_rates3069.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

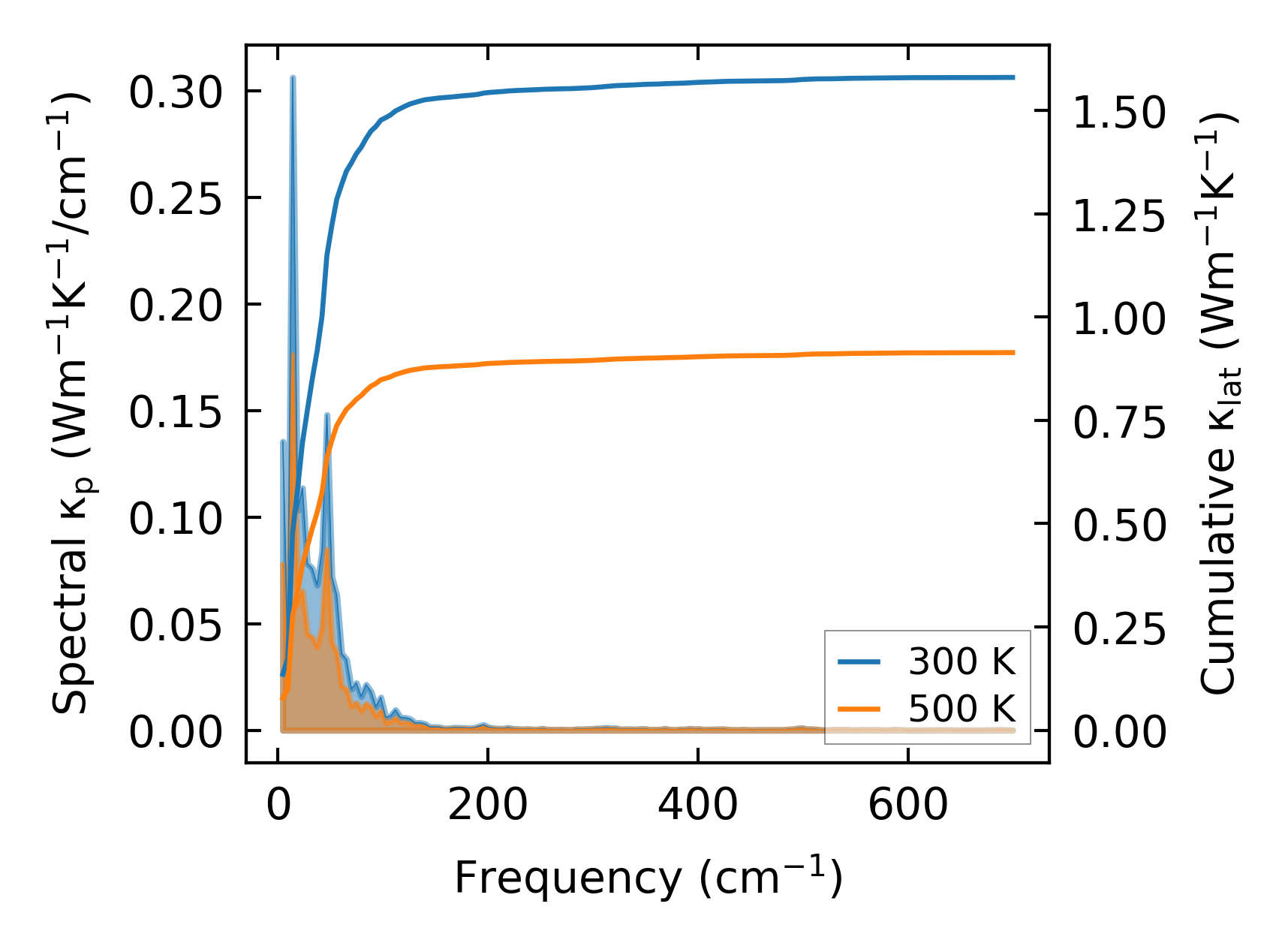

../../_images/fig_cumu_frequency3070.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

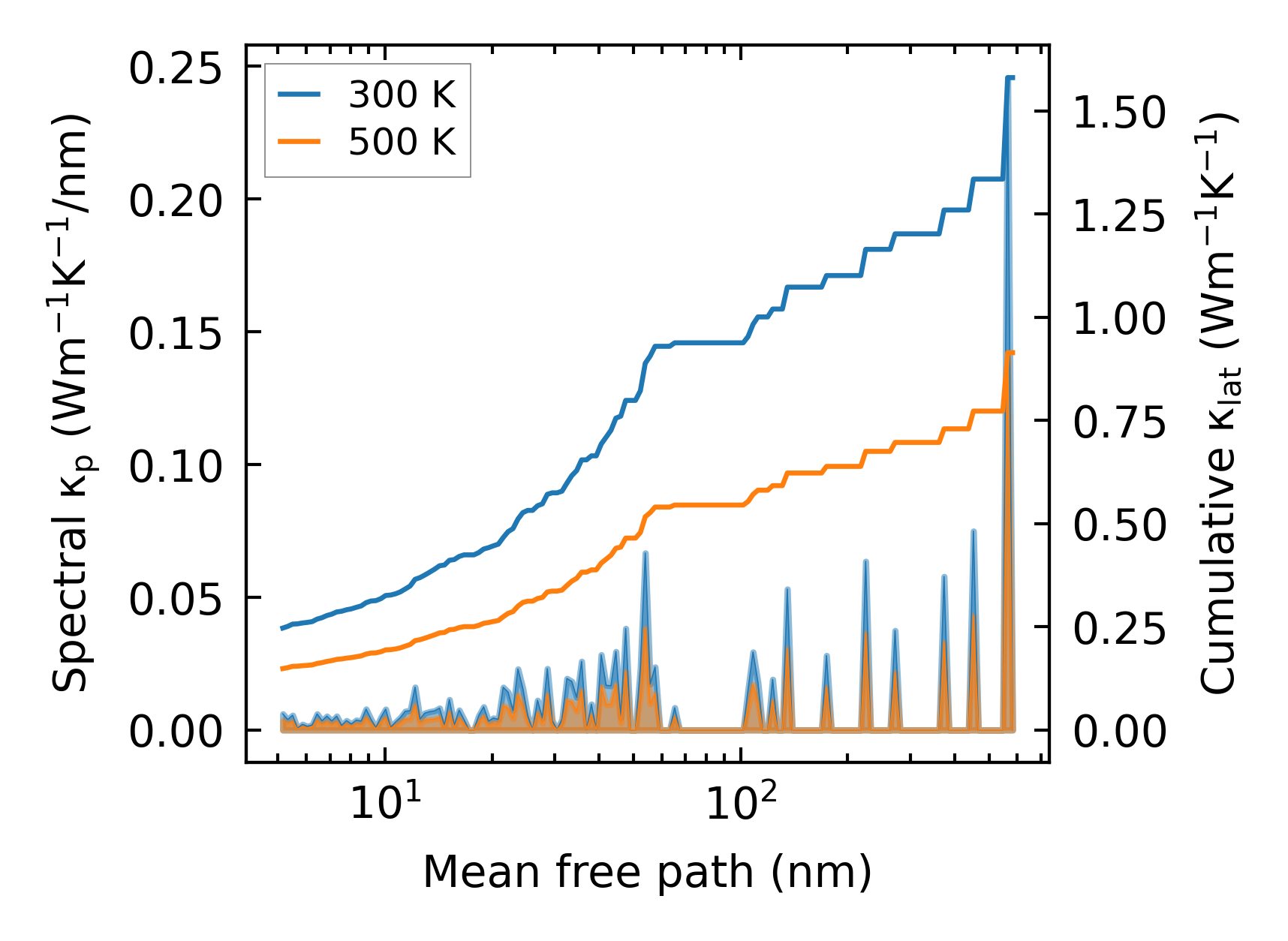

../../_images/fig_cumu_mfp3069.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

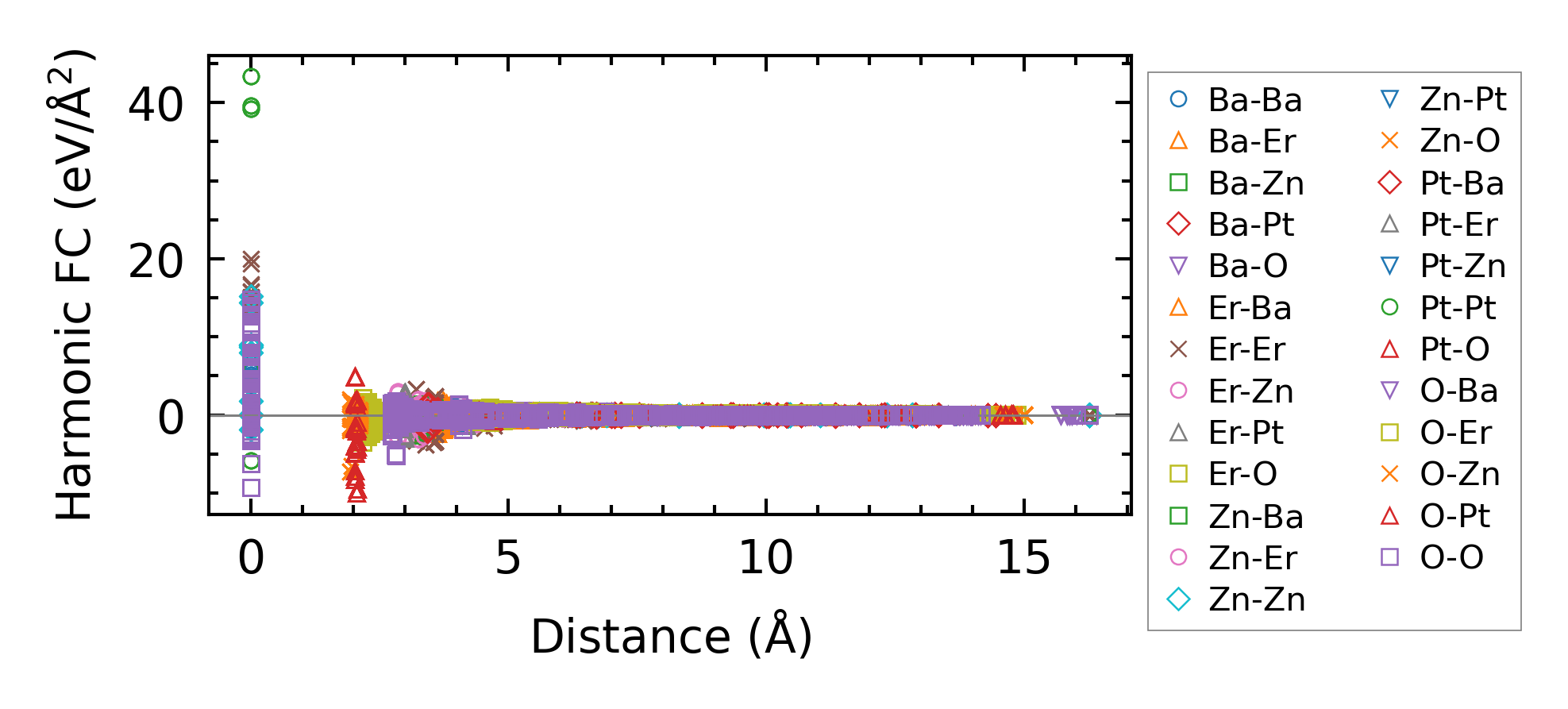

../../_images/fig_fc27113.png — (a) Force constants w.r.t atomic distance

Summary

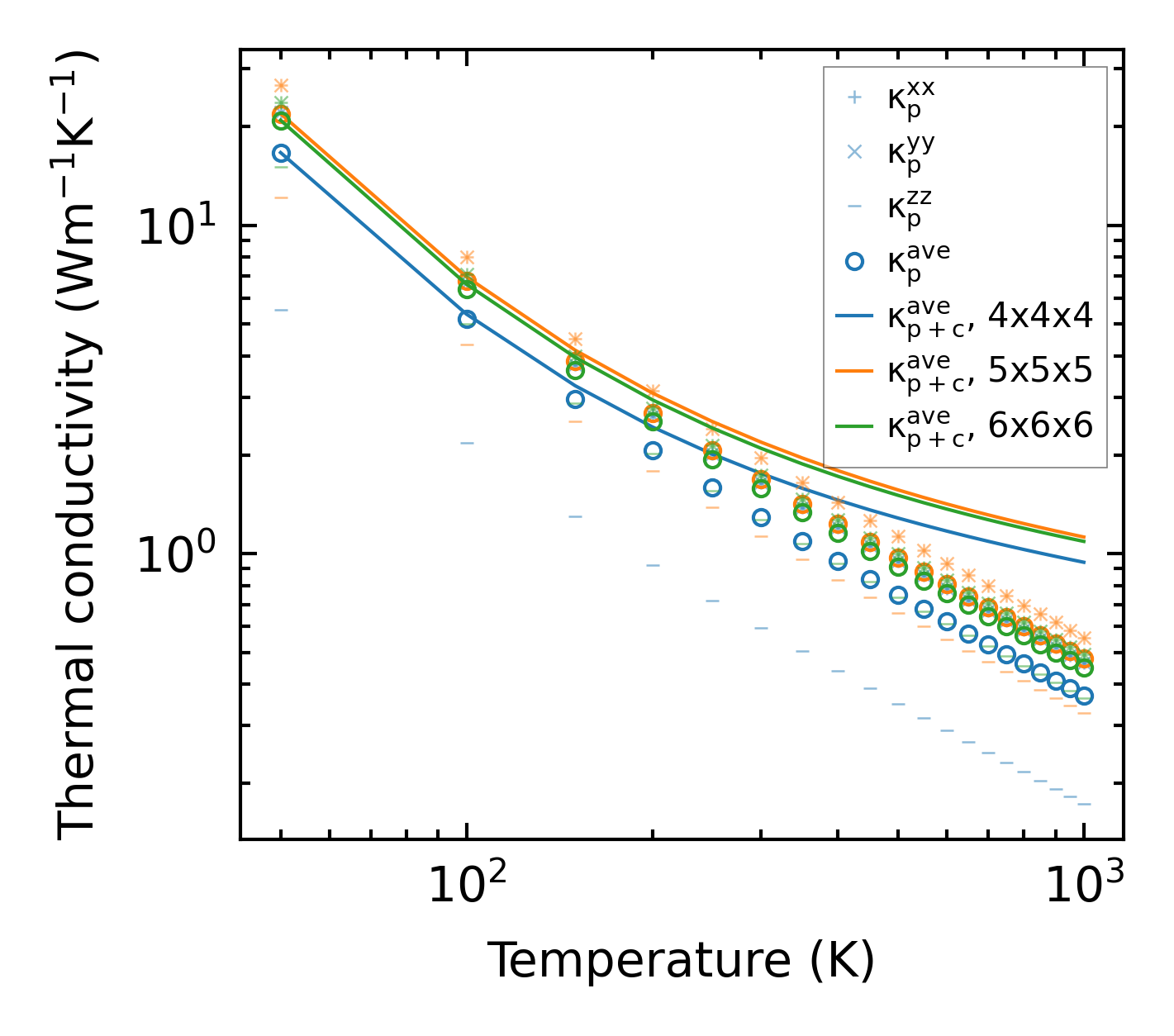

../../_images/fig_kappa5864.png — (a) Temperature-dependent lattice thermal conductivity

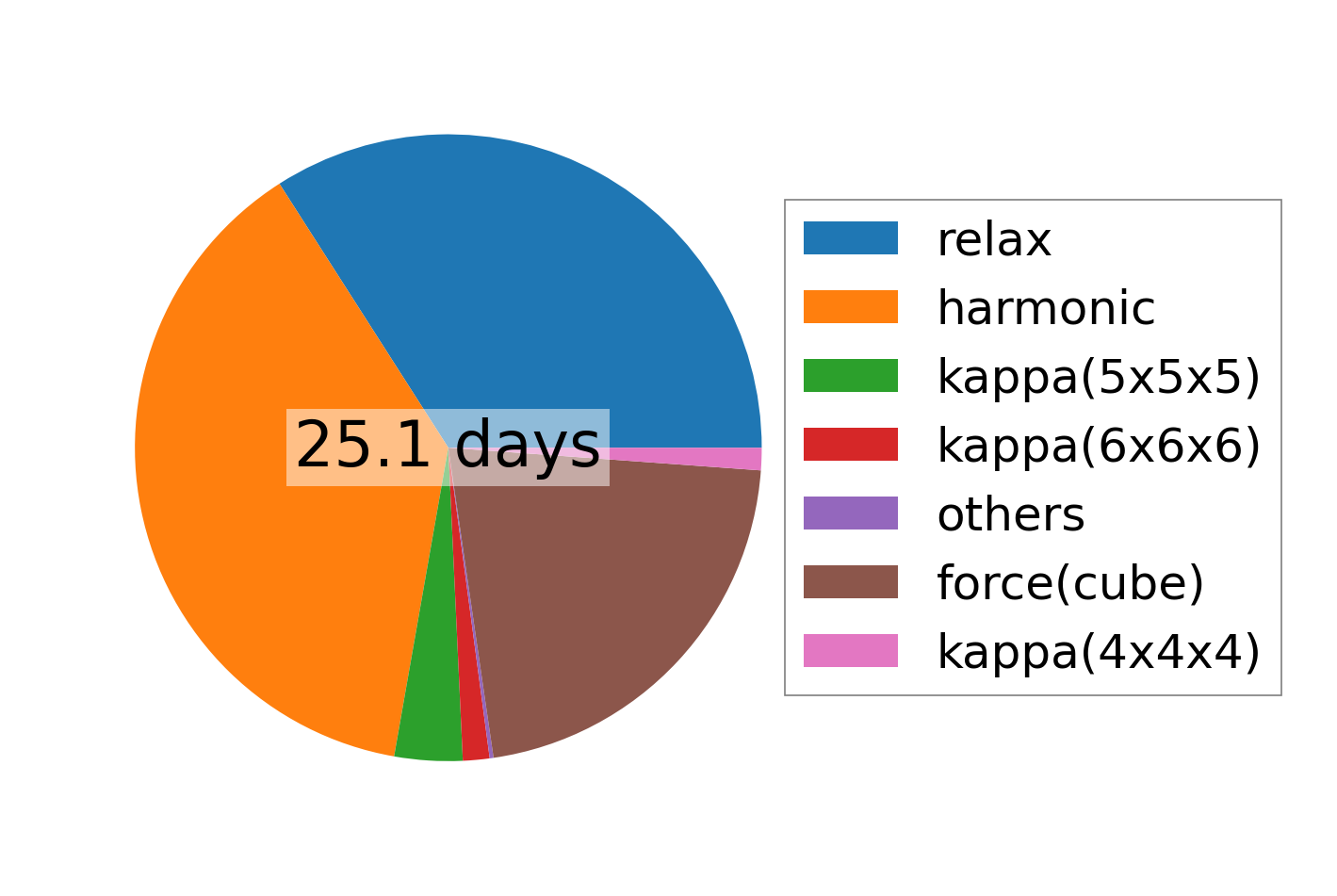

../../_images/fig_times13033.png — (b) Computation time
