mp-561511/FeAsS/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-561511.tar.gz

Harmonic properties

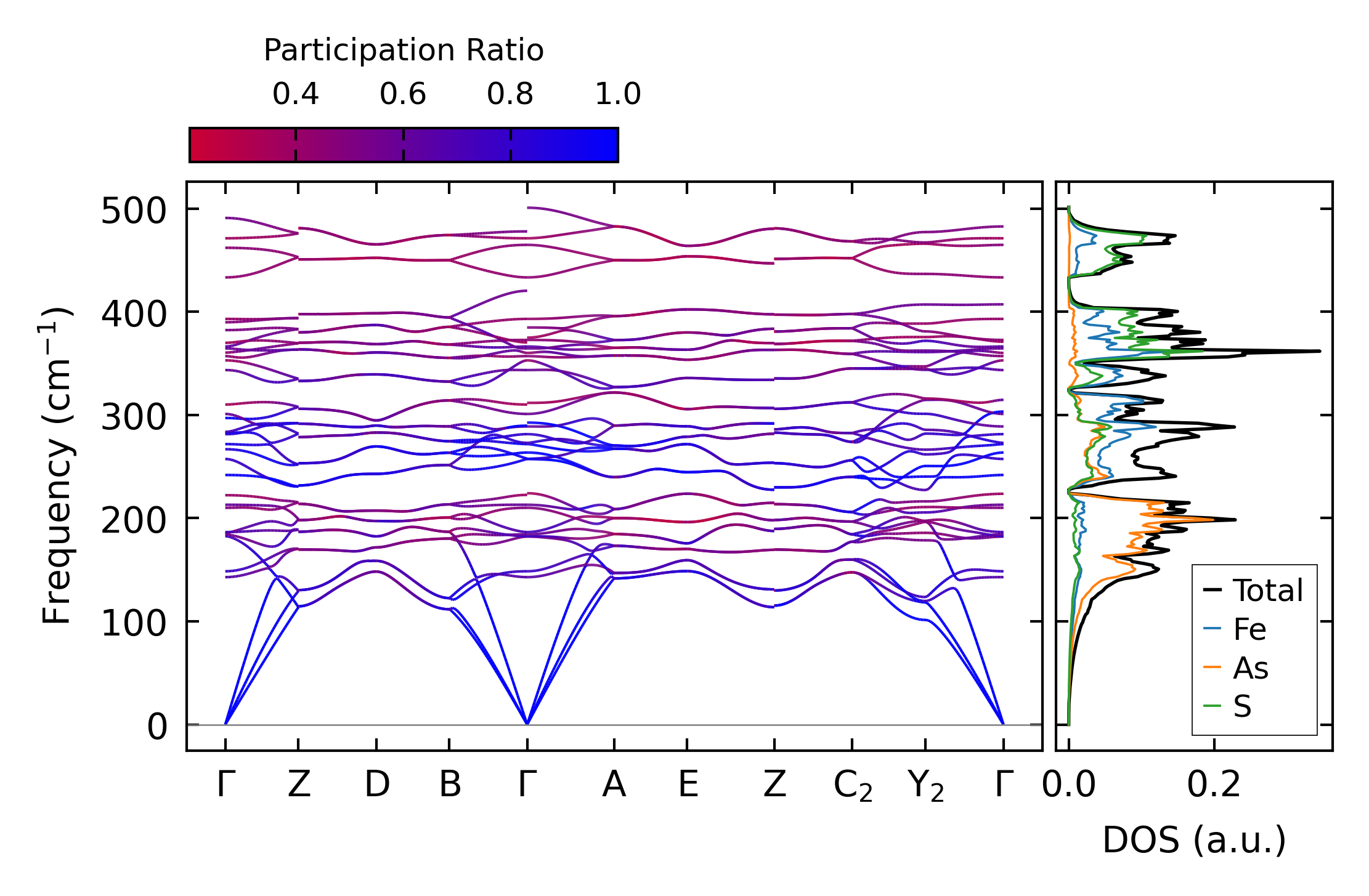

../../_images/fig_bandos_pr7410.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo7410.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all3105.png — (a) Grüneisen parameters

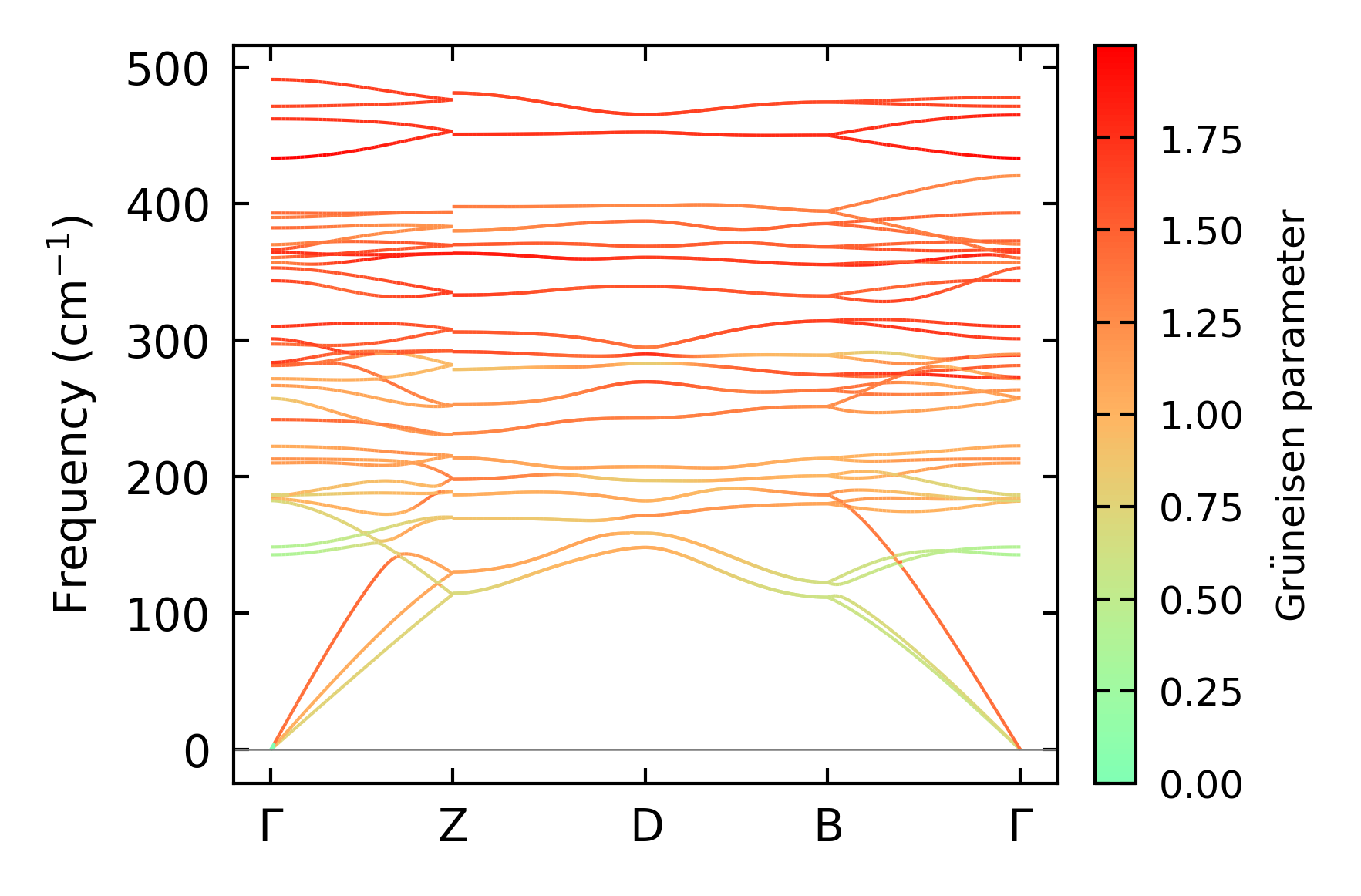

../../_images/fig_gruneisen3105.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x13x12, supercell: 2x3x2

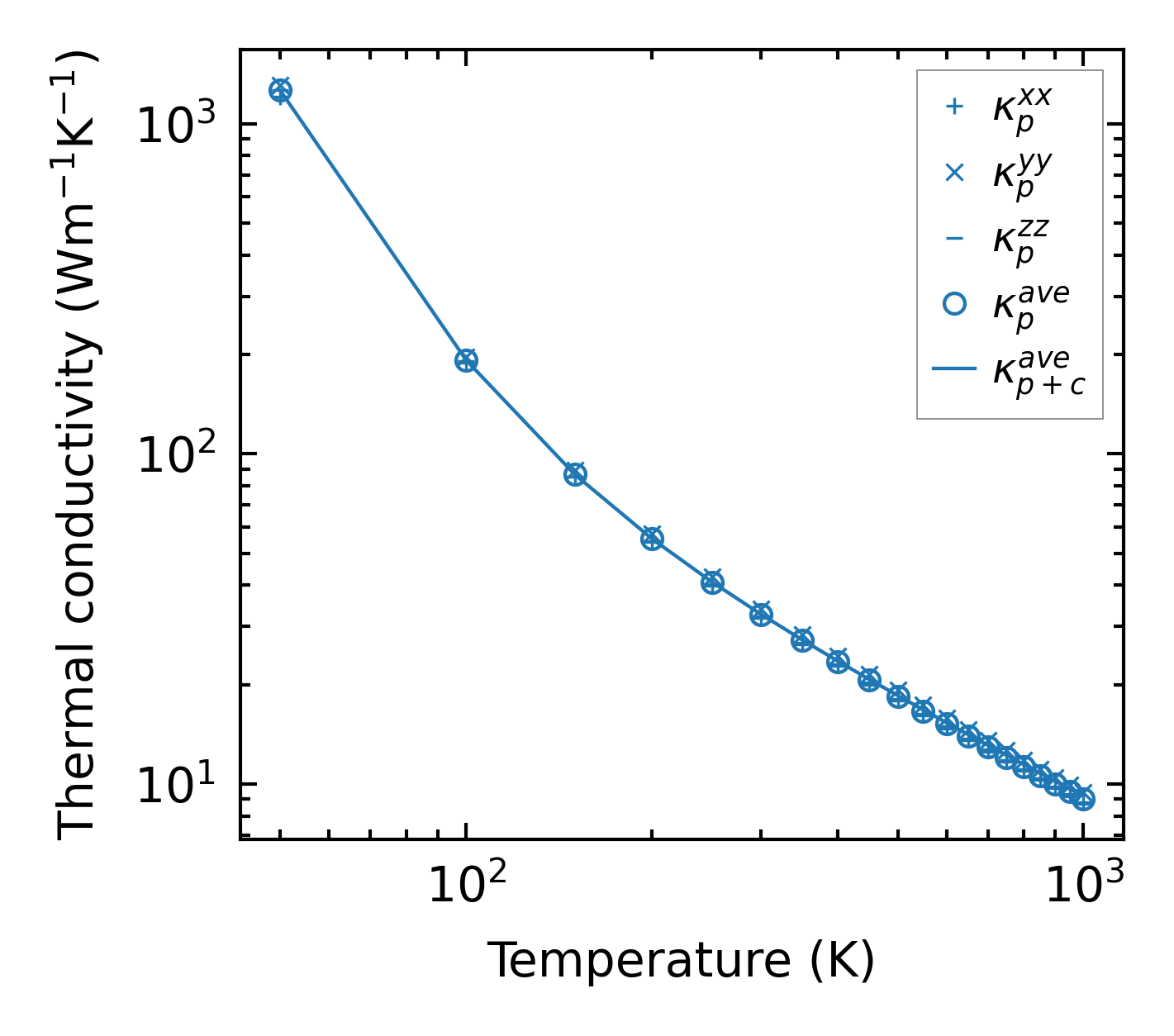

../../_images/fig_kappa5879.png — (a) Temperature-dependent lattice thermal conductivity

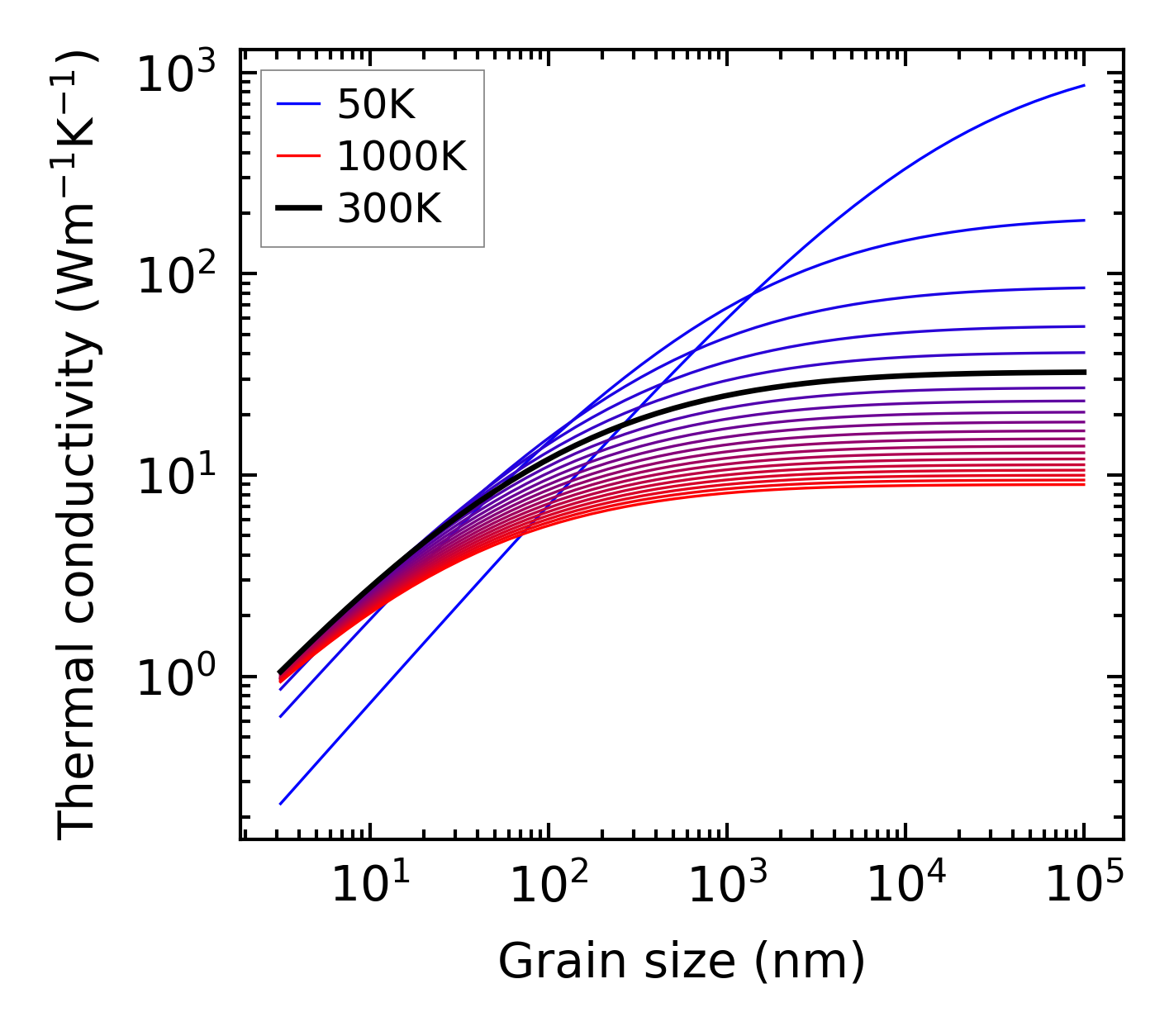

../../_images/fig_kappa_vs_grain_size3146.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

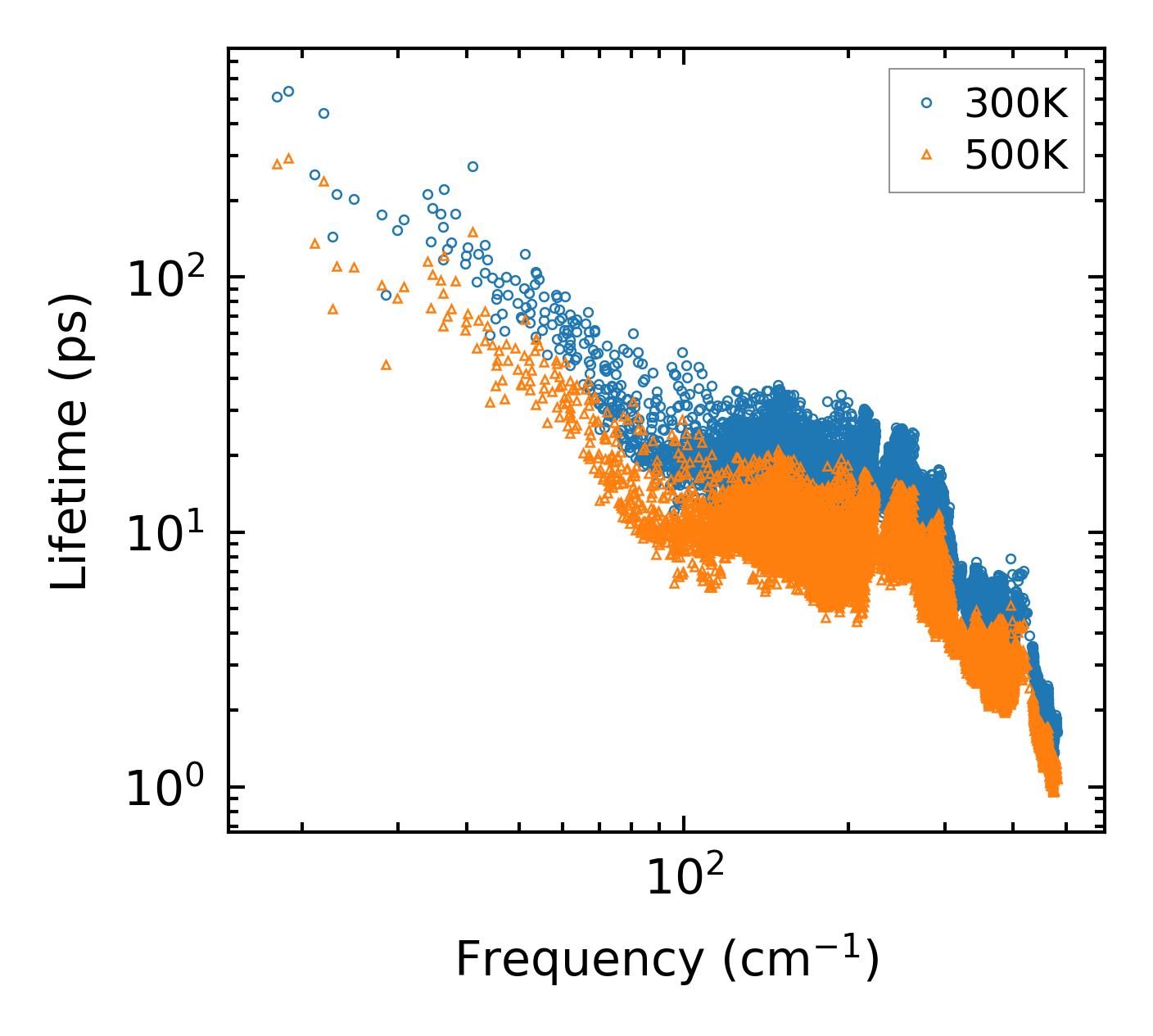

../../_images/fig_lifetime3078.png — (a) Phonon lifetime due to phonon-phonon scattering

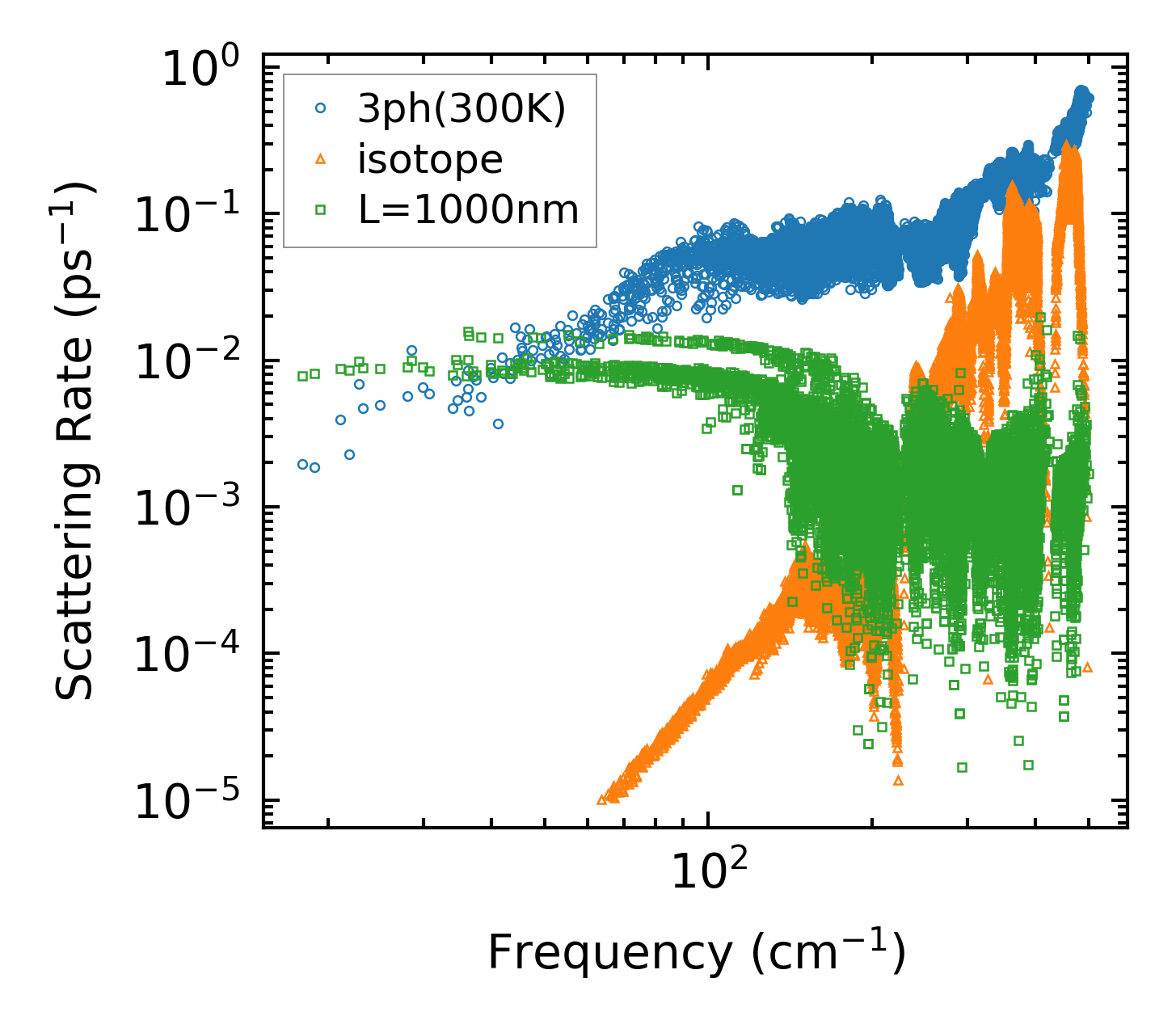

../../_images/fig_scat_rates3077.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

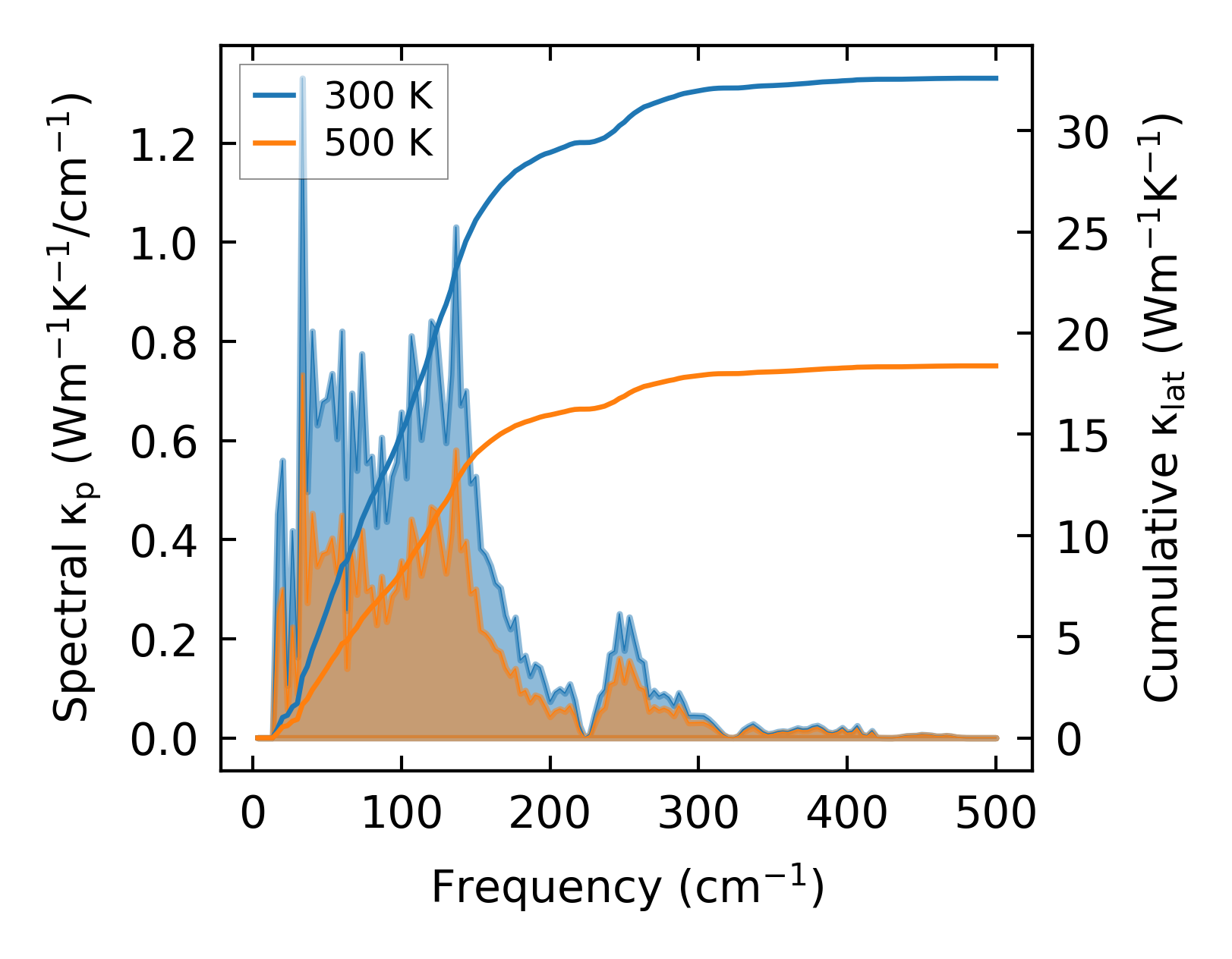

../../_images/fig_cumu_frequency3078.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp3077.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc27174.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa5880.png — (a) Temperature-dependent lattice thermal conductivity

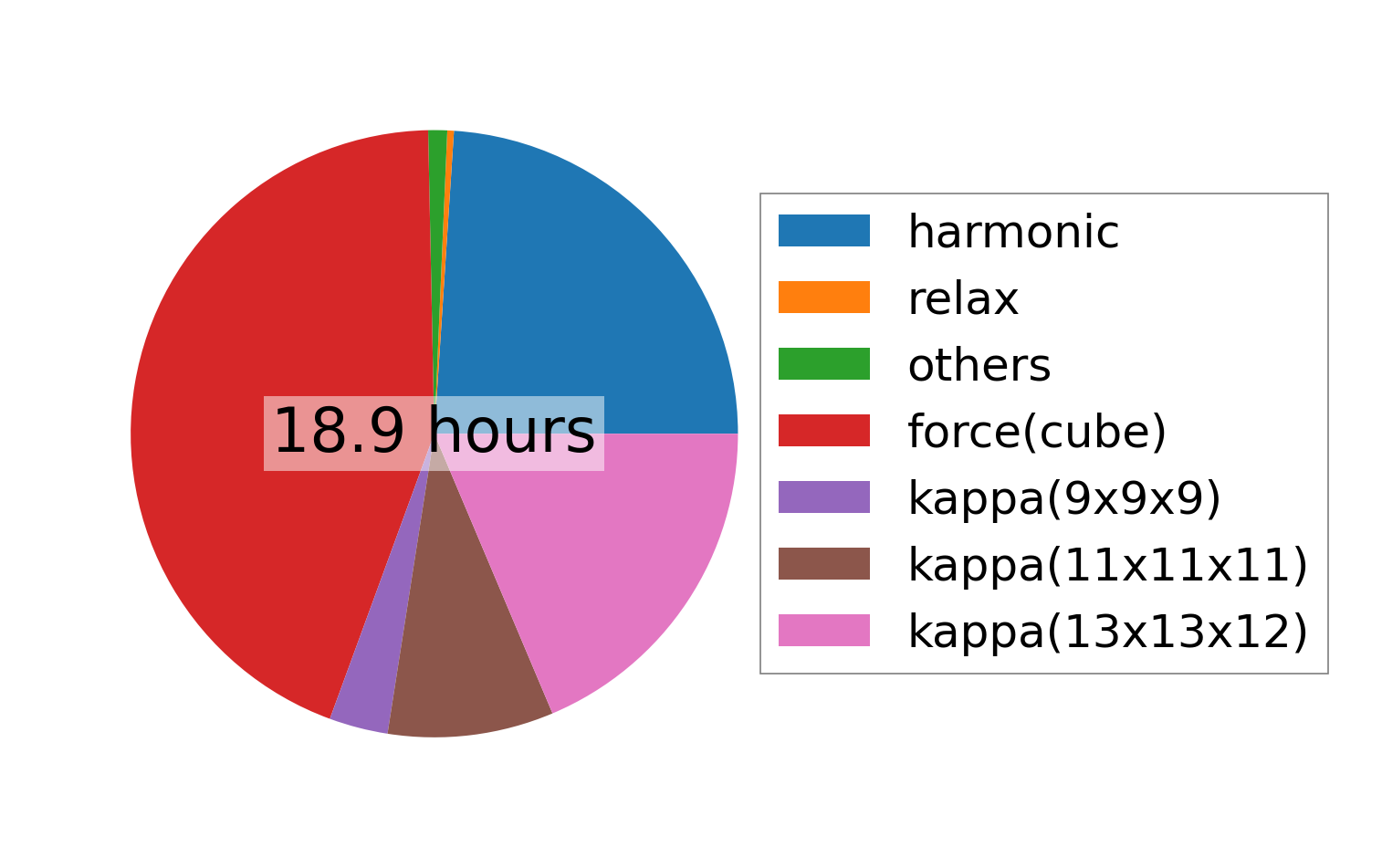

../../_images/fig_times13135.png — (b) Computation time
