mp-561013-2/Ga2PbO4/anharm

Space group: Ama2 (40)
Link: Materials Project
Download: mp-561013-2.tar.gz

Equation of state

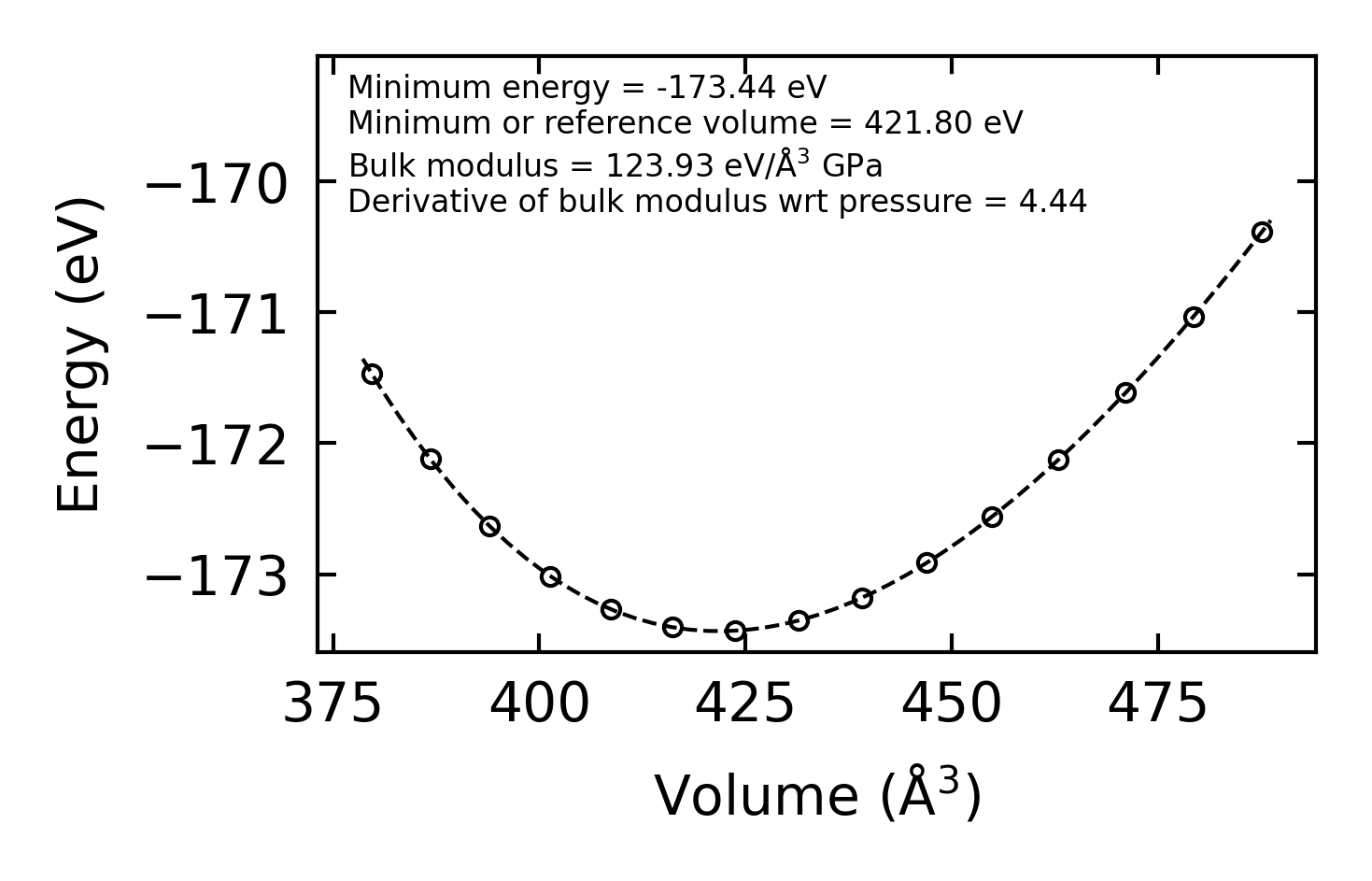

../../_images/fig_bm3968.png — (a) Equation of state

Harmonic properties

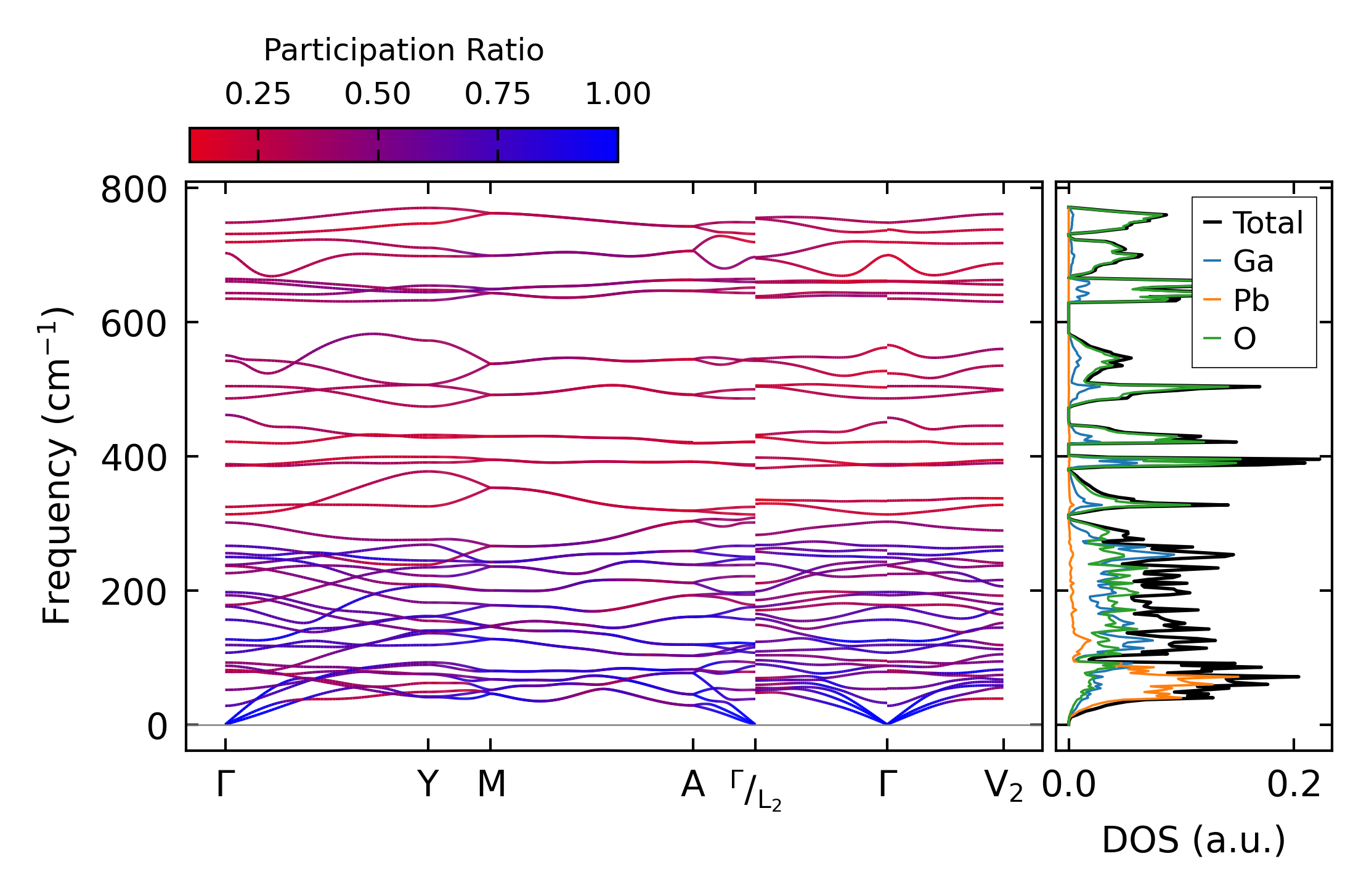

../../_images/fig_bandos_pr7620.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos10708.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo7620.png — (c) Thermodynamic properties

Grüneisen parameters

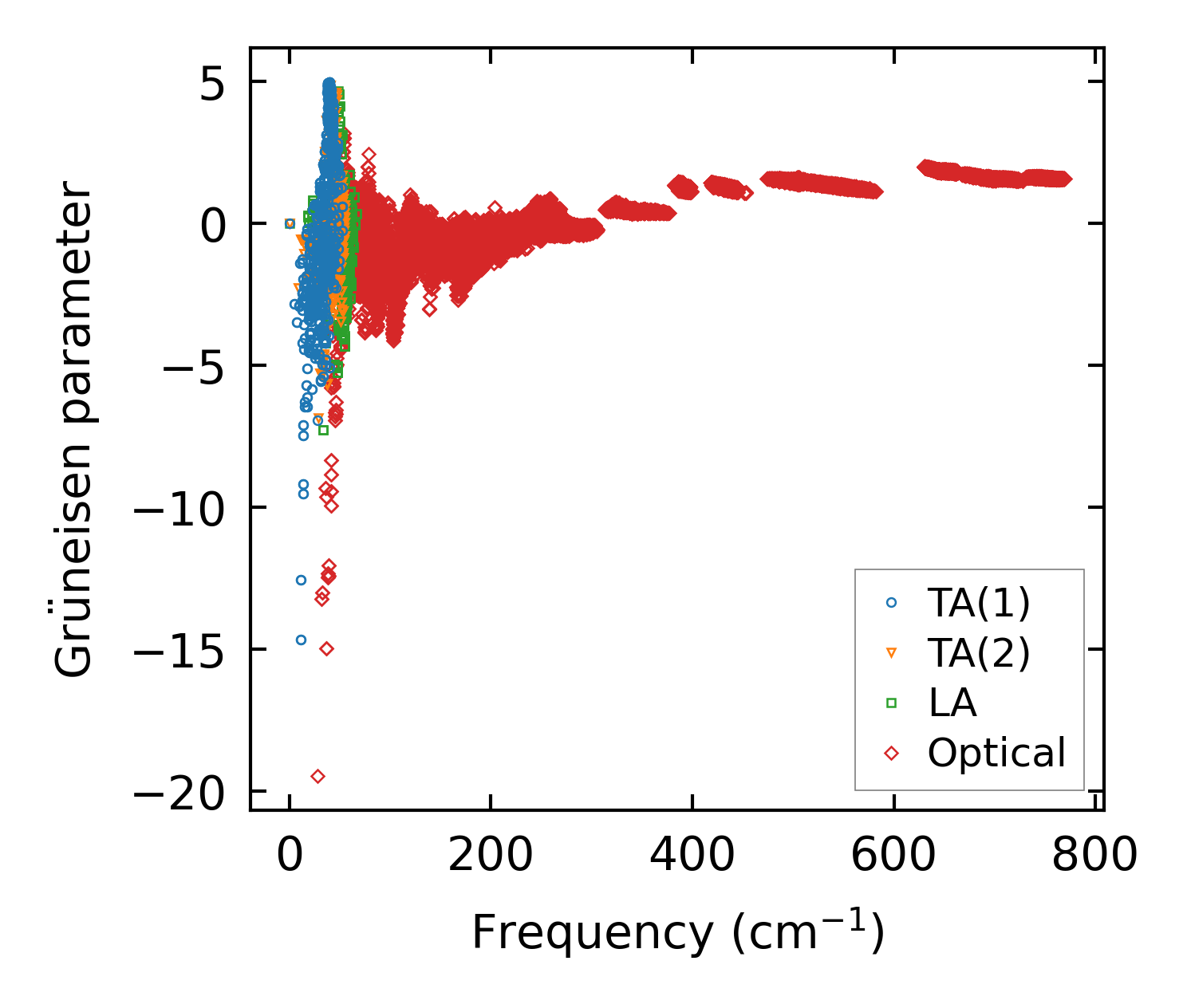

../../_images/fig_gru_all3193.png — (a) Grüneisen parameters

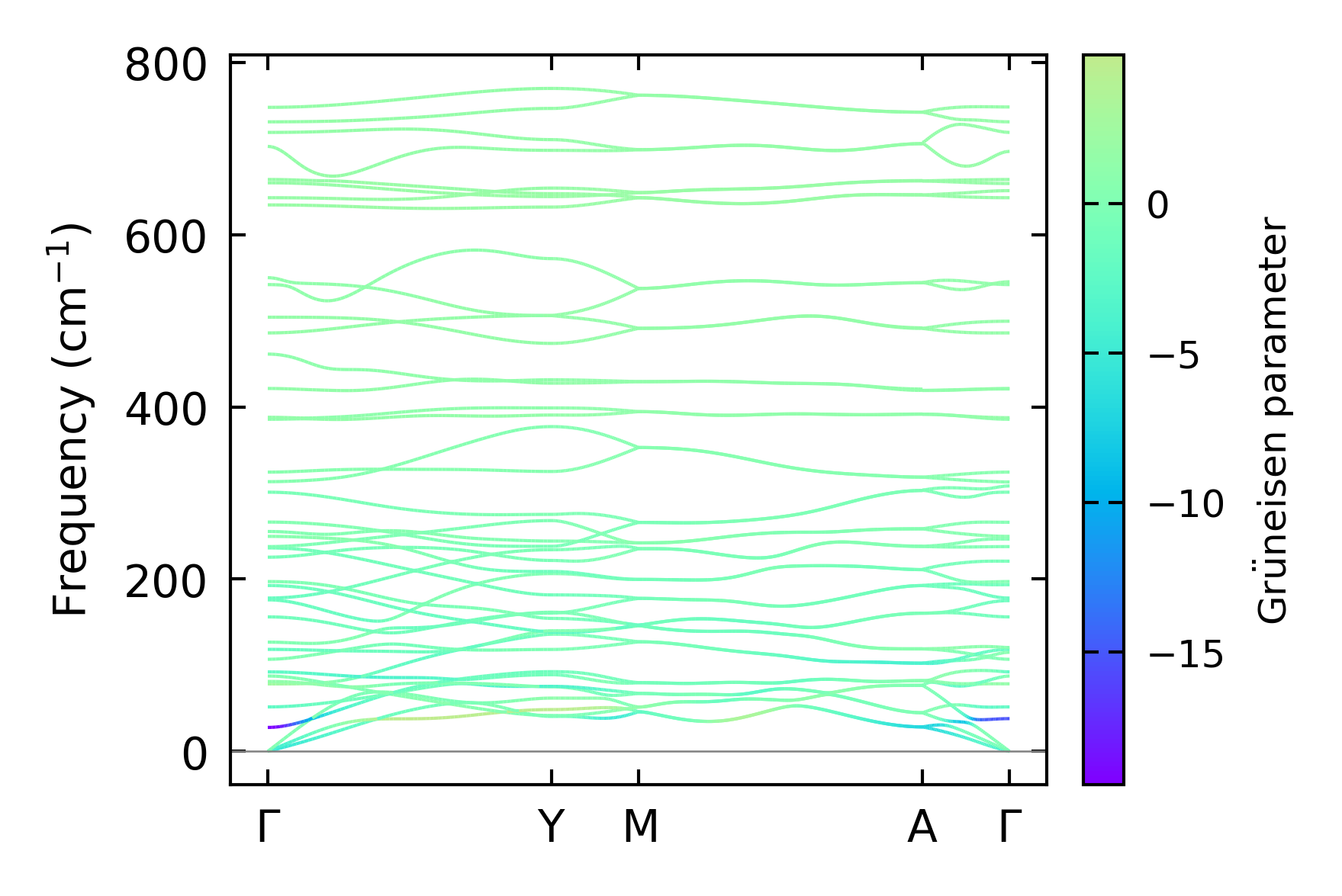

../../_images/fig_gruneisen3193.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x14x8, supercell: 2x1x2

../../_images/fig_kappa6045.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size3234.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime3165.png — (a) Phonon lifetime due to phonon-phonon scattering

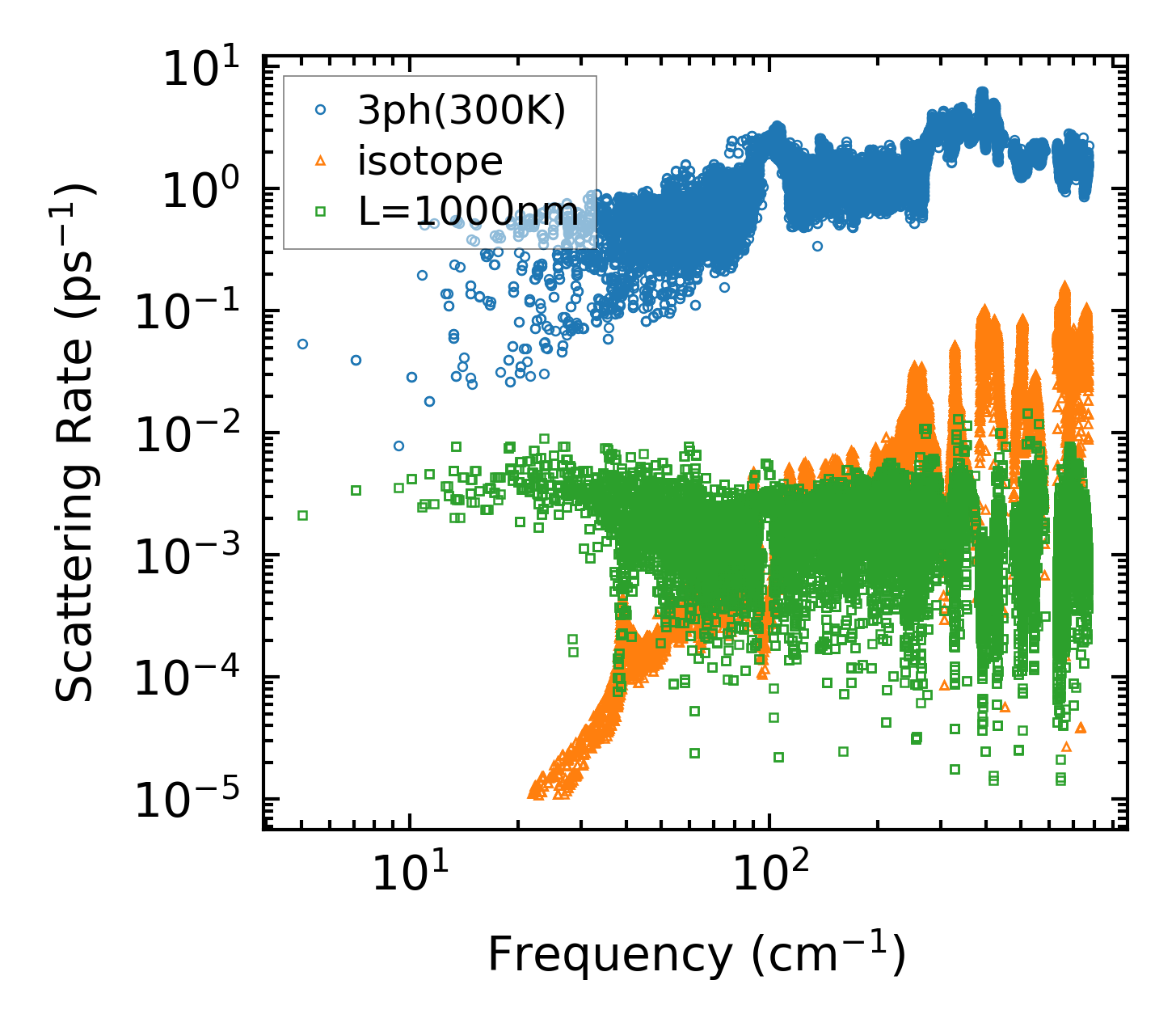

../../_images/fig_scat_rates3164.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

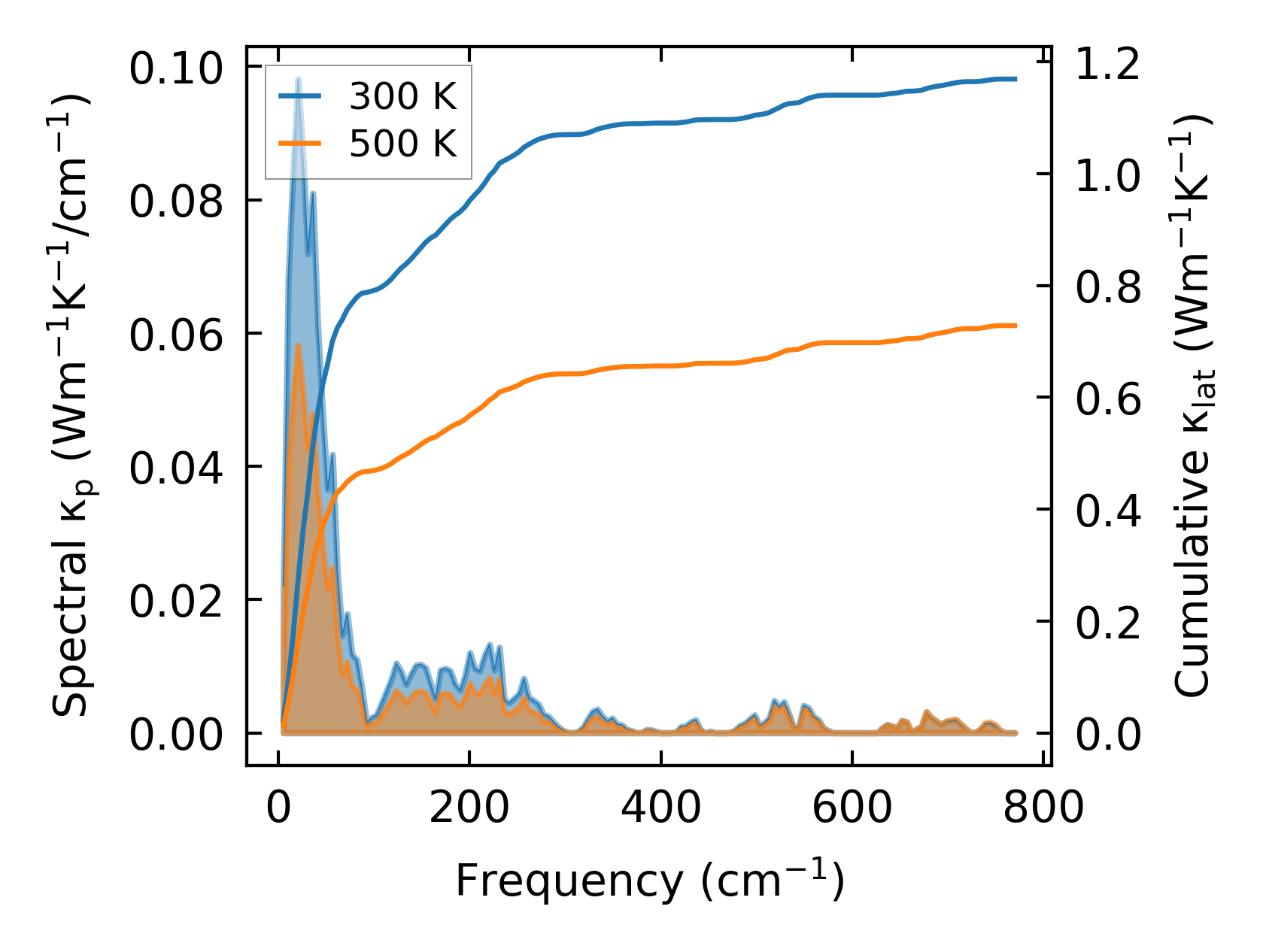

../../_images/fig_cumu_frequency3165.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp3164.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

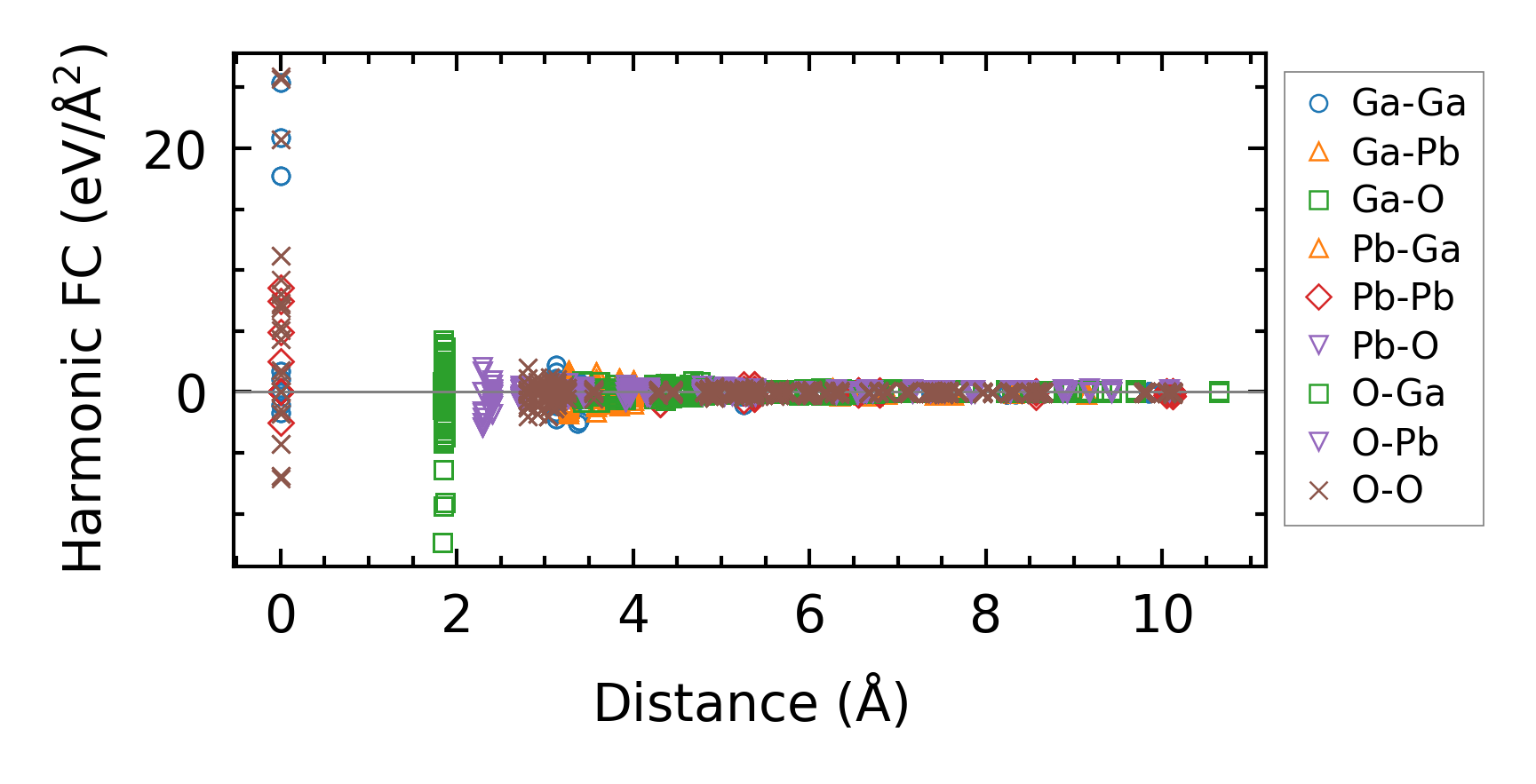

../../_images/fig_fc27383.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa6046.png — (a) Temperature-dependent lattice thermal conductivity

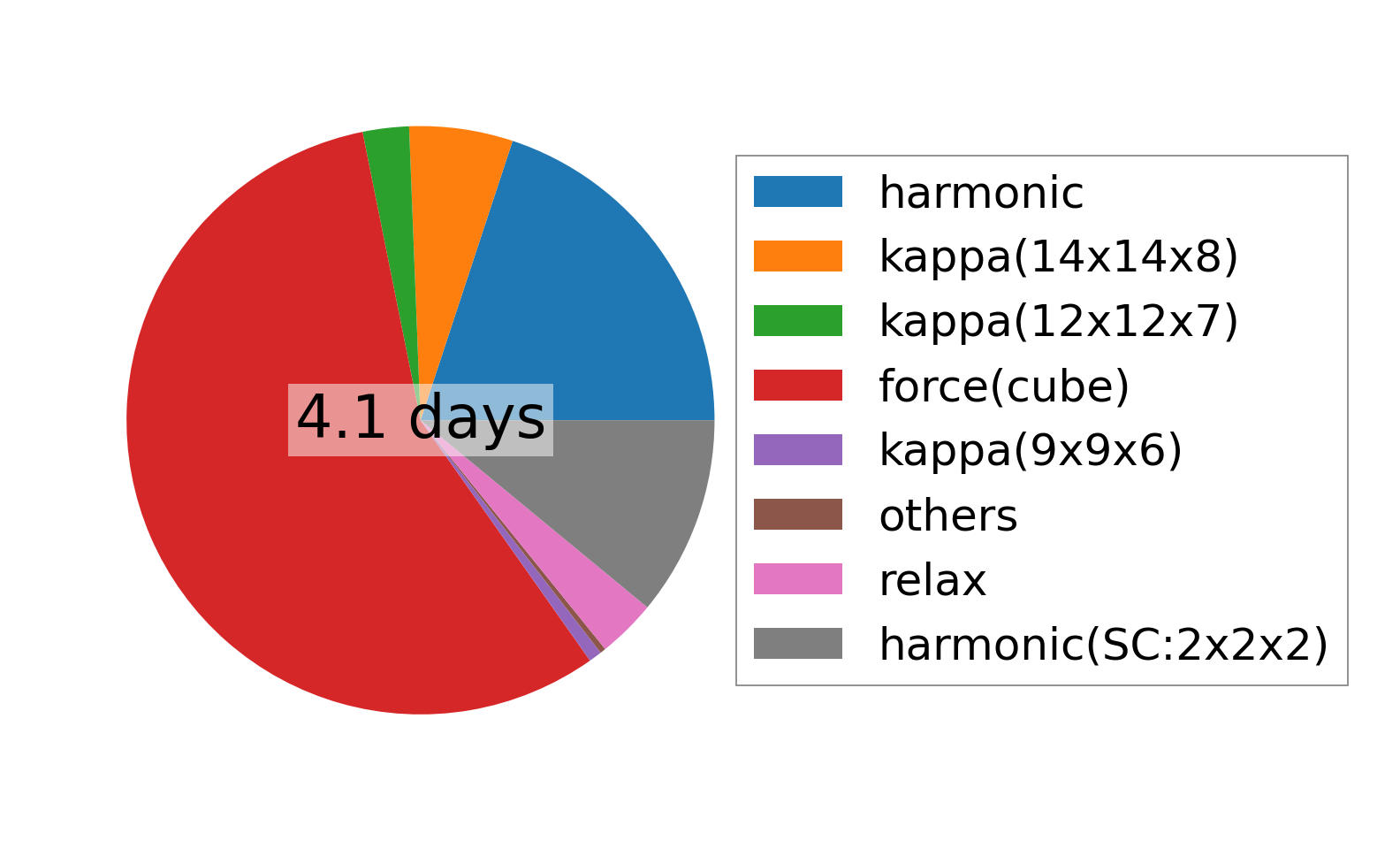

../../_images/fig_times13475.png — (b) Computation time
