mp-561536-2/NaMgBO3/anharm

Space group: C2/c (15)
Link: Materials Project
Download: mp-561536-2.tar.gz

Equation of state

../../_images/fig_bm3907.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr7417.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo7417.png — (b) Thermodynamic properties

Grüneisen parameters

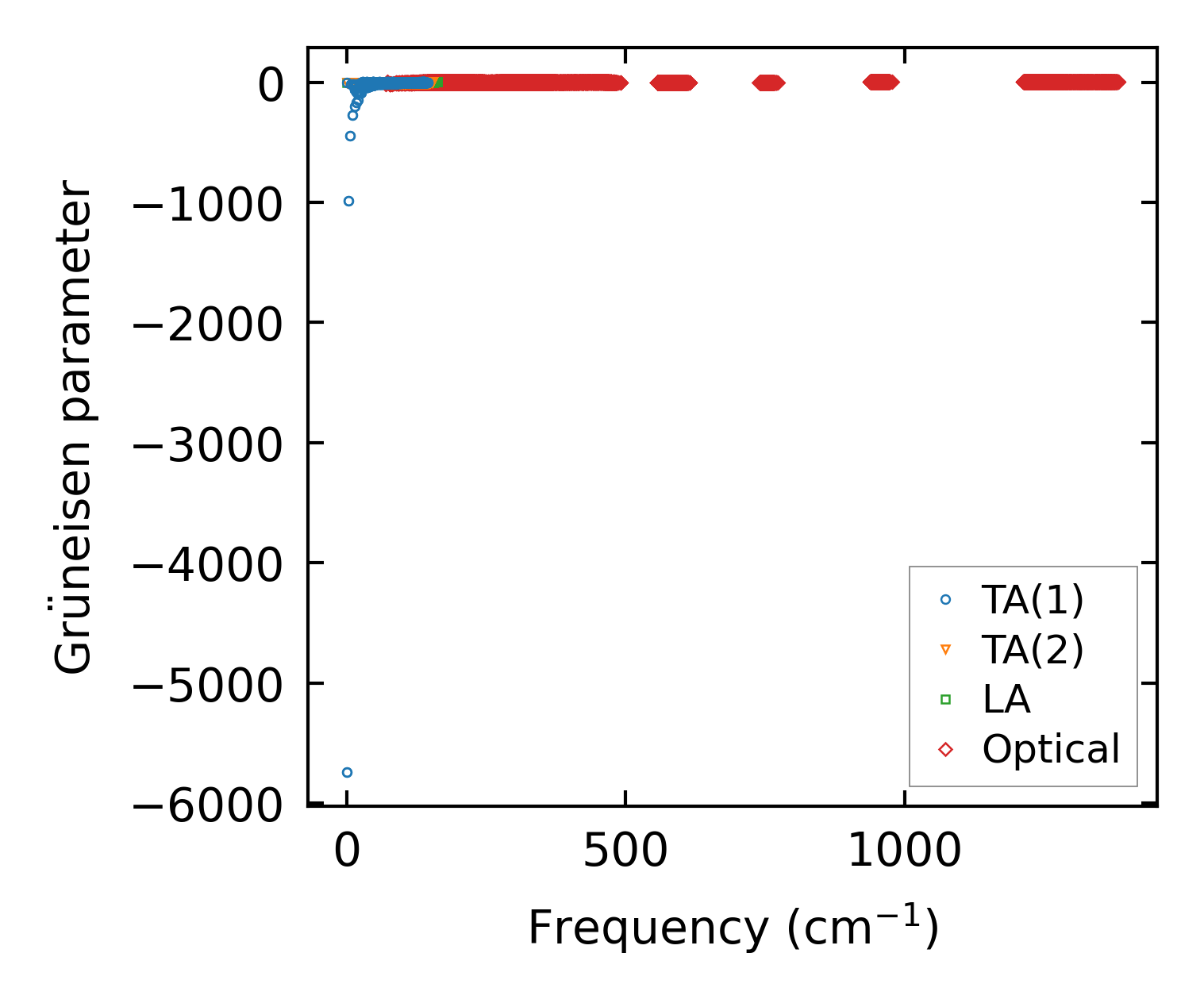

../../_images/fig_gru_all3107.png — (a) Grüneisen parameters

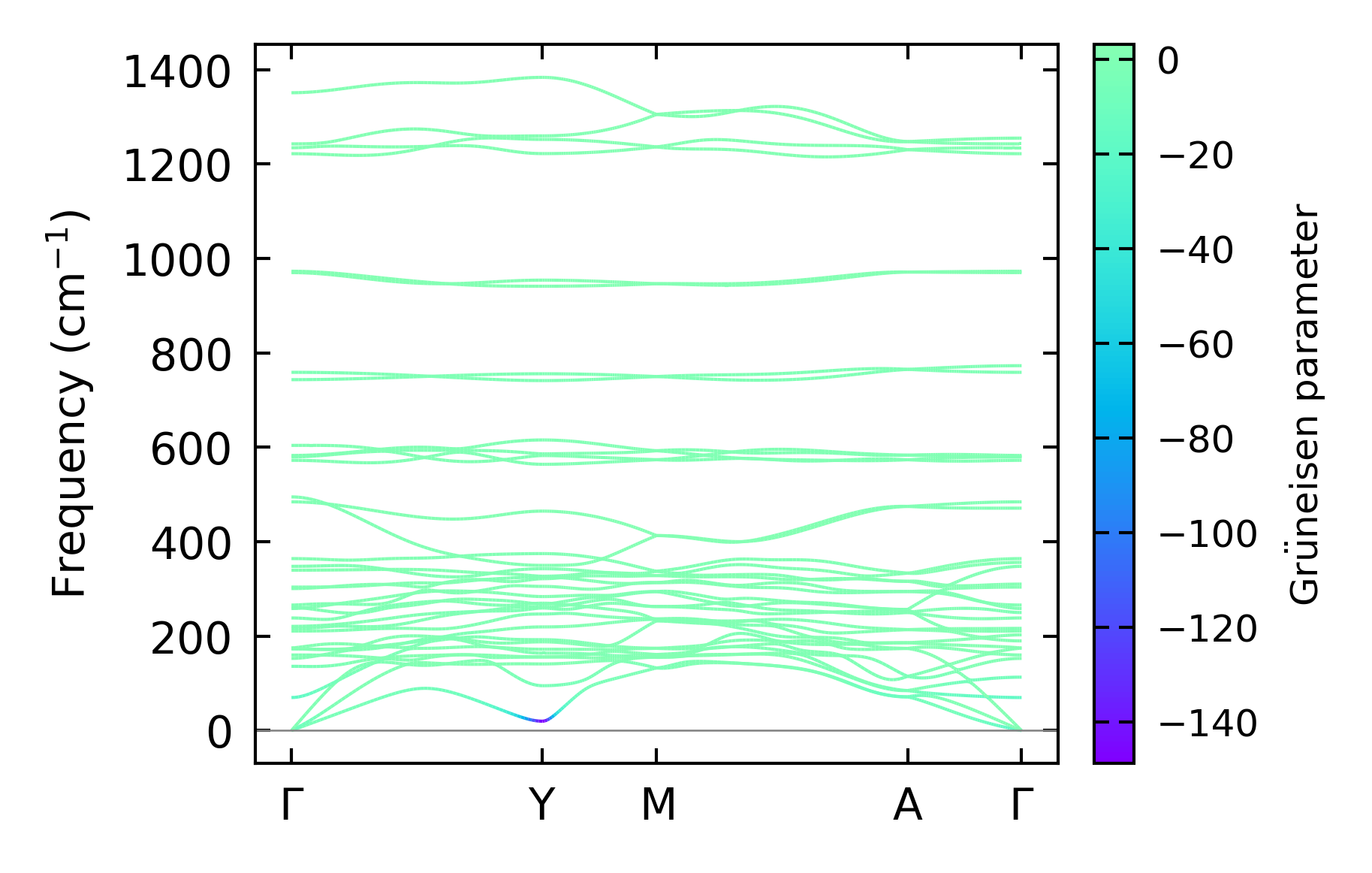

../../_images/fig_gruneisen3107.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 15x15x13, supercell: 2x1x2

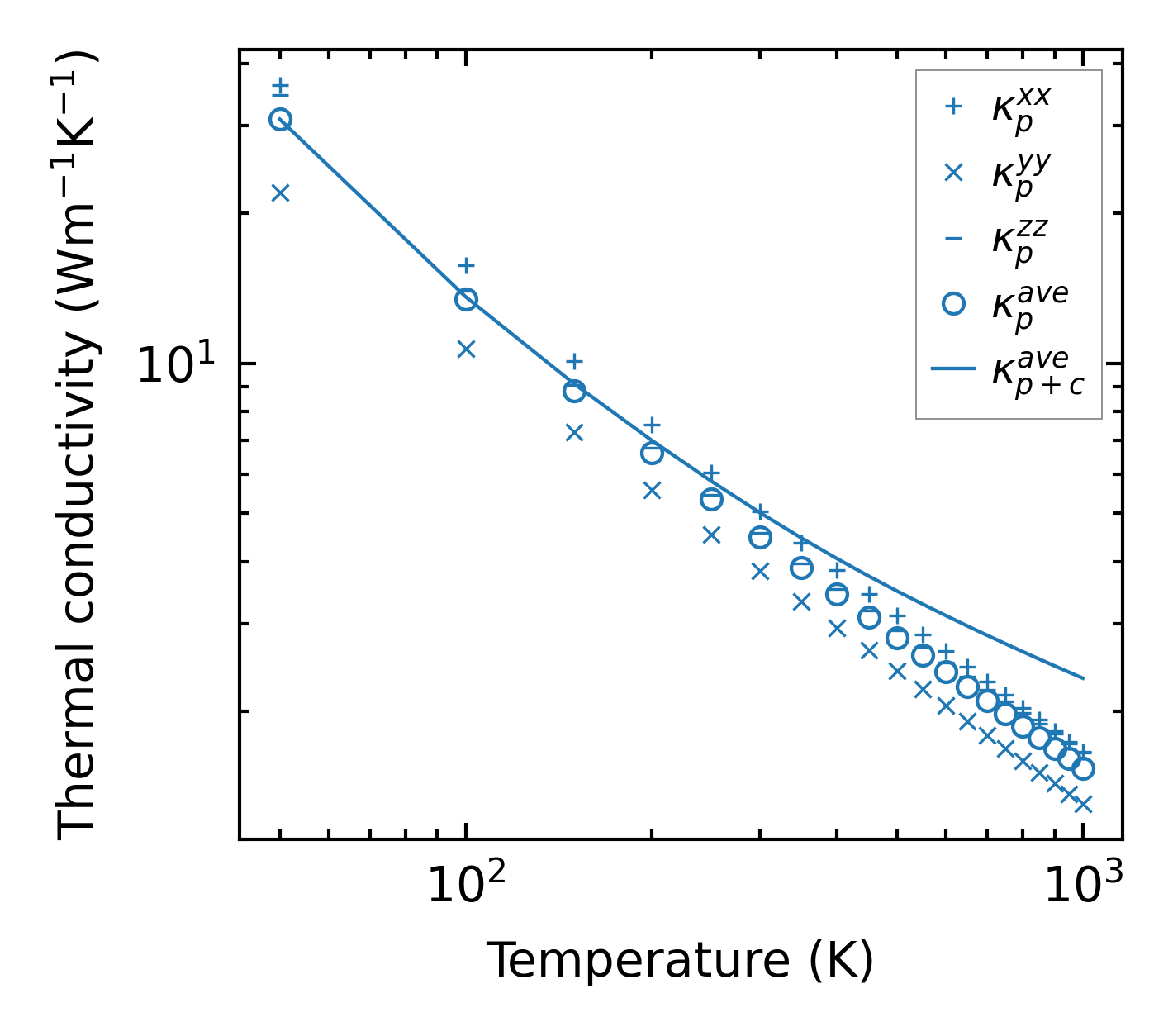

../../_images/fig_kappa5883.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size3148.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

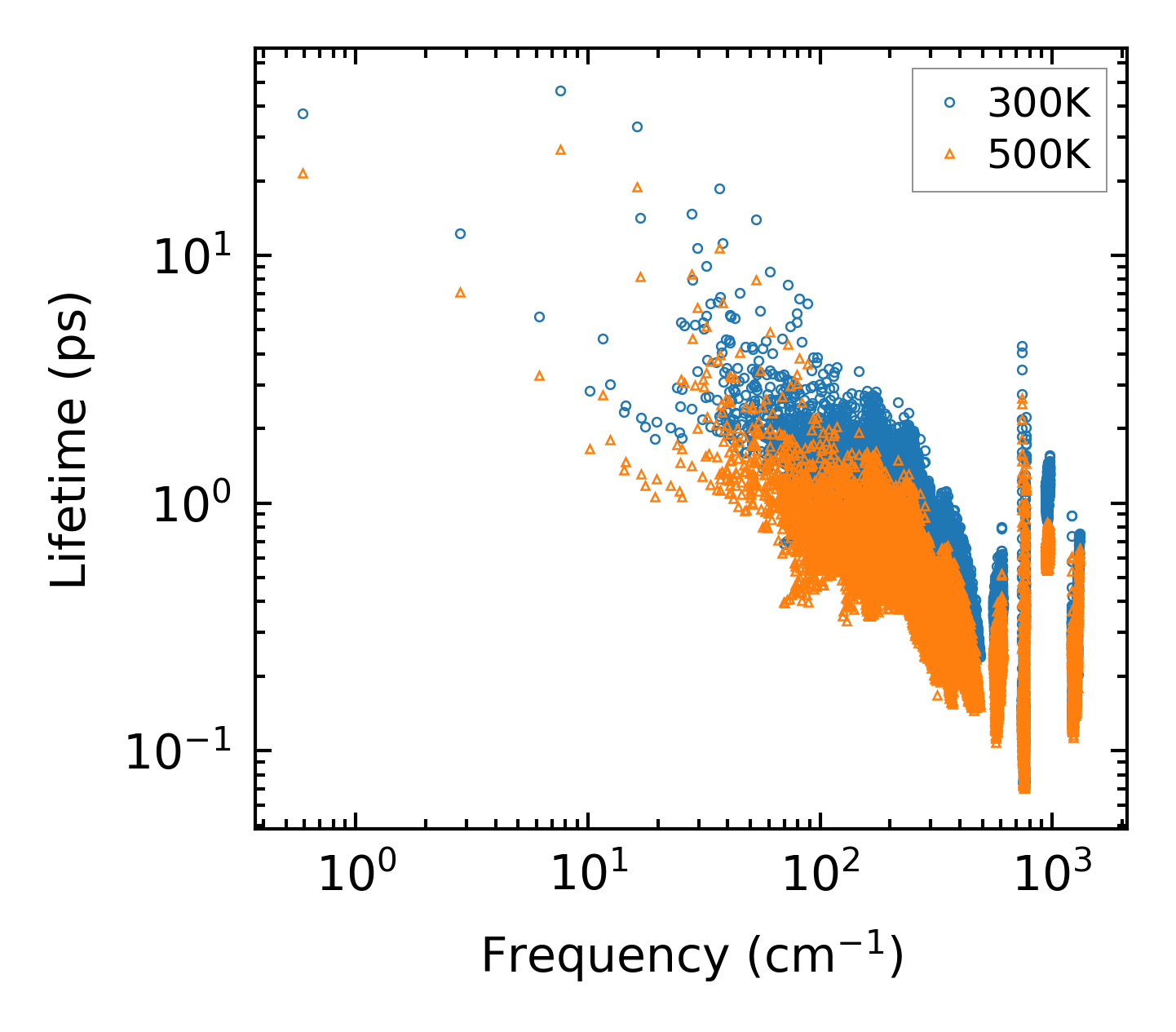

../../_images/fig_lifetime3080.png — (a) Phonon lifetime due to phonon-phonon scattering

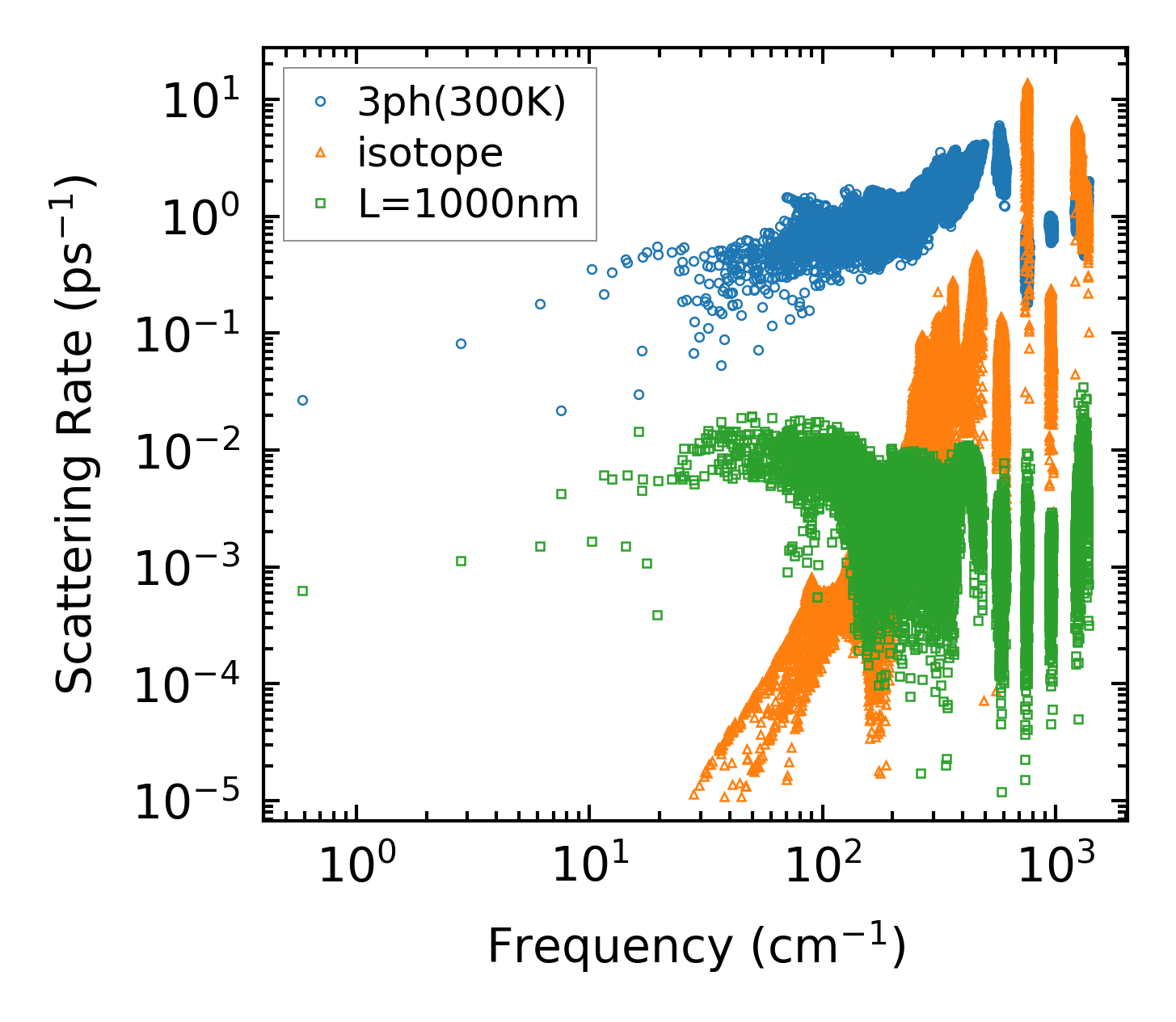

../../_images/fig_scat_rates3079.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

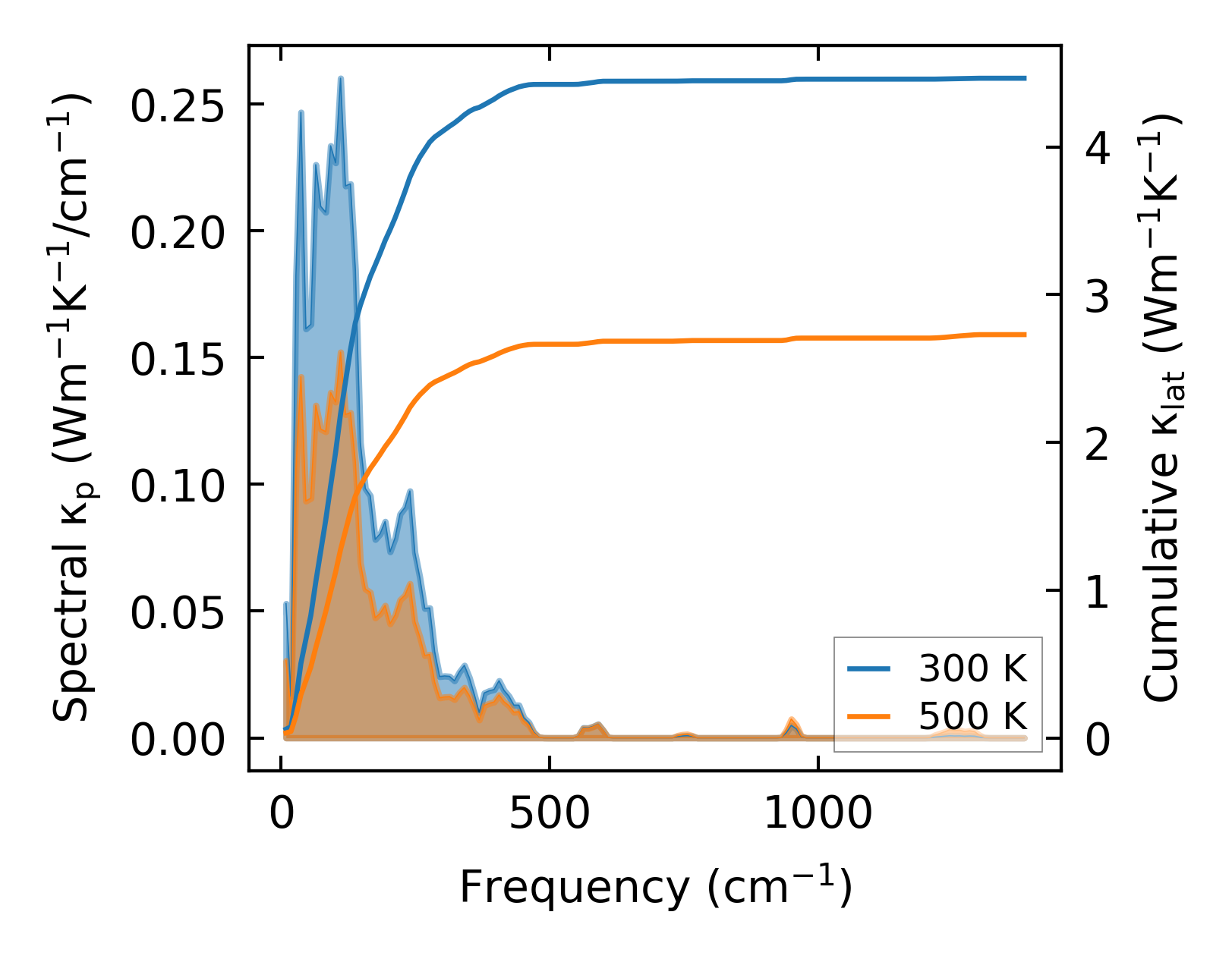

../../_images/fig_cumu_frequency3080.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

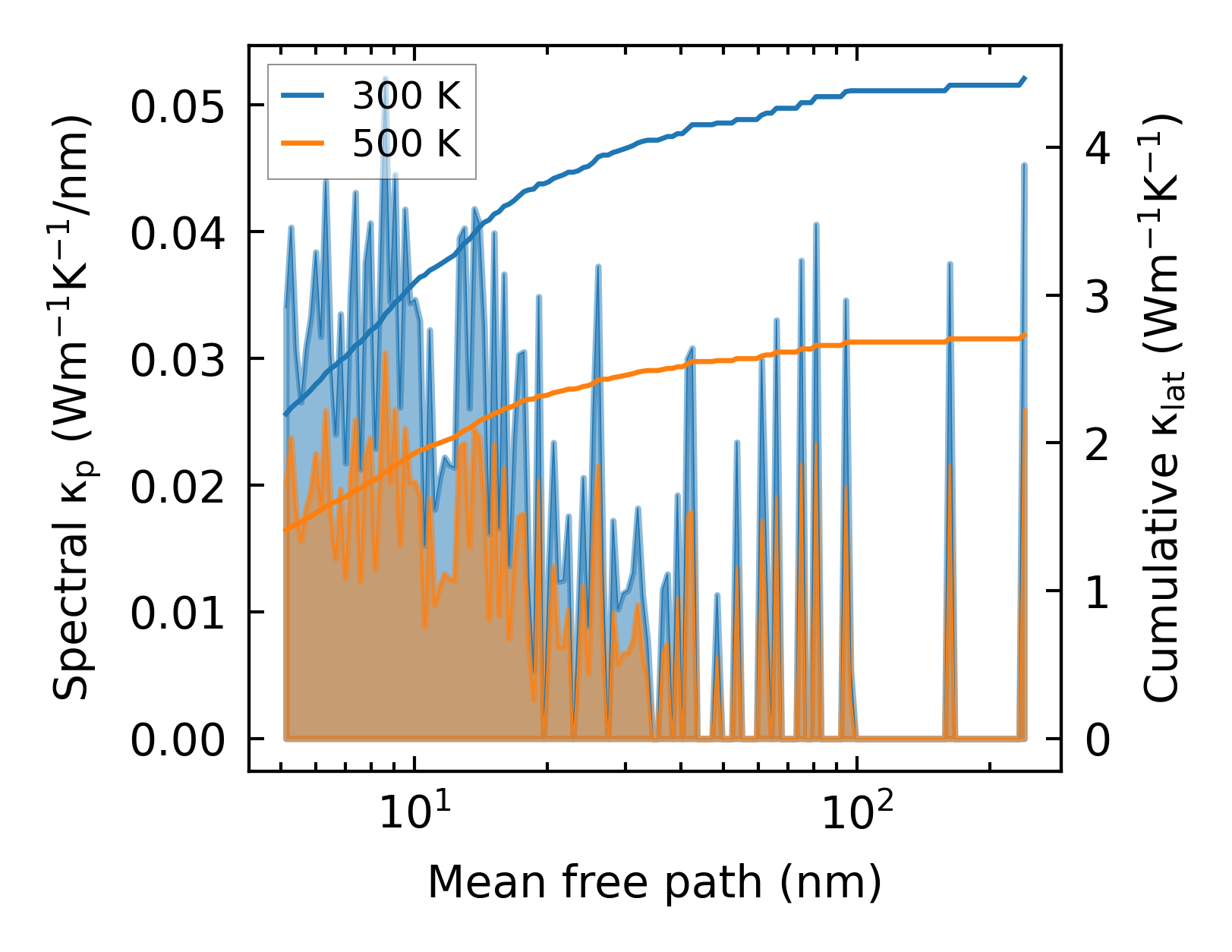

../../_images/fig_cumu_mfp3079.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc27181.png — (a) Force constants w.r.t atomic distance

Summary

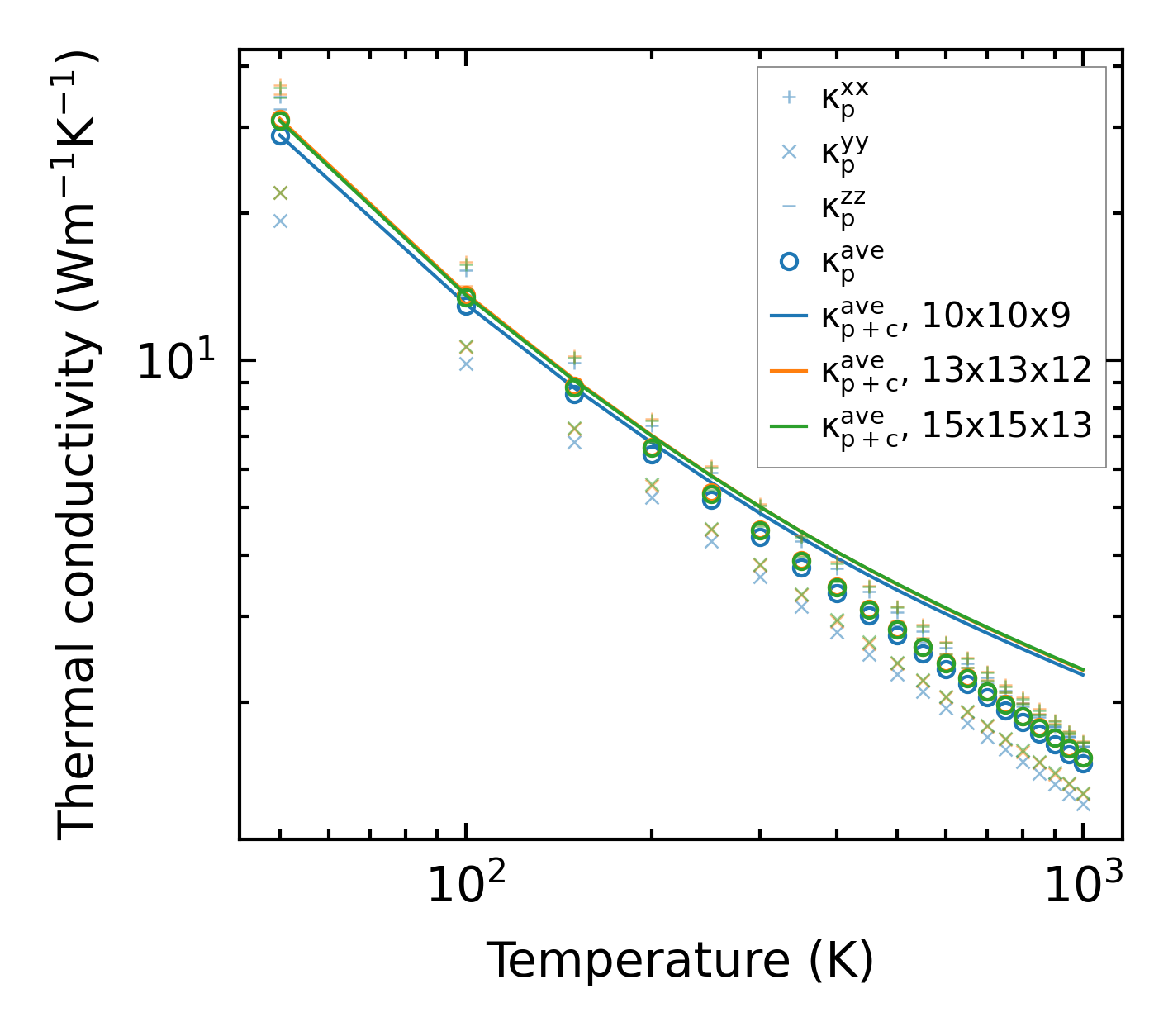

../../_images/fig_kappa5884.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times13145.png — (b) Computation time
