mp-30314/Cs2PdCl4/anharm

Space group: P4/mmm (123)
Link: Materials Project
Download: mp-30314.tar.gz

Harmonic properties

../../_images/fig_bandos_pr11102.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo11102.png — (b) Thermodynamic properties

Grüneisen parameters

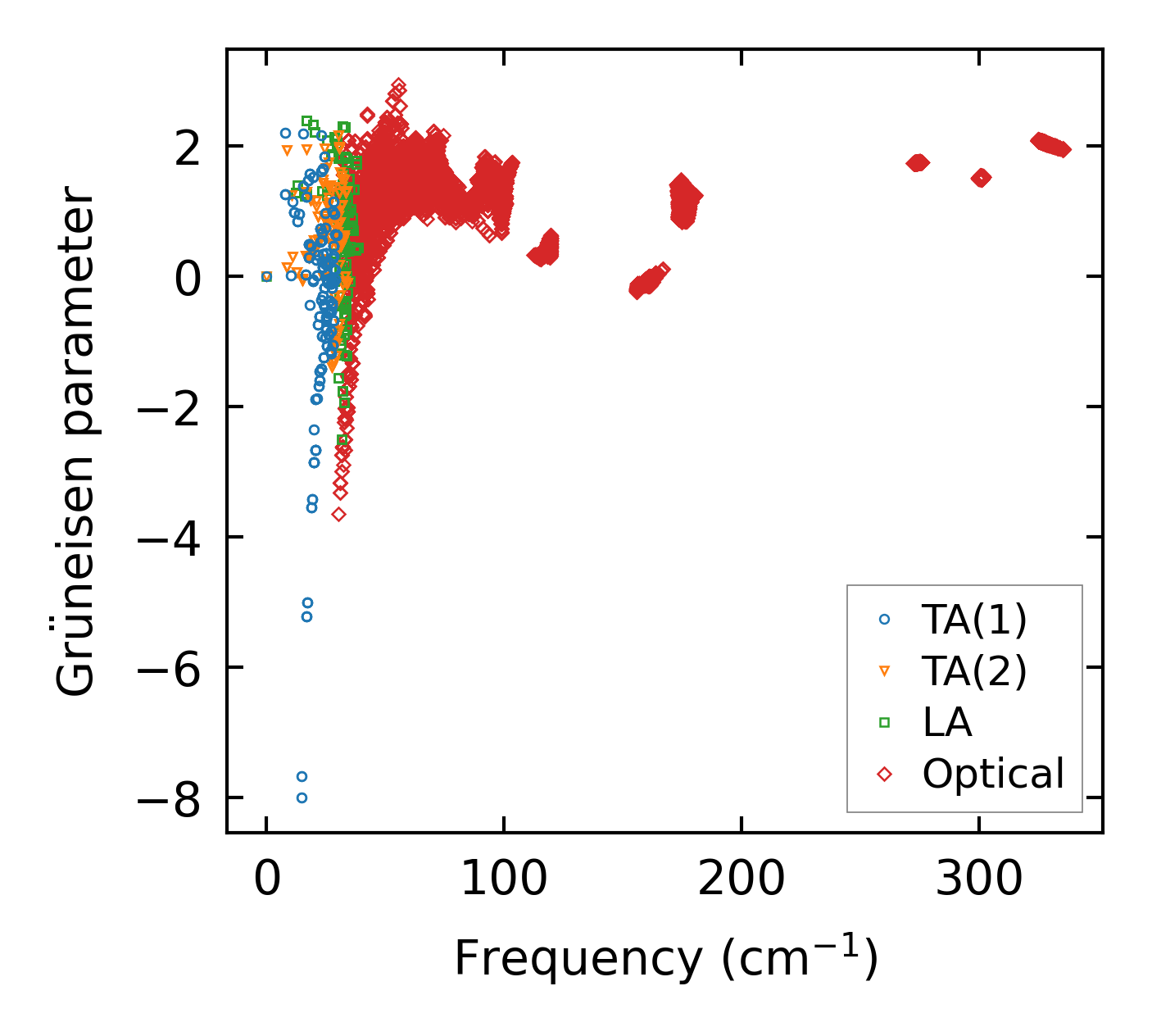

../../_images/fig_gru_all4572.png — (a) Grüneisen parameters

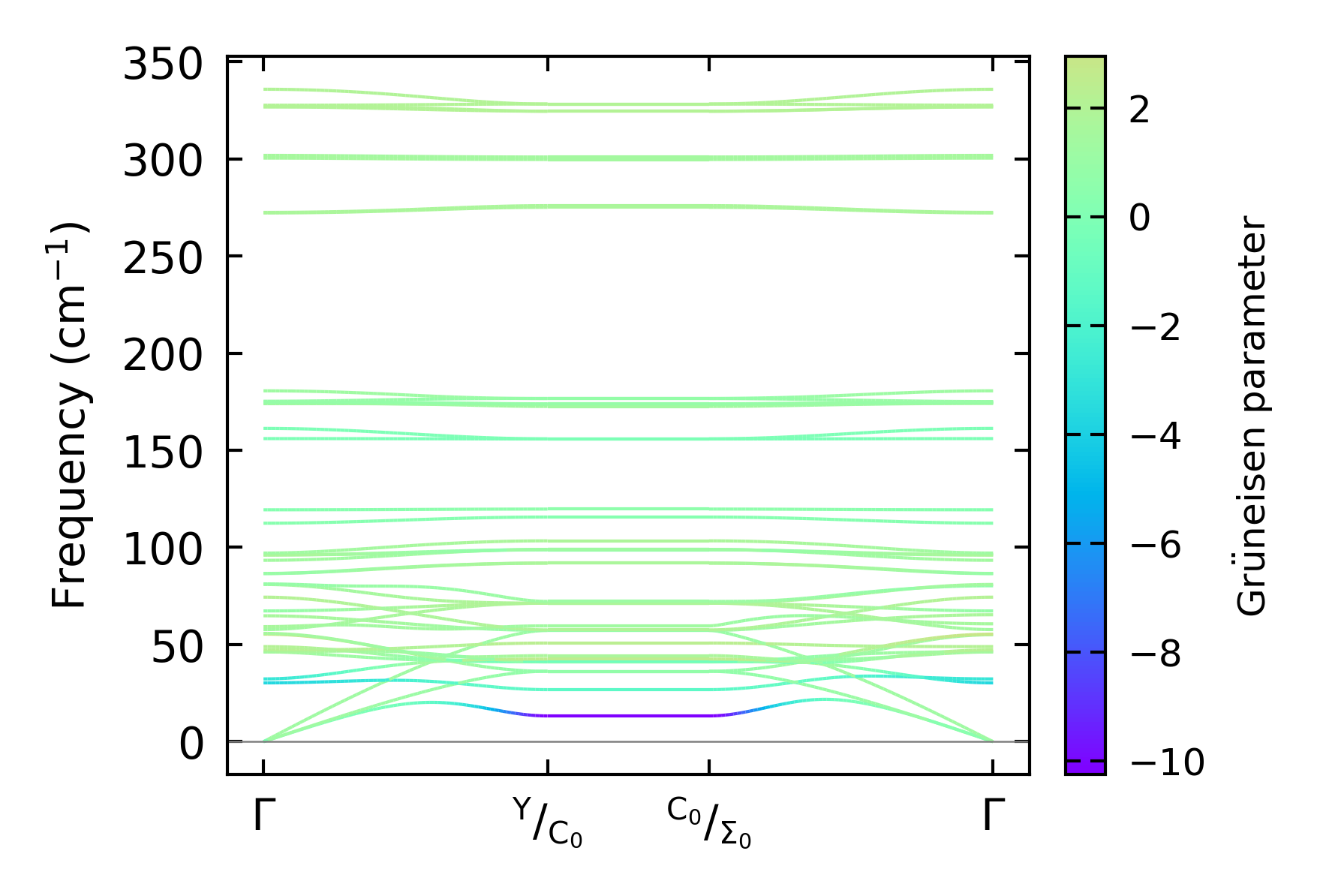

../../_images/fig_gruneisen4572.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 9x9x7, supercell: 1x2x2

../../_images/fig_kappa8629.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size4627.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

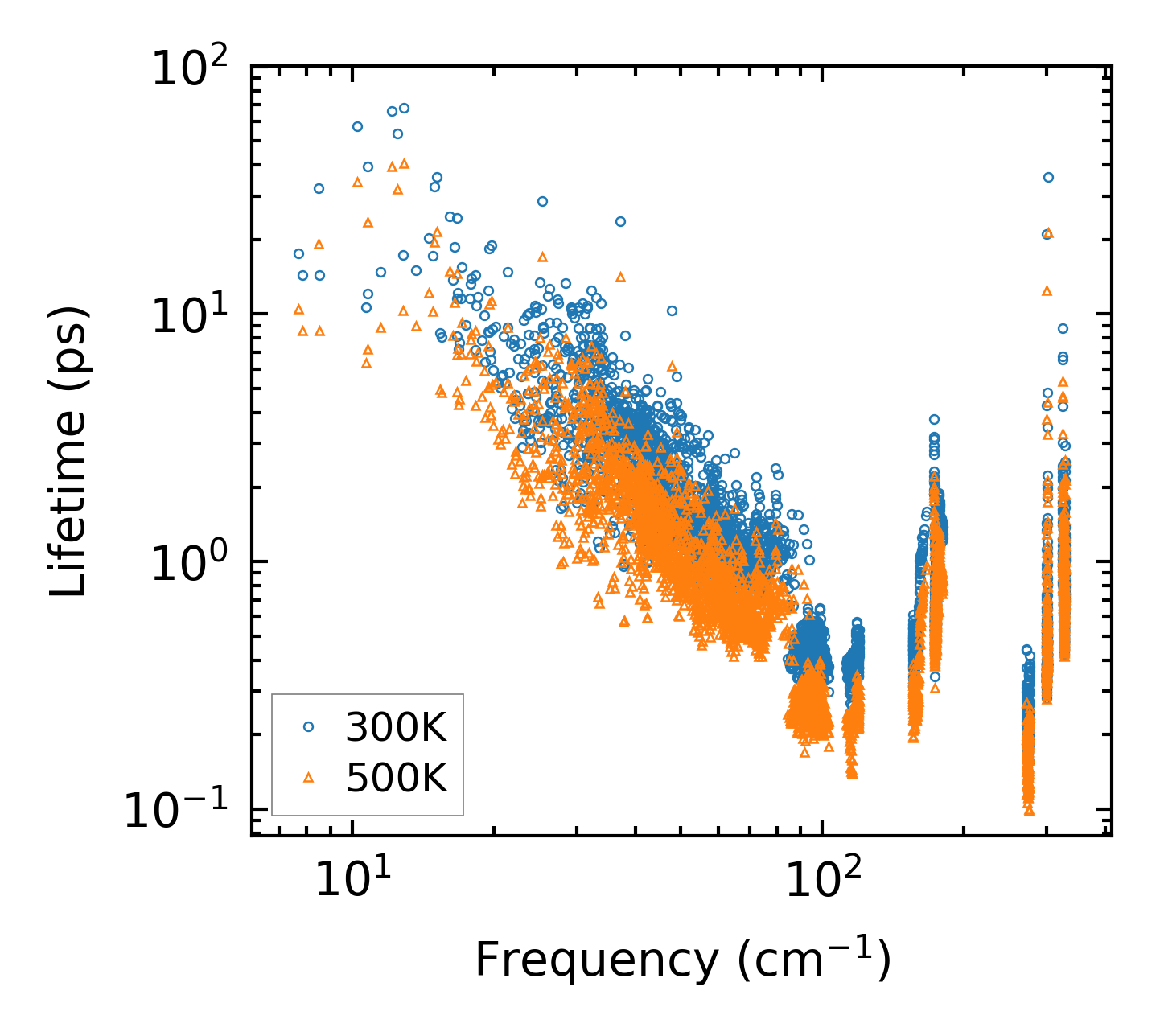

../../_images/fig_lifetime4528.png — (a) Phonon lifetime due to phonon-phonon scattering

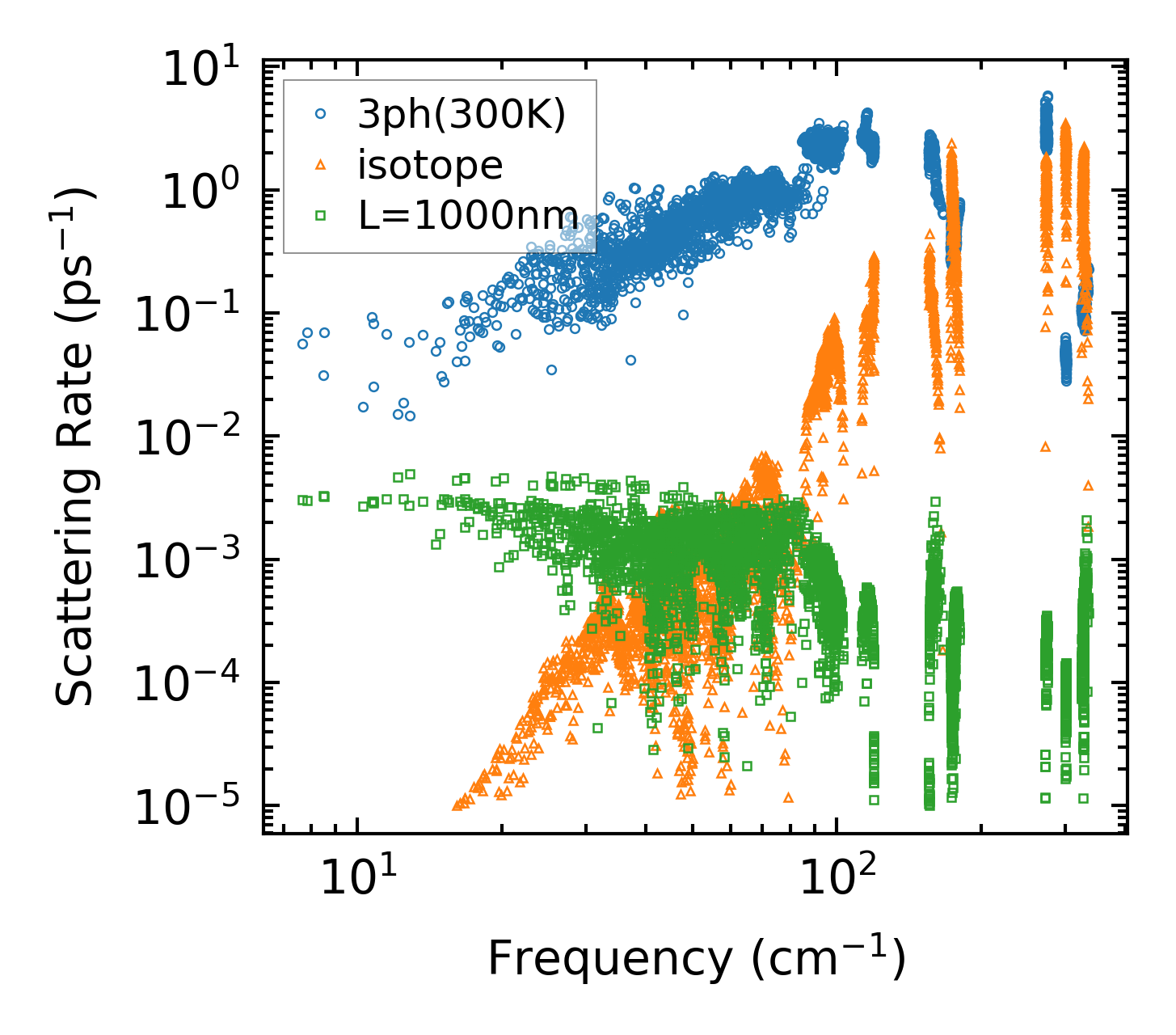

../../_images/fig_scat_rates4527.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

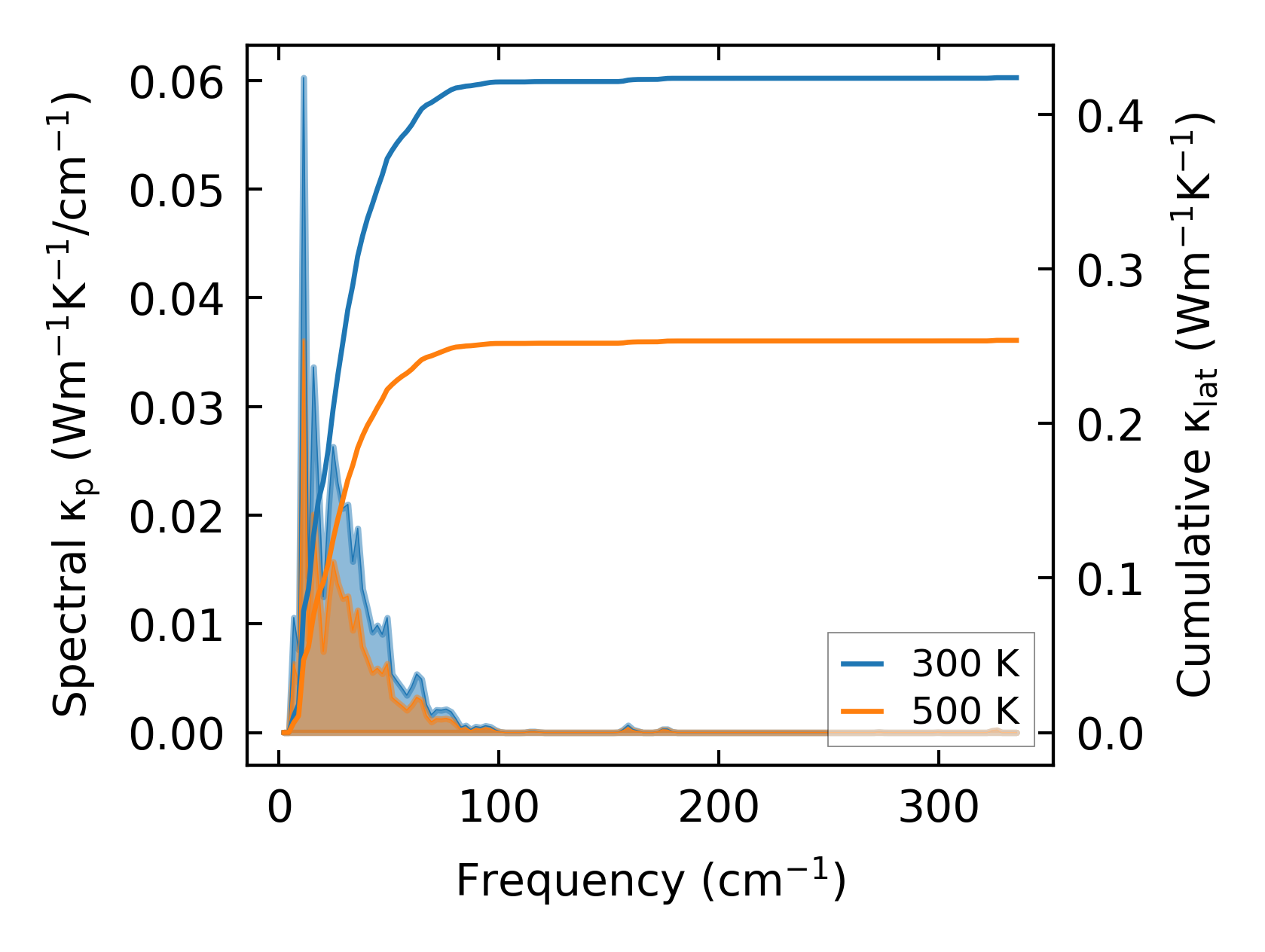

../../_images/fig_cumu_frequency4528.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

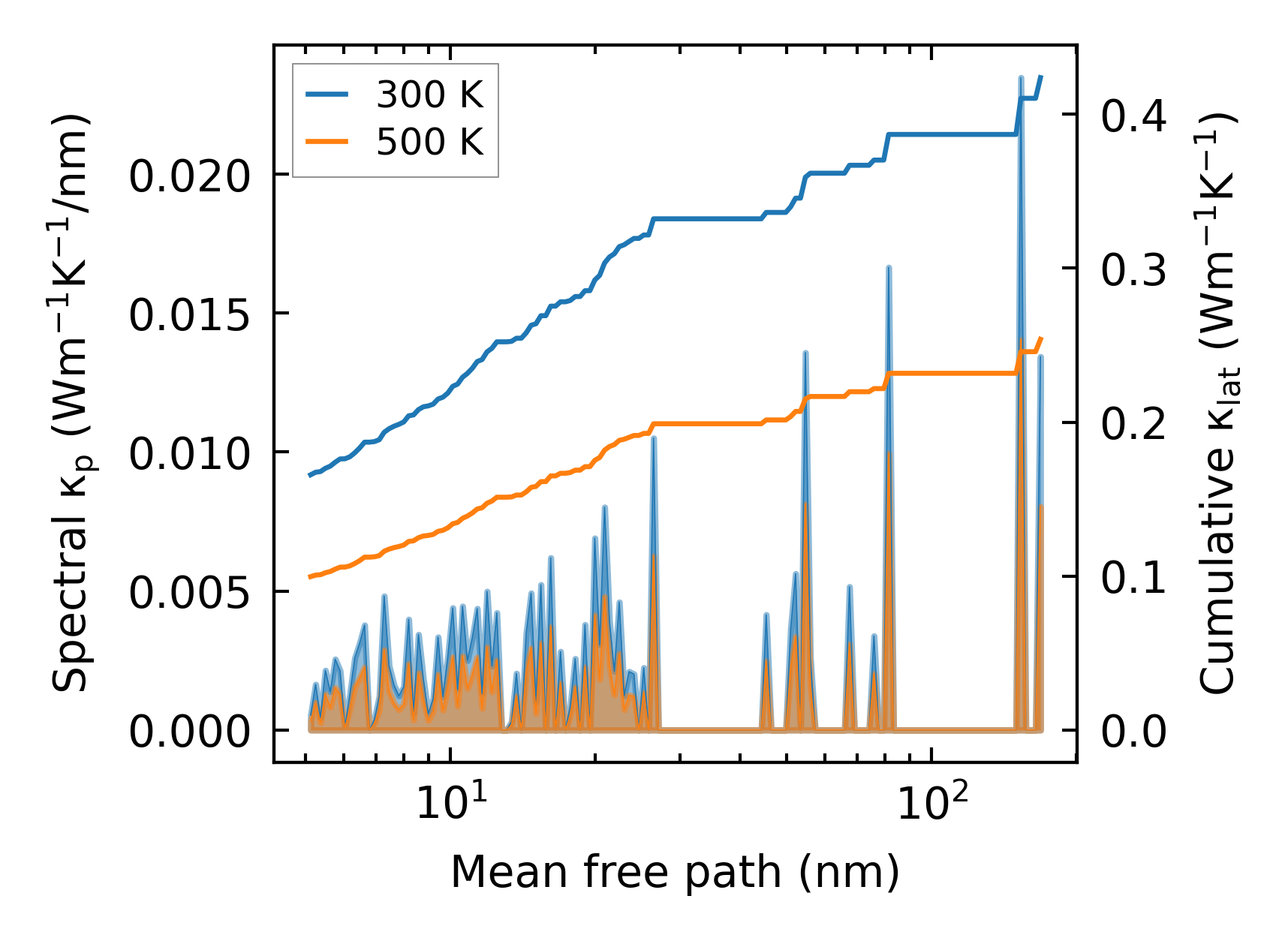

../../_images/fig_cumu_mfp4527.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

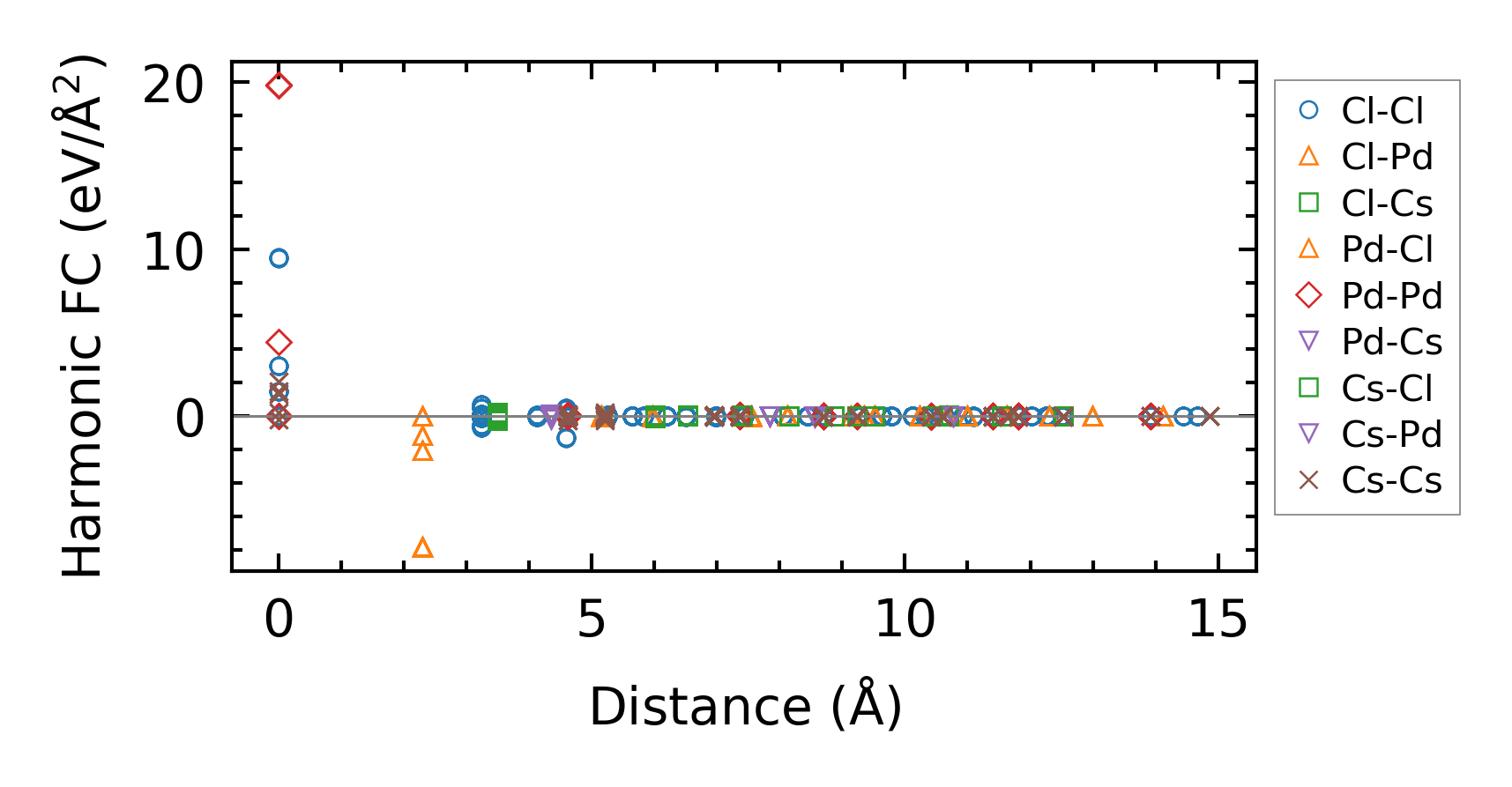

../../_images/fig_fc210824.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa8630.png — (a) Temperature-dependent lattice thermal conductivity

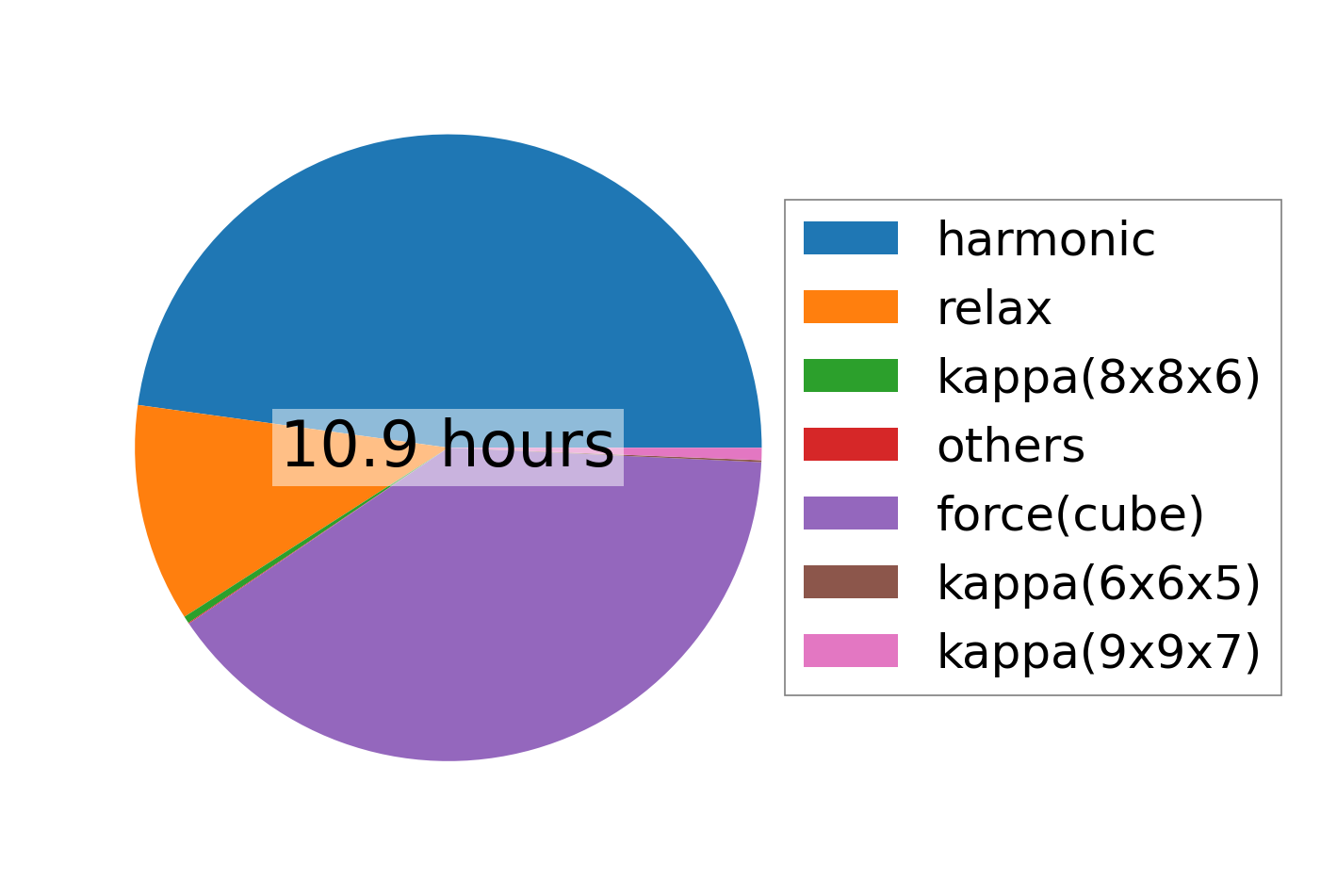

../../_images/fig_times18985.png — (b) Computation time
