mp-30078/C3S8/anharm

Space group: P-1 (2)
Link: Materials Project
Download: mp-30078.tar.gz

Harmonic properties

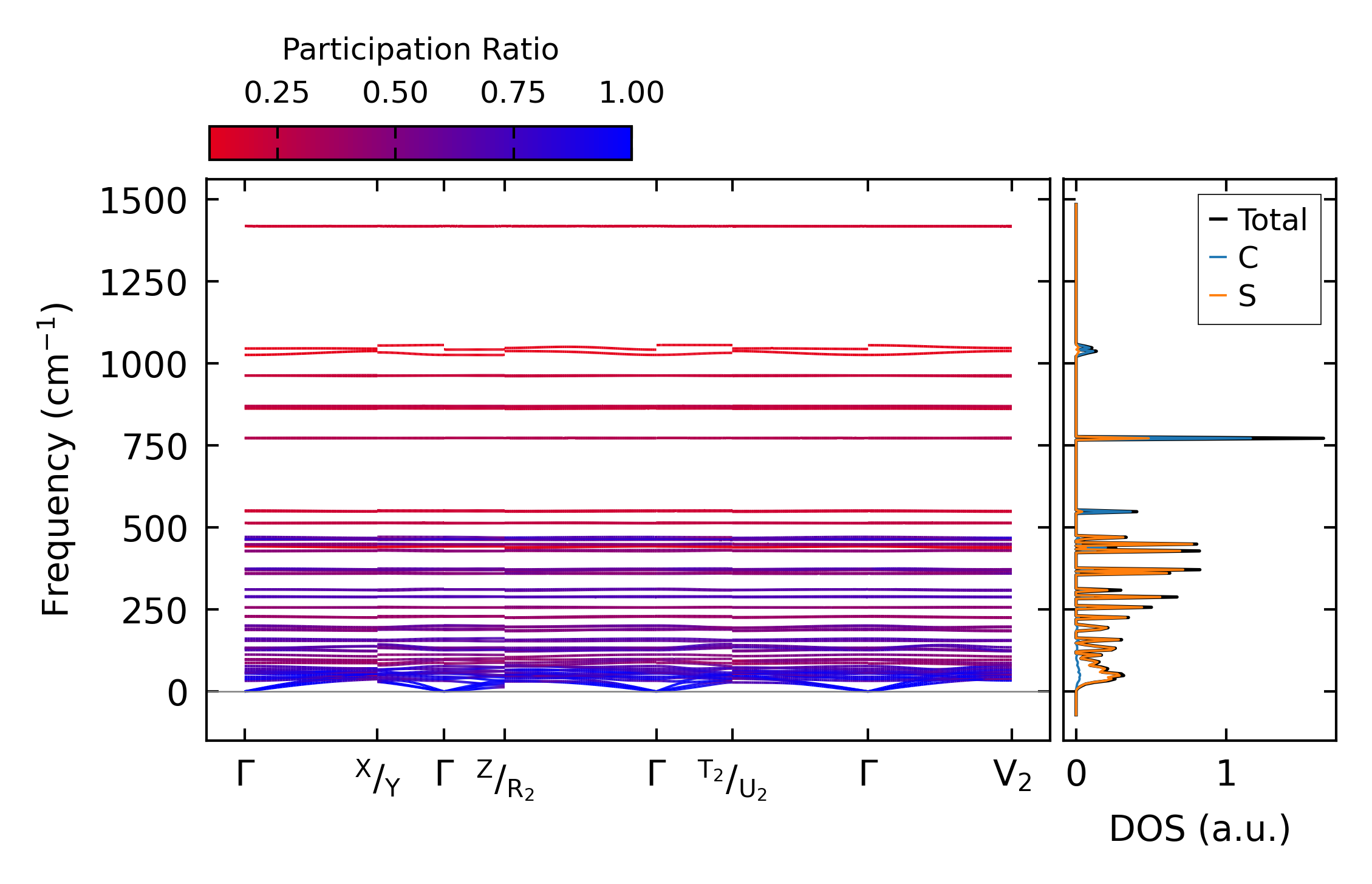

../../_images/fig_bandos_pr11076.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo11076.png — (b) Thermodynamic properties

Grüneisen parameters

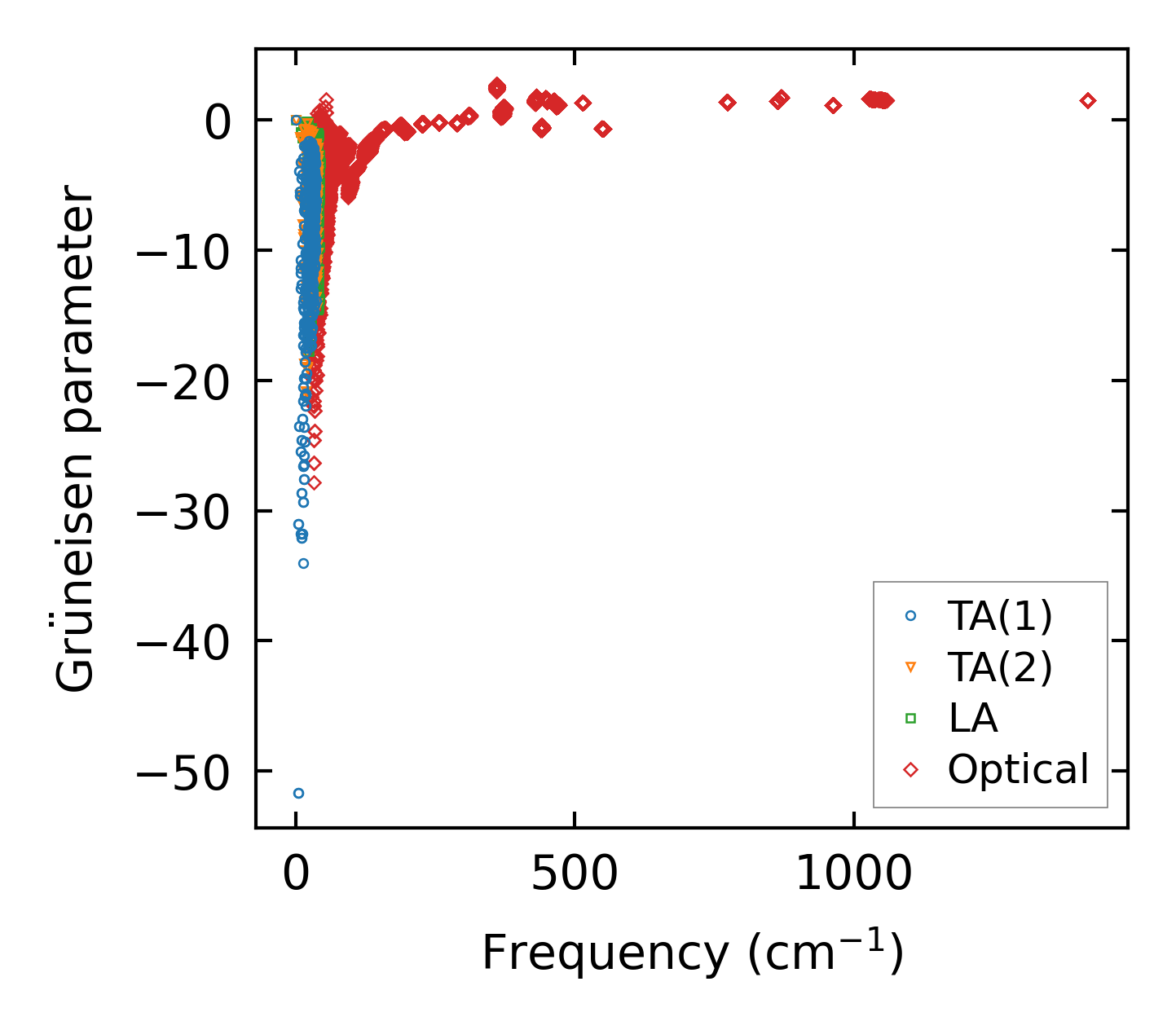

../../_images/fig_gru_all4560.png — (a) Grüneisen parameters

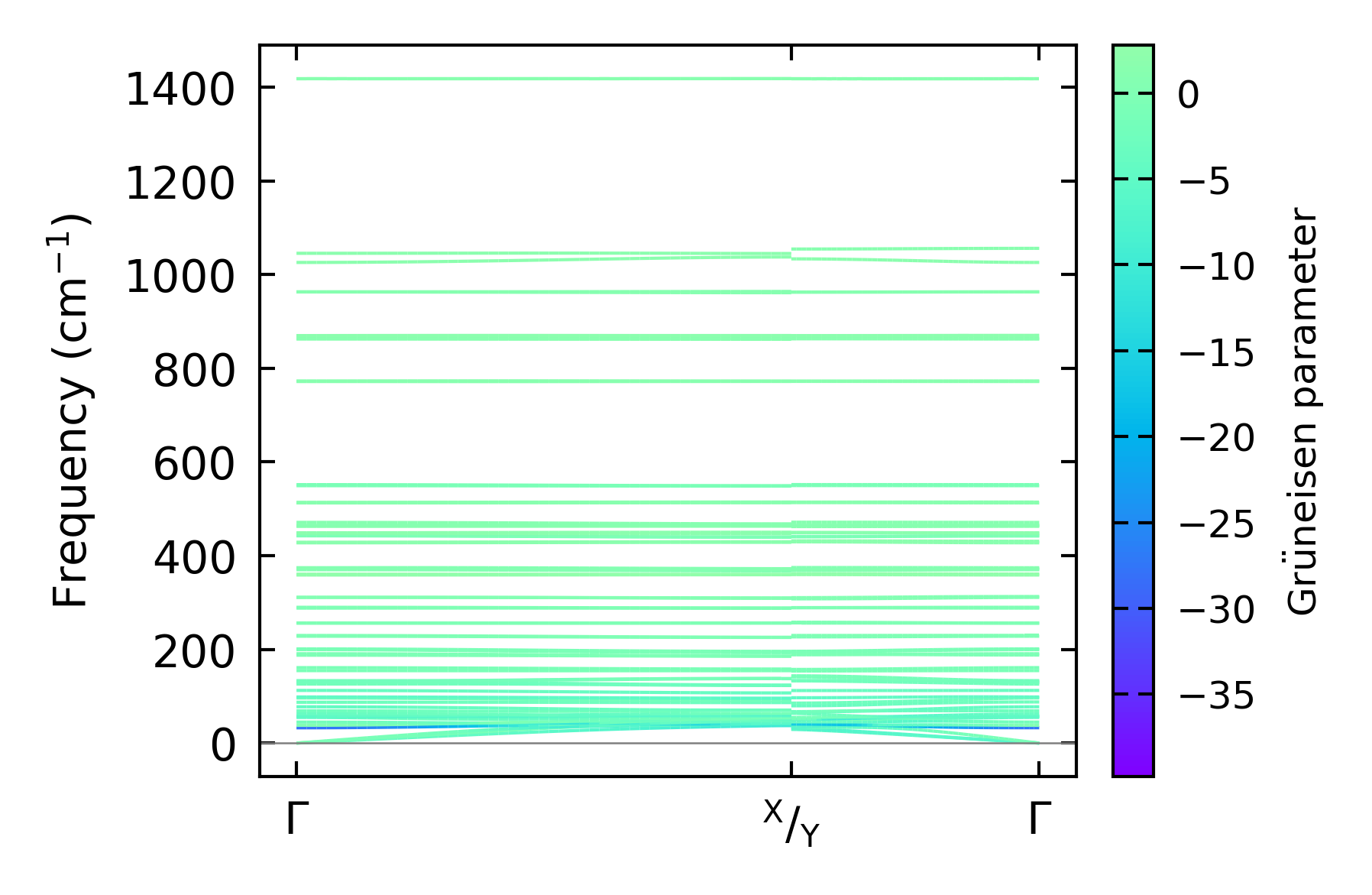

../../_images/fig_gruneisen4560.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 16x8x6, supercell: 3x2x1

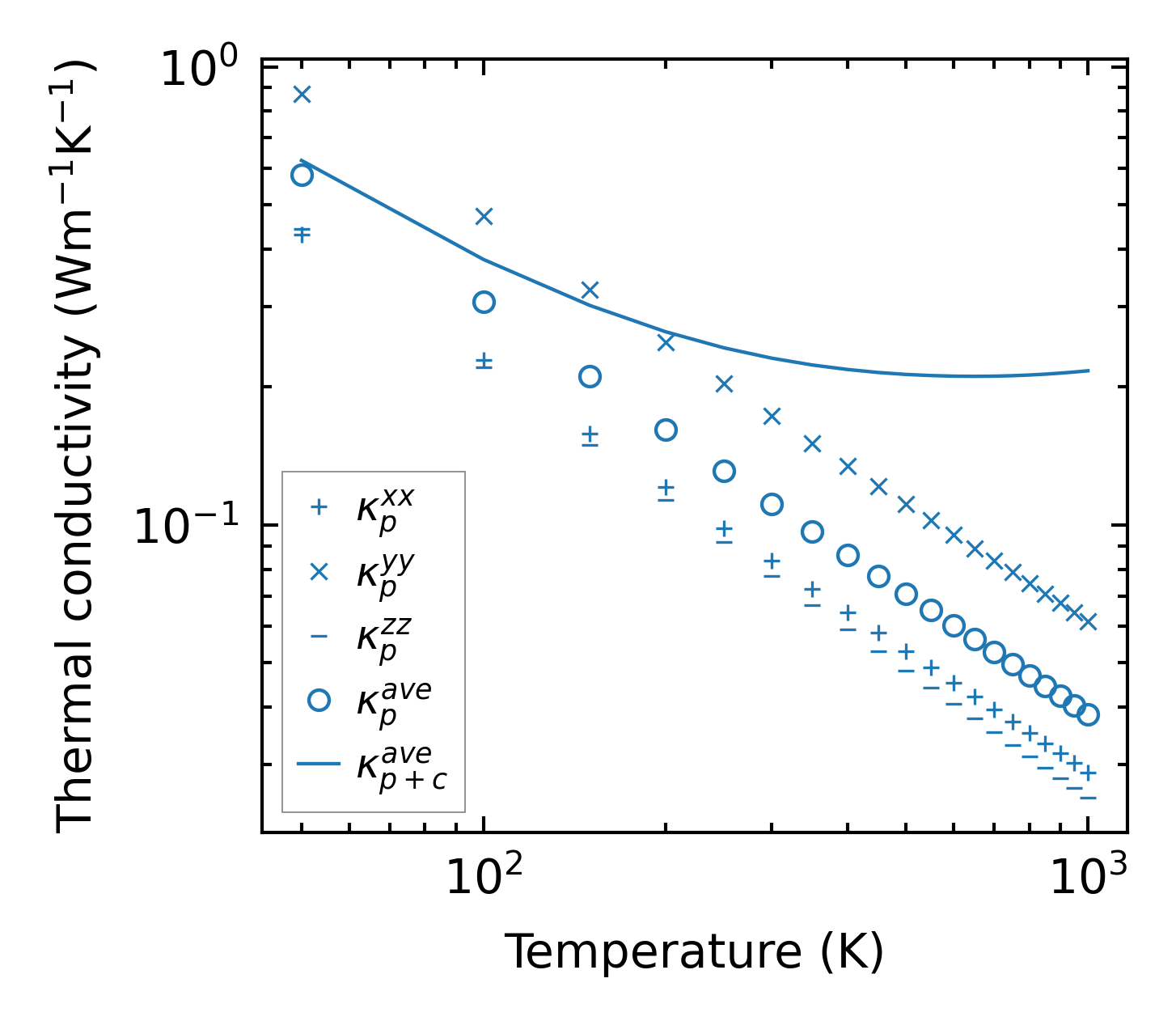

../../_images/fig_kappa8605.png — (a) Temperature-dependent lattice thermal conductivity

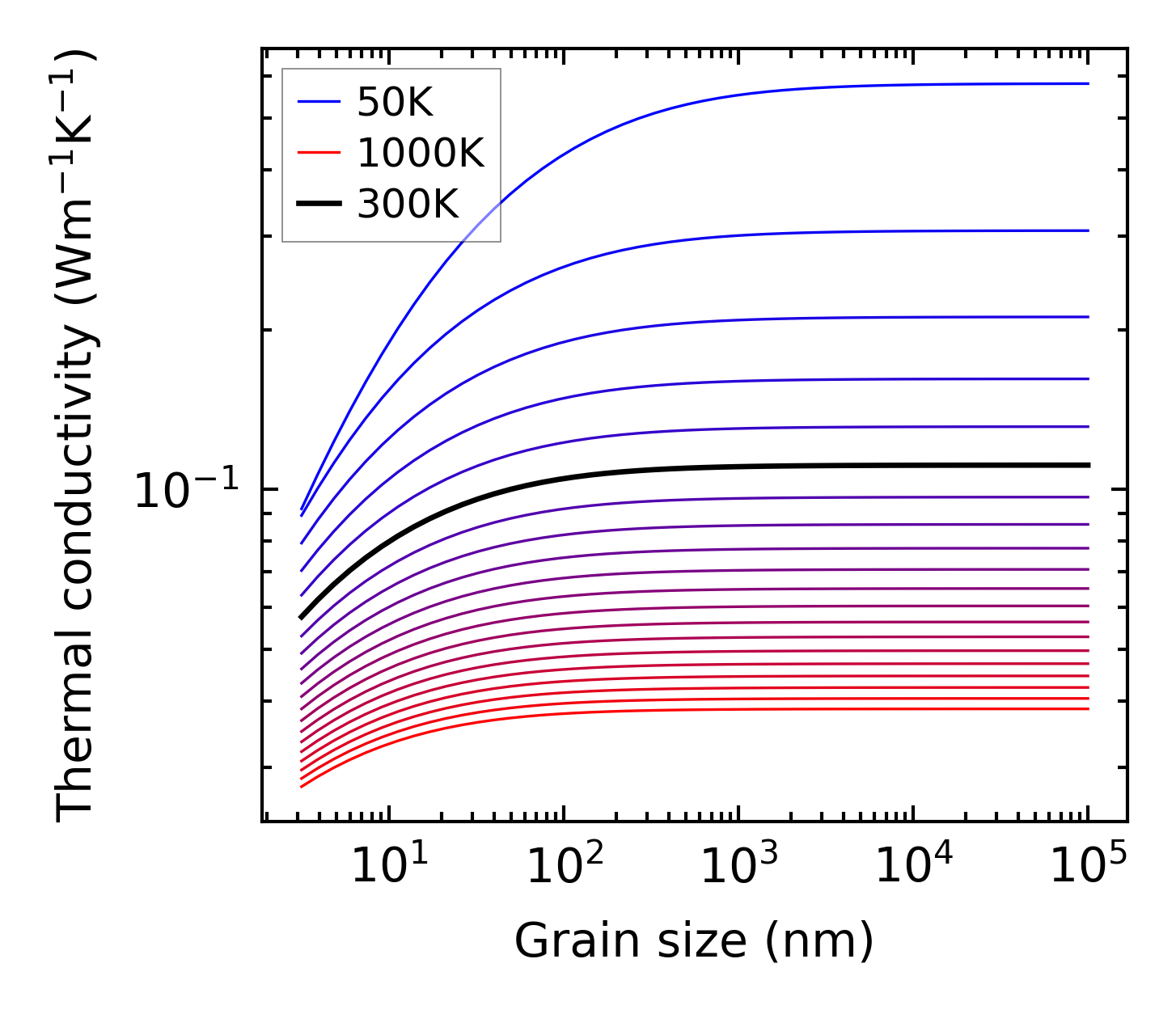

../../_images/fig_kappa_vs_grain_size4615.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

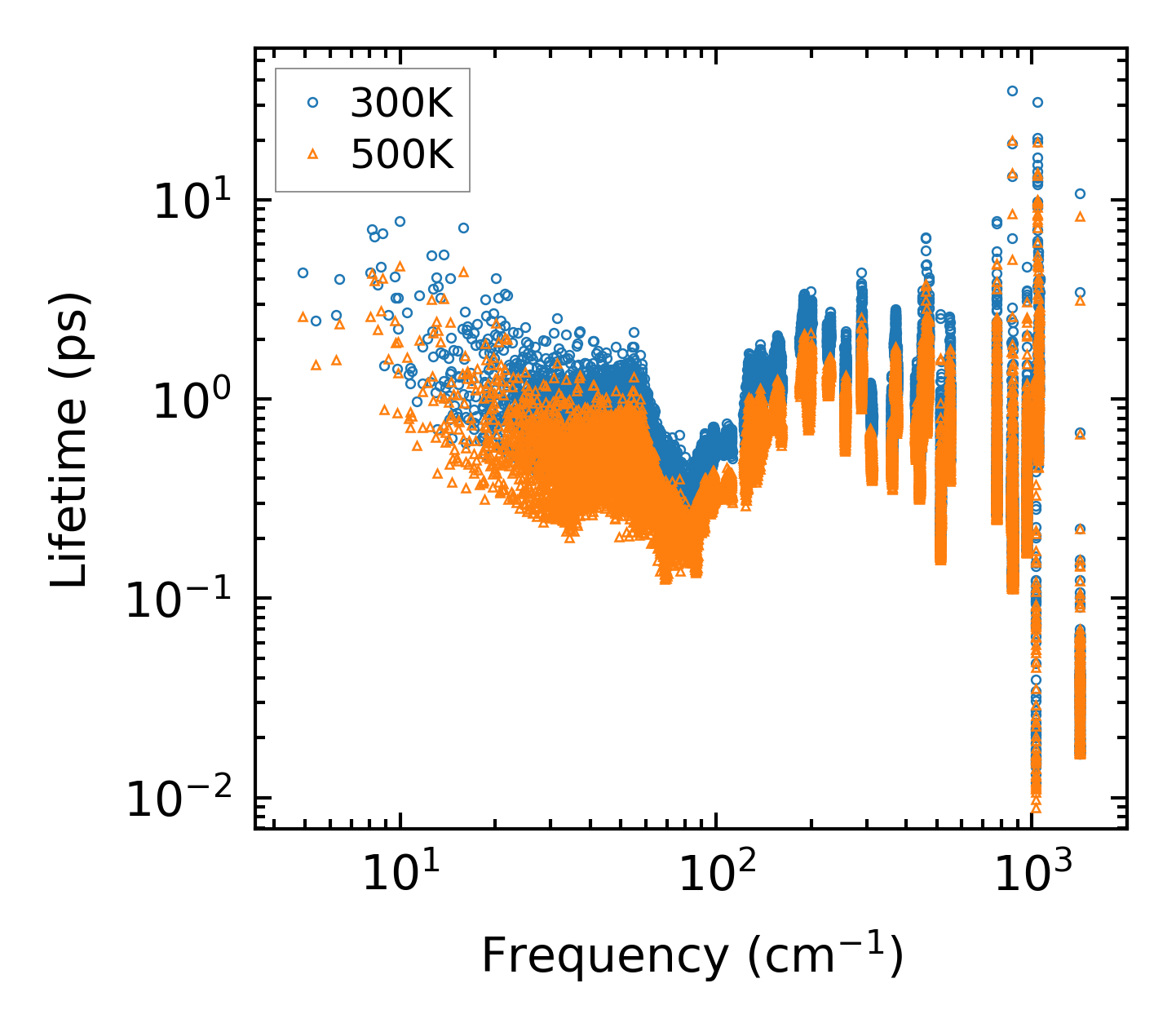

../../_images/fig_lifetime4516.png — (a) Phonon lifetime due to phonon-phonon scattering

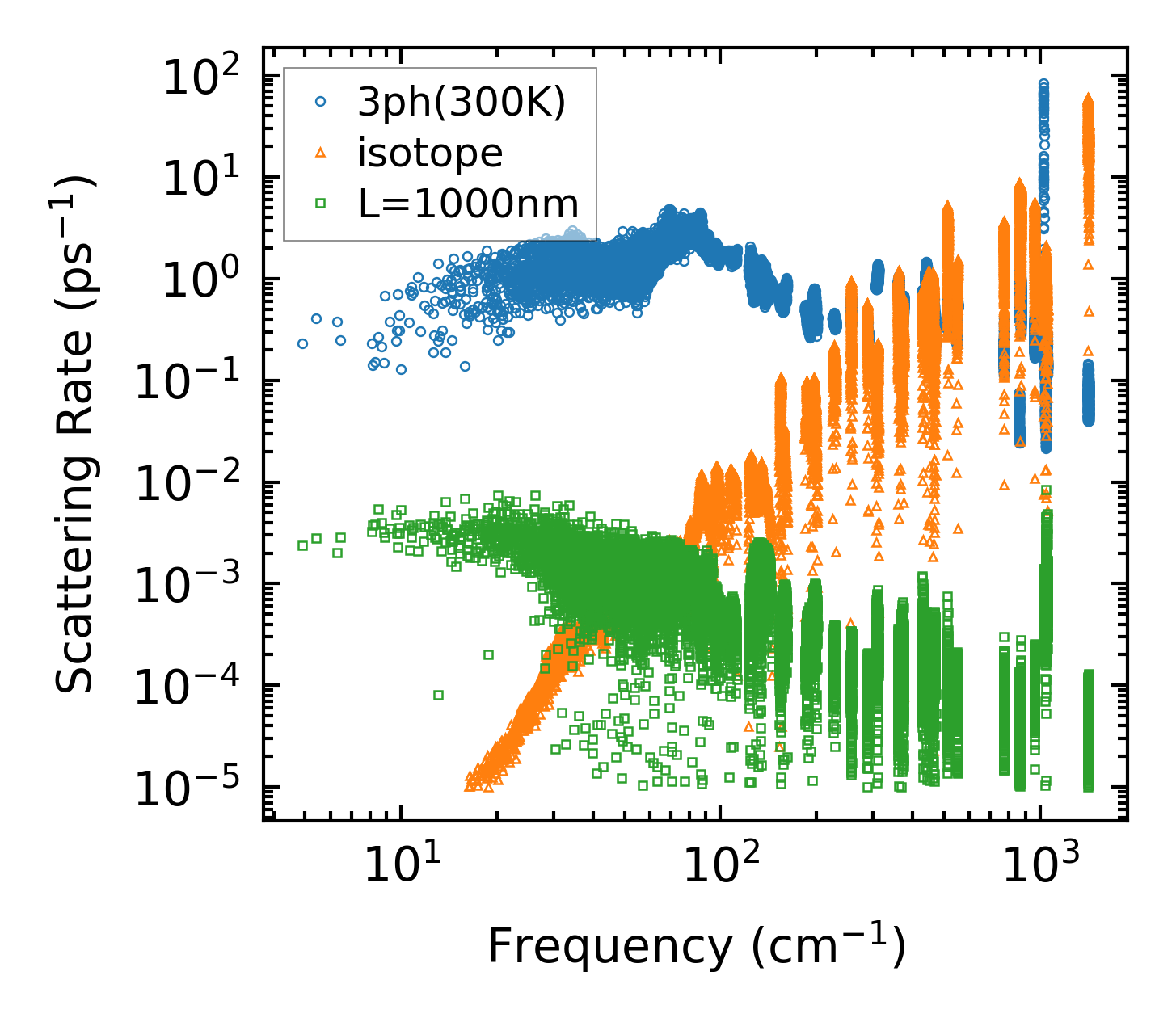

../../_images/fig_scat_rates4515.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

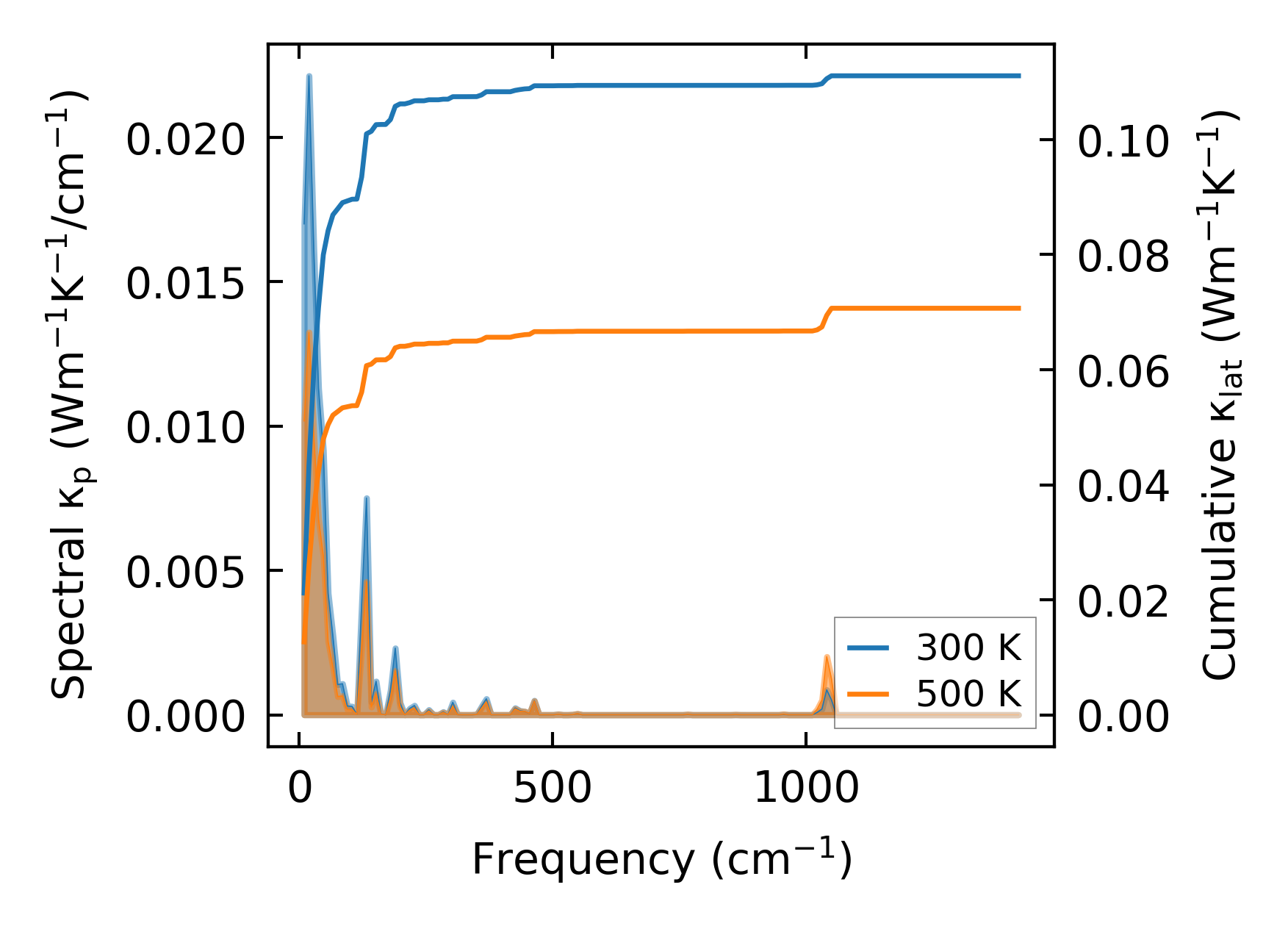

../../_images/fig_cumu_frequency4516.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

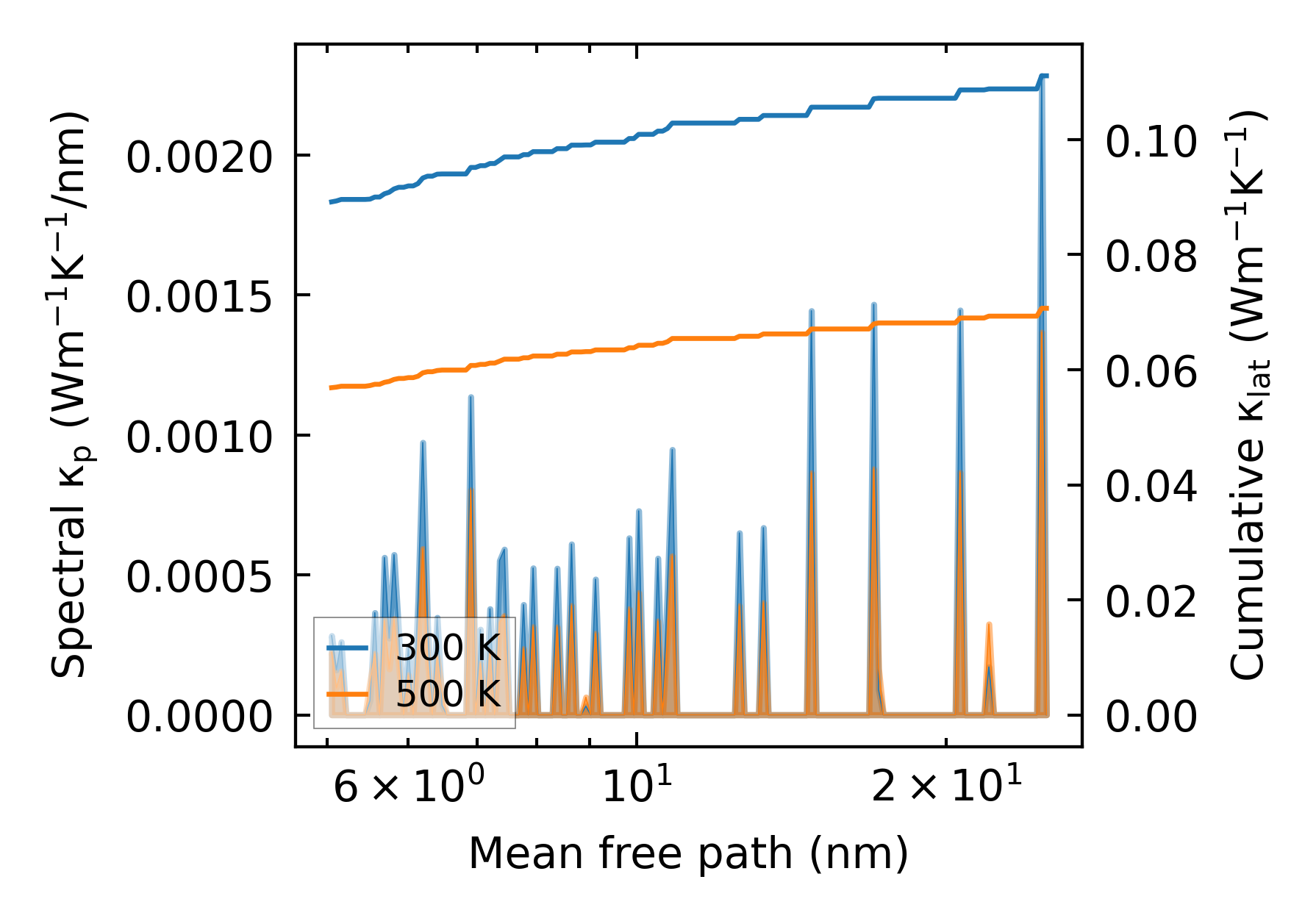

../../_images/fig_cumu_mfp4515.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

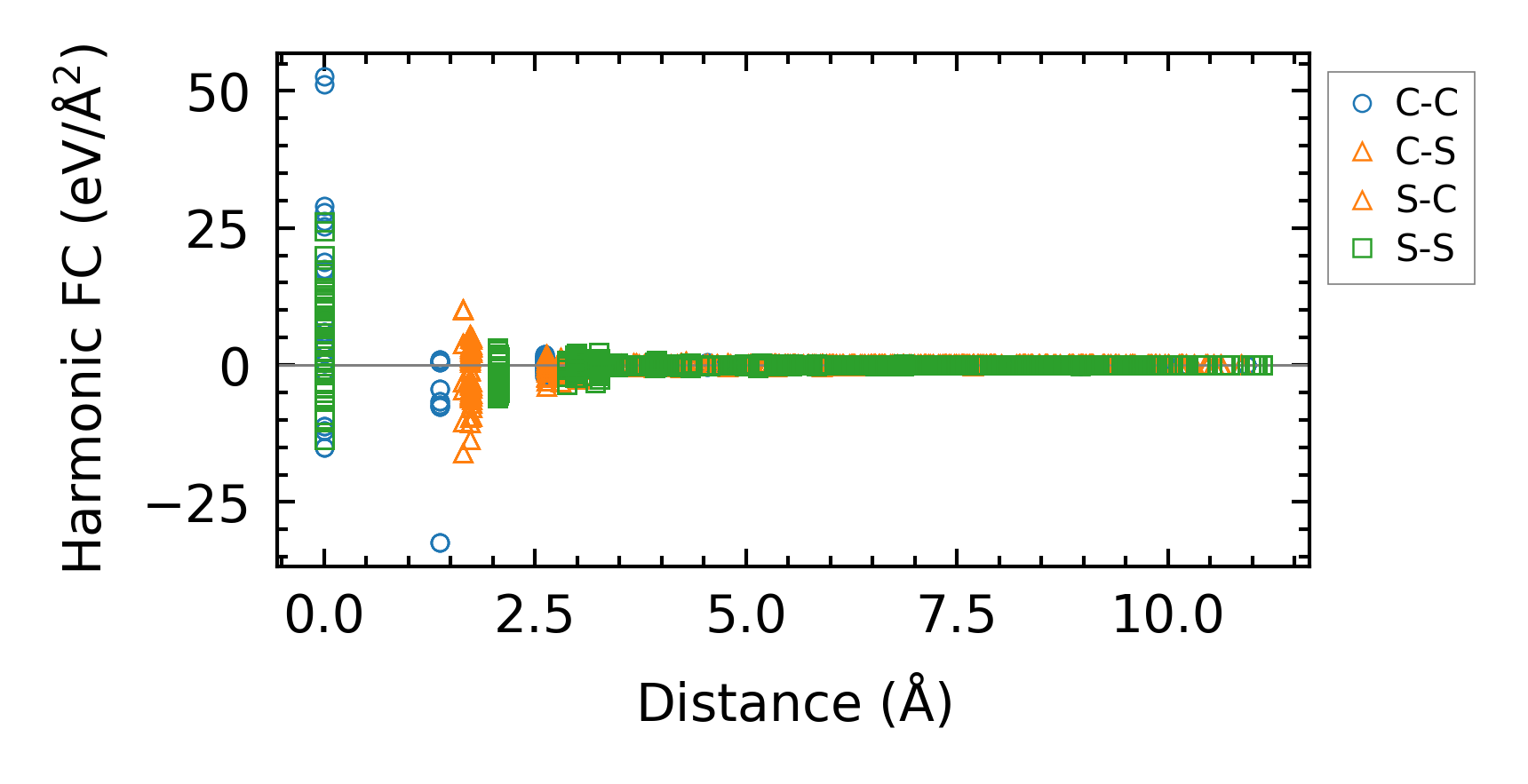

../../_images/fig_fc210798.png — (a) Force constants w.r.t atomic distance

Summary

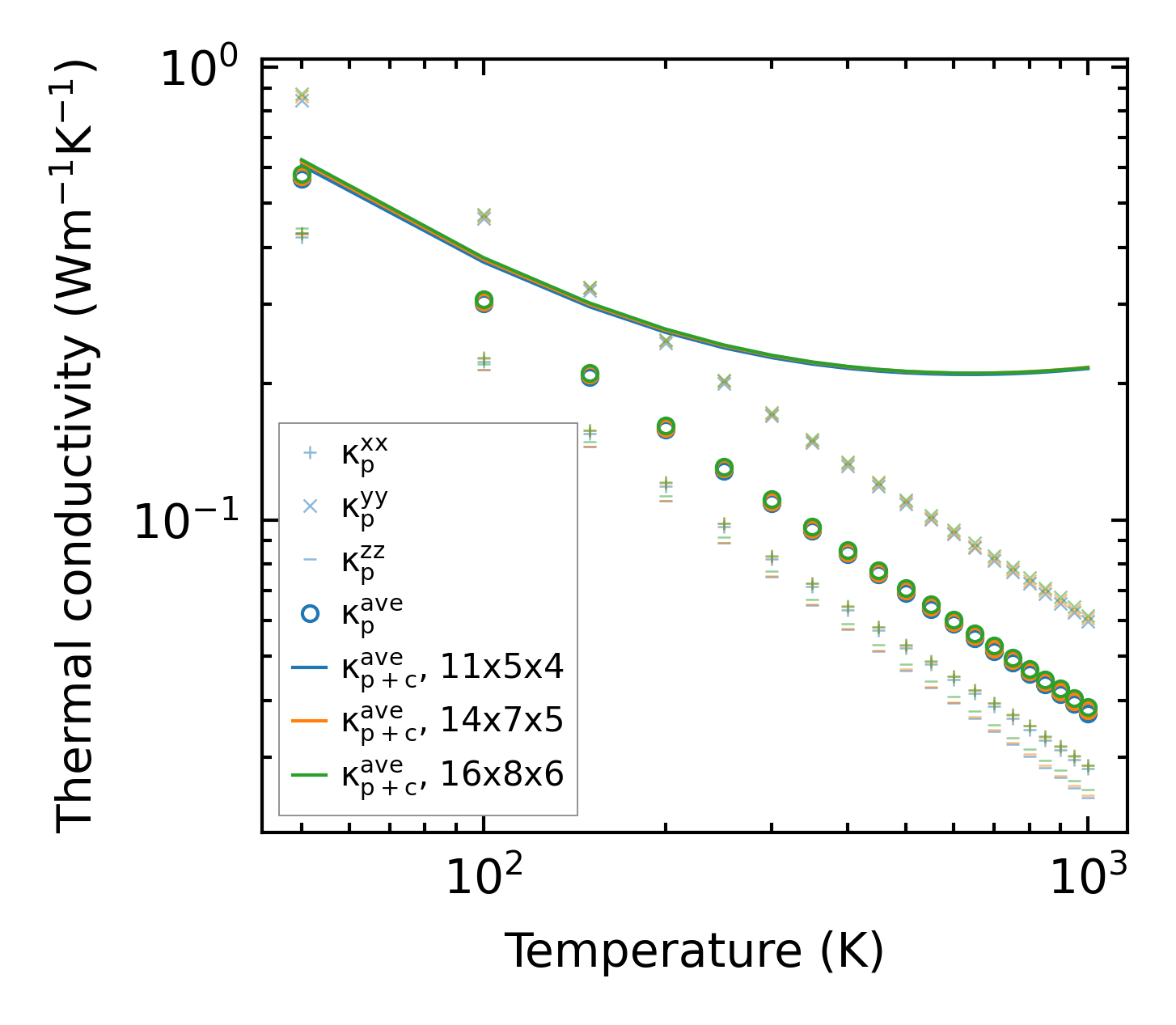

../../_images/fig_kappa8606.png — (a) Temperature-dependent lattice thermal conductivity

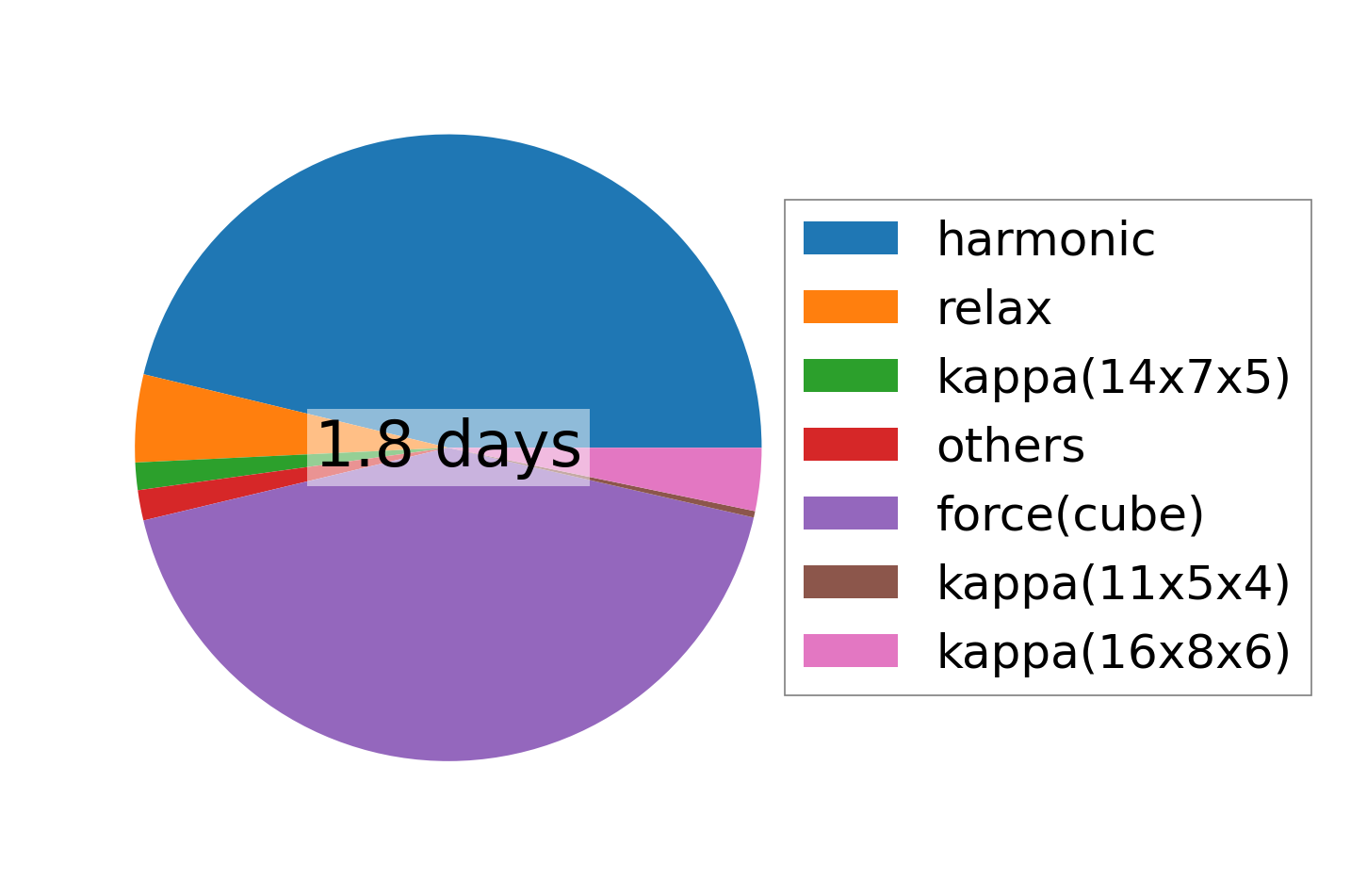

../../_images/fig_times18915.png — (b) Computation time
