mp-30062/Cs2PtBr6/anharm

Space group: Fm-3m (225)
Link: Materials Project
Download: mp-30062.tar.gz

Harmonic properties

../../_images/fig_bandos_pr11072.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo11072.png — (b) Thermodynamic properties

Grüneisen parameters

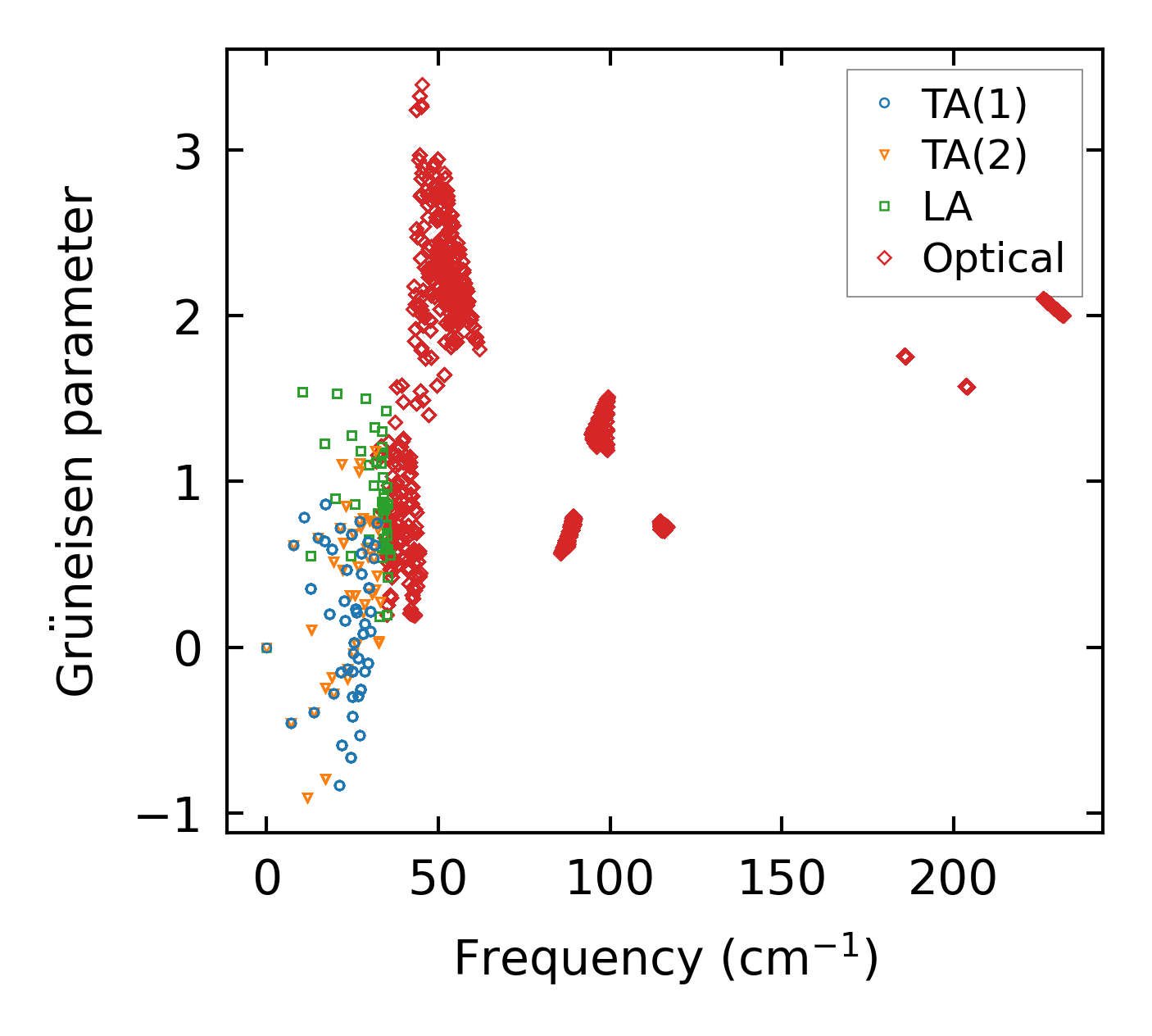

../../_images/fig_gru_all4557.png — (a) Grüneisen parameters

../../_images/fig_gruneisen4557.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon — q-mesh: 10x10x10, supercell: 1x1x1

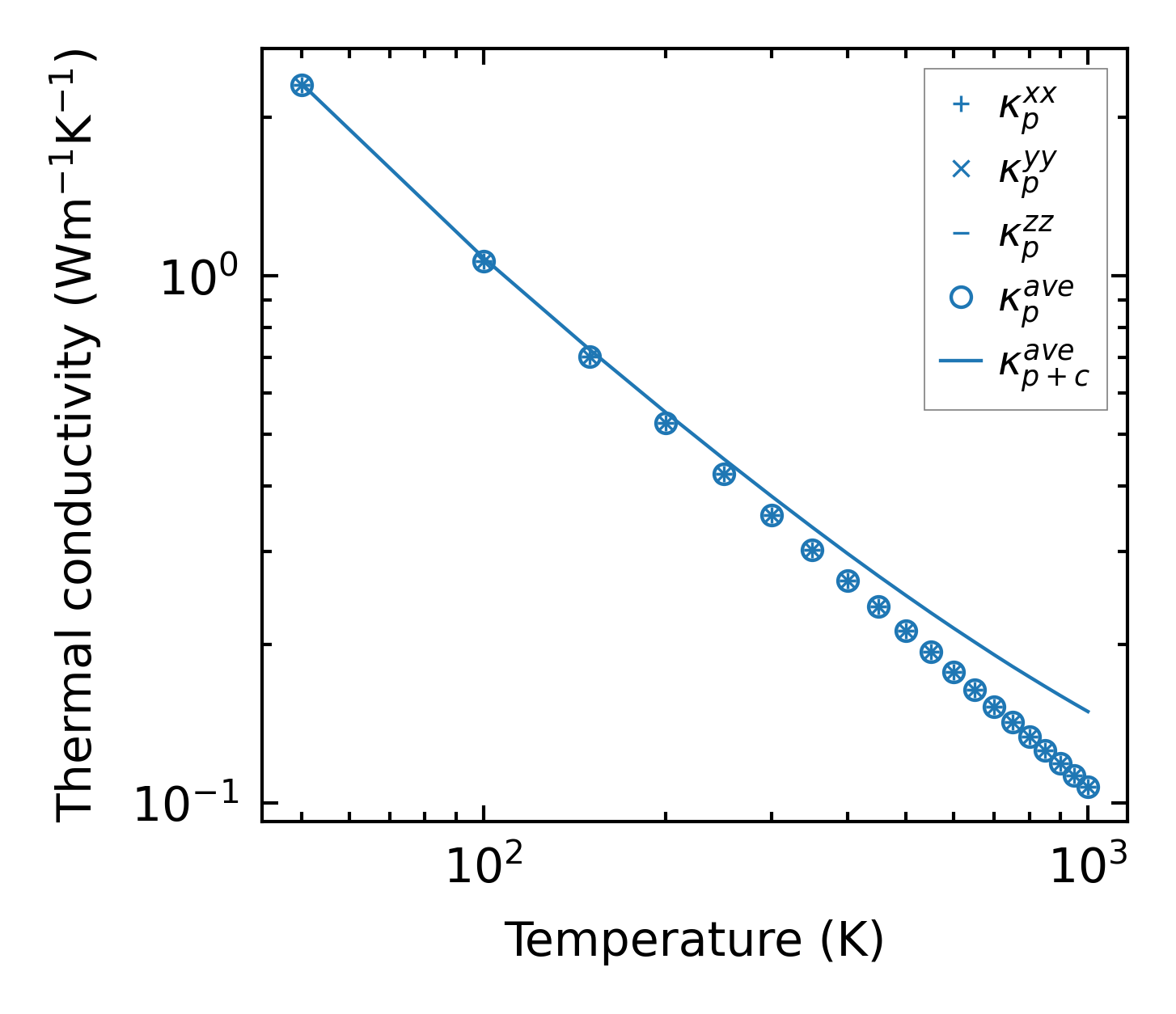

../../_images/fig_kappa8599.png — (a) Temperature-dependent lattice thermal conductivity

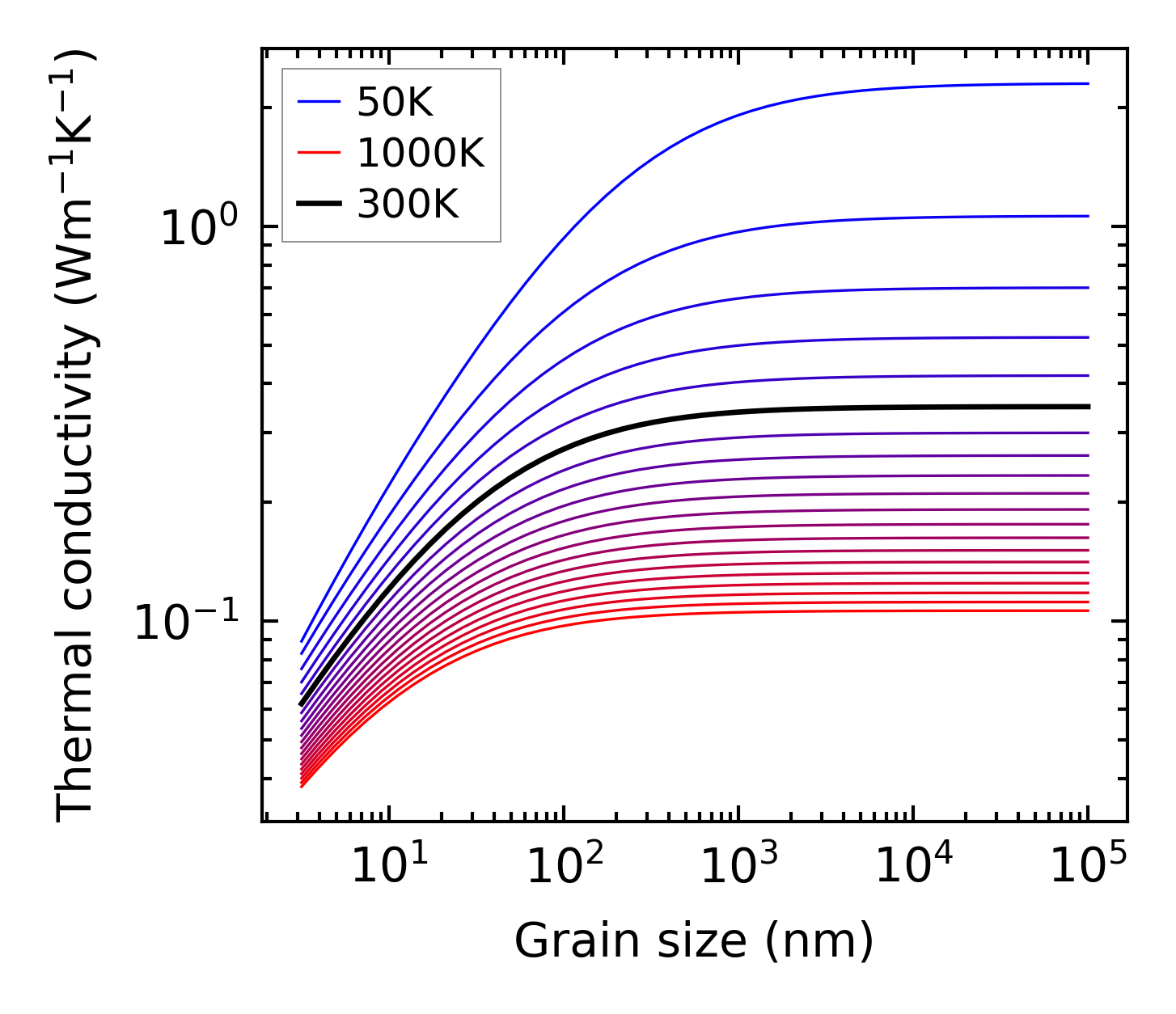

../../_images/fig_kappa_vs_grain_size4612.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

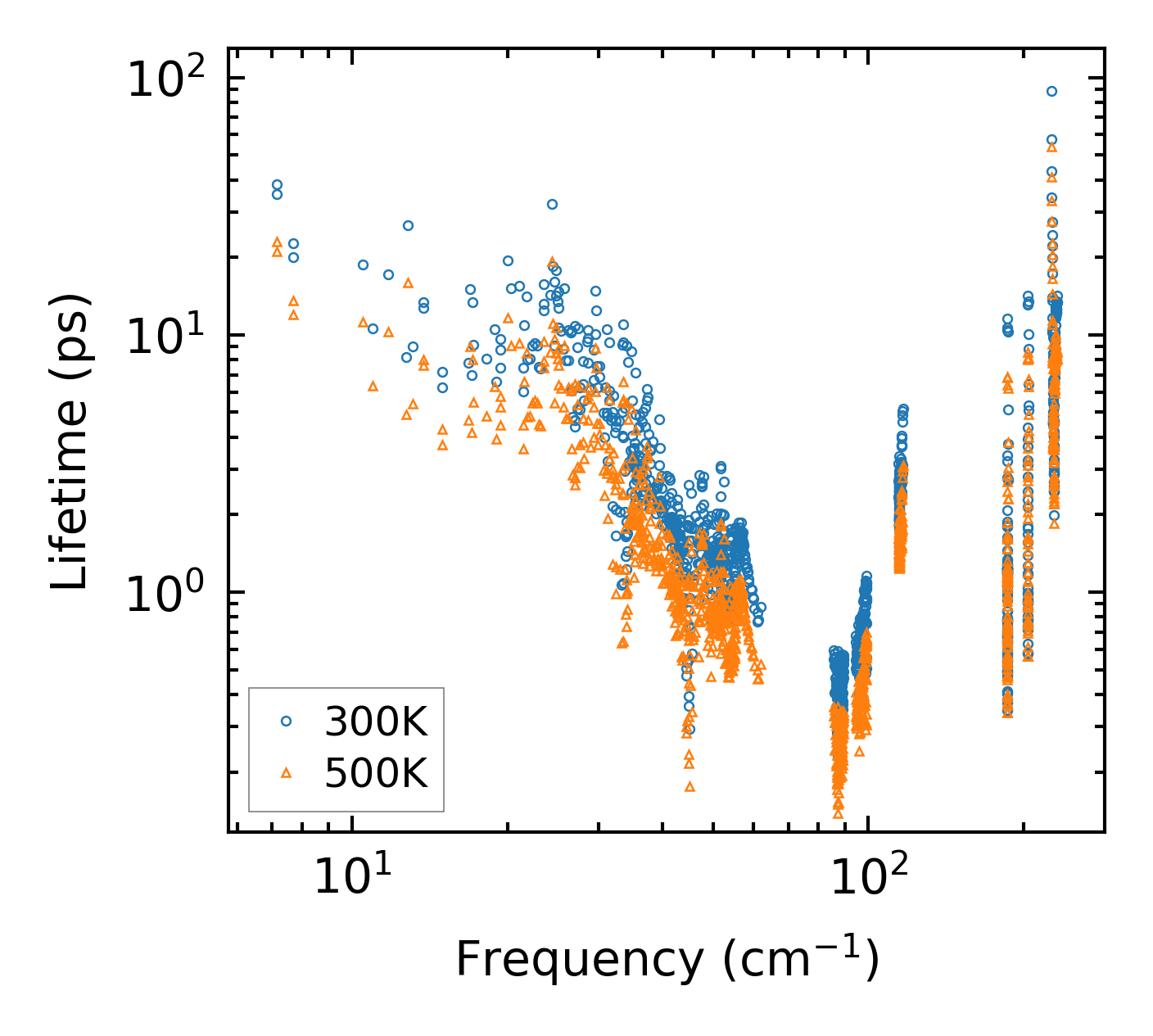

../../_images/fig_lifetime4513.png — (a) Phonon lifetime due to phonon-phonon scattering

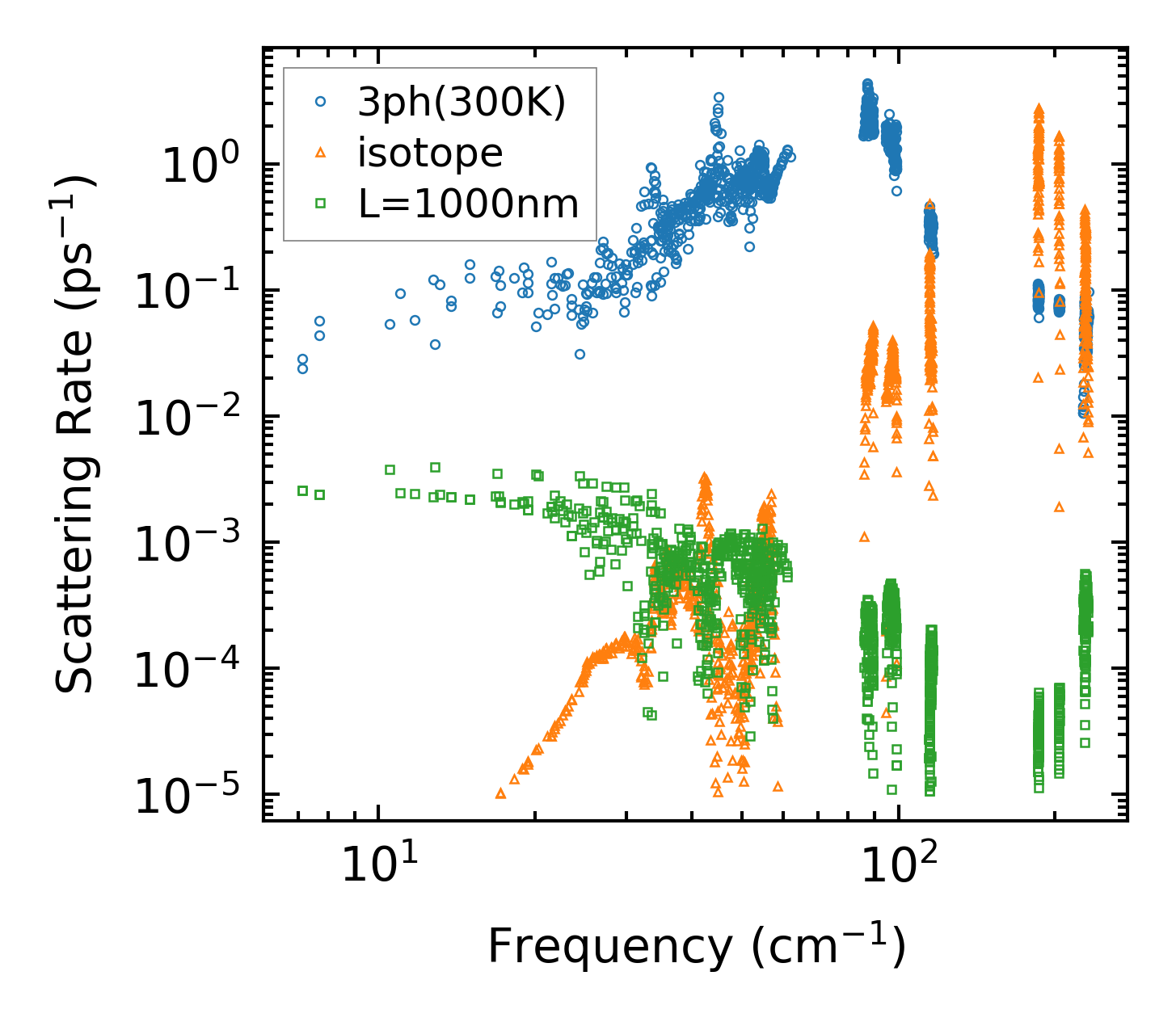

../../_images/fig_scat_rates4512.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

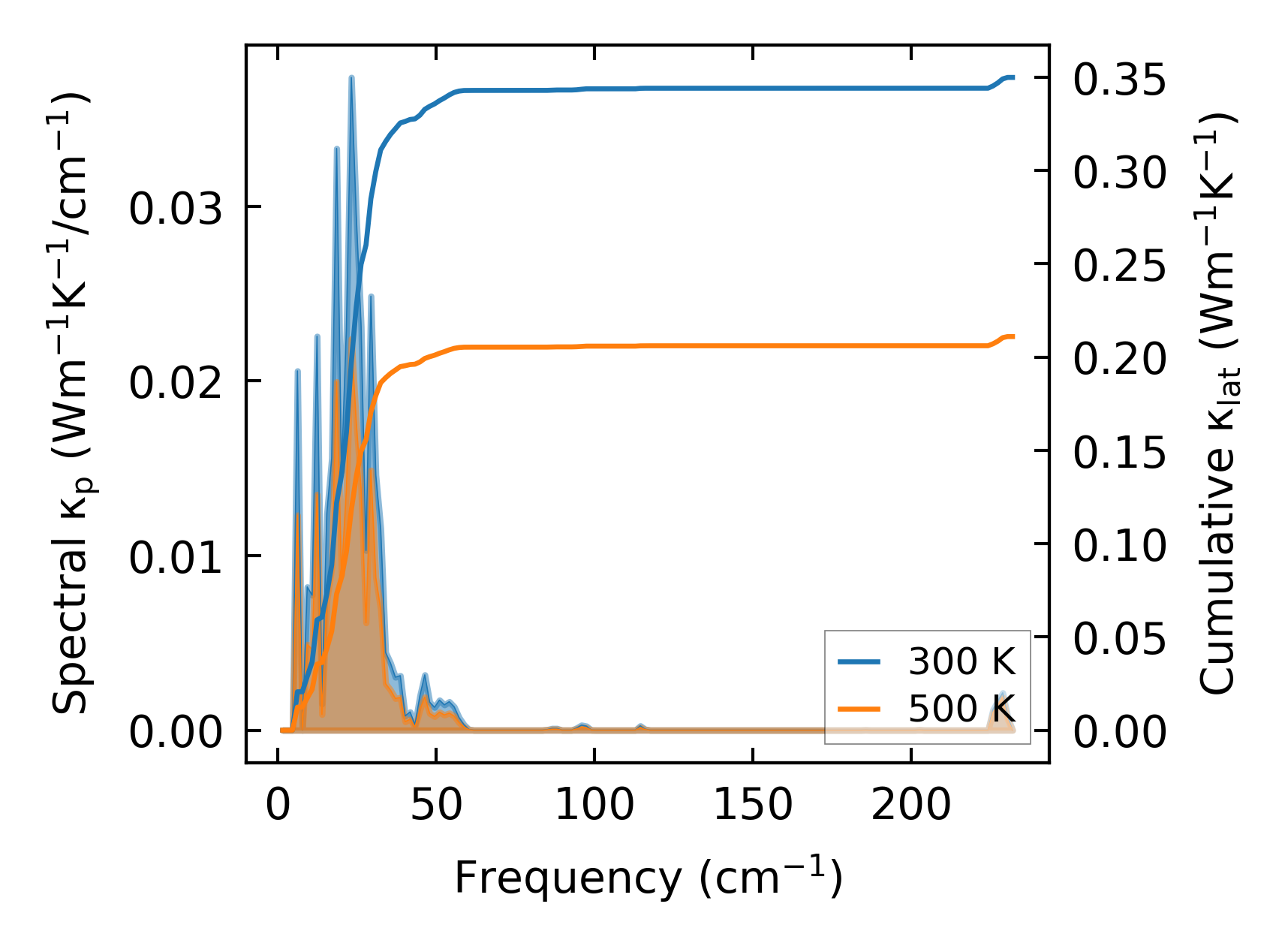

../../_images/fig_cumu_frequency4513.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp4512.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

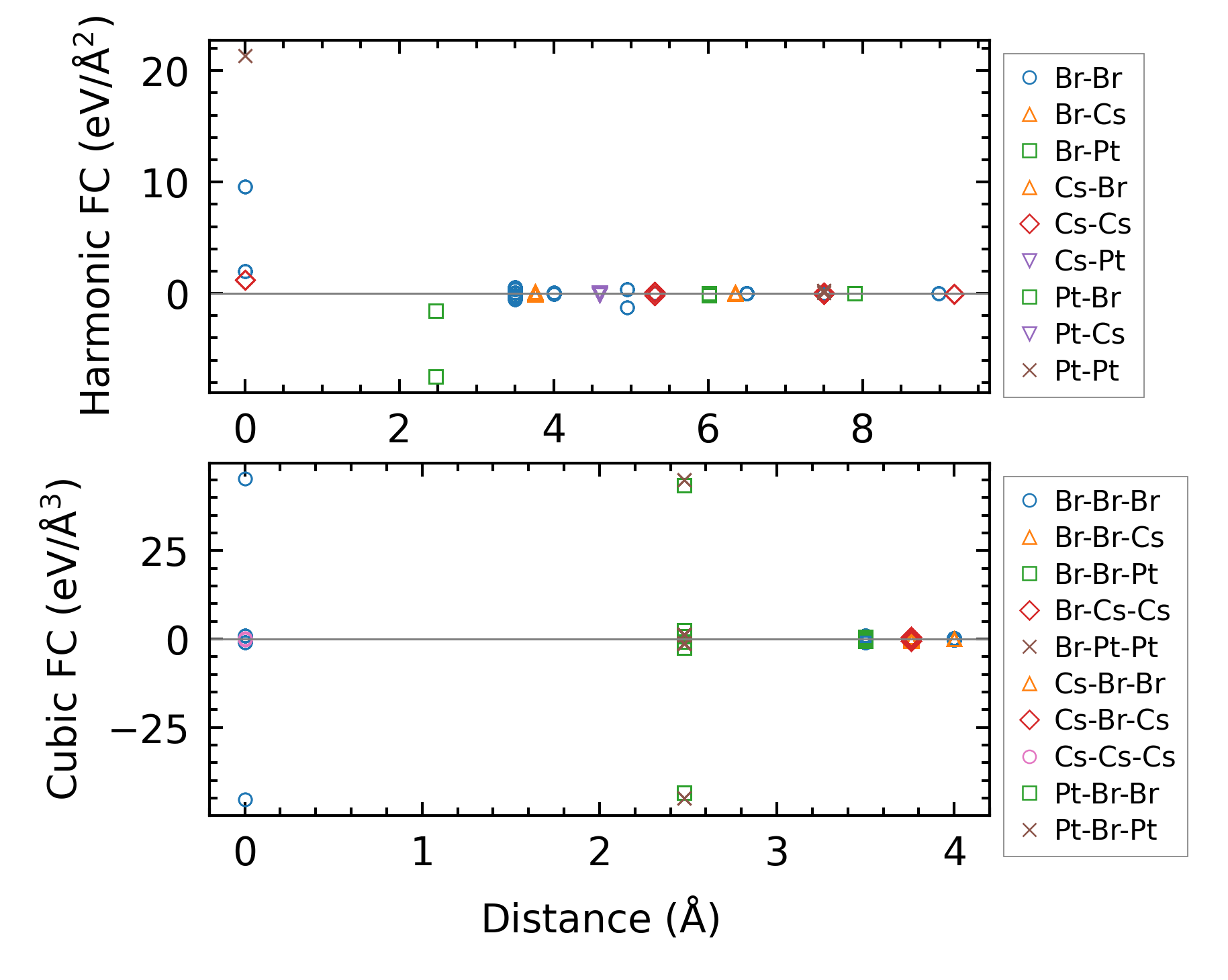

../../_images/fig_fc3278.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa8600.png — (a) Temperature-dependent lattice thermal conductivity

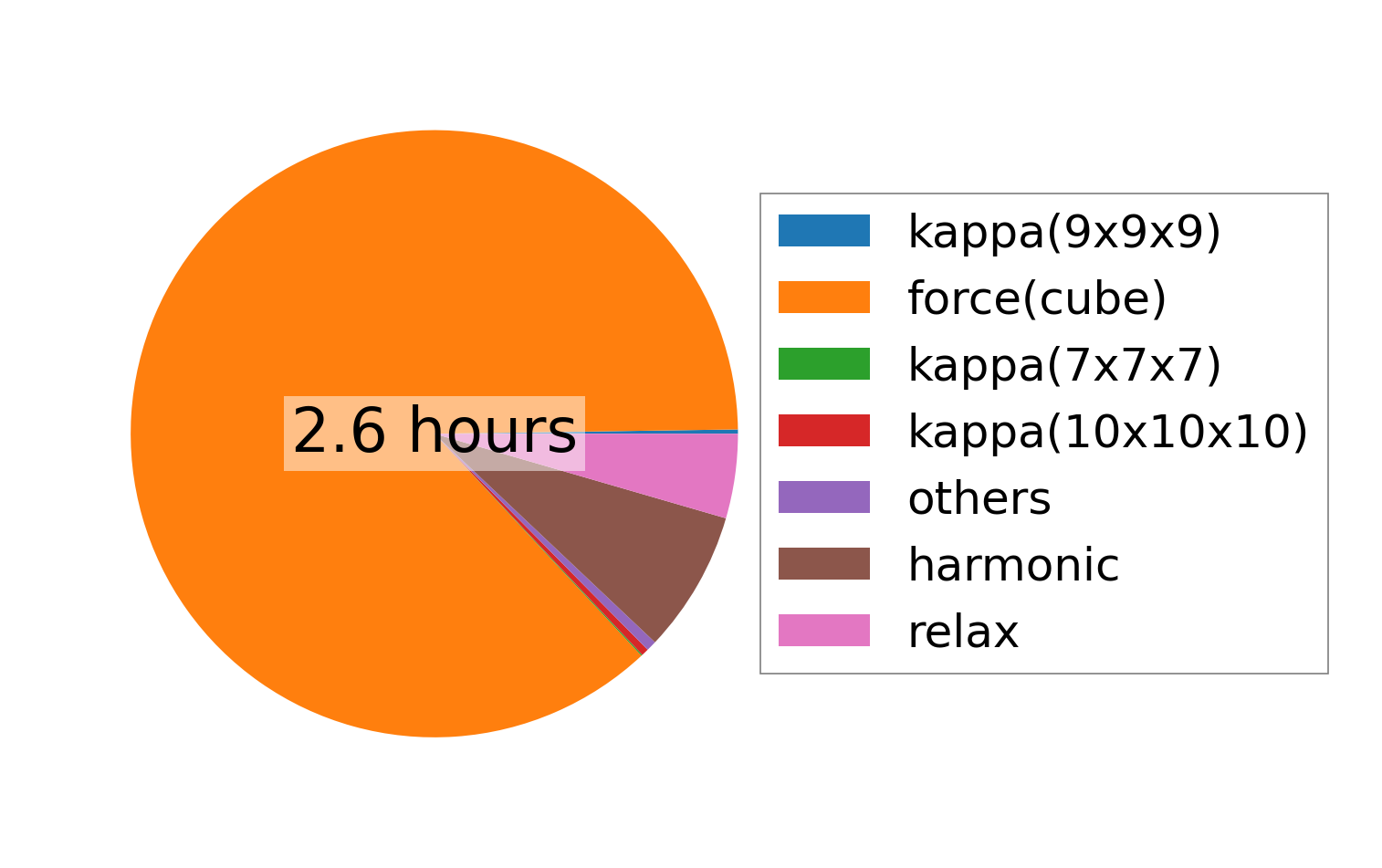

../../_images/fig_times18911.png — (b) Computation time
