mp-1192811/Er2ZnS4/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-1192811.tar.gz

Harmonic properties

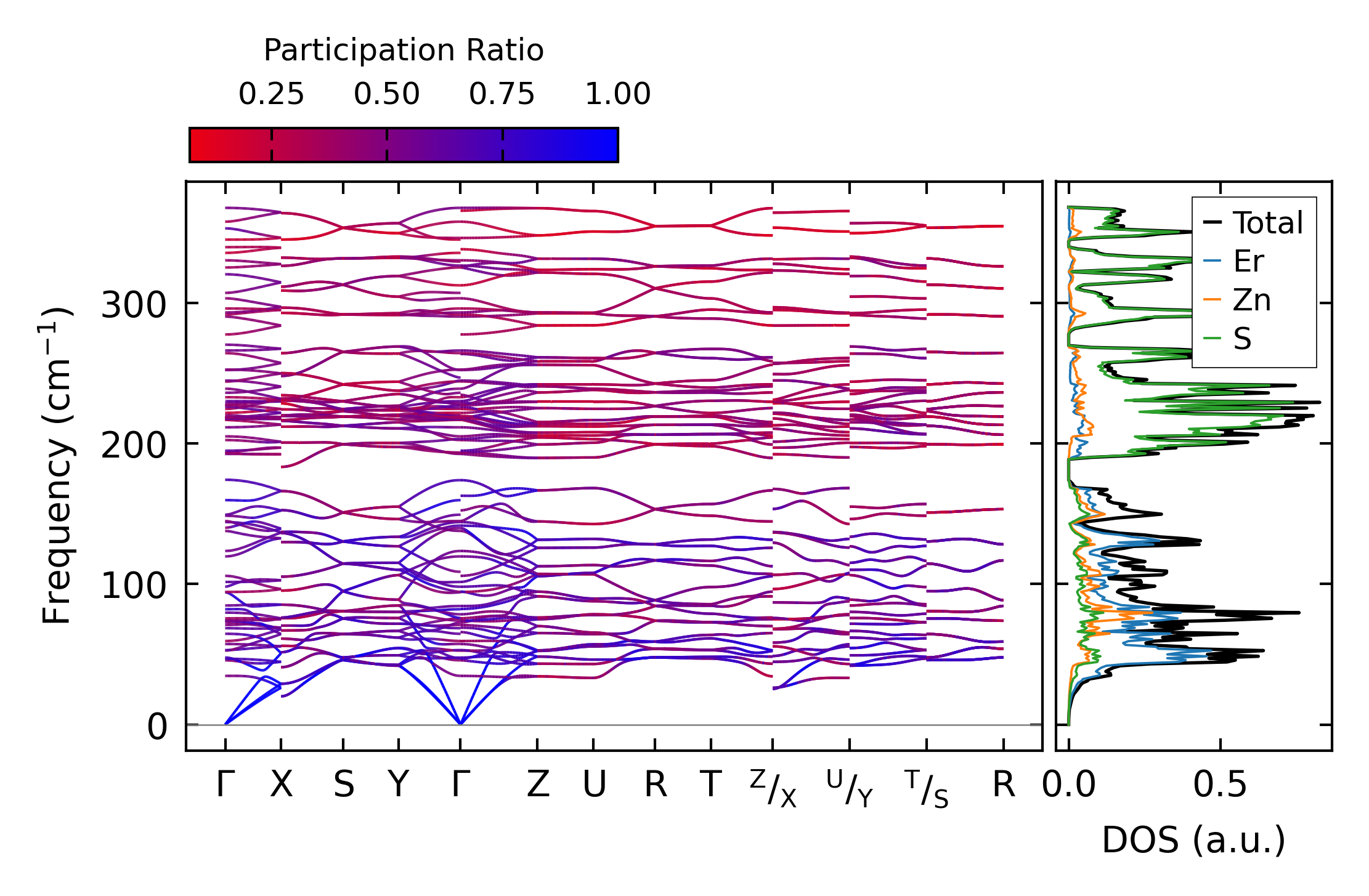

../../_images/fig_bandos_pr15814.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo15813.png — (b) Thermodynamic properties

Grüneisen parameters

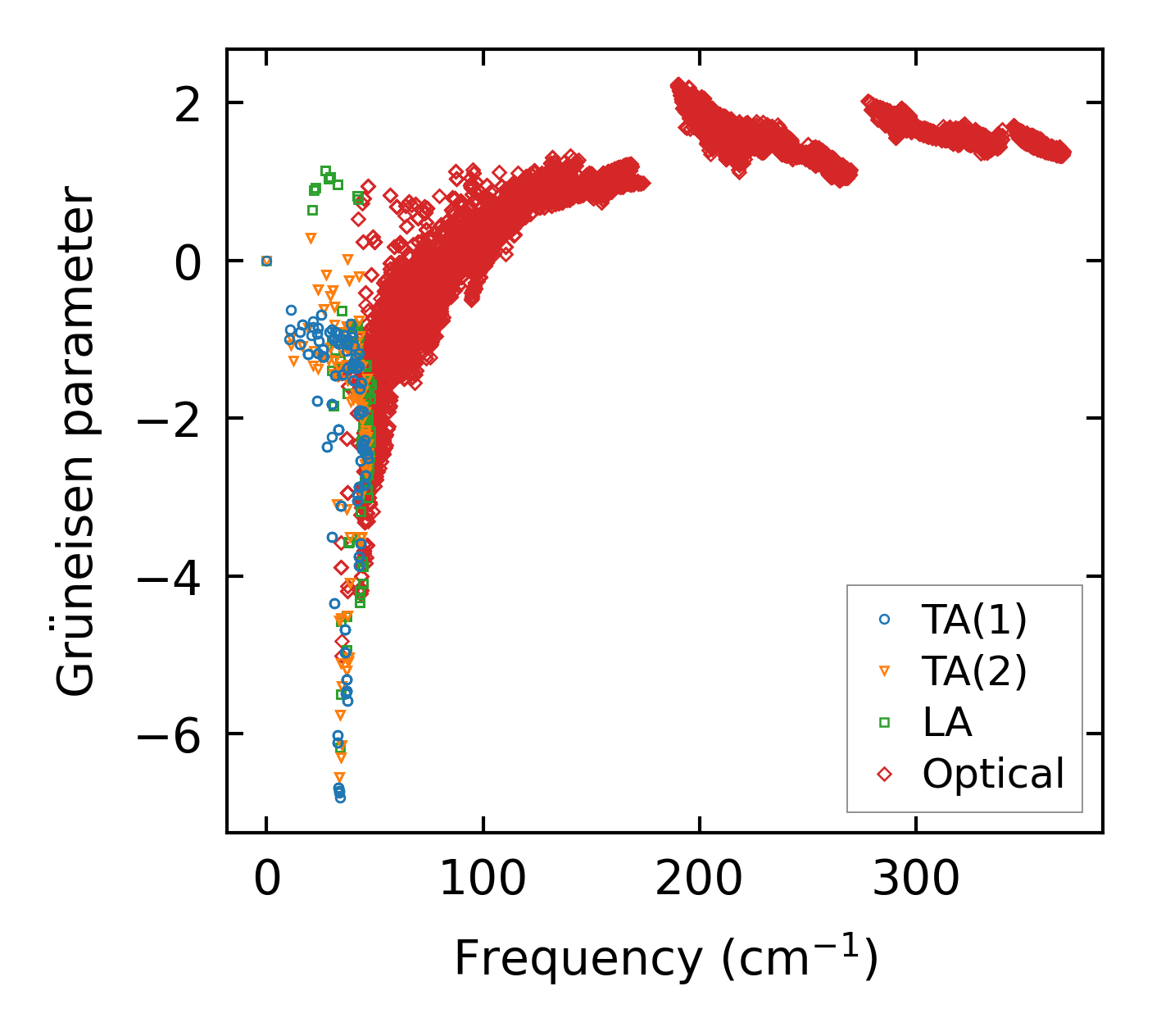

../../_images/fig_gru_all6846.png — (a) Grüneisen parameters

../../_images/fig_gruneisen6846.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 5x9x11, supercell: 1x2x2

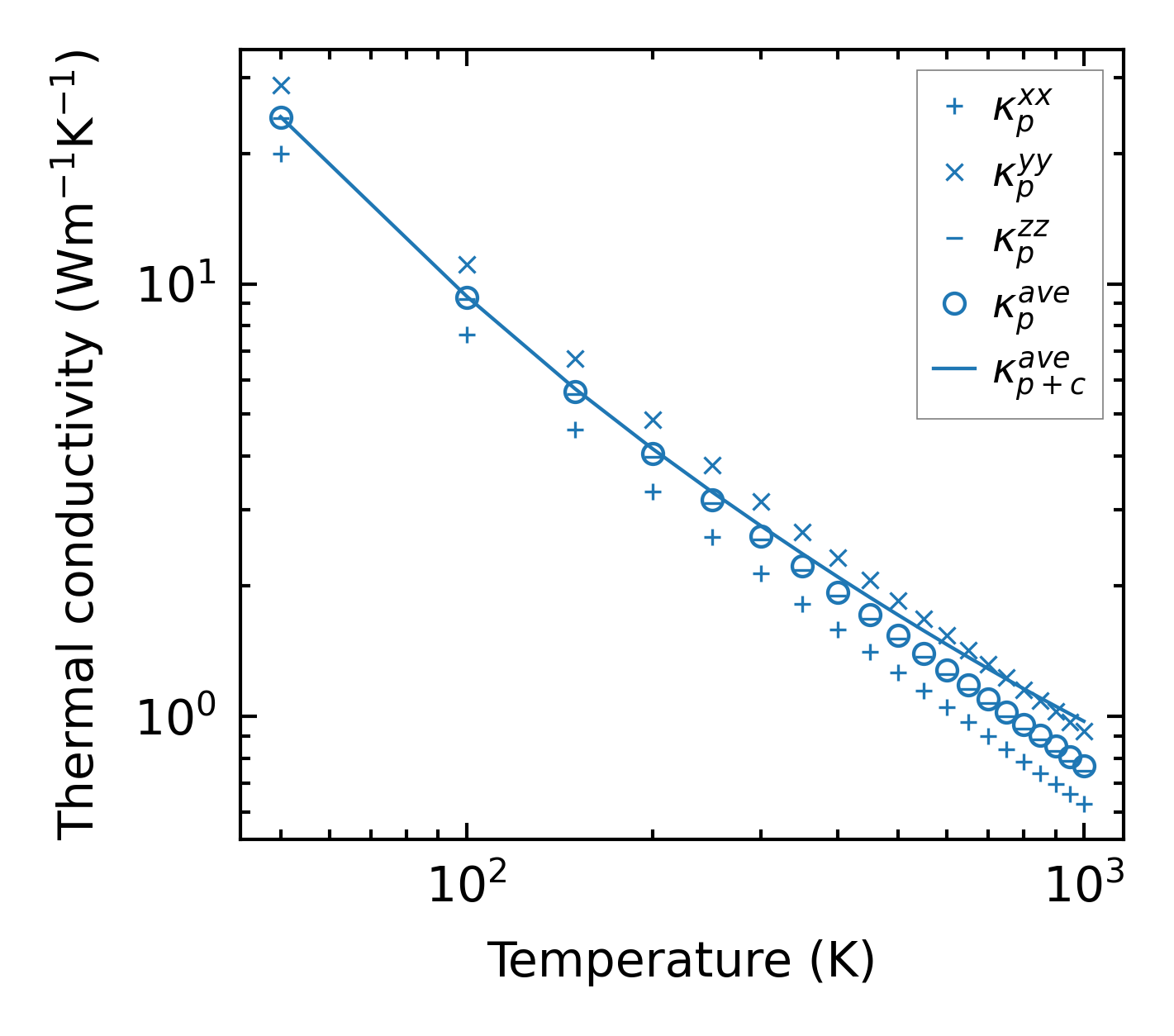

../../_images/fig_kappa12892.png — (a) Temperature-dependent lattice thermal conductivity

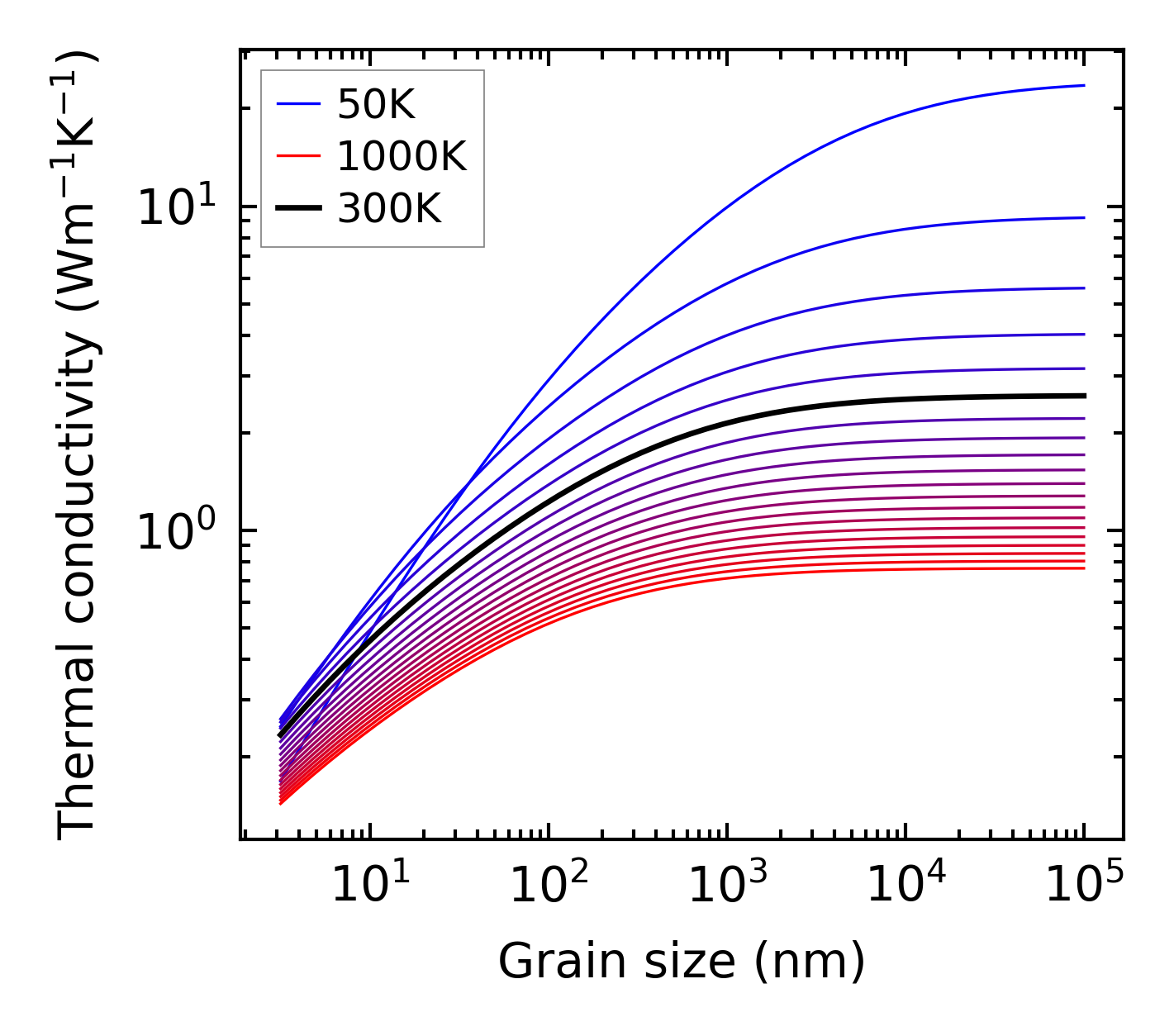

../../_images/fig_kappa_vs_grain_size6926.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

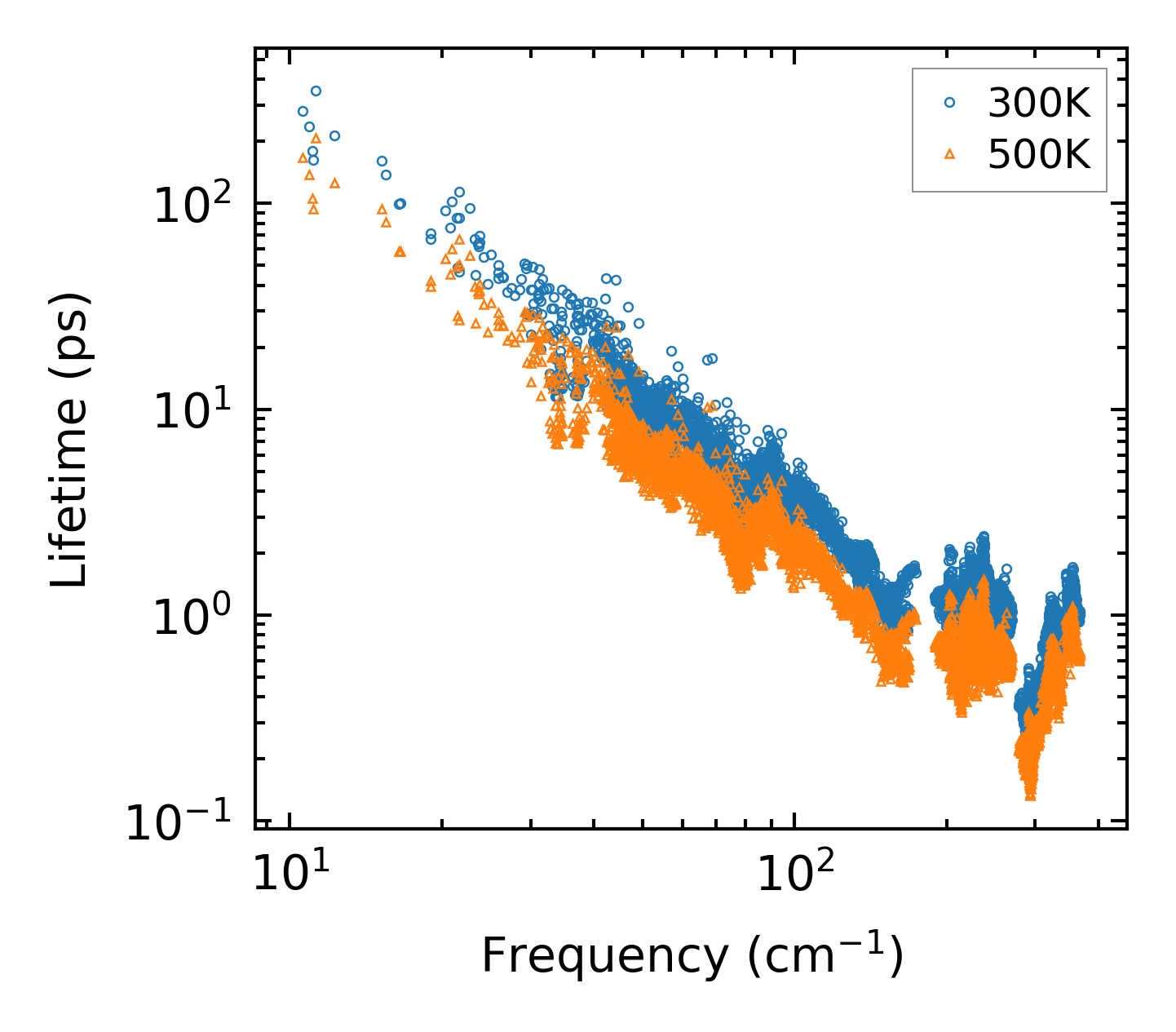

../../_images/fig_lifetime6780.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates6779.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency6780.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp6779.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

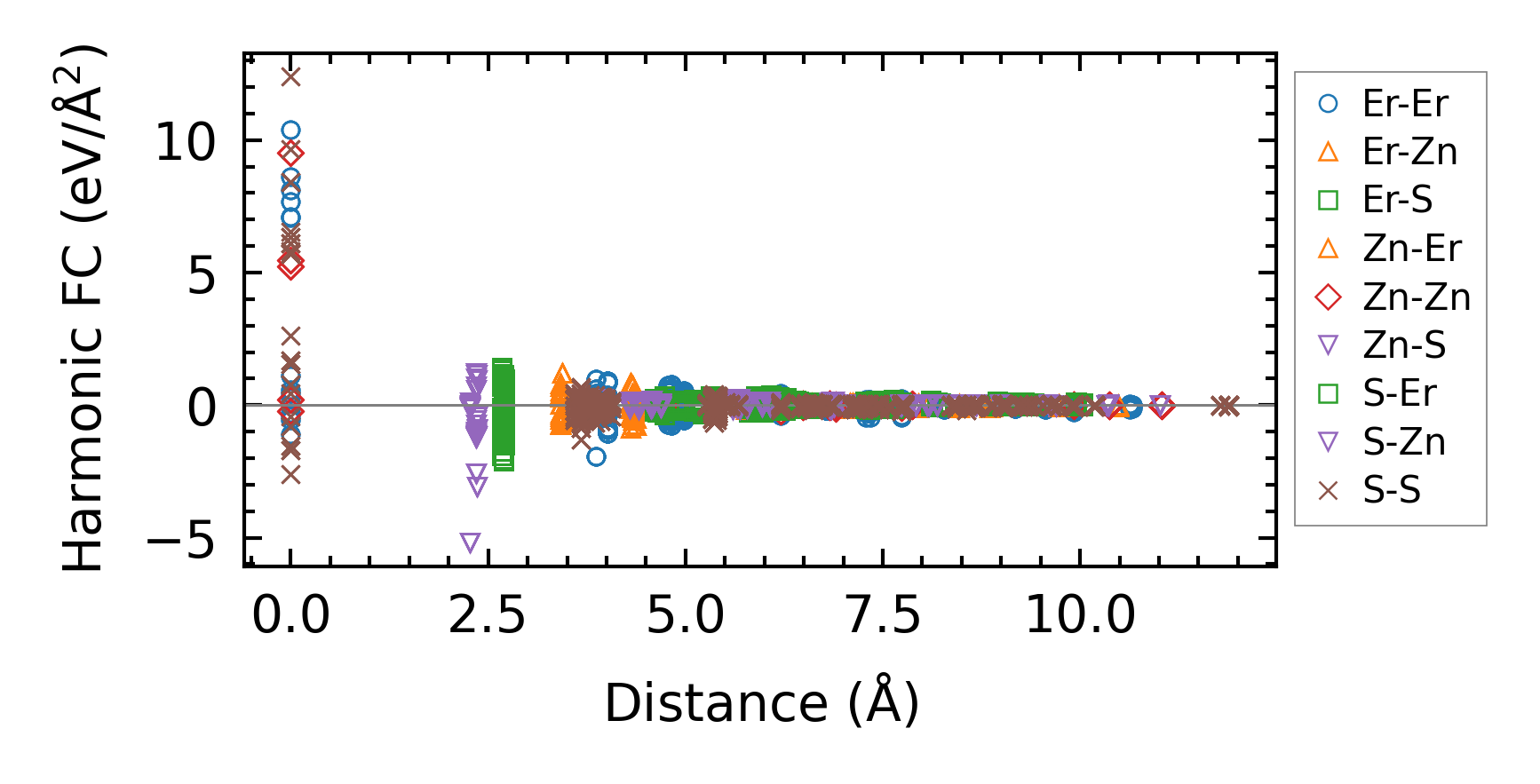

../../_images/fig_fc215409.png — (a) Force constants w.r.t atomic distance

Summary

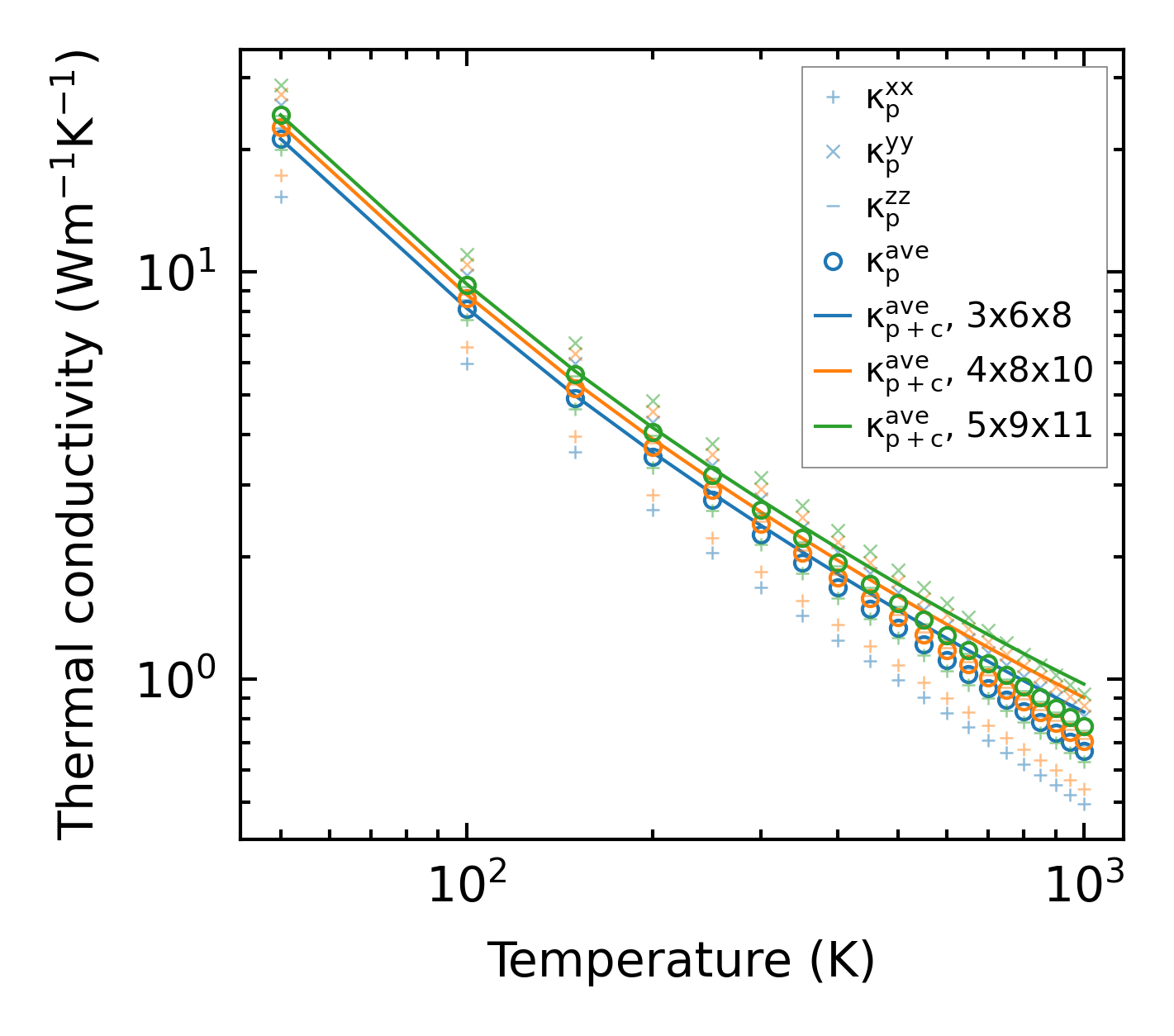

../../_images/fig_kappa12893.png — (a) Temperature-dependent lattice thermal conductivity

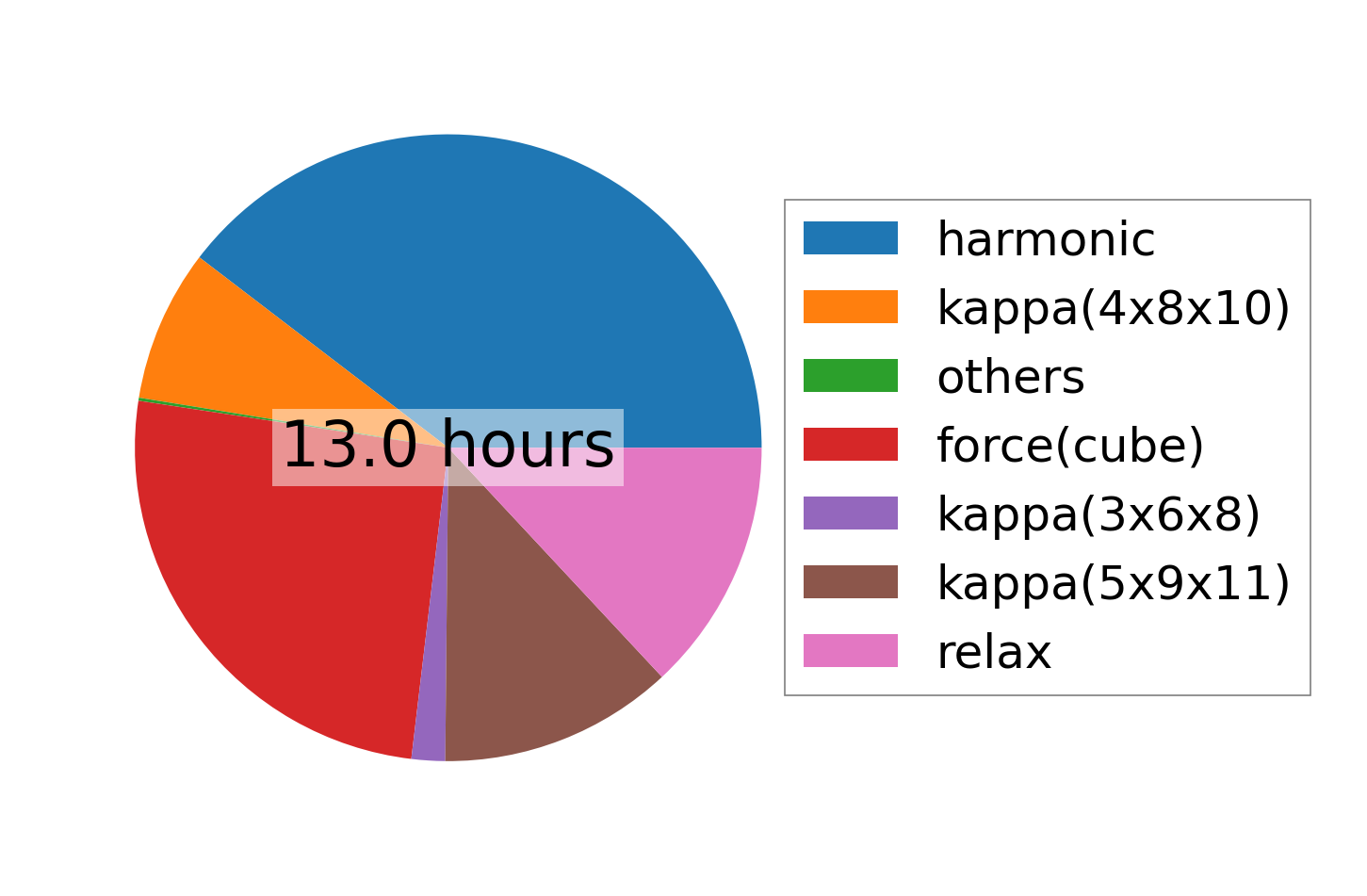

../../_images/fig_times26053.png — (b) Computation time
