mp-1192415/YbTm2S4/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-1192415.tar.gz

Harmonic properties

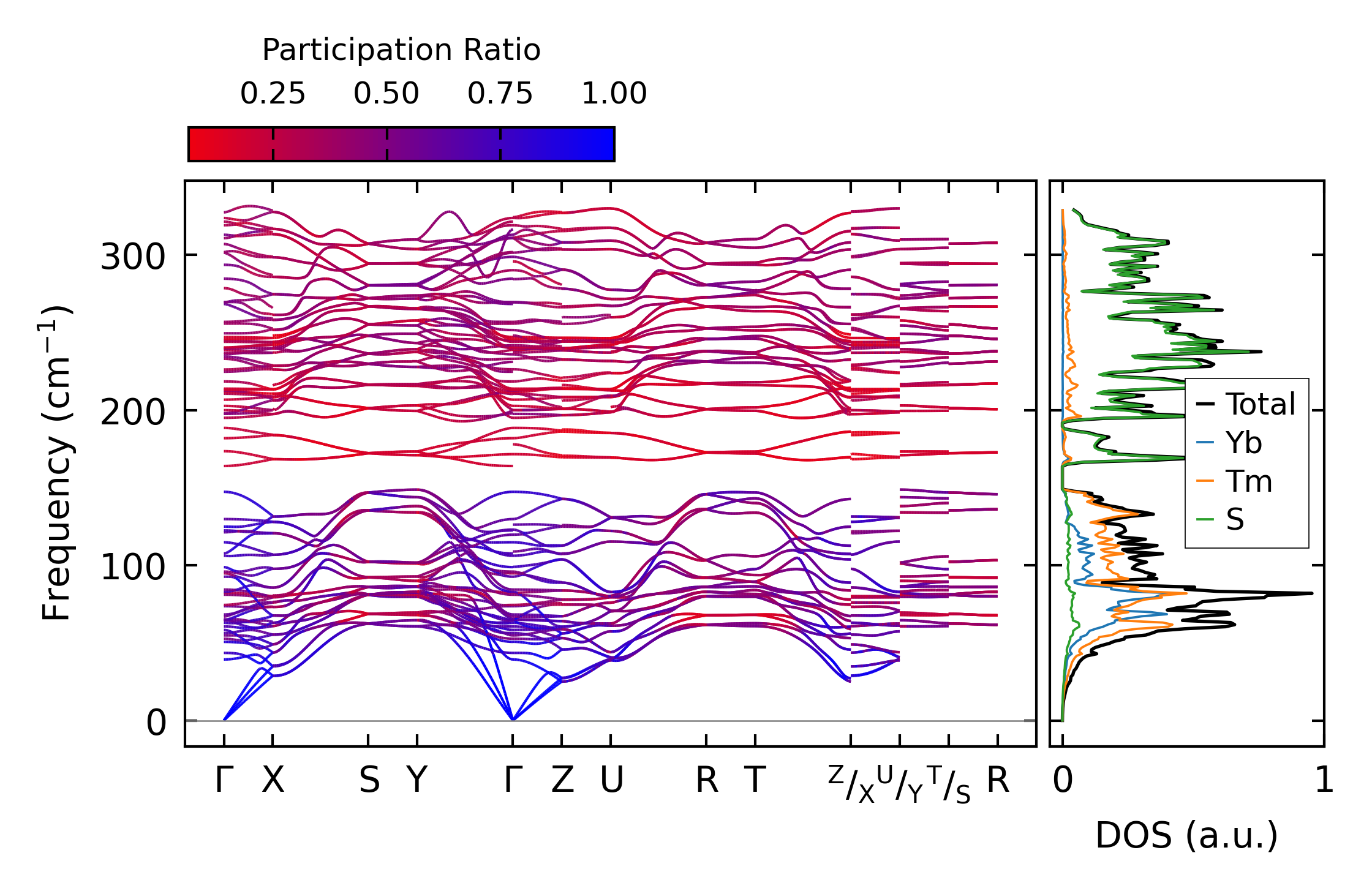

../../_images/fig_bandos_pr15789.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo15788.png — (b) Thermodynamic properties

Grüneisen parameters

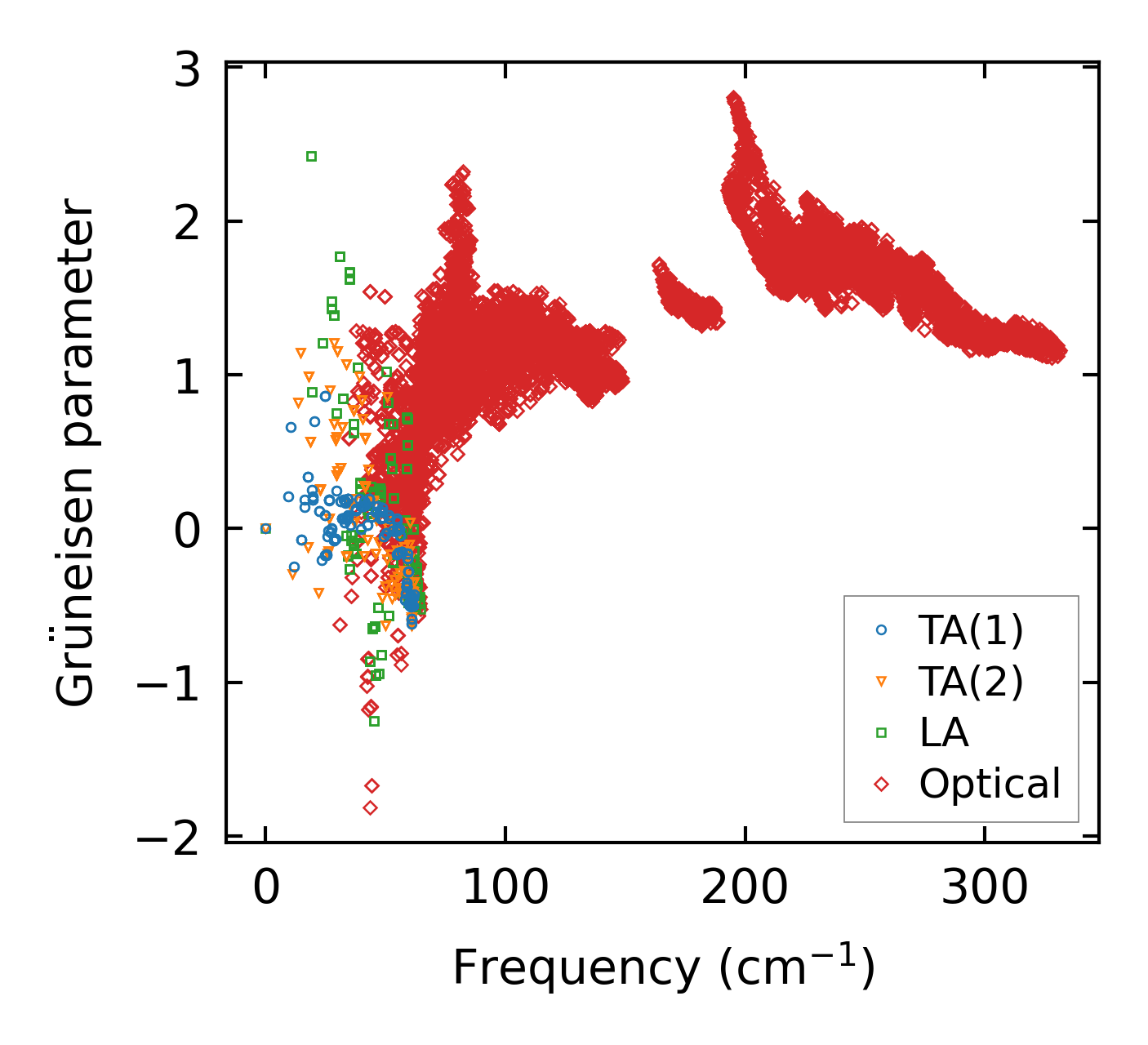

../../_images/fig_gru_all6836.png — (a) Grüneisen parameters

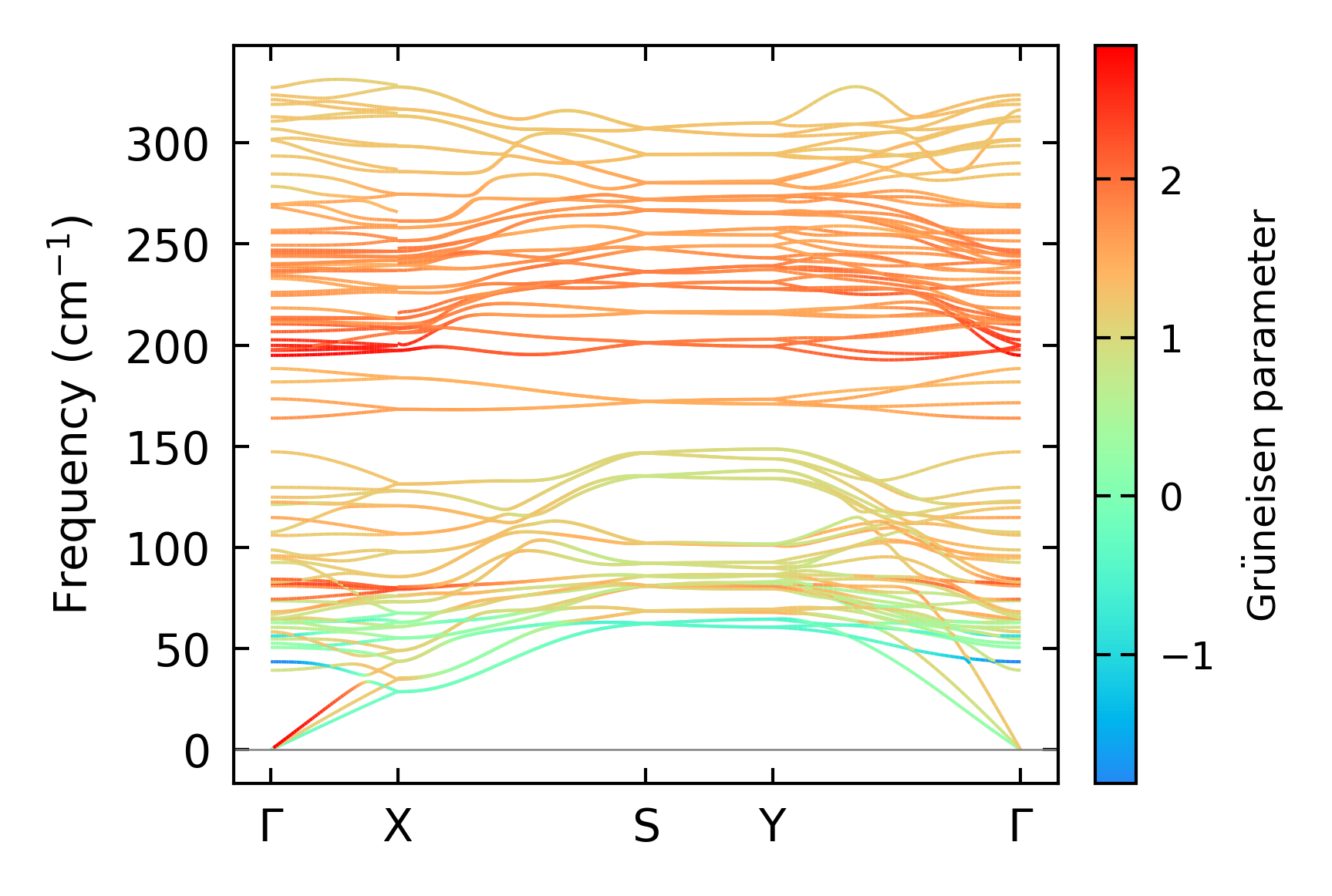

../../_images/fig_gruneisen6836.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 5x18x5, supercell: 1x4x1

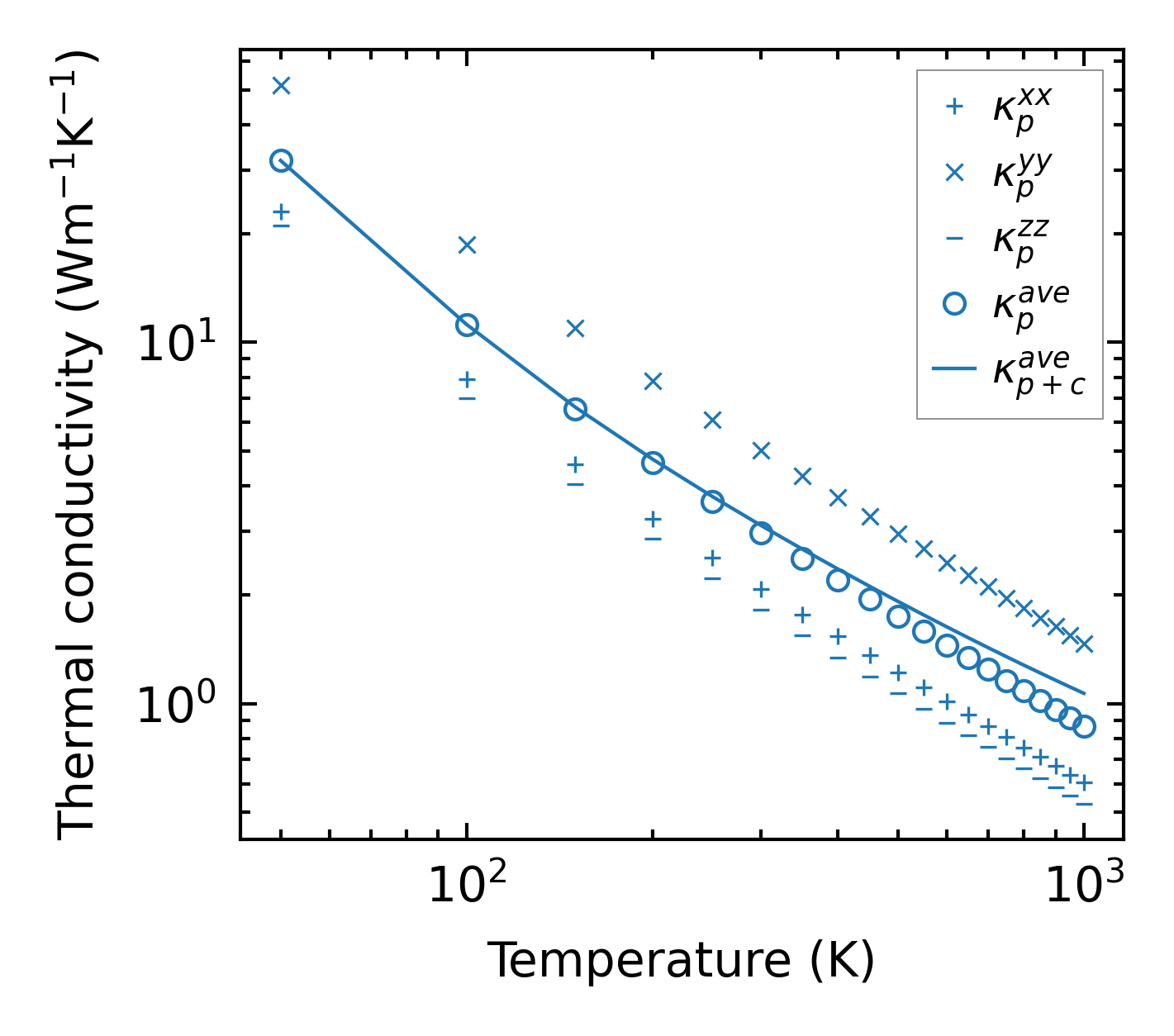

../../_images/fig_kappa12873.png — (a) Temperature-dependent lattice thermal conductivity

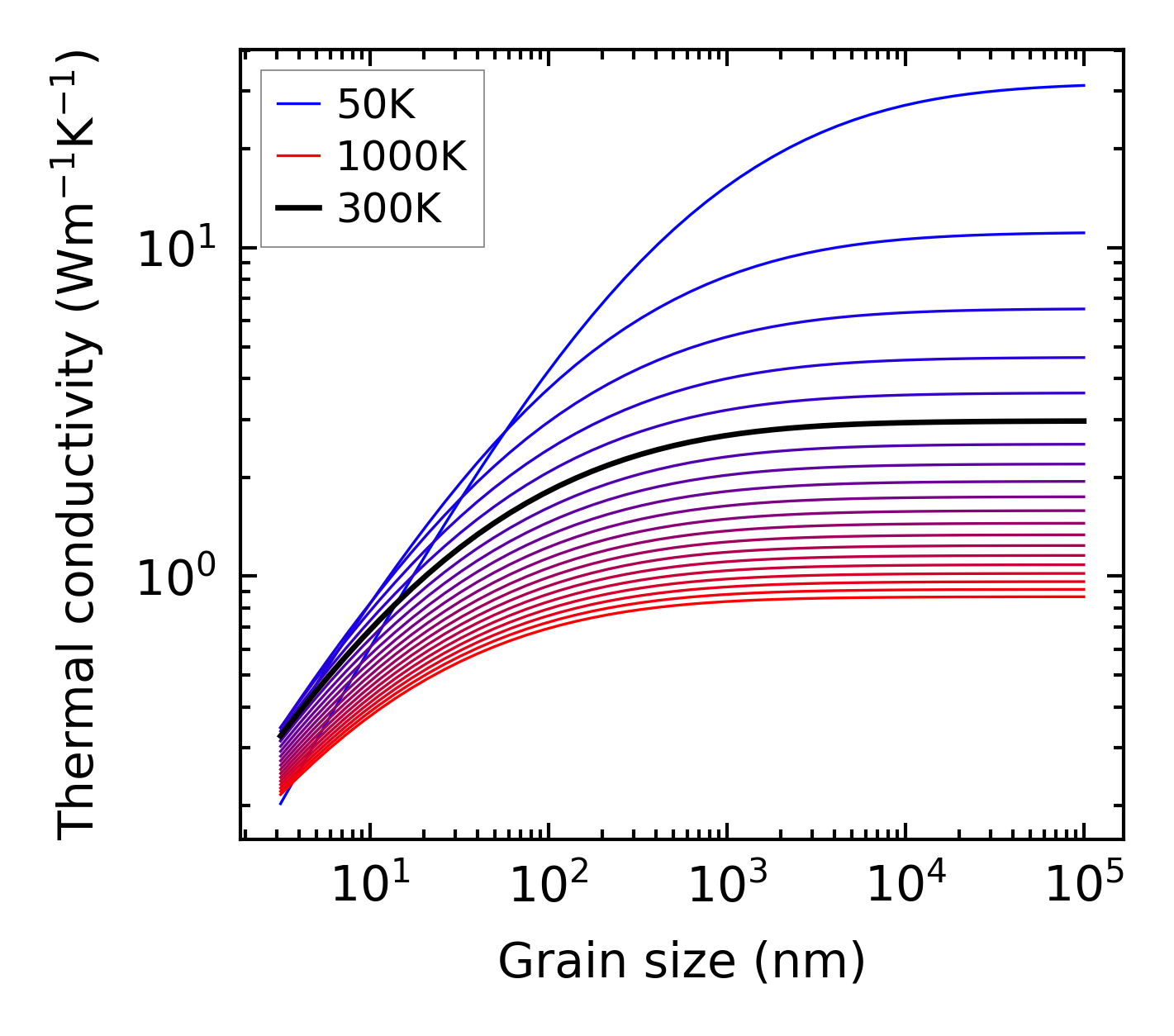

../../_images/fig_kappa_vs_grain_size6916.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

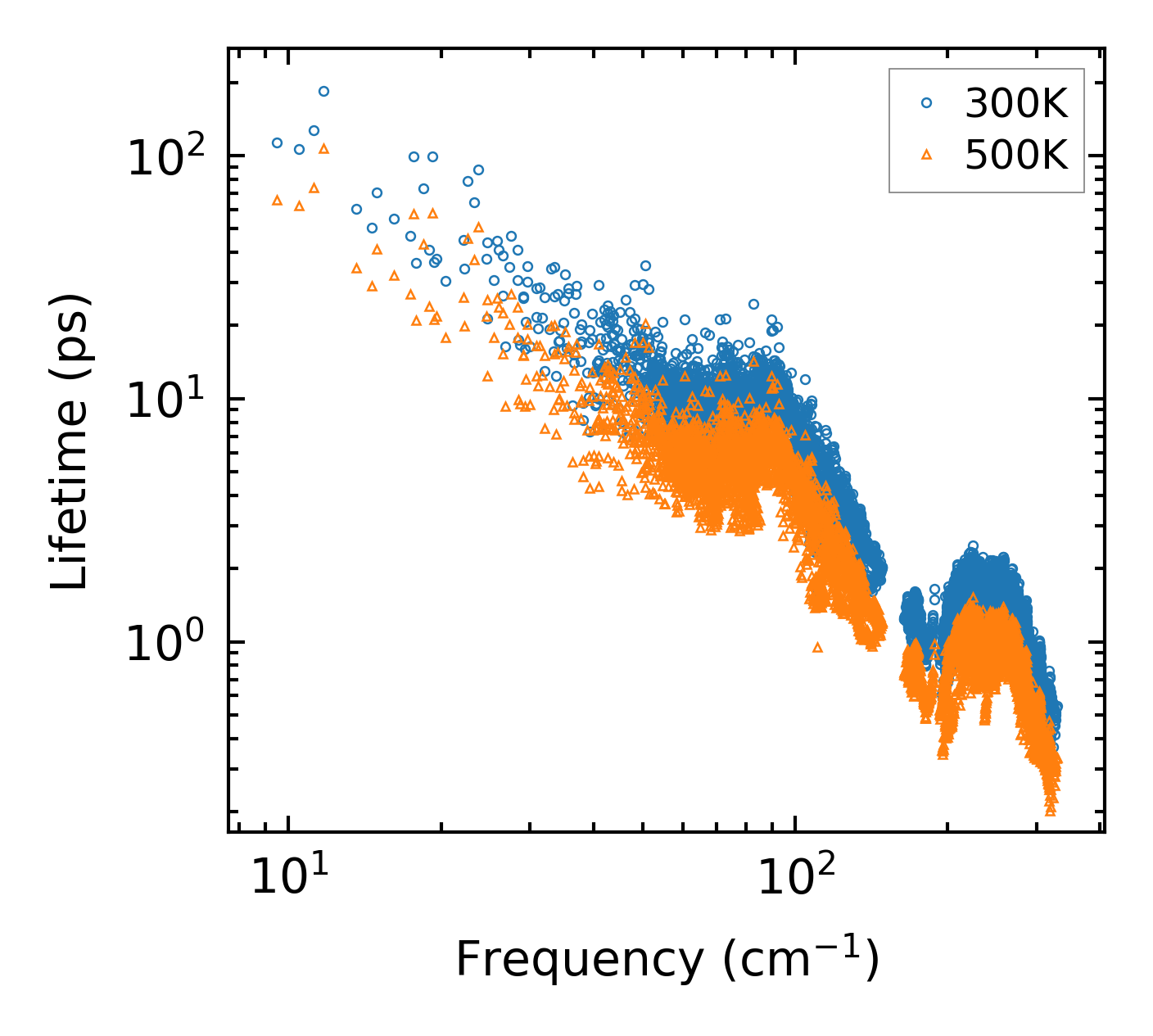

../../_images/fig_lifetime6770.png — (a) Phonon lifetime due to phonon-phonon scattering

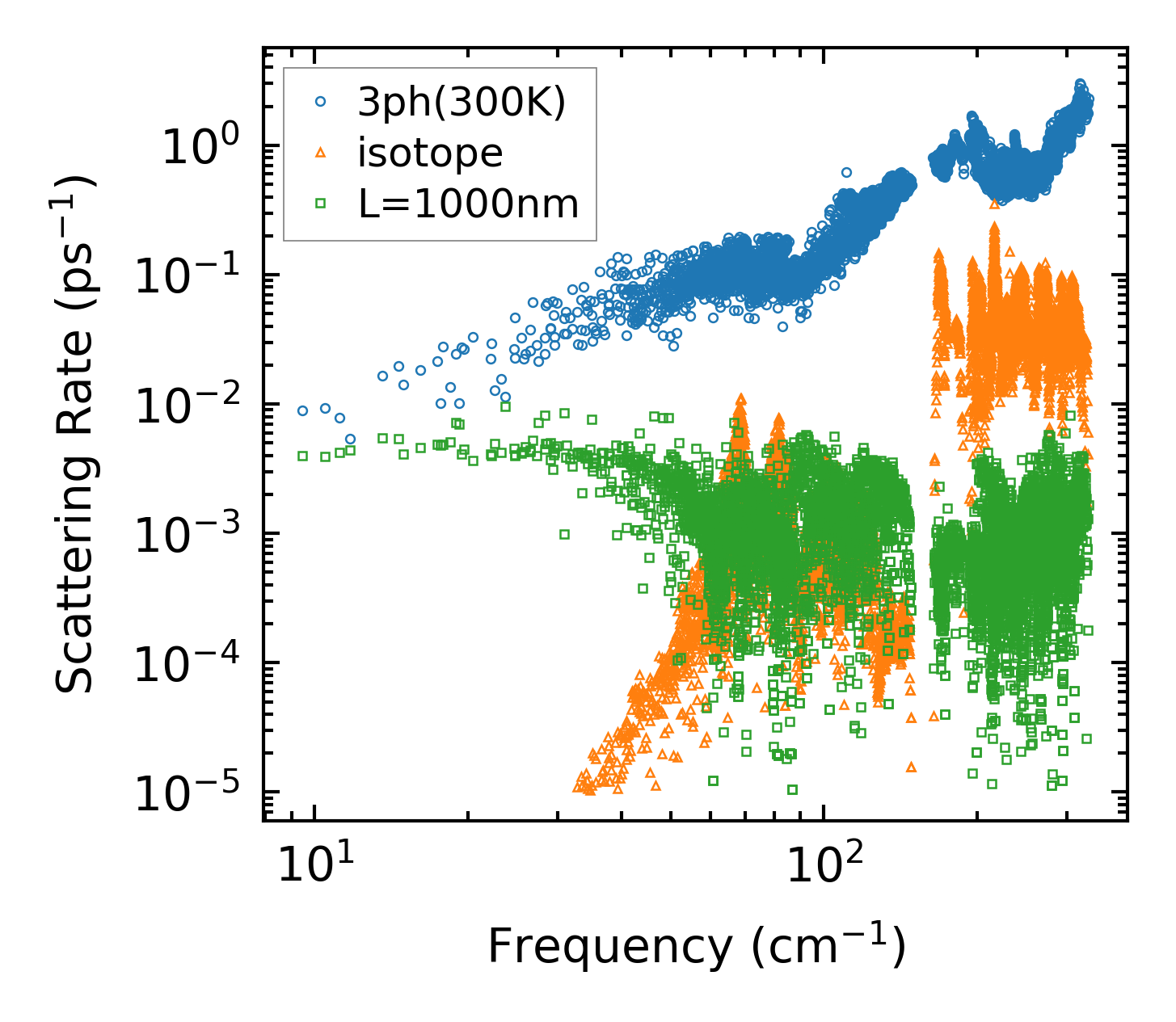

../../_images/fig_scat_rates6769.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

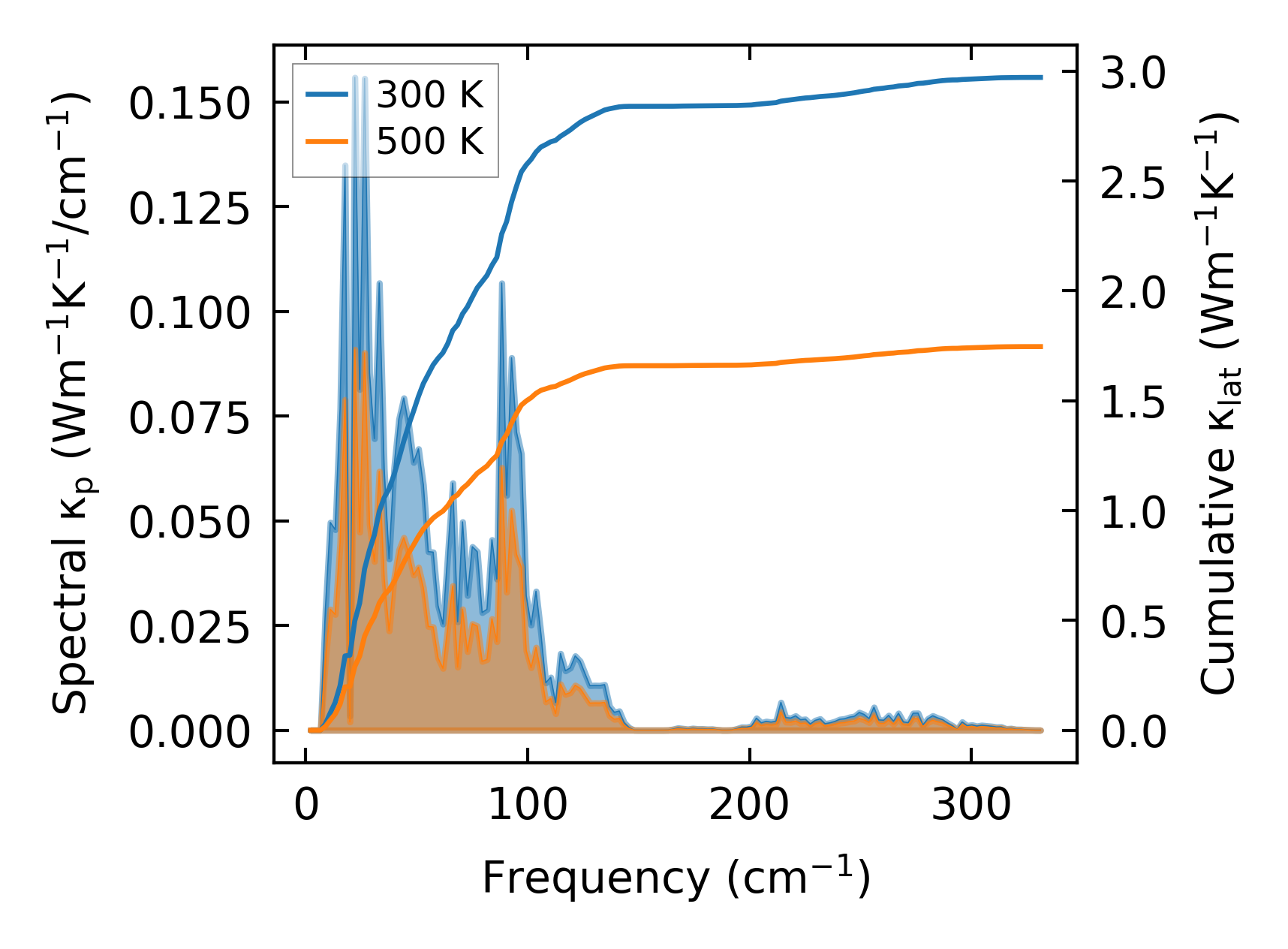

../../_images/fig_cumu_frequency6770.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

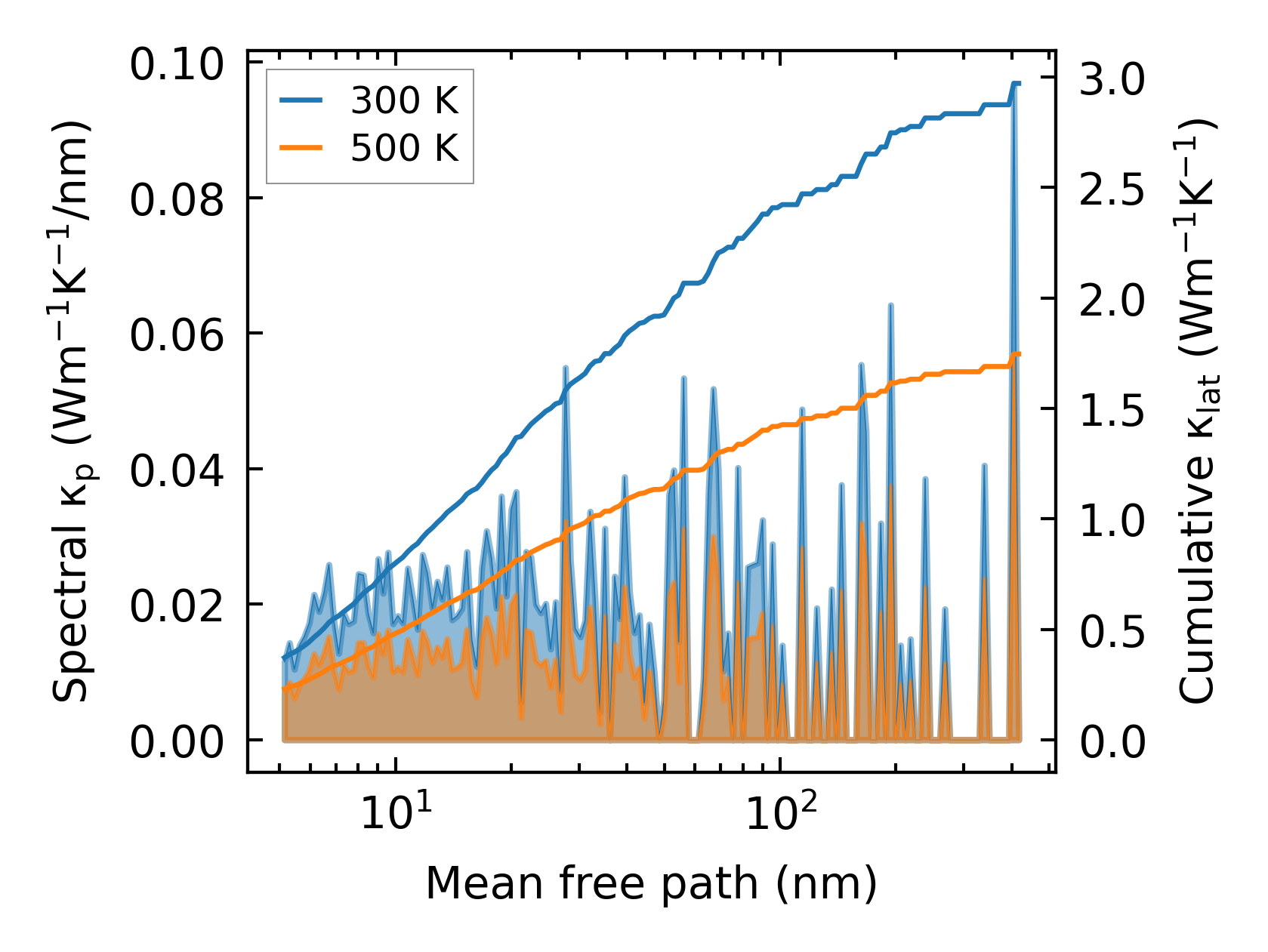

../../_images/fig_cumu_mfp6769.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

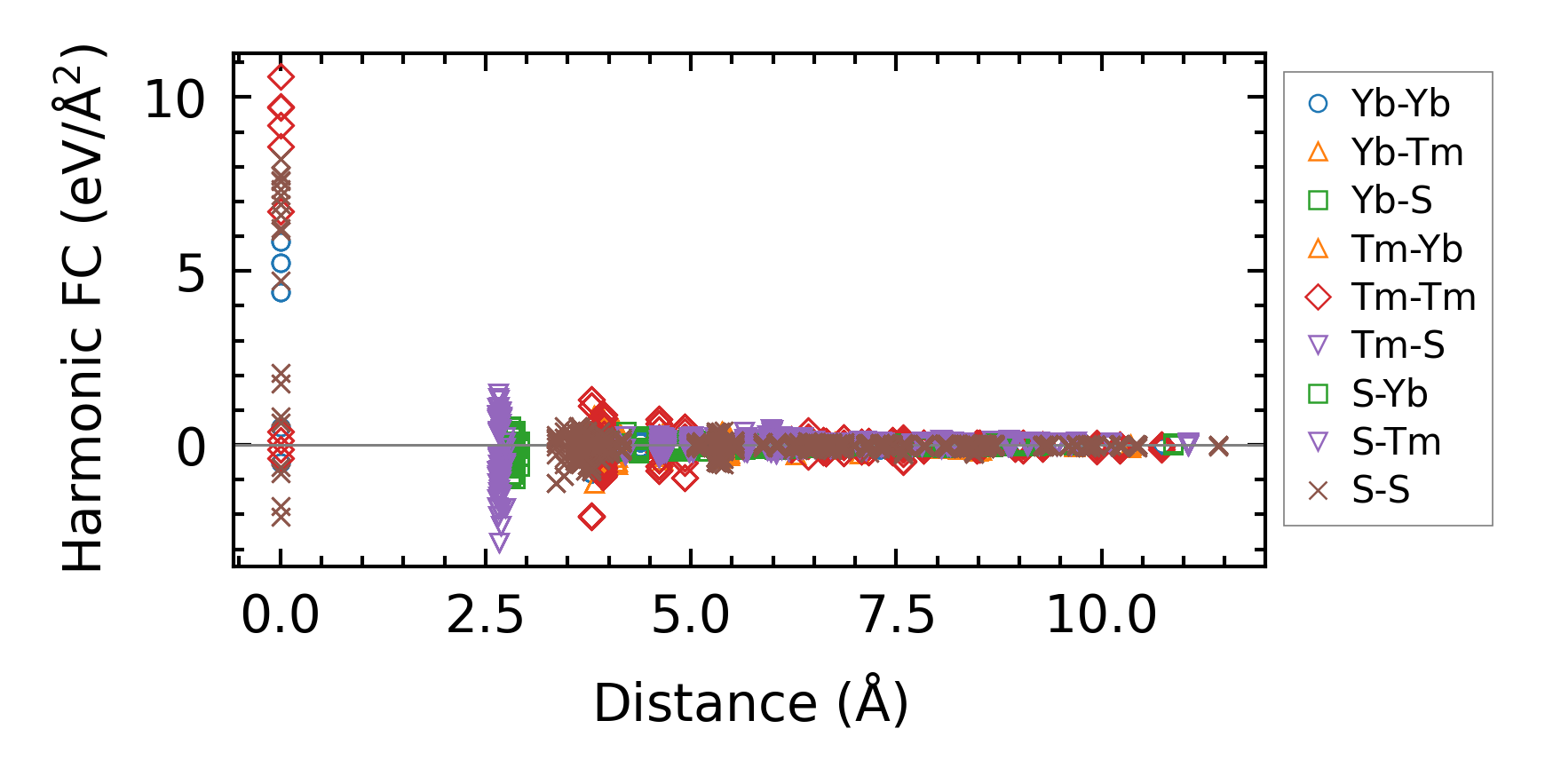

../../_images/fig_fc215384.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa12874.png — (a) Temperature-dependent lattice thermal conductivity

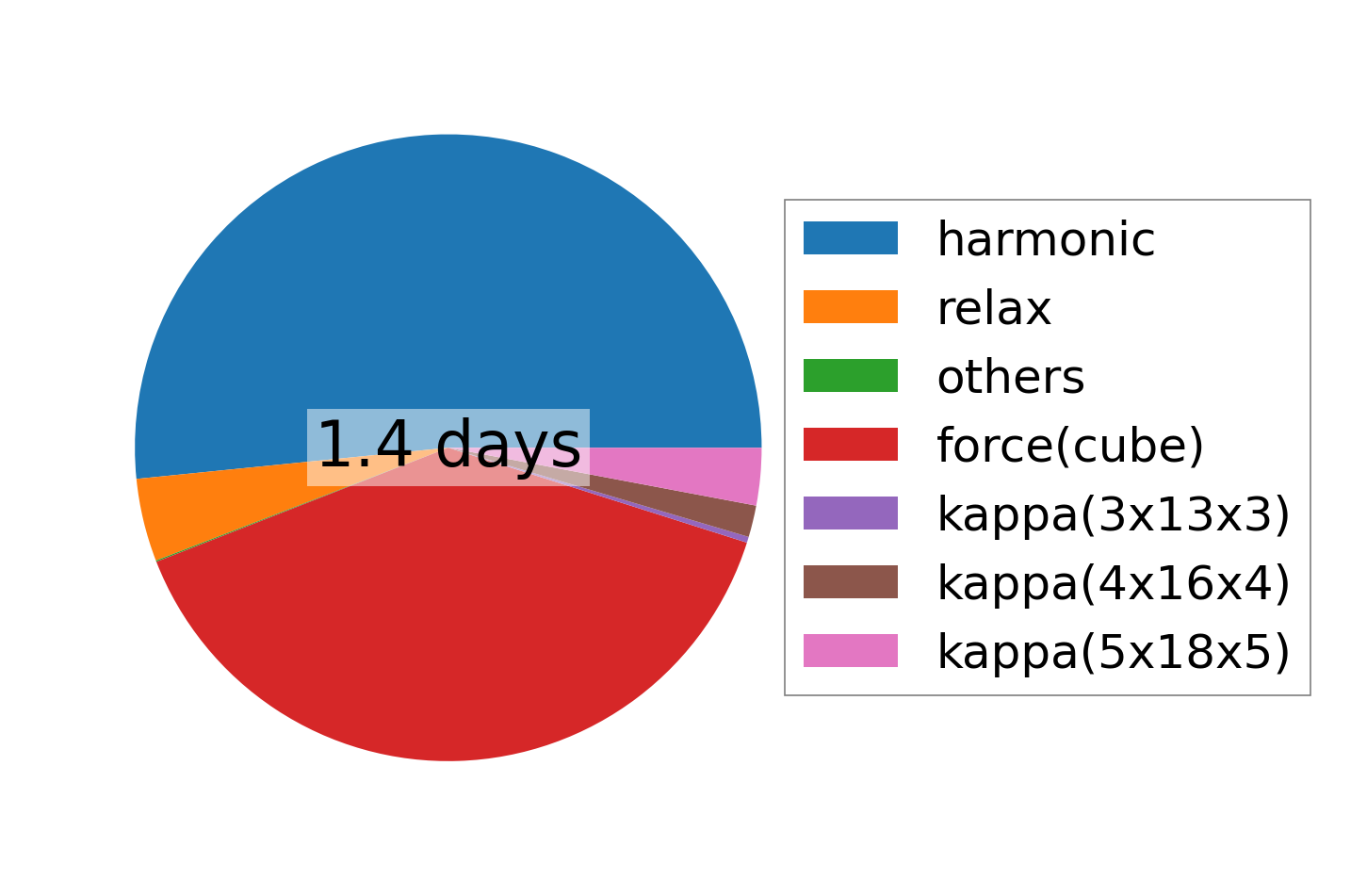

../../_images/fig_times26001.png — (b) Computation time
