mp-1192231/CuIO4/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-1192231.tar.gz

Harmonic properties

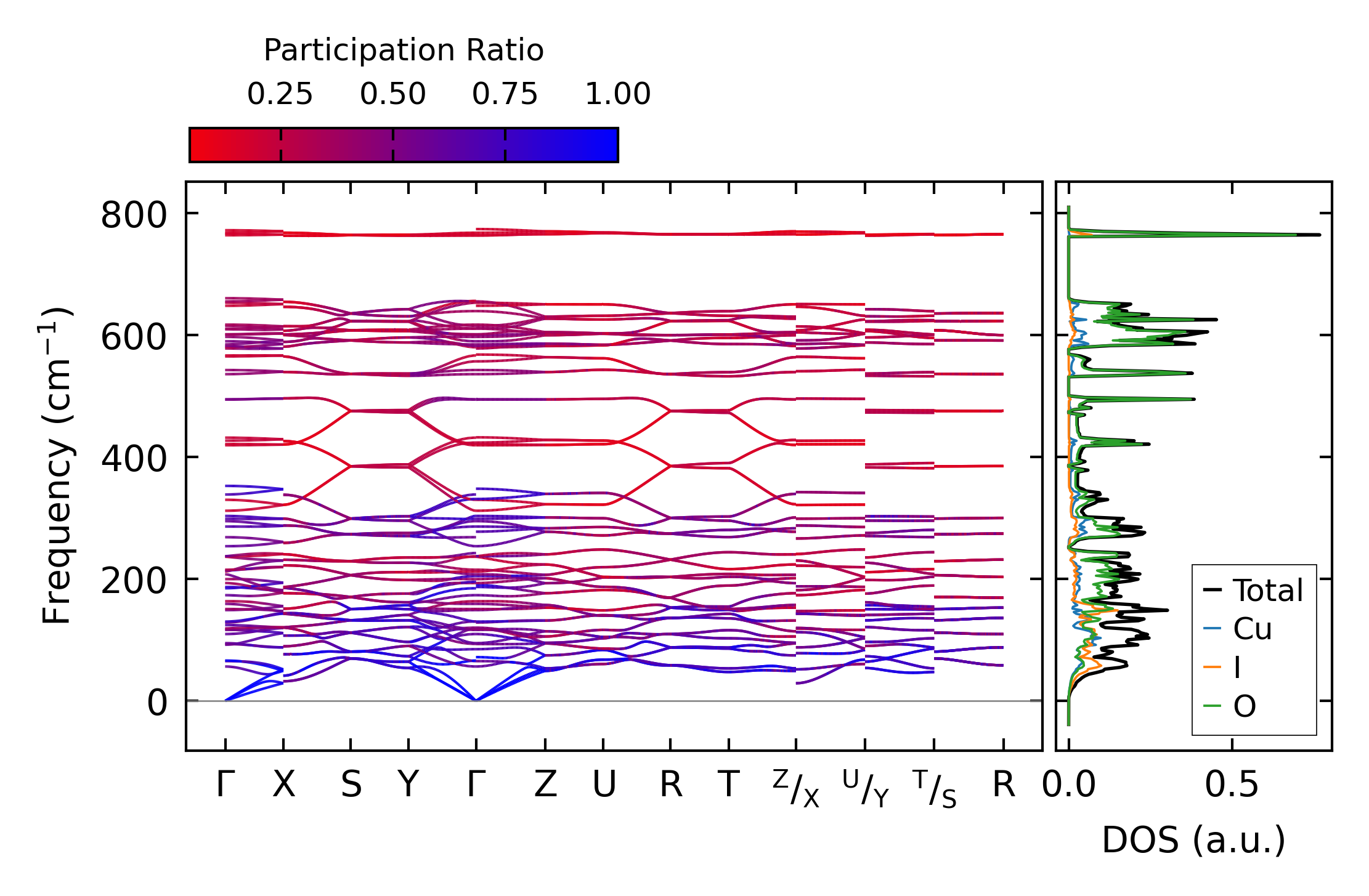

../../_images/fig_bandos_pr15780.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo15779.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all6835.png — (a) Grüneisen parameters

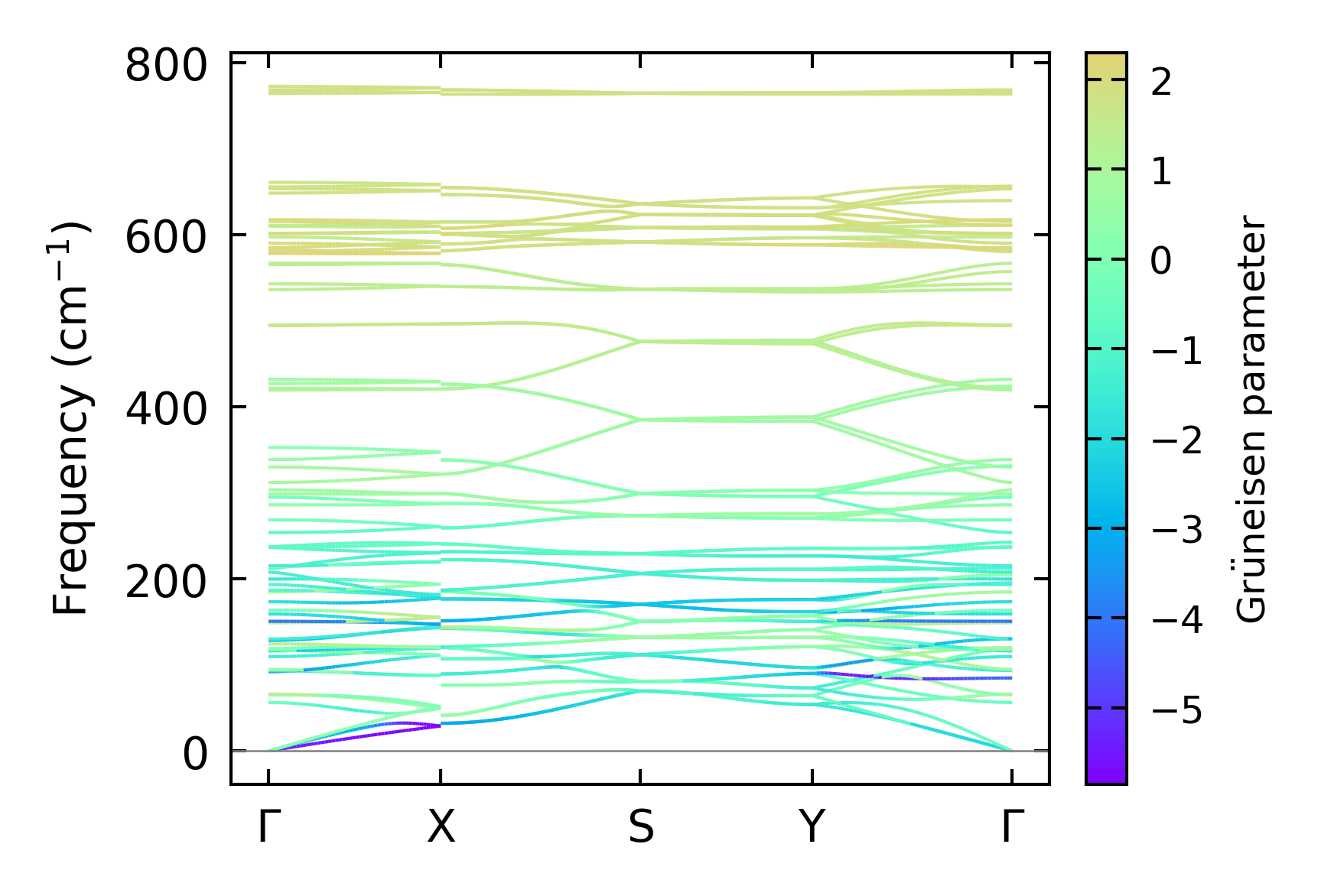

../../_images/fig_gruneisen6835.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x11x12, supercell: 1x2x2

../../_images/fig_kappa12871.png — (a) Temperature-dependent lattice thermal conductivity

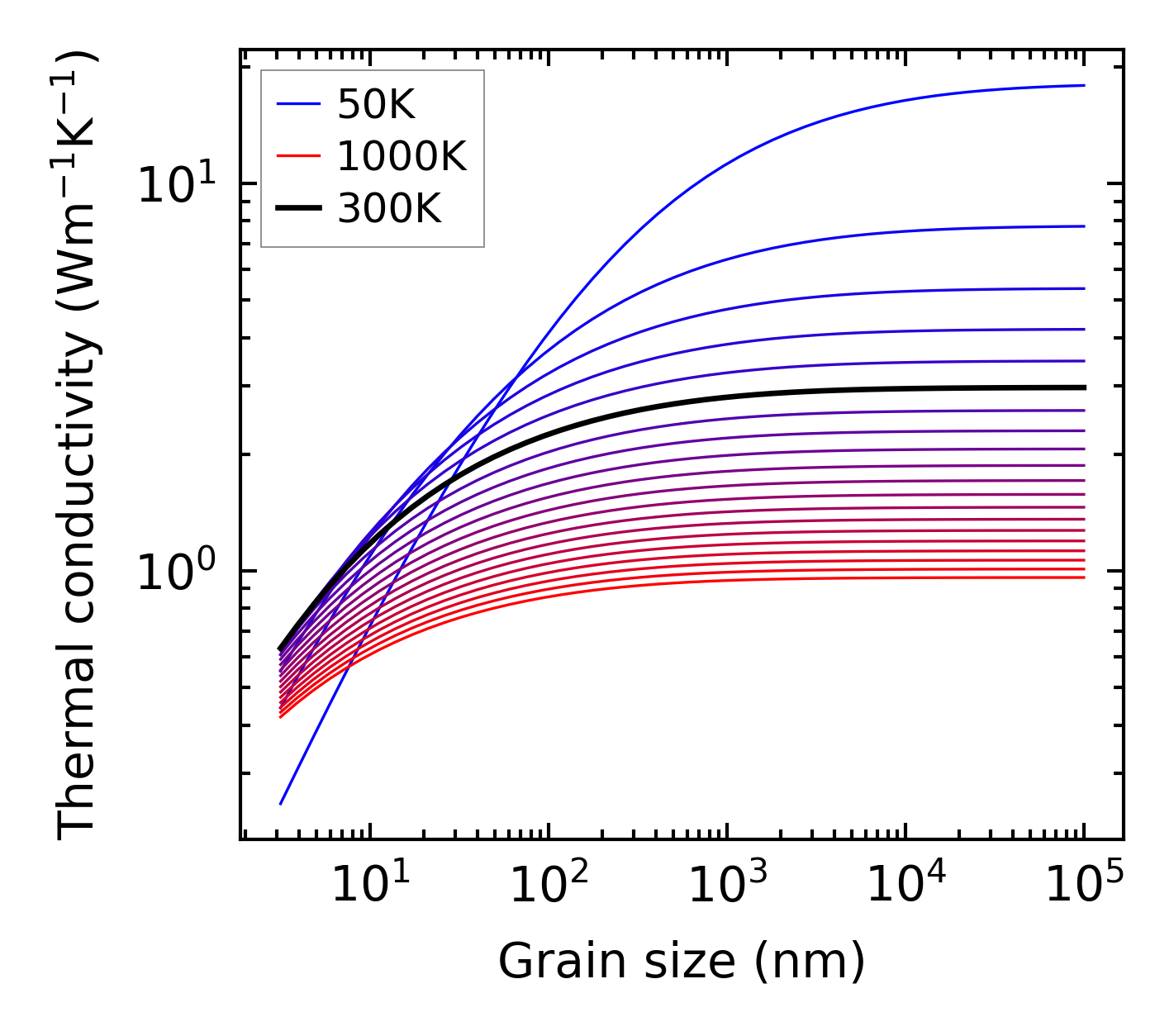

../../_images/fig_kappa_vs_grain_size6915.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime6769.png — (a) Phonon lifetime due to phonon-phonon scattering

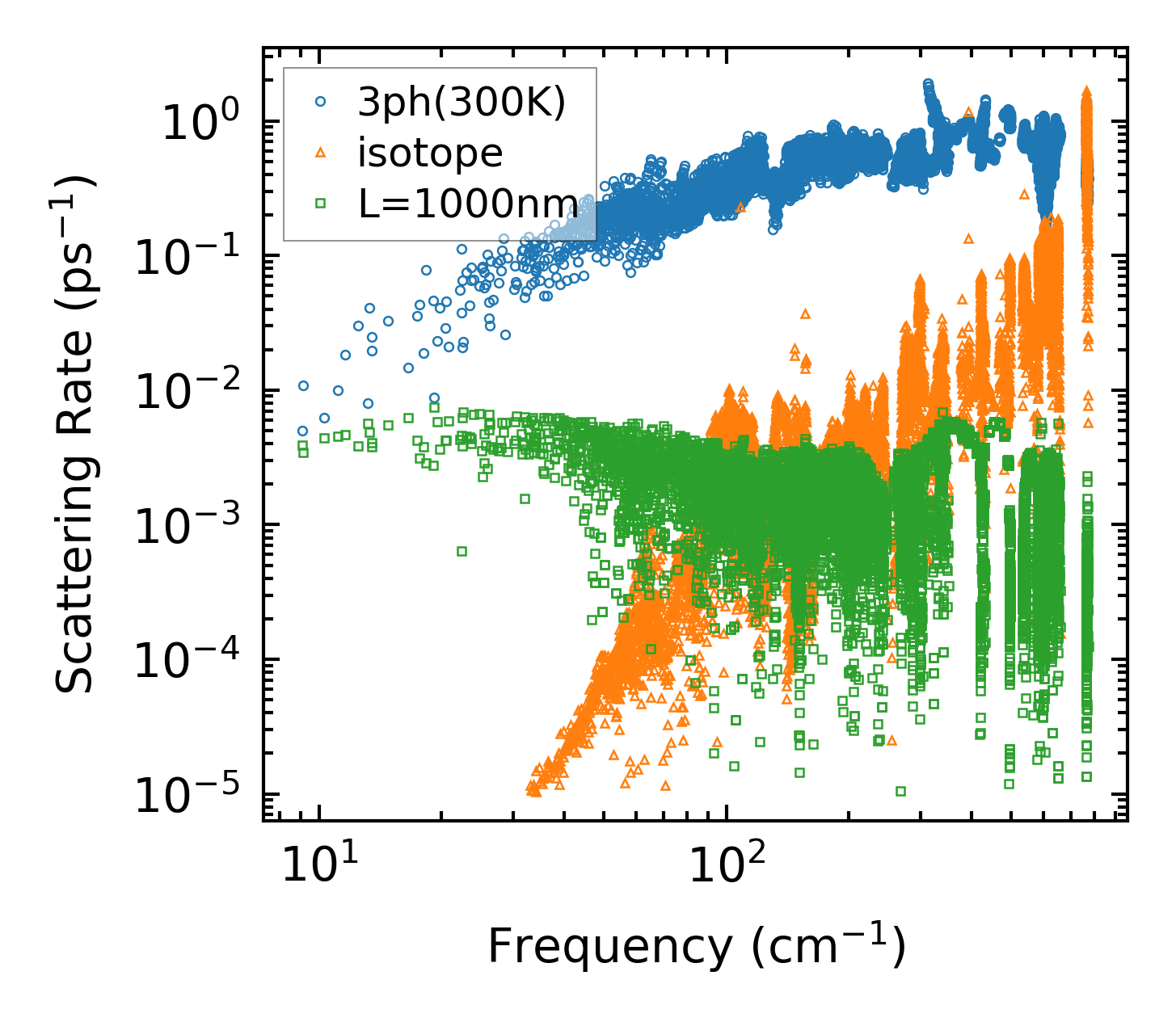

../../_images/fig_scat_rates6768.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency6769.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

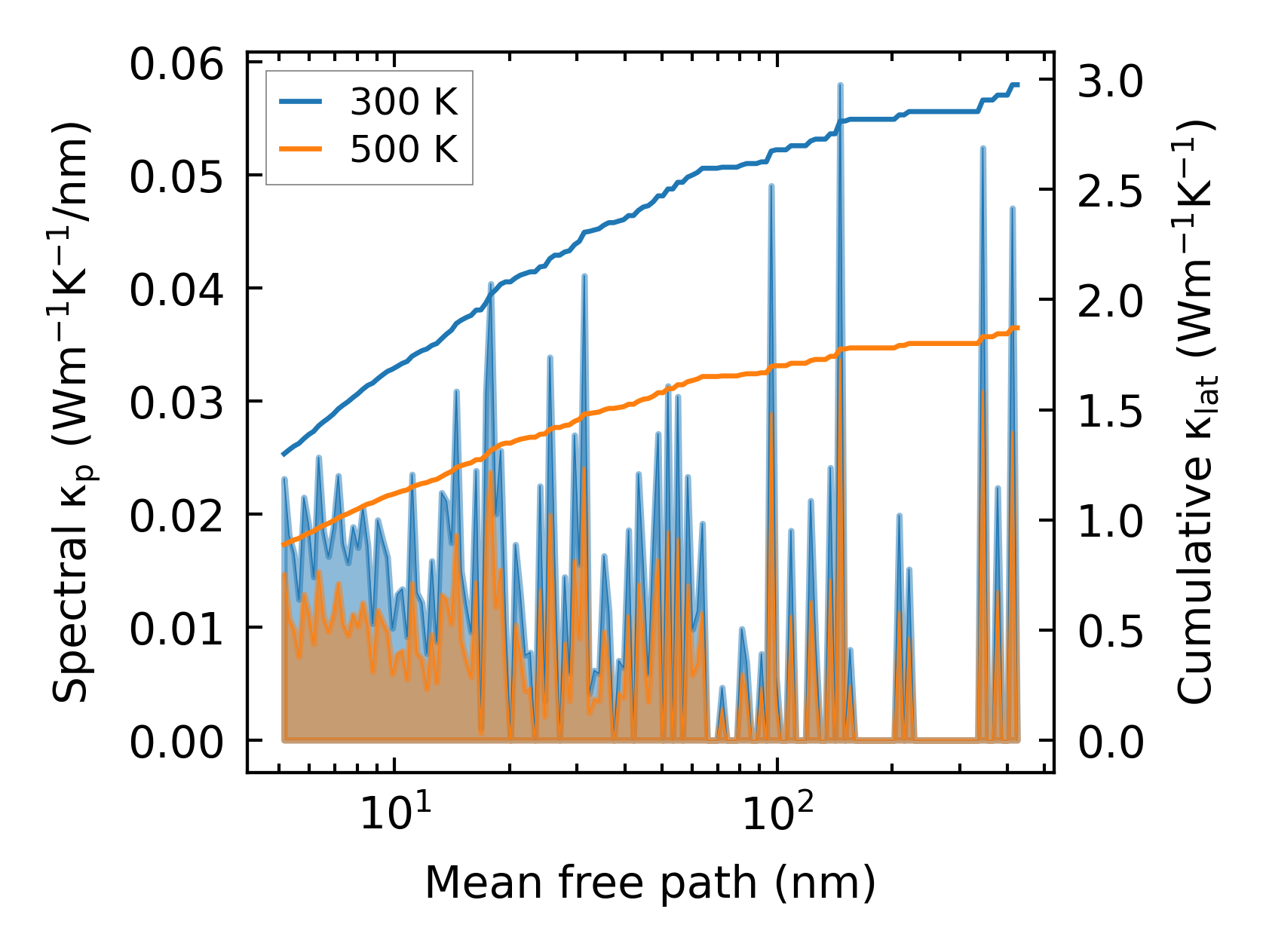

../../_images/fig_cumu_mfp6768.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

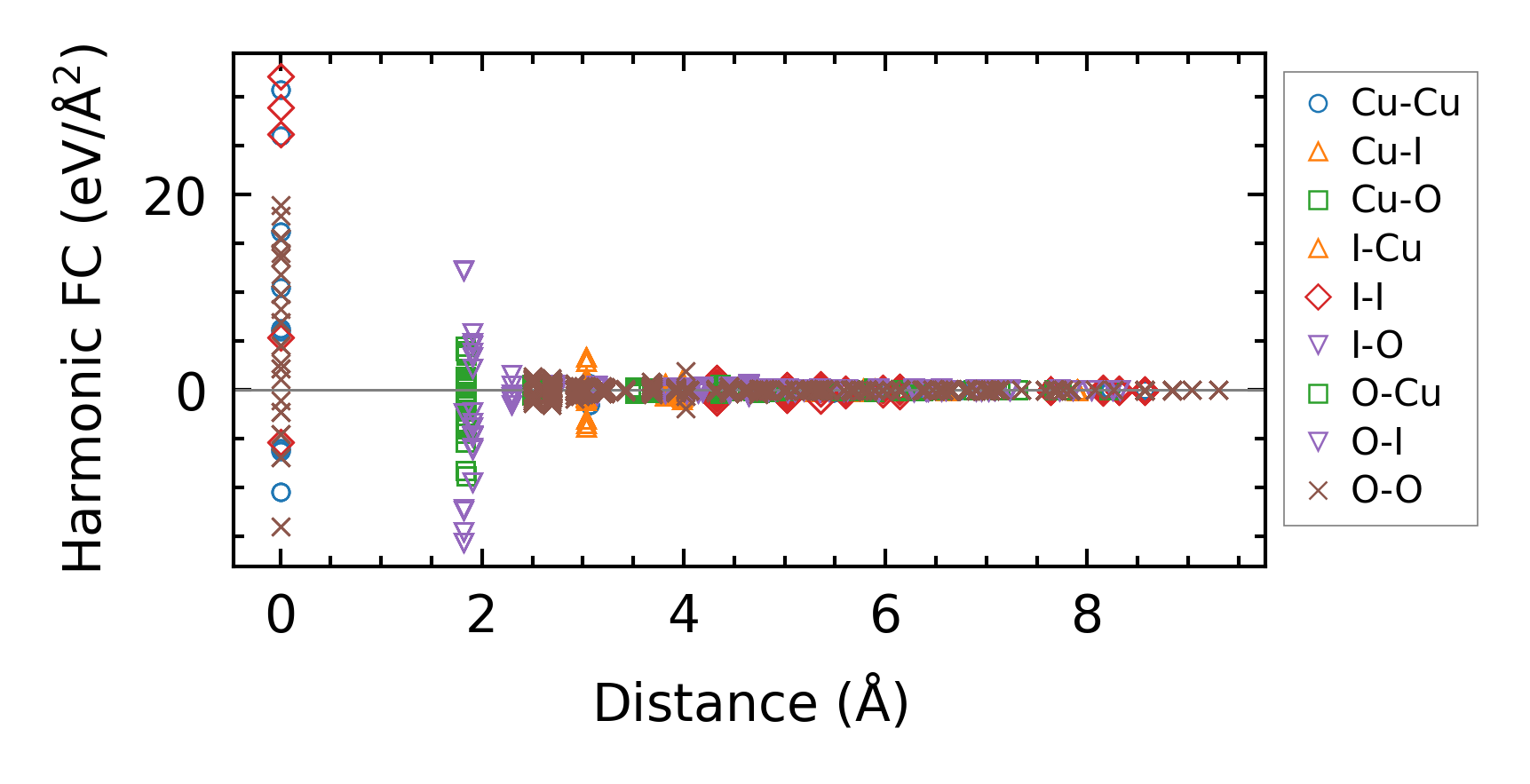

../../_images/fig_fc215375.png — (a) Force constants w.r.t atomic distance

Summary

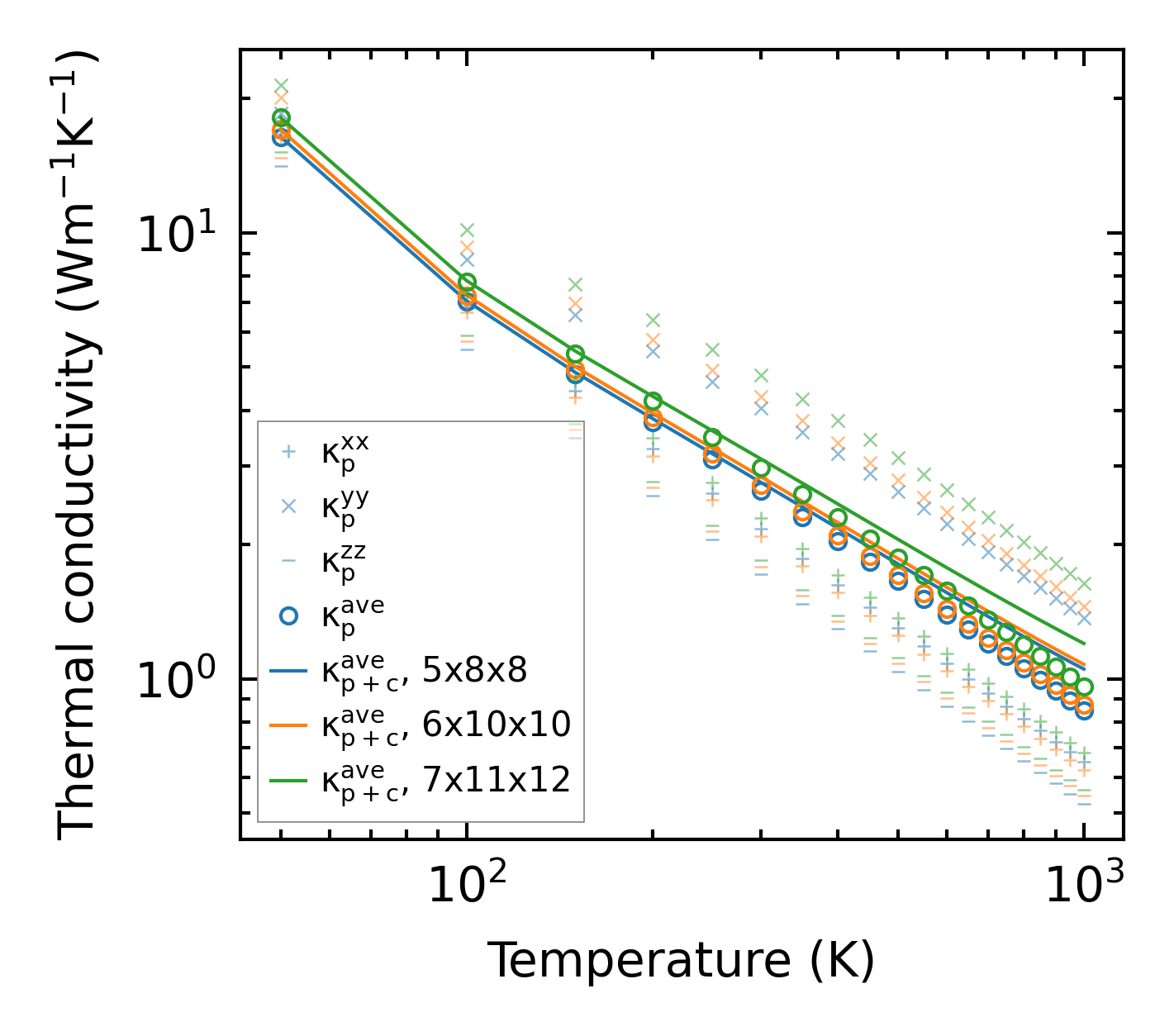

../../_images/fig_kappa12872.png — (a) Temperature-dependent lattice thermal conductivity

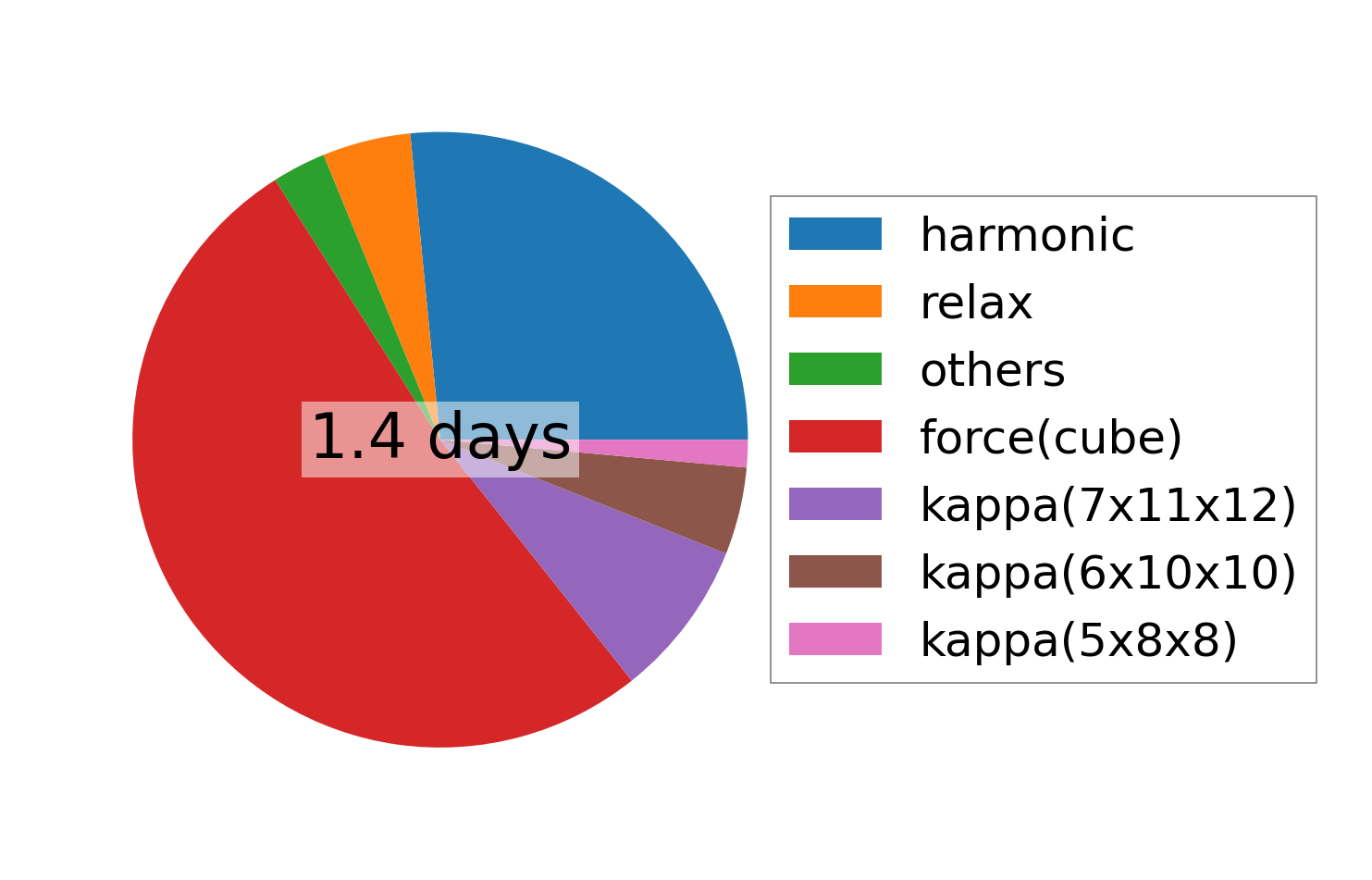

../../_images/fig_times25985.png — (b) Computation time
