mp-1192532-3/SiH2/anharm

Space group: P2_1/m (11)
Link: Materials Project
Download: mp-1192532-3.tar.gz

Equation of state

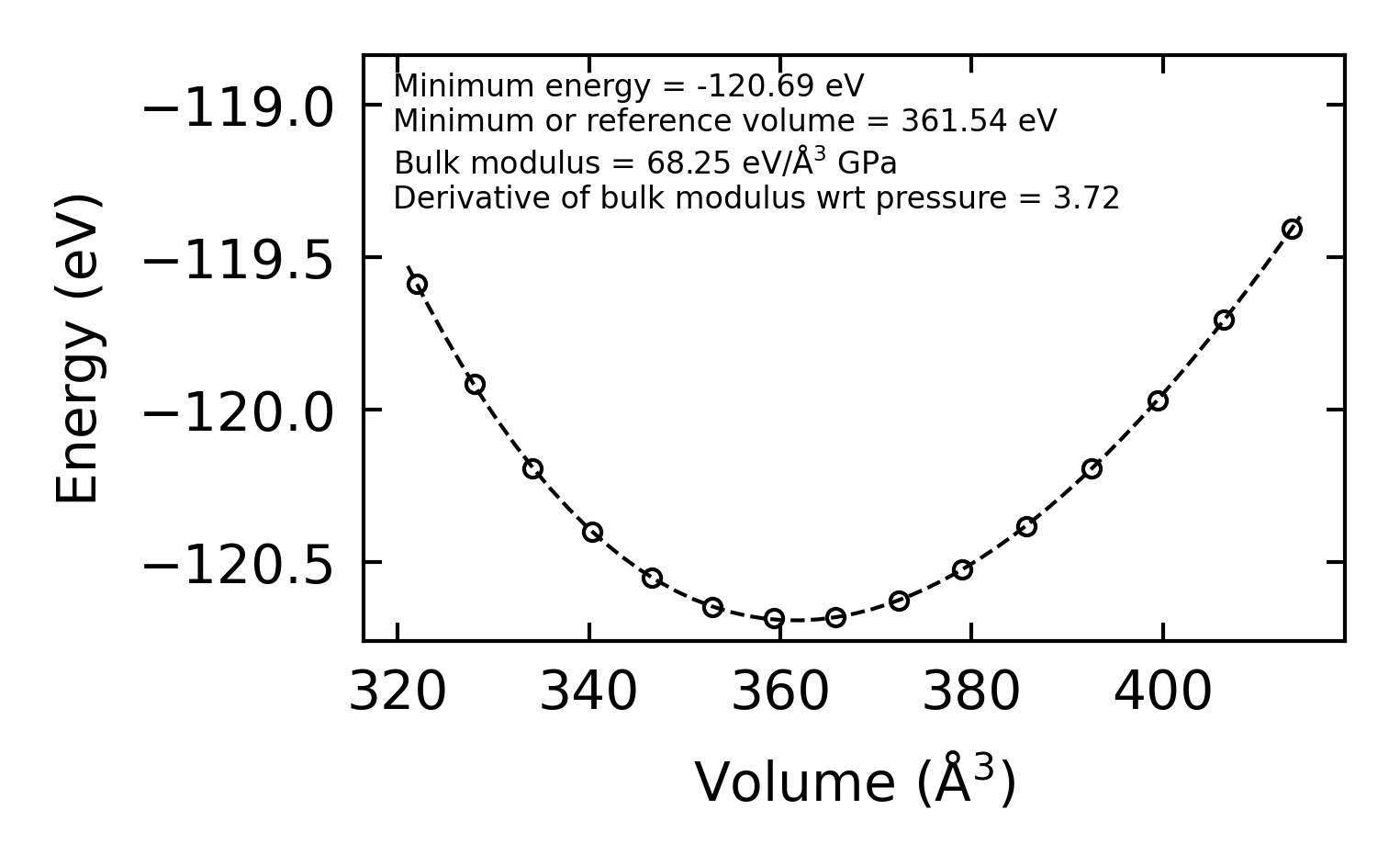

../../_images/fig_bm7684.png — (a) Equation of state

Harmonic properties

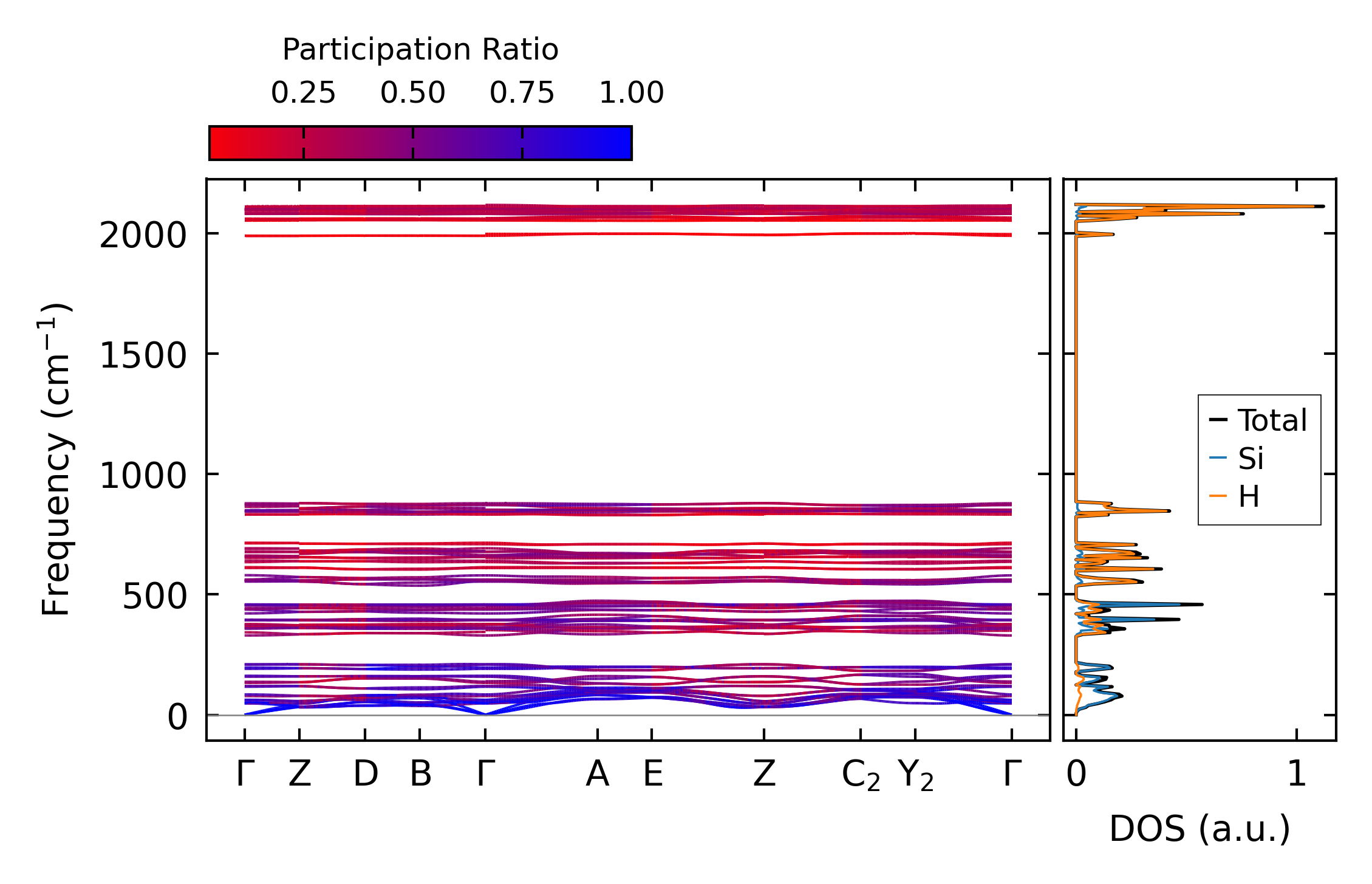

../../_images/fig_bandos_pr15798.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo15797.png — (b) Thermodynamic properties

Grüneisen parameters

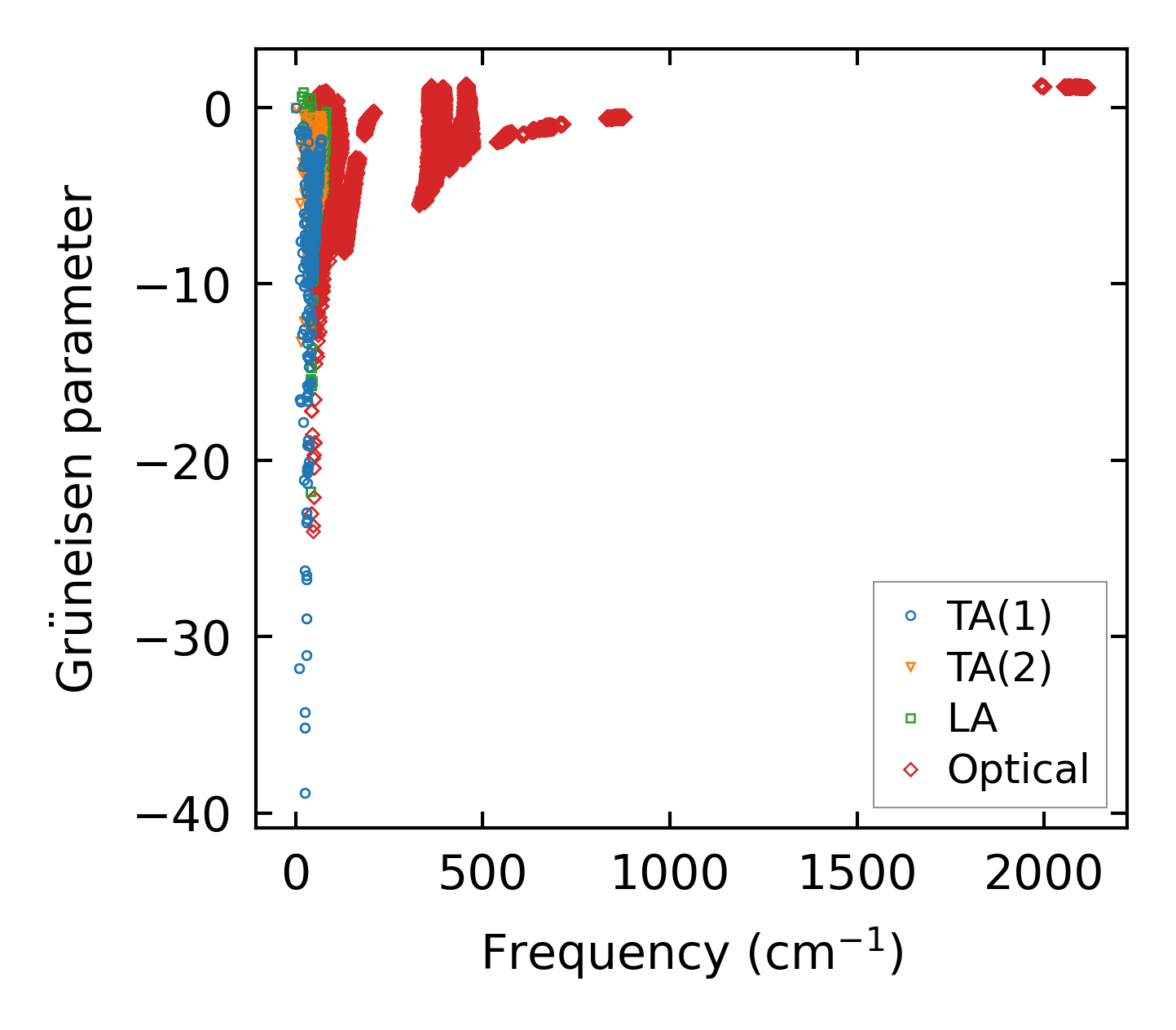

../../_images/fig_gru_all6840.png — (a) Grüneisen parameters

../../_images/fig_gruneisen6840.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 16x5x11, supercell: 2x1x2

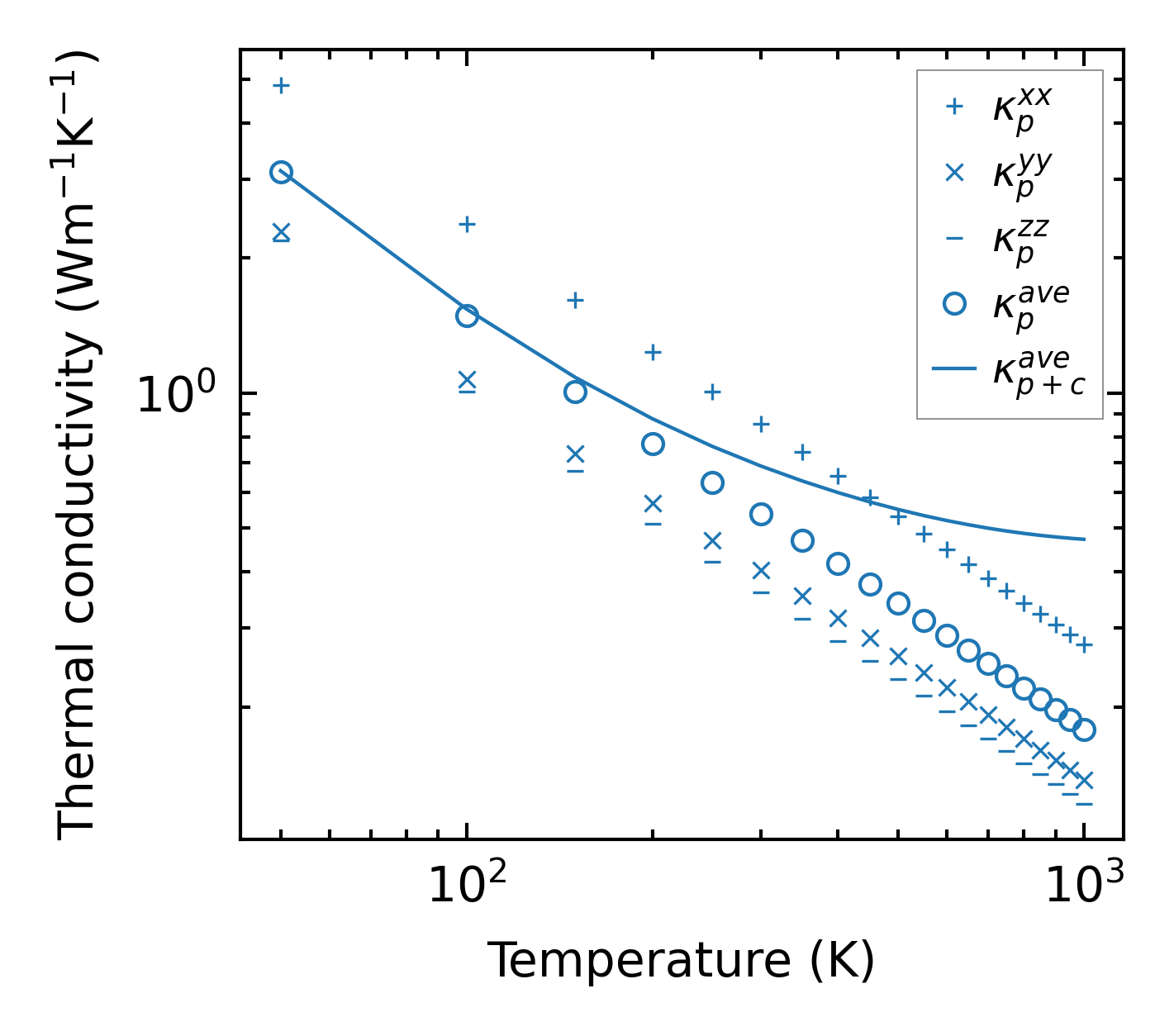

../../_images/fig_kappa12881.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size6920.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime6774.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates6773.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

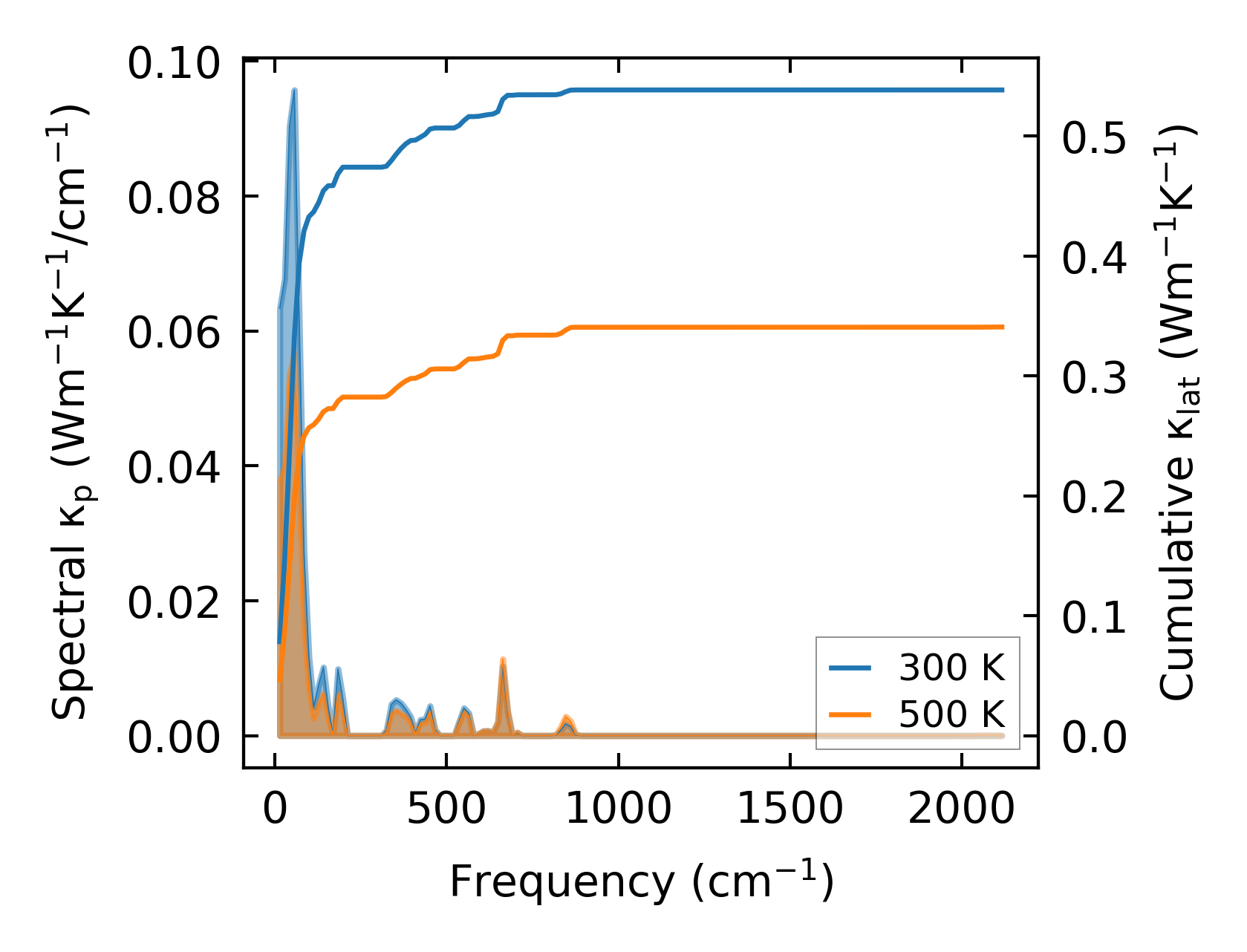

../../_images/fig_cumu_frequency6774.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

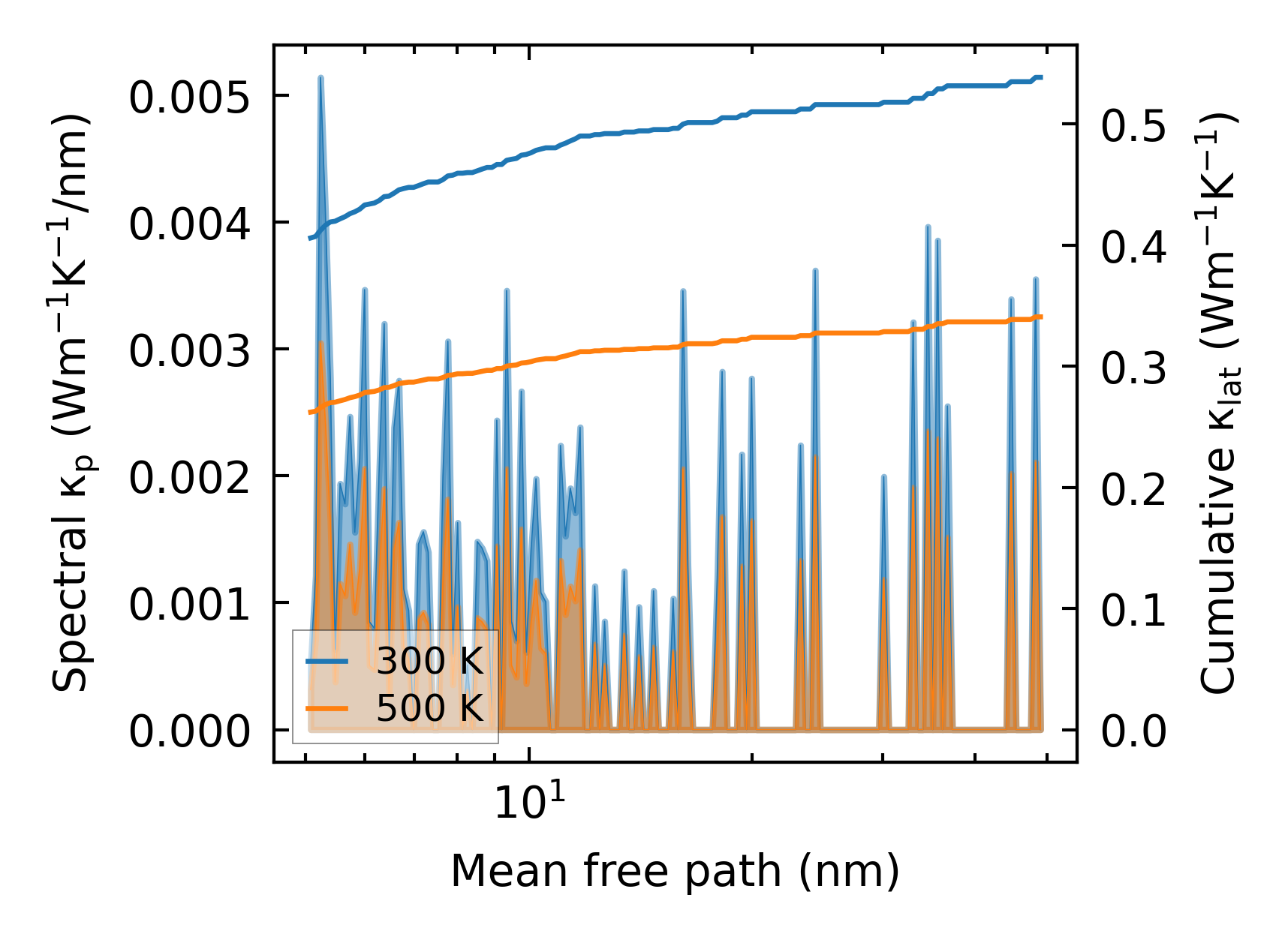

../../_images/fig_cumu_mfp6773.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

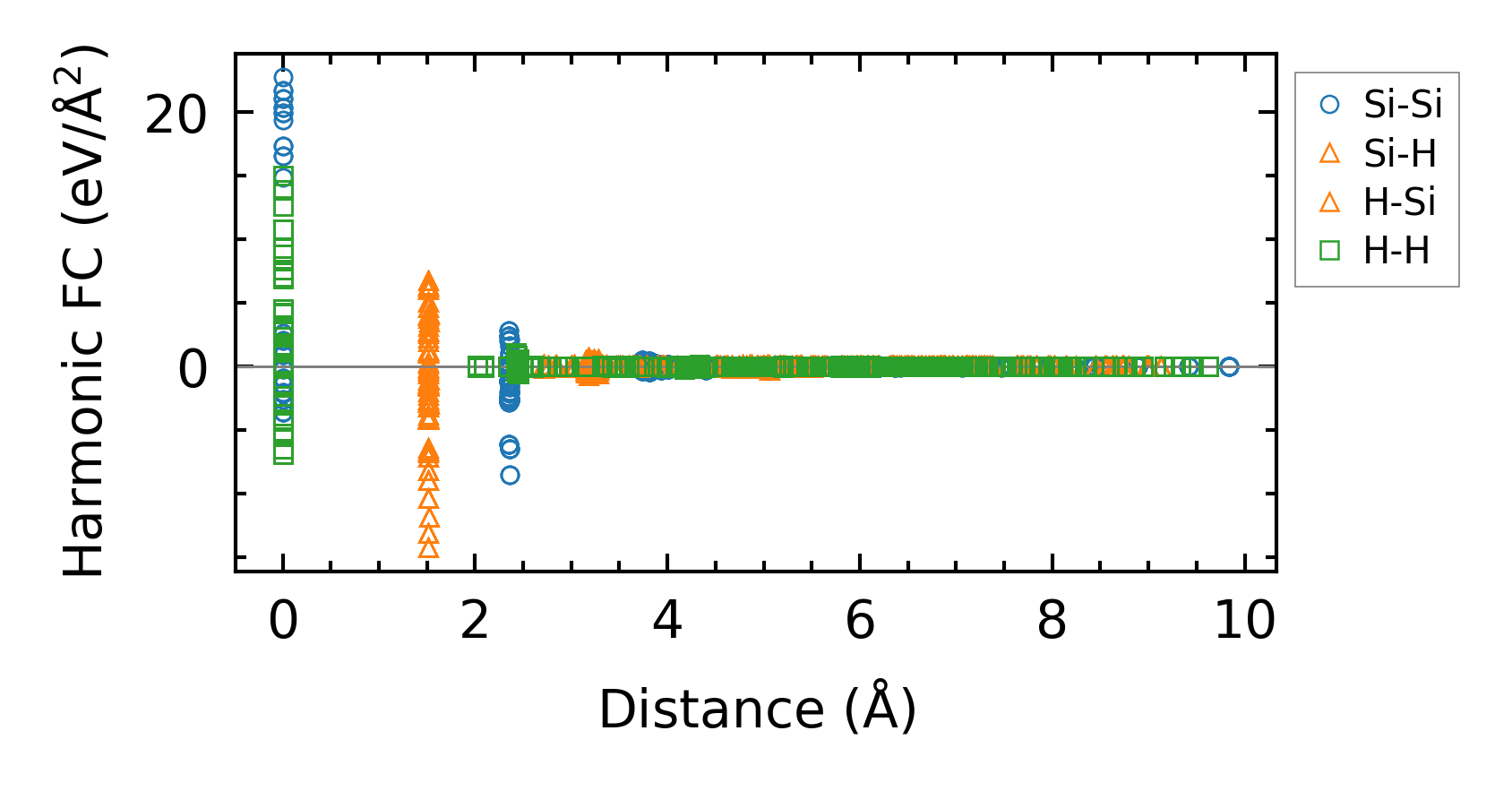

../../_images/fig_fc215393.png — (a) Force constants w.r.t atomic distance

Summary

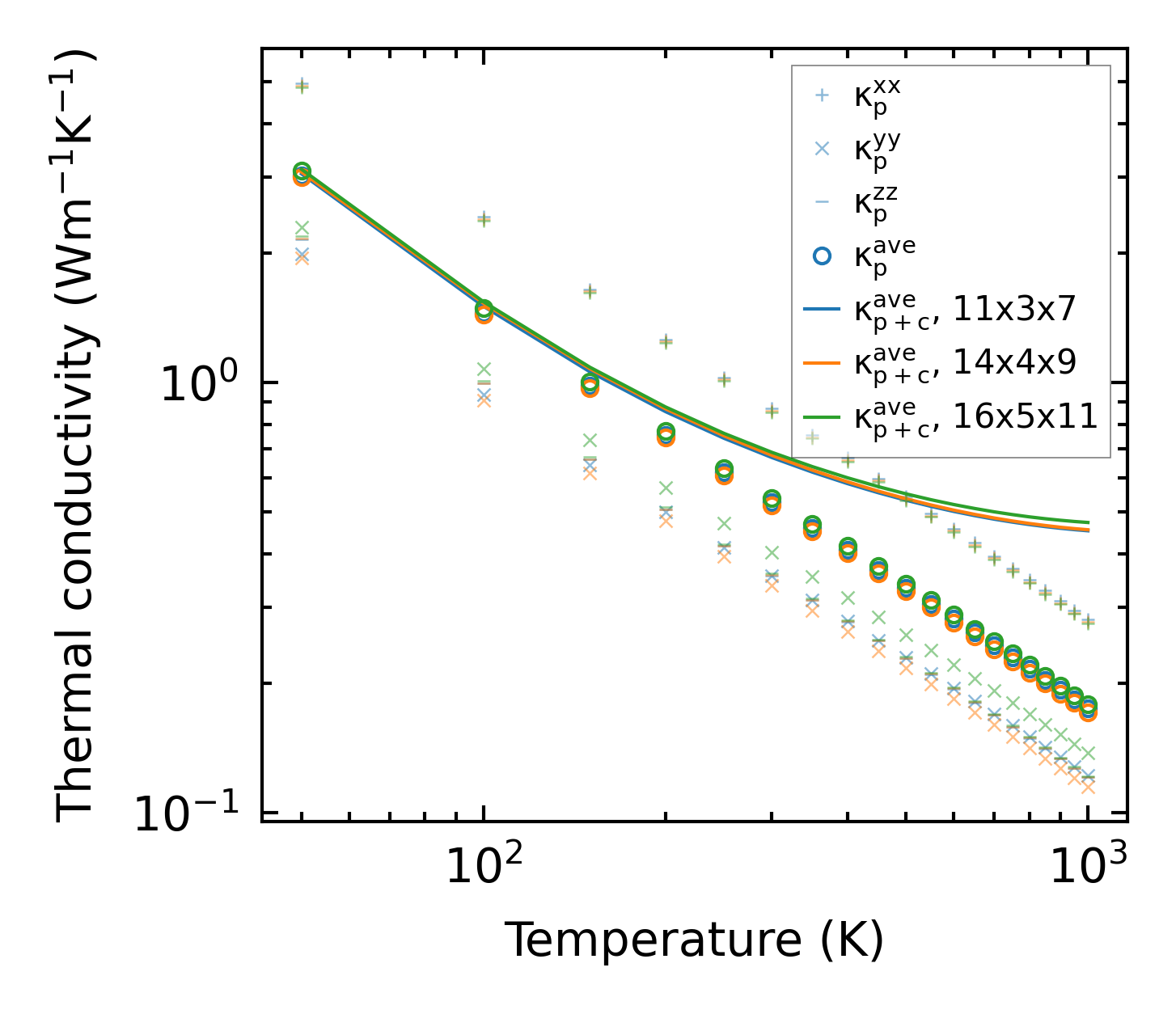

../../_images/fig_kappa12882.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times26019.png — (b) Computation time
