mp-1192151/Rb2Zn5As4/anharm

Space group: Cmcm (63)
Link: Materials Project
Download: mp-1192151.tar.gz

Harmonic properties

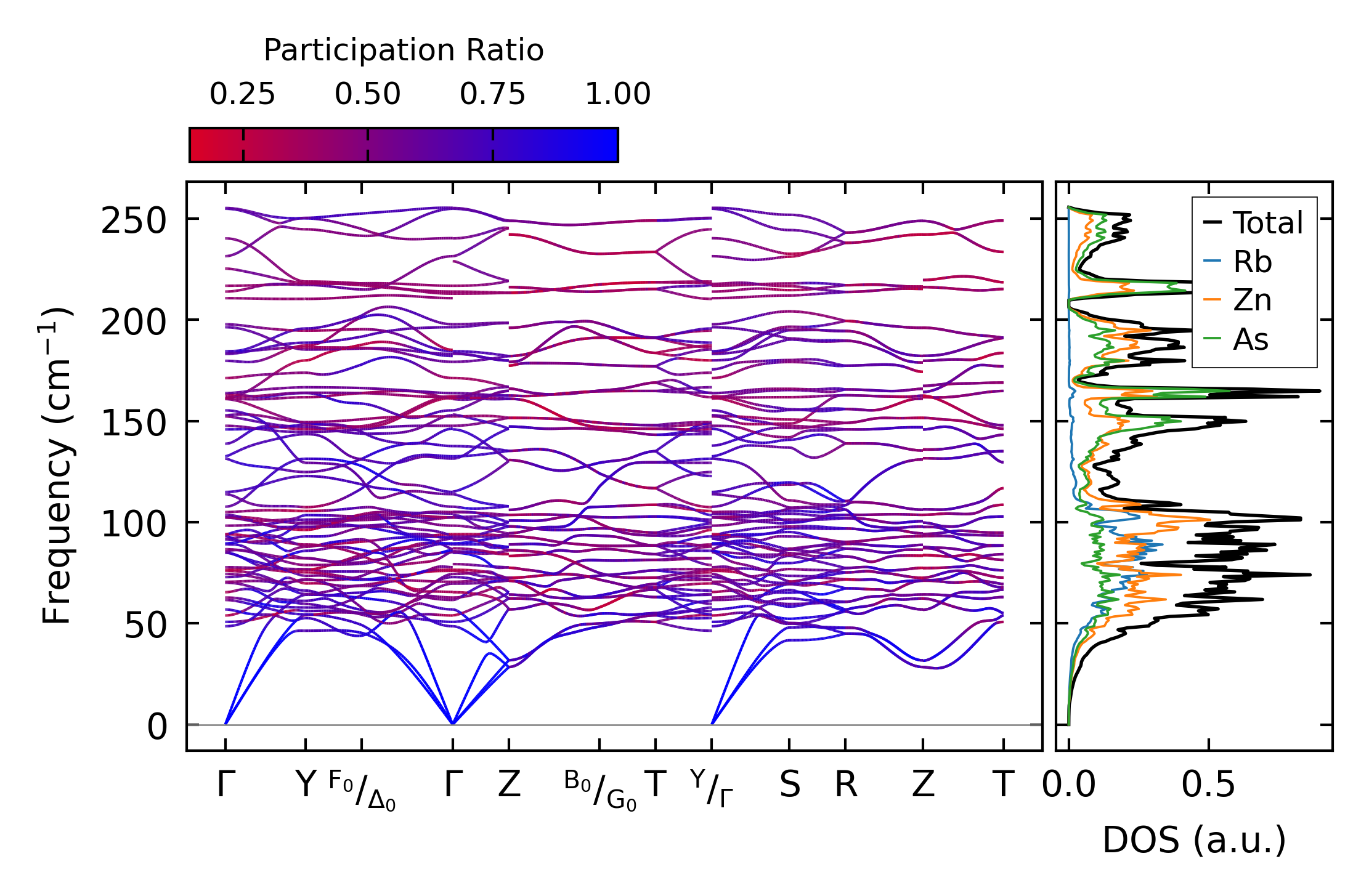

../../_images/fig_bandos_pr15775.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo15774.png — (b) Thermodynamic properties

Grüneisen parameters

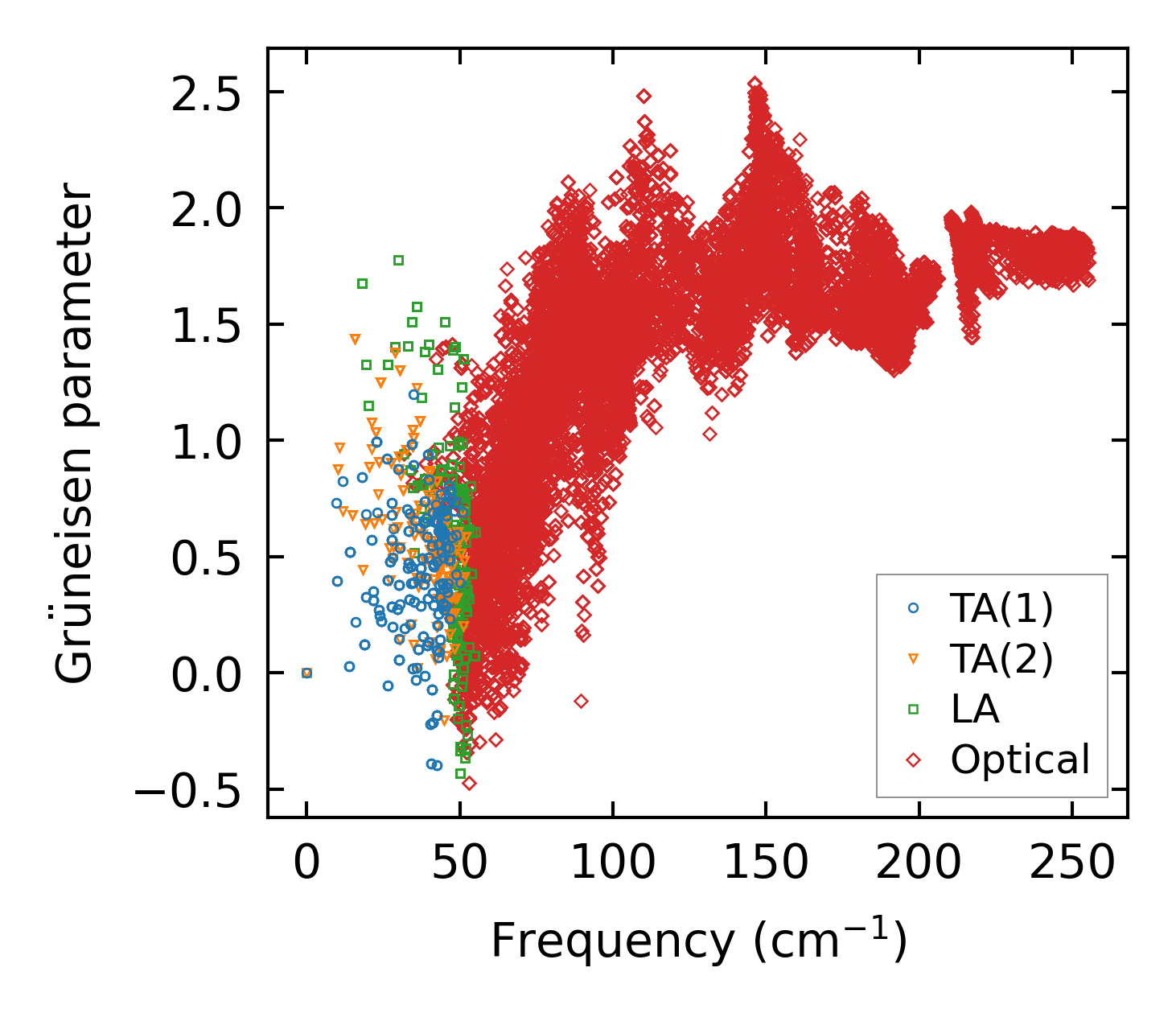

../../_images/fig_gru_all6832.png — (a) Grüneisen parameters

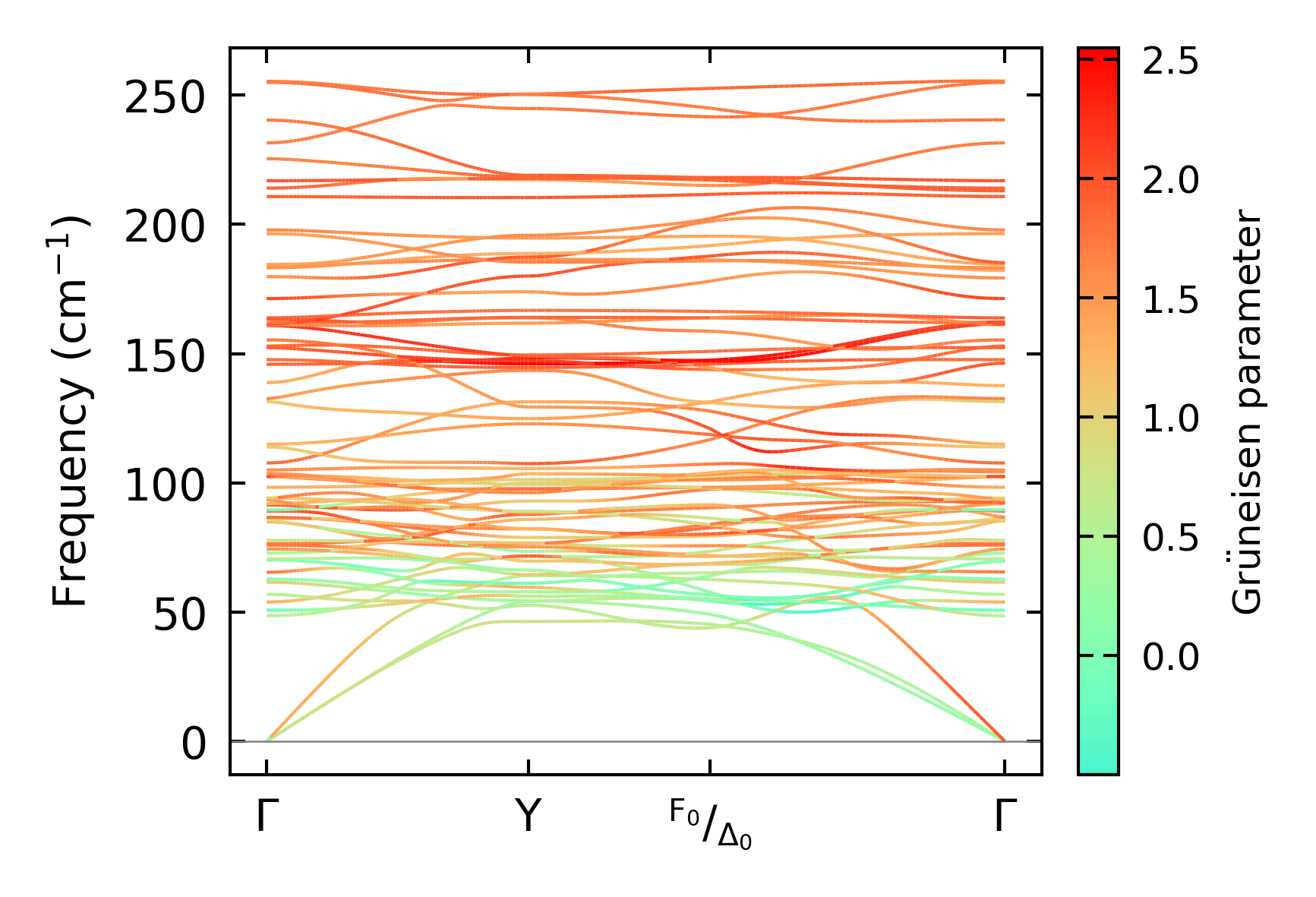

../../_images/fig_gruneisen6832.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x11x6, supercell: 1x2x1

../../_images/fig_kappa12865.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size6912.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

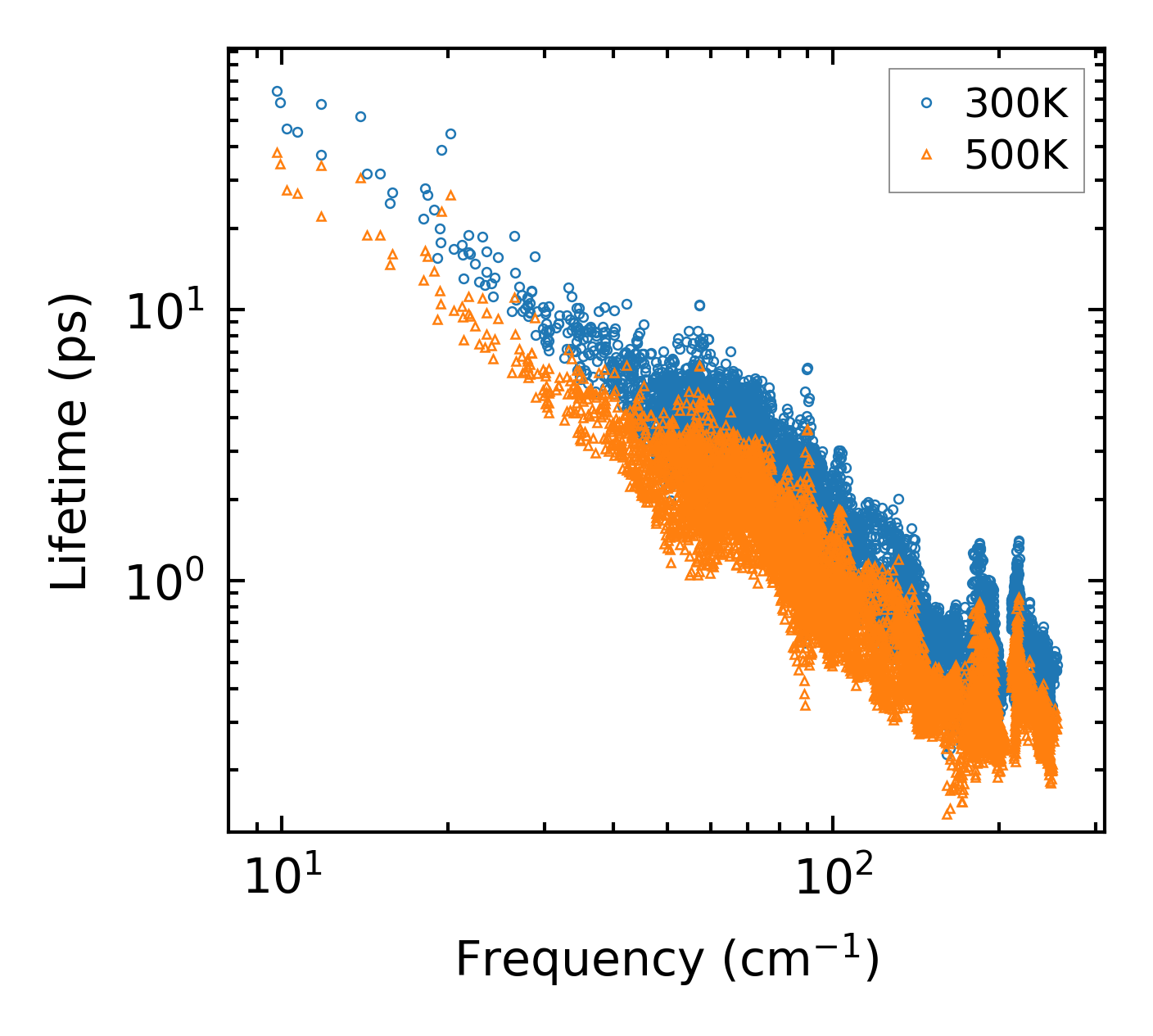

../../_images/fig_lifetime6766.png — (a) Phonon lifetime due to phonon-phonon scattering

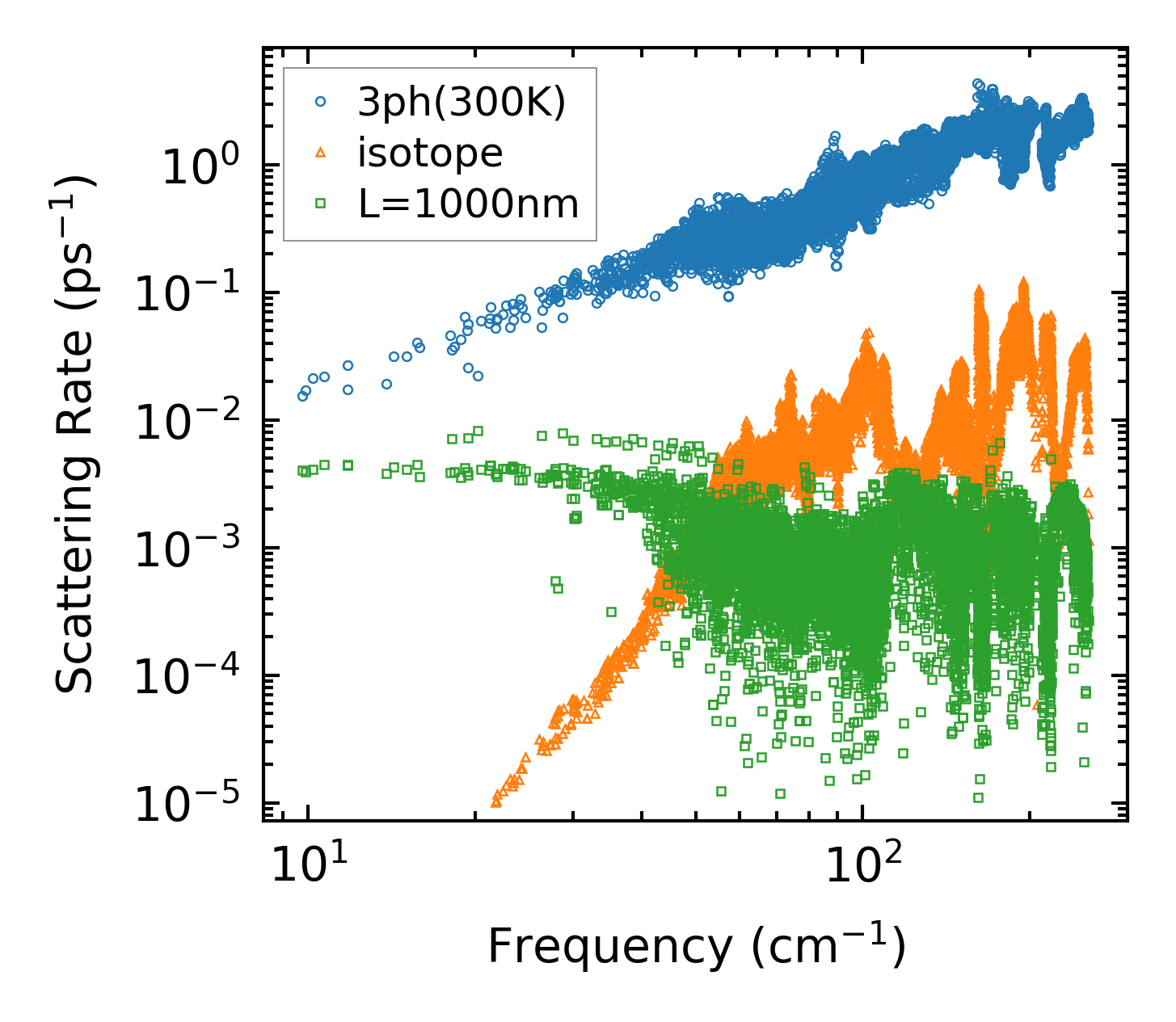

../../_images/fig_scat_rates6765.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

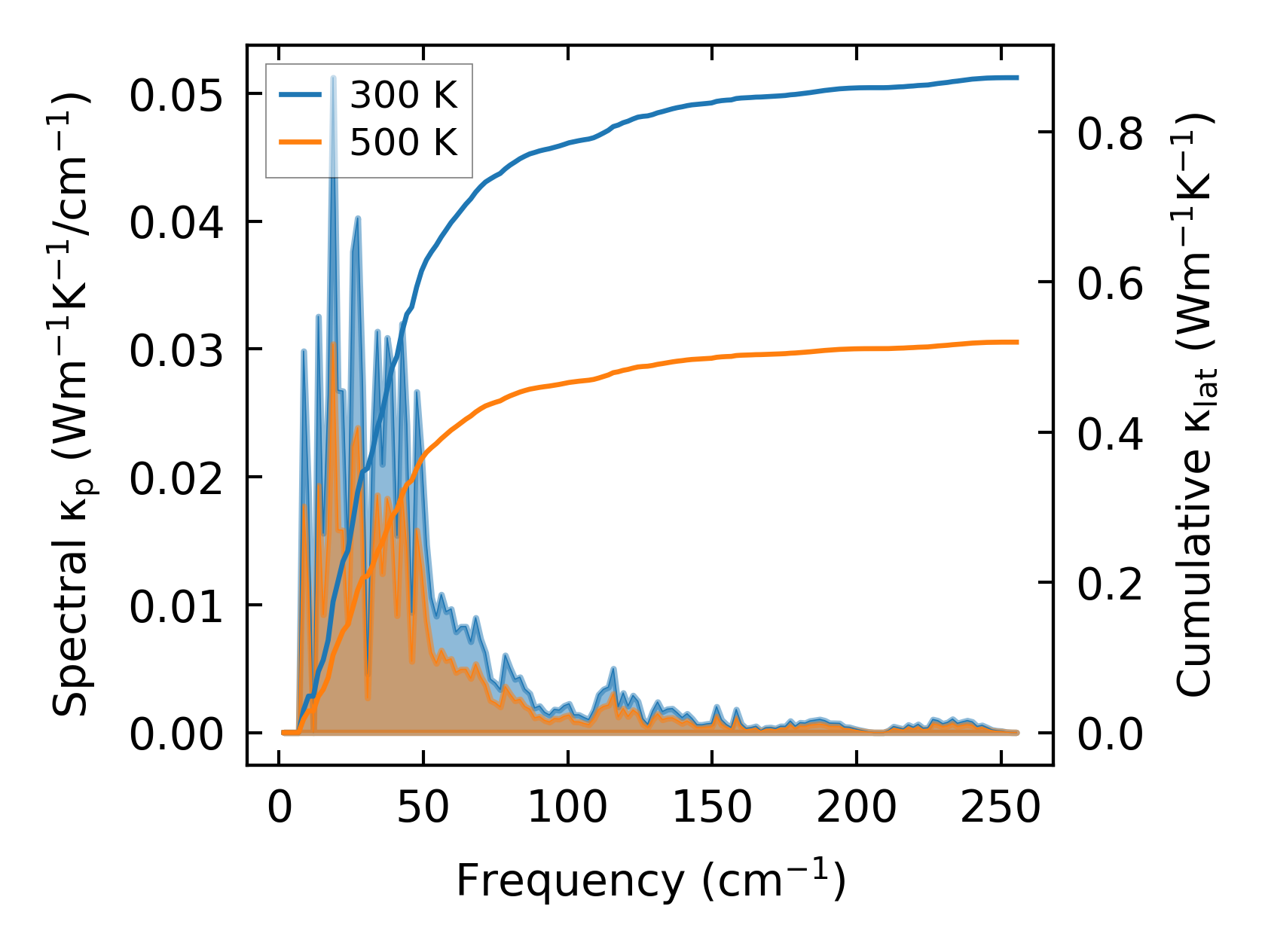

../../_images/fig_cumu_frequency6766.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

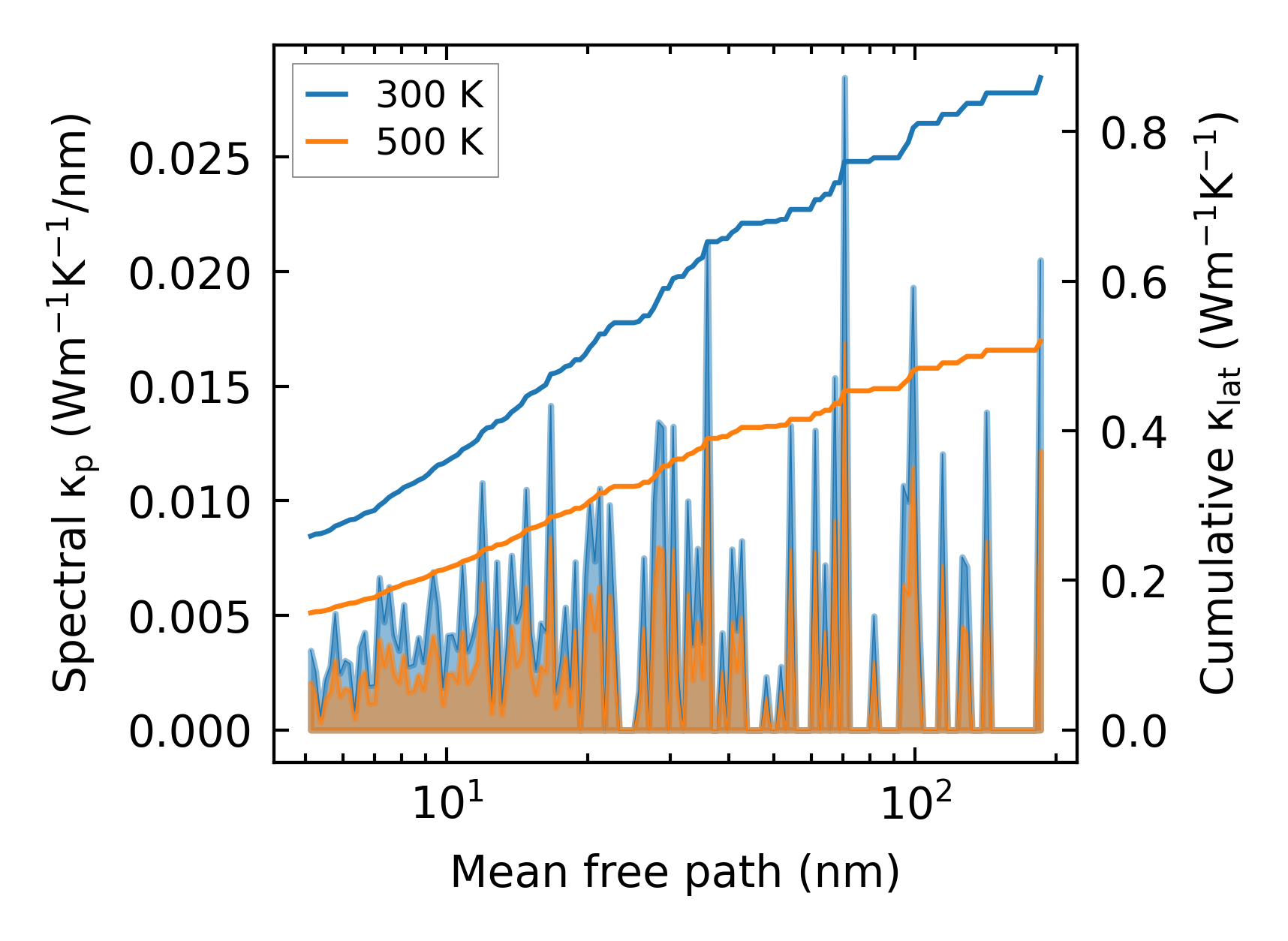

../../_images/fig_cumu_mfp6765.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

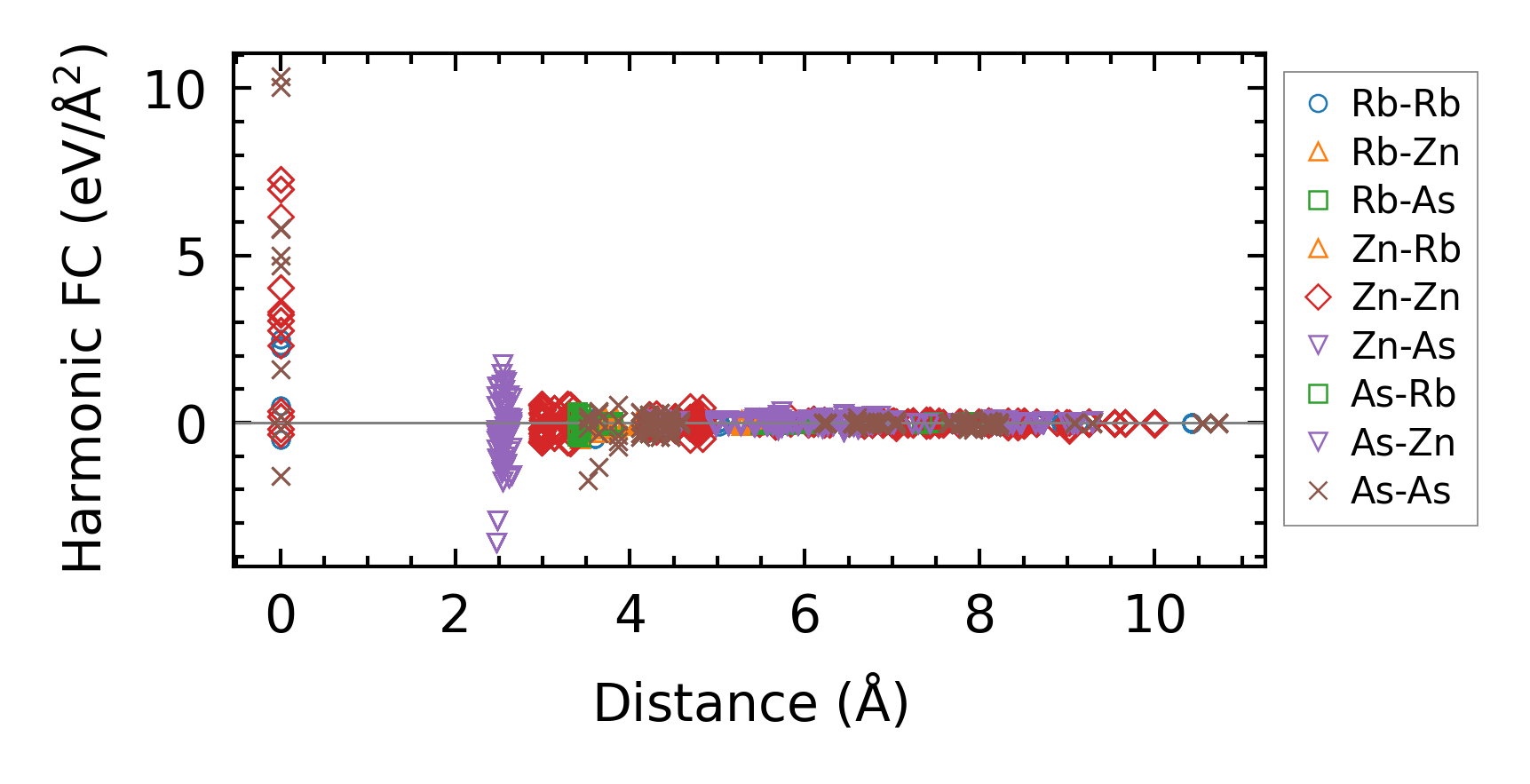

../../_images/fig_fc215370.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa12866.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times25977.png — (b) Computation time
