mp-1188981/Tm3Sb4Au3/anharm

Space group: I-43d (220)
Link: Materials Project
Download: mp-1188981.tar.gz

Harmonic properties

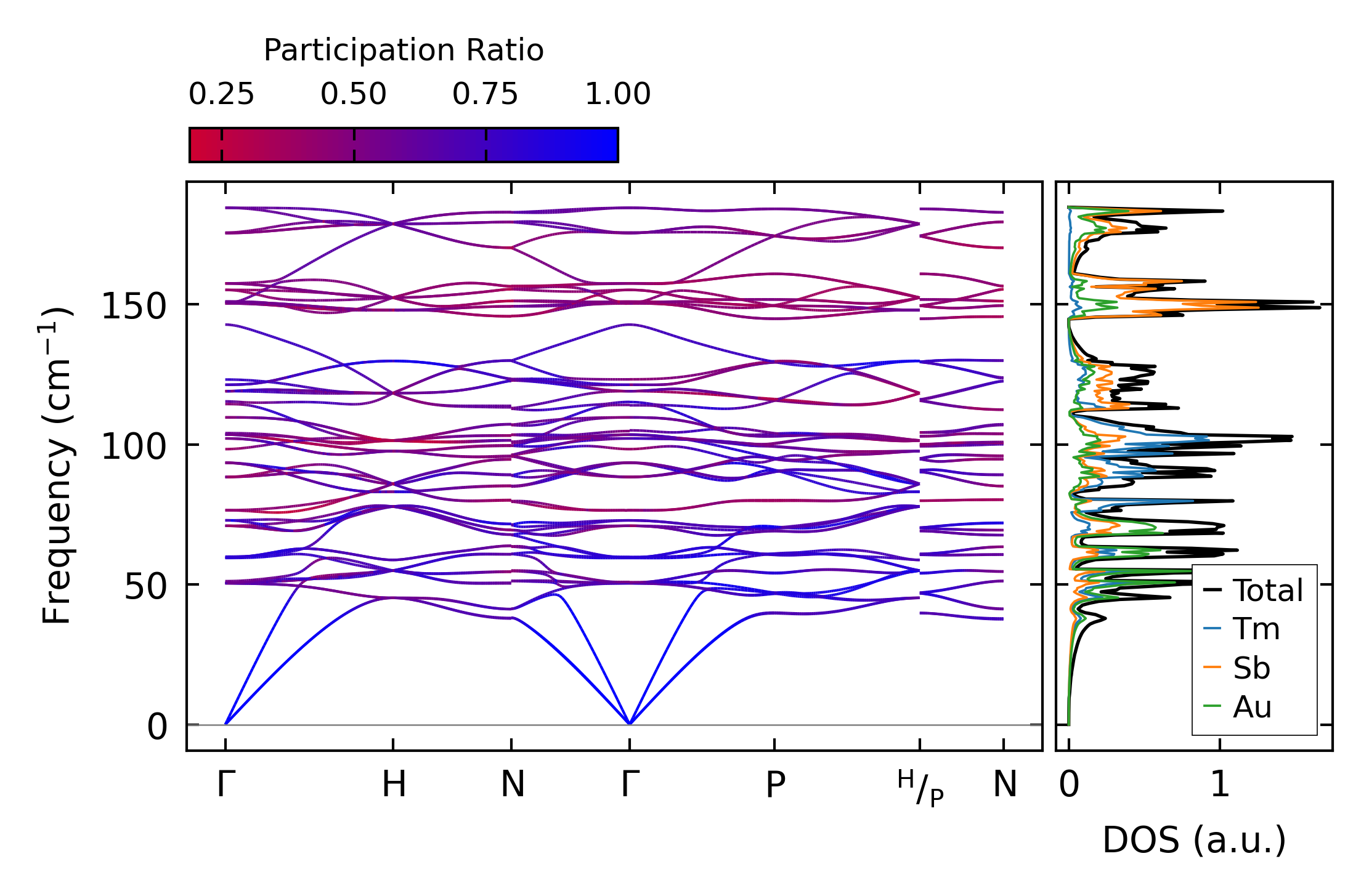

../../_images/fig_bandos_pr15892.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo15891.png — (b) Thermodynamic properties

Grüneisen parameters

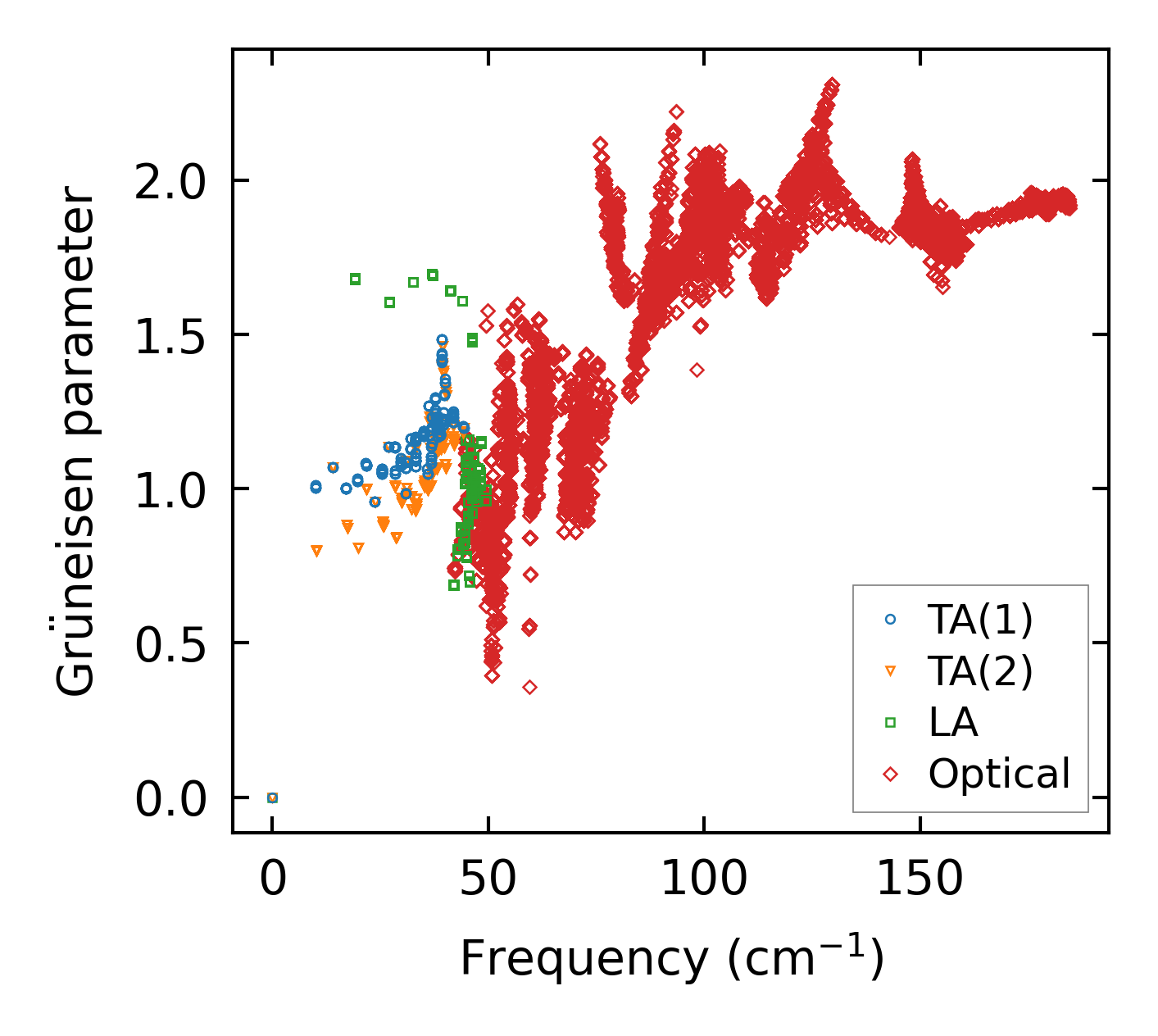

../../_images/fig_gru_all6883.png — (a) Grüneisen parameters

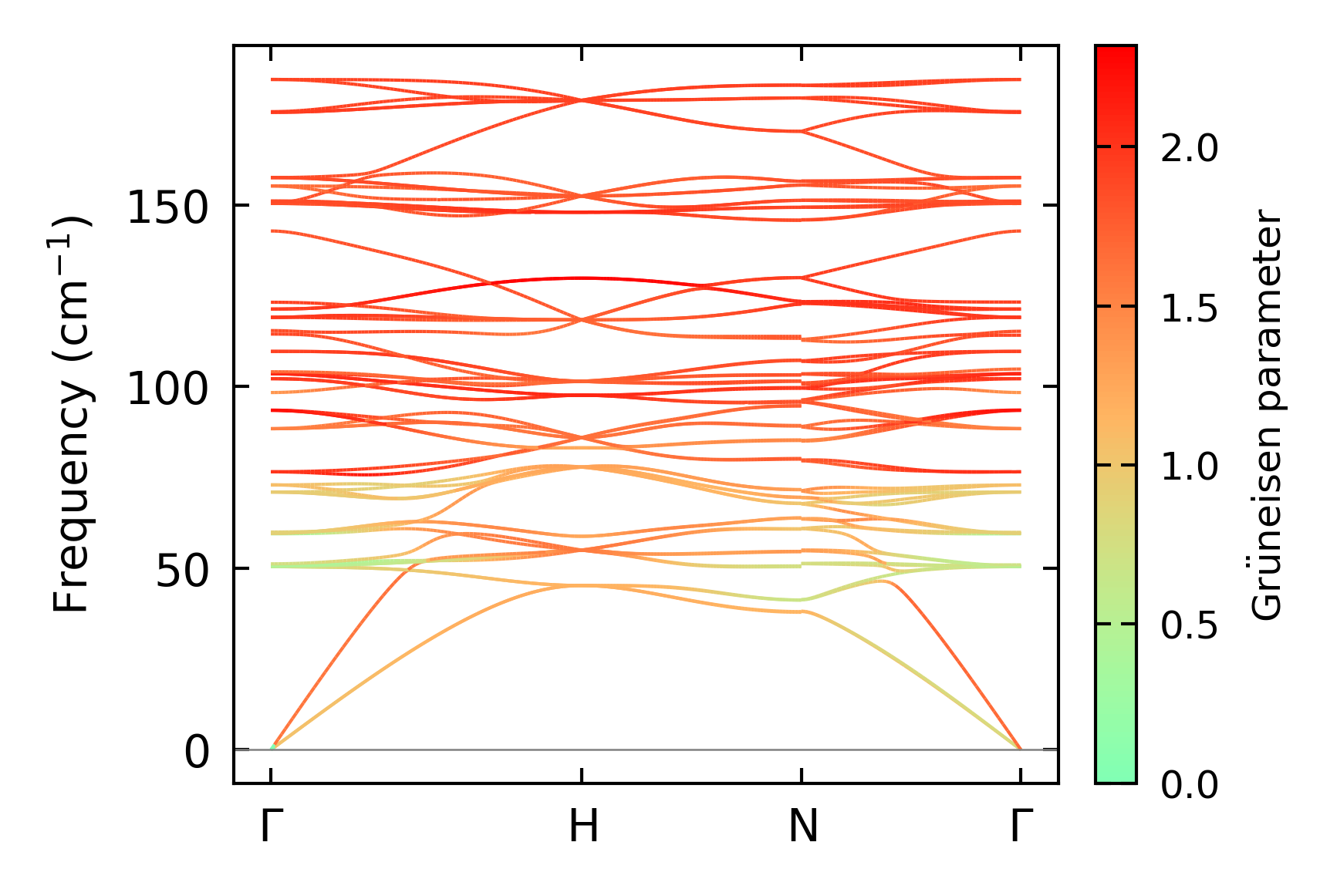

../../_images/fig_gruneisen6883.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 9x9x9, supercell: 1x1x1

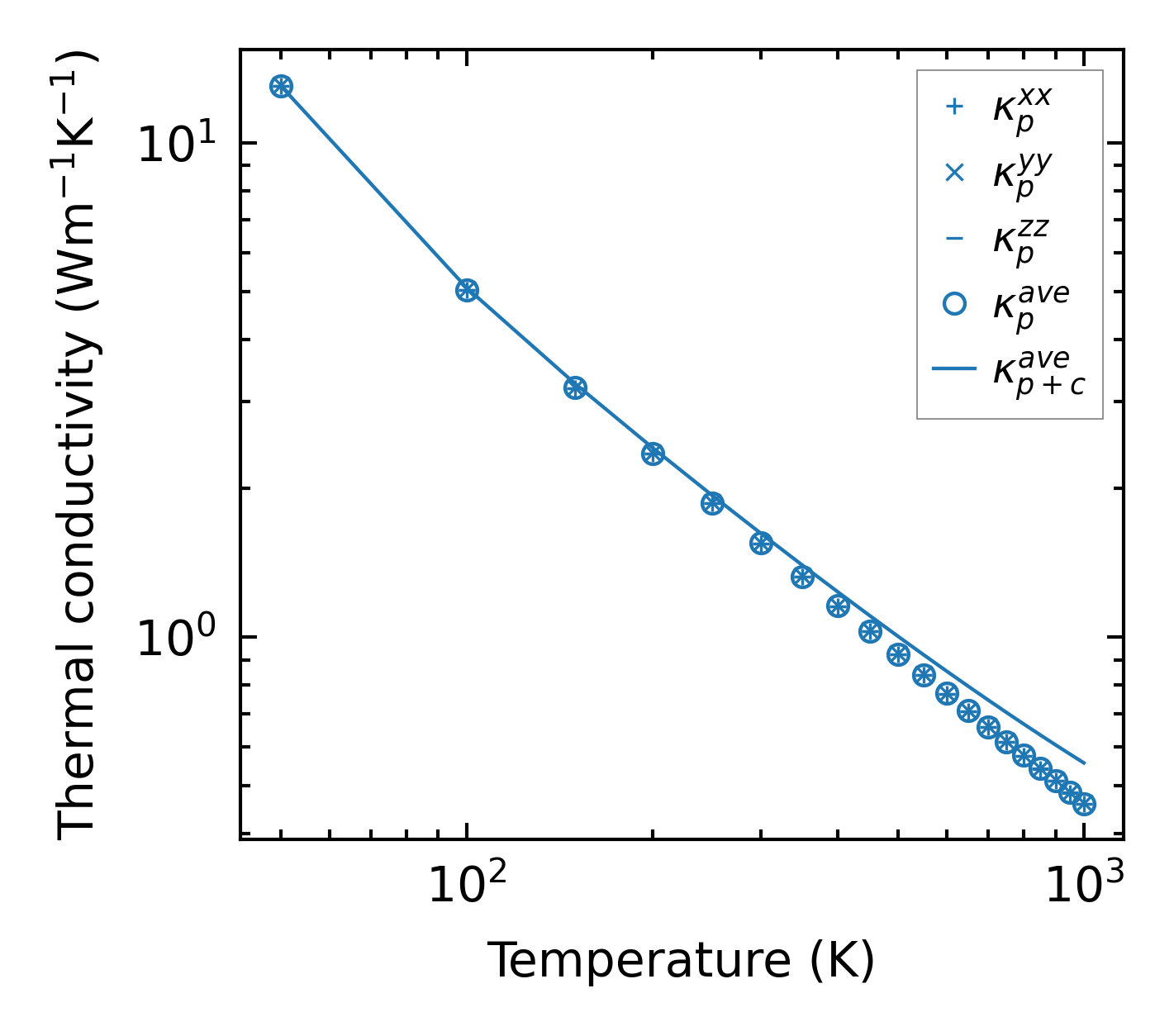

../../_images/fig_kappa12961.png — (a) Temperature-dependent lattice thermal conductivity

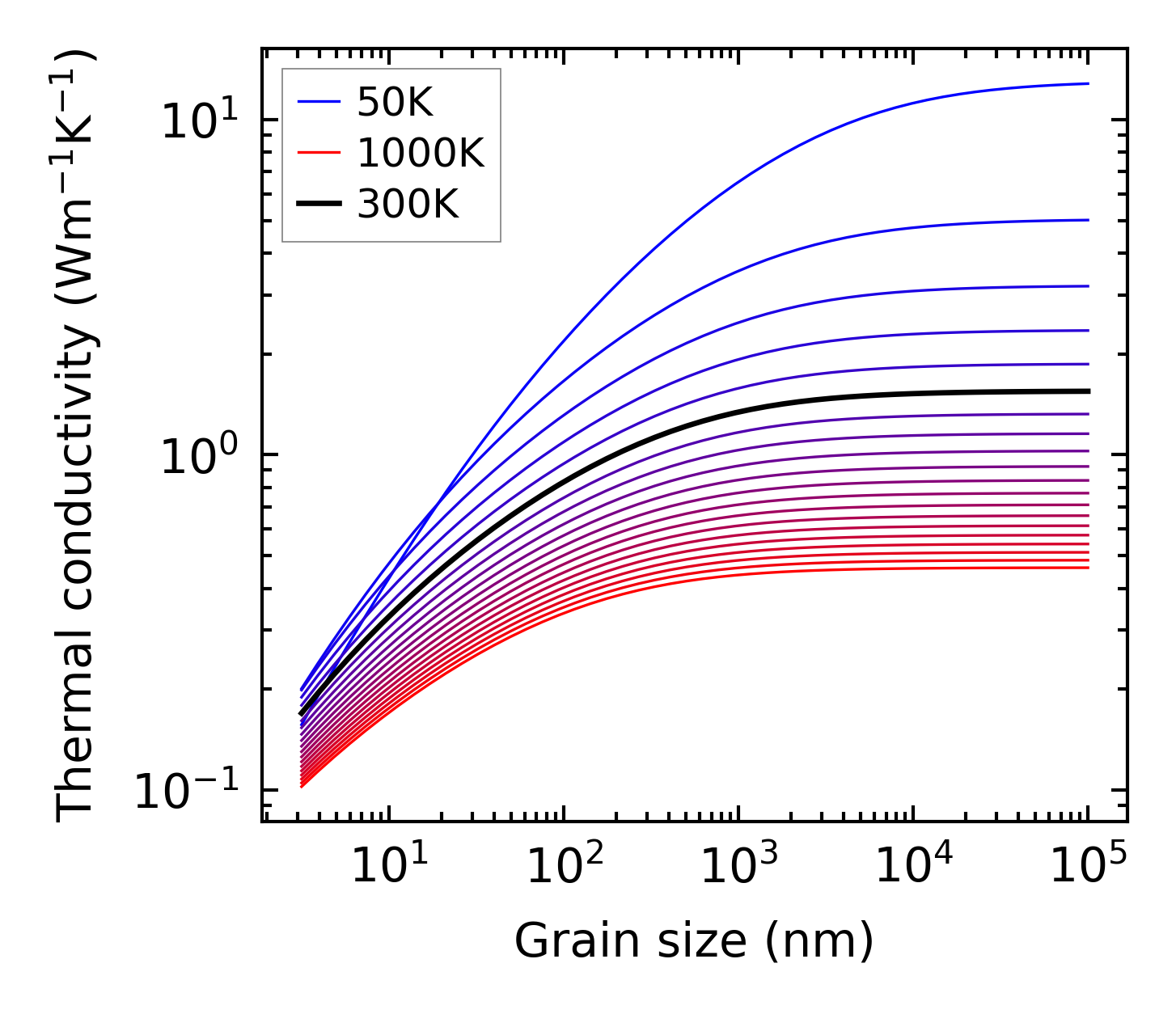

../../_images/fig_kappa_vs_grain_size6963.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

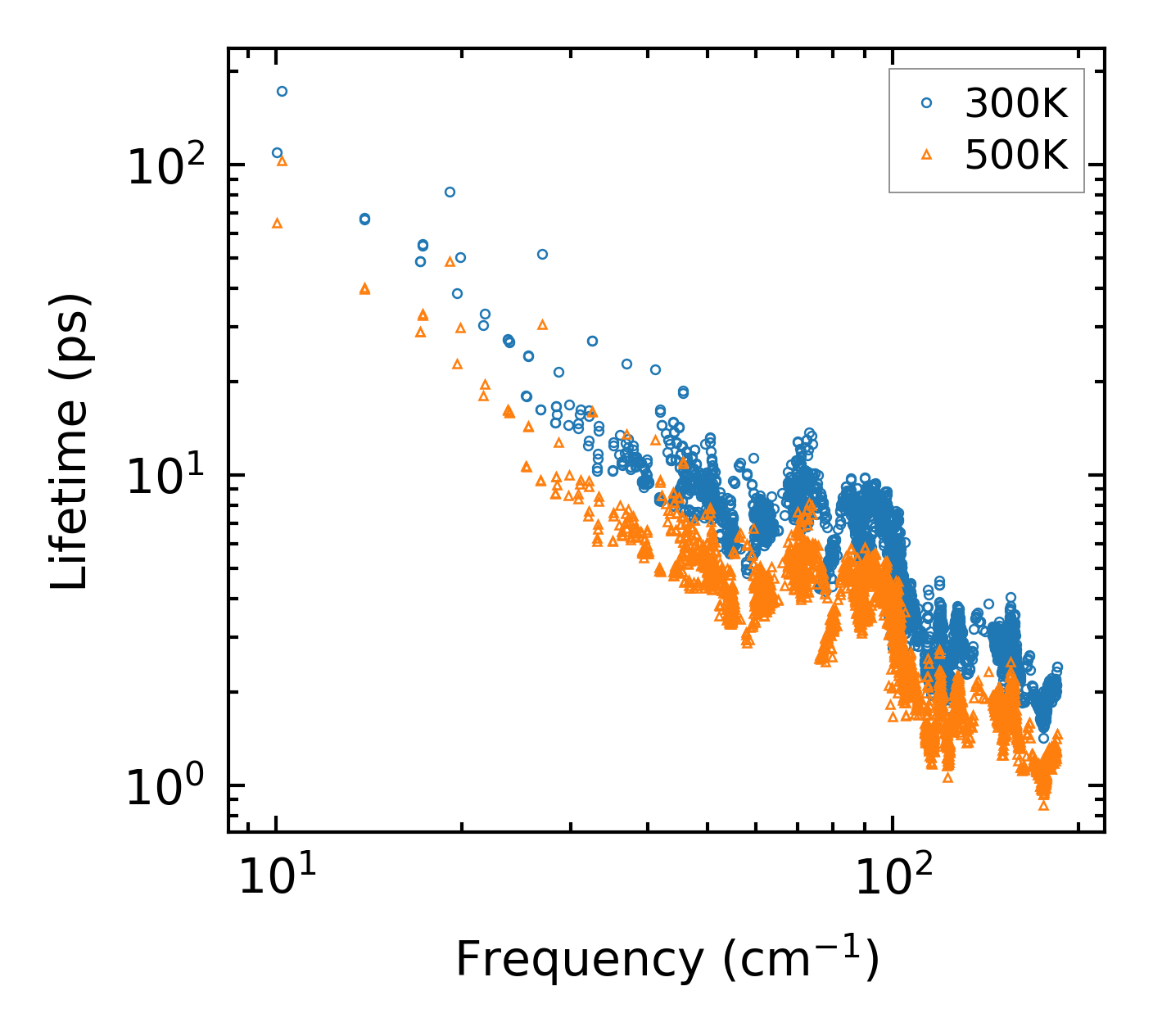

../../_images/fig_lifetime6817.png — (a) Phonon lifetime due to phonon-phonon scattering

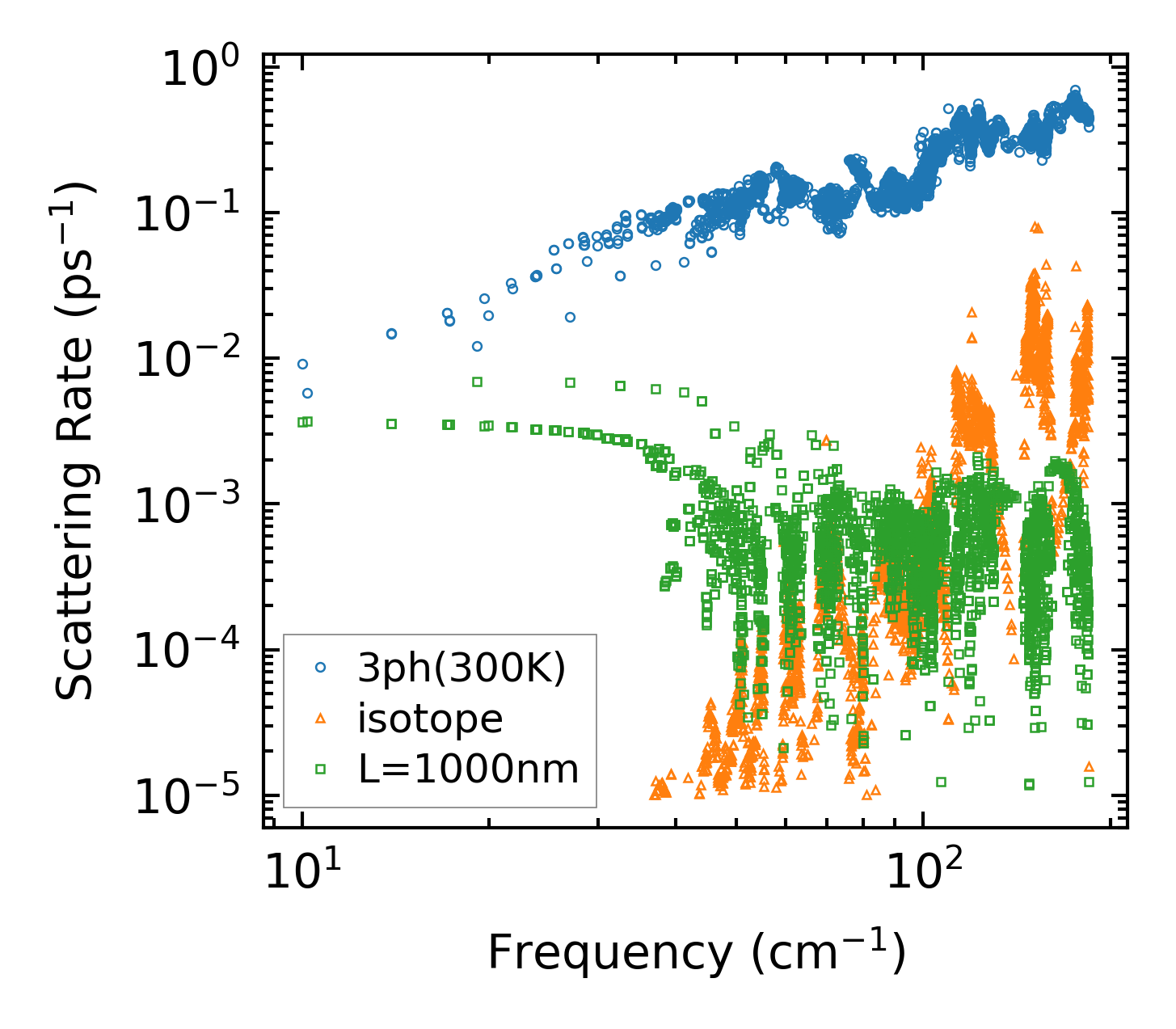

../../_images/fig_scat_rates6816.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

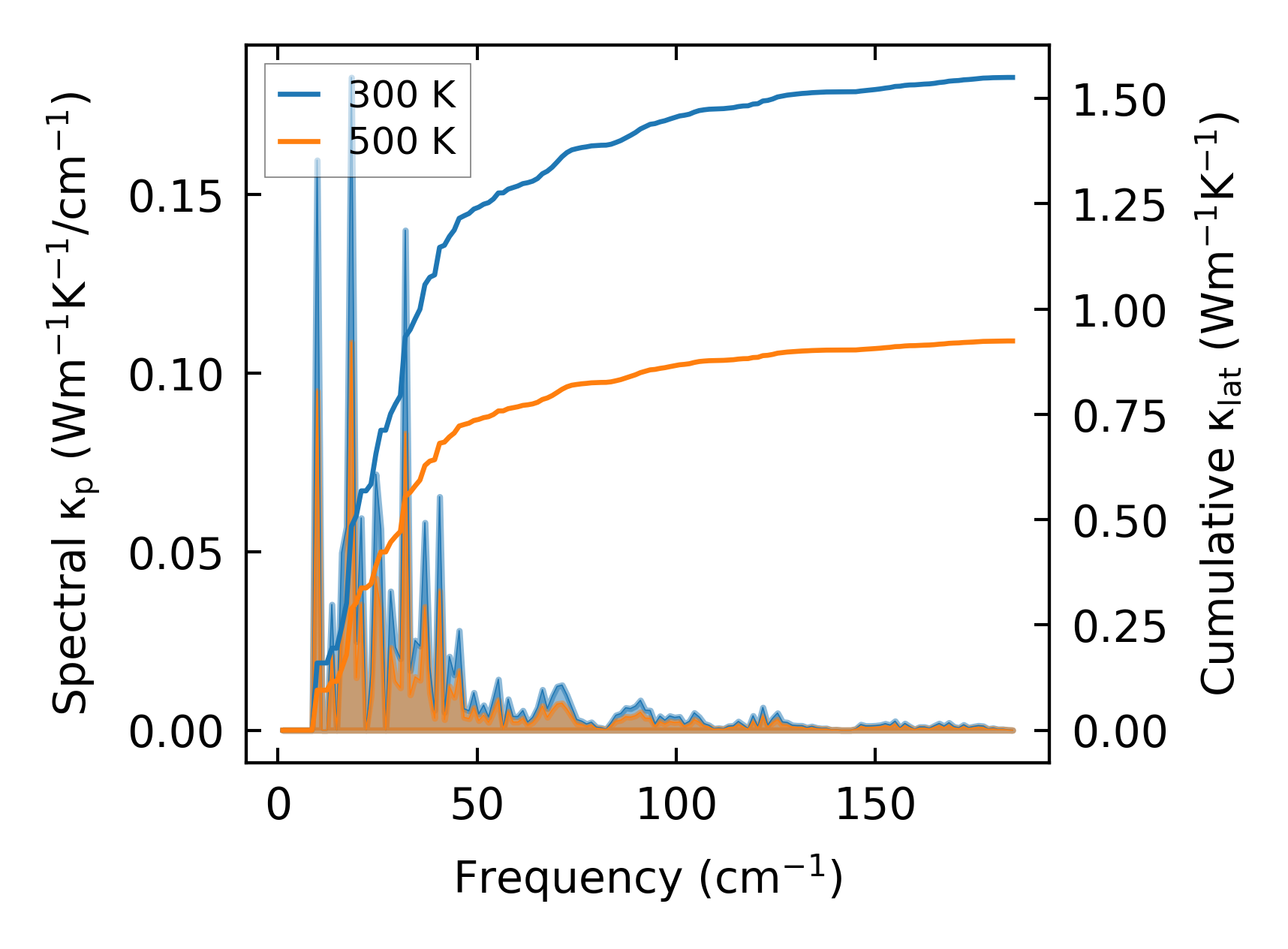

../../_images/fig_cumu_frequency6817.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

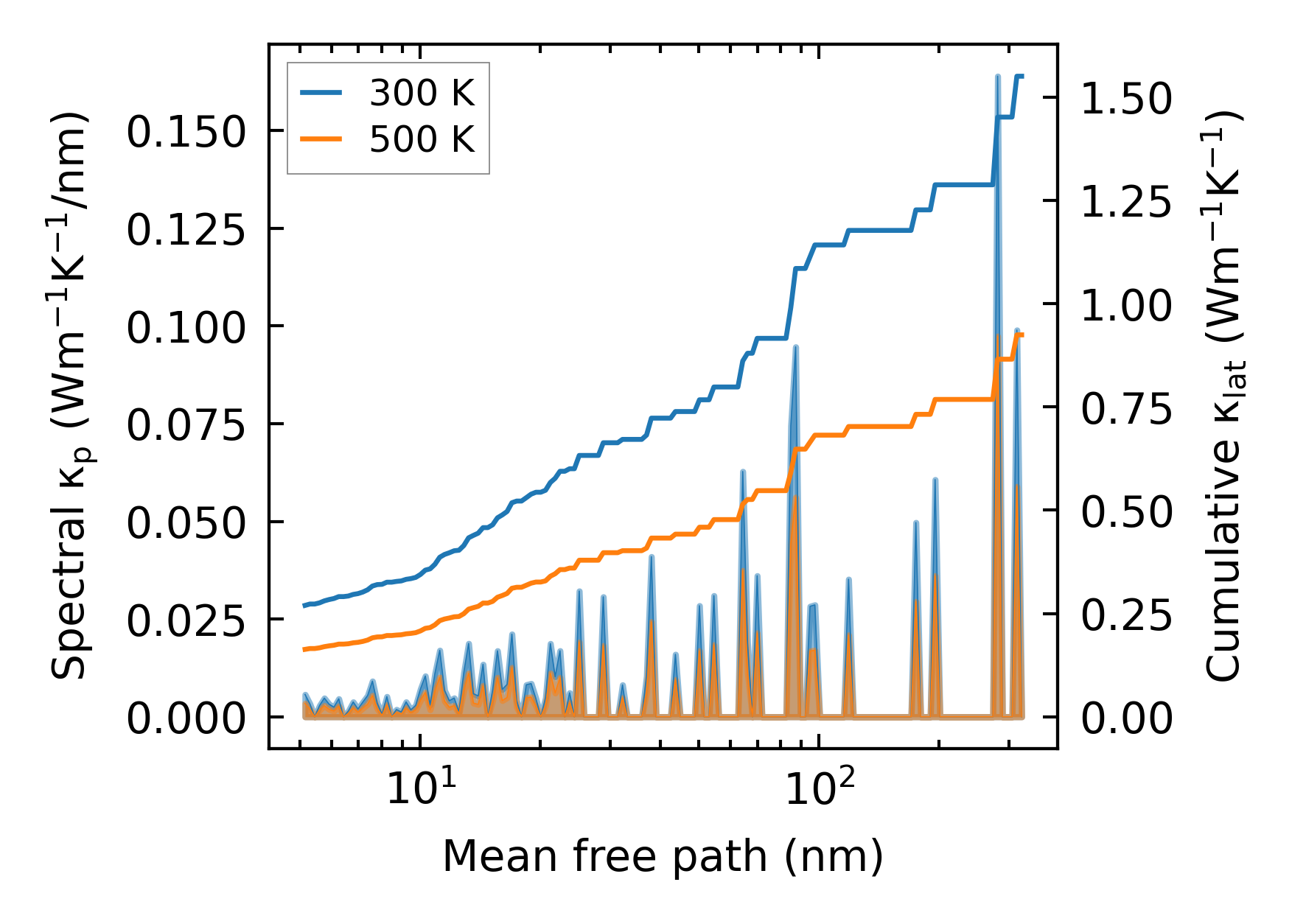

../../_images/fig_cumu_mfp6816.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

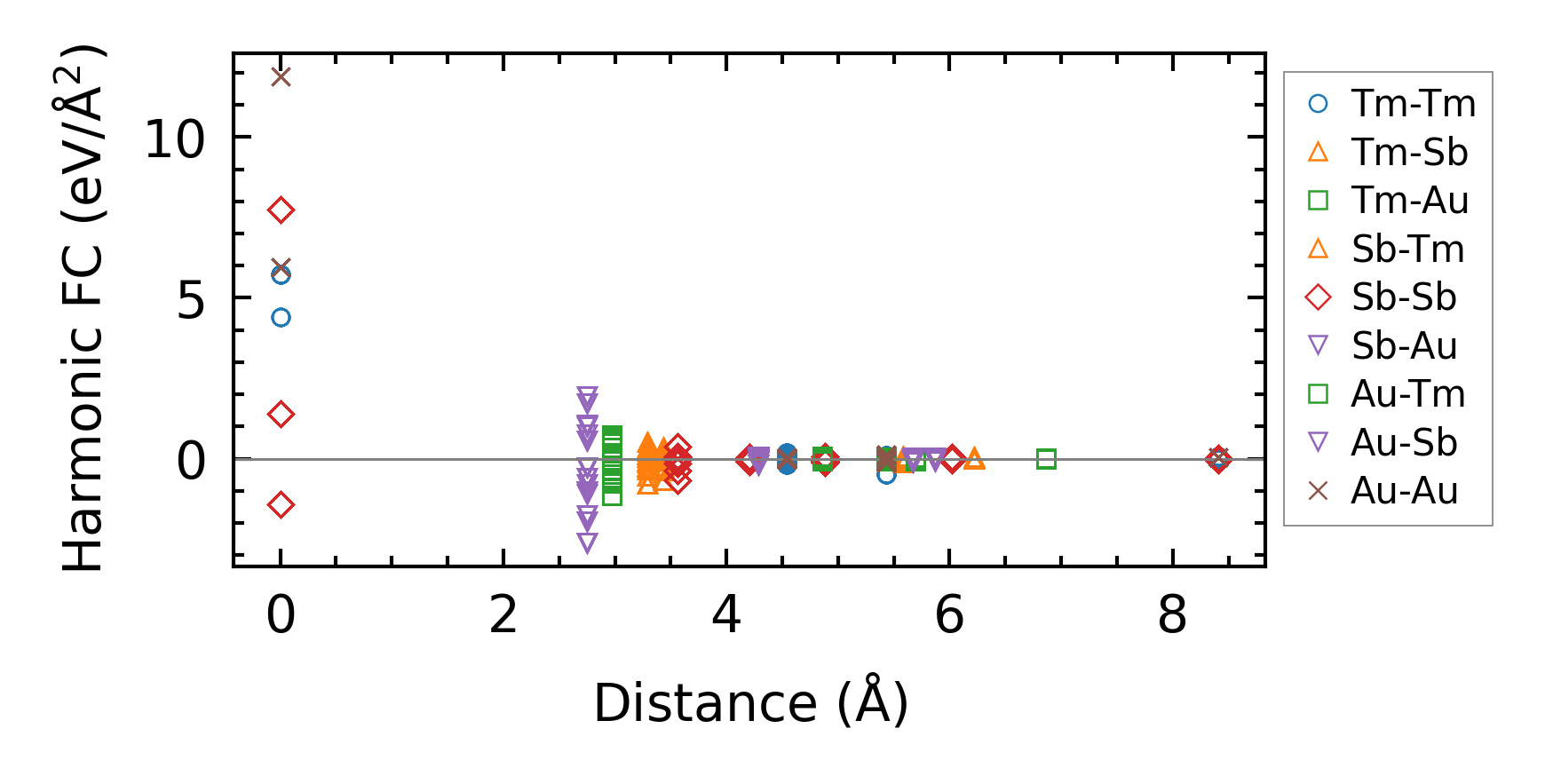

../../_images/fig_fc215487.png — (a) Force constants w.r.t atomic distance

Summary

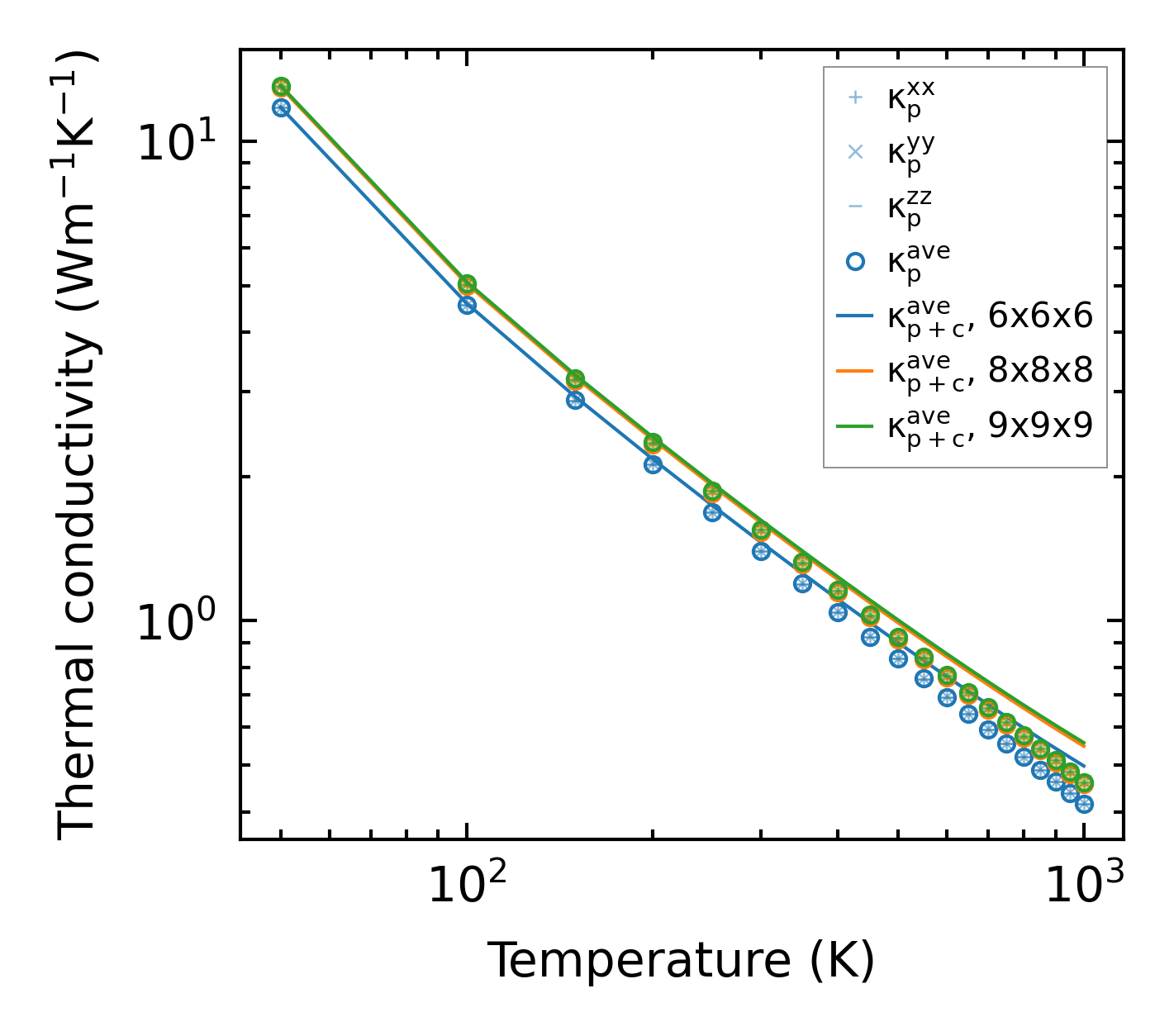

../../_images/fig_kappa12962.png — (a) Temperature-dependent lattice thermal conductivity

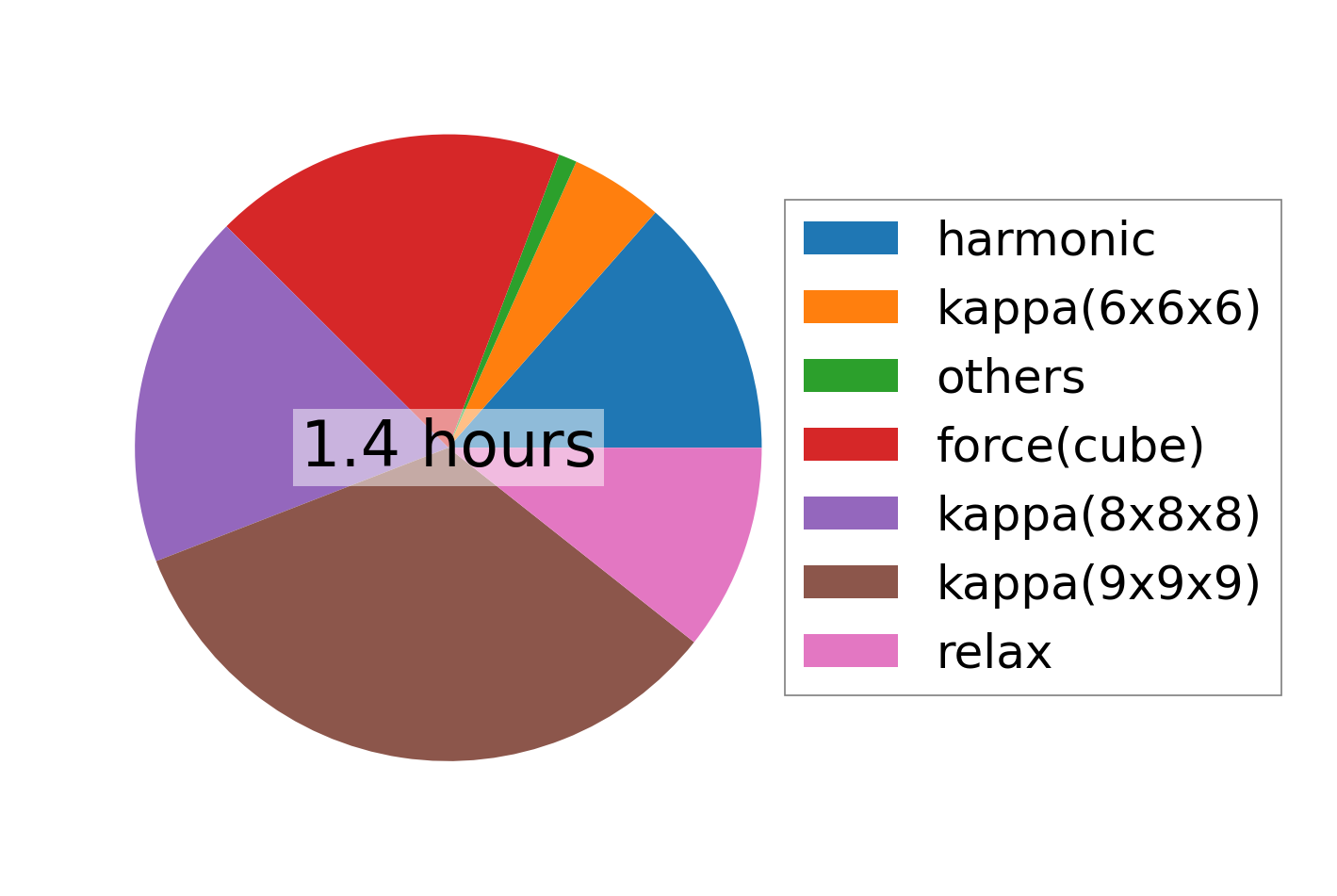

../../_images/fig_times26187.png — (b) Computation time
