mp-1188535/Y6NiI10/anharm

Space group: P-1 (2)
Link: Materials Project
Download: mp-1188535.tar.gz

Harmonic properties

../../_images/fig_bandos_pr16192.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo16191.png — (b) Thermodynamic properties

Grüneisen parameters

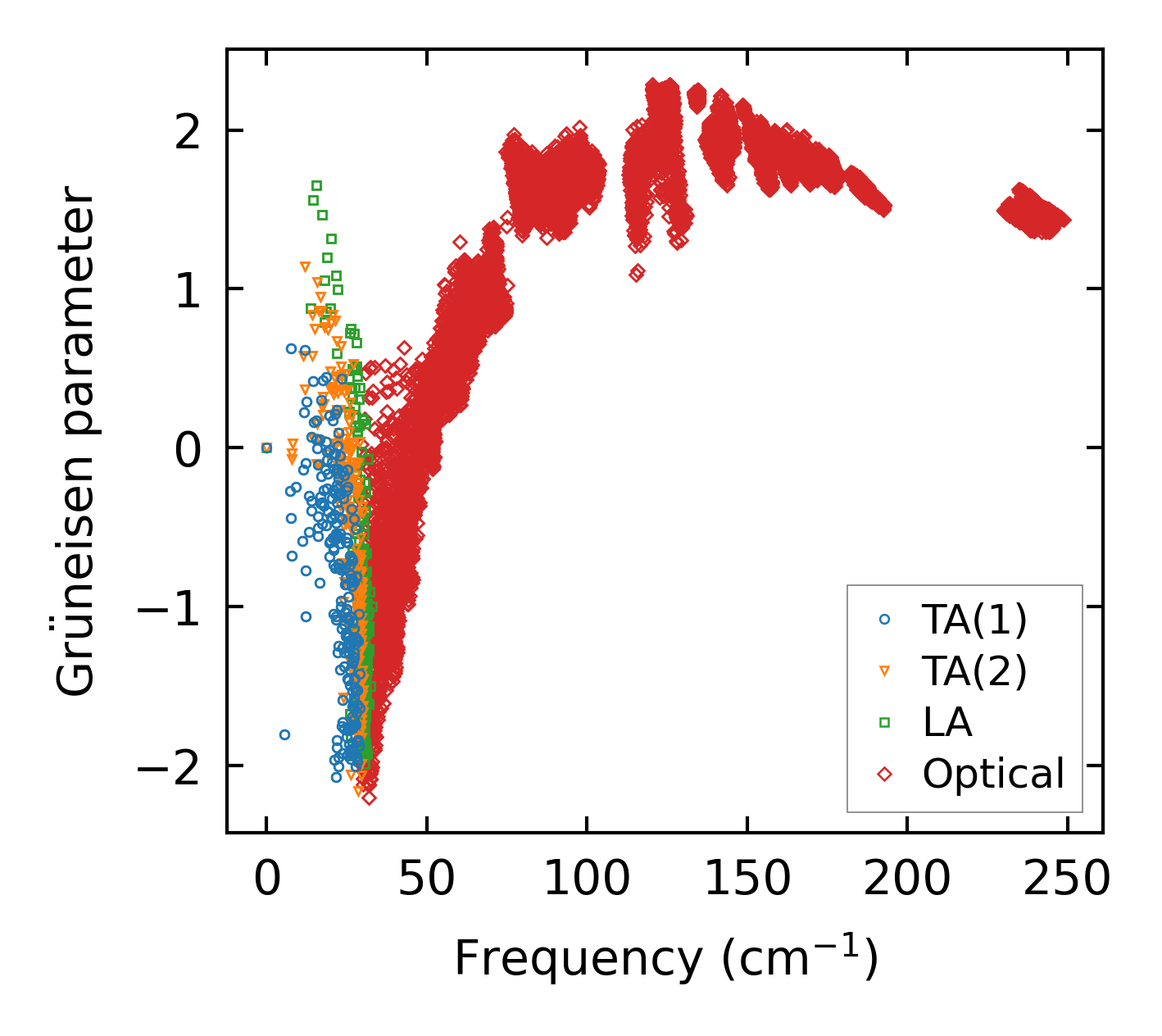

../../_images/fig_gru_all7035.png — (a) Grüneisen parameters

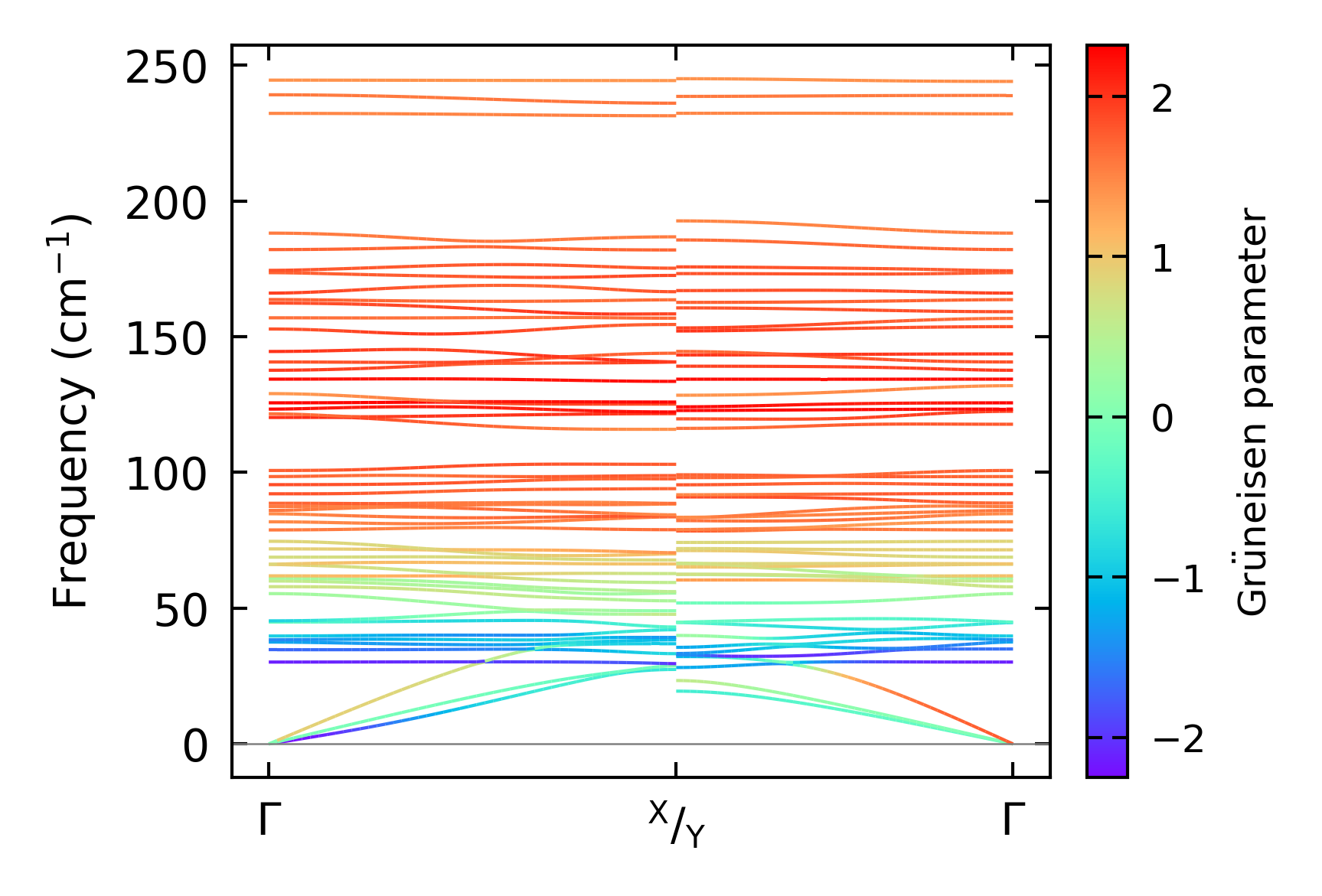

../../_images/fig_gruneisen7035.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 9x7x7, supercell: 2x2x2

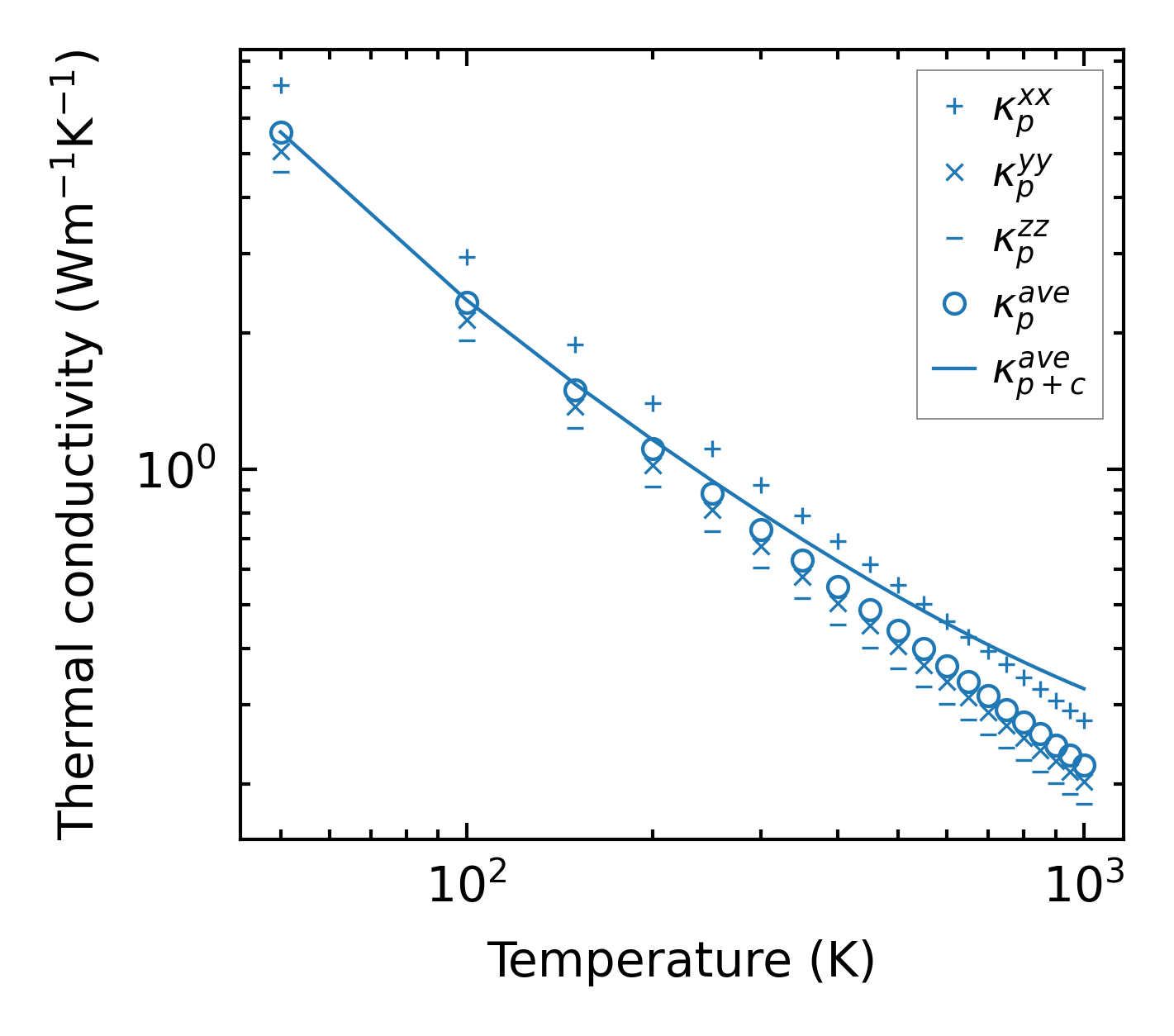

../../_images/fig_kappa13250.png — (a) Temperature-dependent lattice thermal conductivity

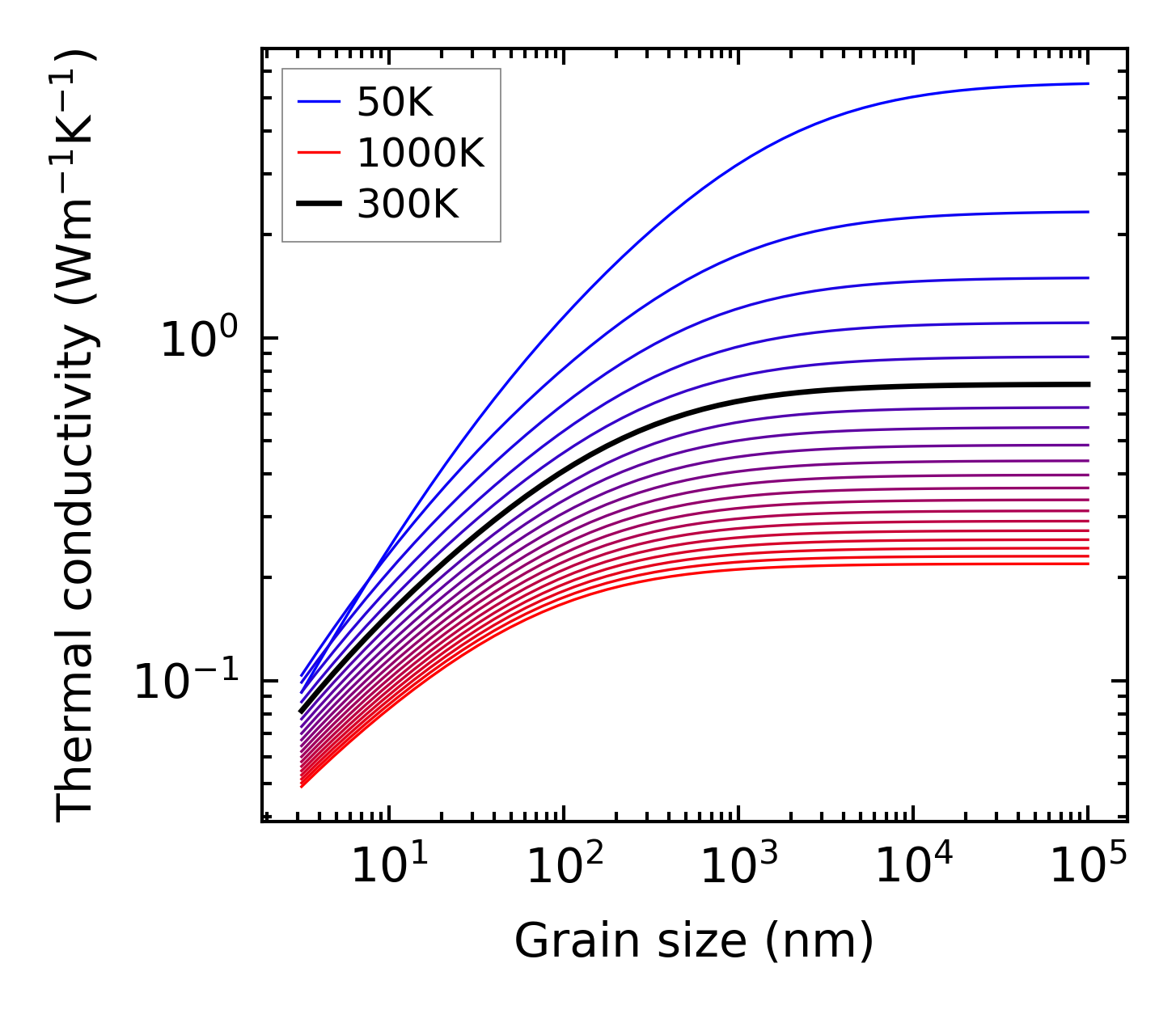

../../_images/fig_kappa_vs_grain_size7117.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

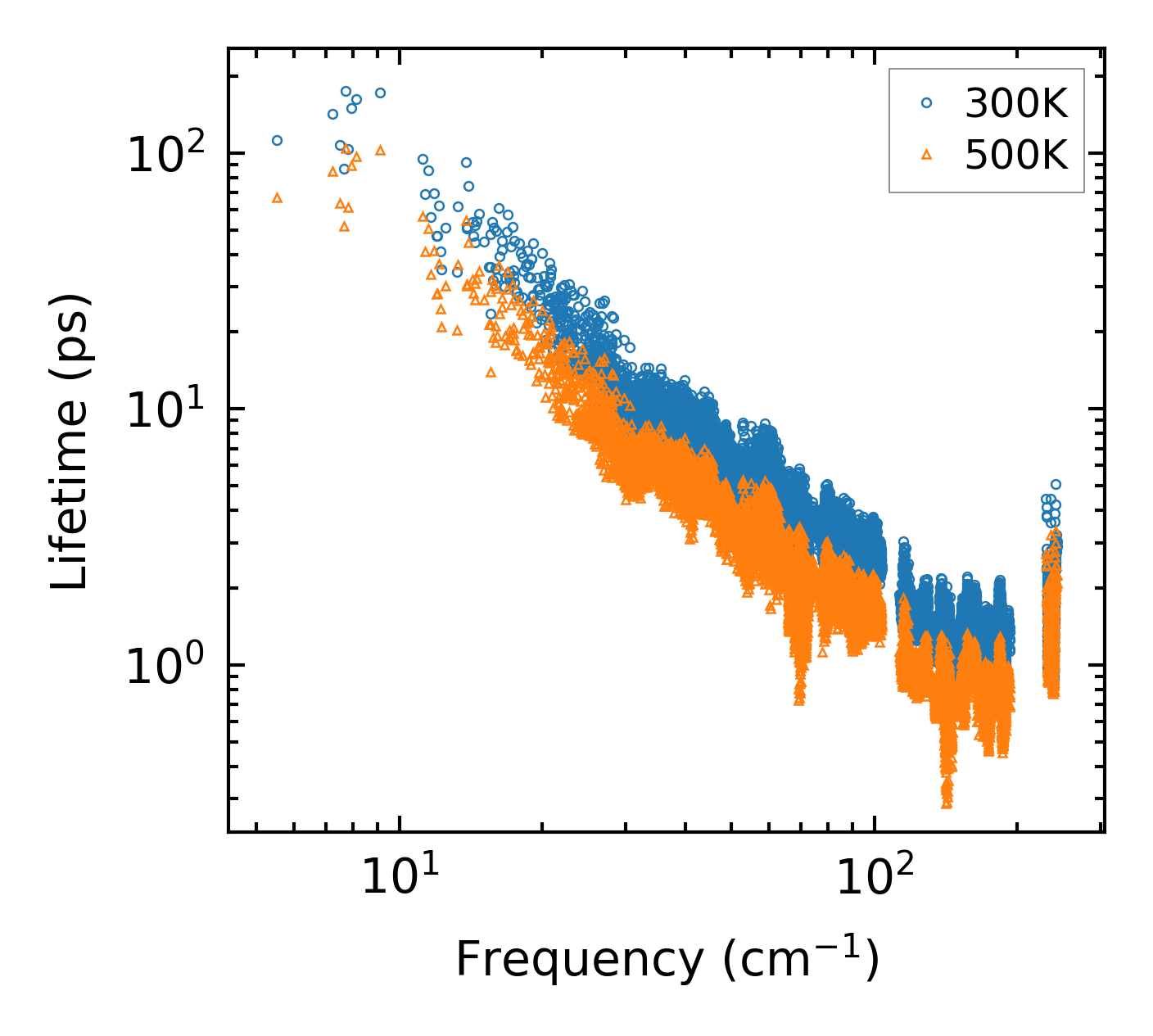

../../_images/fig_lifetime6969.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates6968.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency6969.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp6968.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

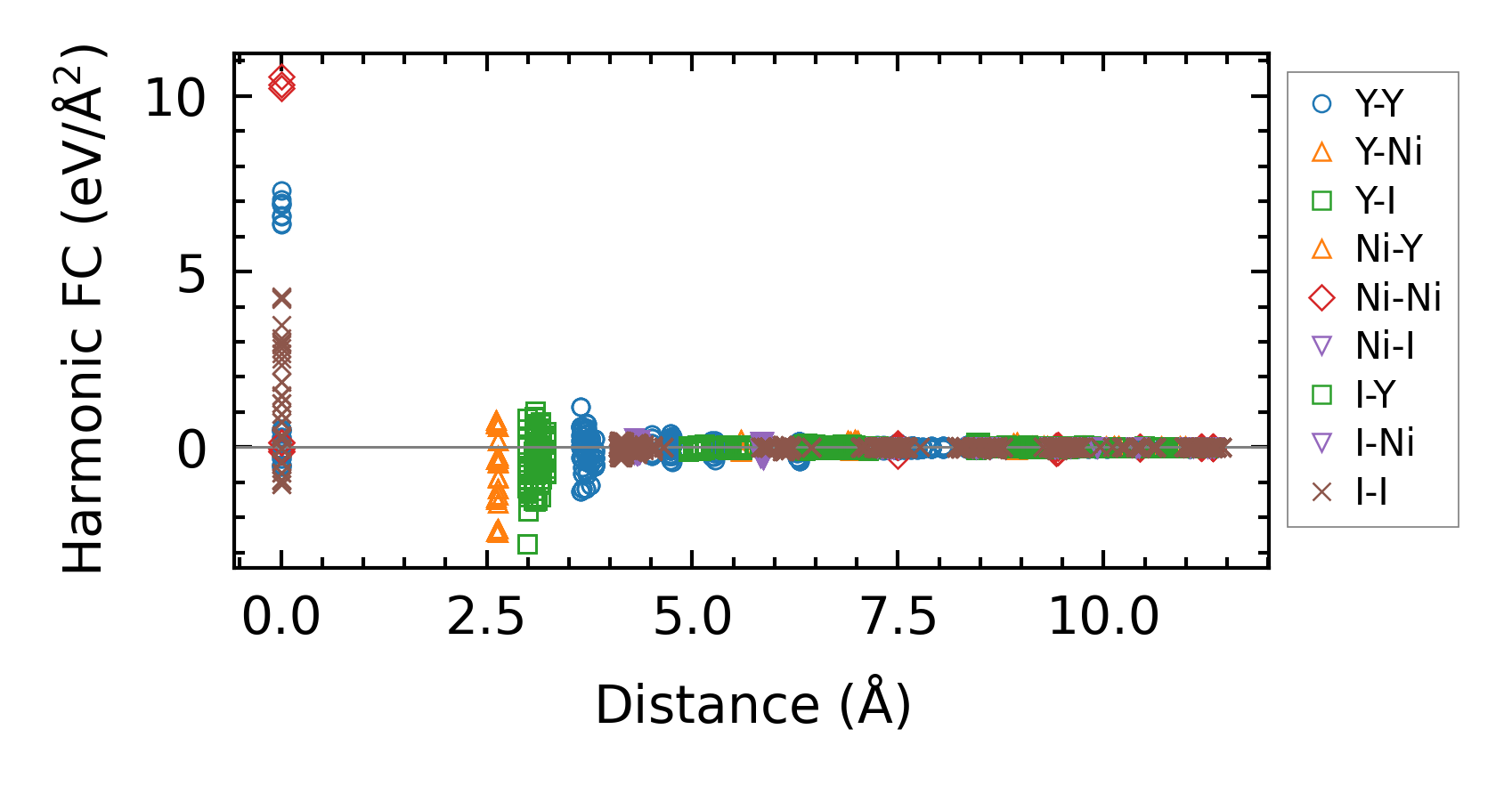

../../_images/fig_fc215785.png — (a) Force constants w.r.t atomic distance

Summary

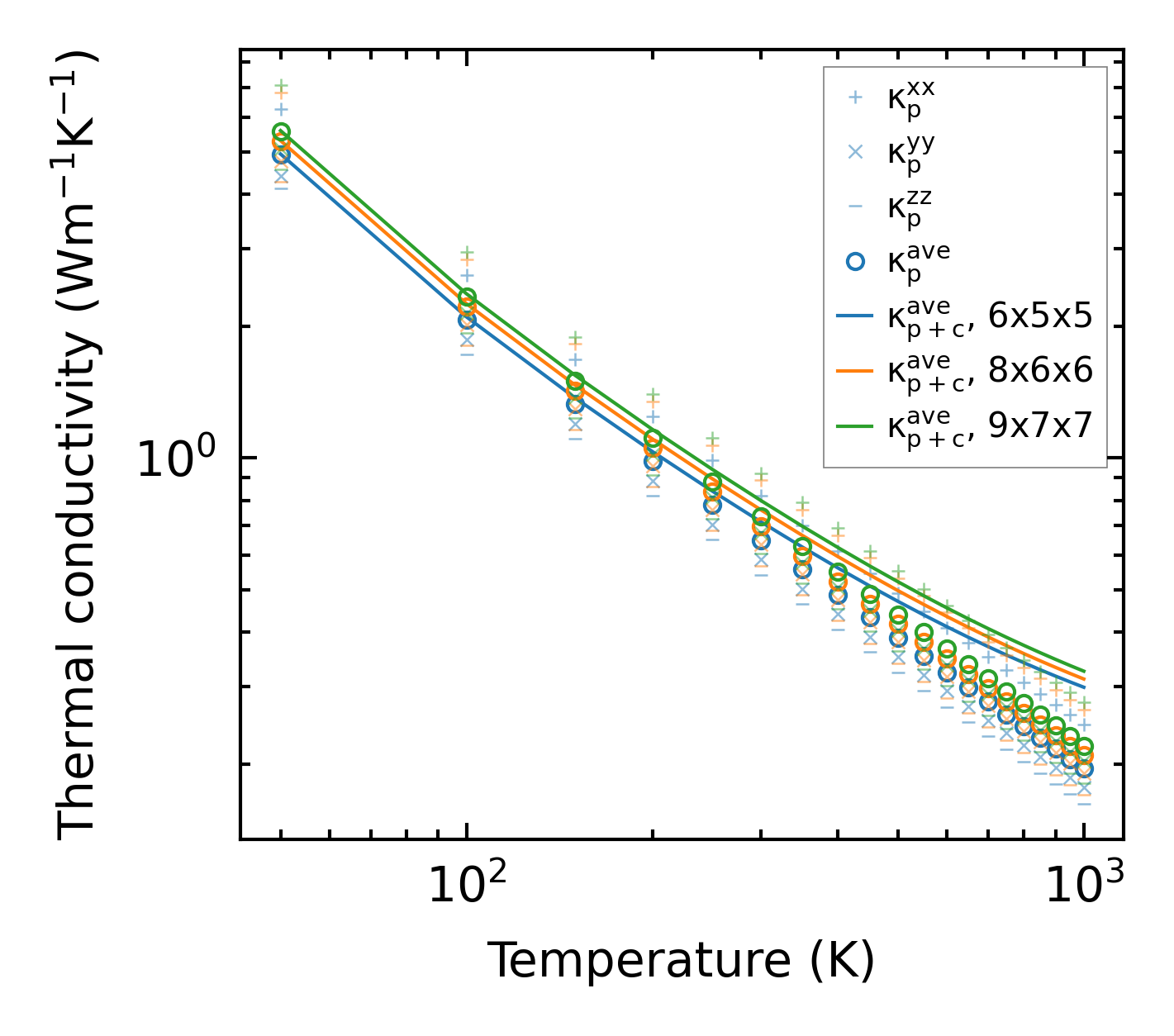

../../_images/fig_kappa13251.png — (a) Temperature-dependent lattice thermal conductivity

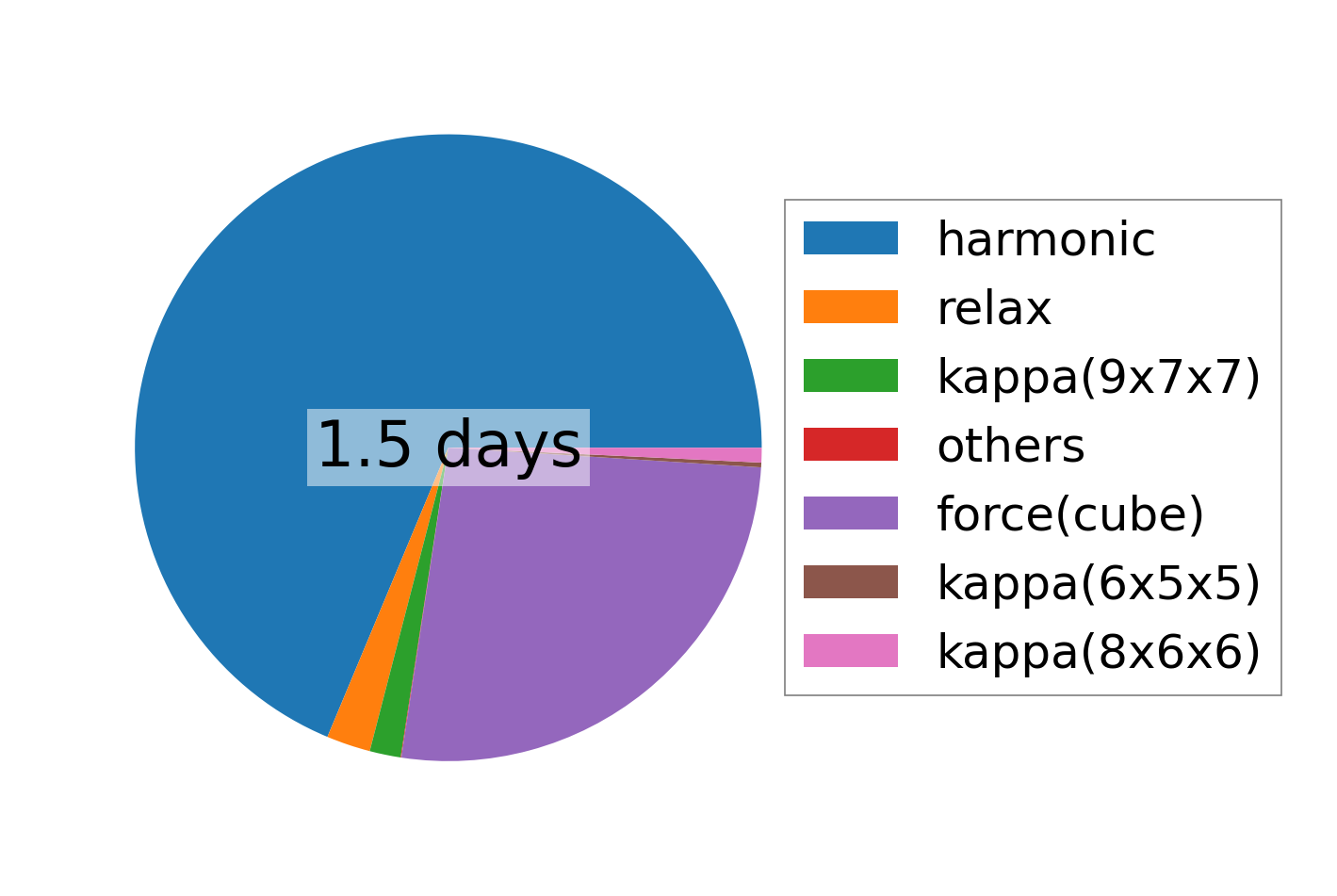

../../_images/fig_times26667.png — (b) Computation time
