mp-1188532/Lu2S3/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-1188532.tar.gz

Harmonic properties

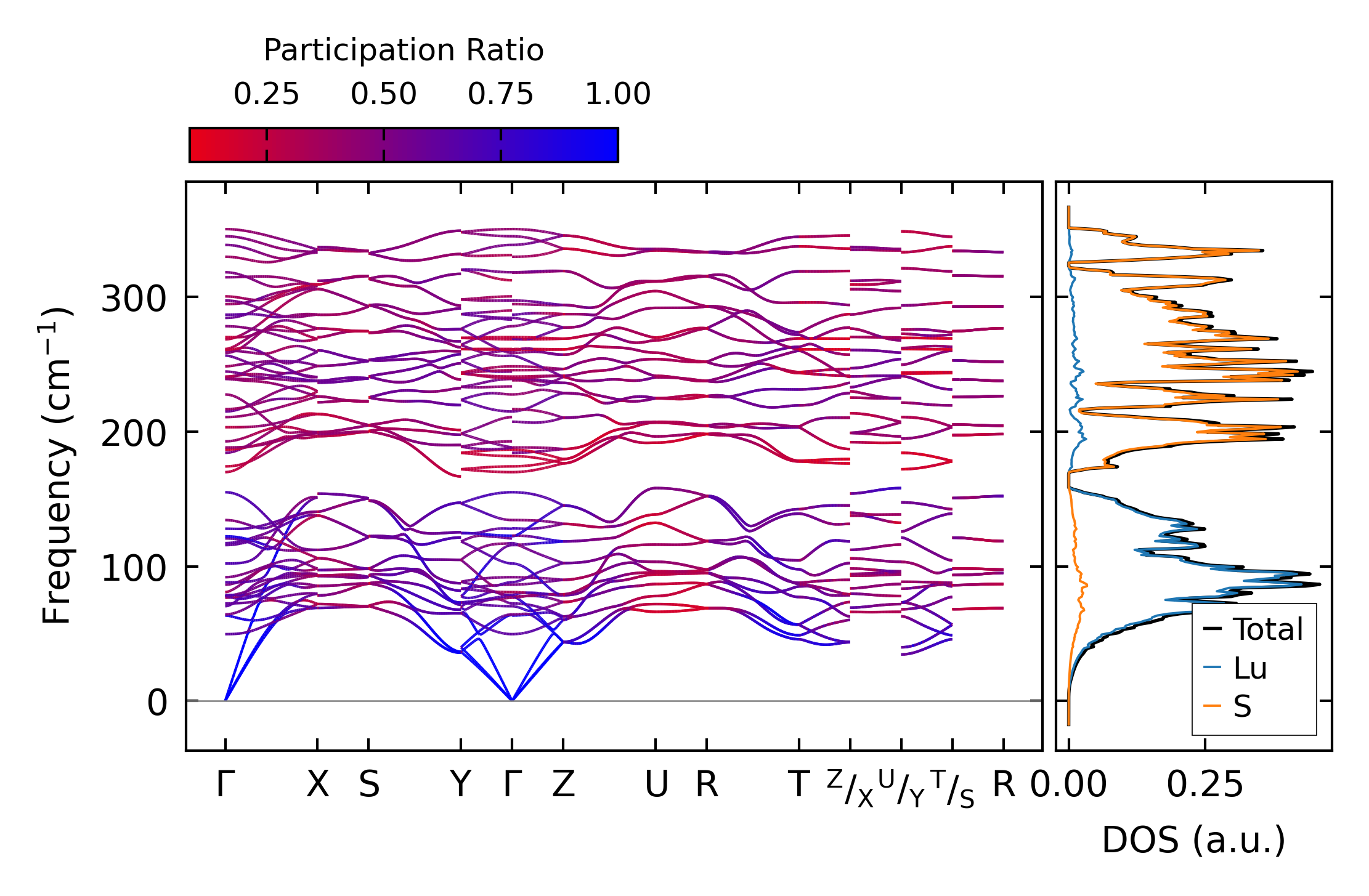

../../_images/fig_bandos_pr16191.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo16190.png — (b) Thermodynamic properties

Grüneisen parameters

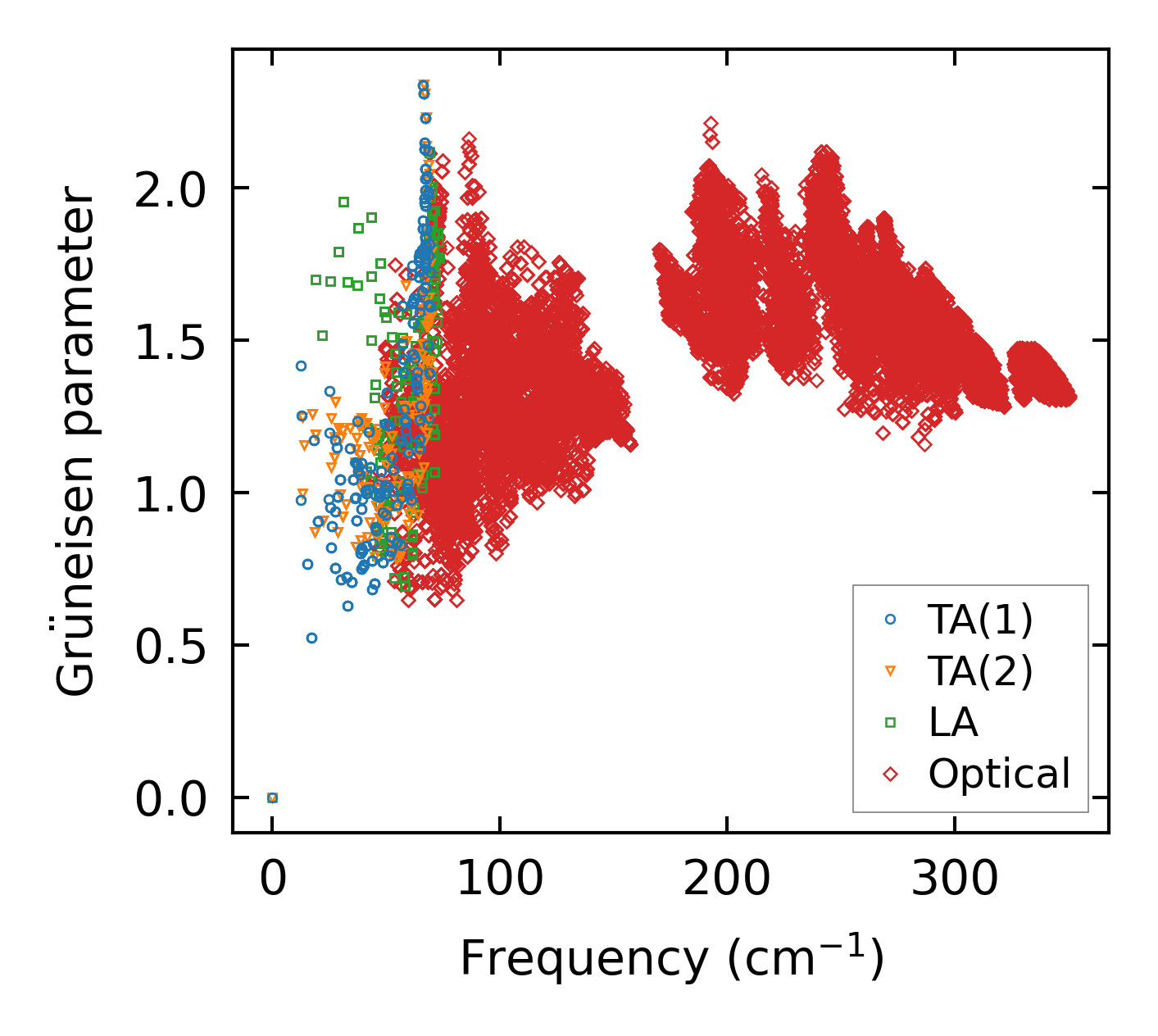

../../_images/fig_gru_all7034.png — (a) Grüneisen parameters

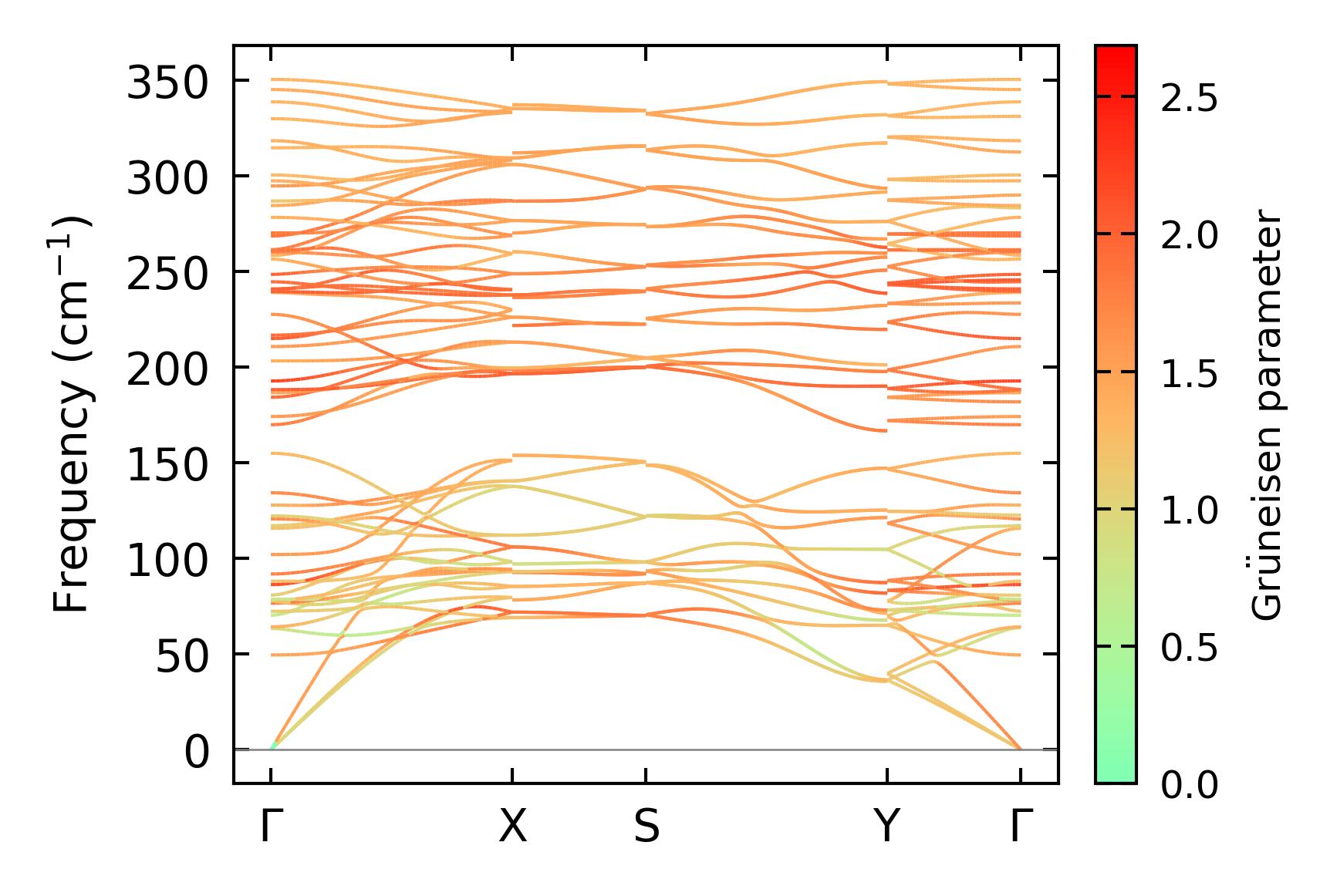

../../_images/fig_gruneisen7034.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 19x6x7, supercell: 3x1x2

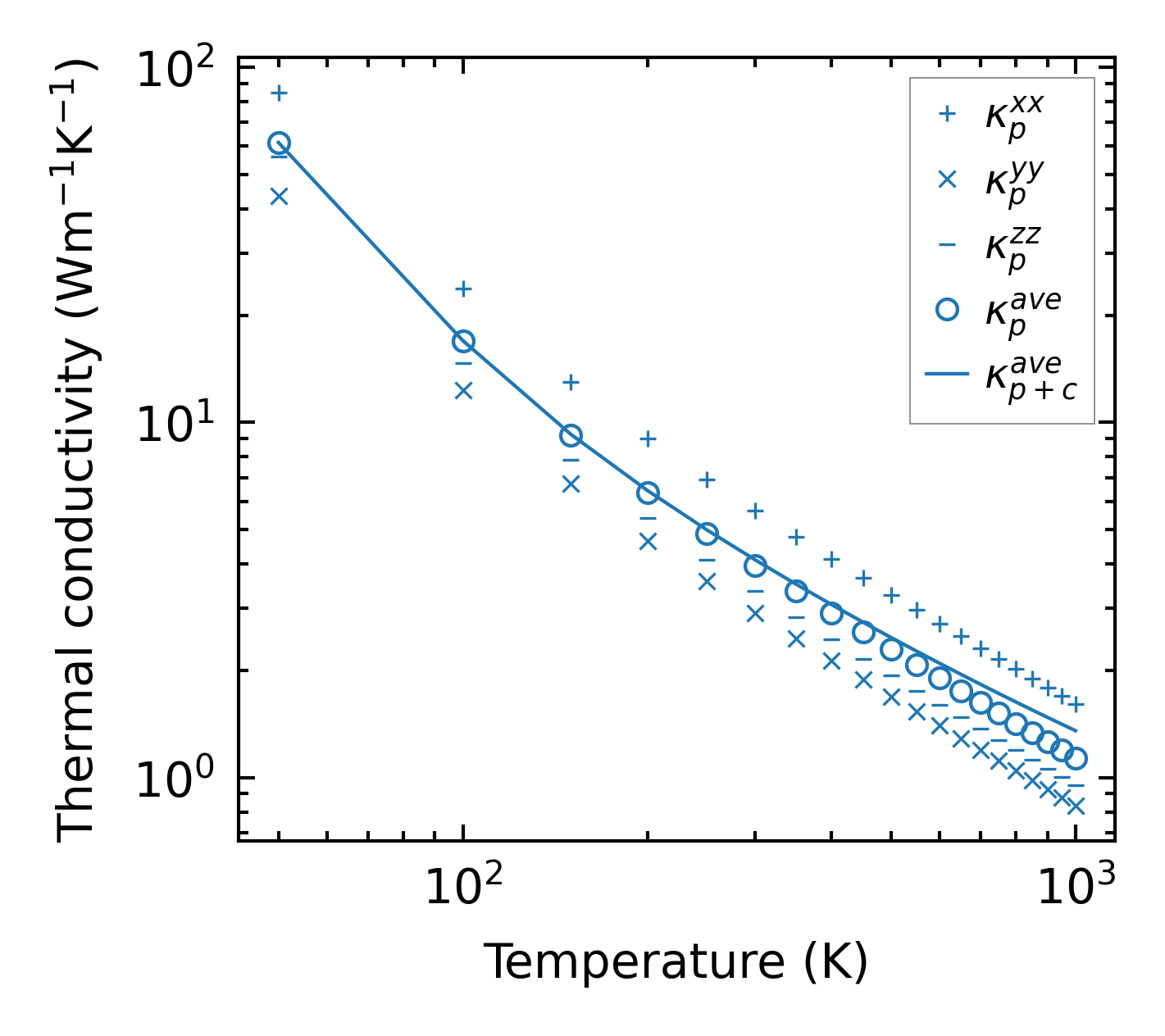

../../_images/fig_kappa13248.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size7116.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime6968.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates6967.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

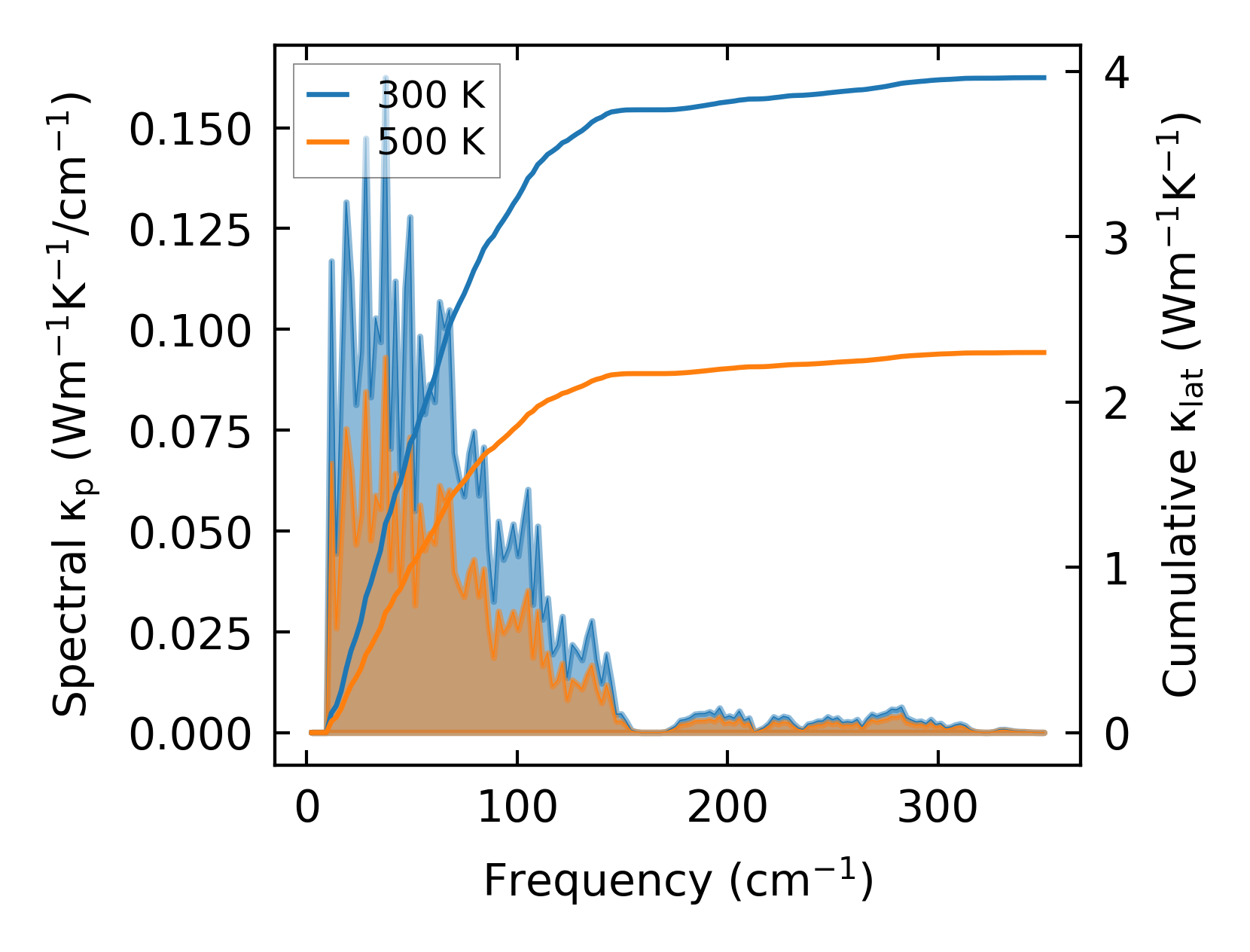

../../_images/fig_cumu_frequency6968.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

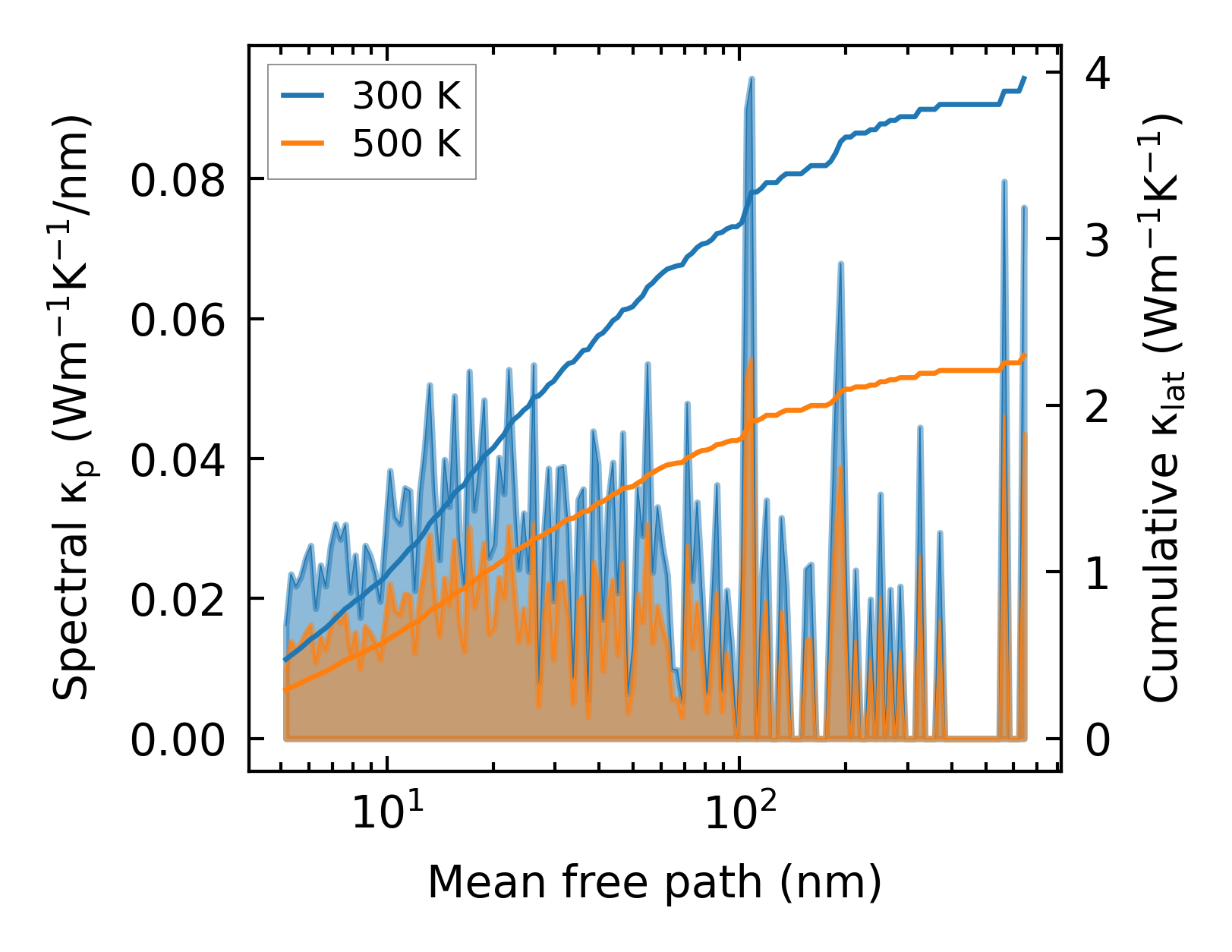

../../_images/fig_cumu_mfp6967.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc215784.png — (a) Force constants w.r.t atomic distance

Summary

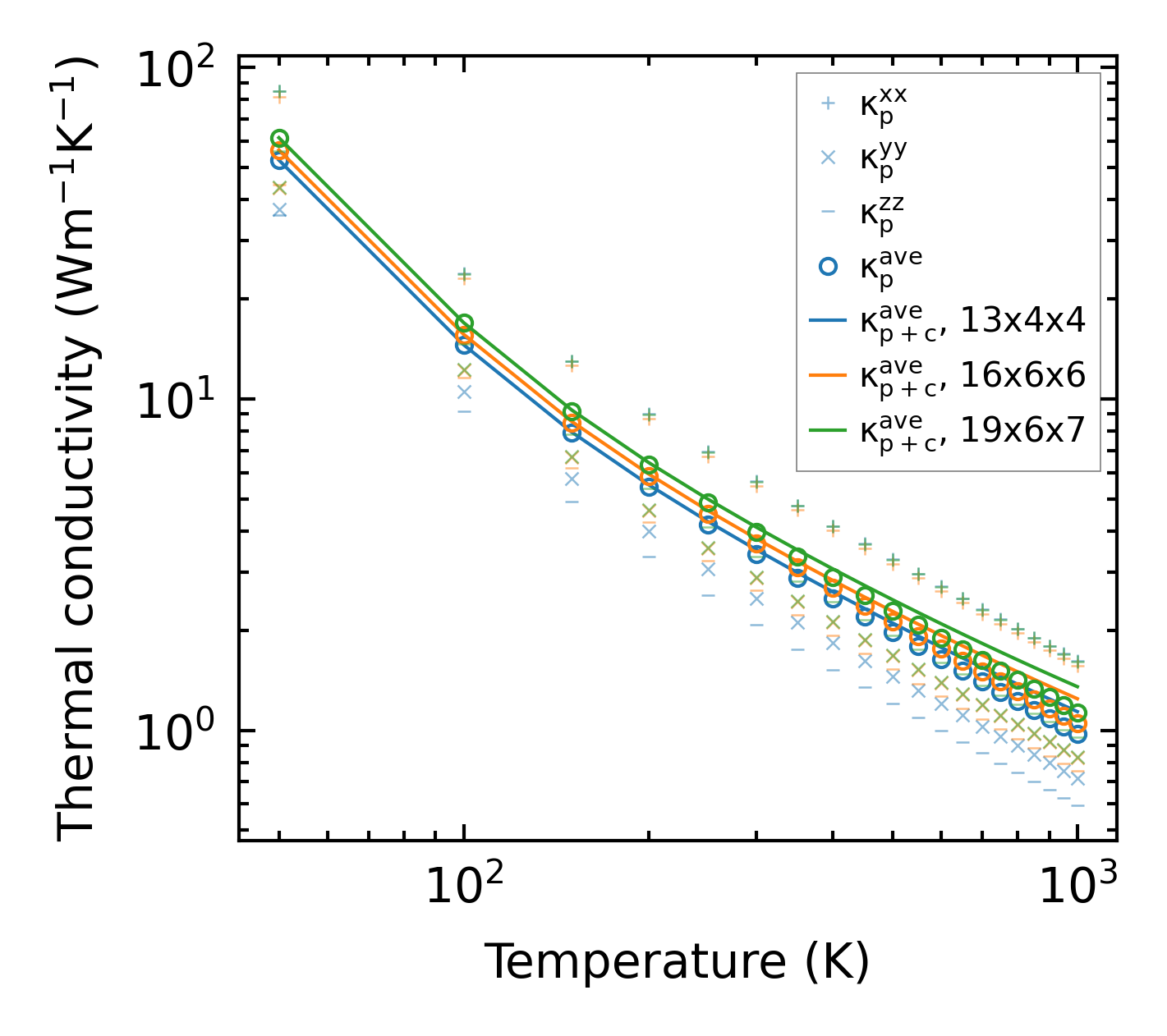

../../_images/fig_kappa13249.png — (a) Temperature-dependent lattice thermal conductivity

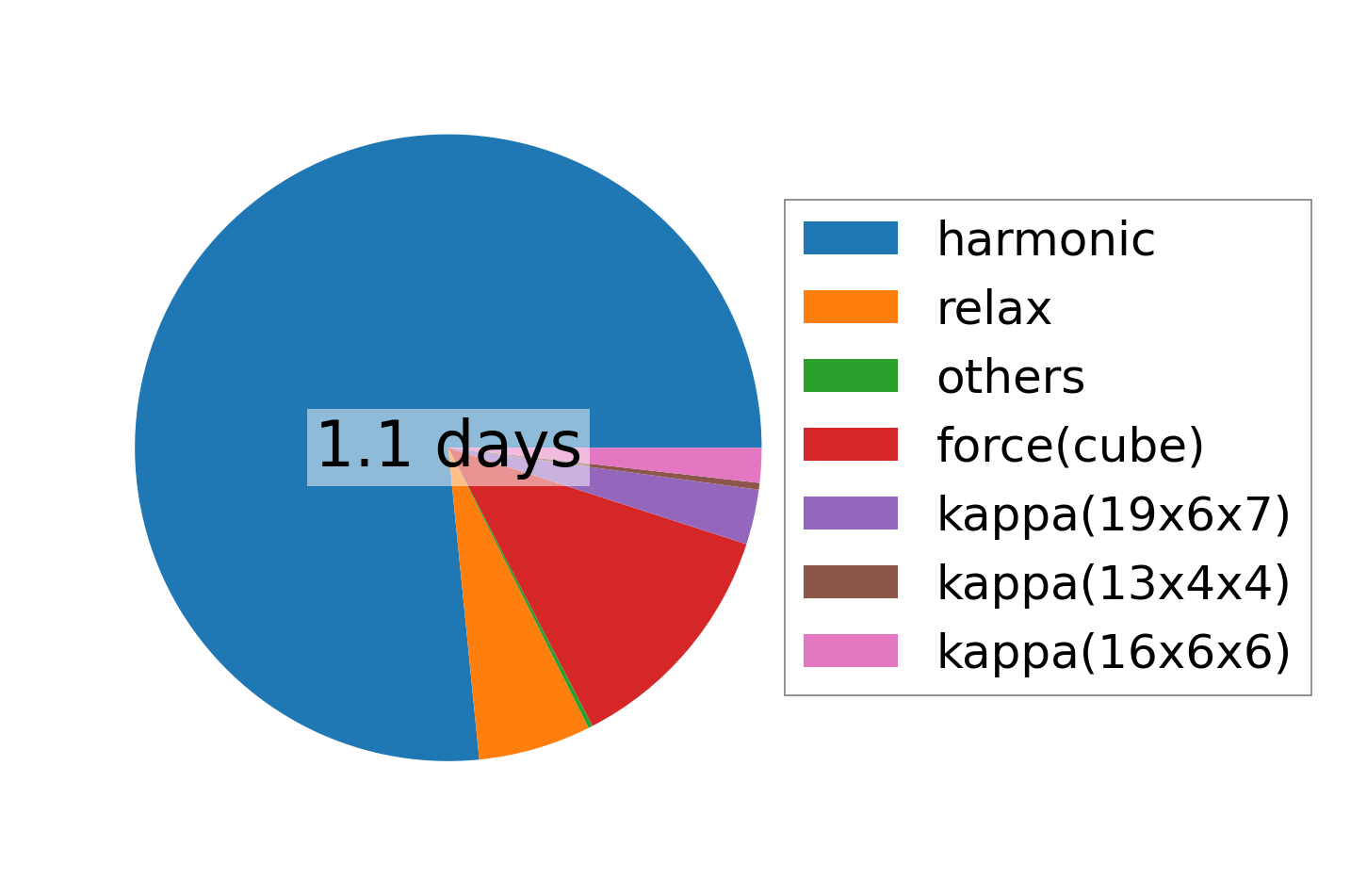

../../_images/fig_times26666.png — (b) Computation time
