mp-1188262/TbScS3/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-1188262.tar.gz

Harmonic properties

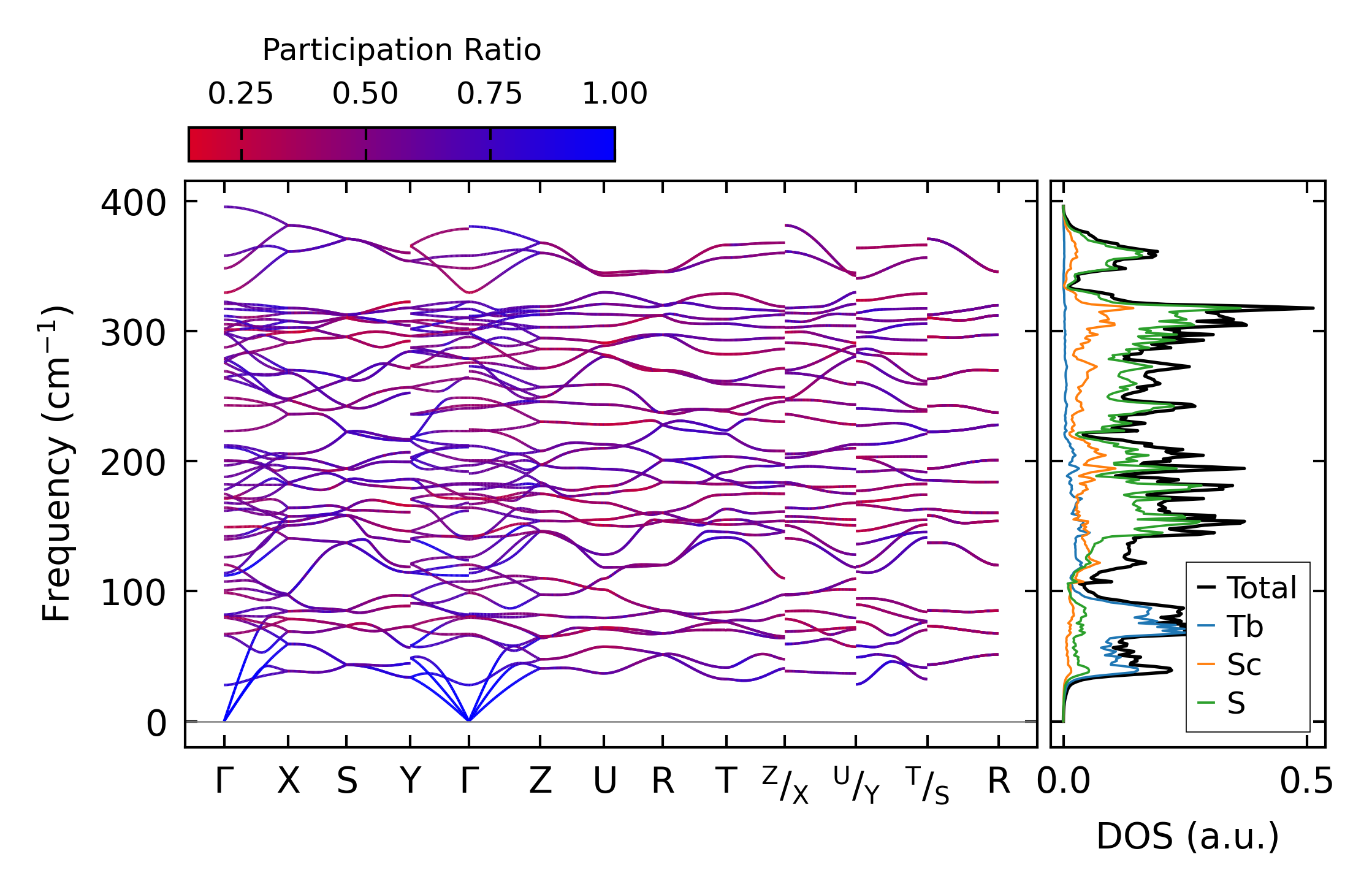

../../_images/fig_bandos_pr16182.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo16181.png — (b) Thermodynamic properties

Grüneisen parameters

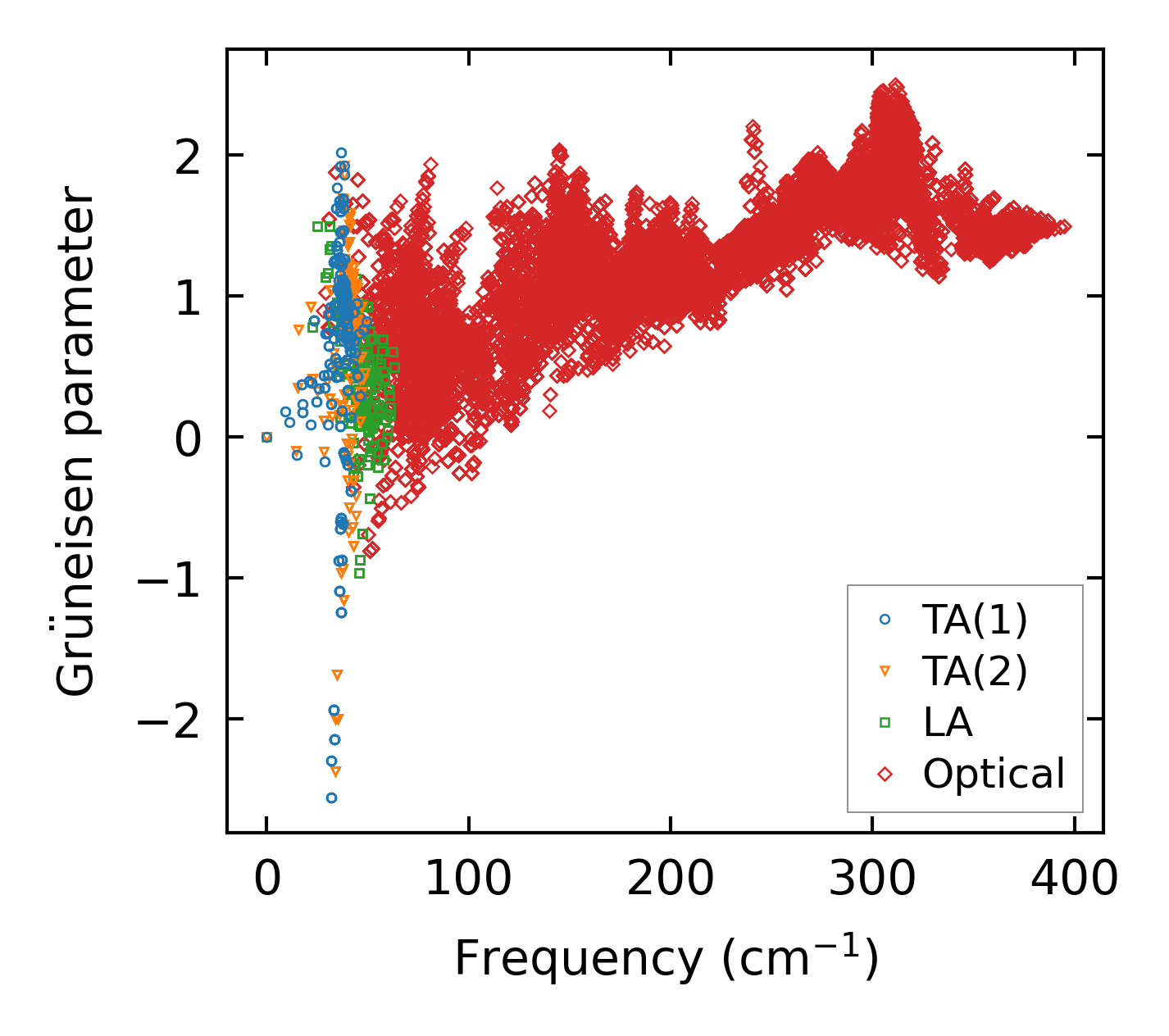

../../_images/fig_gru_all7027.png — (a) Grüneisen parameters

../../_images/fig_gruneisen7027.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x7x11, supercell: 2x1x2

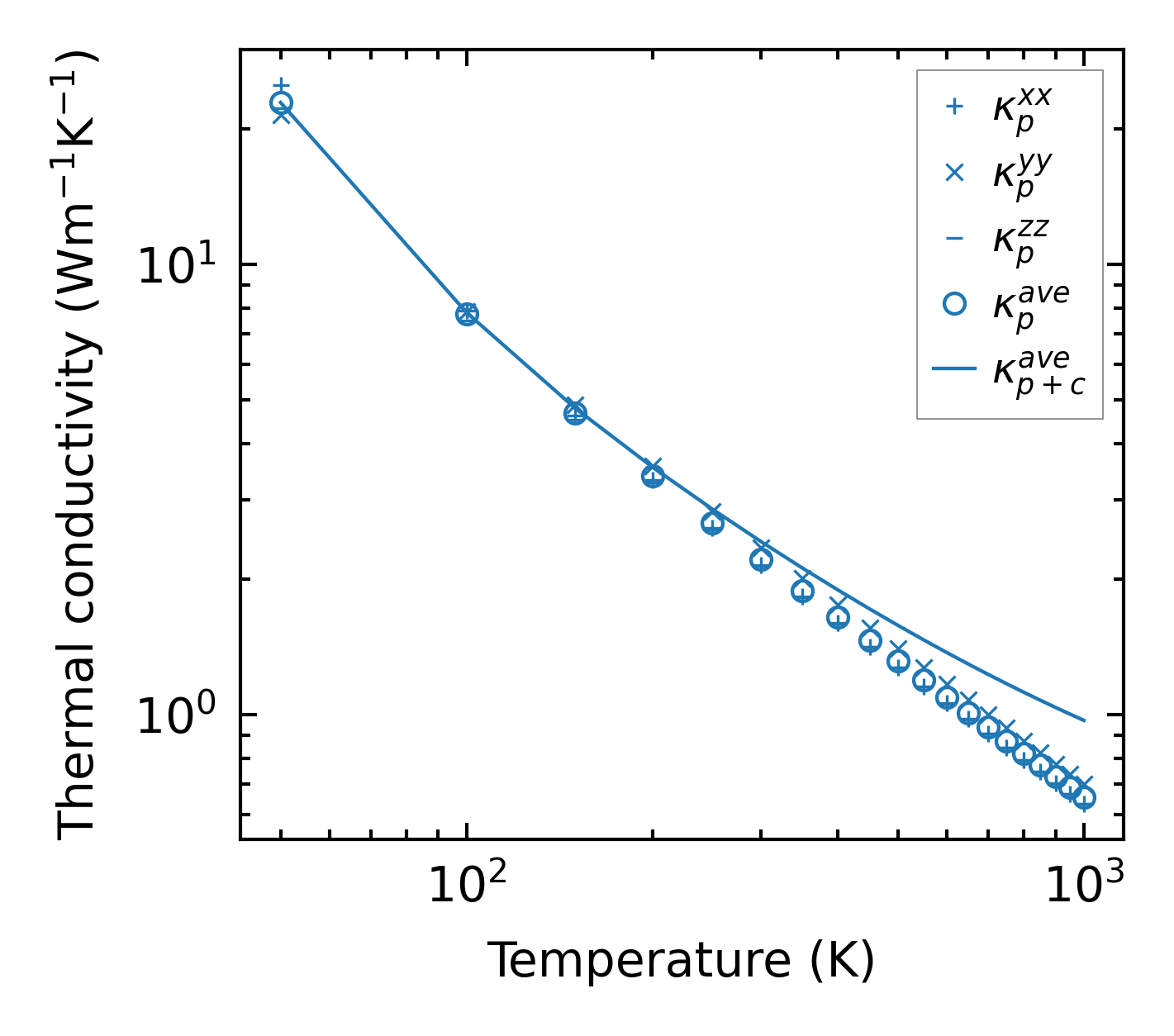

../../_images/fig_kappa13234.png — (a) Temperature-dependent lattice thermal conductivity

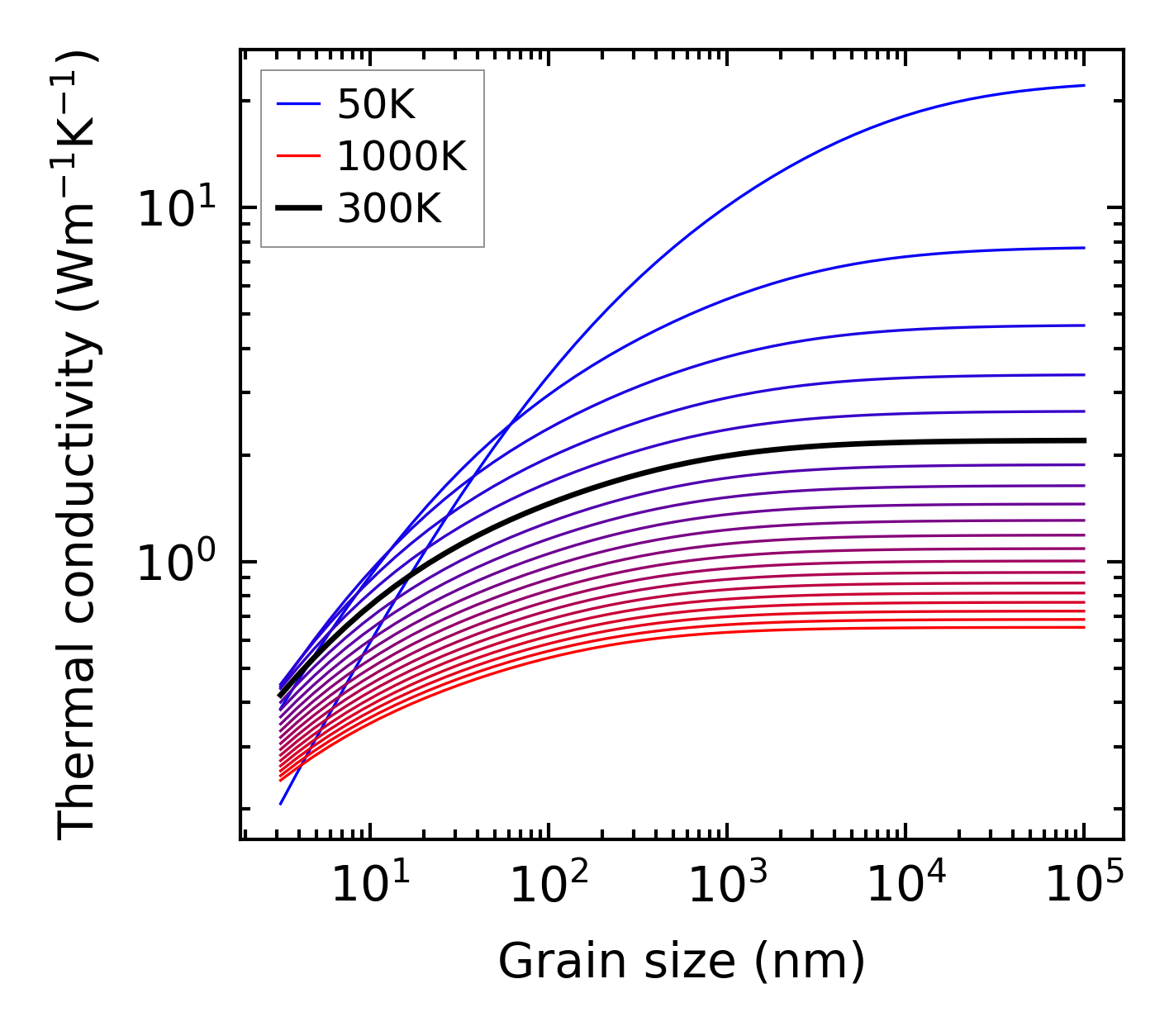

../../_images/fig_kappa_vs_grain_size7109.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

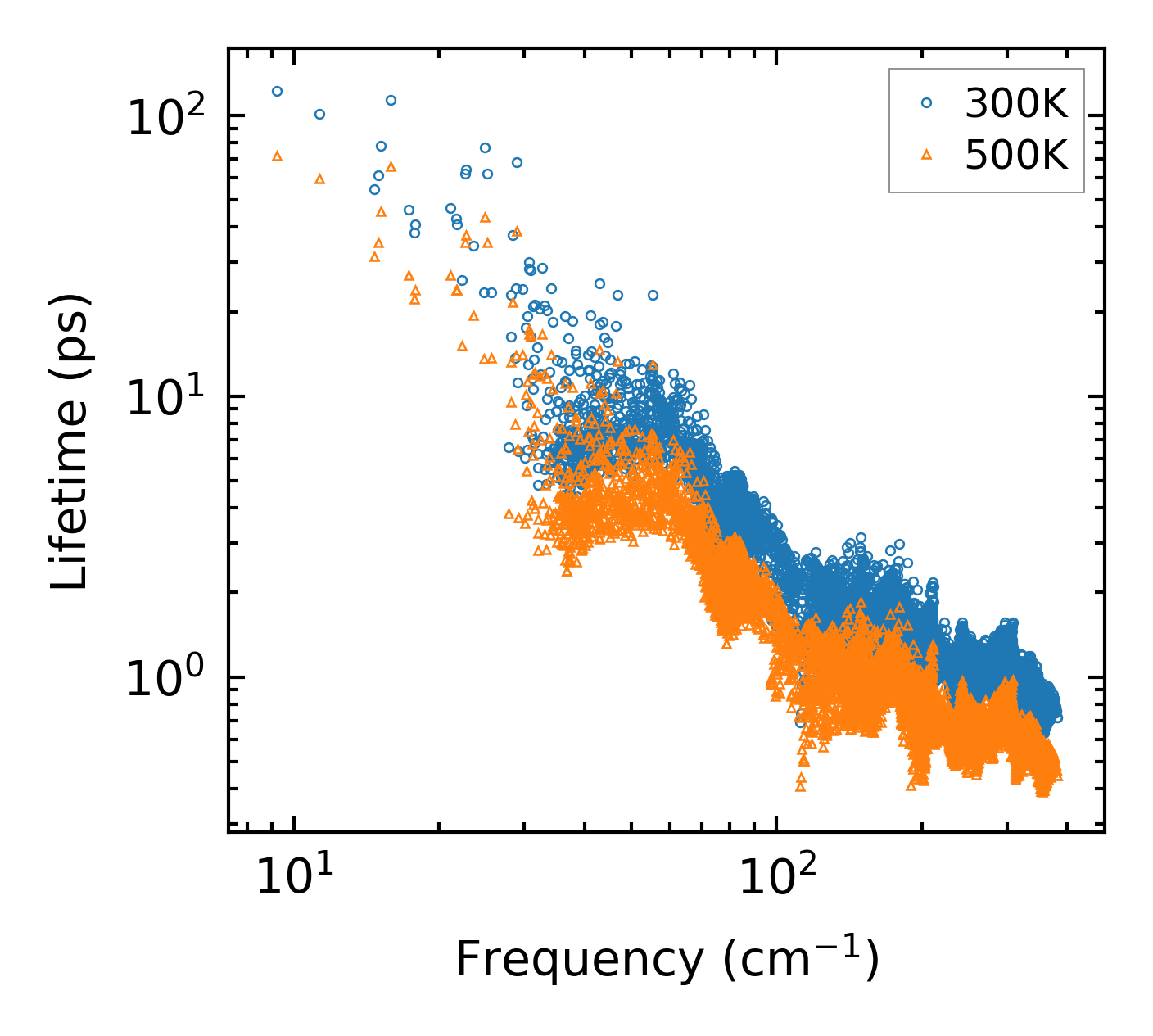

../../_images/fig_lifetime6961.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates6960.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency6961.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

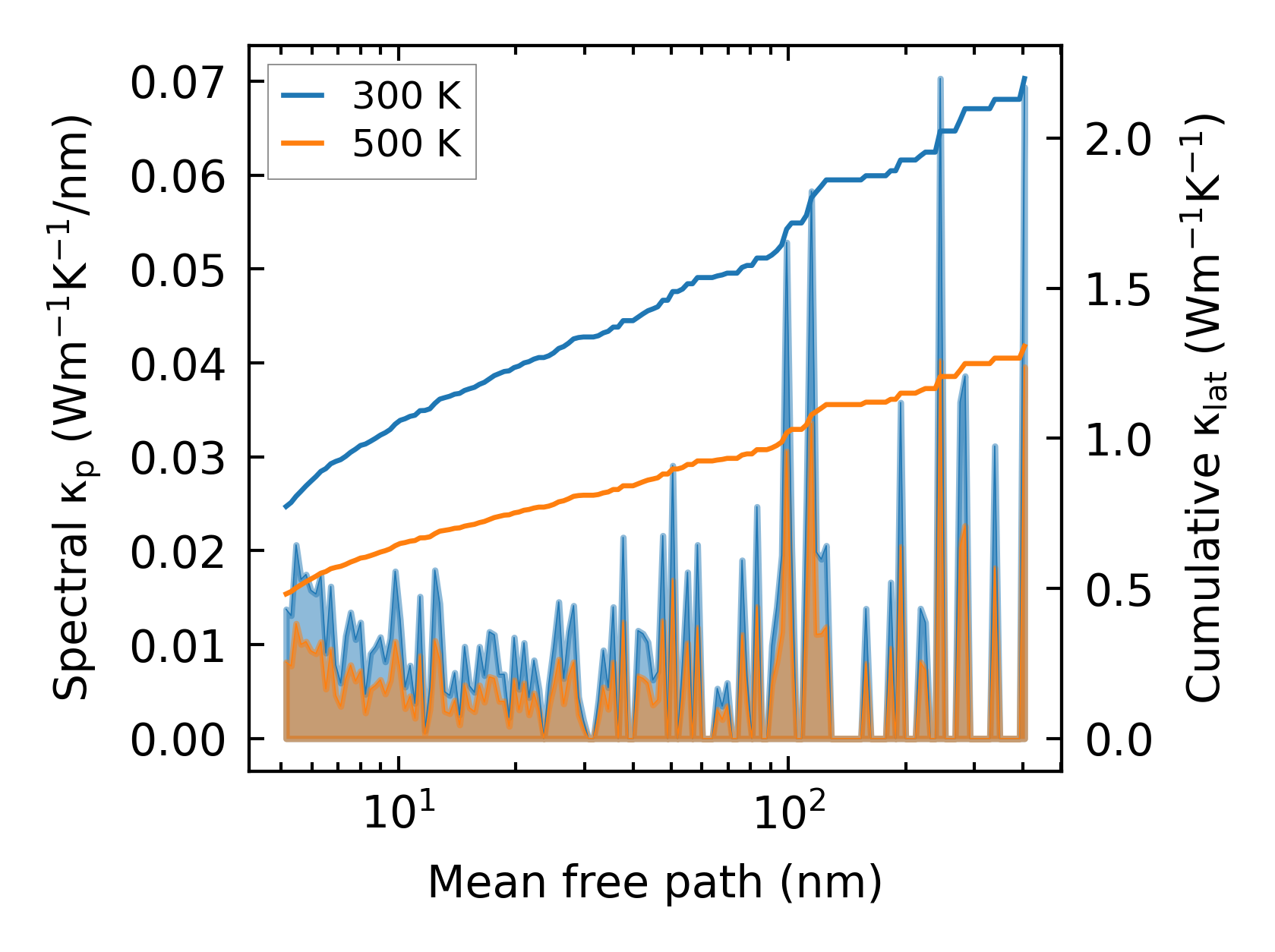

../../_images/fig_cumu_mfp6960.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

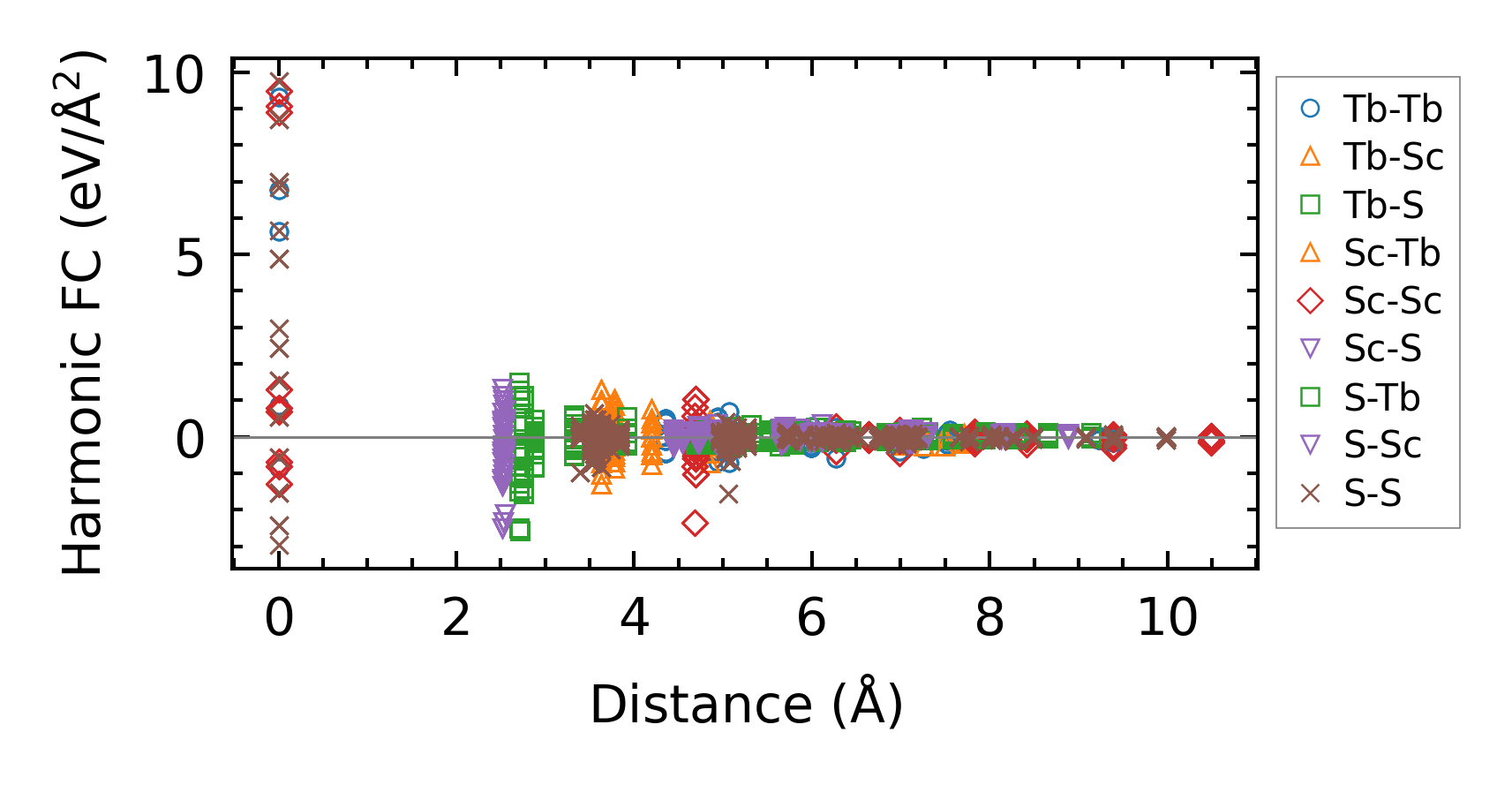

../../_images/fig_fc215775.png — (a) Force constants w.r.t atomic distance

Summary

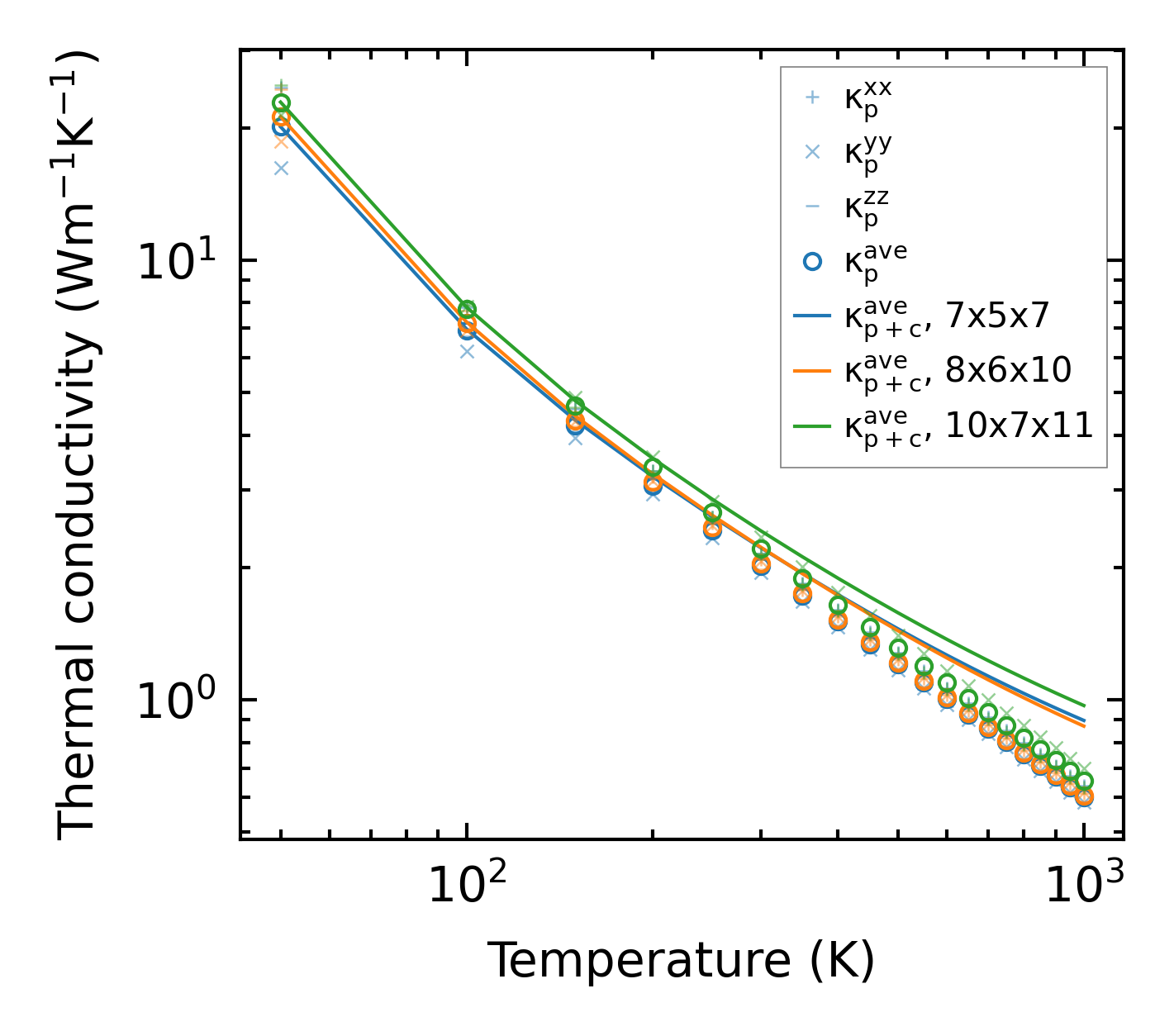

../../_images/fig_kappa13235.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times26654.png — (b) Computation time
