mp-1188133/Tm2Te3/anharm

Space group: Fddd (70)
Link: Materials Project
Download: mp-1188133.tar.gz

Harmonic properties

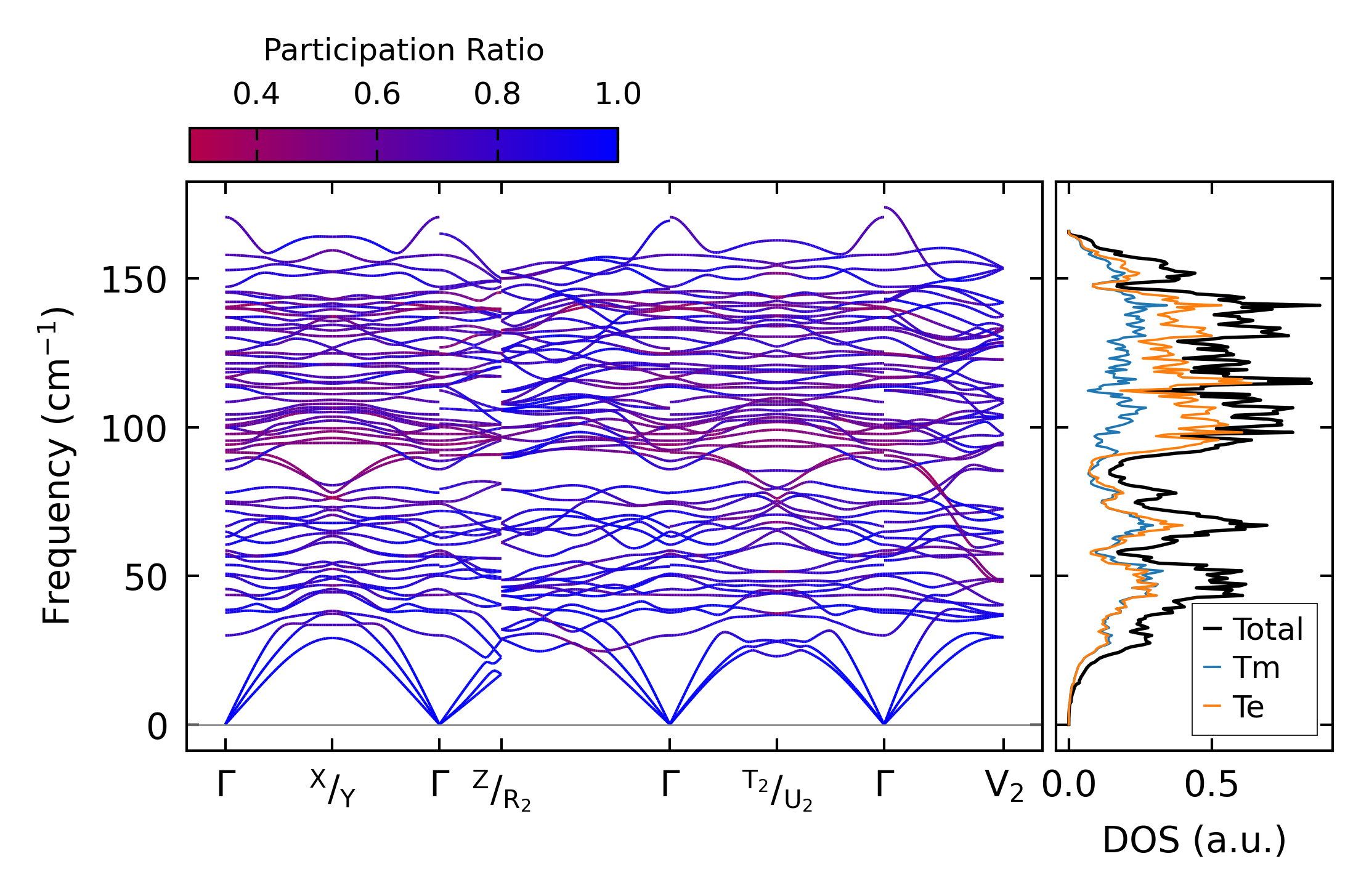

../../_images/fig_bandos_pr16178.png — (a) Phonon dispersion with participation ratio and DOS

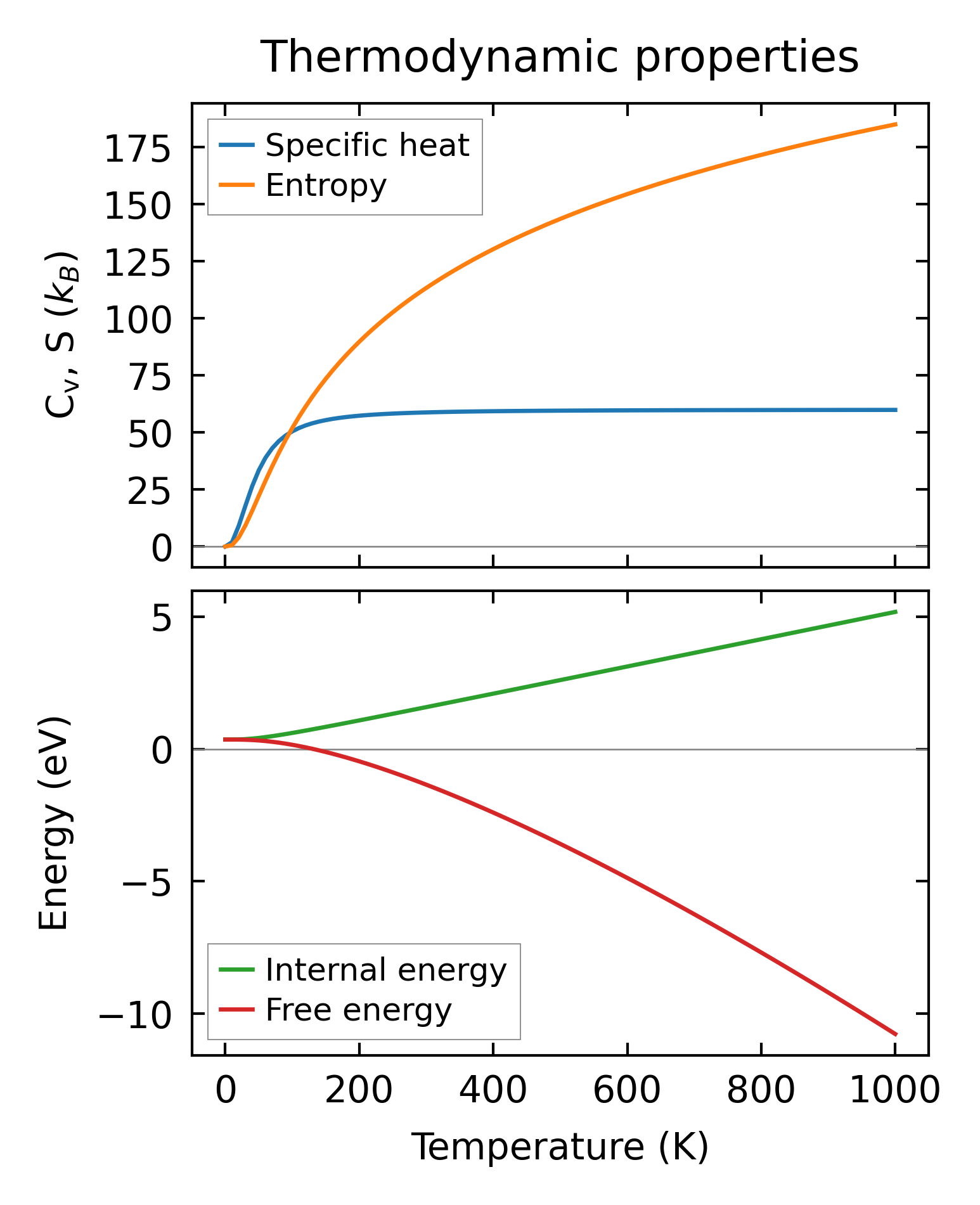

../../_images/fig_thermo16177.png — (b) Thermodynamic properties

Grüneisen parameters

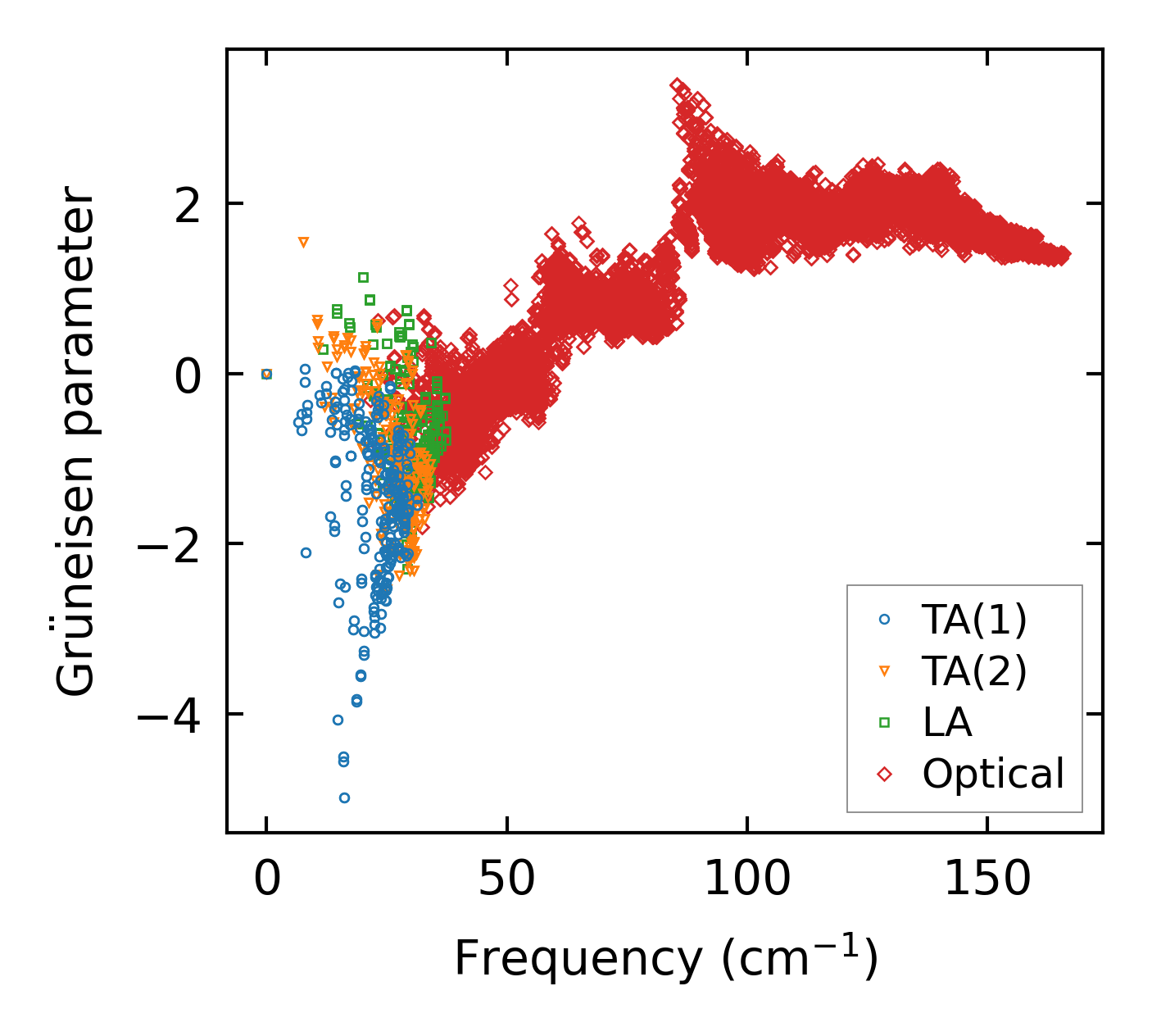

../../_images/fig_gru_all7025.png — (a) Grüneisen parameters

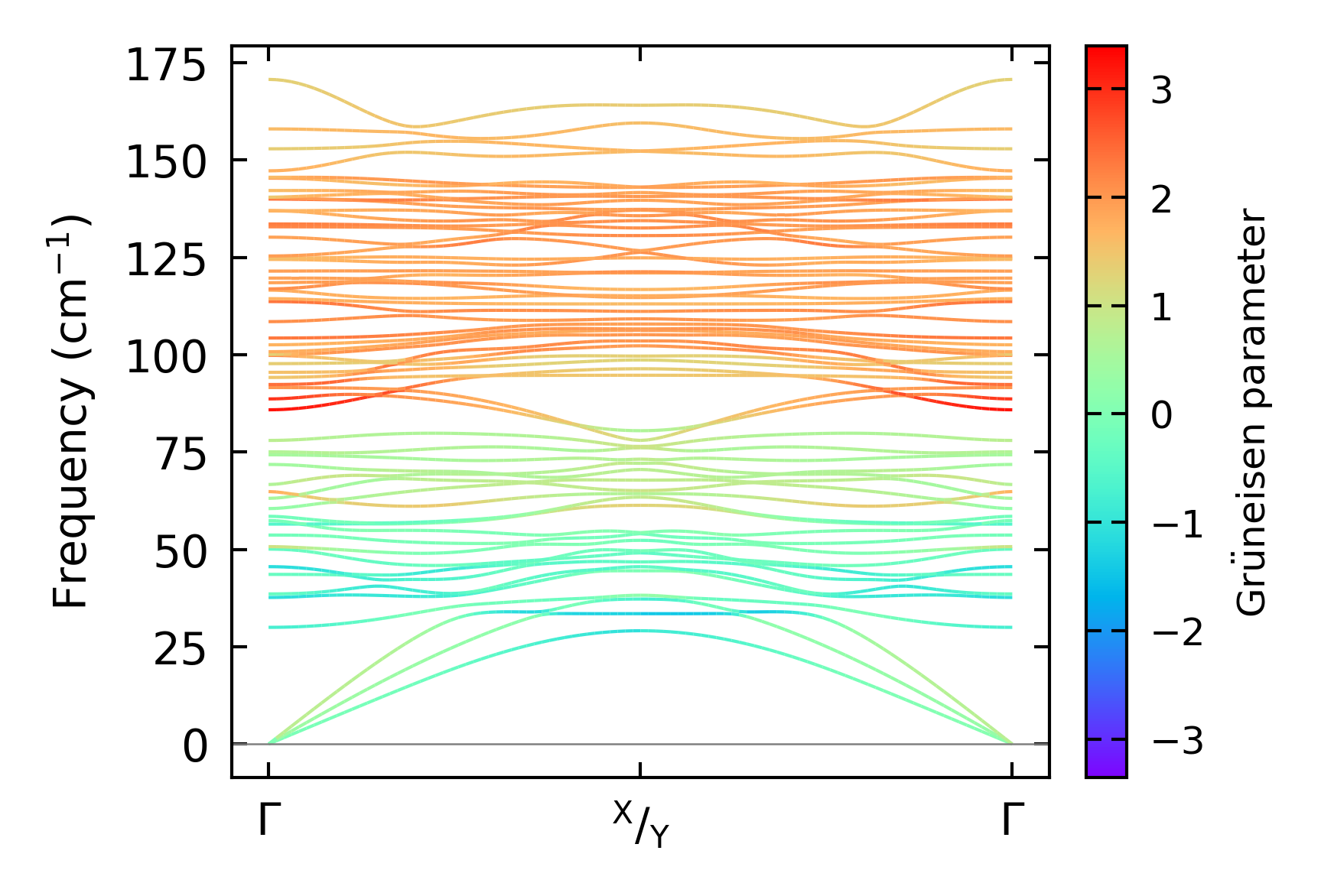

../../_images/fig_gruneisen7025.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x5, supercell: 2x2x1

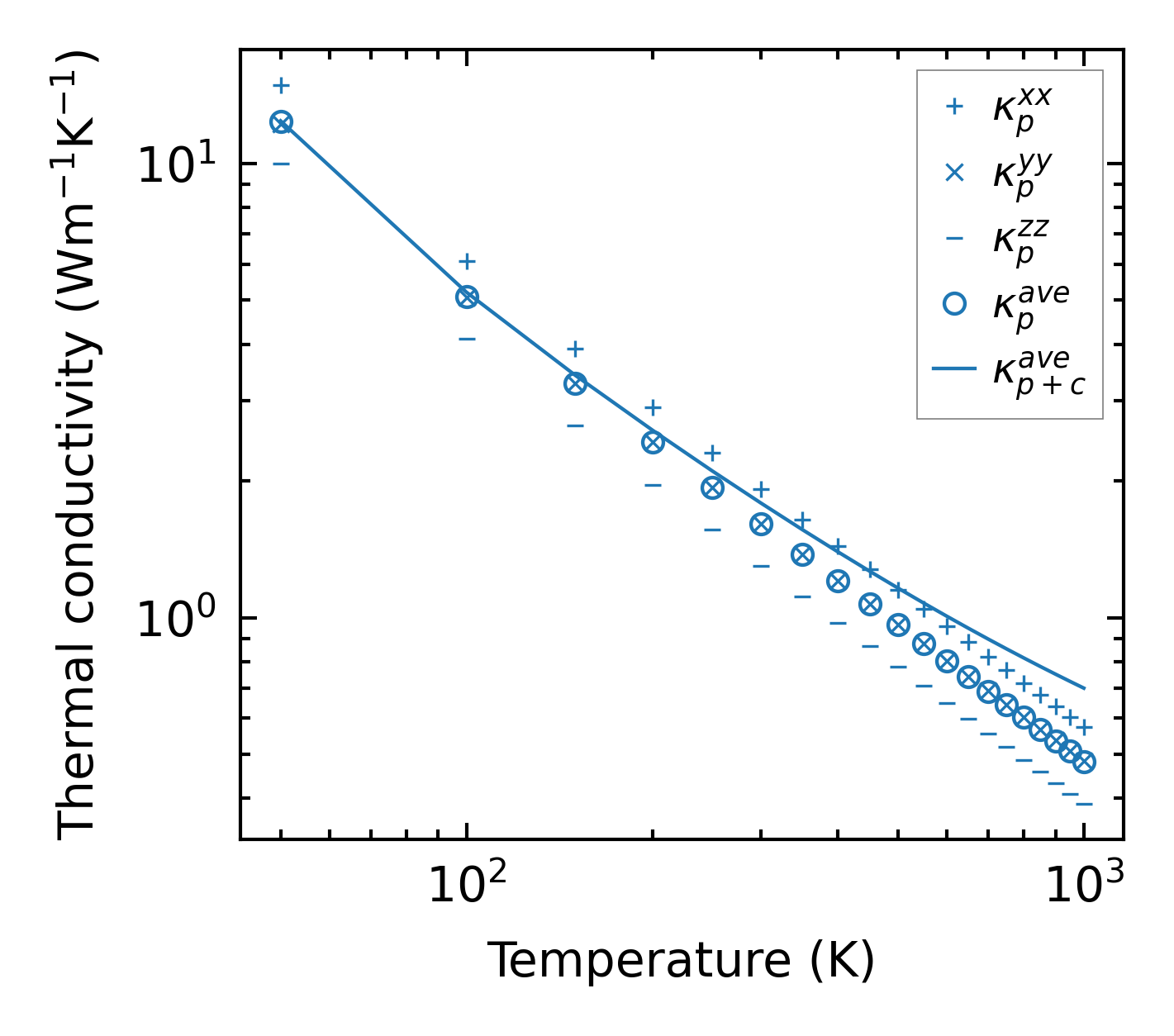

../../_images/fig_kappa13230.png — (a) Temperature-dependent lattice thermal conductivity

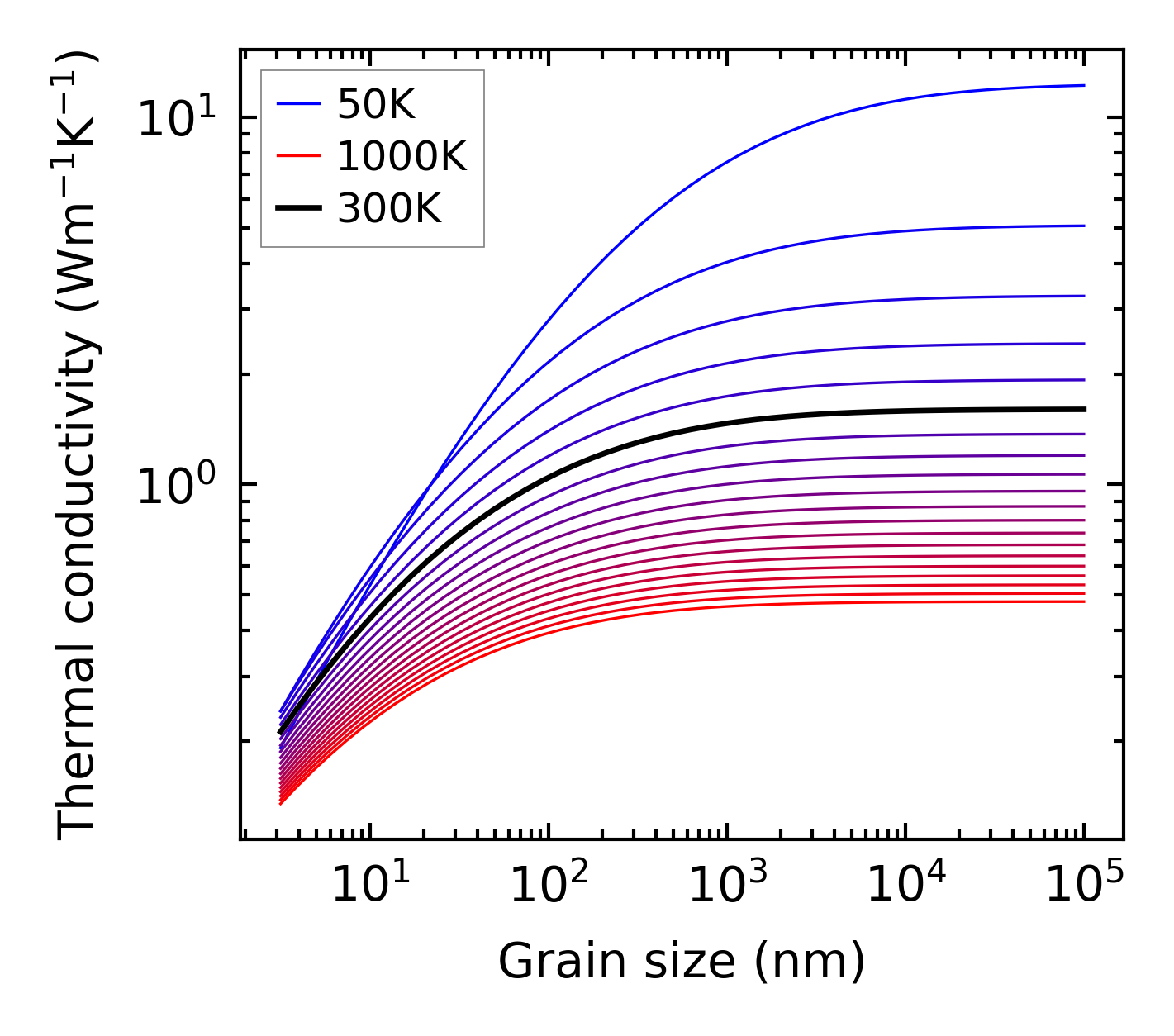

../../_images/fig_kappa_vs_grain_size7107.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

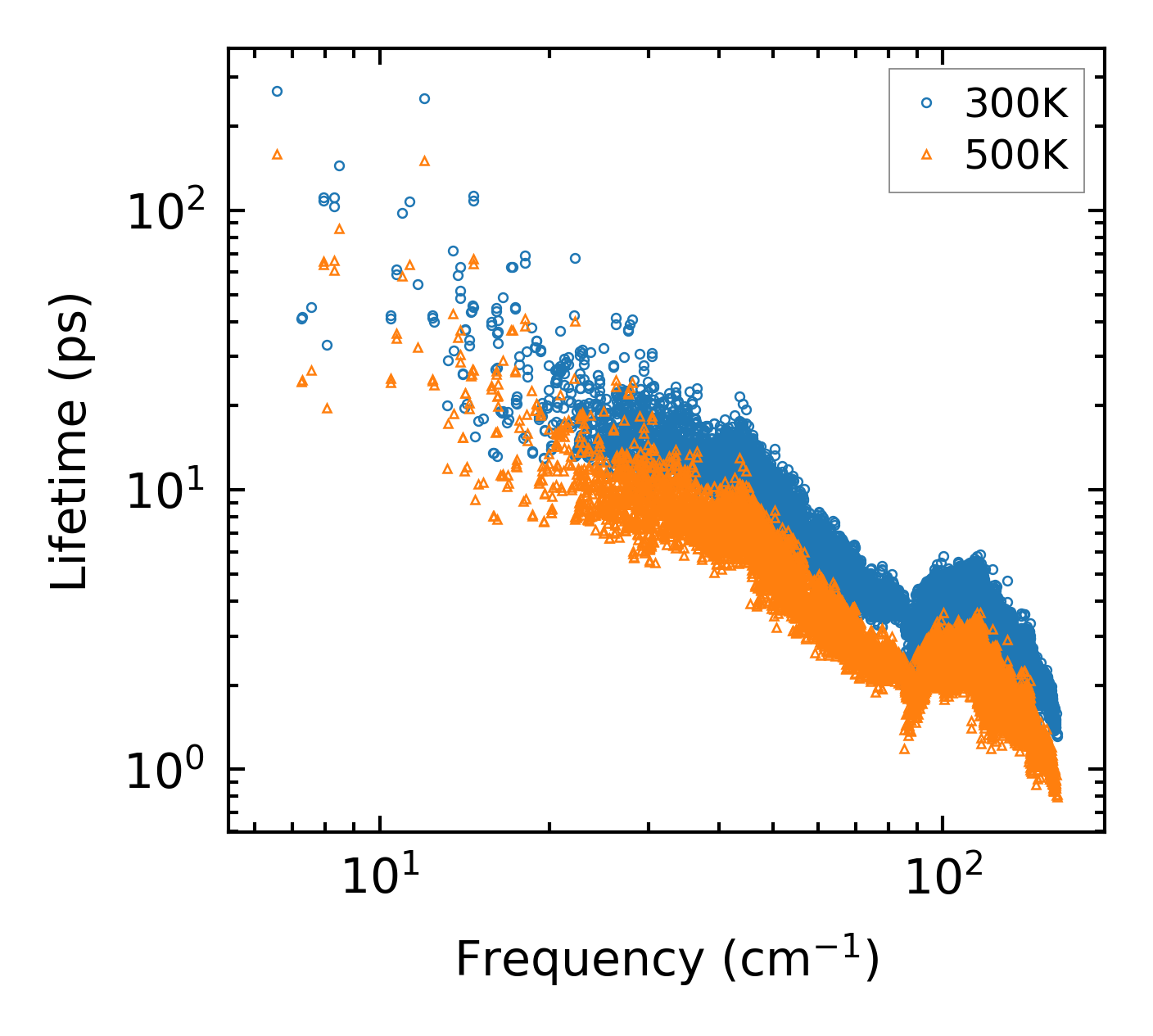

../../_images/fig_lifetime6959.png — (a) Phonon lifetime due to phonon-phonon scattering

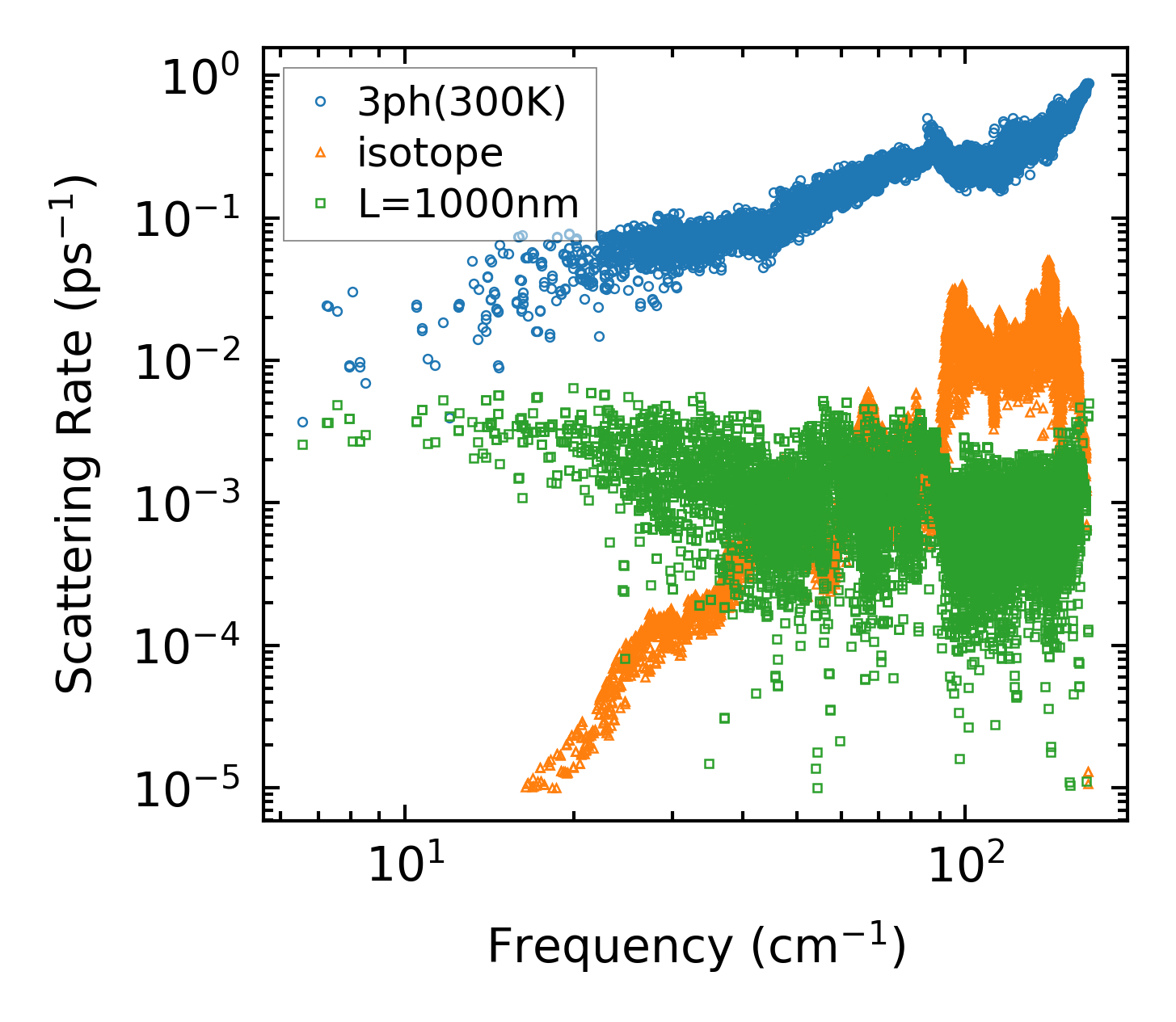

../../_images/fig_scat_rates6958.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

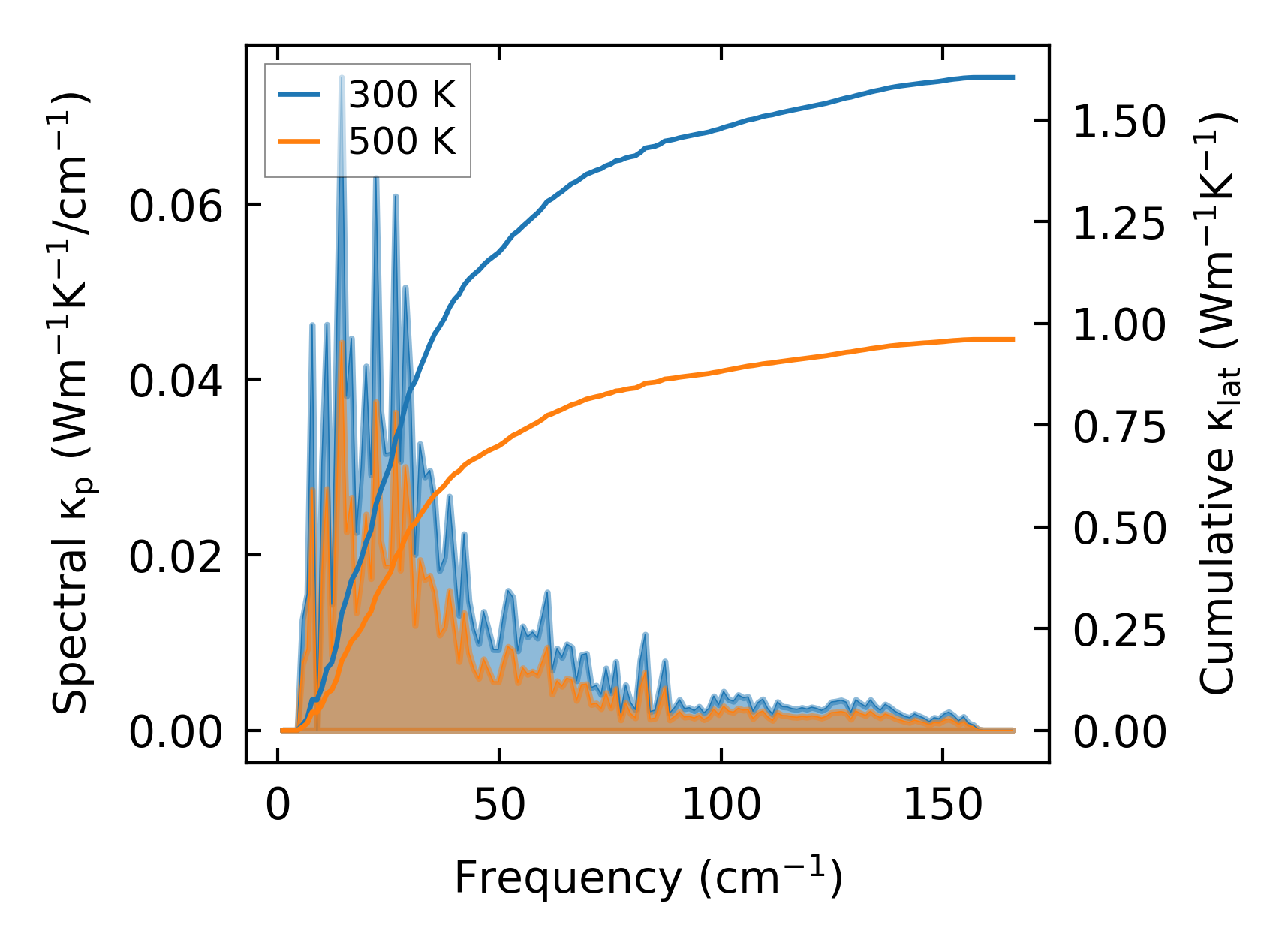

../../_images/fig_cumu_frequency6959.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

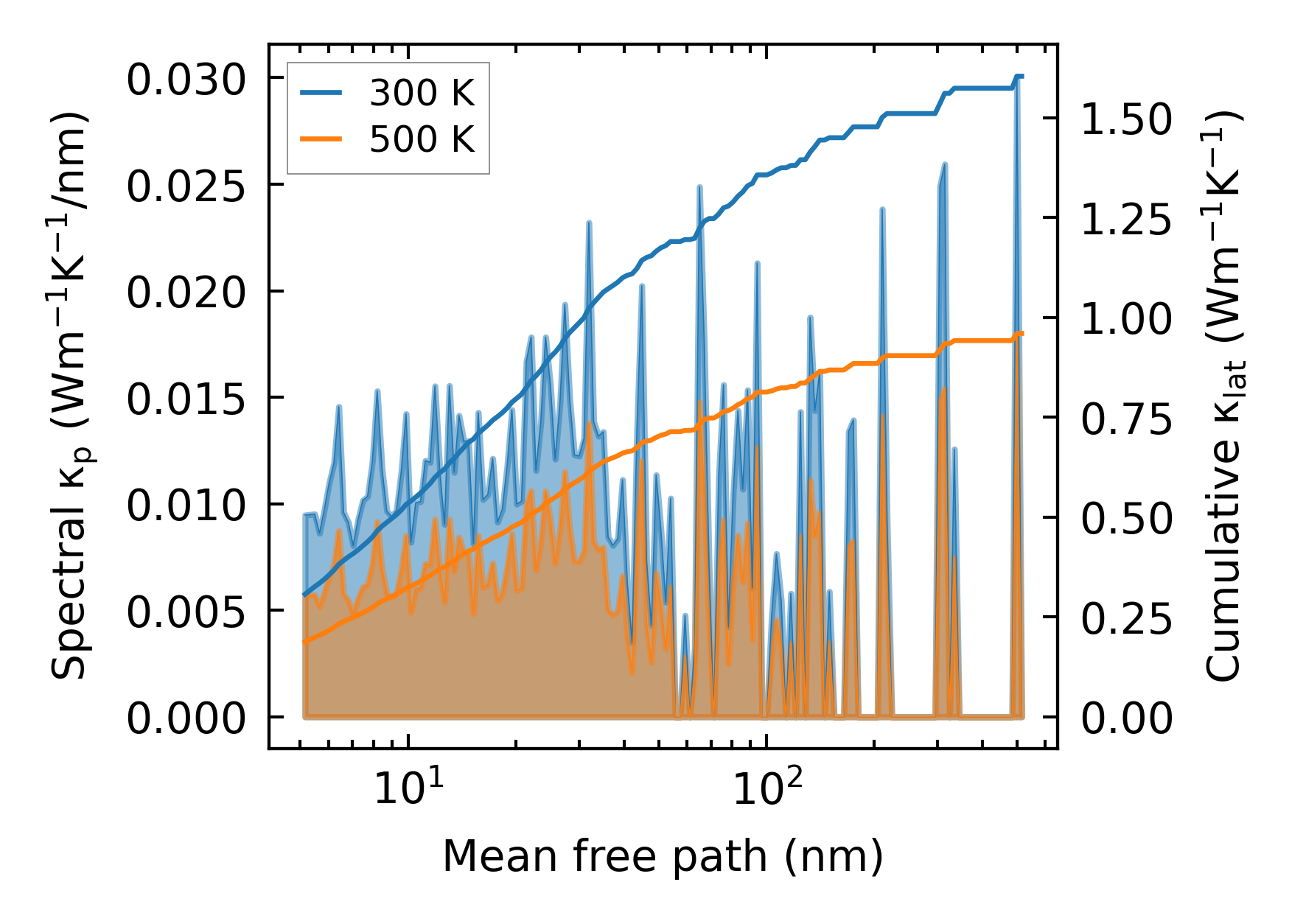

../../_images/fig_cumu_mfp6958.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

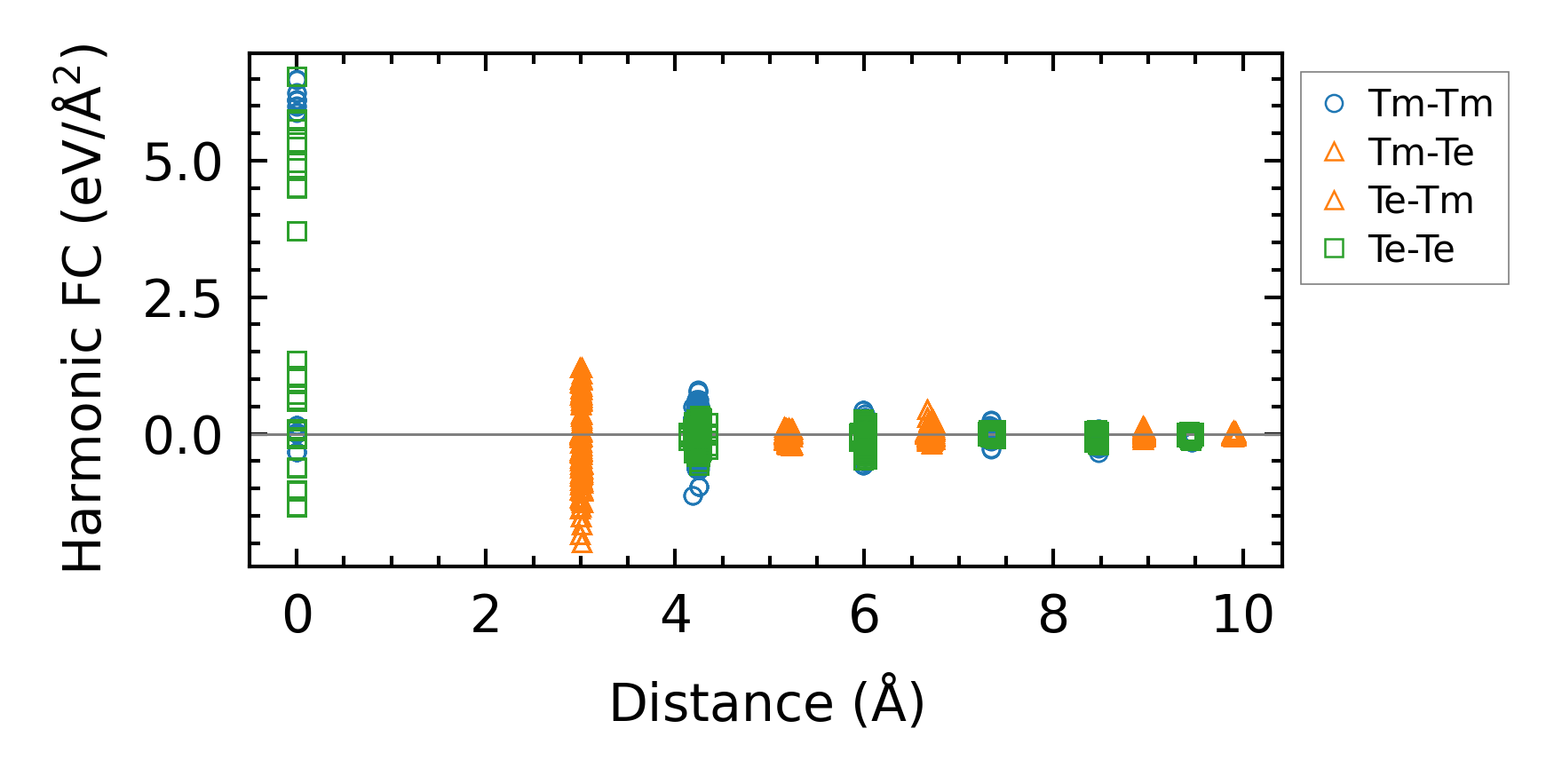

../../_images/fig_fc215771.png — (a) Force constants w.r.t atomic distance

Summary

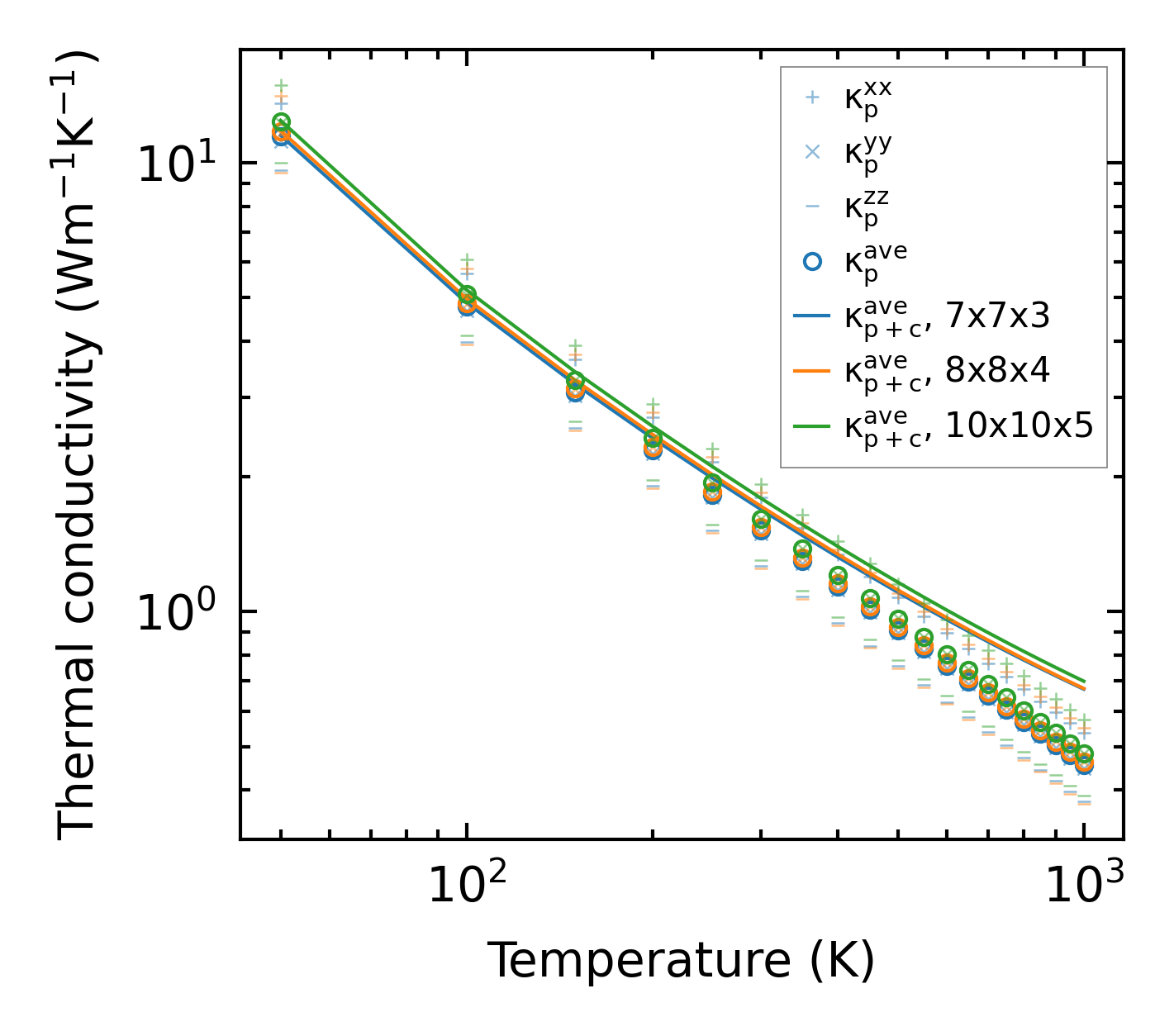

../../_images/fig_kappa13231.png — (a) Temperature-dependent lattice thermal conductivity

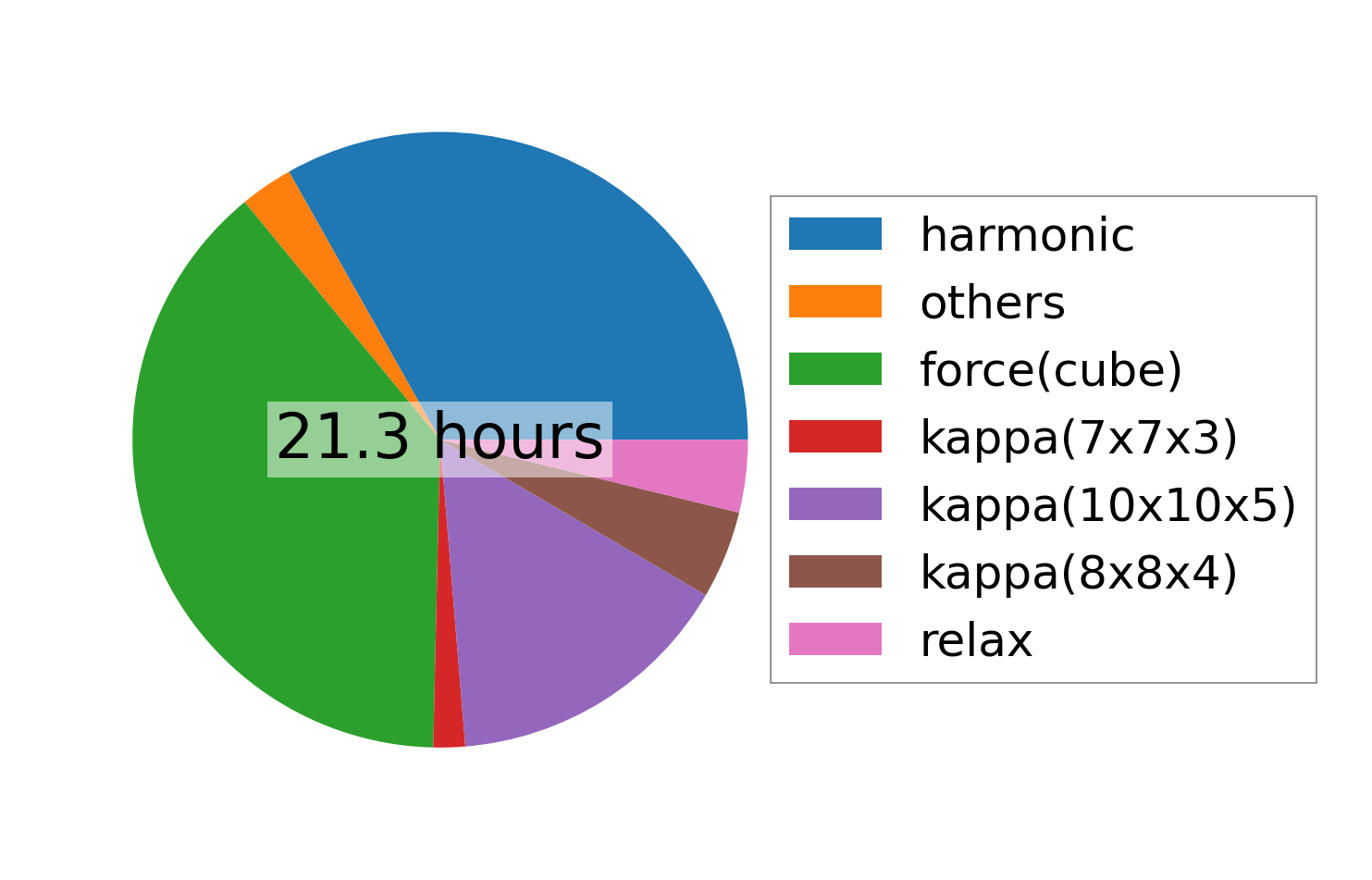

../../_images/fig_times26646.png — (b) Computation time
