mp-1188304/Ba2SmInSe5/anharm

Space group: Cmc2_1 (36)
Link: Materials Project
Download: mp-1188304.tar.gz

Harmonic properties

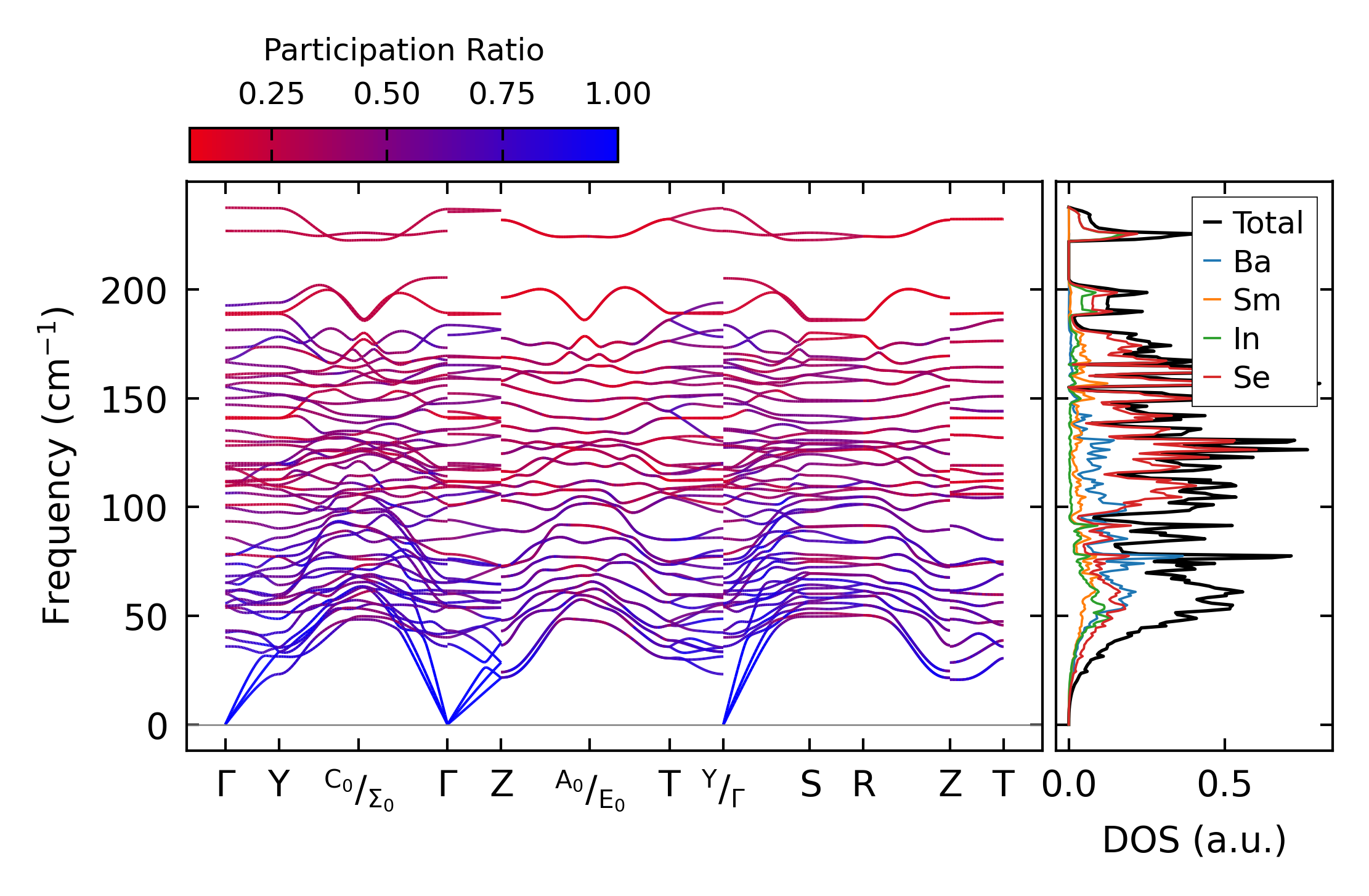

../../_images/fig_bandos_pr16184.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo16183.png — (b) Thermodynamic properties

Grüneisen parameters

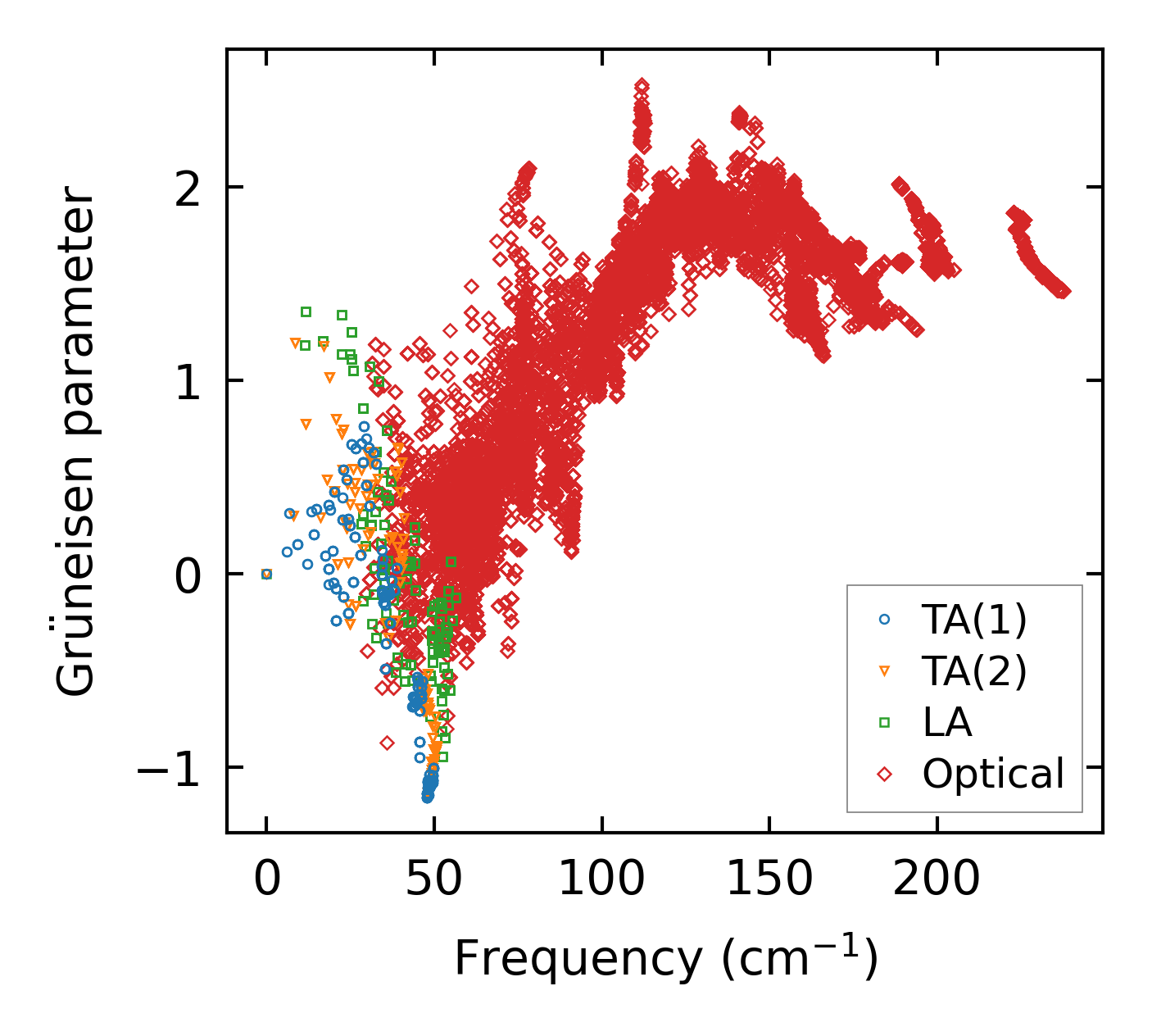

../../_images/fig_gru_all7029.png — (a) Grüneisen parameters

../../_images/fig_gruneisen7029.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 9x9x7, supercell: 4x1x1

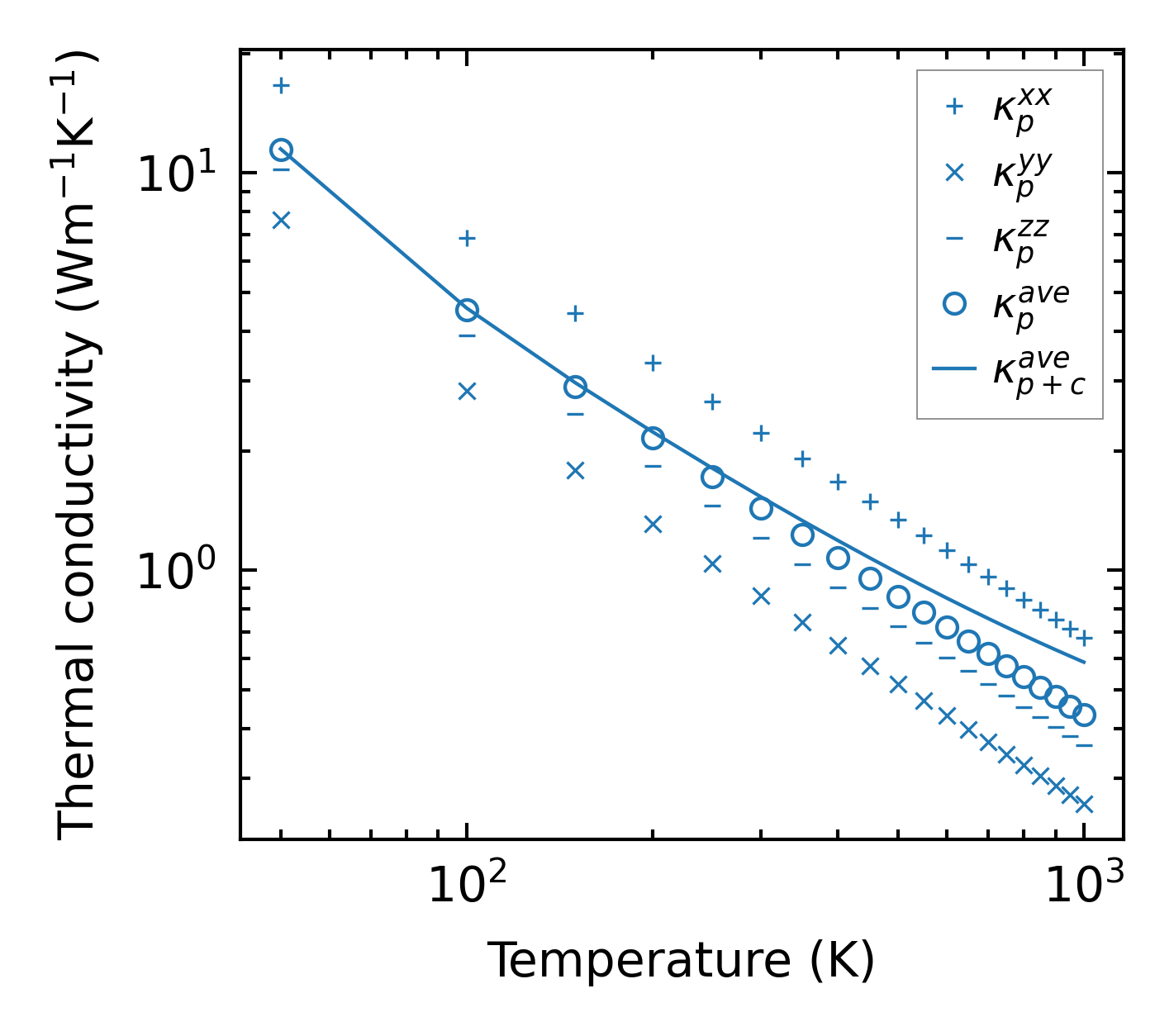

../../_images/fig_kappa13238.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size7111.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime6963.png — (a) Phonon lifetime due to phonon-phonon scattering

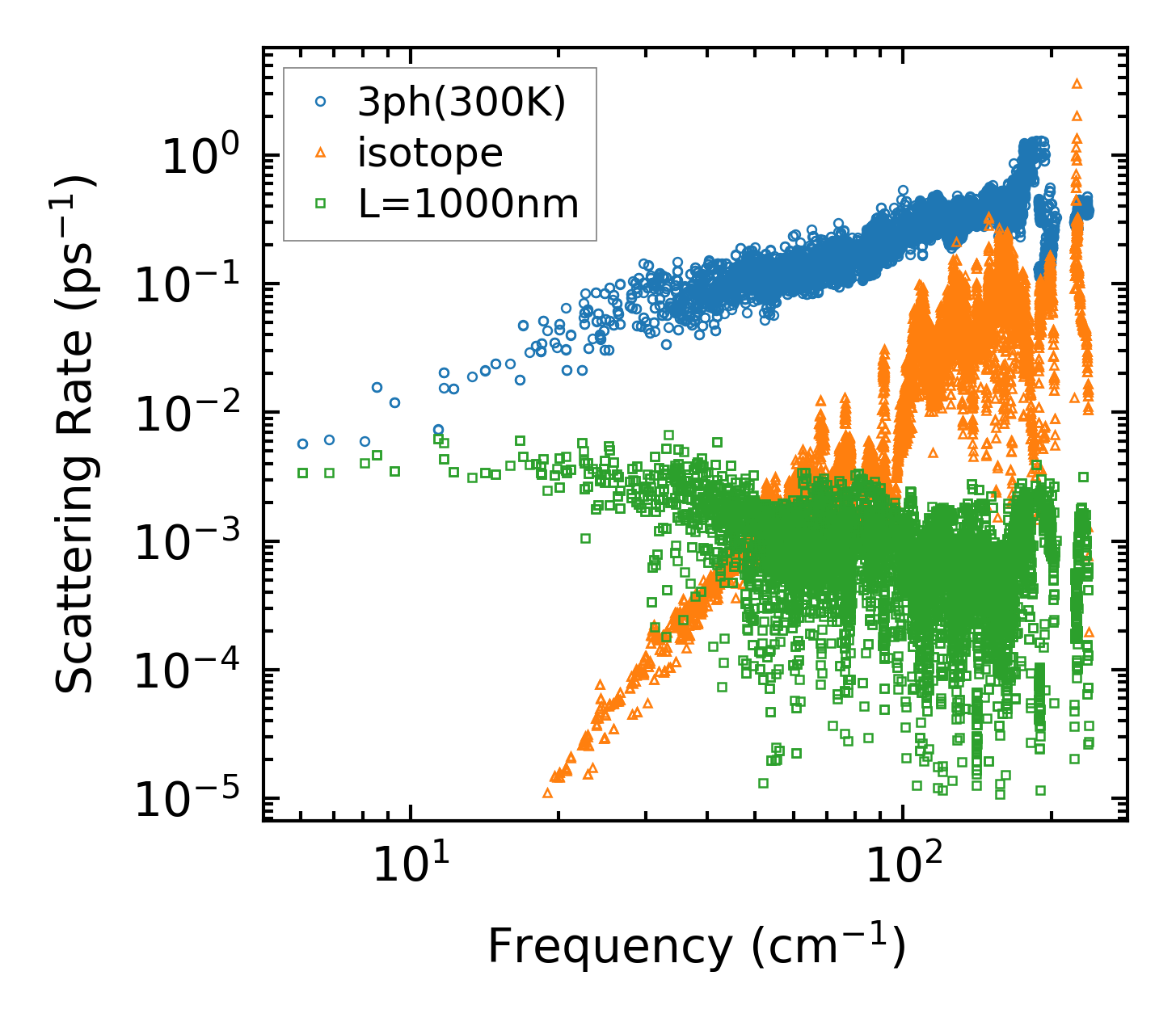

../../_images/fig_scat_rates6962.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

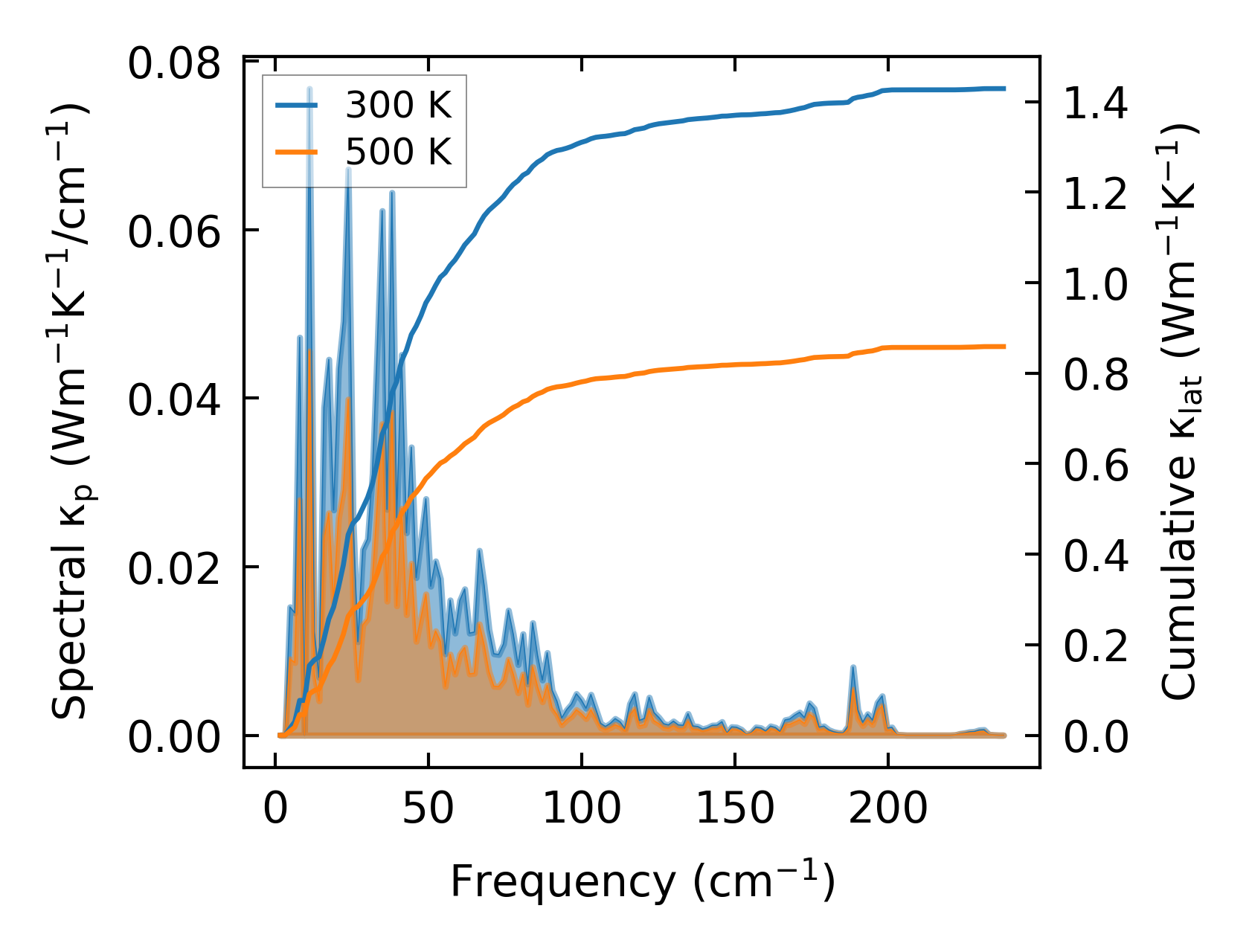

../../_images/fig_cumu_frequency6963.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

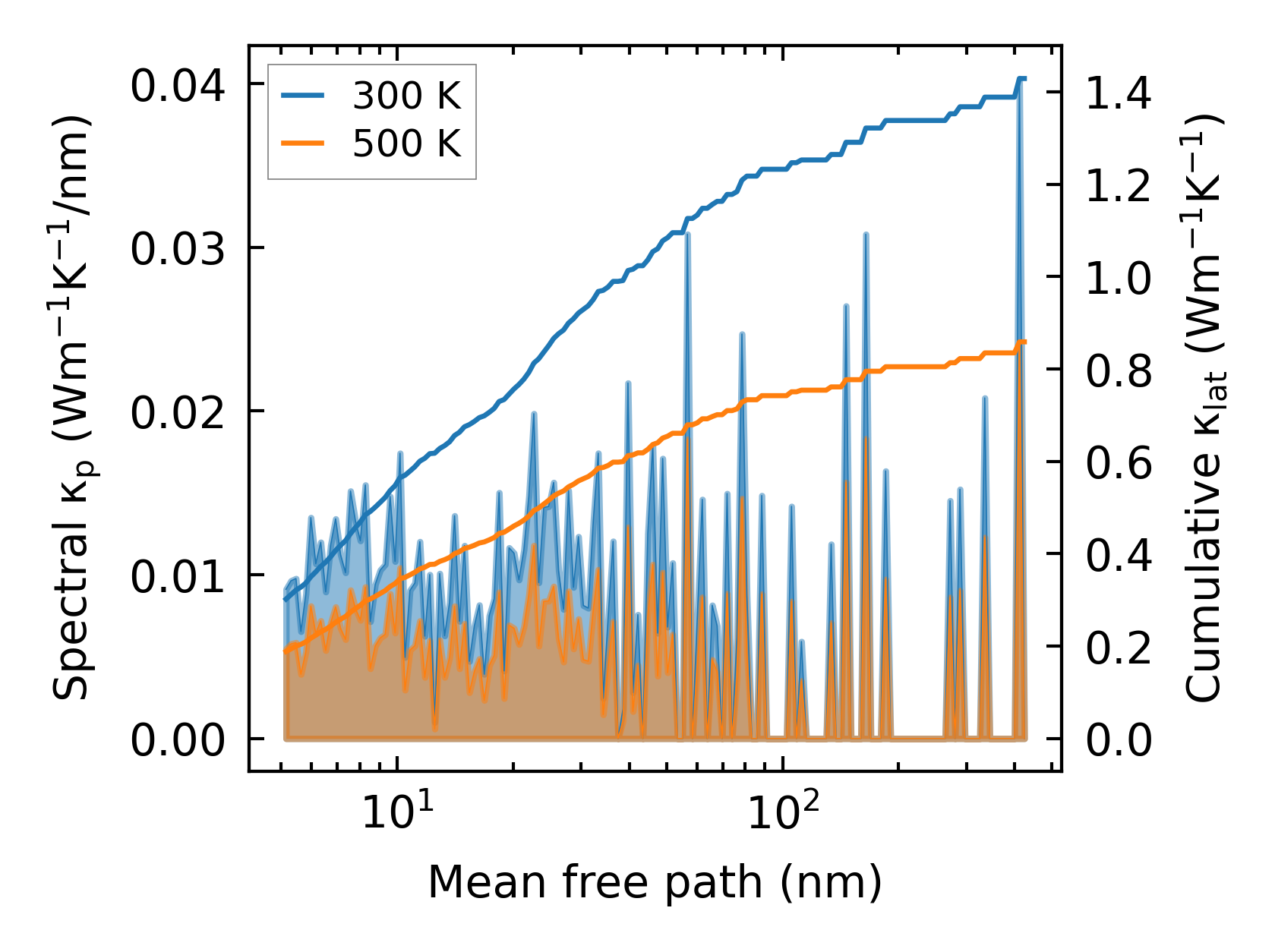

../../_images/fig_cumu_mfp6962.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

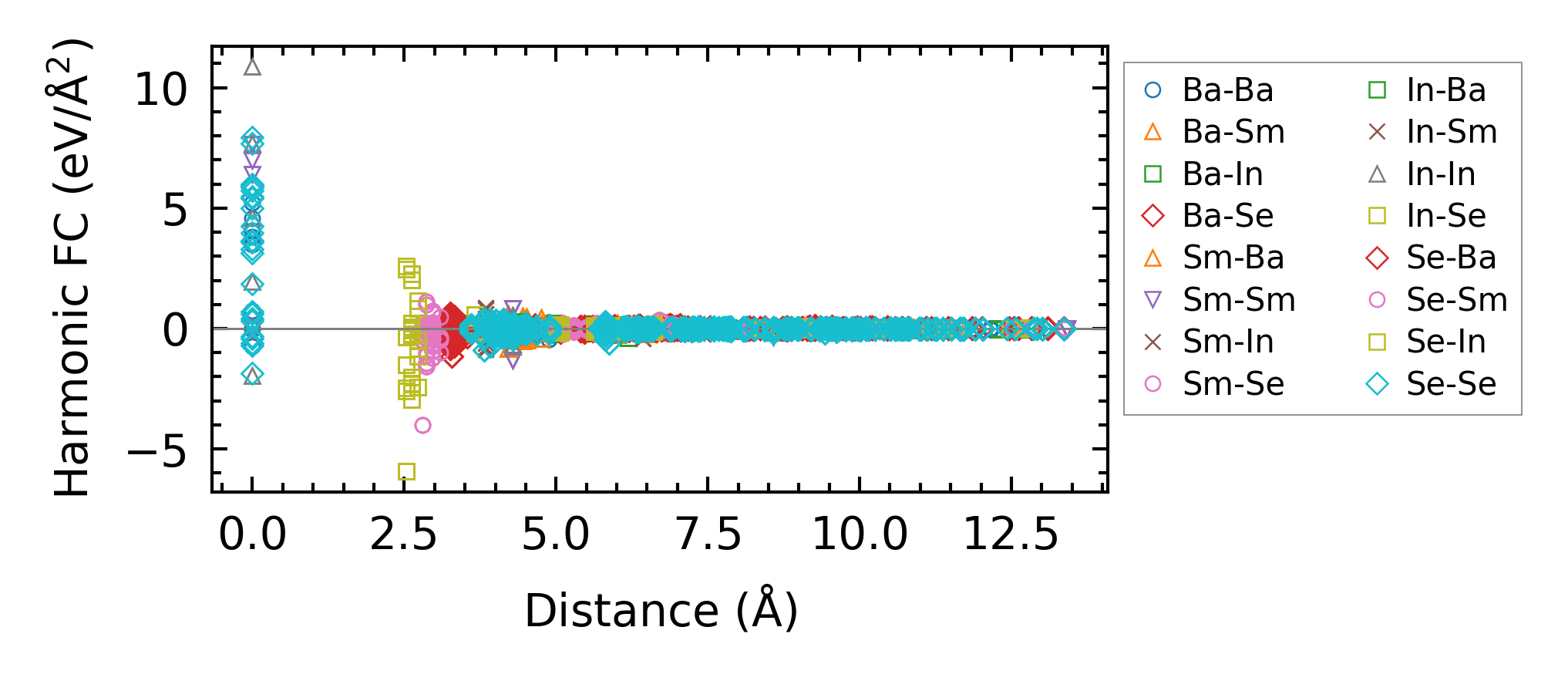

../../_images/fig_fc215777.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa13239.png — (a) Temperature-dependent lattice thermal conductivity

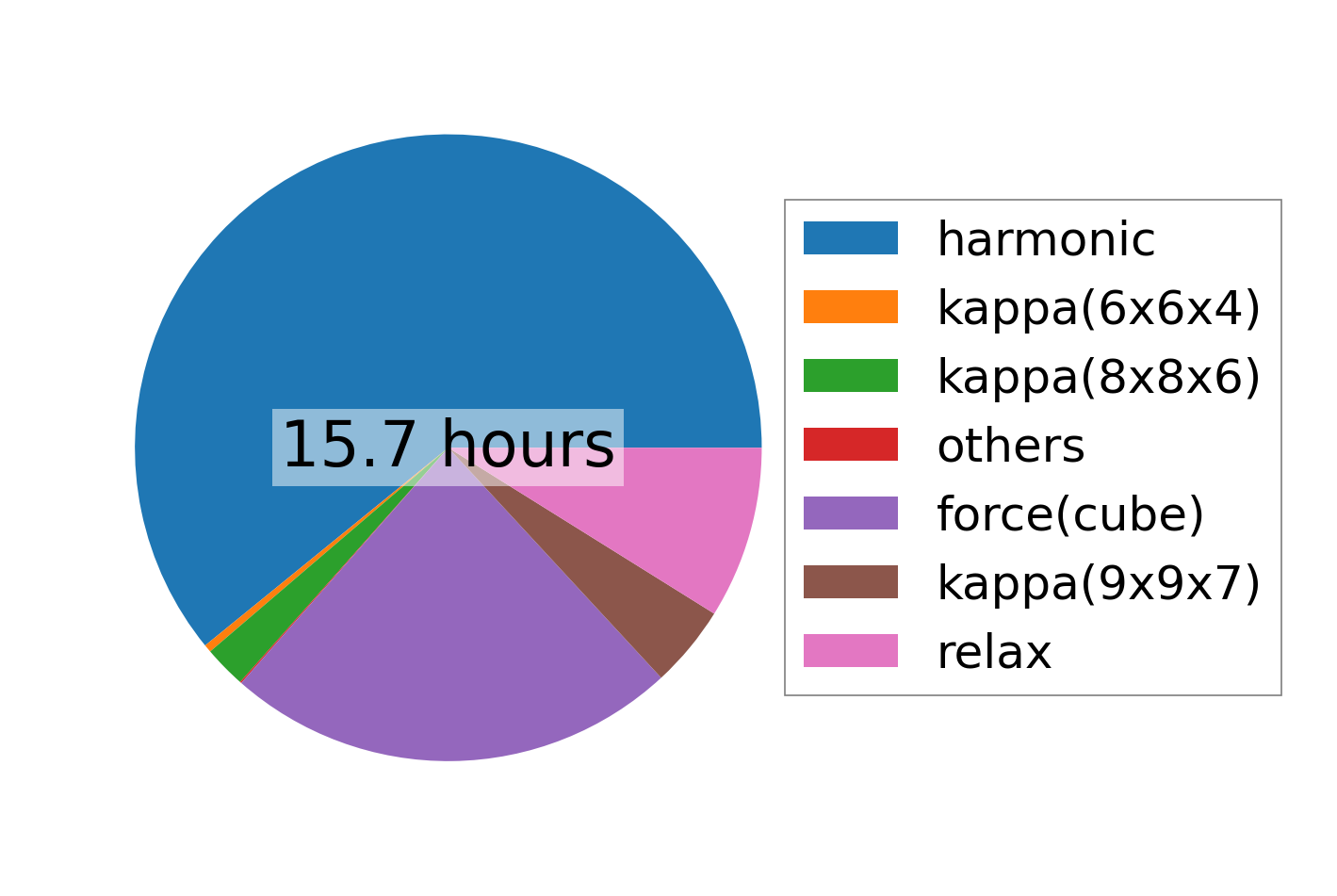

../../_images/fig_times26657.png — (b) Computation time
