mp-1188648-2/Y6NiBr10/anharm

Space group: P-1 (2)
Link: Materials Project
Download: mp-1188648-2.tar.gz

Harmonic properties

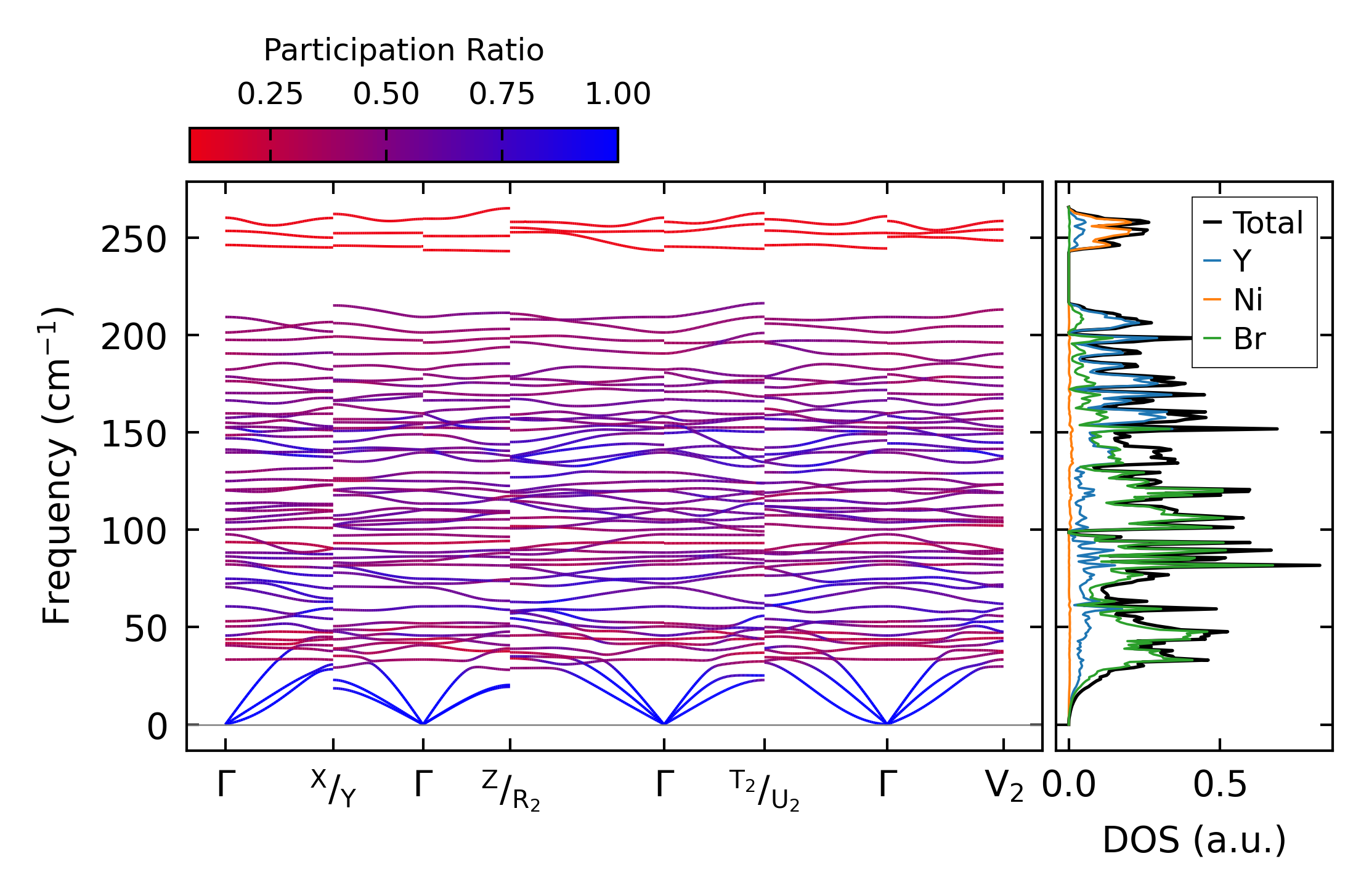

../../_images/fig_bandos_pr16199.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo16198.png — (b) Thermodynamic properties

Grüneisen parameters

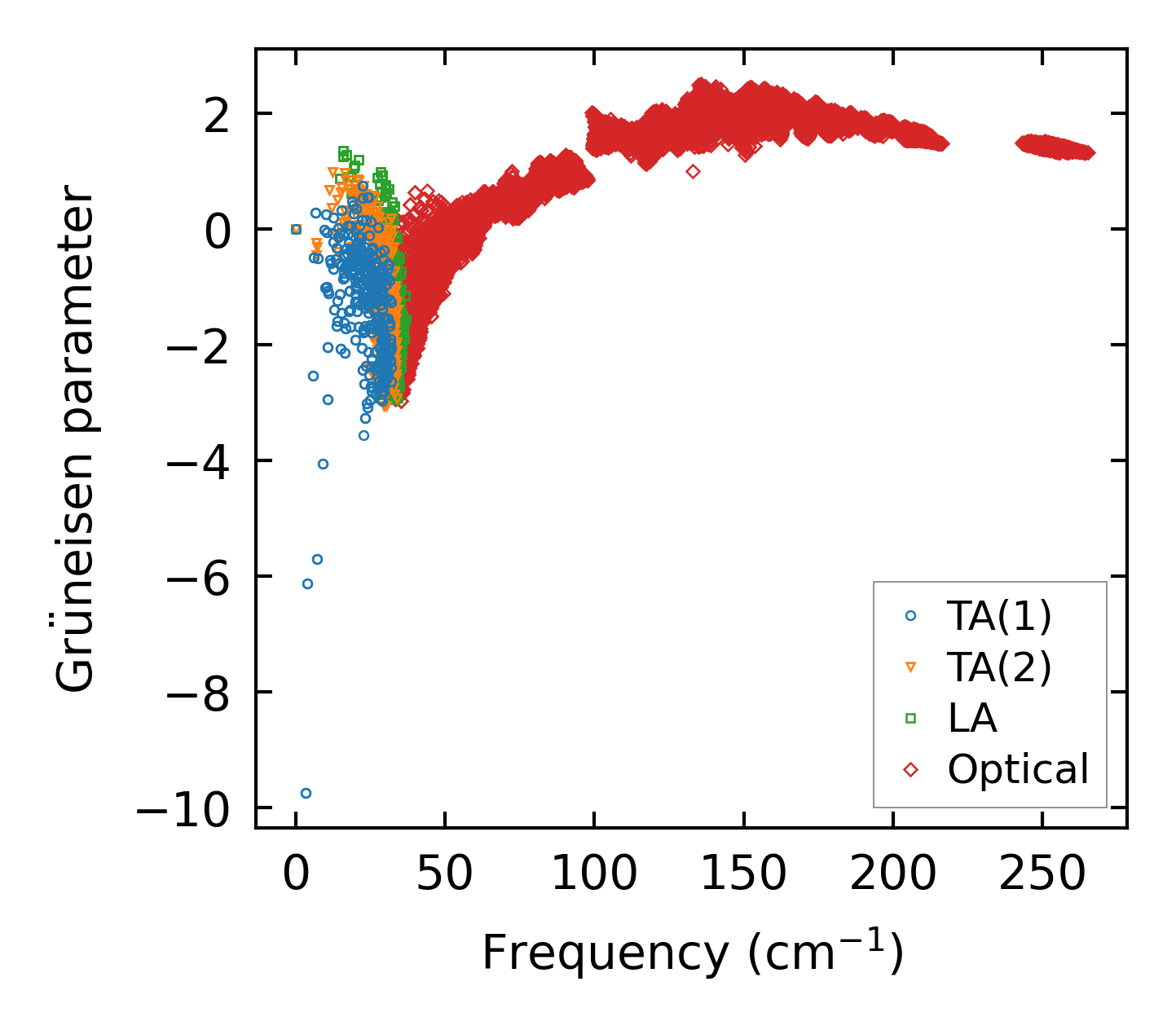

../../_images/fig_gru_all7039.png — (a) Grüneisen parameters

../../_images/fig_gruneisen7039.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x8x8, supercell: 2x2x2

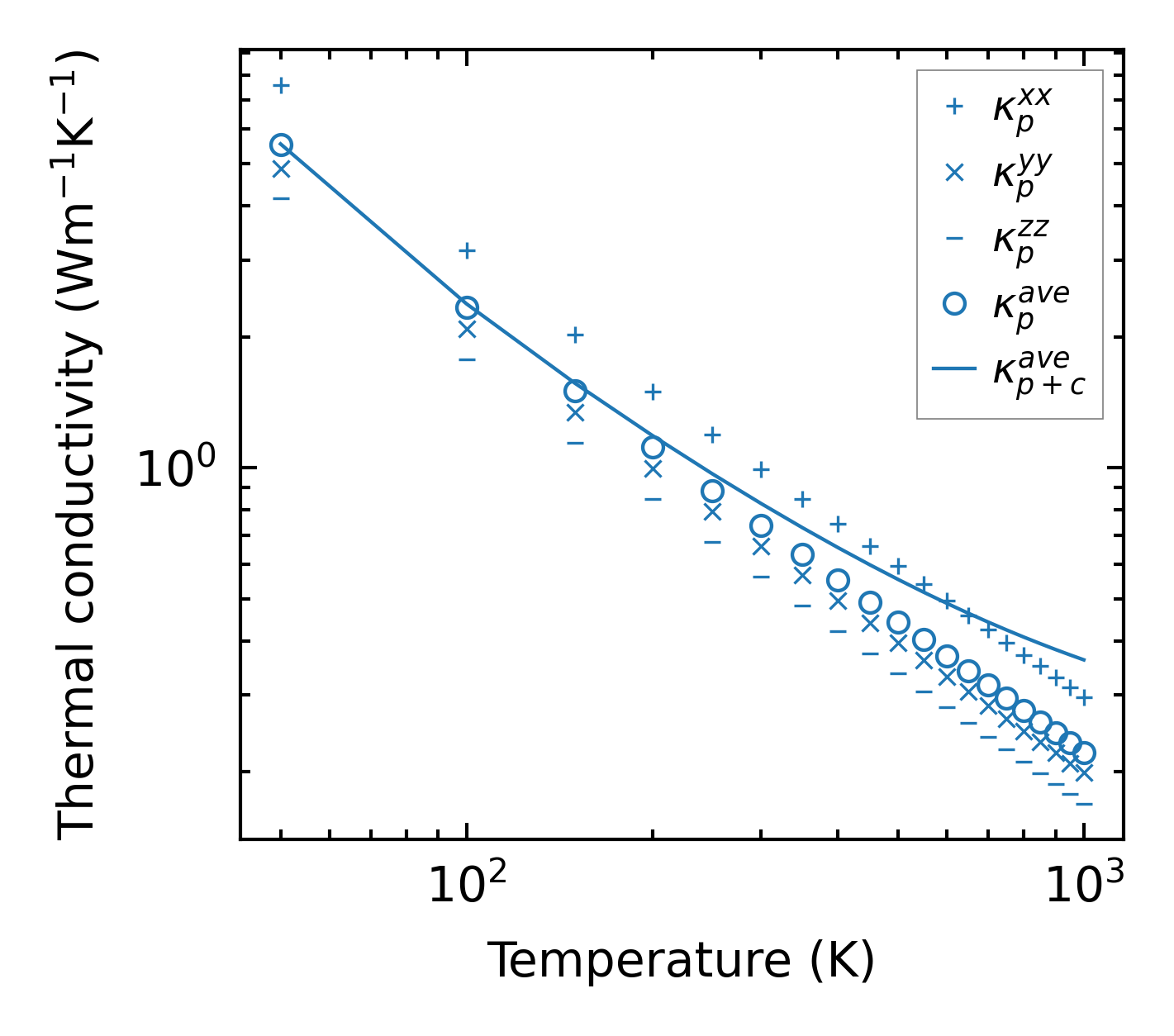

../../_images/fig_kappa13258.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size7121.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

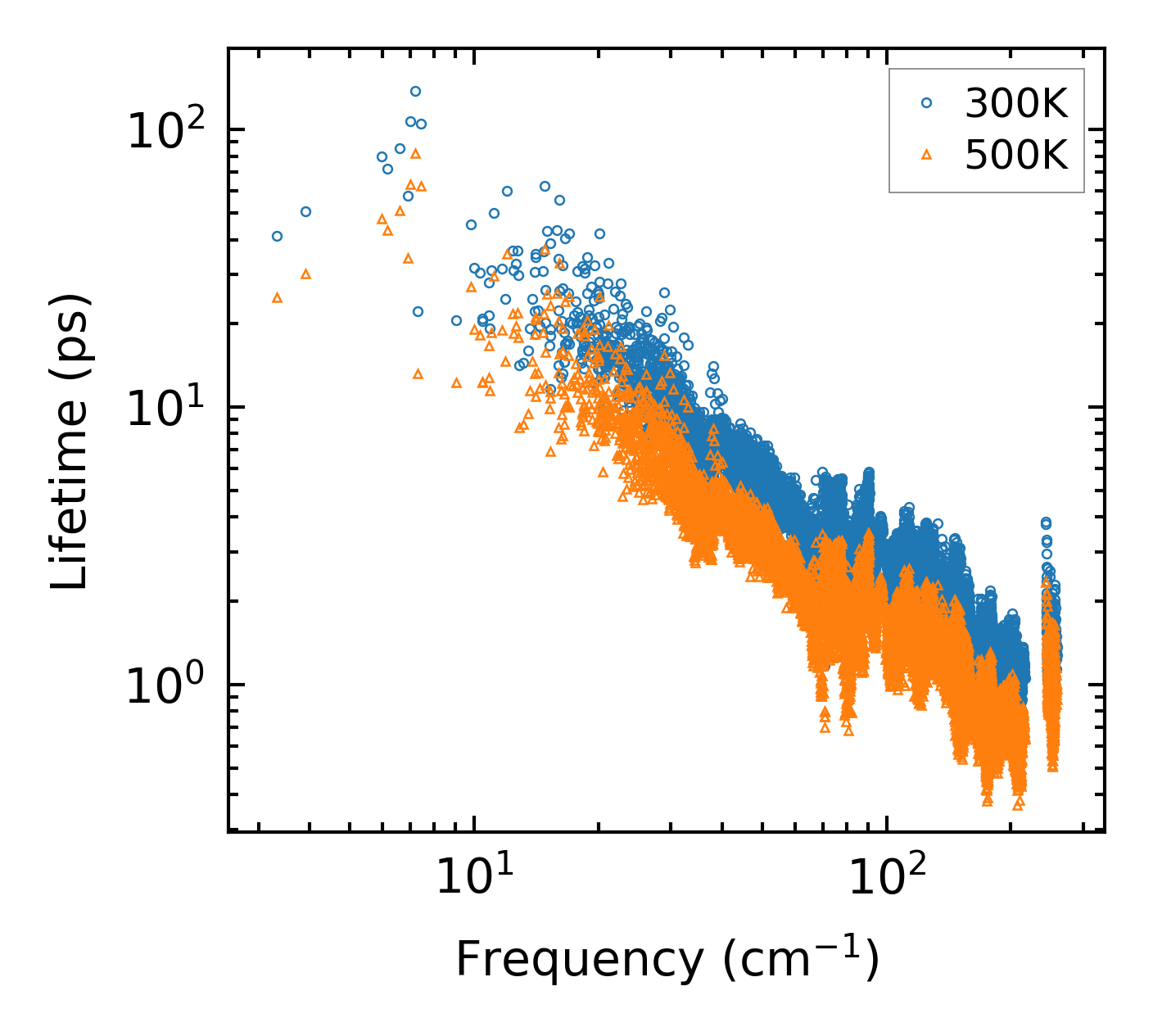

../../_images/fig_lifetime6973.png — (a) Phonon lifetime due to phonon-phonon scattering

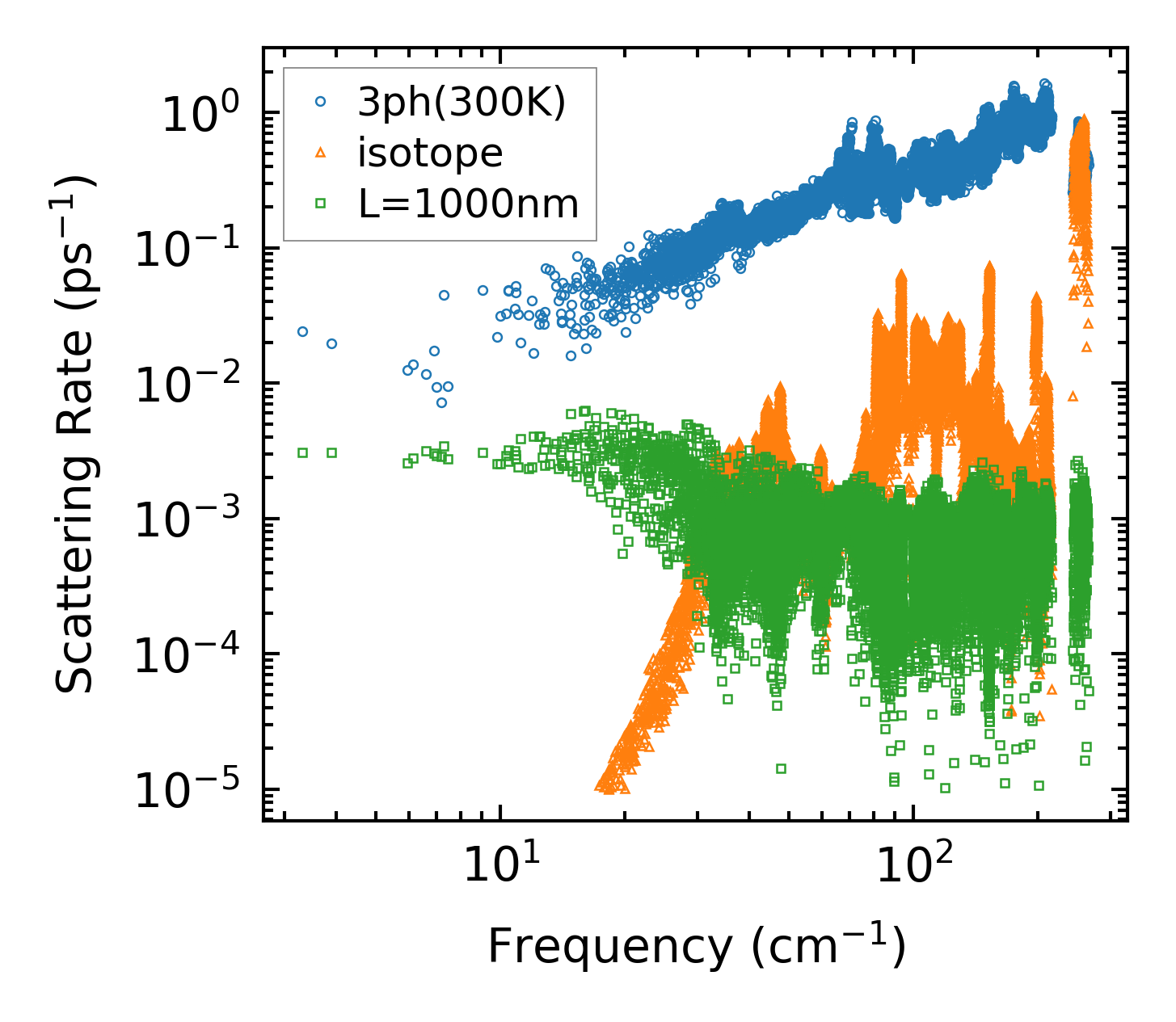

../../_images/fig_scat_rates6972.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

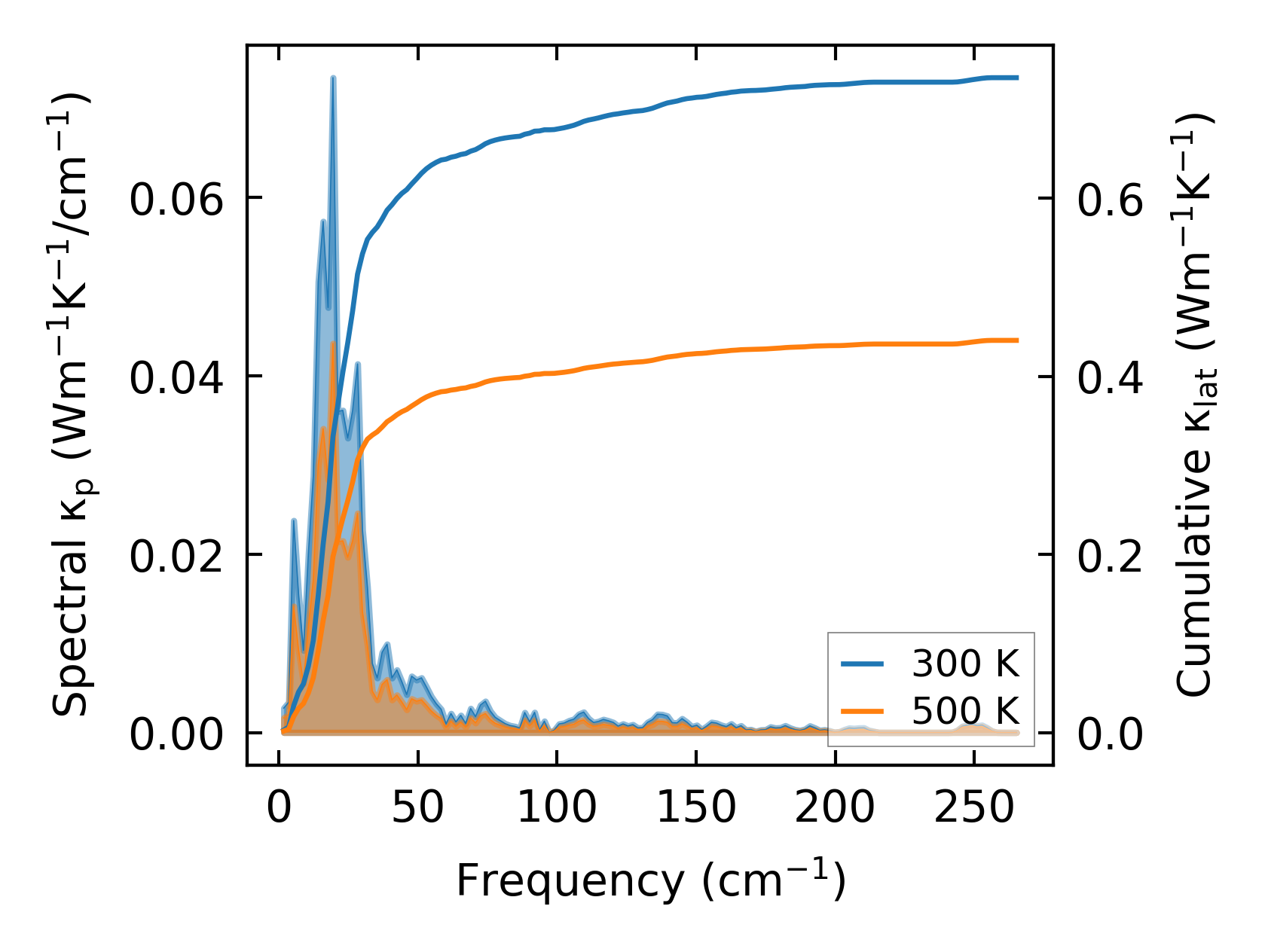

../../_images/fig_cumu_frequency6973.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp6972.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc215792.png — (a) Force constants w.r.t atomic distance

Summary

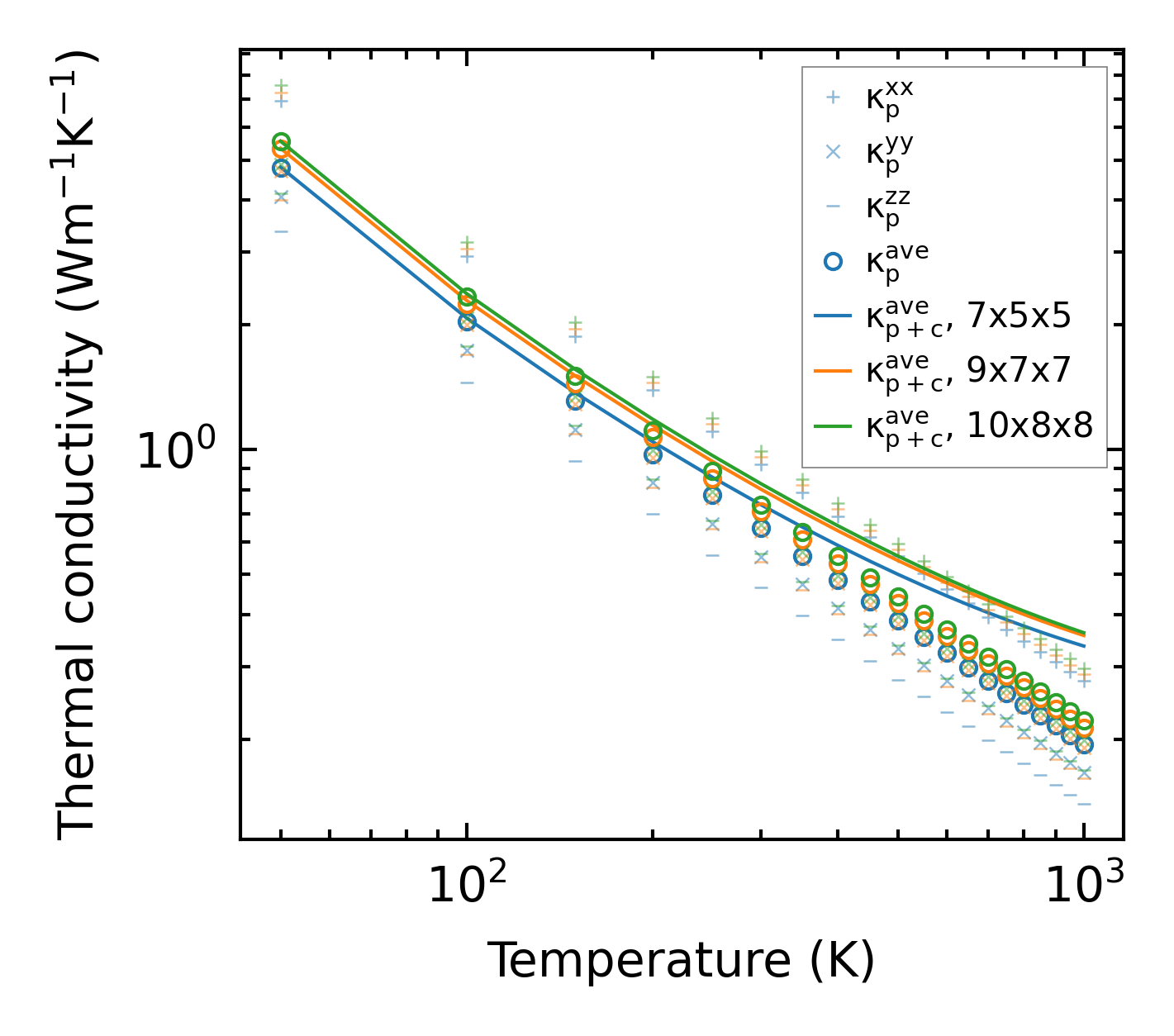

../../_images/fig_kappa13259.png — (a) Temperature-dependent lattice thermal conductivity

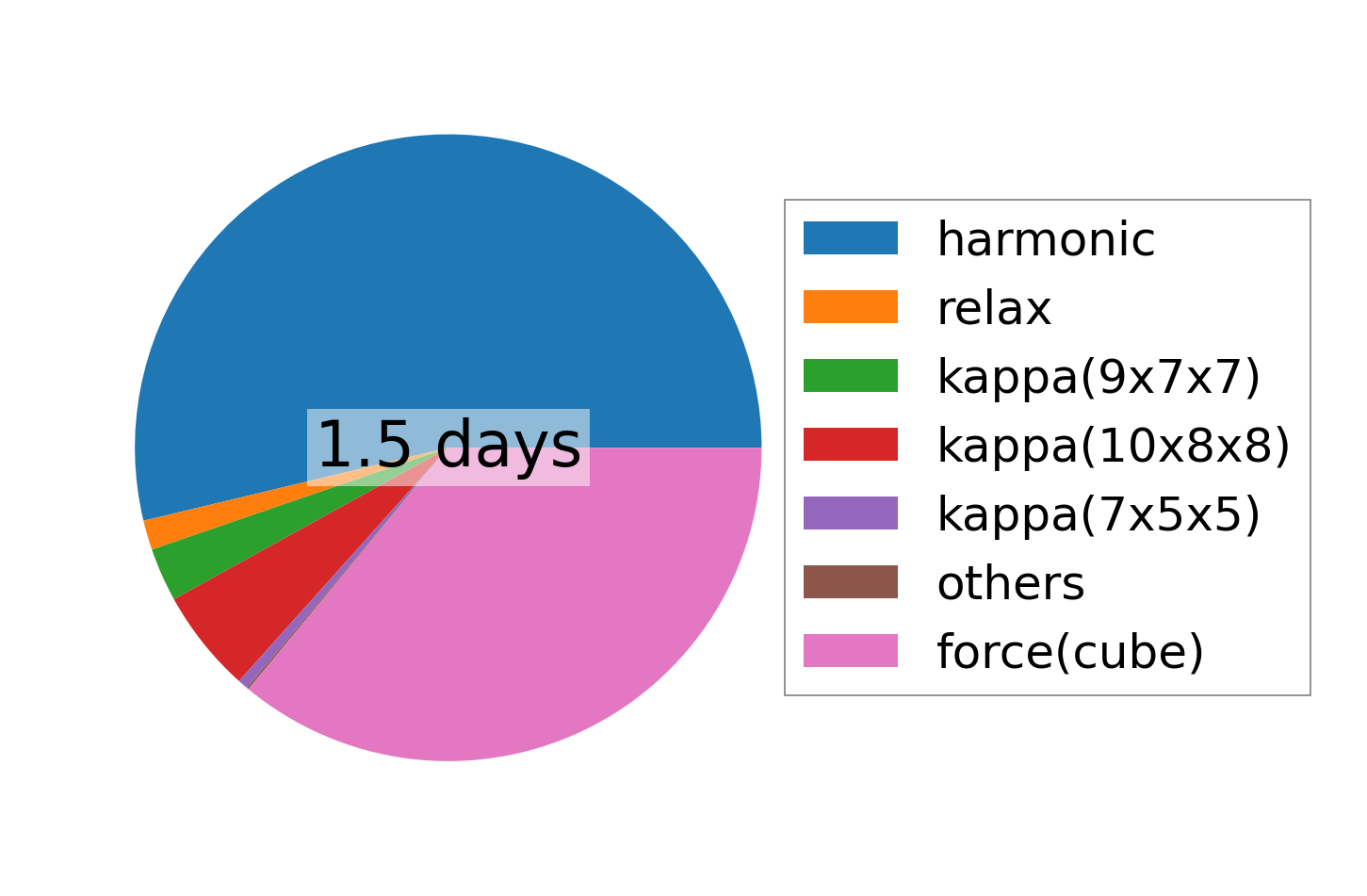

../../_images/fig_times26675.png — (b) Computation time
