mp-1079726/Zr2SeN2/anharm

Space group: P6_3/mmc (194)
Link: Materials Project
Download: mp-1079726.tar.gz

Harmonic properties

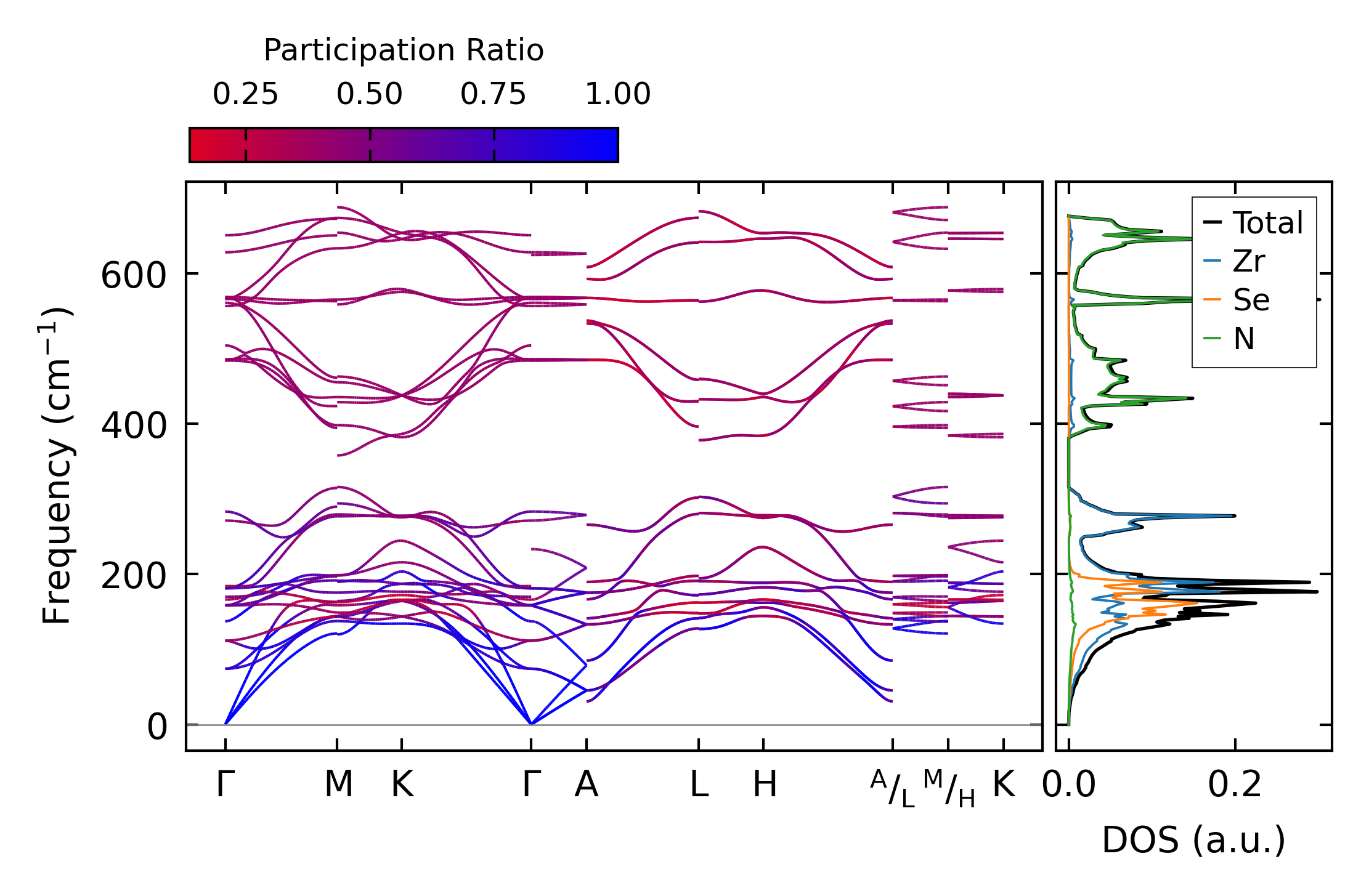

../../_images/fig_bandos_pr16957.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo16956.png — (b) Thermodynamic properties

Grüneisen parameters

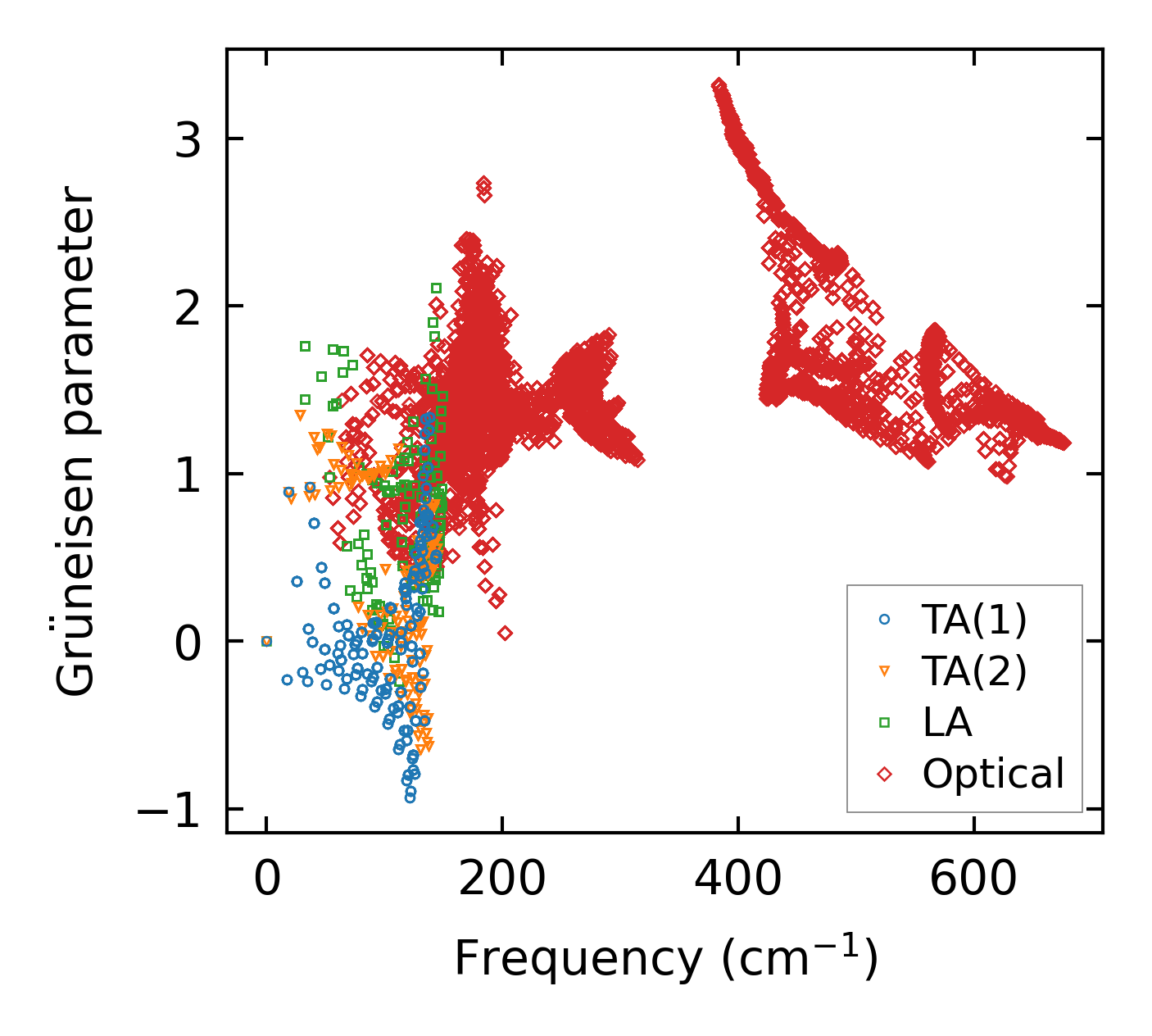

../../_images/fig_gru_all7429.png — (a) Grüneisen parameters

../../_images/fig_gruneisen7429.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 20x20x5, supercell: 3x3x1

../../_images/fig_kappa14010.png — (a) Temperature-dependent lattice thermal conductivity

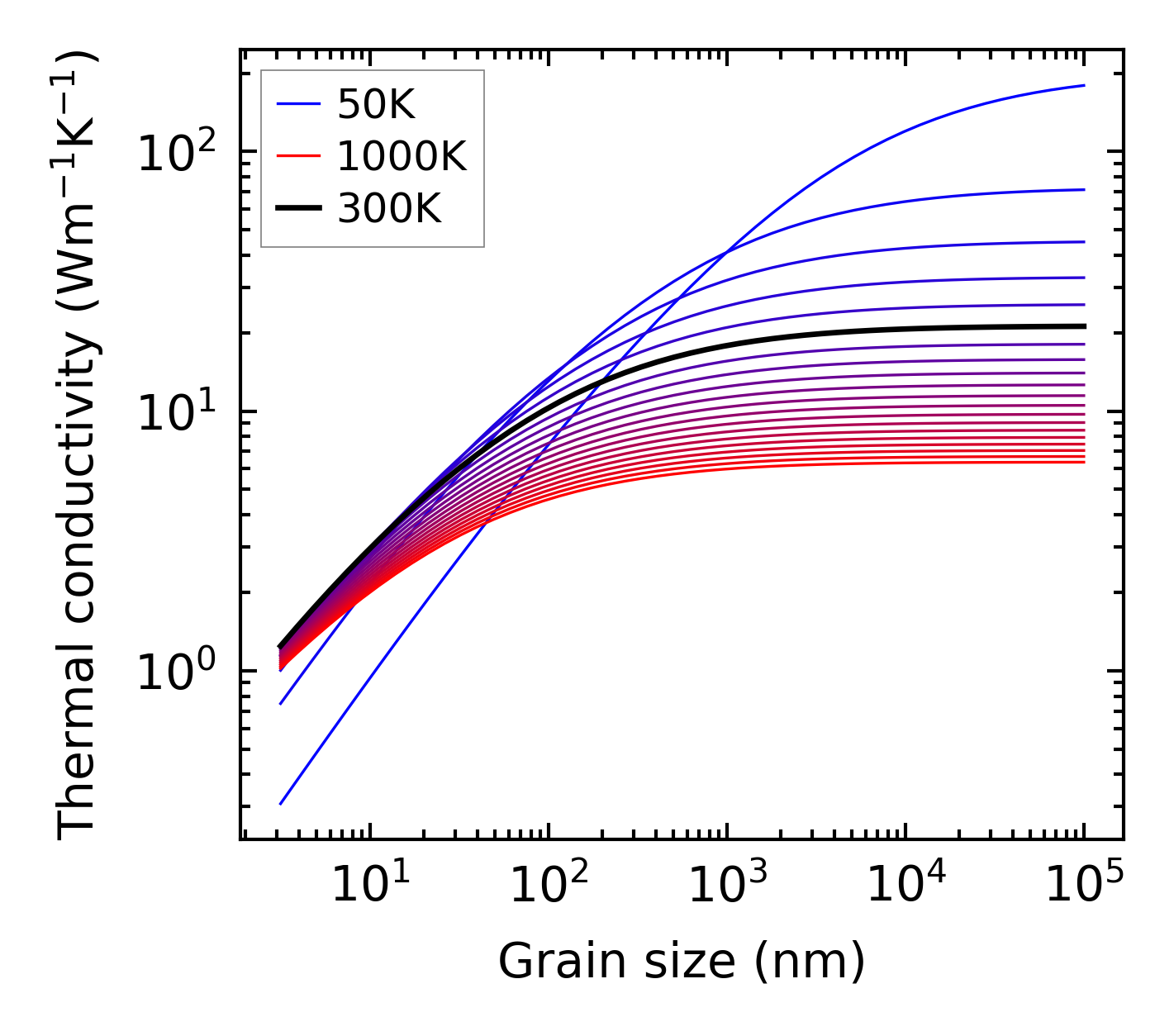

../../_images/fig_kappa_vs_grain_size7516.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

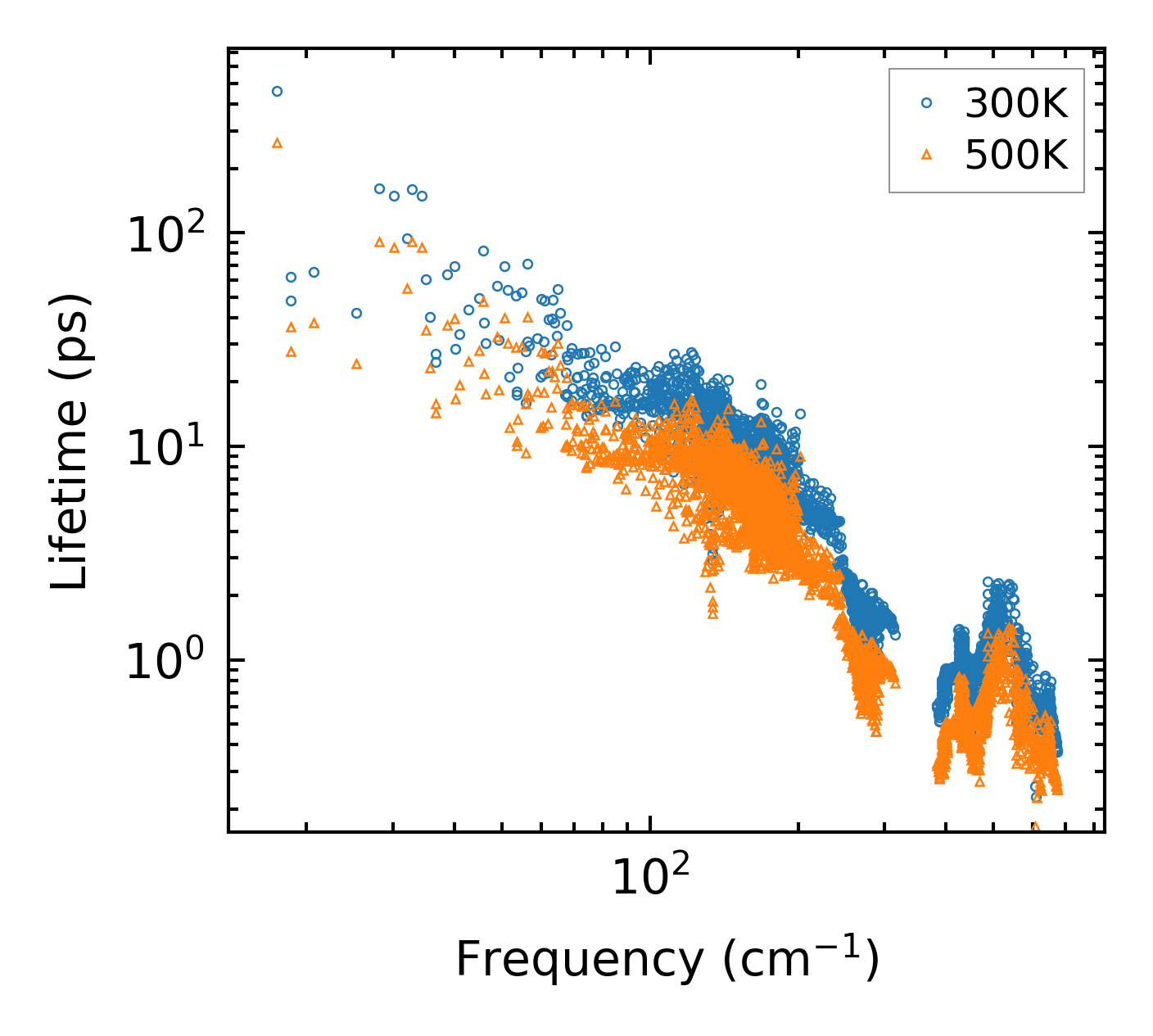

../../_images/fig_lifetime7362.png — (a) Phonon lifetime due to phonon-phonon scattering

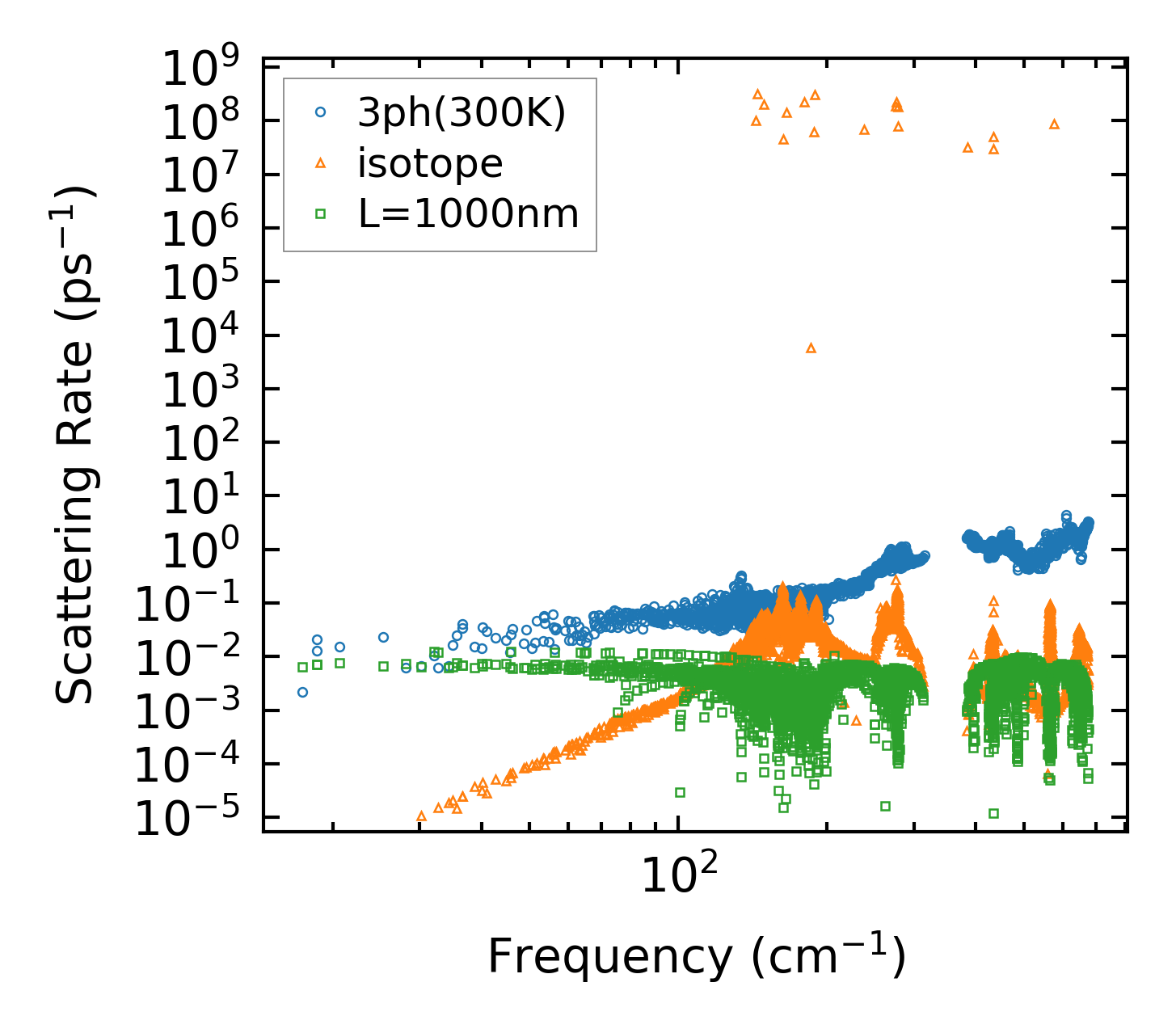

../../_images/fig_scat_rates7361.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency7362.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

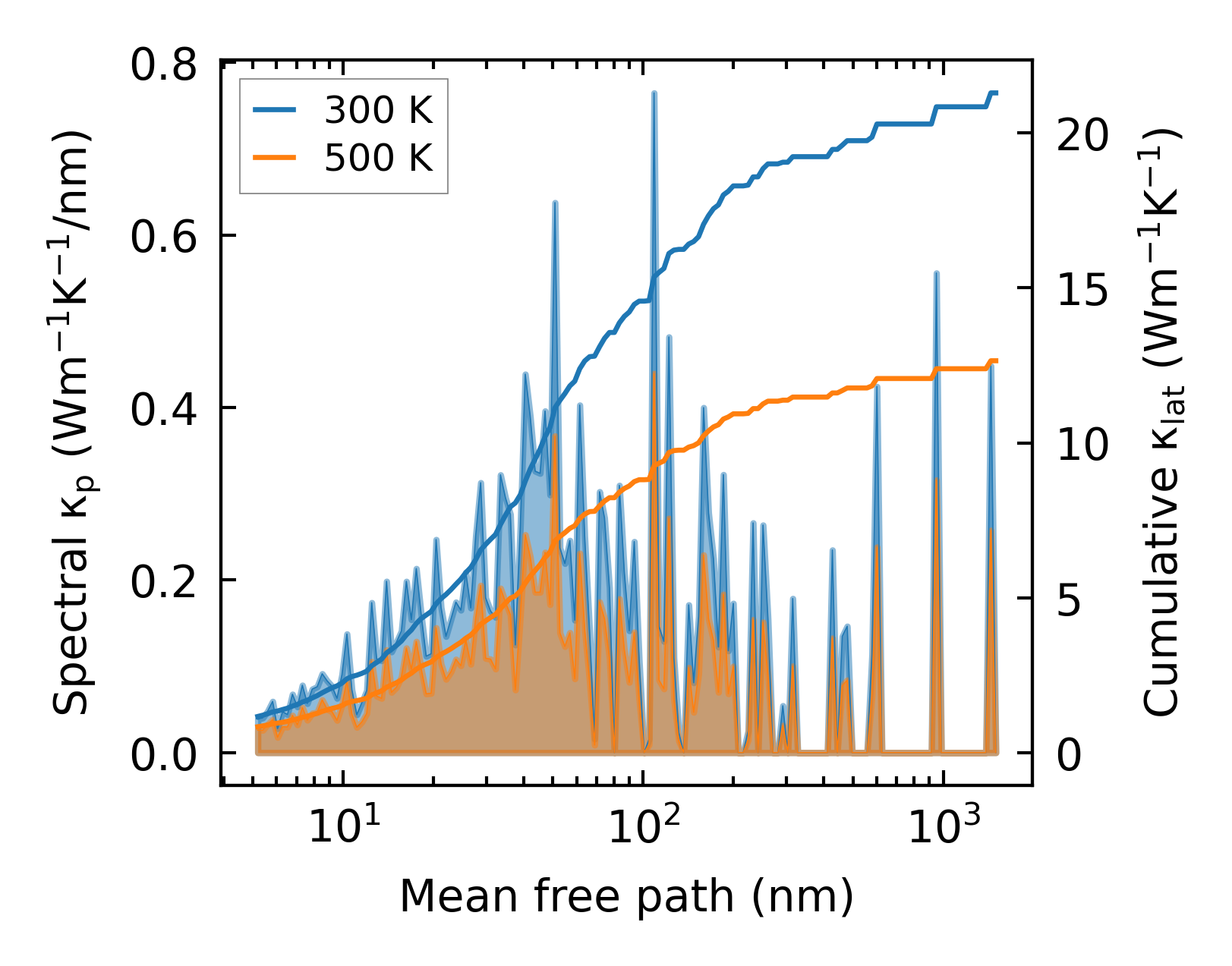

../../_images/fig_cumu_mfp7361.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc216509.png — (a) Force constants w.r.t atomic distance

Summary

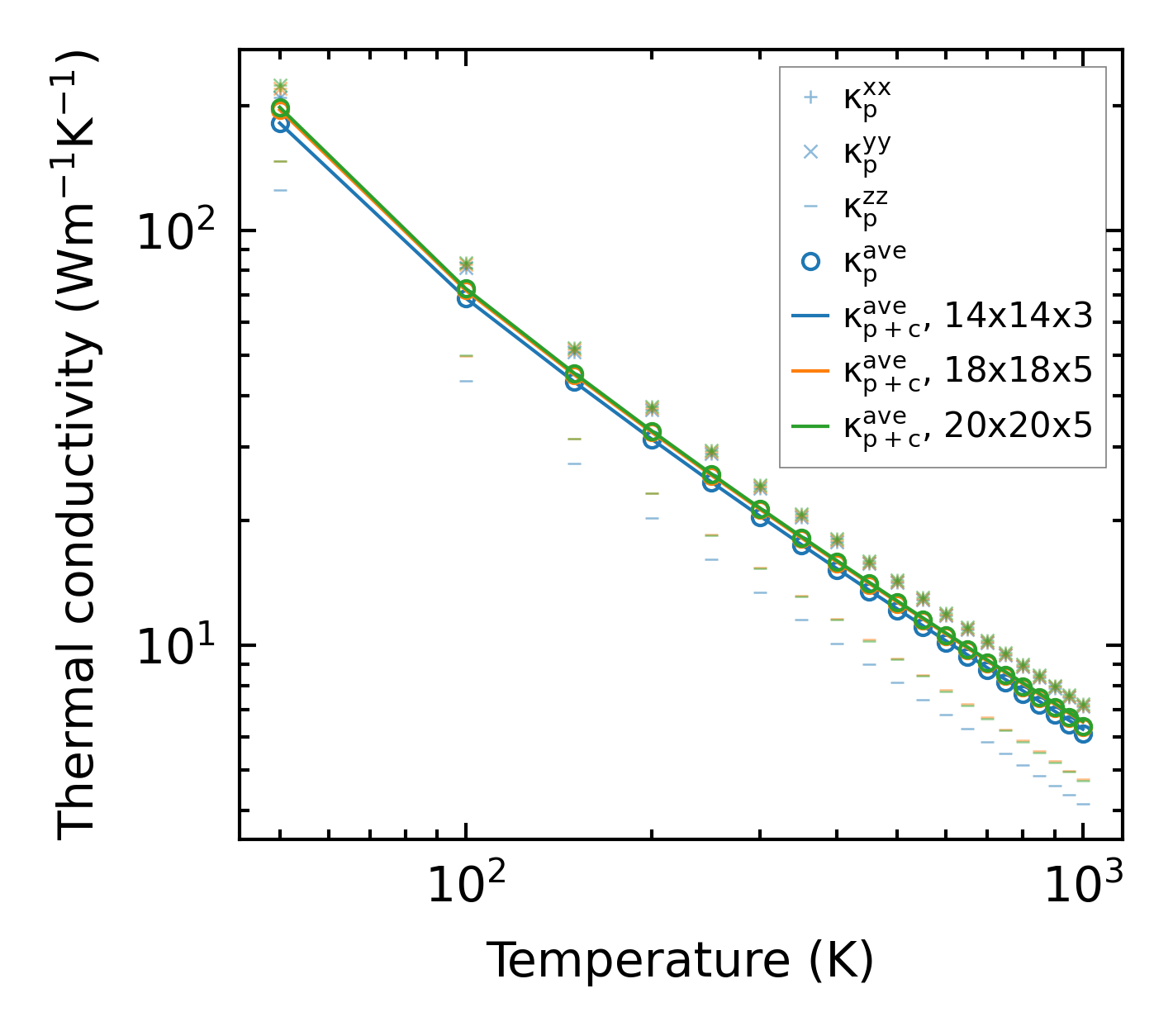

../../_images/fig_kappa14011.png — (a) Temperature-dependent lattice thermal conductivity

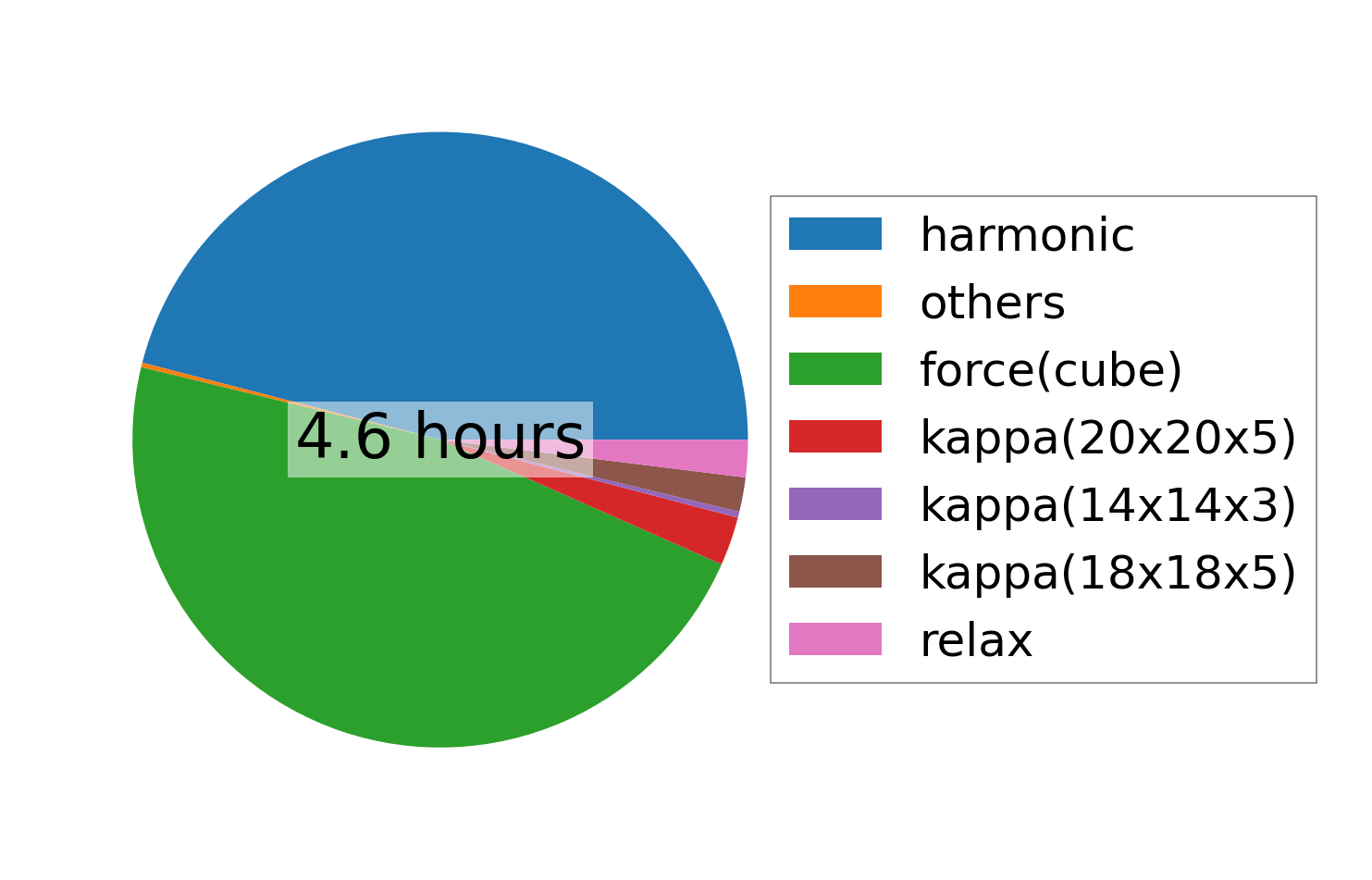

../../_images/fig_times27638.png — (b) Computation time
