mp-1079513/K2As2Pt/anharm

Space group: Cmcm (63)
Link: Materials Project
Download: mp-1079513.tar.gz

Equation of state

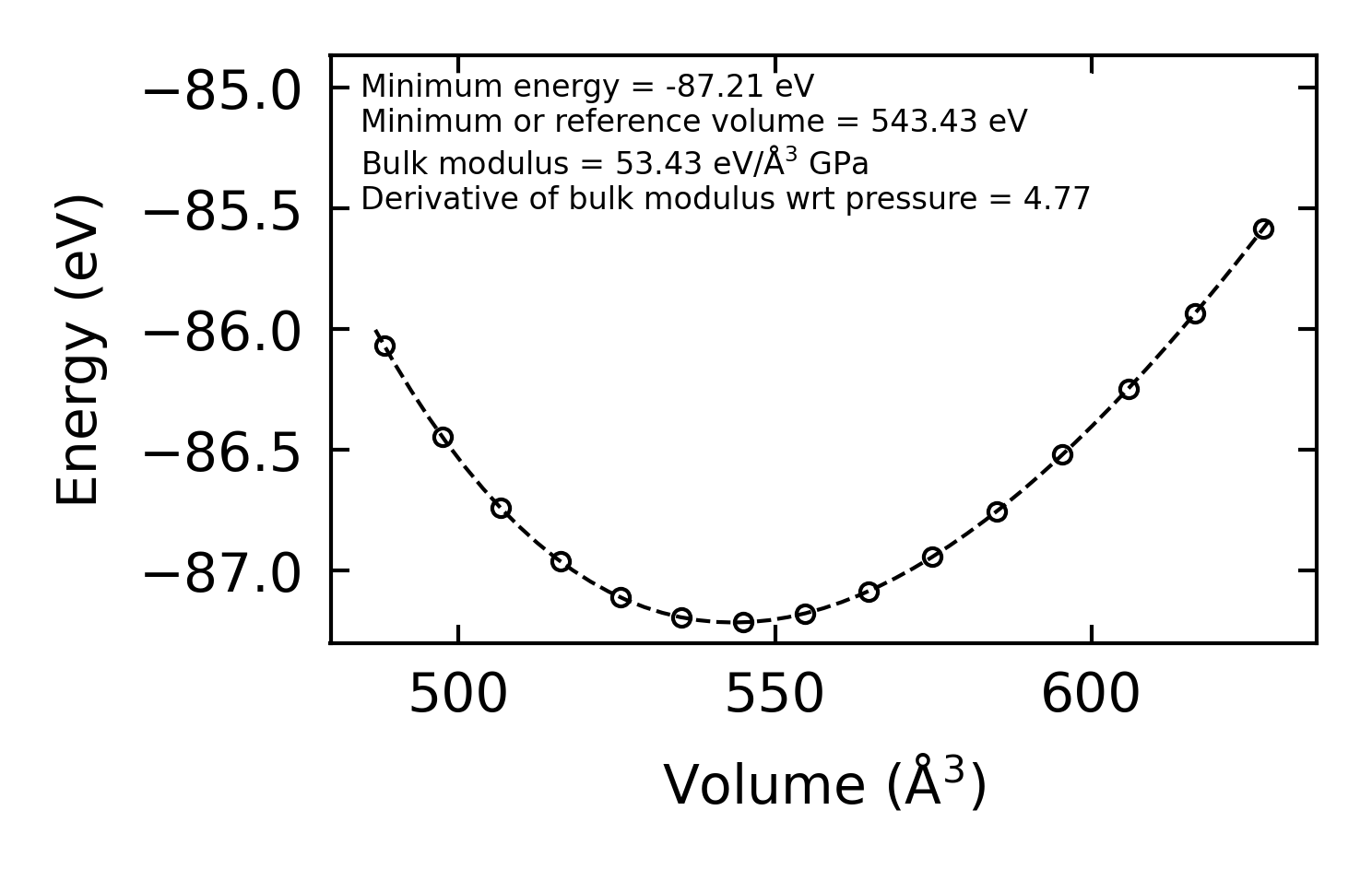

../../_images/fig_bm7803.png — (a) Equation of state

Harmonic properties

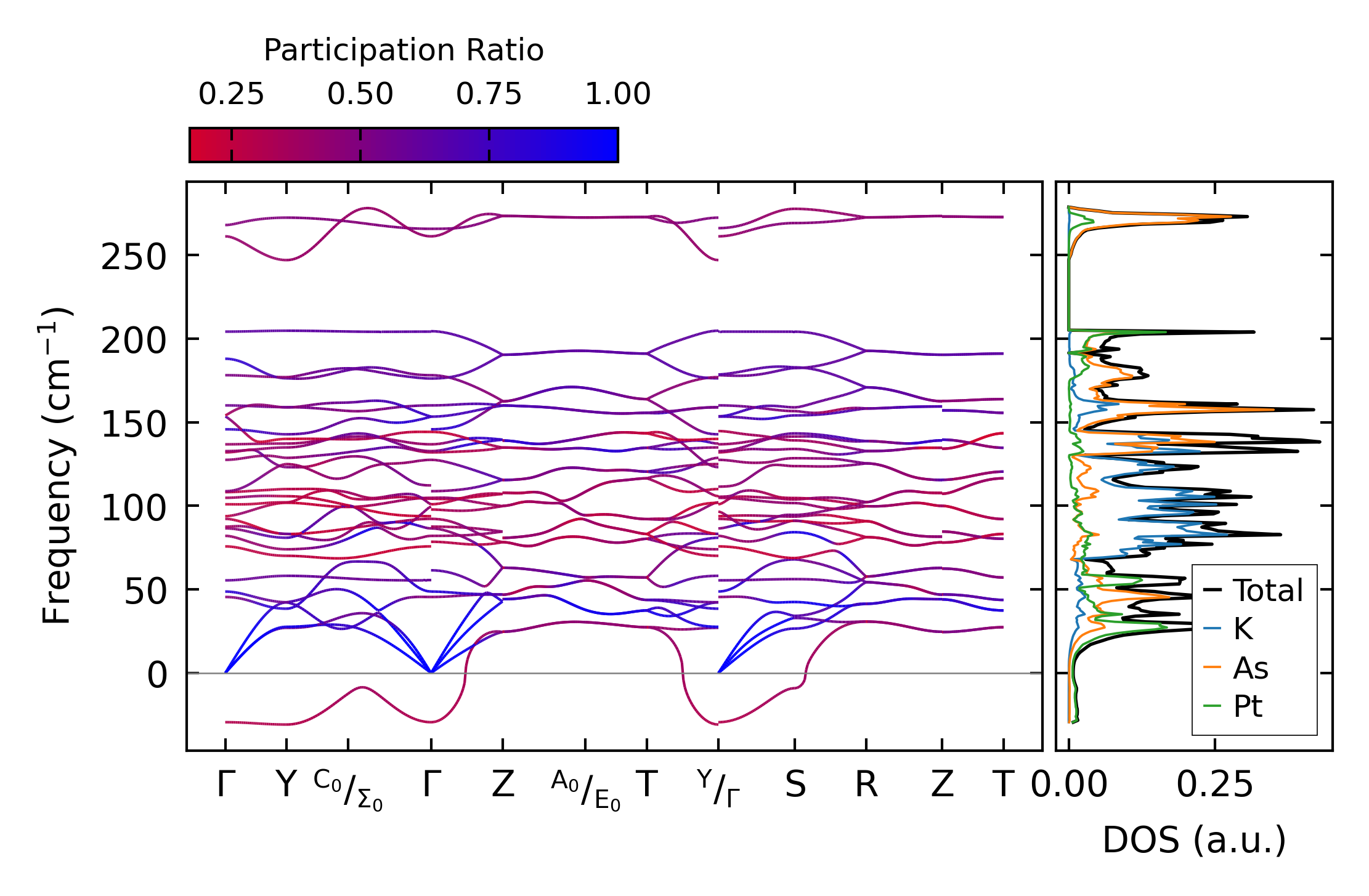

../../_images/fig_bandos_pr16930.png — (a) Phonon dispersion with participation ratio and DOS

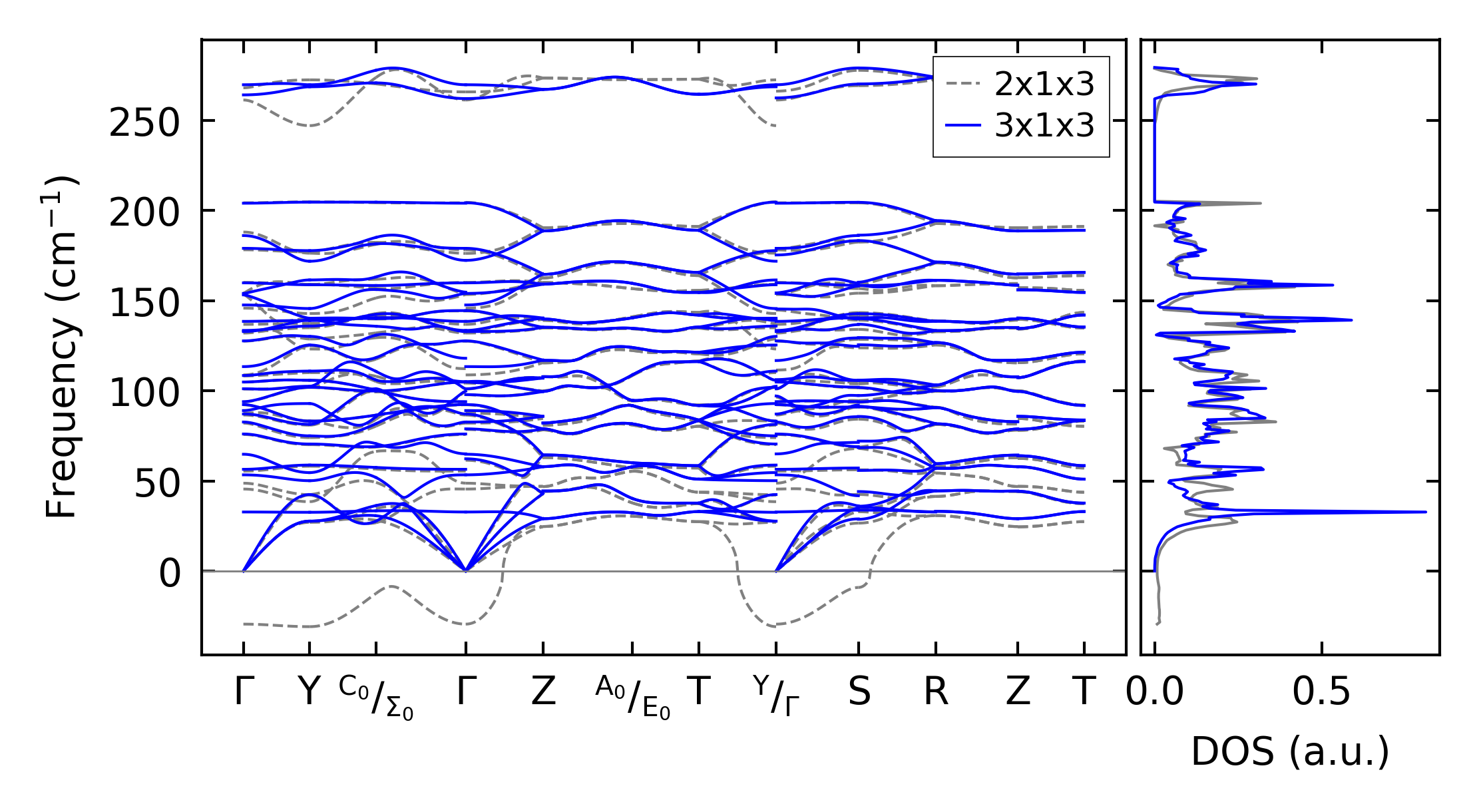

../../_images/fig_bandos21240.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo16929.png — (c) Thermodynamic properties

Grüneisen parameters

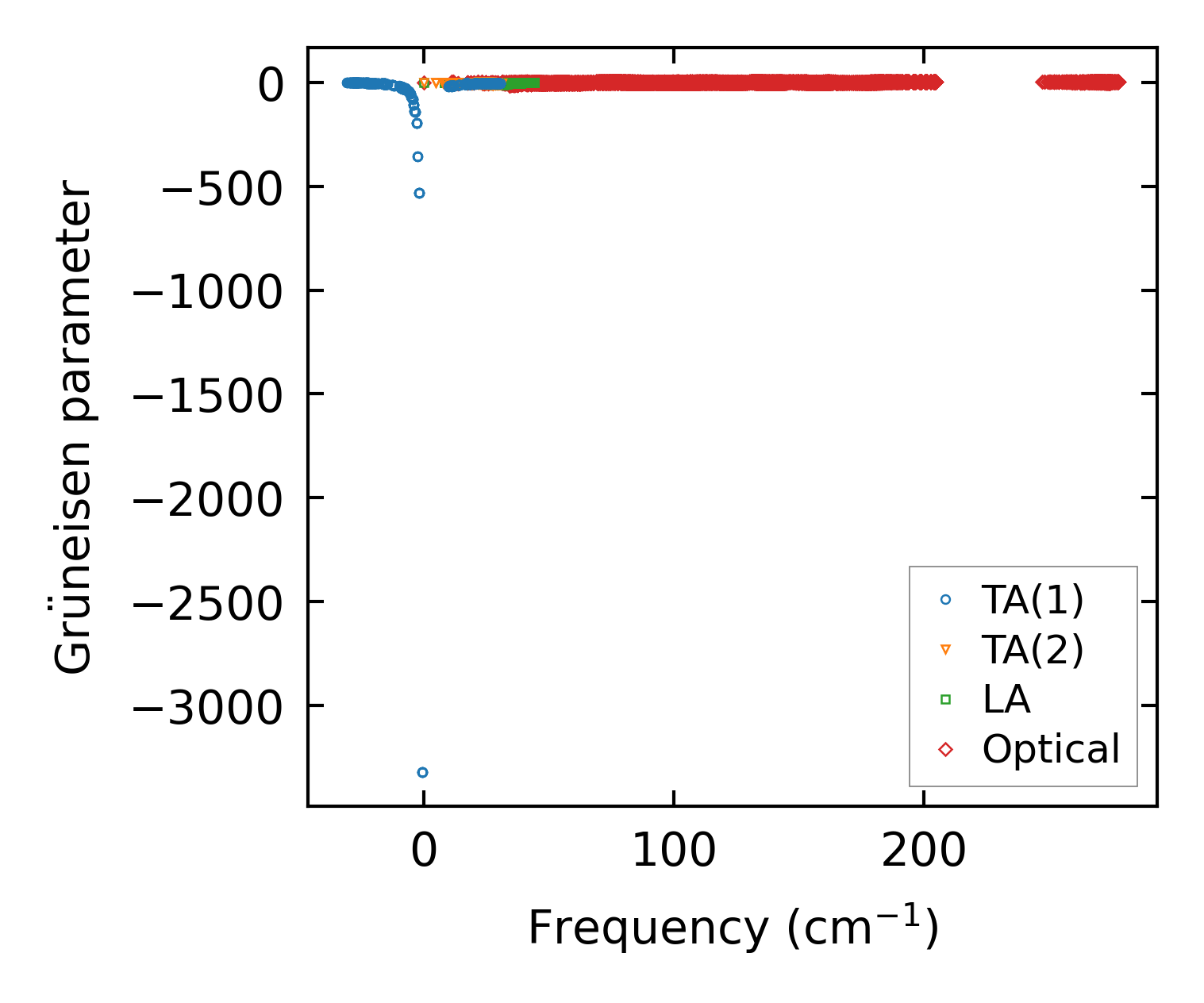

../../_images/fig_gru_all7413.png — (a) Grüneisen parameters

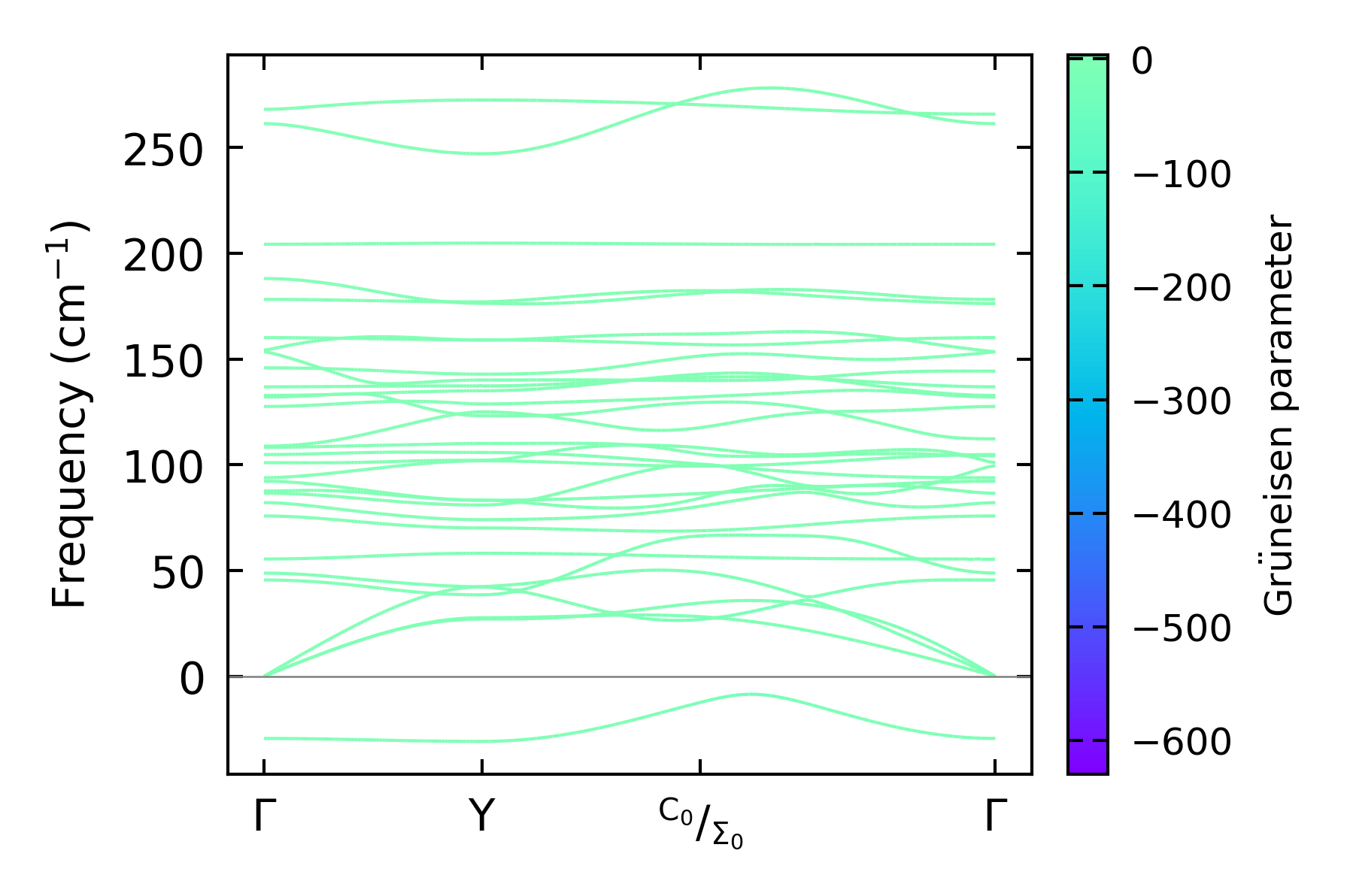

../../_images/fig_gruneisen7413.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 3x1x3 — q-mesh: 10x10x13, supercell: 3x1x3

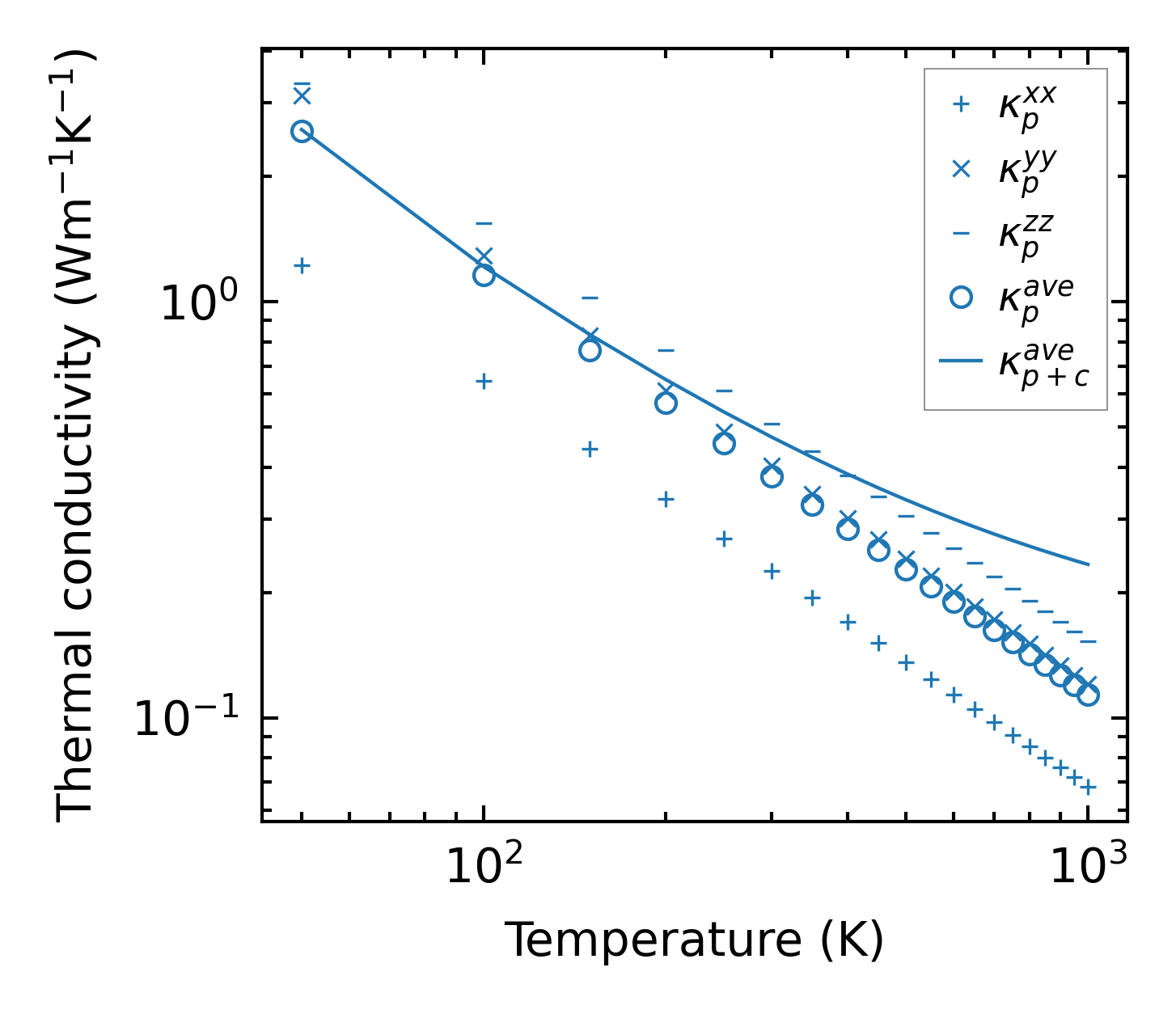

../../_images/fig_kappa13983.png — (a) Temperature-dependent lattice thermal conductivity

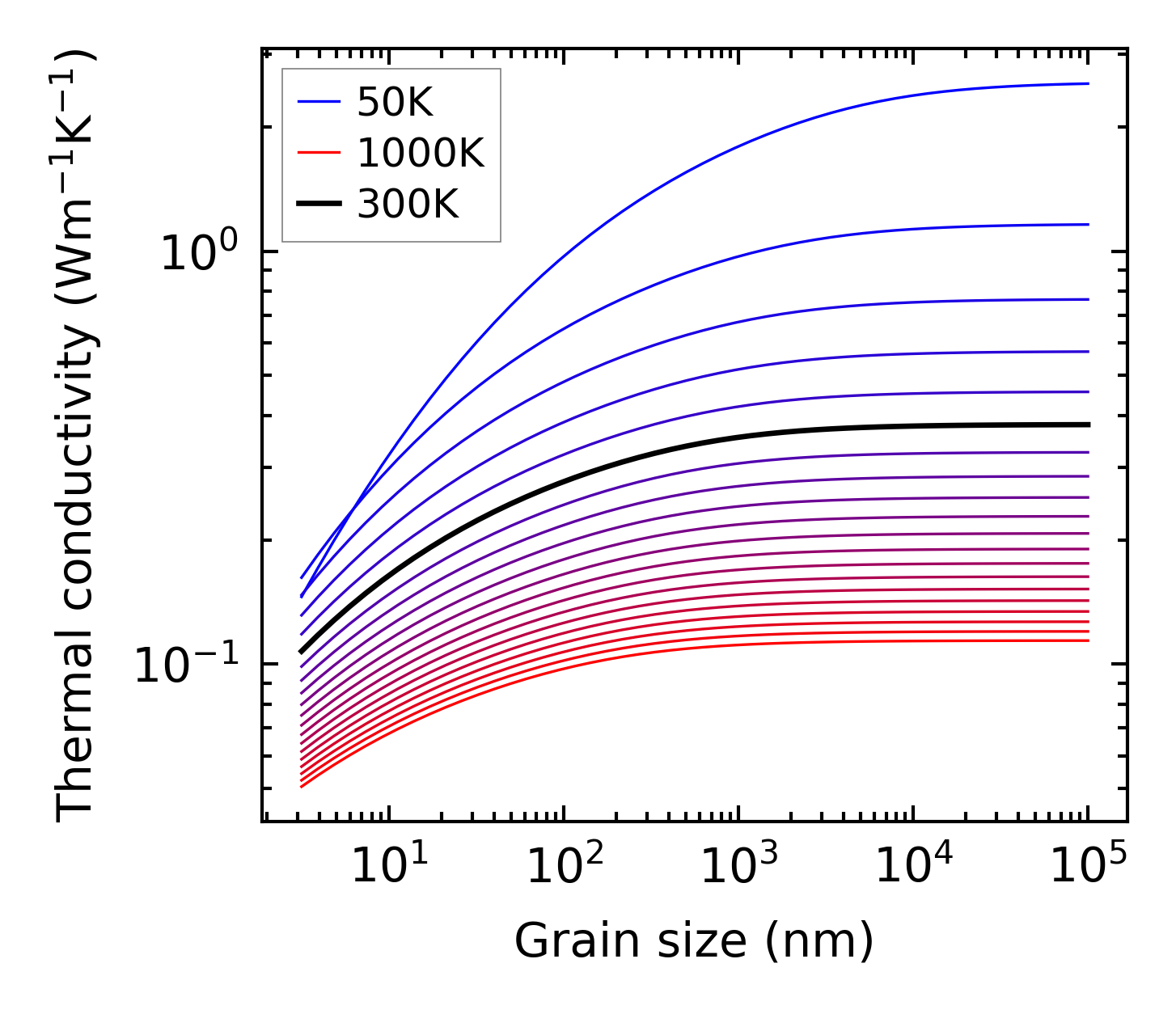

../../_images/fig_kappa_vs_grain_size7501.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

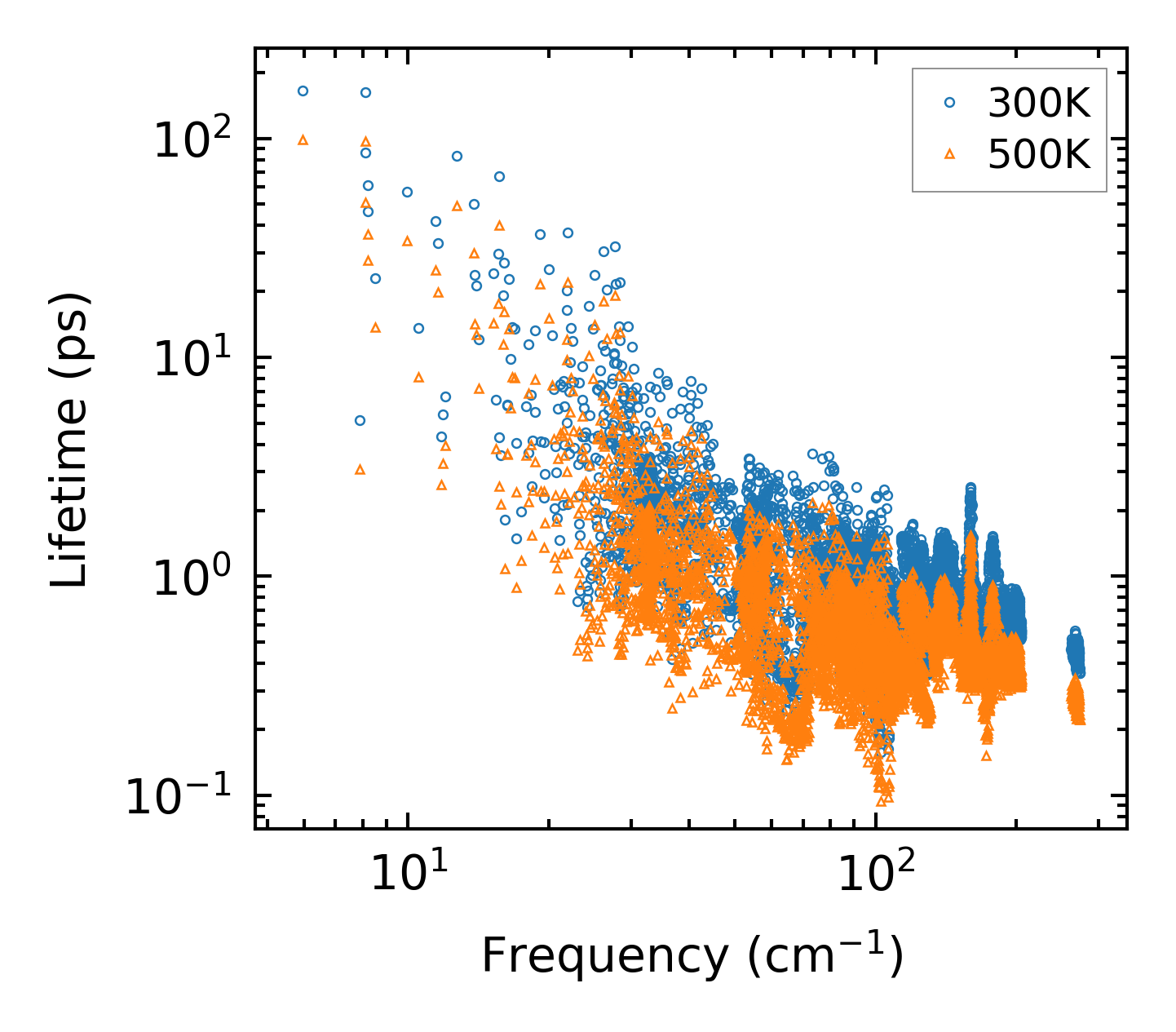

../../_images/fig_lifetime7347.png — (a) Phonon lifetime due to phonon-phonon scattering

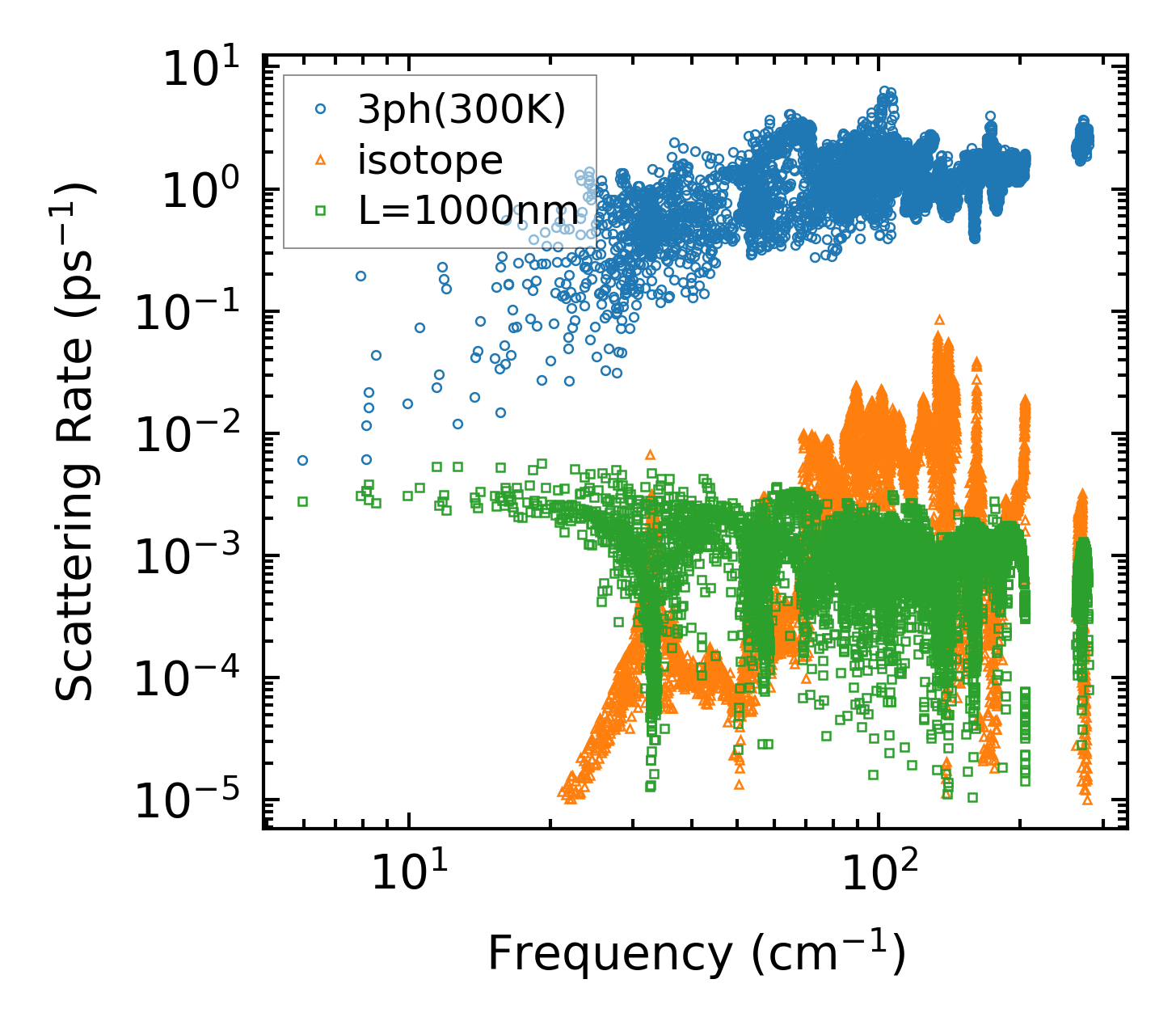

../../_images/fig_scat_rates7346.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

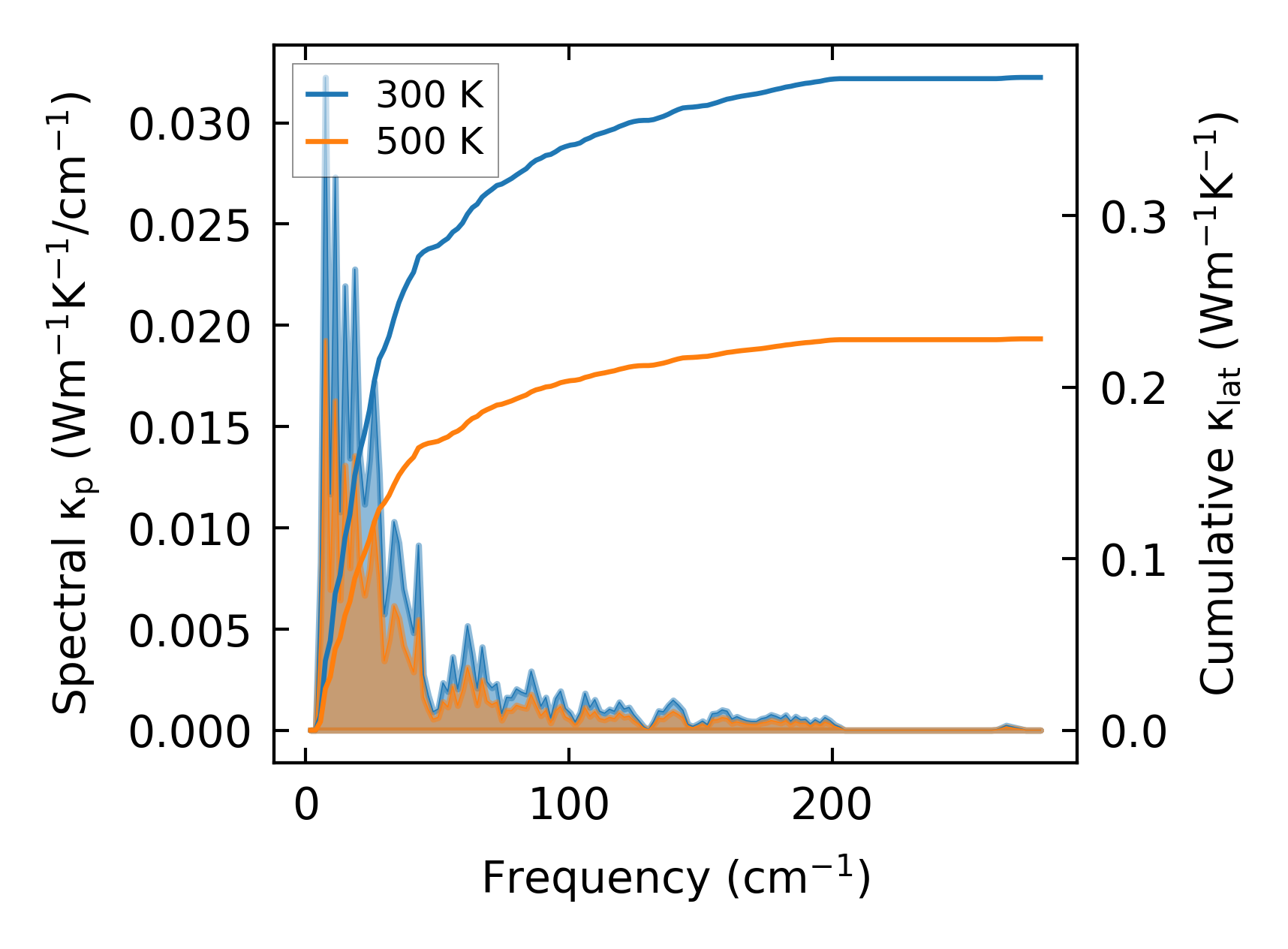

../../_images/fig_cumu_frequency7347.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

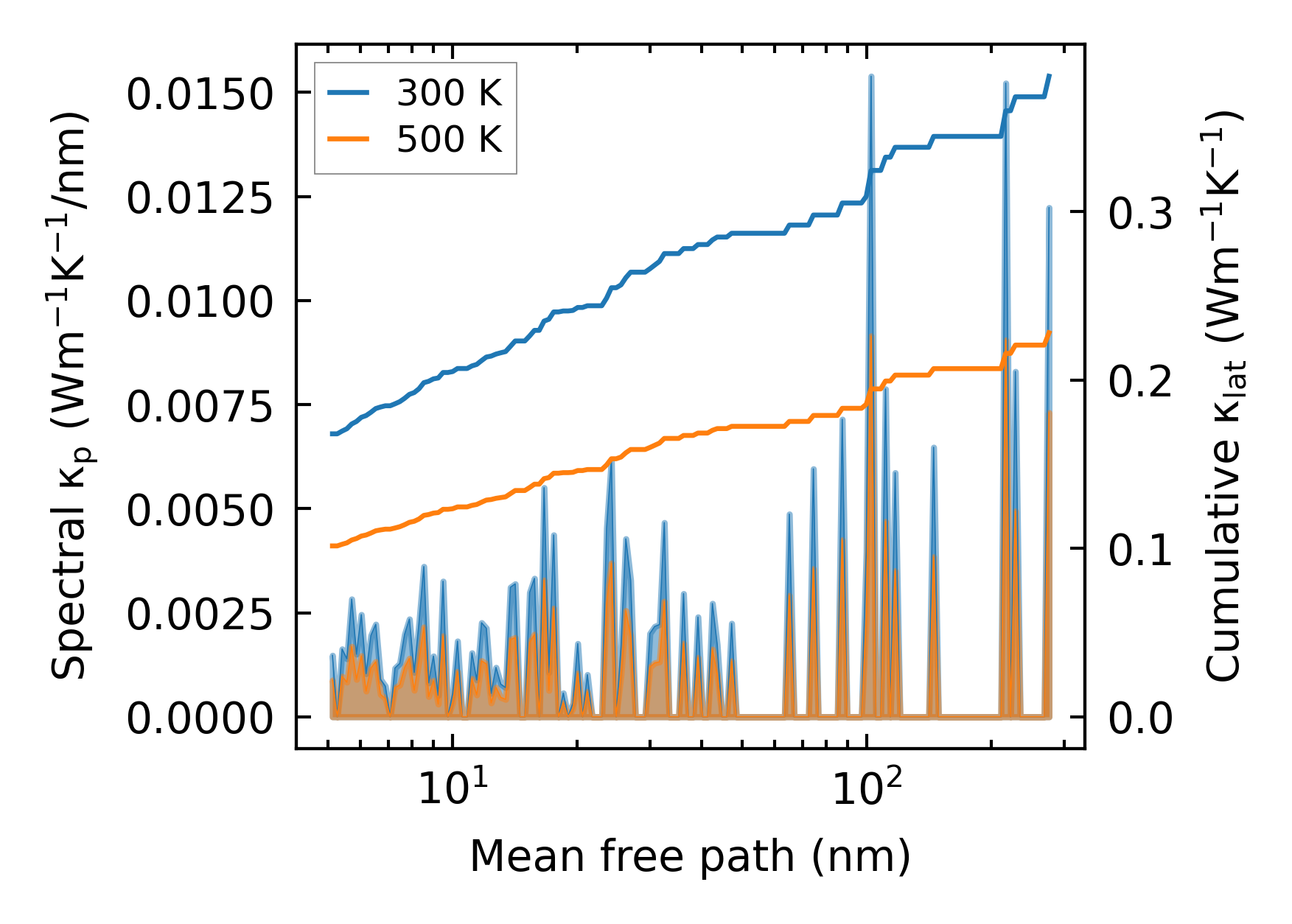

../../_images/fig_cumu_mfp7346.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

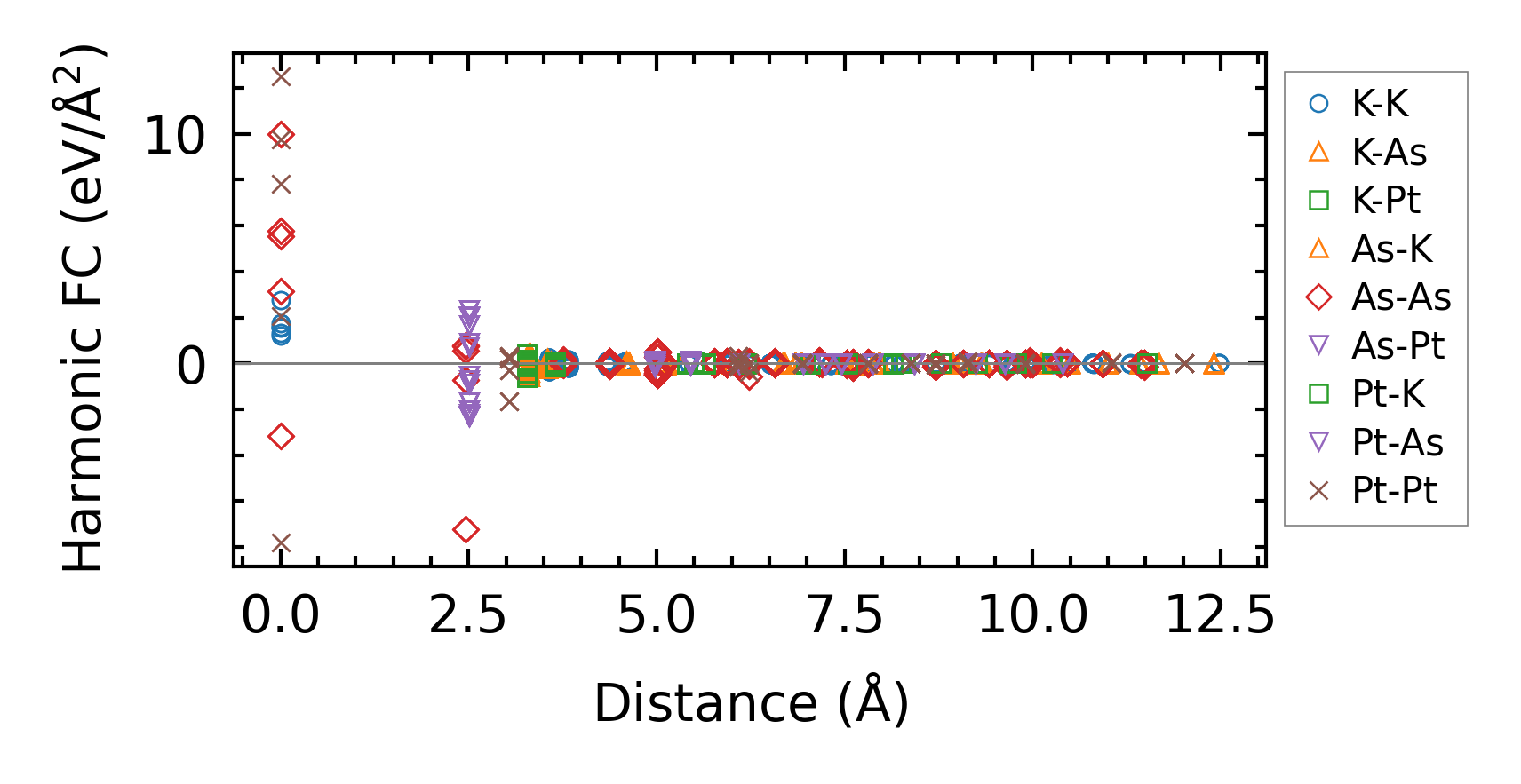

../../_images/fig_fc216483.png — (a) Force constants w.r.t atomic distance

Summary

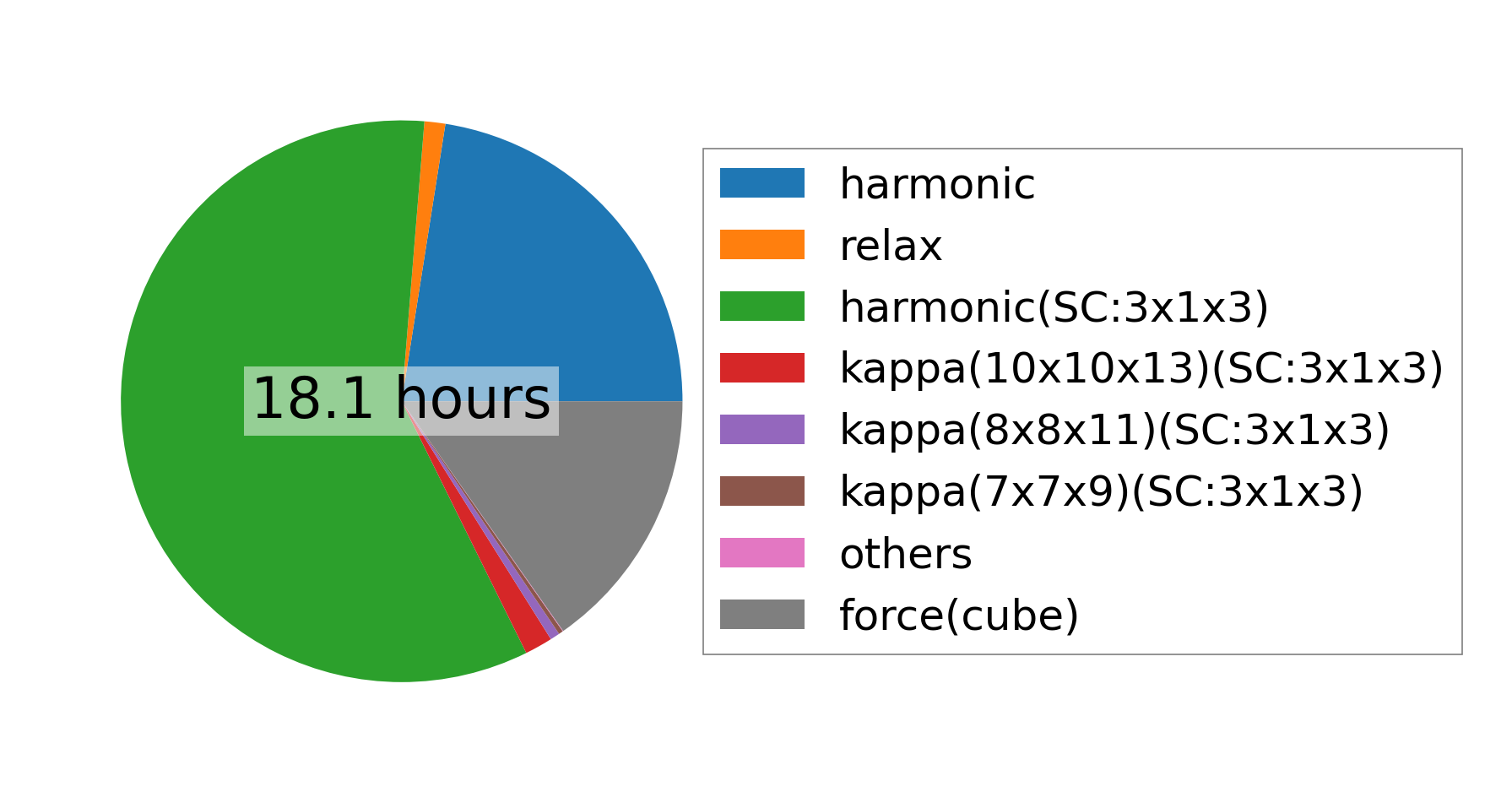

../../_images/fig_times27604.png — (a) Computation time
