mp-1079029/Al2S3/anharm

Space group: R-3c (167)
Link: Materials Project
Download: mp-1079029.tar.gz

Harmonic properties

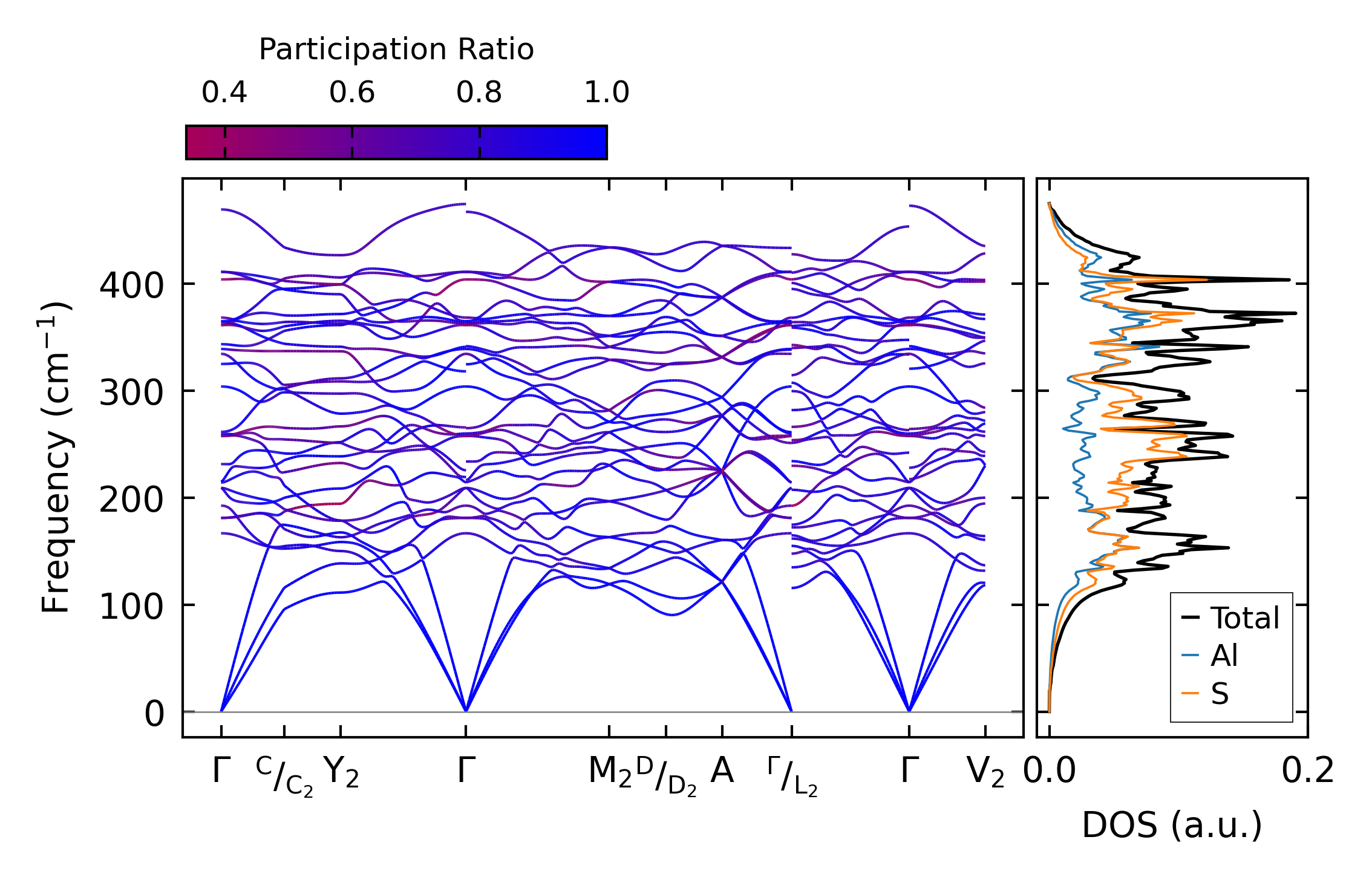

../../_images/fig_bandos_pr16910.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo16909.png — (b) Thermodynamic properties

Grüneisen parameters

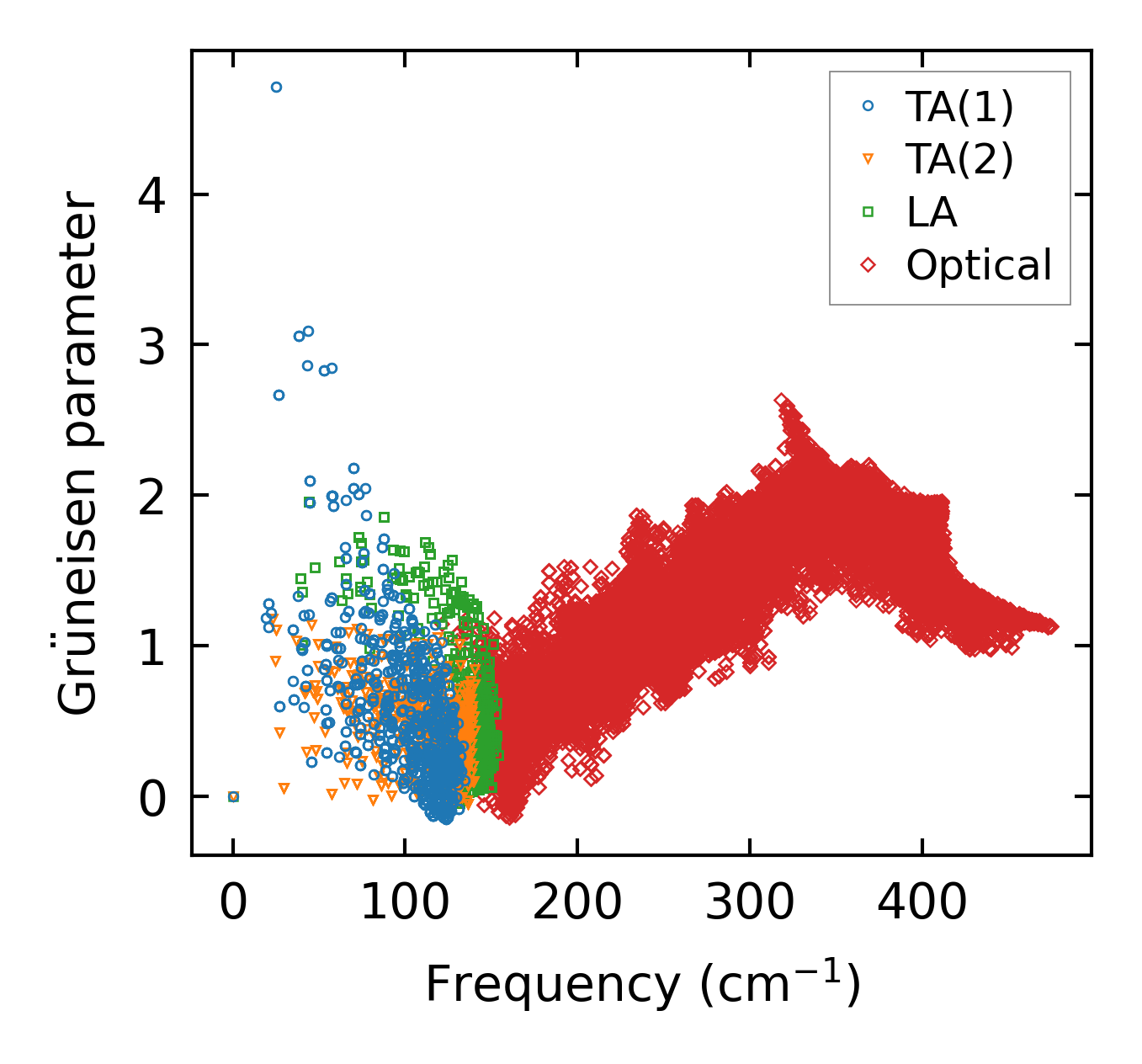

../../_images/fig_gru_all7403.png — (a) Grüneisen parameters

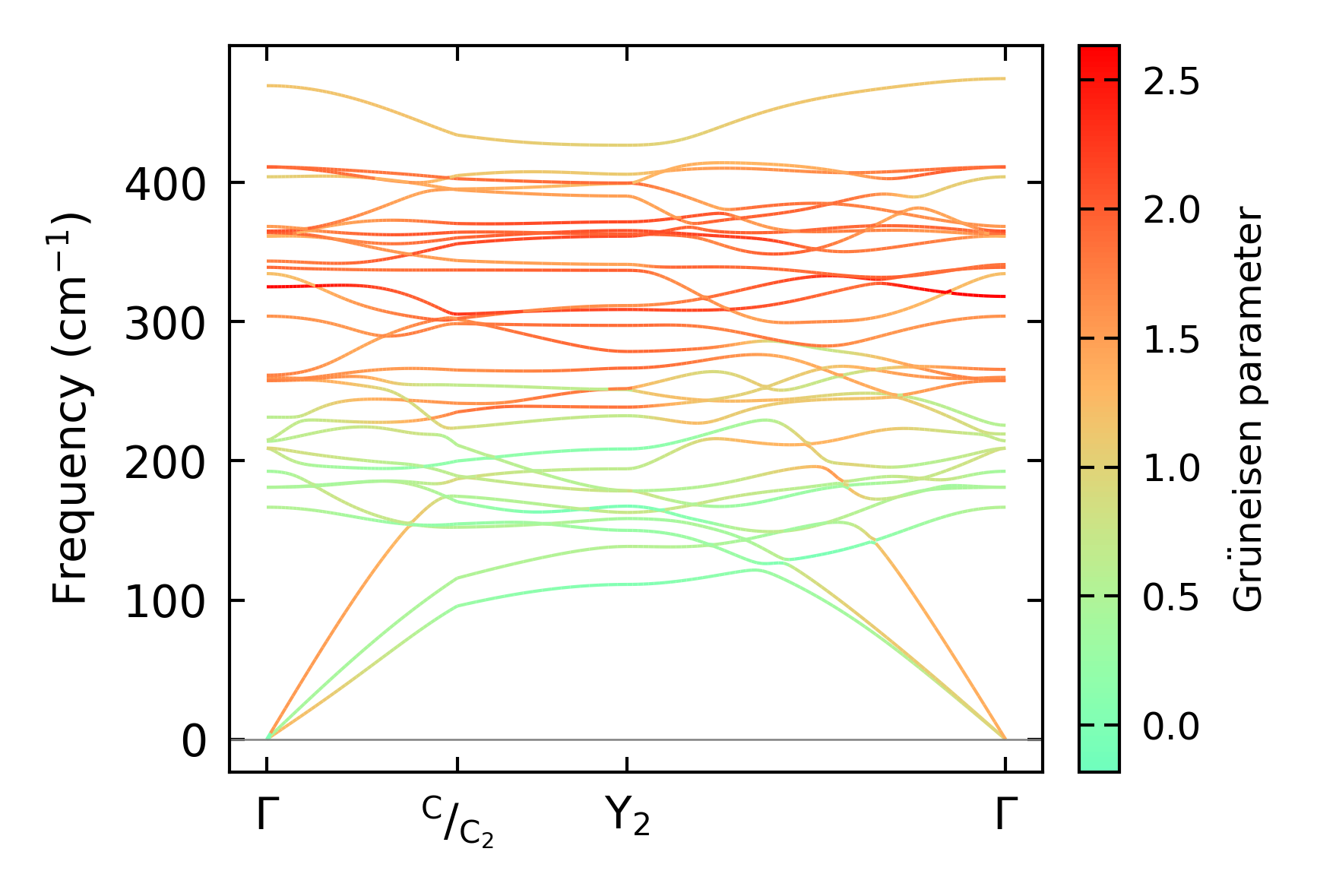

../../_images/fig_gruneisen7403.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x13x12, supercell: 1x2x2

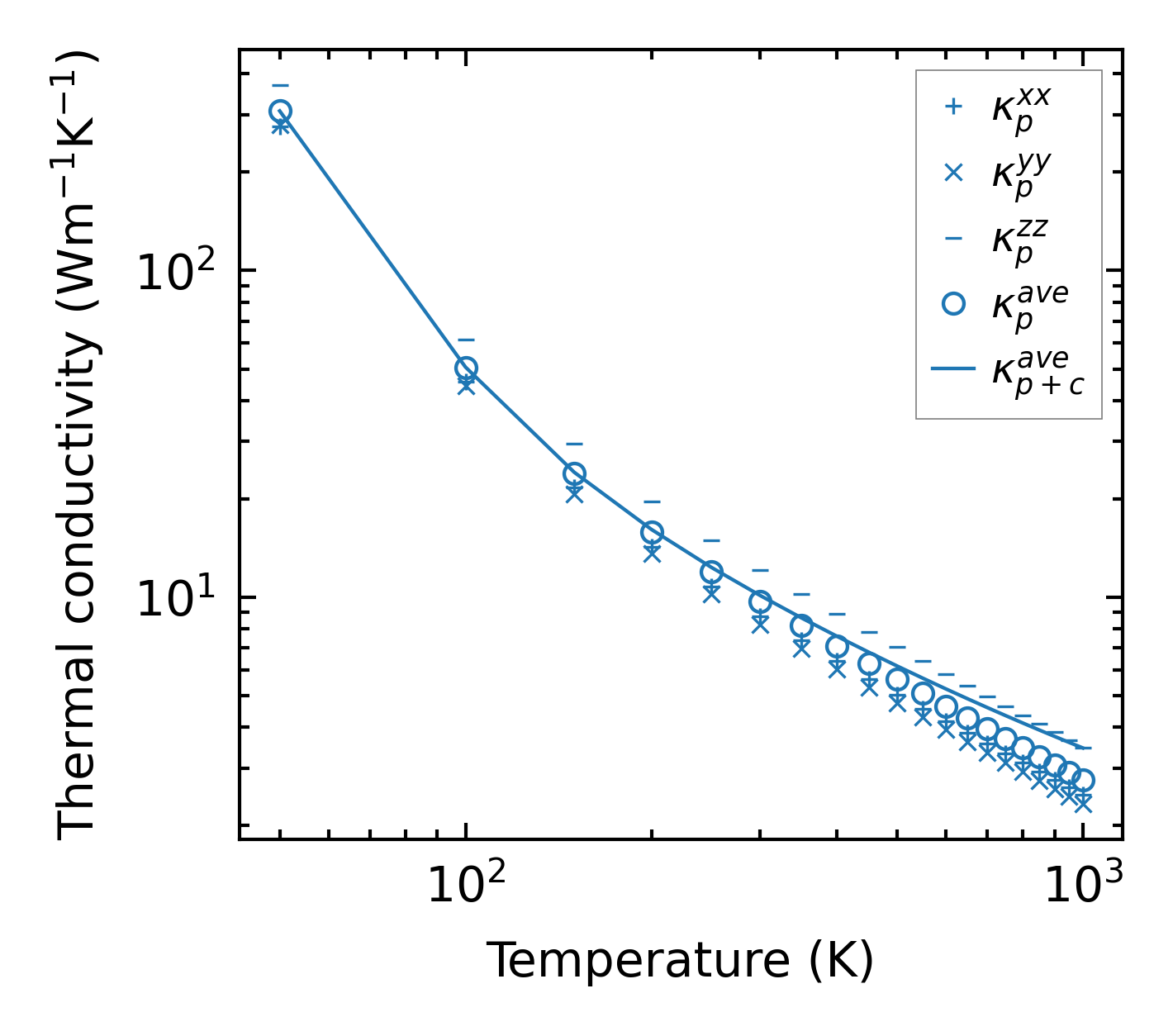

../../_images/fig_kappa13965.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size7491.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

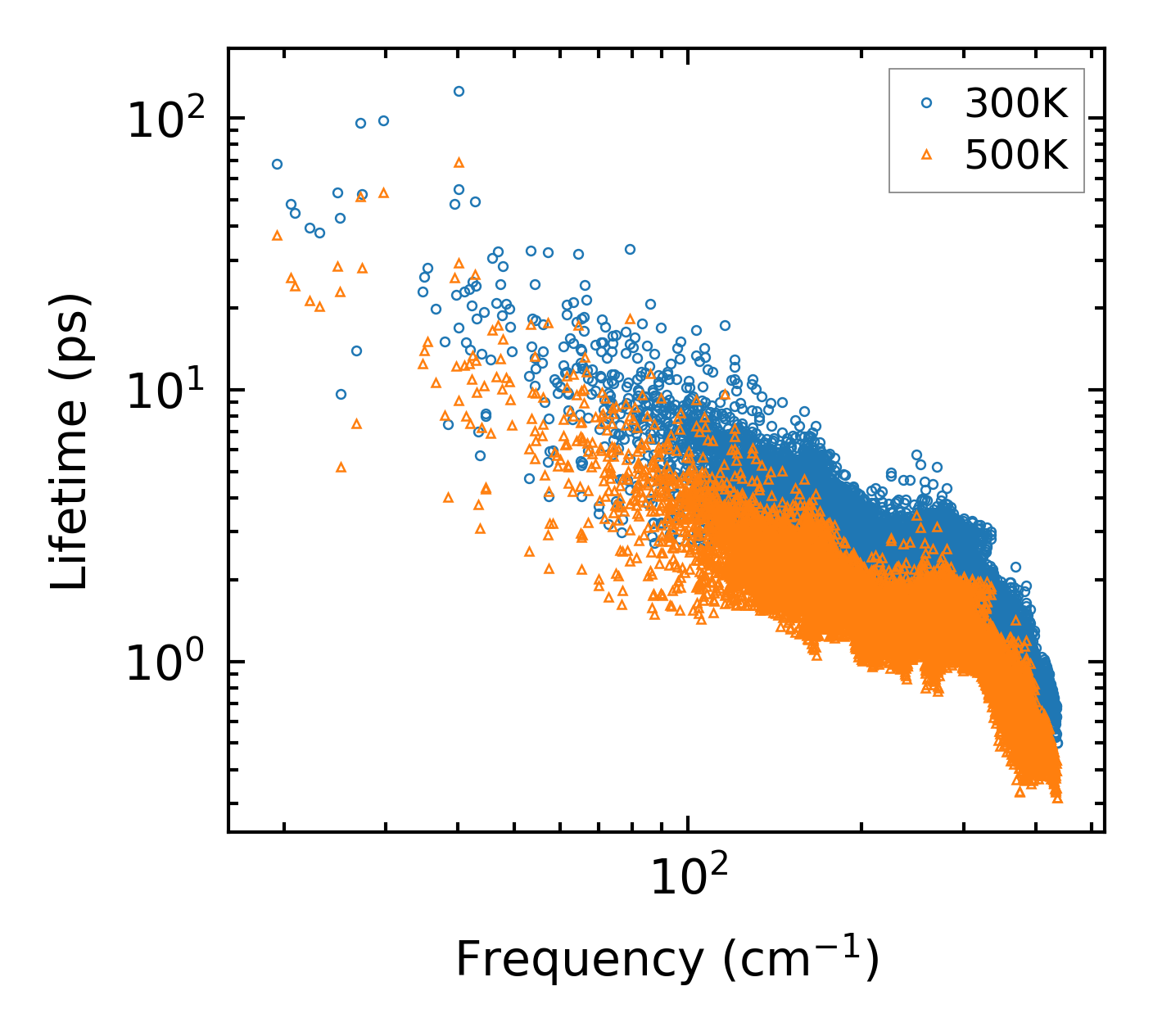

../../_images/fig_lifetime7337.png — (a) Phonon lifetime due to phonon-phonon scattering

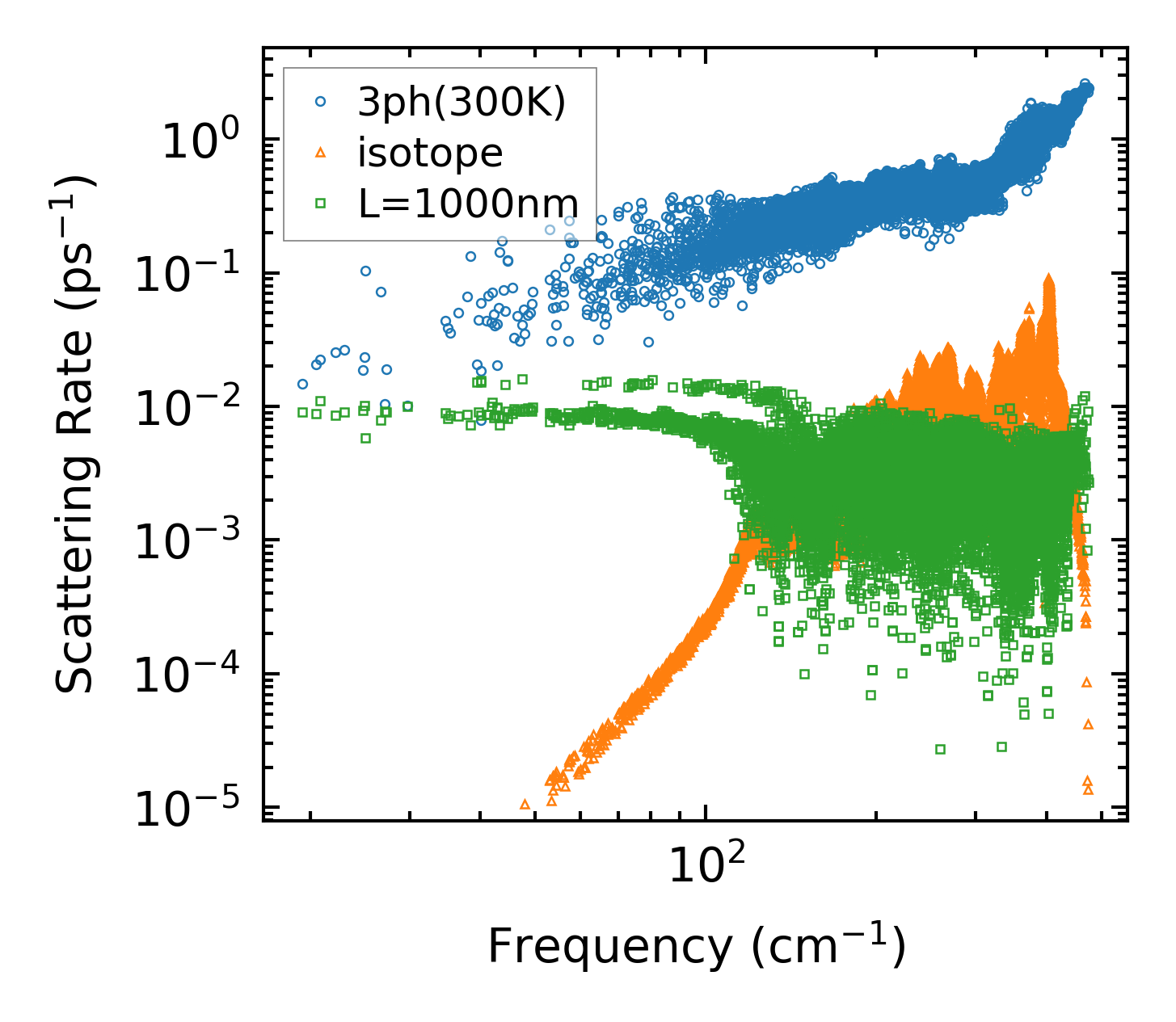

../../_images/fig_scat_rates7336.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency7337.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp7336.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

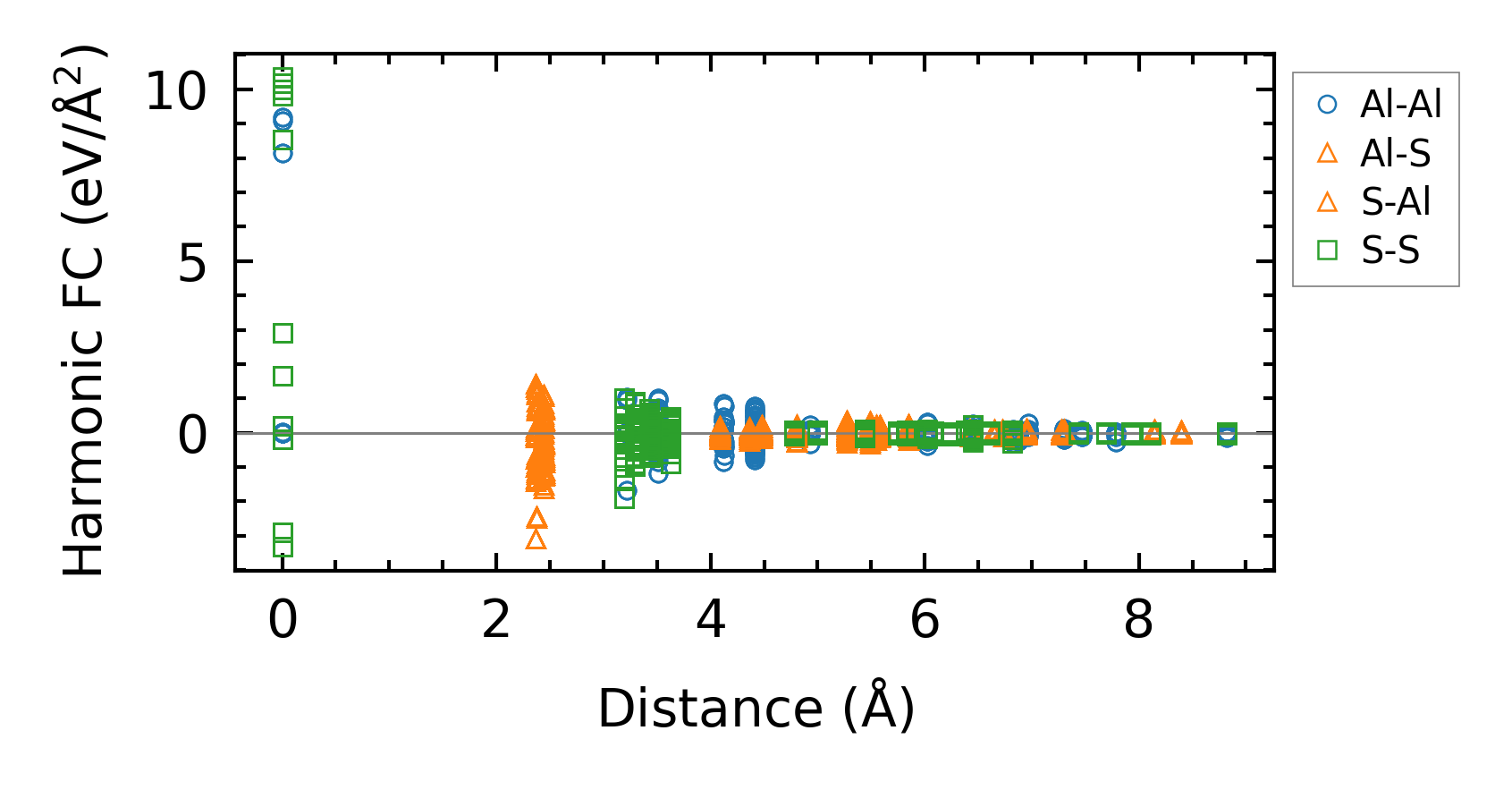

../../_images/fig_fc216463.png — (a) Force constants w.r.t atomic distance

Summary

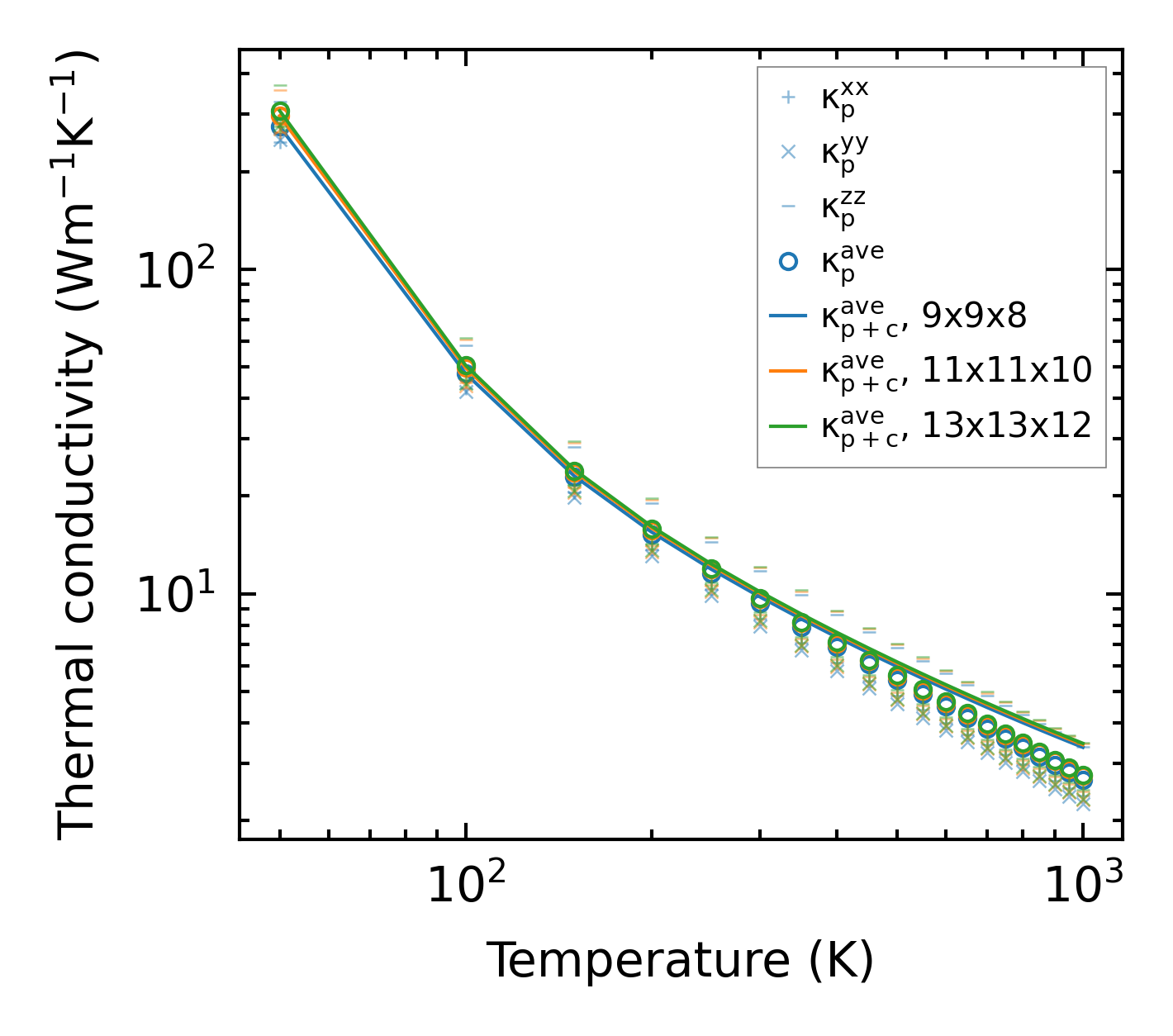

../../_images/fig_kappa13966.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times27573.png — (b) Computation time
