mp-756970/Al2Se3O12/anharm

Space group: R-3 (148)
Link: Materials Project
Download: mp-756970.tar.gz

Harmonic properties

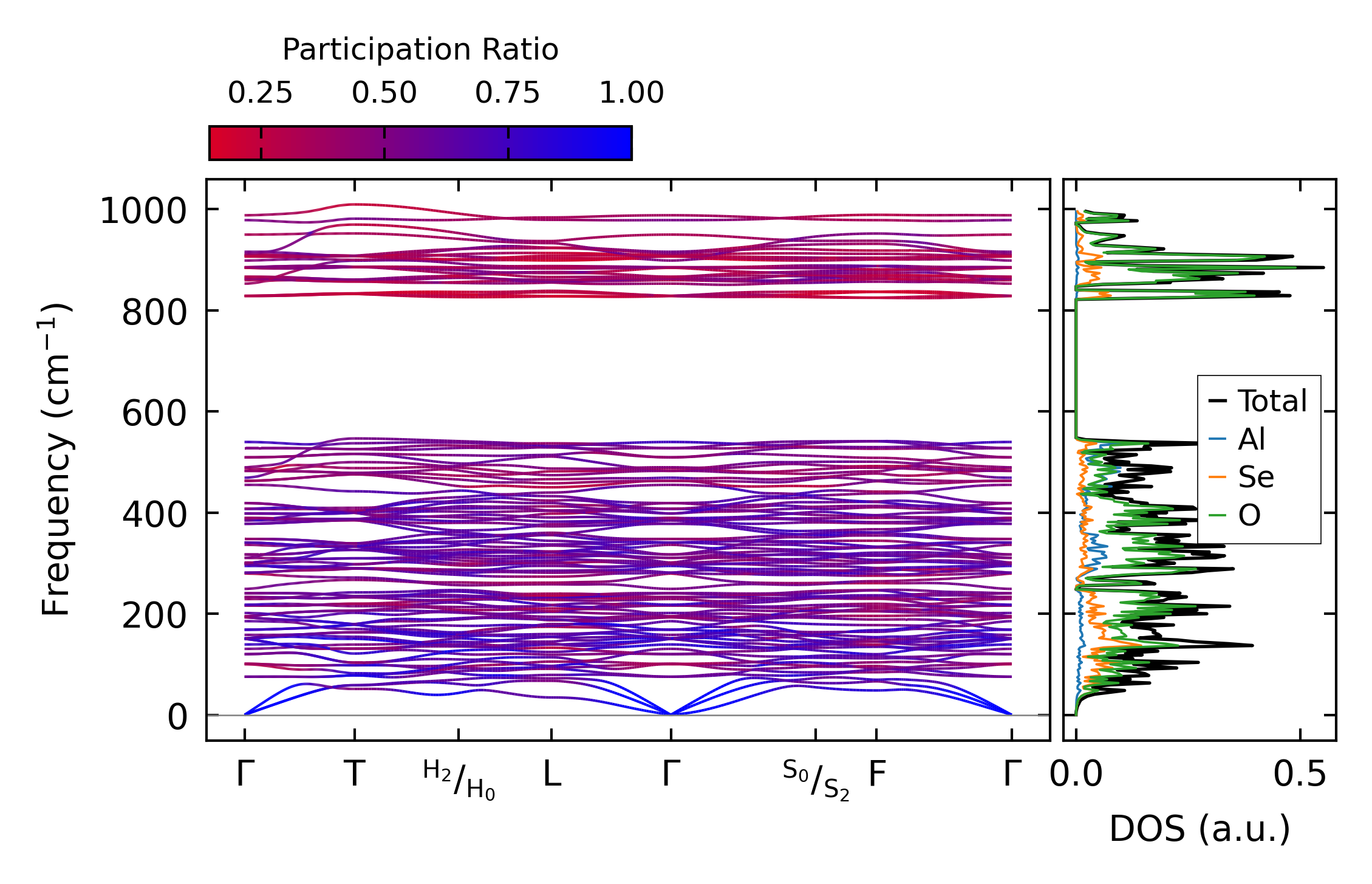

../../_images/fig_bandos_pr3386.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo3386.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all1535.png — (a) Grüneisen parameters

../../_images/fig_gruneisen1535.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 9x9x9, supercell: 1x1x1

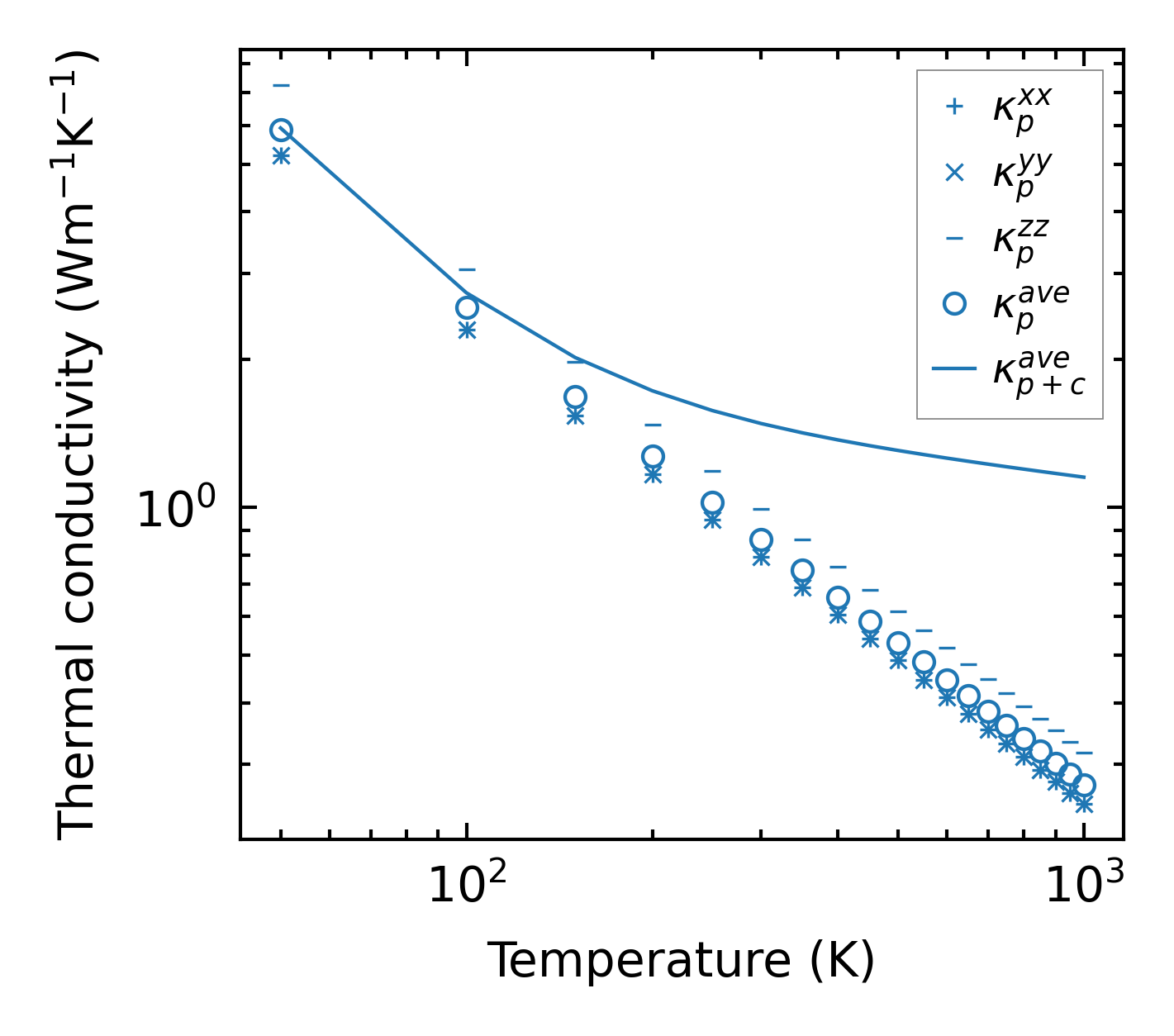

../../_images/fig_kappa2951.png — (a) Temperature-dependent lattice thermal conductivity

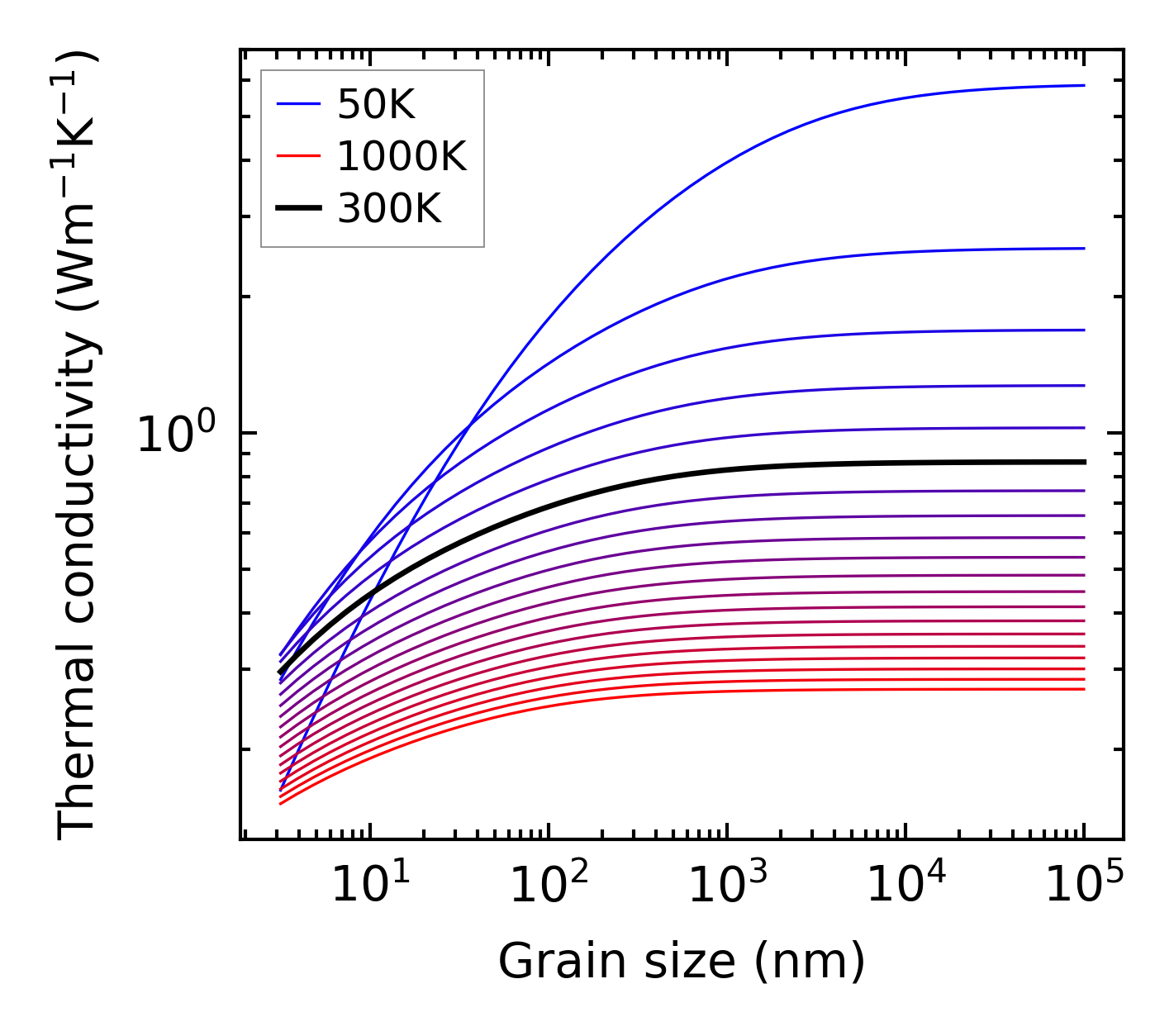

../../_images/fig_kappa_vs_grain_size1554.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

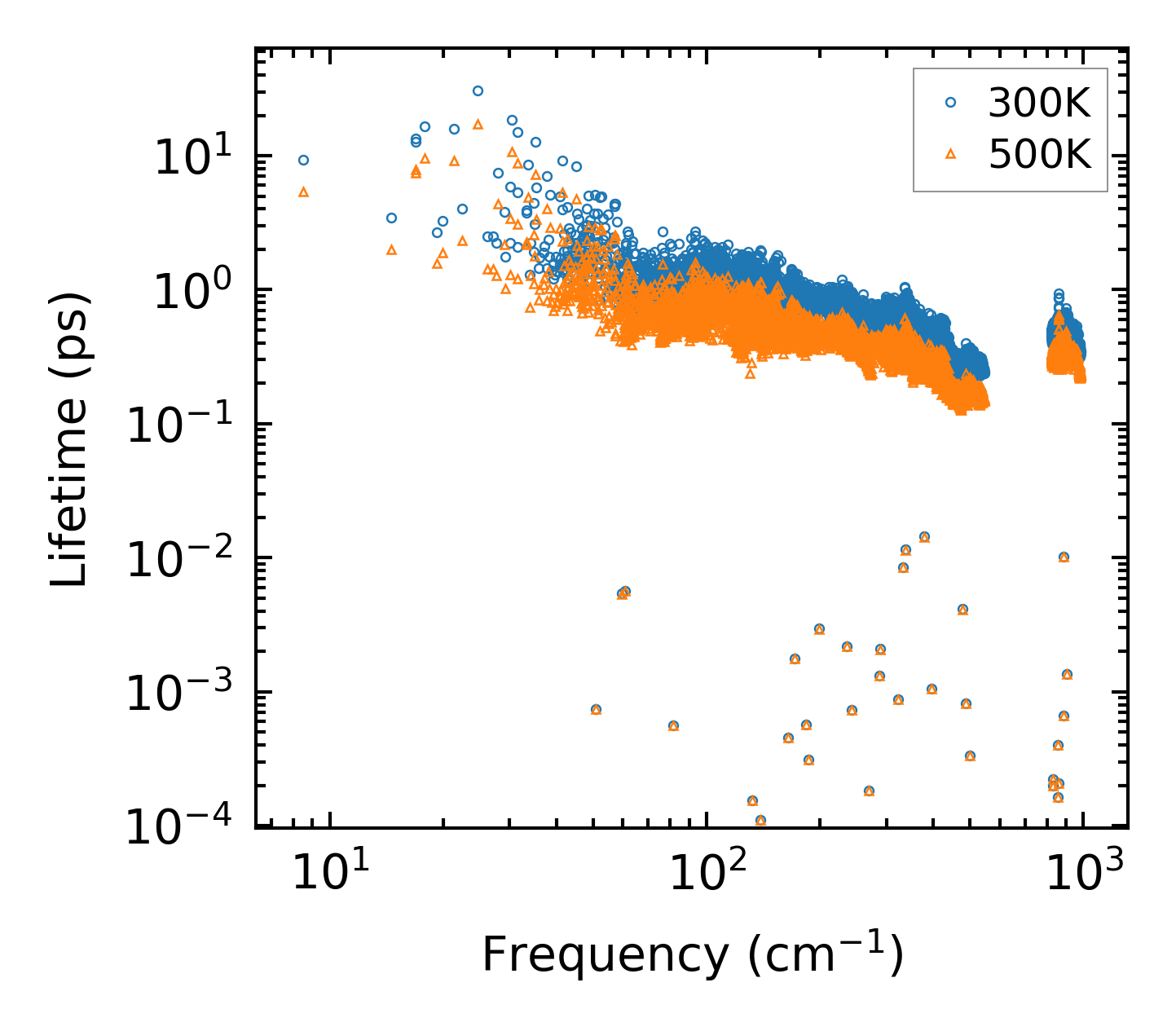

../../_images/fig_lifetime1525.png — (a) Phonon lifetime due to phonon-phonon scattering

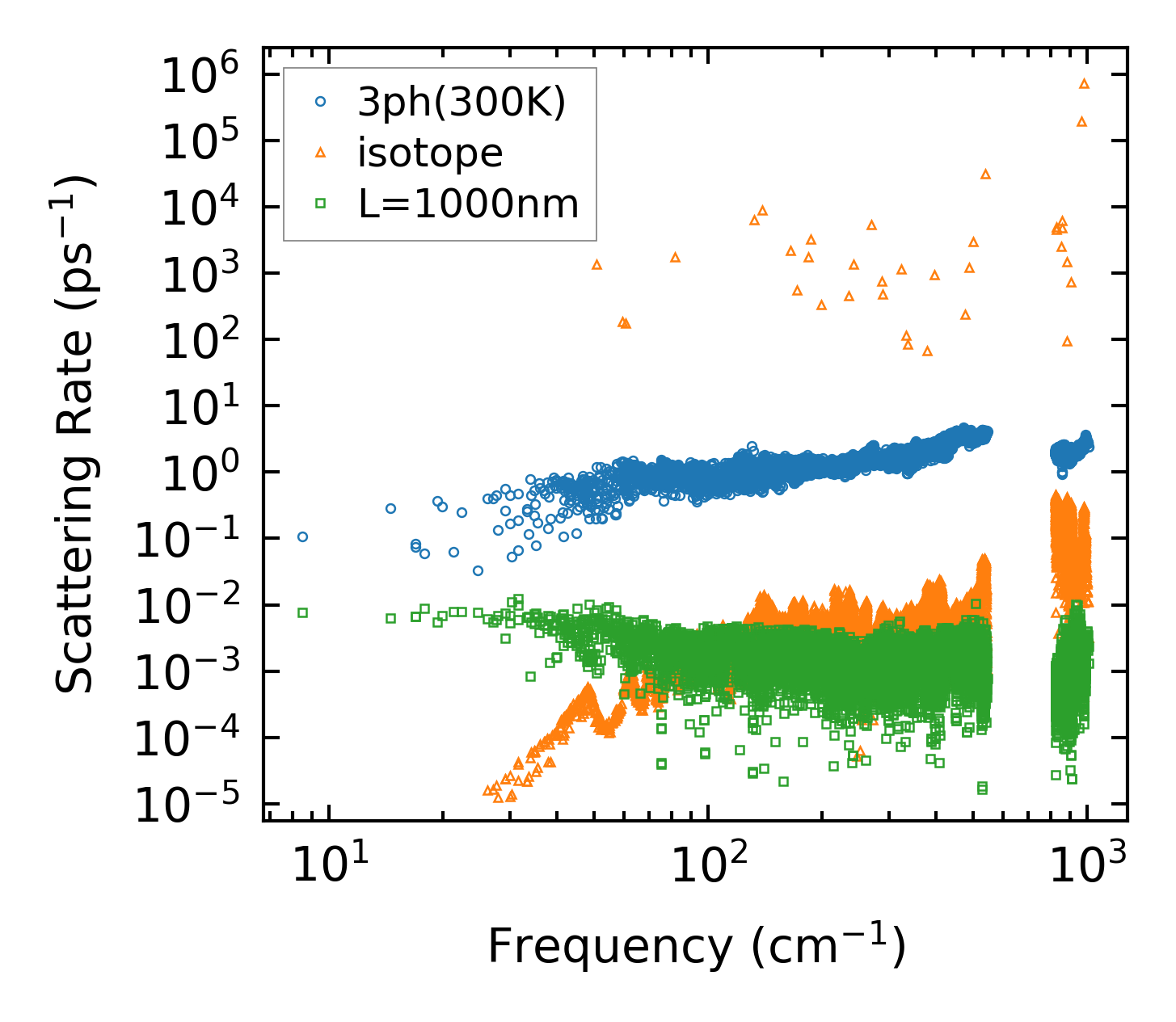

../../_images/fig_scat_rates1524.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

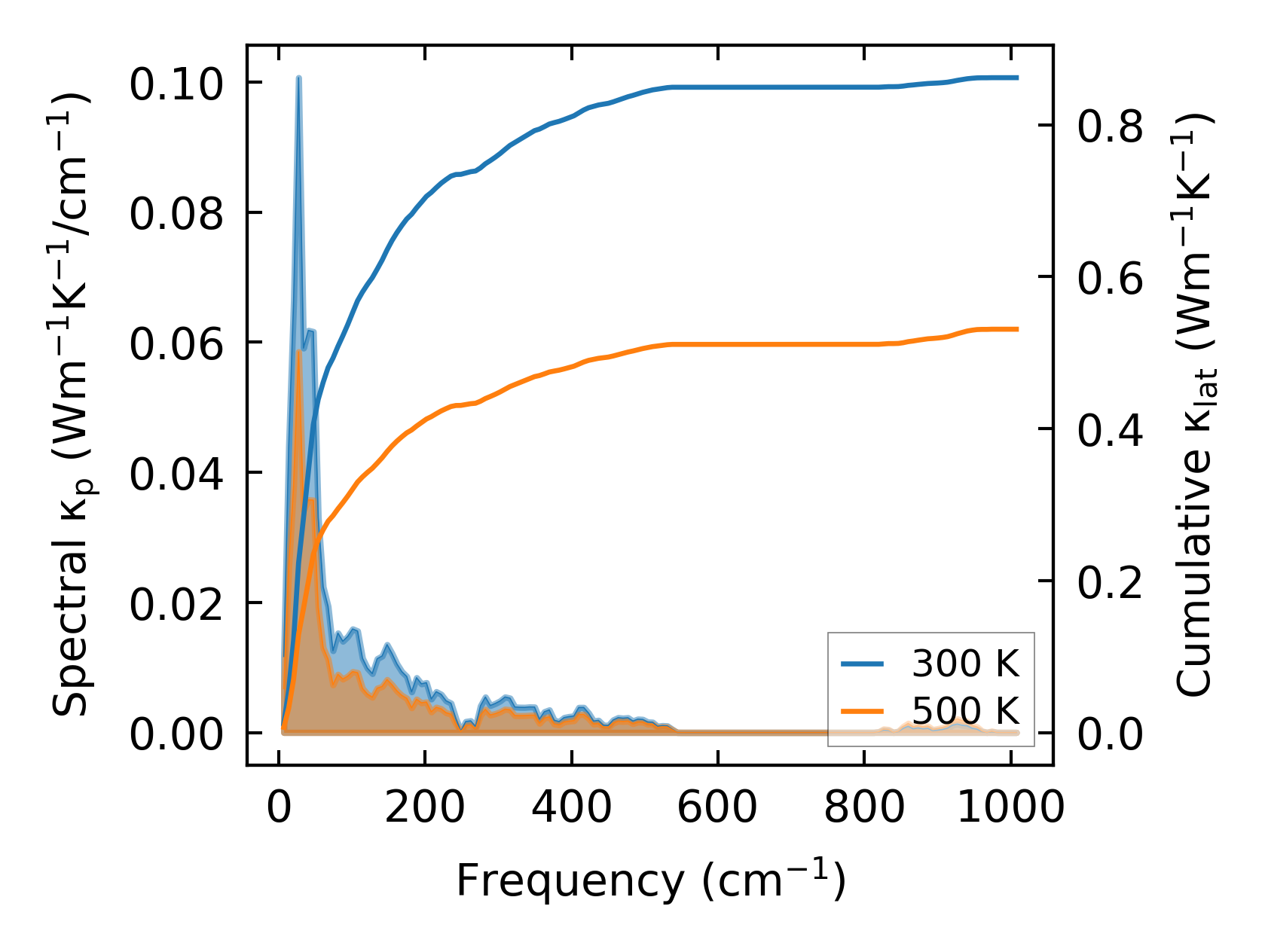

../../_images/fig_cumu_frequency1525.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp1525.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

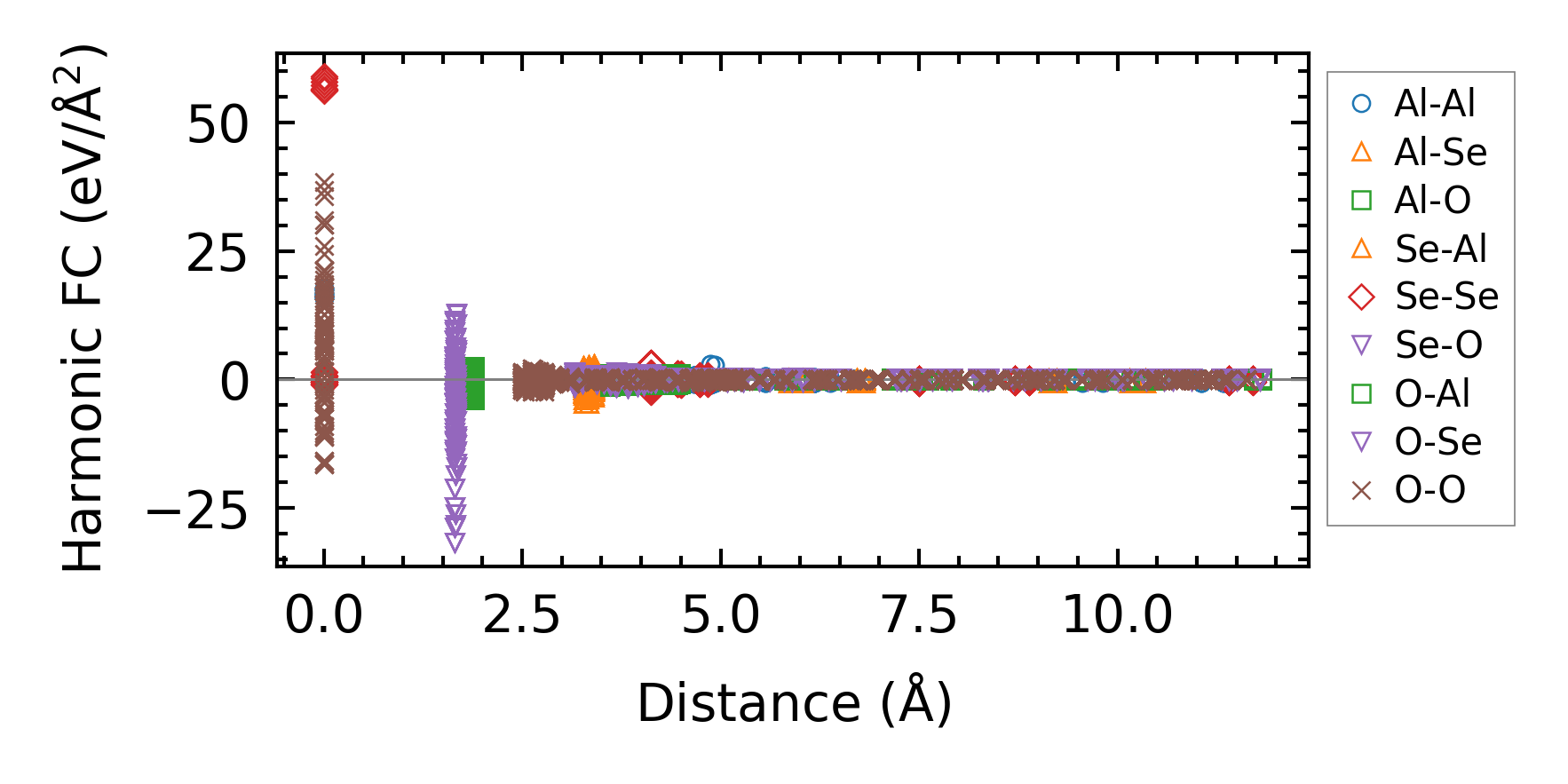

../../_images/fig_fc23205.png — (a) Force constants w.r.t atomic distance

Summary

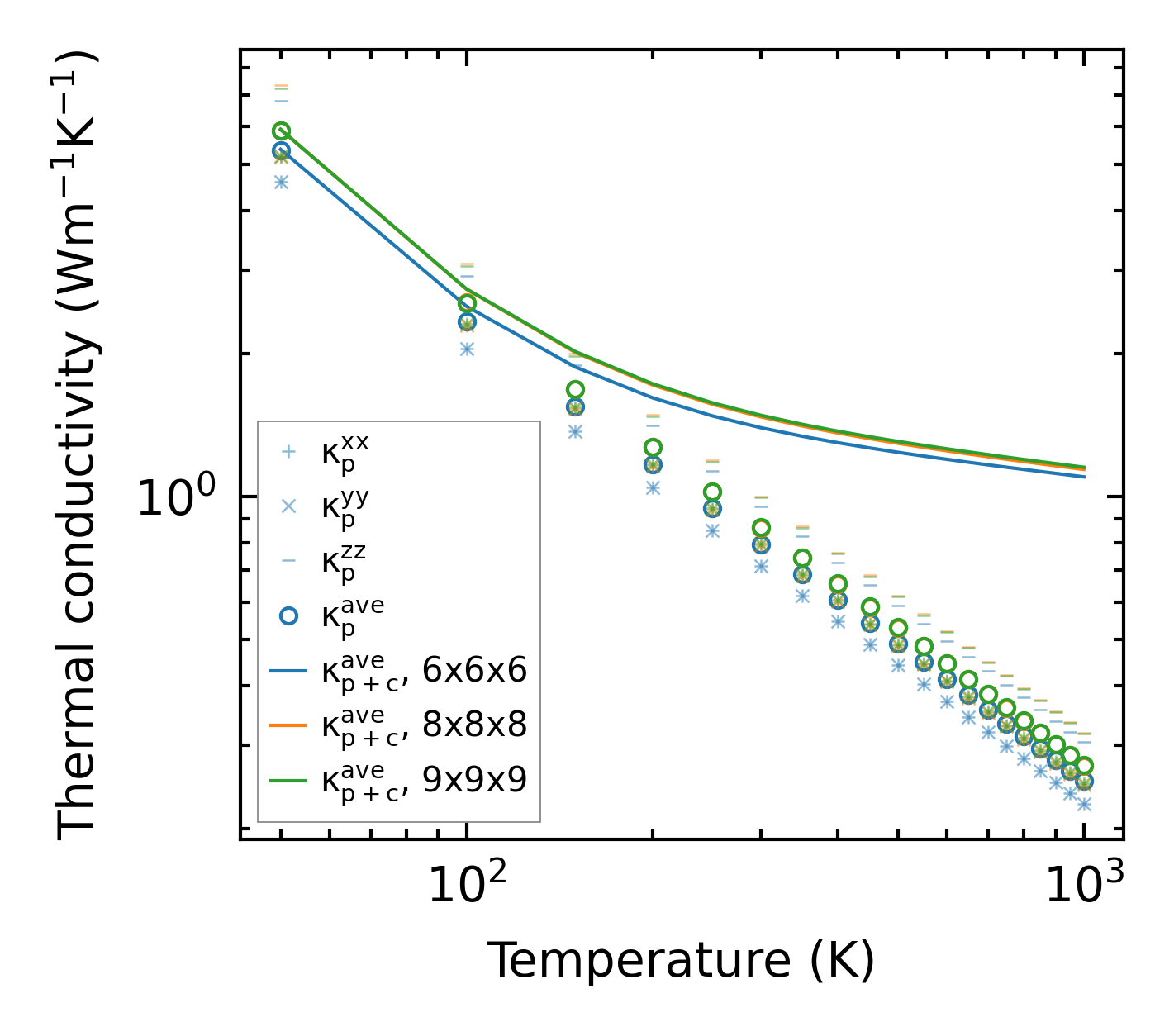

../../_images/fig_kappa2952.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times5884.png — (b) Computation time
