mp-756810/Sr3Ta4O12F2/anharm

Space group: R-3m (166)
Link: Materials Project
Download: mp-756810.tar.gz

Harmonic properties

../../_images/fig_bandos_pr3362.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo3362.png — (b) Thermodynamic properties

Grüneisen parameters

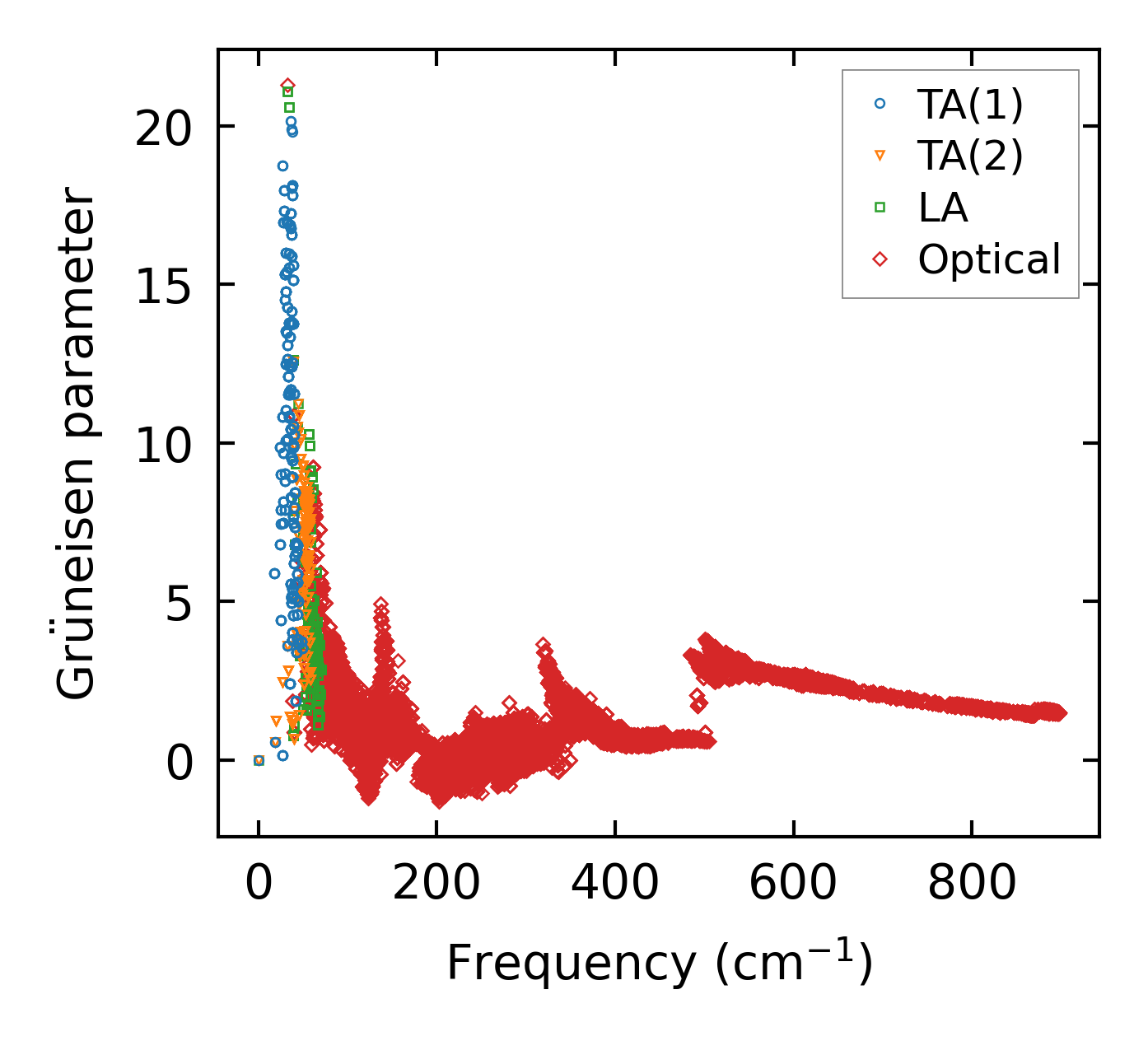

../../_images/fig_gru_all1526.png — (a) Grüneisen parameters

../../_images/fig_gruneisen1526.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x10, supercell: 1x1x1

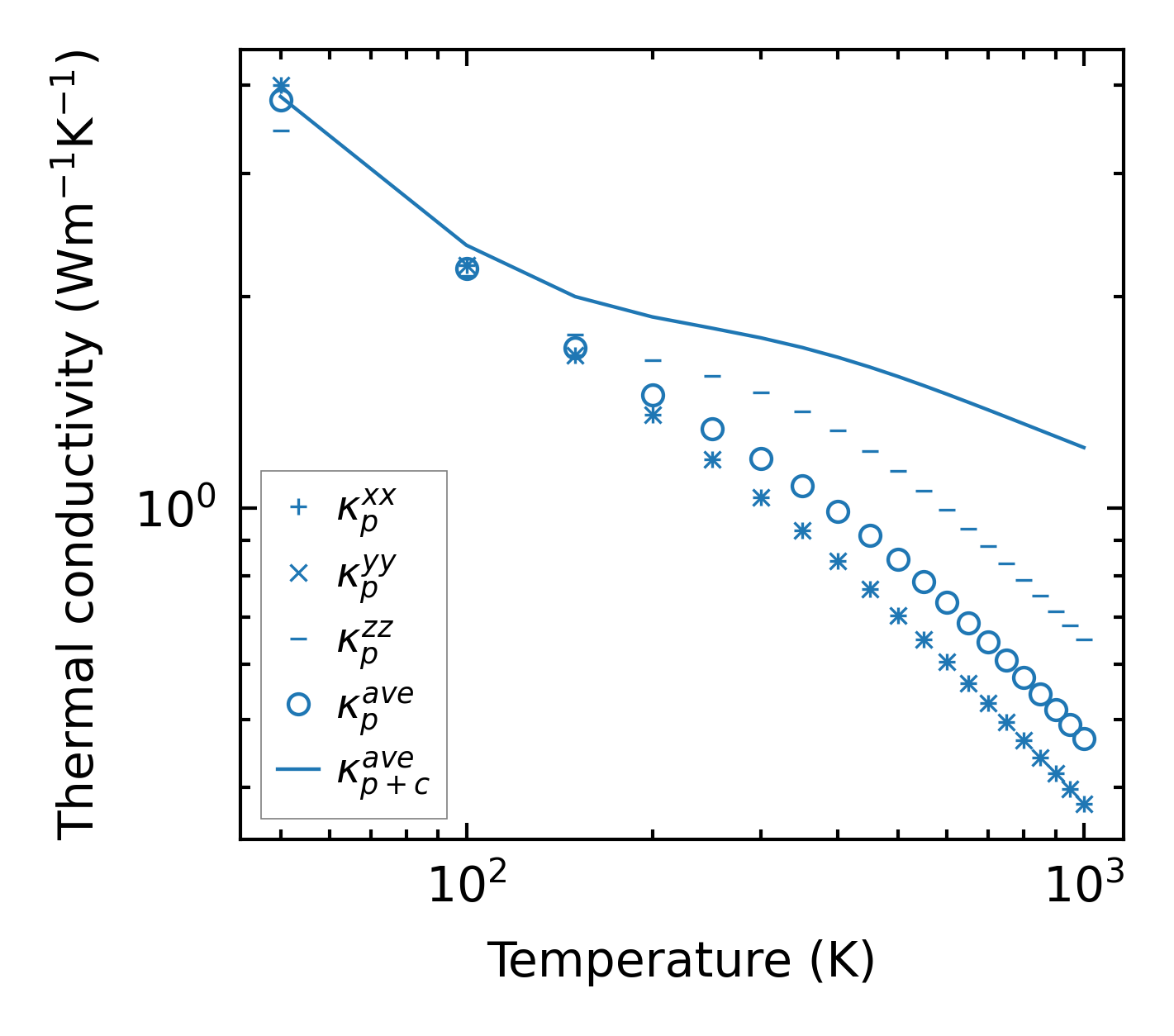

../../_images/fig_kappa2934.png — (a) Temperature-dependent lattice thermal conductivity

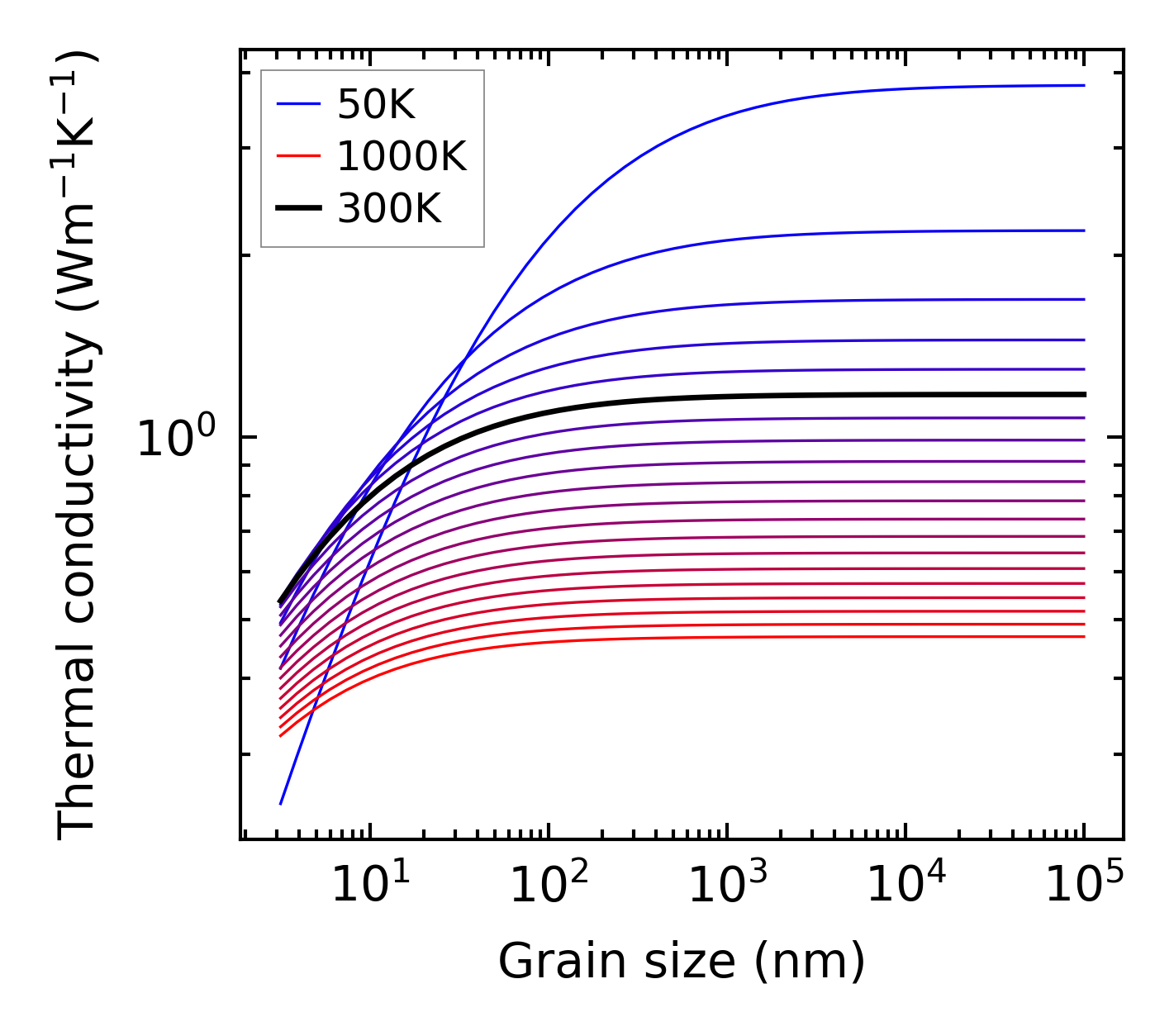

../../_images/fig_kappa_vs_grain_size1545.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

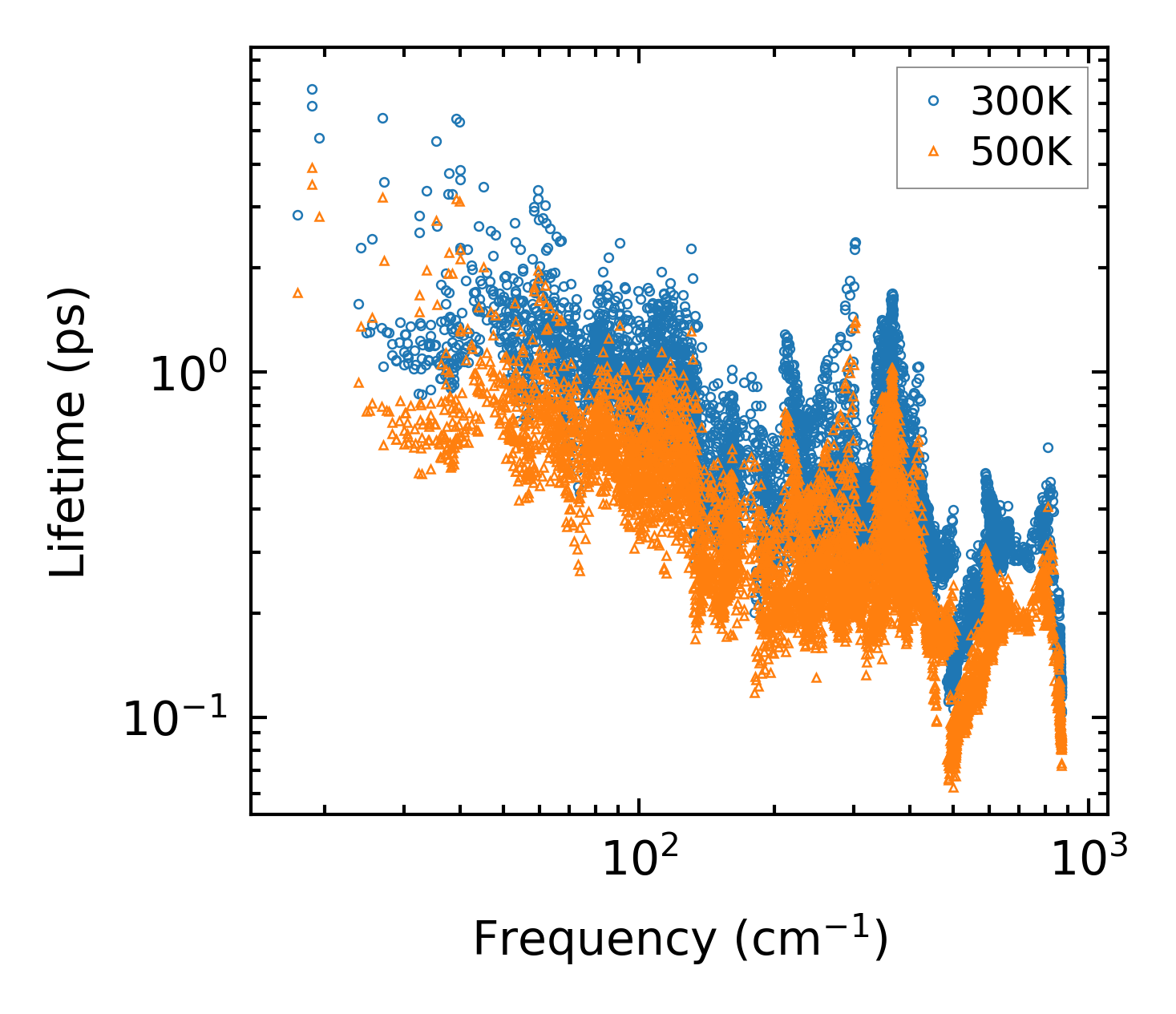

../../_images/fig_lifetime1516.png — (a) Phonon lifetime due to phonon-phonon scattering

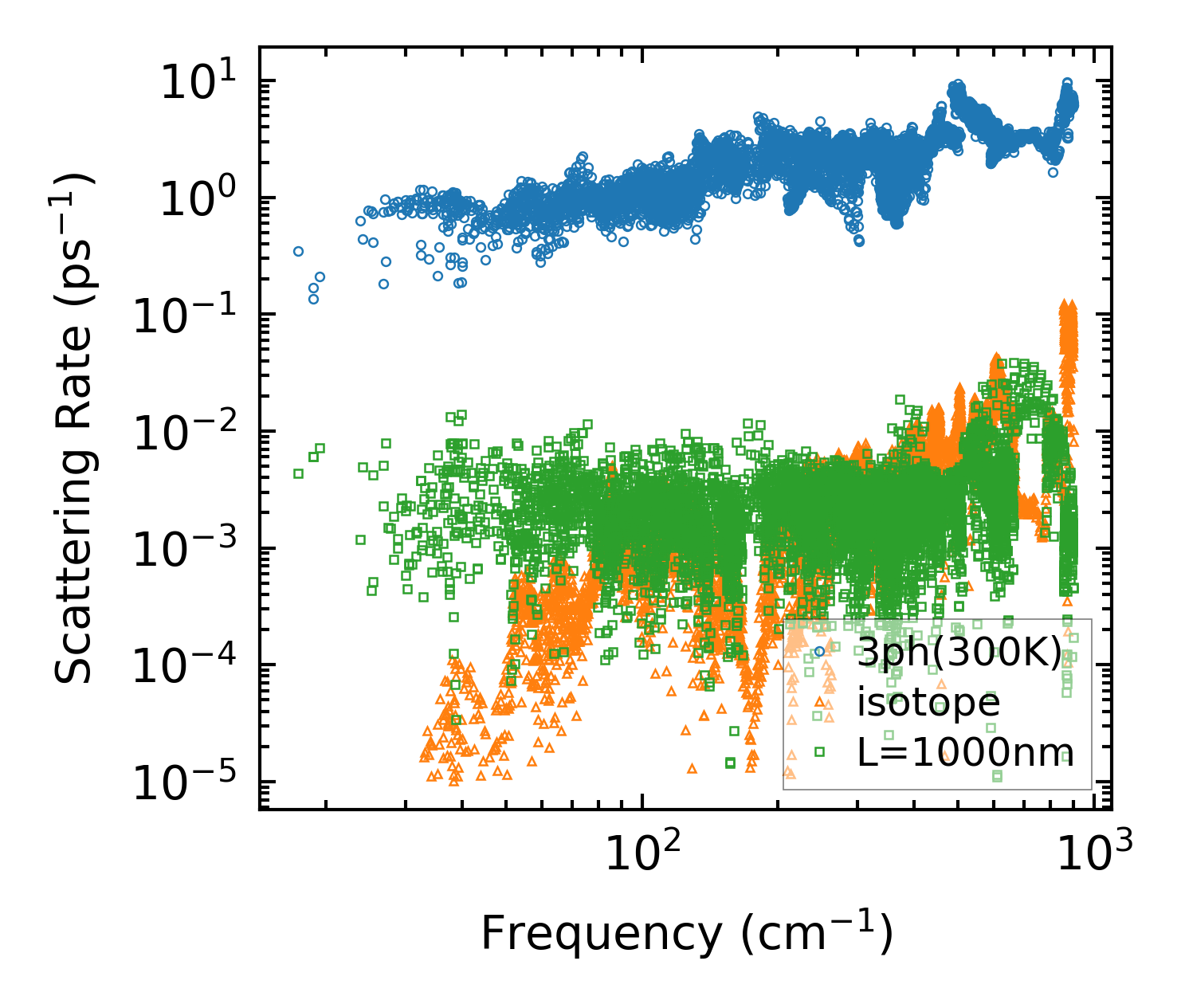

../../_images/fig_scat_rates1515.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency1516.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp1516.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

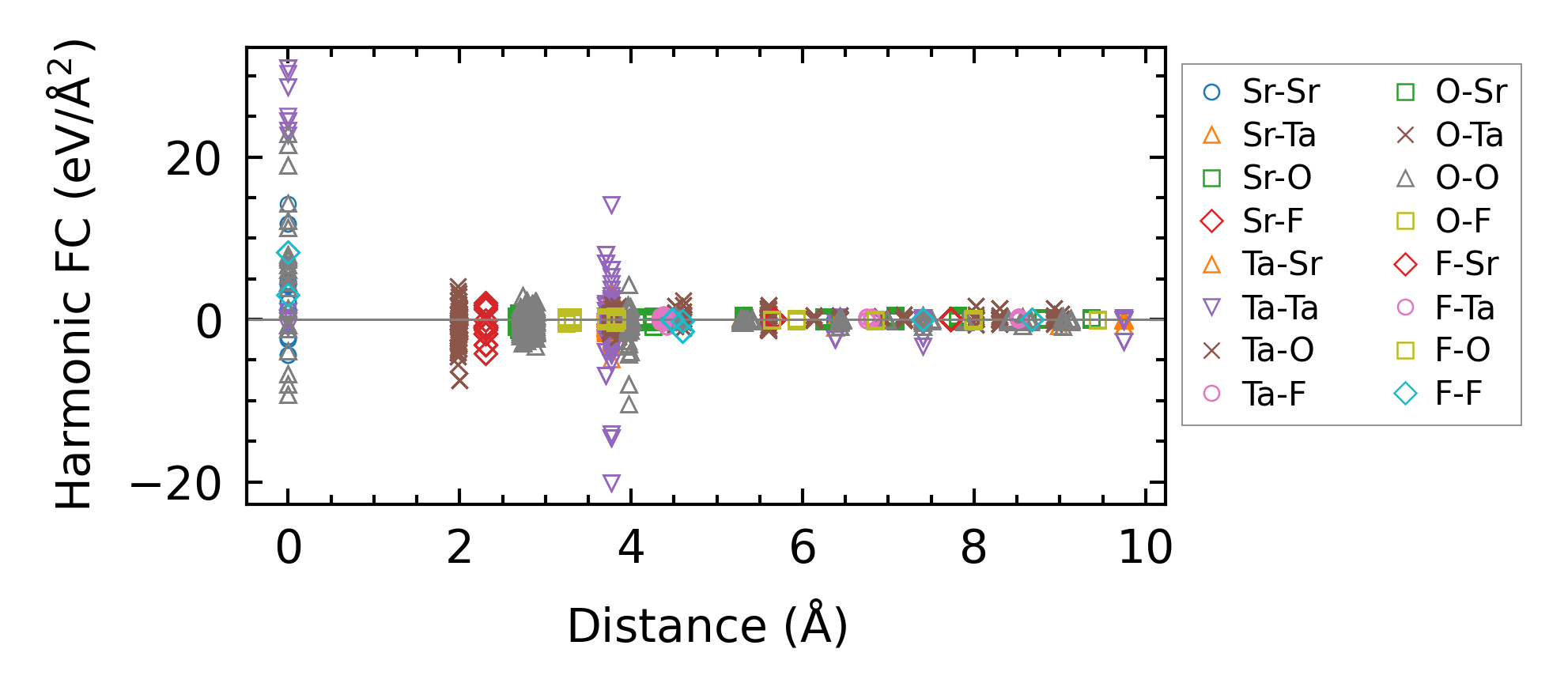

../../_images/fig_fc23181.png — (a) Force constants w.r.t atomic distance

Summary

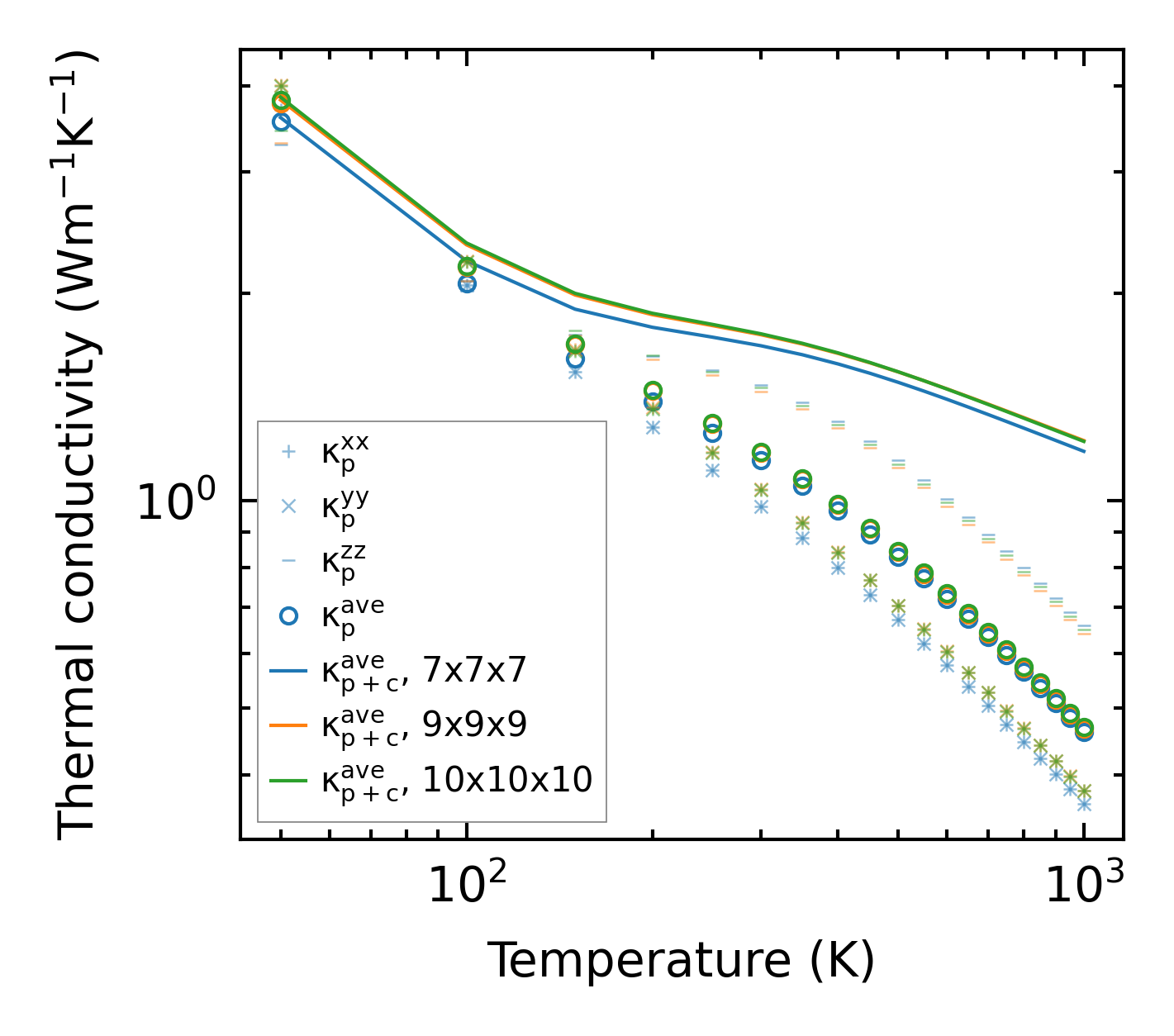

../../_images/fig_kappa2935.png — (a) Temperature-dependent lattice thermal conductivity

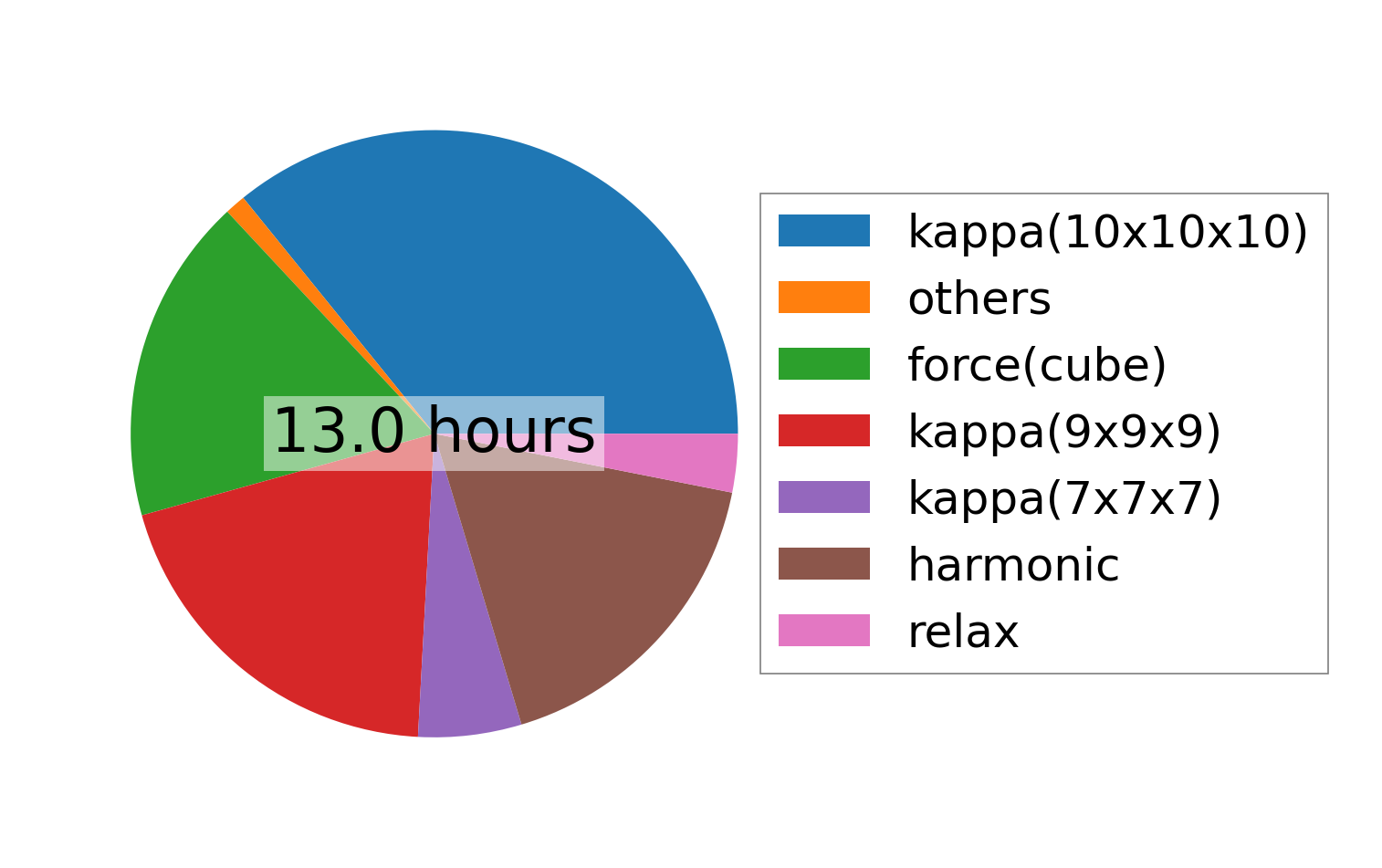

../../_images/fig_times5838.png — (b) Computation time
