mp-756313/CaPbI4/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-756313.tar.gz

Harmonic properties

../../_images/fig_bandos_pr3279.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo3279.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all1499.png — (a) Grüneisen parameters

../../_images/fig_gruneisen1499.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x10x4, supercell: 2x3x1

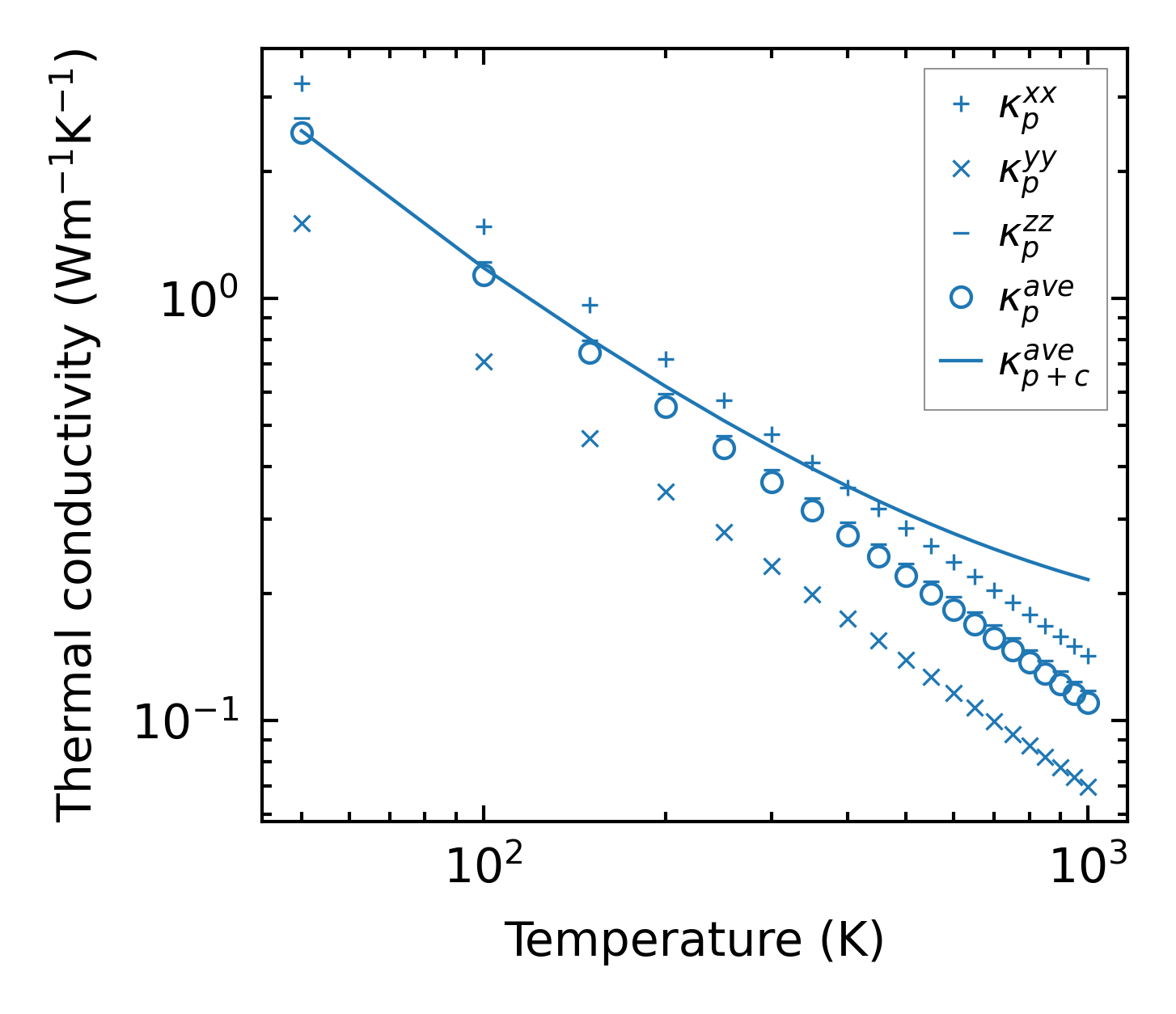

../../_images/fig_kappa2883.png — (a) Temperature-dependent lattice thermal conductivity

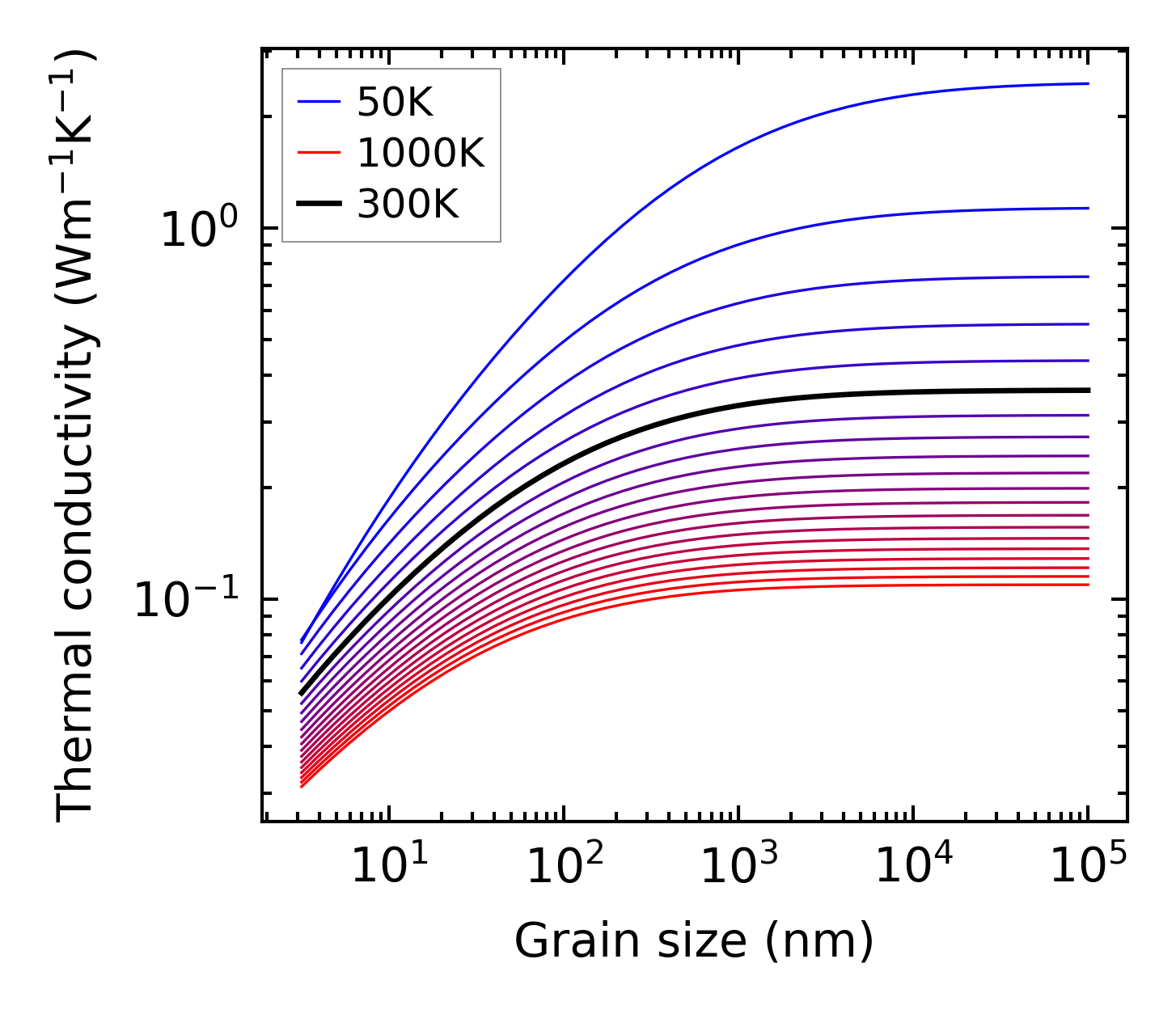

../../_images/fig_kappa_vs_grain_size1516.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

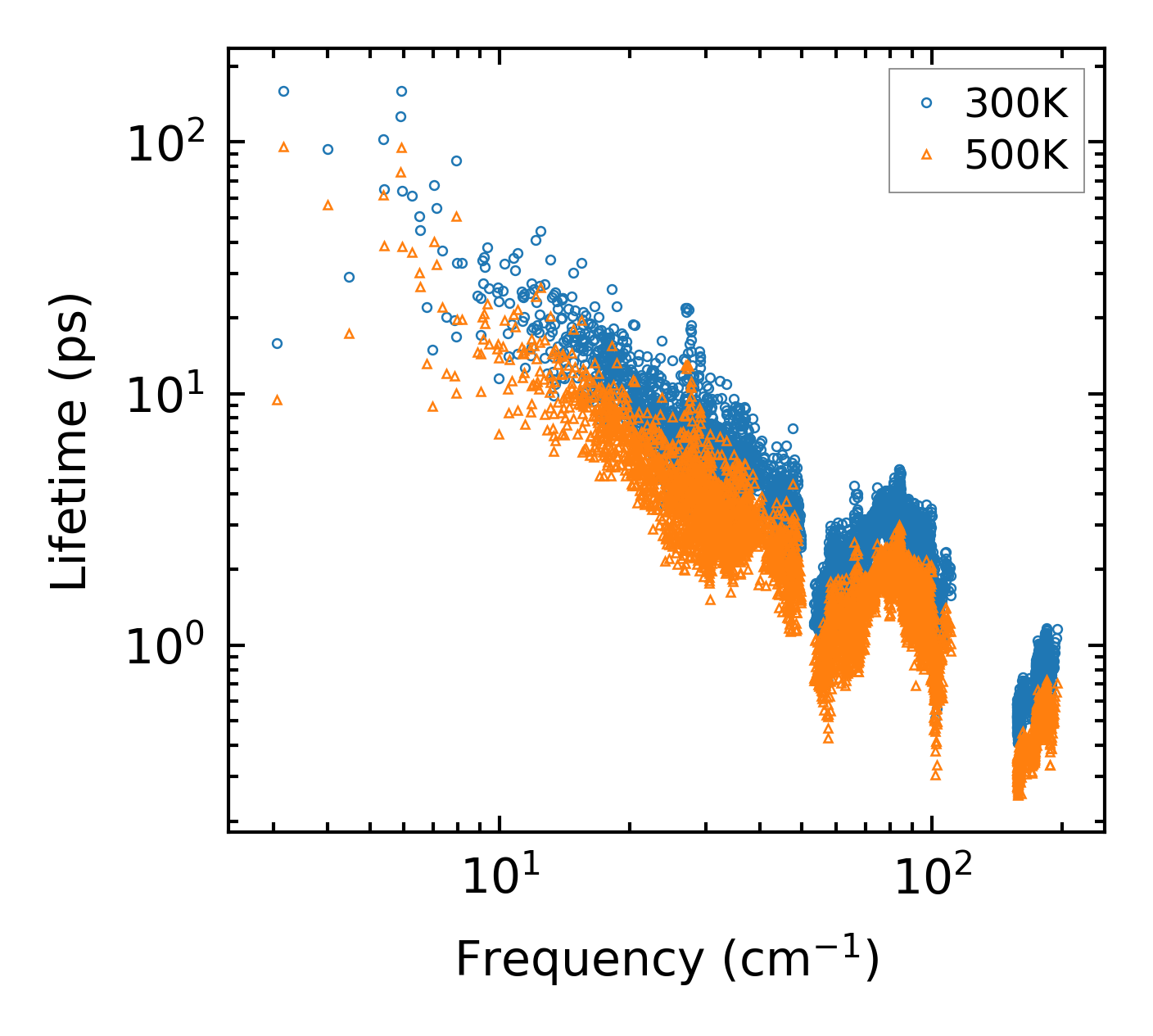

../../_images/fig_lifetime1489.png — (a) Phonon lifetime due to phonon-phonon scattering

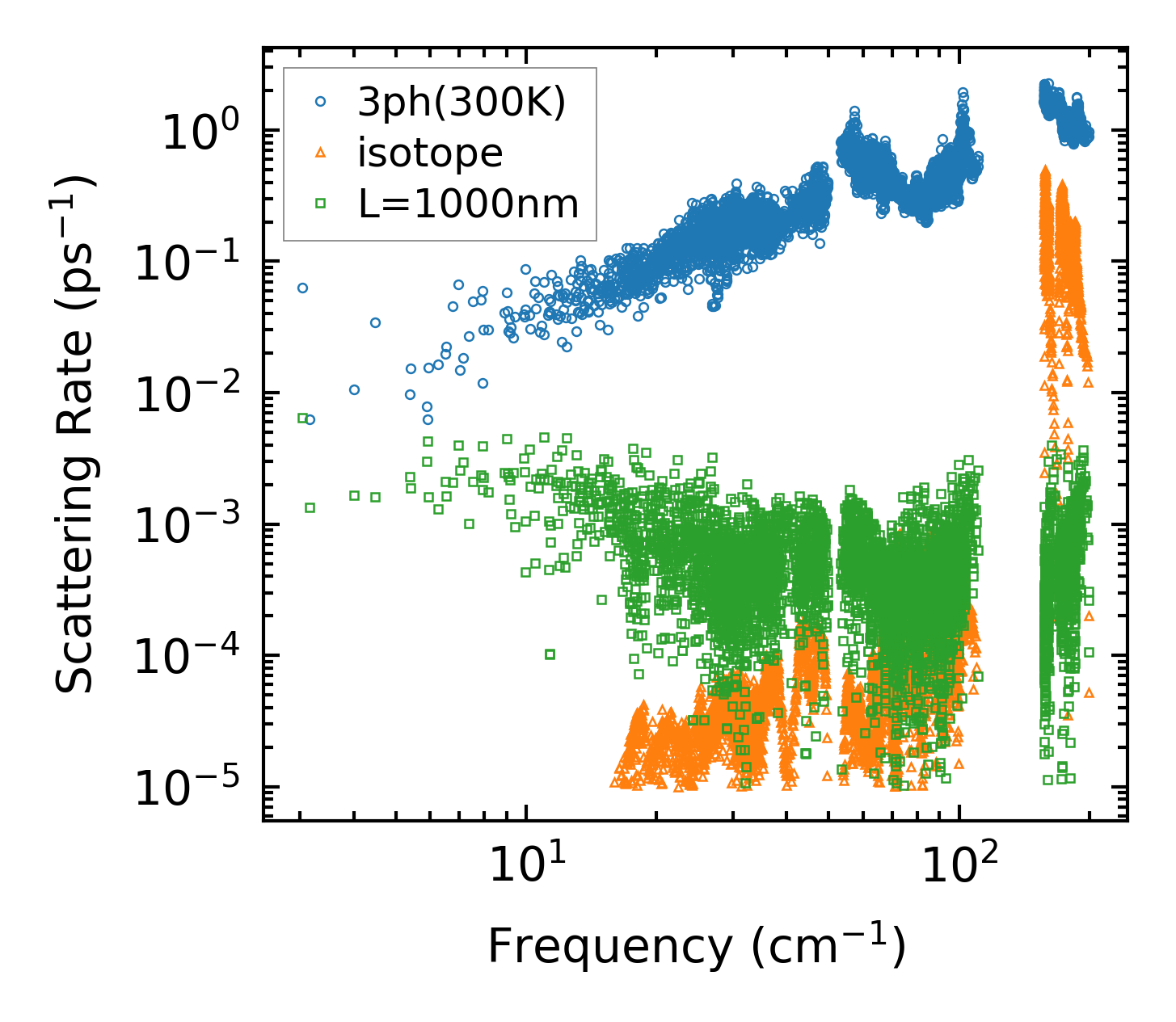

../../_images/fig_scat_rates1488.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

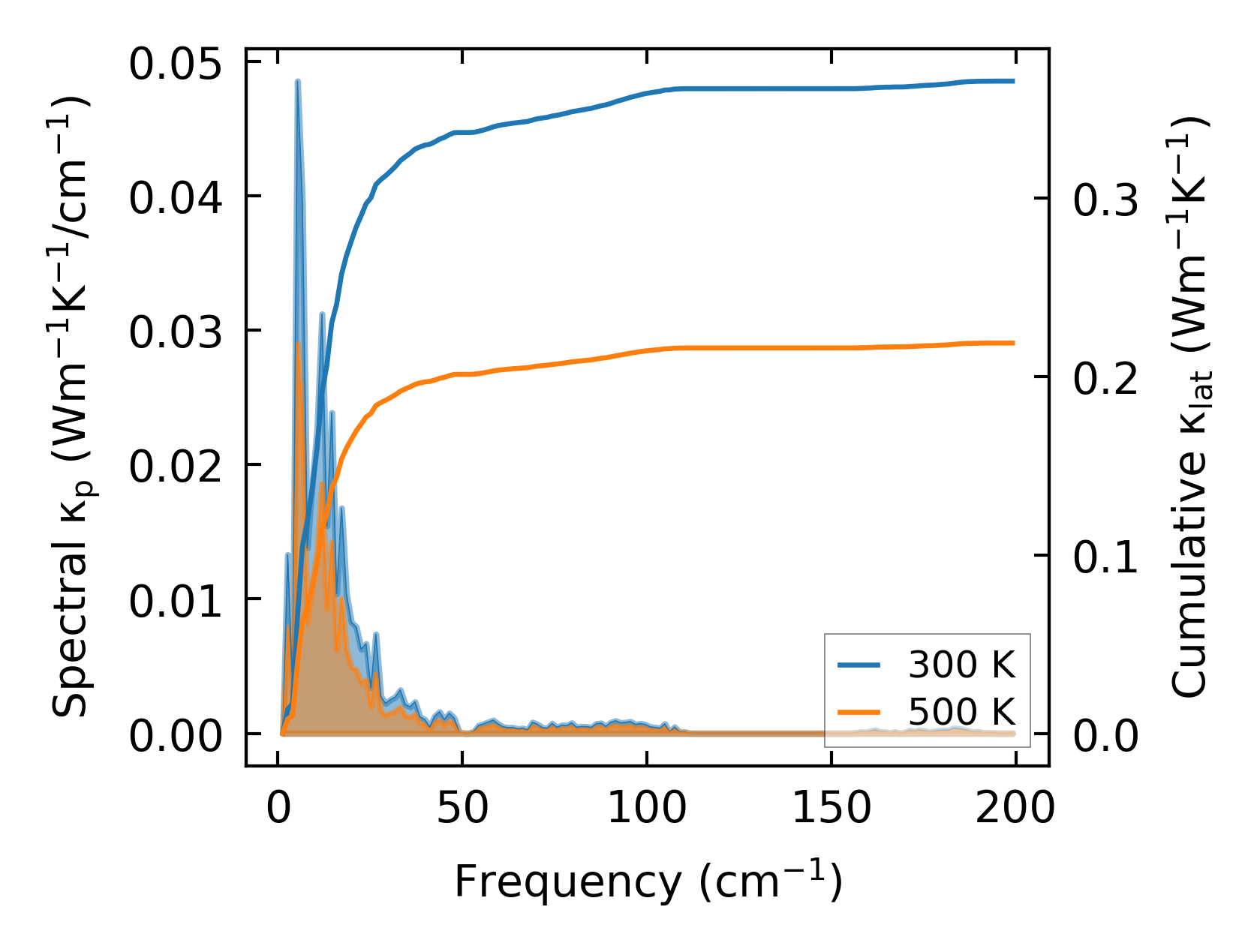

../../_images/fig_cumu_frequency1489.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

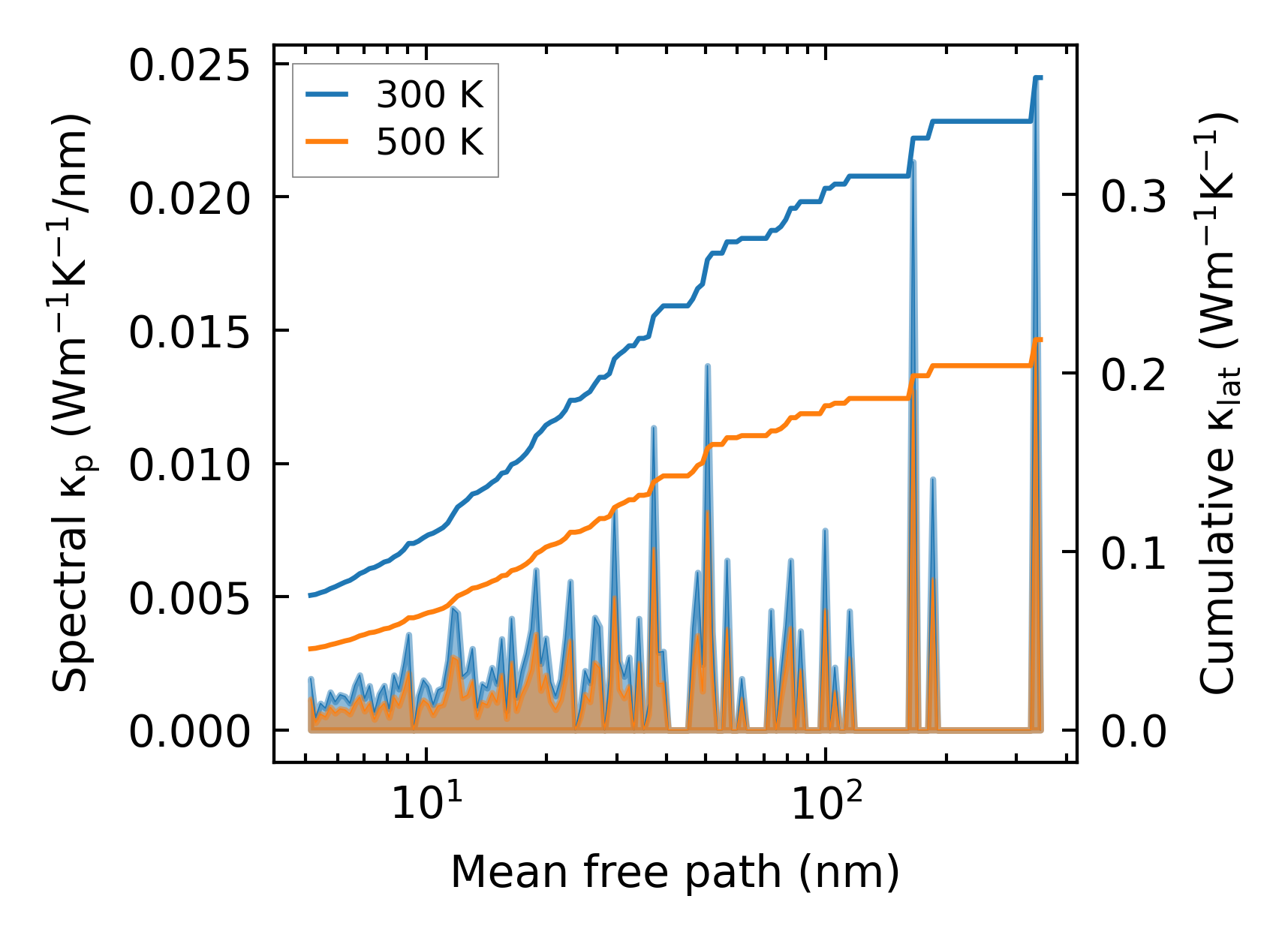

../../_images/fig_cumu_mfp1489.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

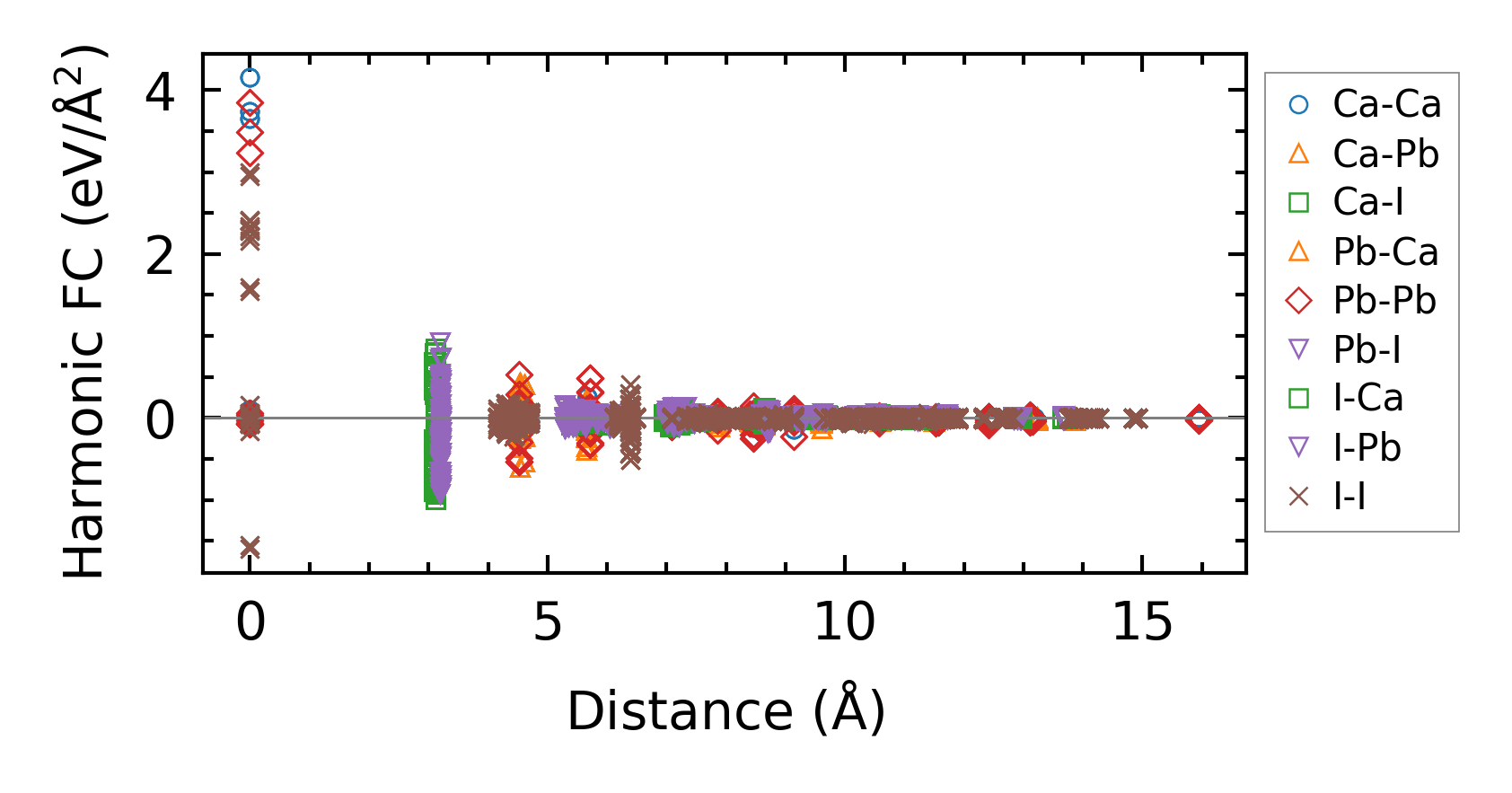

../../_images/fig_fc23098.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa2884.png — (a) Temperature-dependent lattice thermal conductivity

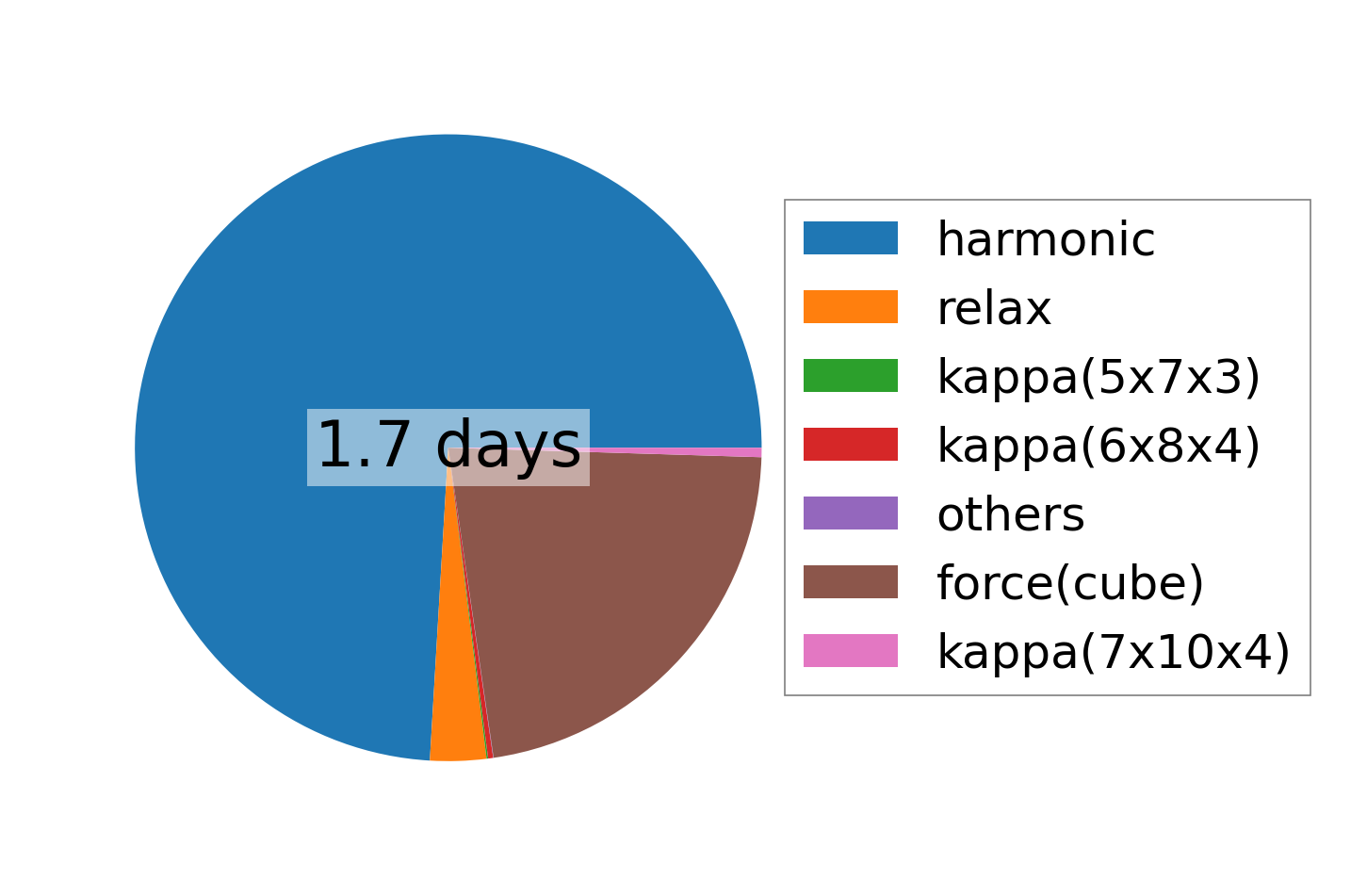

../../_images/fig_times5680.png — (b) Computation time
