mp-752730/Ba2GeO4/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-752730.tar.gz

Harmonic properties

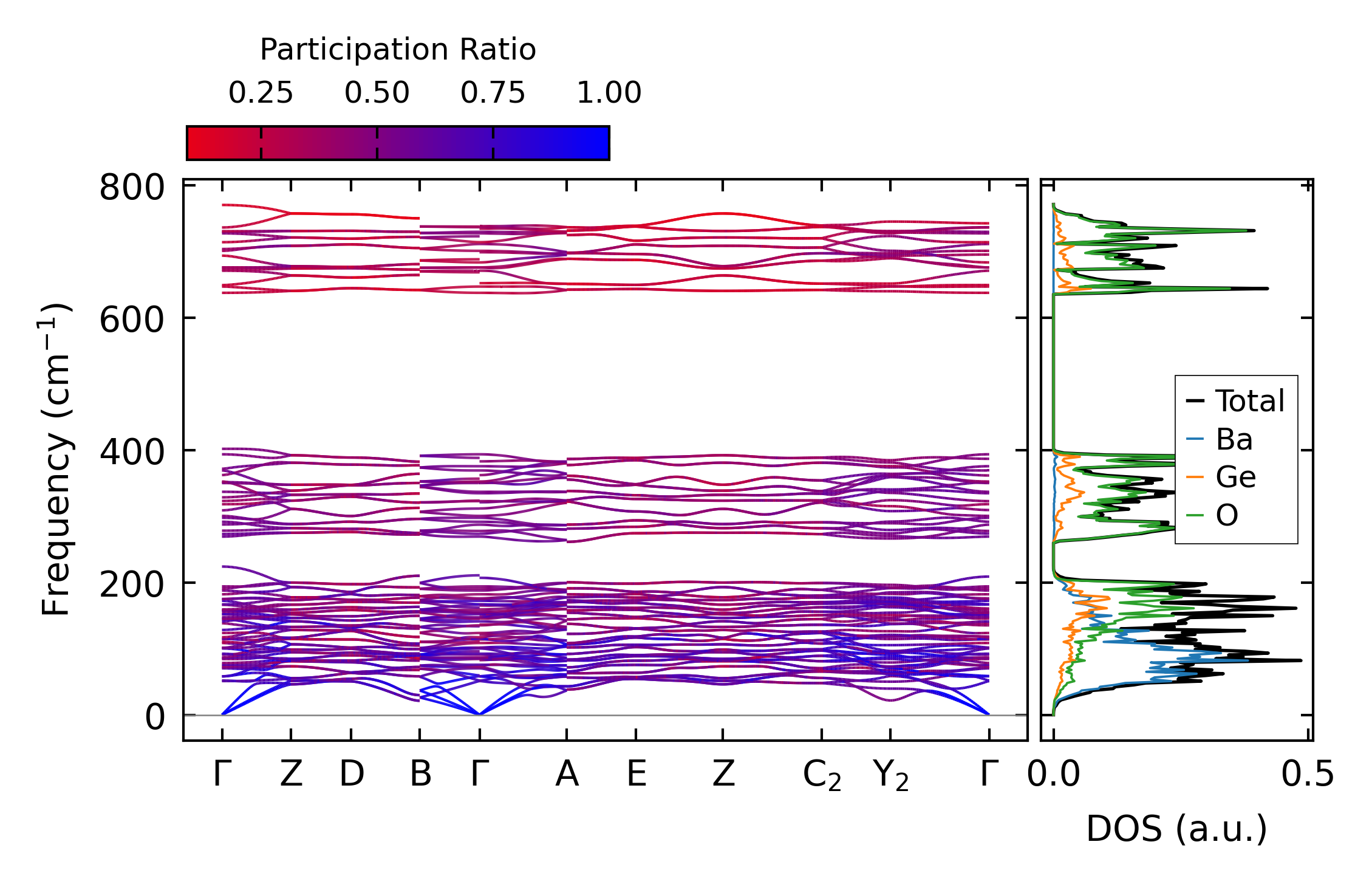

../../_images/fig_bandos_pr3946.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo3946.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all1781.png — (a) Grüneisen parameters

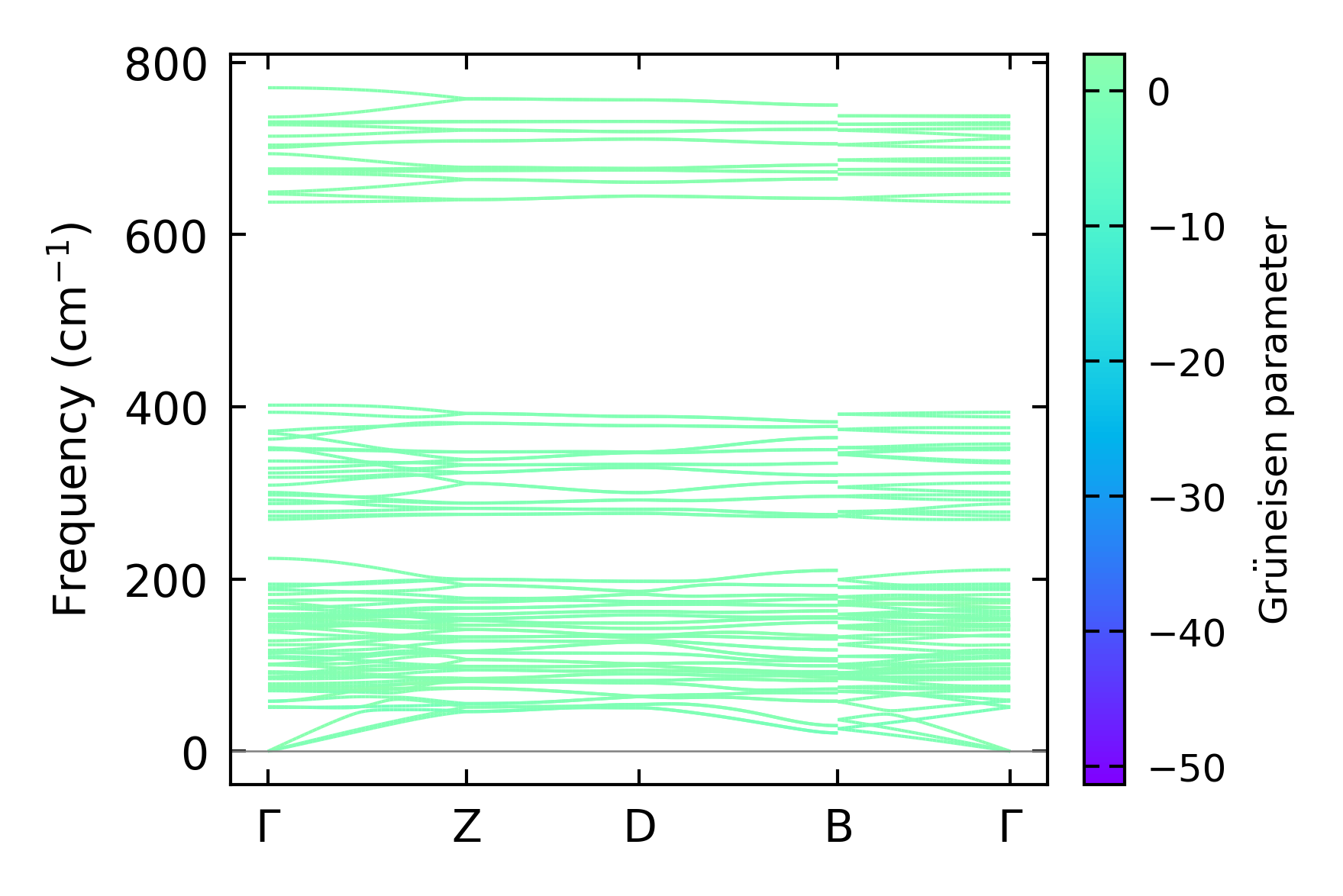

../../_images/fig_gruneisen1781.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x9x6, supercell: 2x2x1

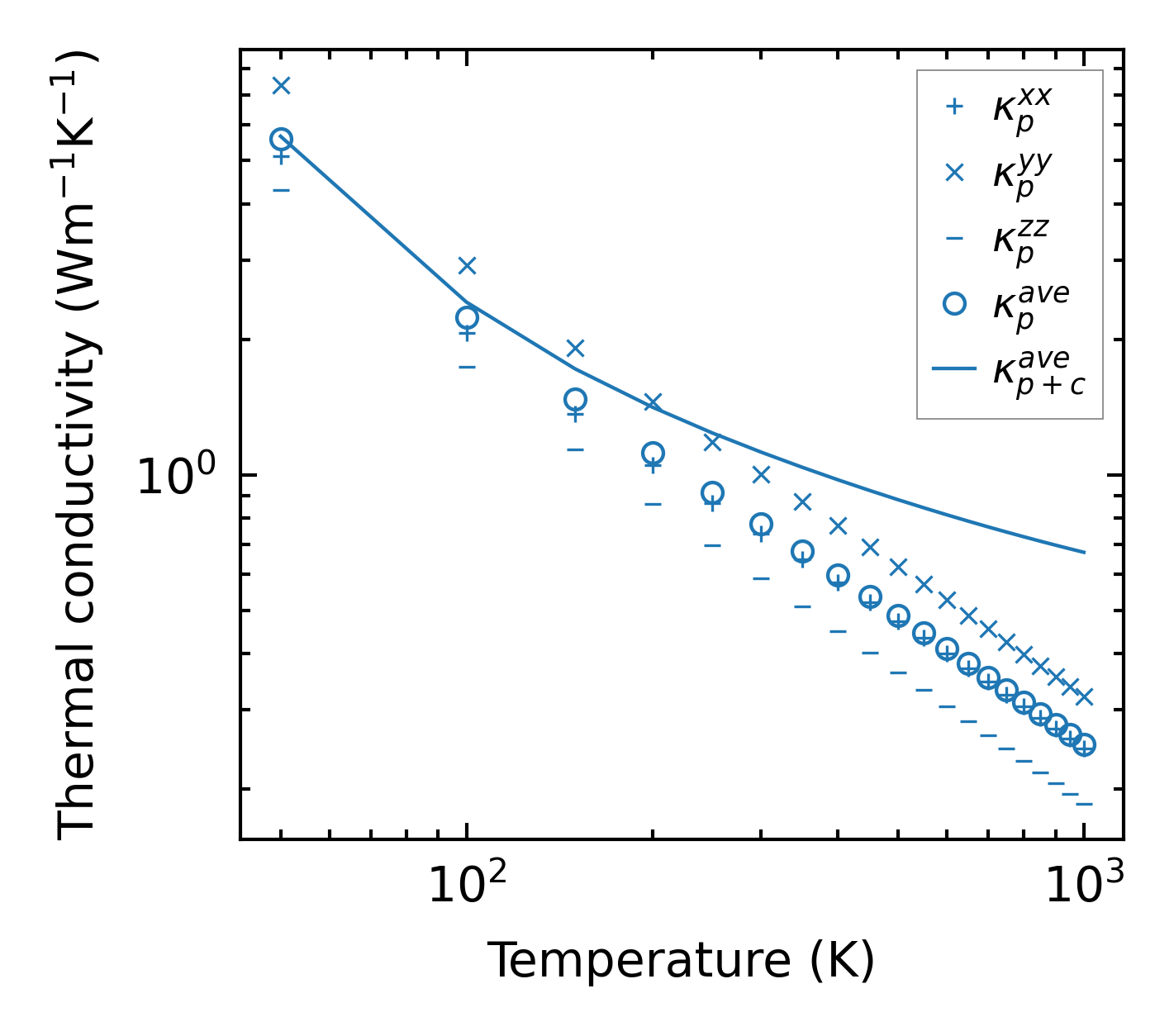

../../_images/fig_kappa3422.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size1809.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

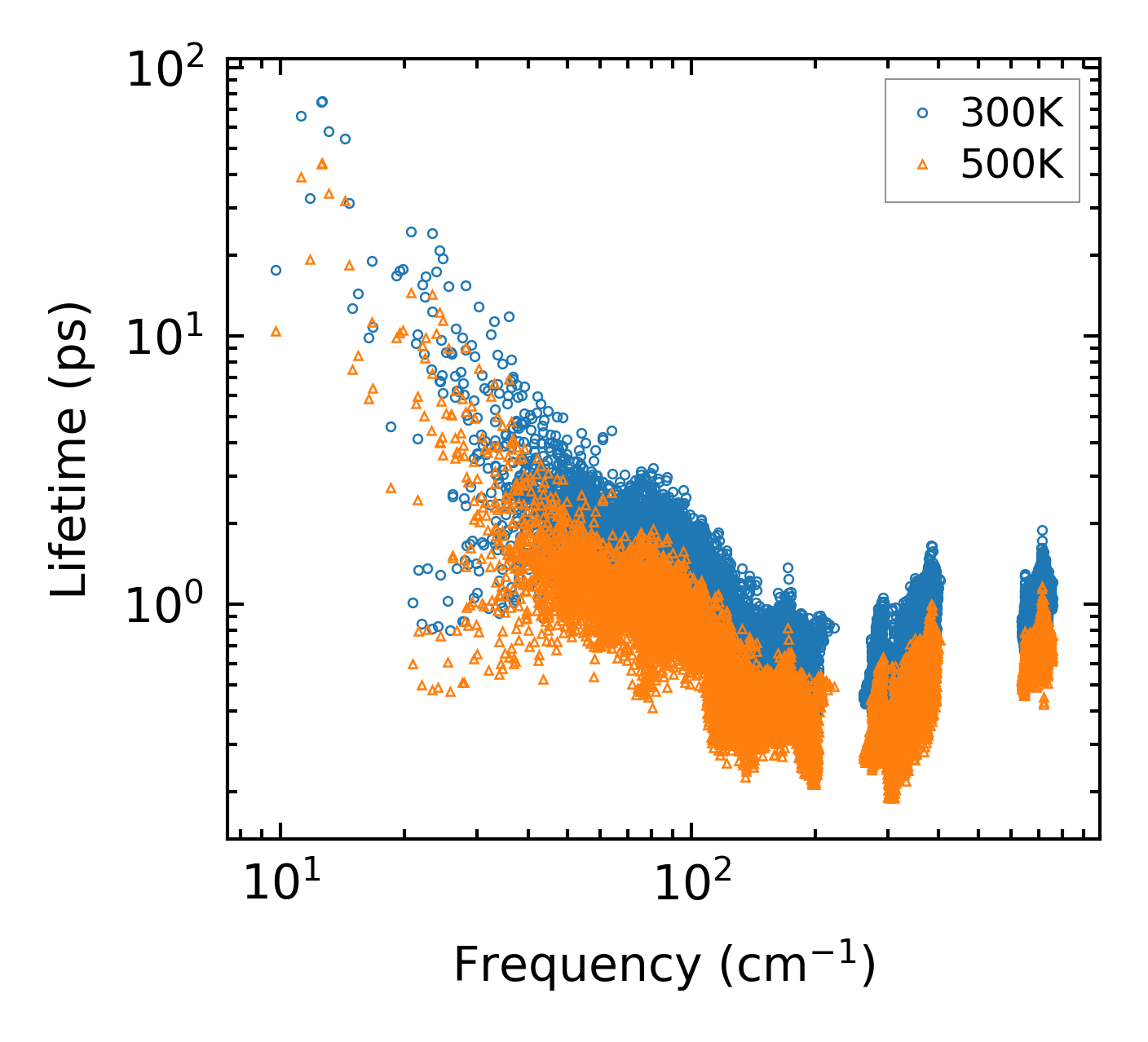

../../_images/fig_lifetime1771.png — (a) Phonon lifetime due to phonon-phonon scattering

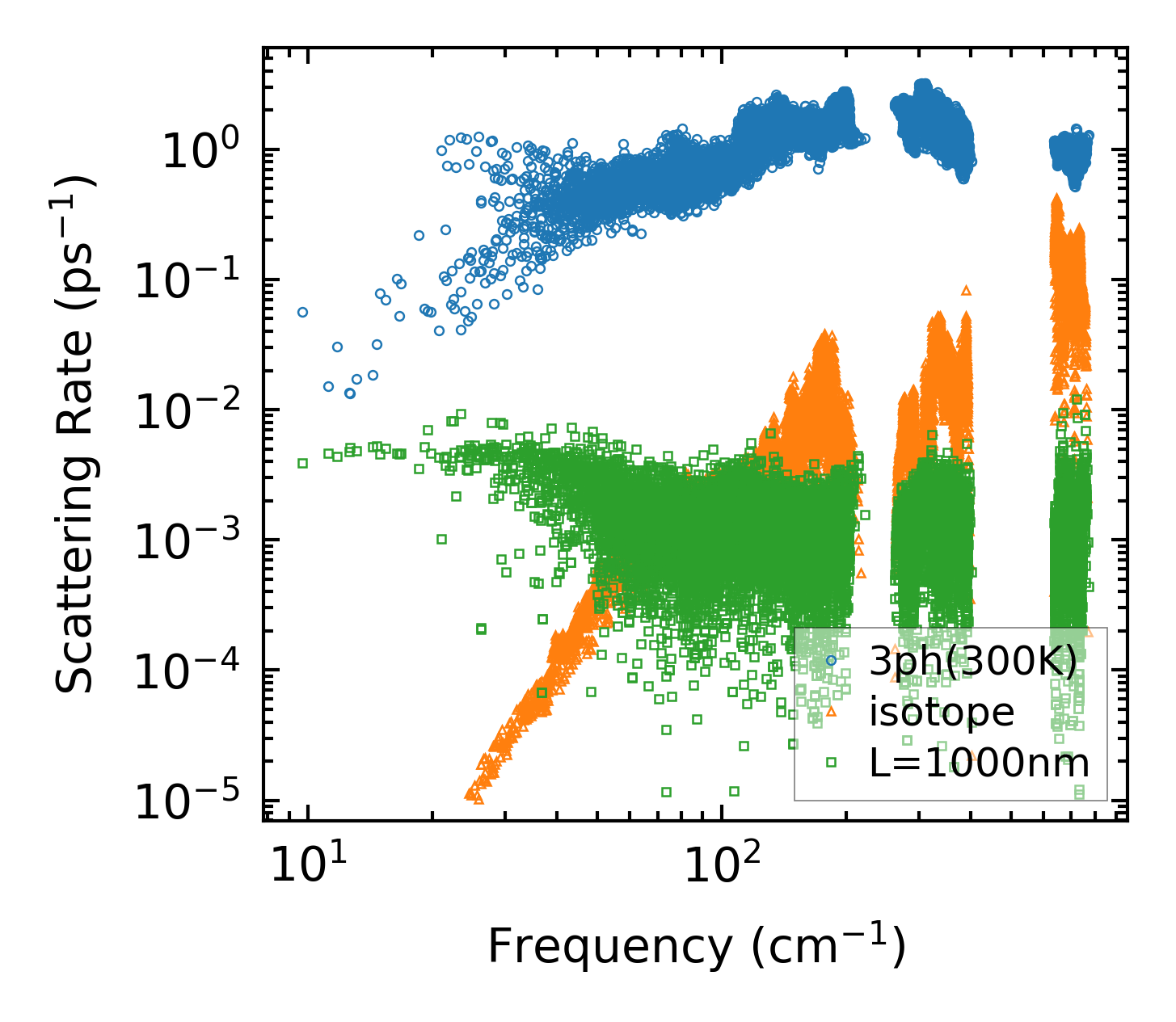

../../_images/fig_scat_rates1770.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

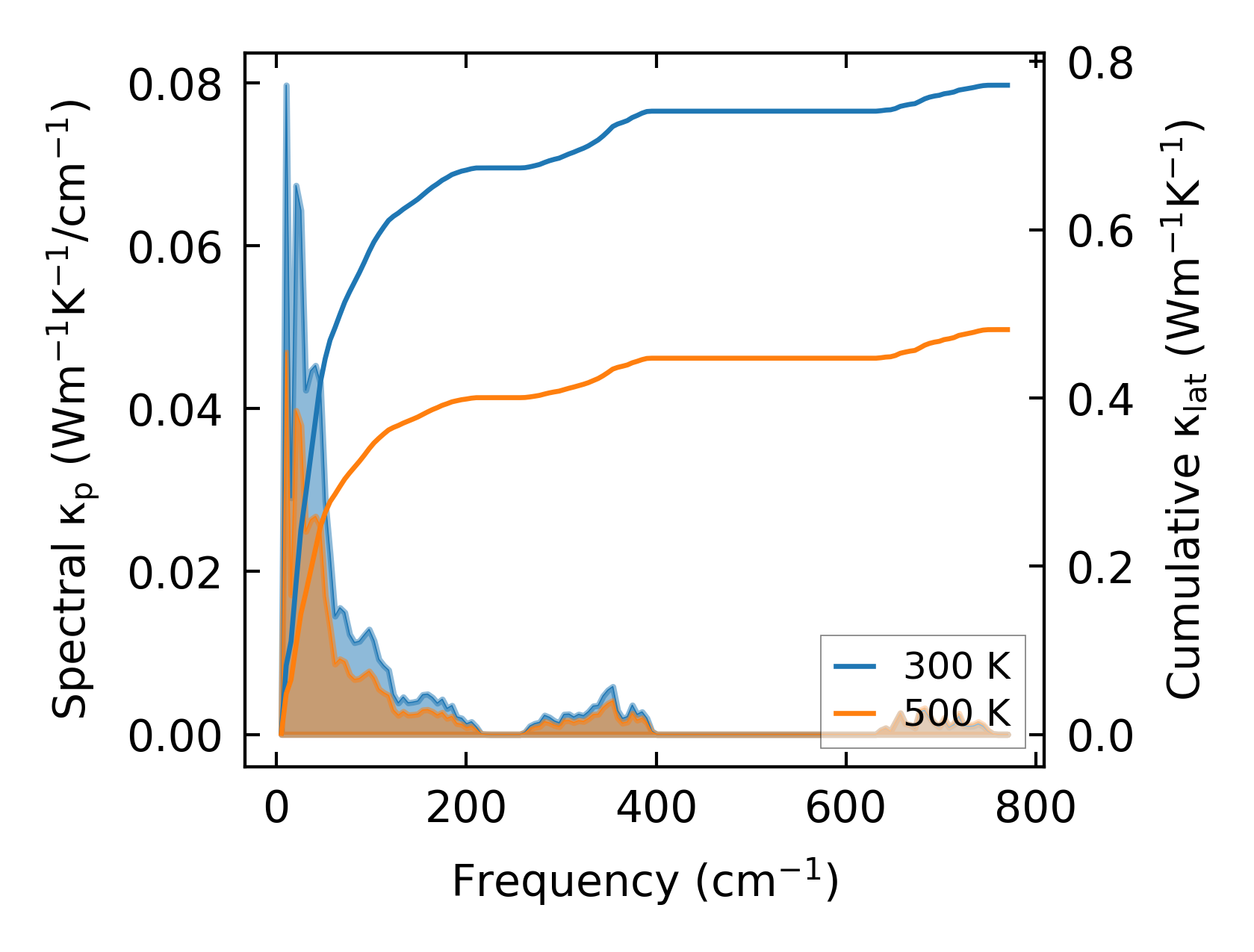

../../_images/fig_cumu_frequency1771.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

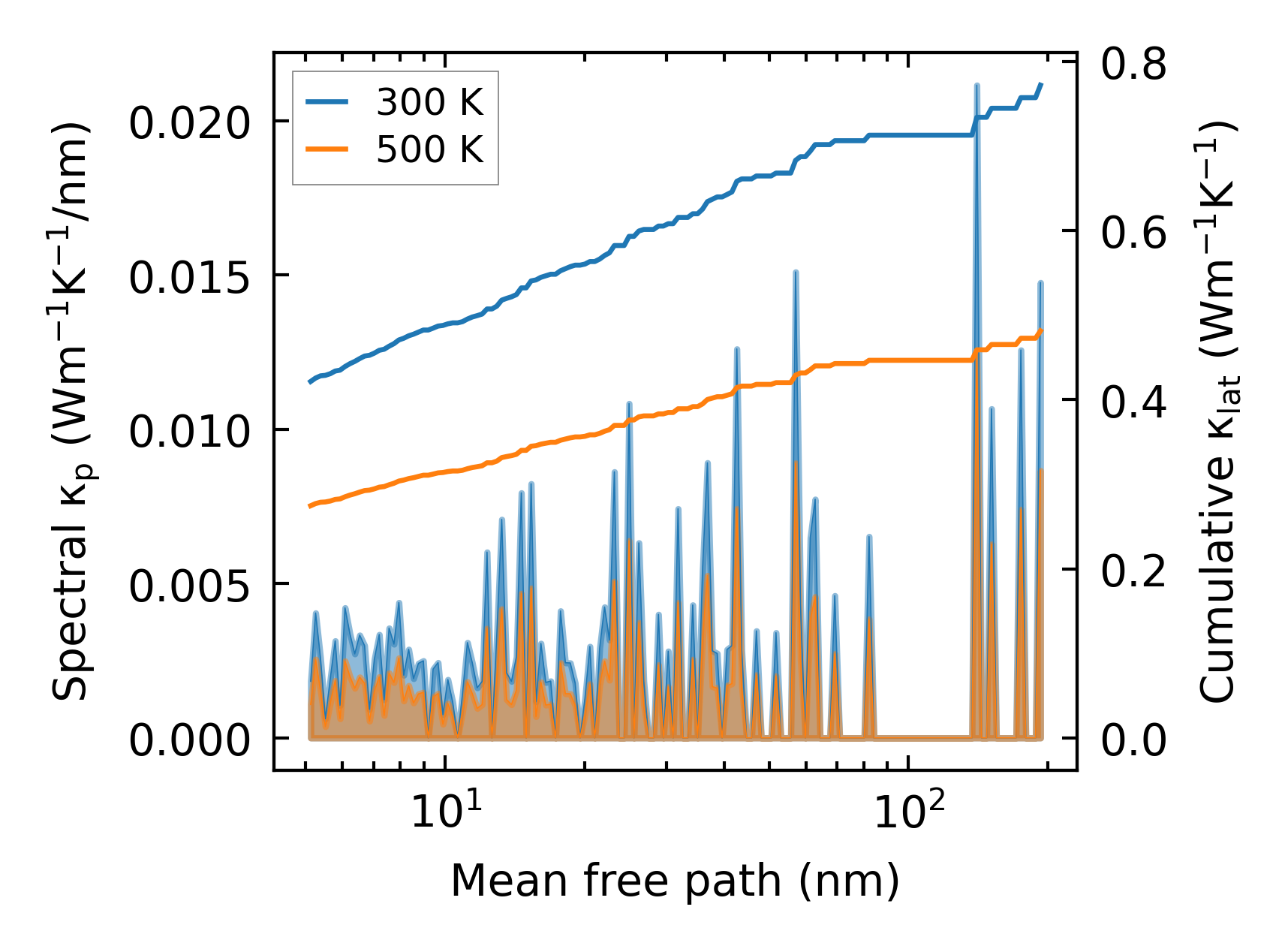

../../_images/fig_cumu_mfp1771.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

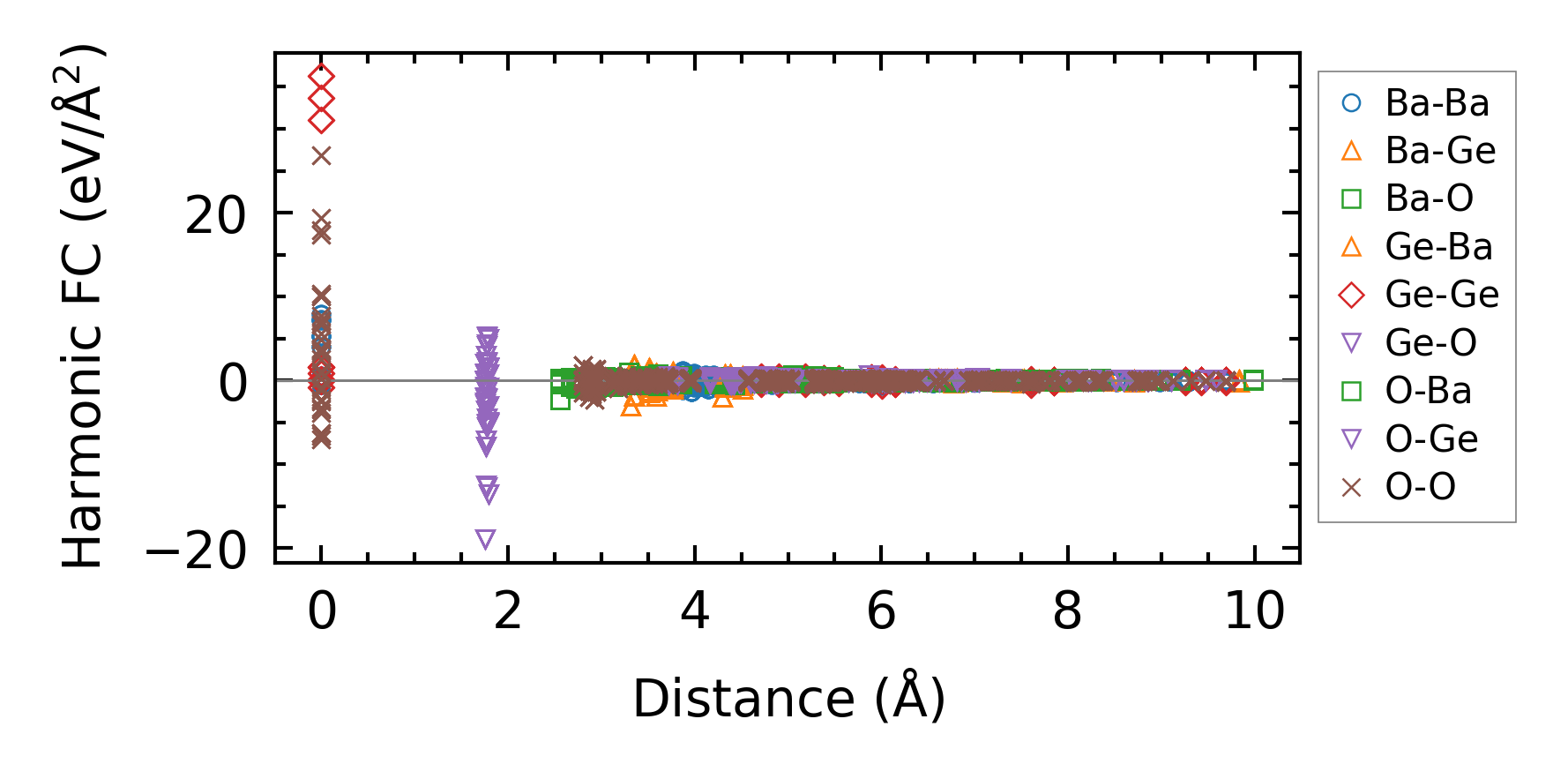

../../_images/fig_fc23759.png — (a) Force constants w.r.t atomic distance

Summary

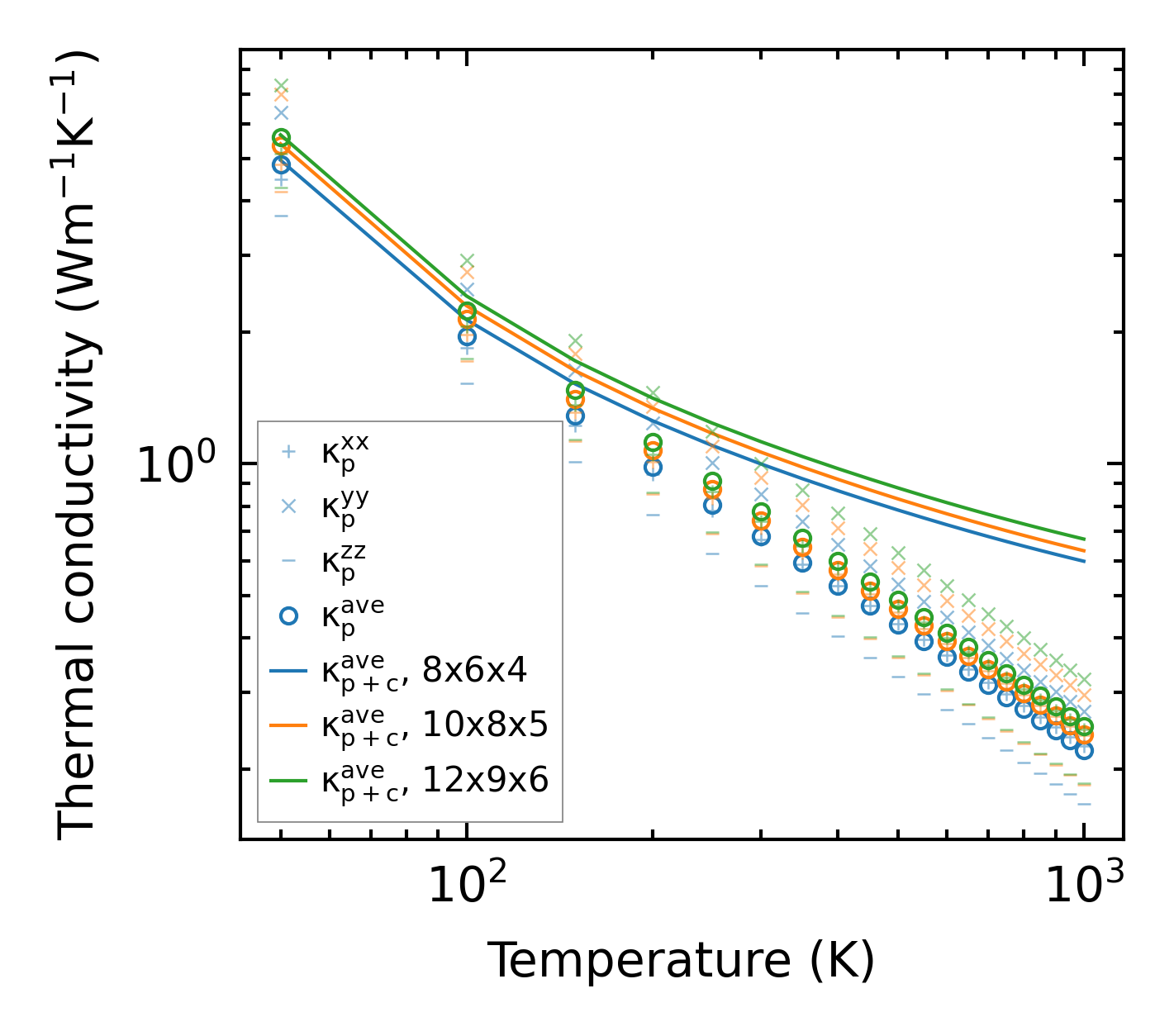

../../_images/fig_kappa3423.png — (a) Temperature-dependent lattice thermal conductivity

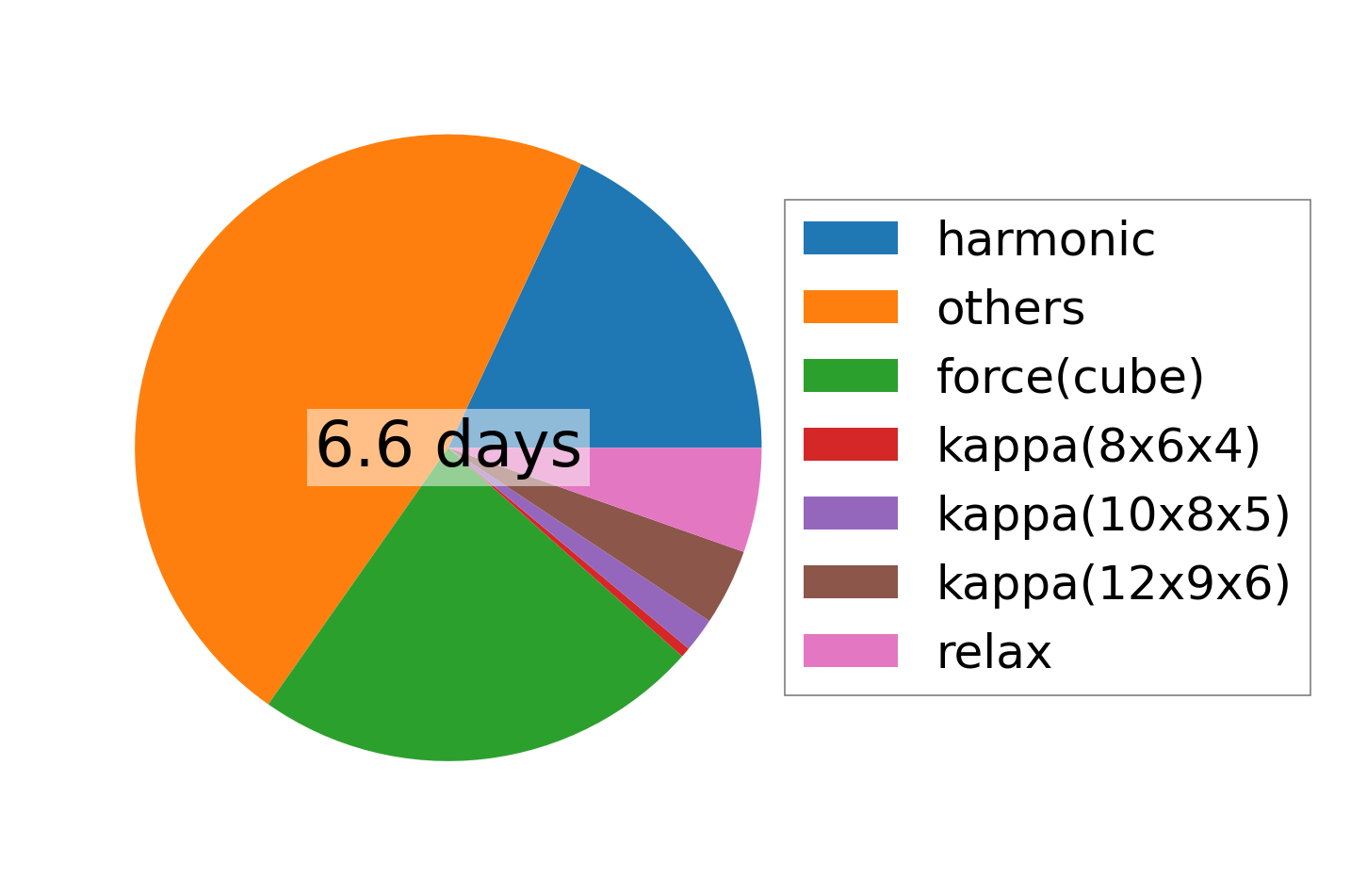

../../_images/fig_times6837.png — (b) Computation time
