mp-752684/BaTm2O4/anharm

Space group: Cmcm (63)
Link: Materials Project
Download: mp-752684.tar.gz

Harmonic properties

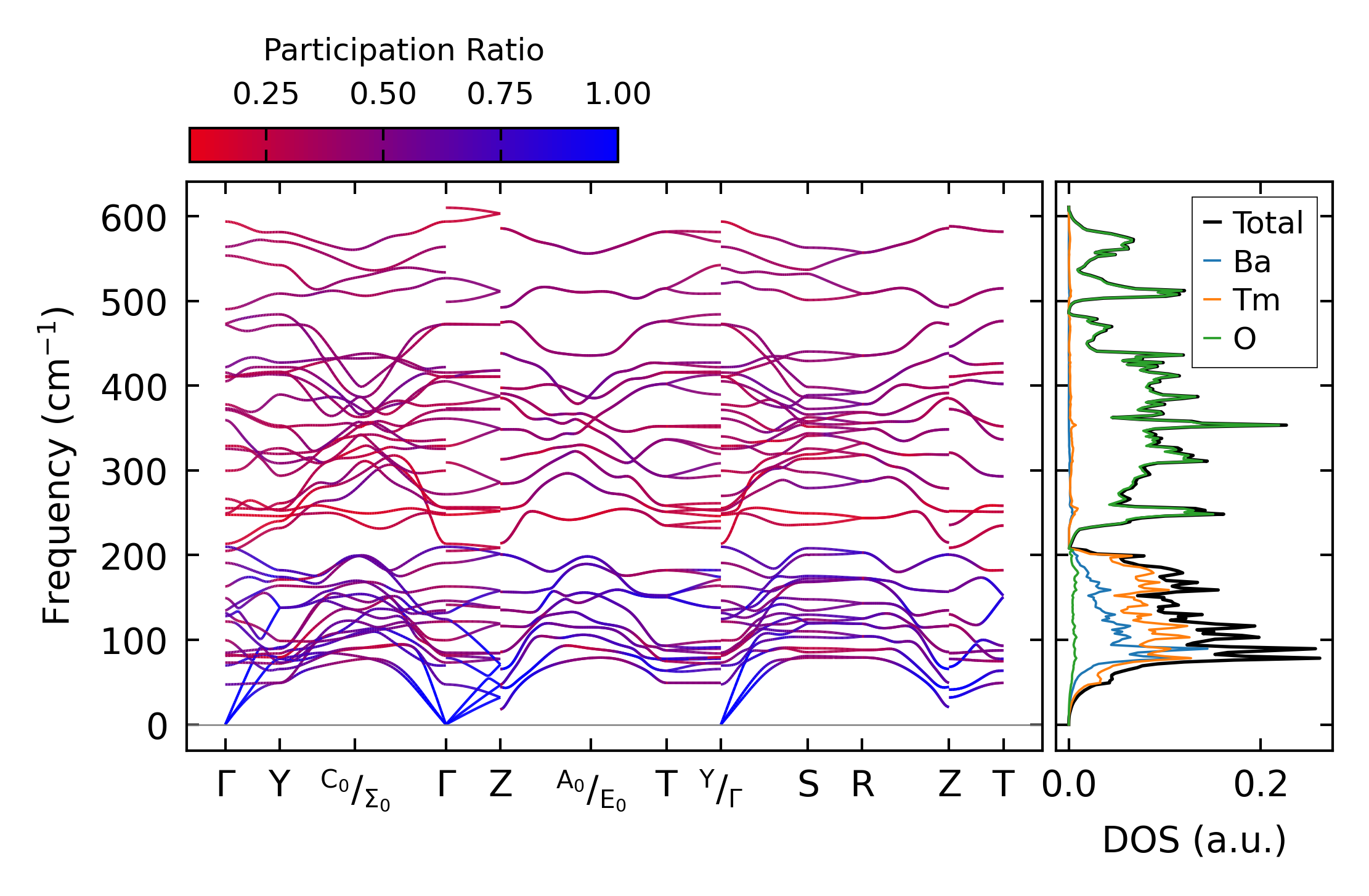

../../_images/fig_bandos_pr3938.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo3938.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all1778.png — (a) Grüneisen parameters

../../_images/fig_gruneisen1778.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 15x15x7, supercell: 4x1x1

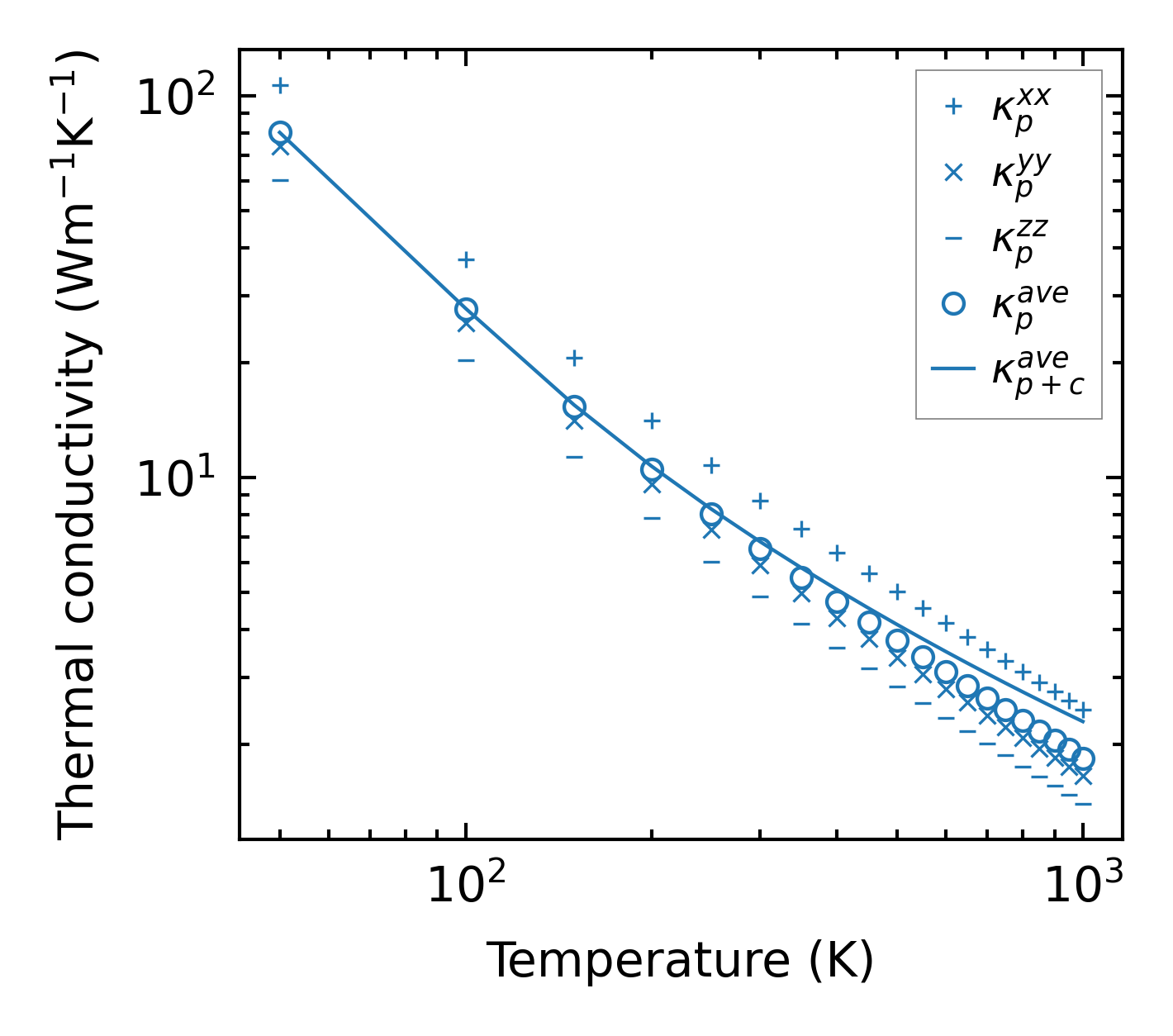

../../_images/fig_kappa3416.png — (a) Temperature-dependent lattice thermal conductivity

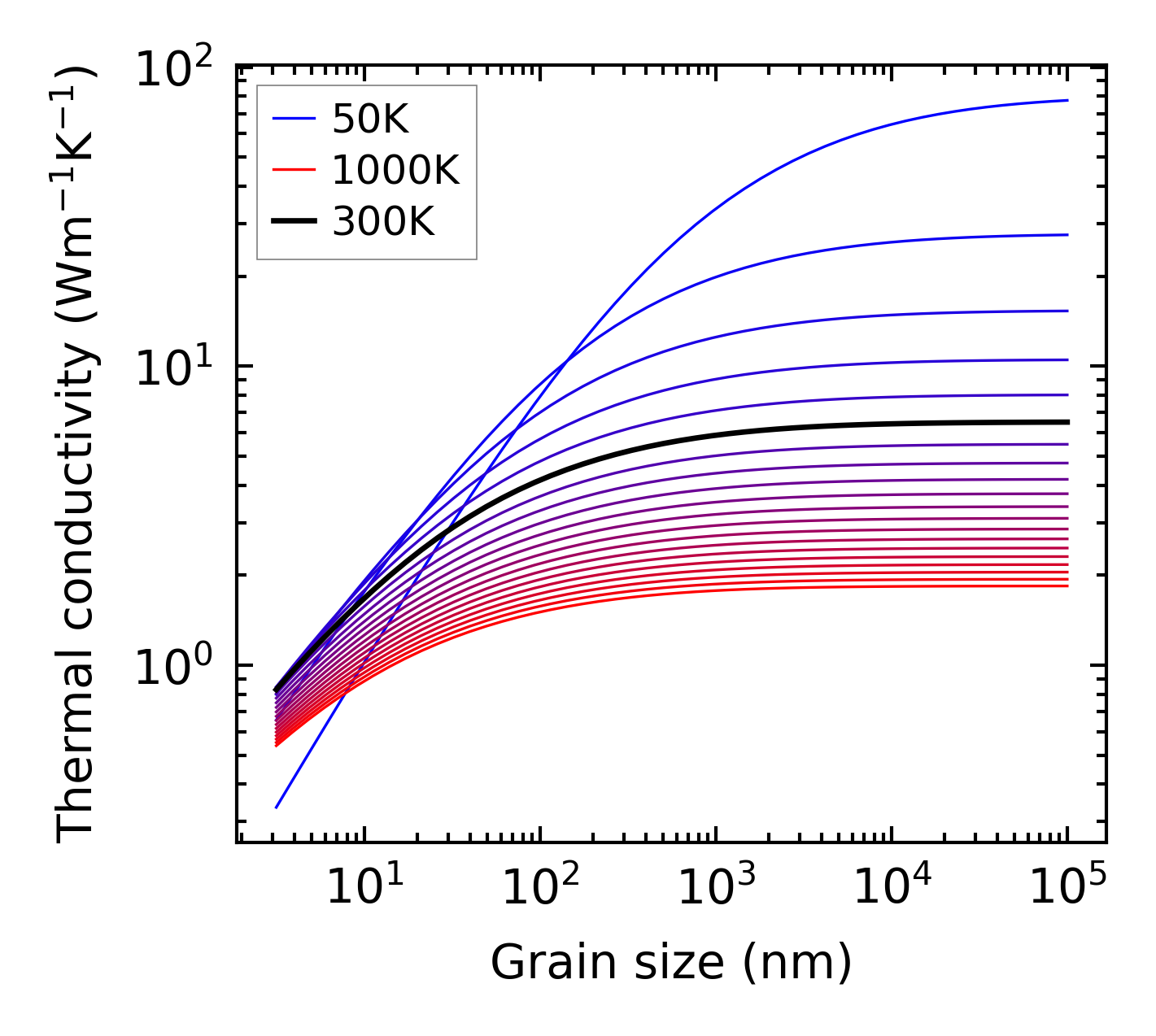

../../_images/fig_kappa_vs_grain_size1806.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

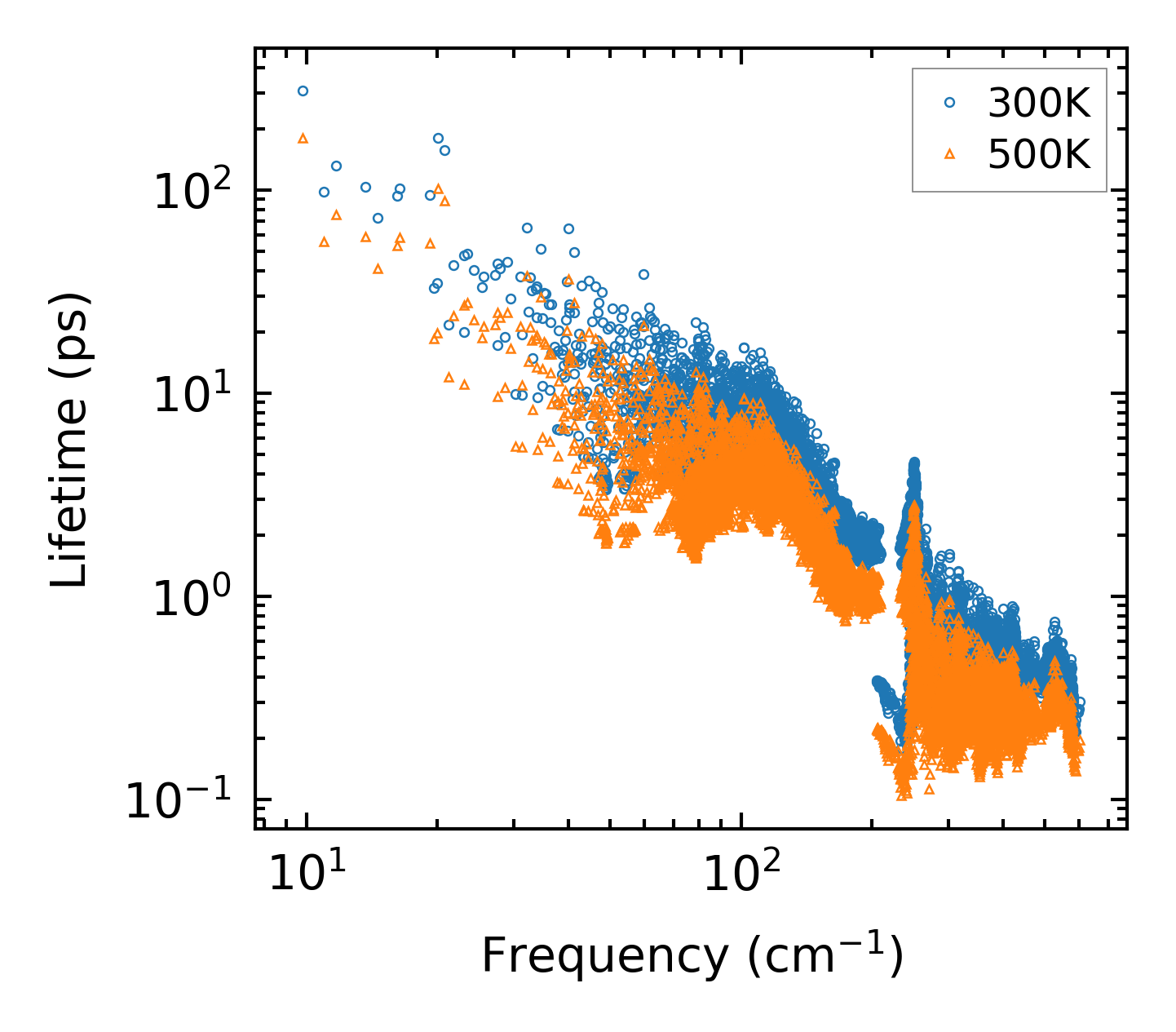

../../_images/fig_lifetime1768.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates1767.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency1768.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

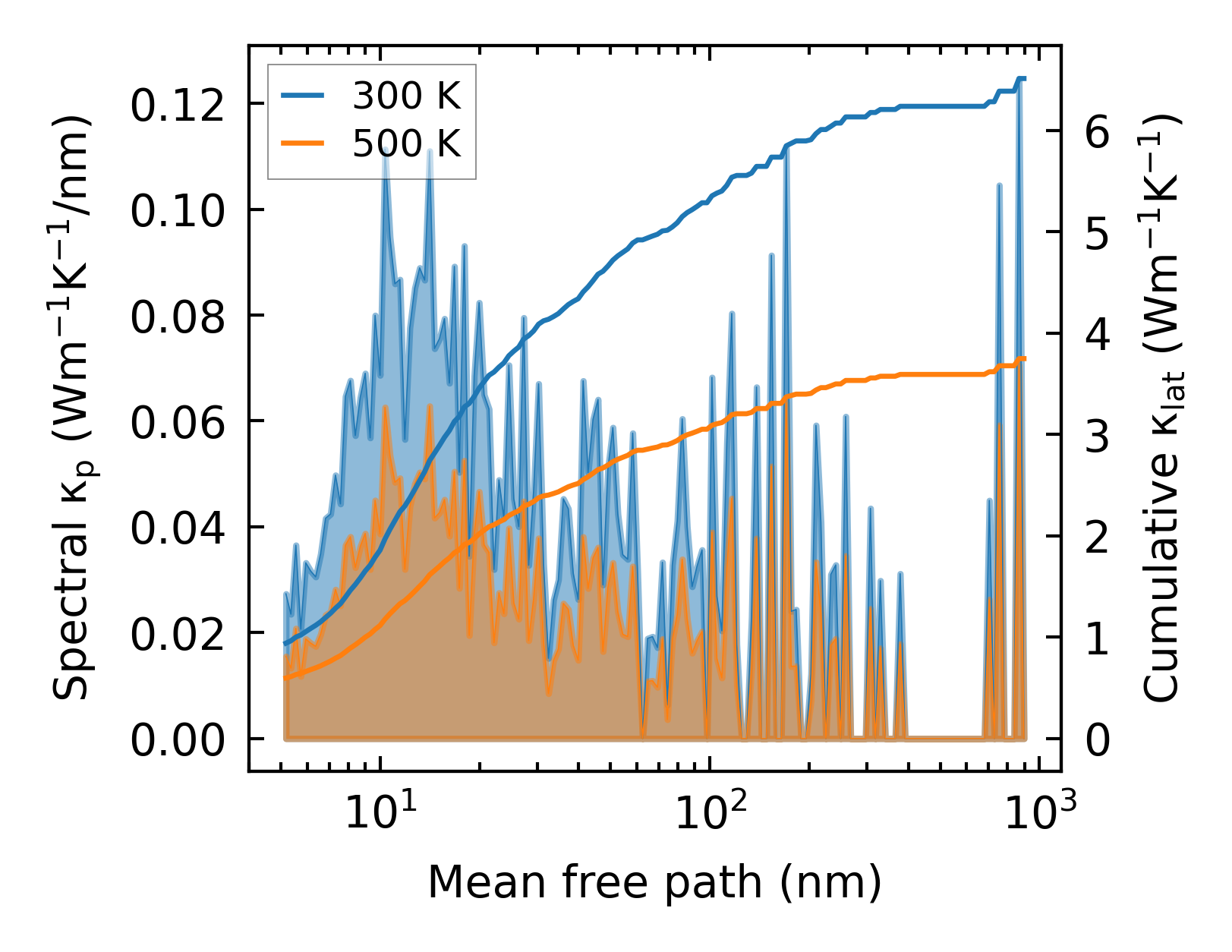

../../_images/fig_cumu_mfp1768.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

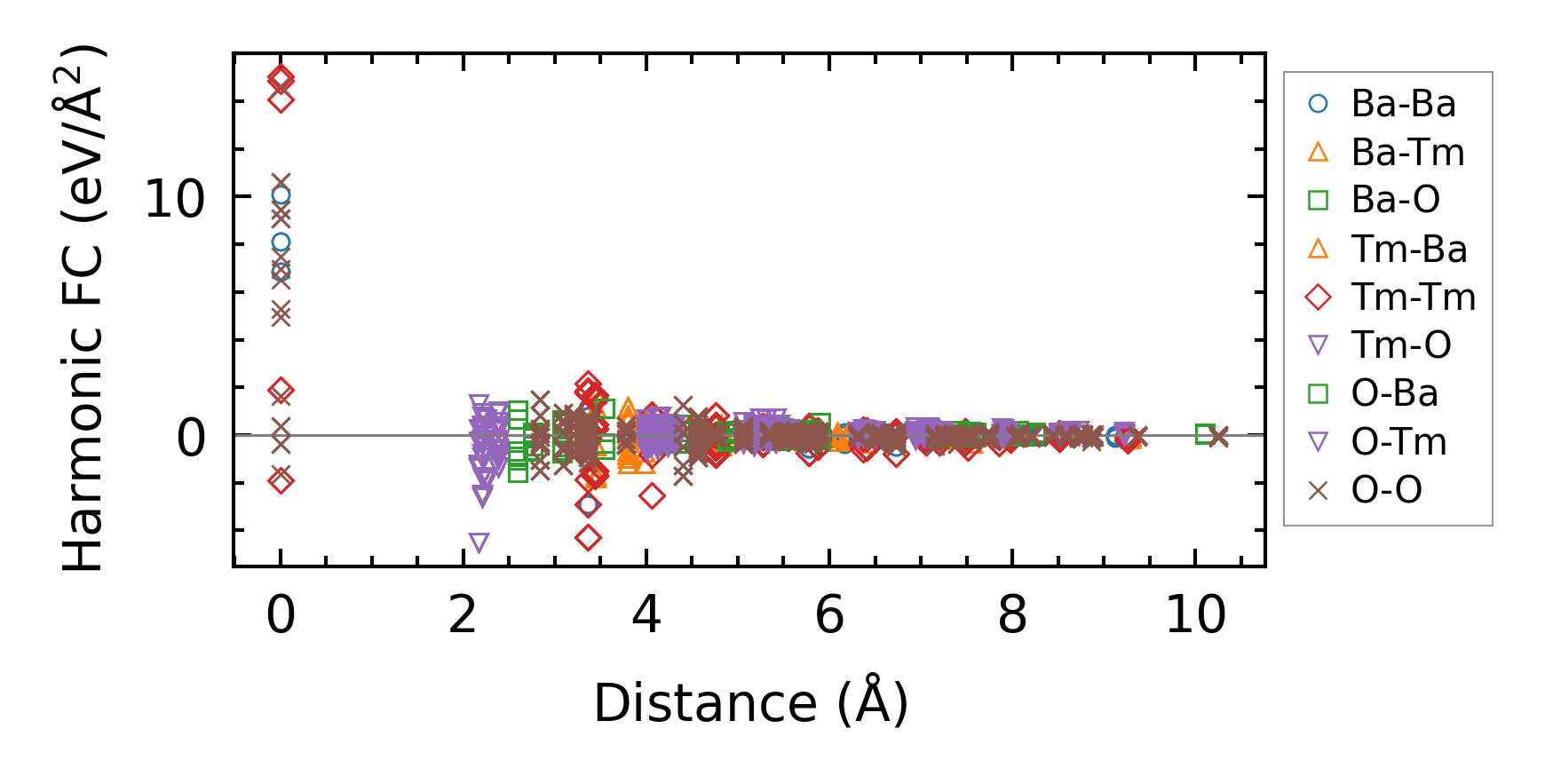

../../_images/fig_fc23751.png — (a) Force constants w.r.t atomic distance

Summary

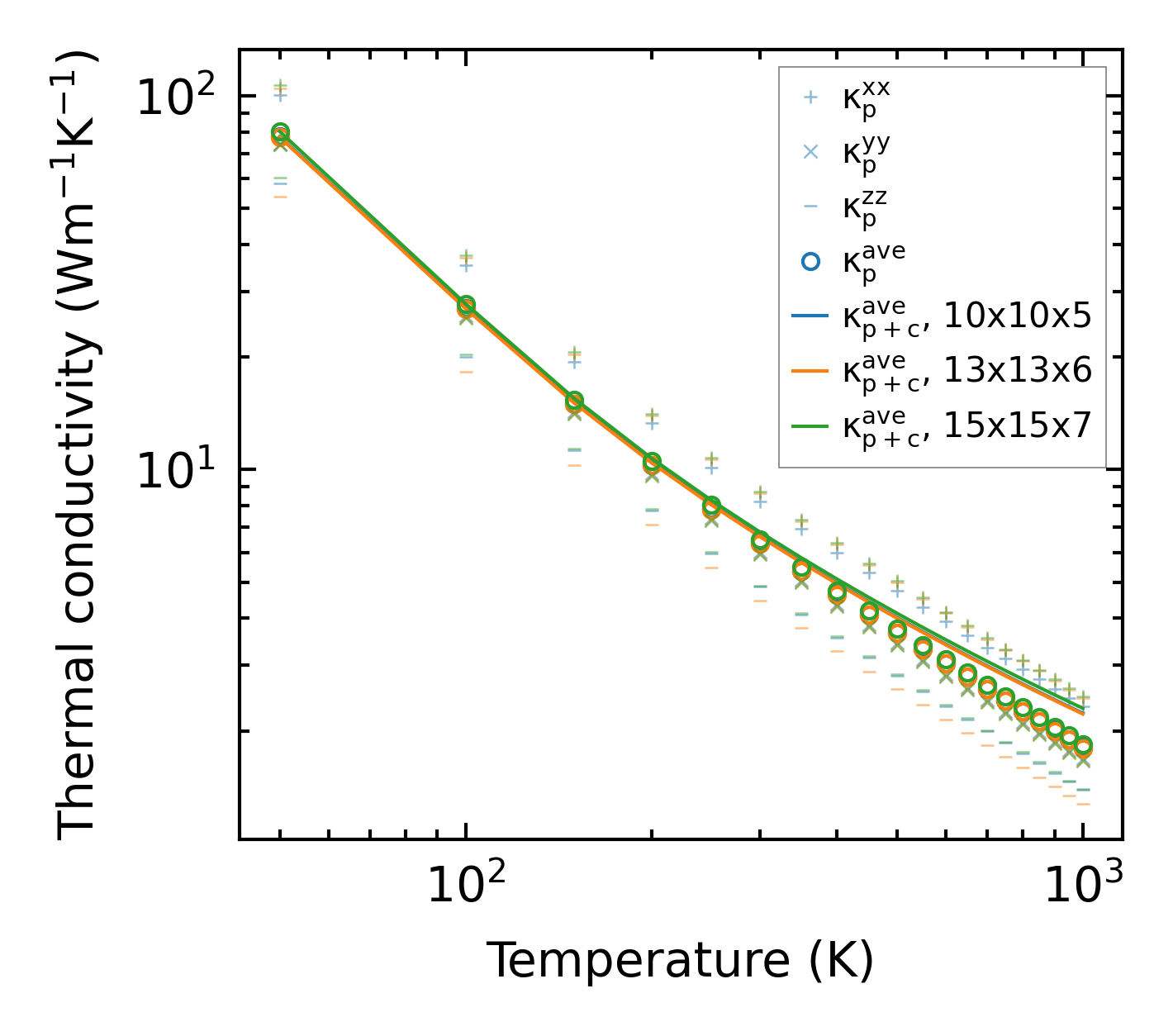

../../_images/fig_kappa3417.png — (a) Temperature-dependent lattice thermal conductivity

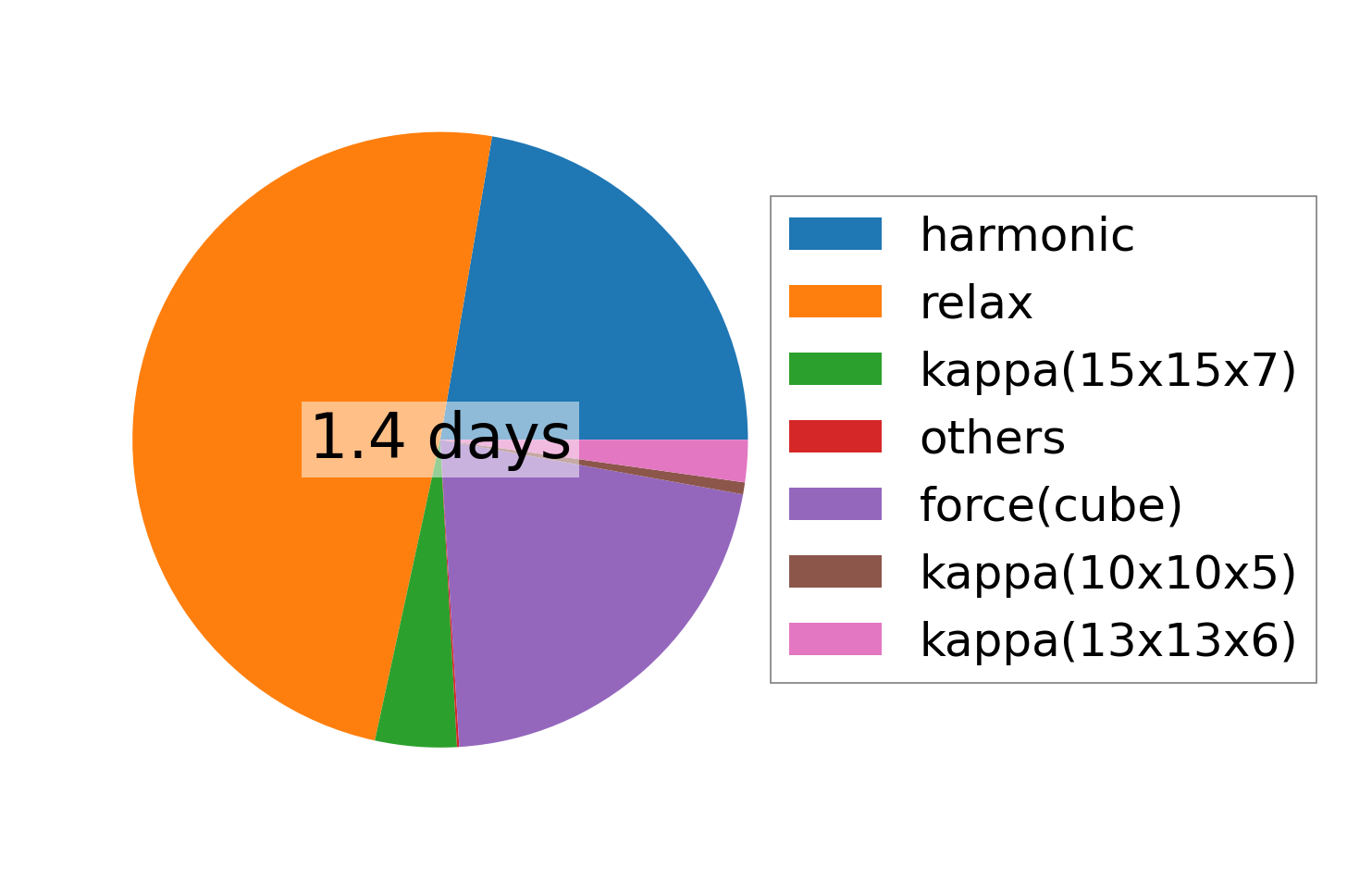

../../_images/fig_times6816.png — (b) Computation time
