mp-752426-2/Li3SbS4/anharm

Space group: P2/c (13)
Link: Materials Project
Download: mp-752426-2.tar.gz

Equation of state

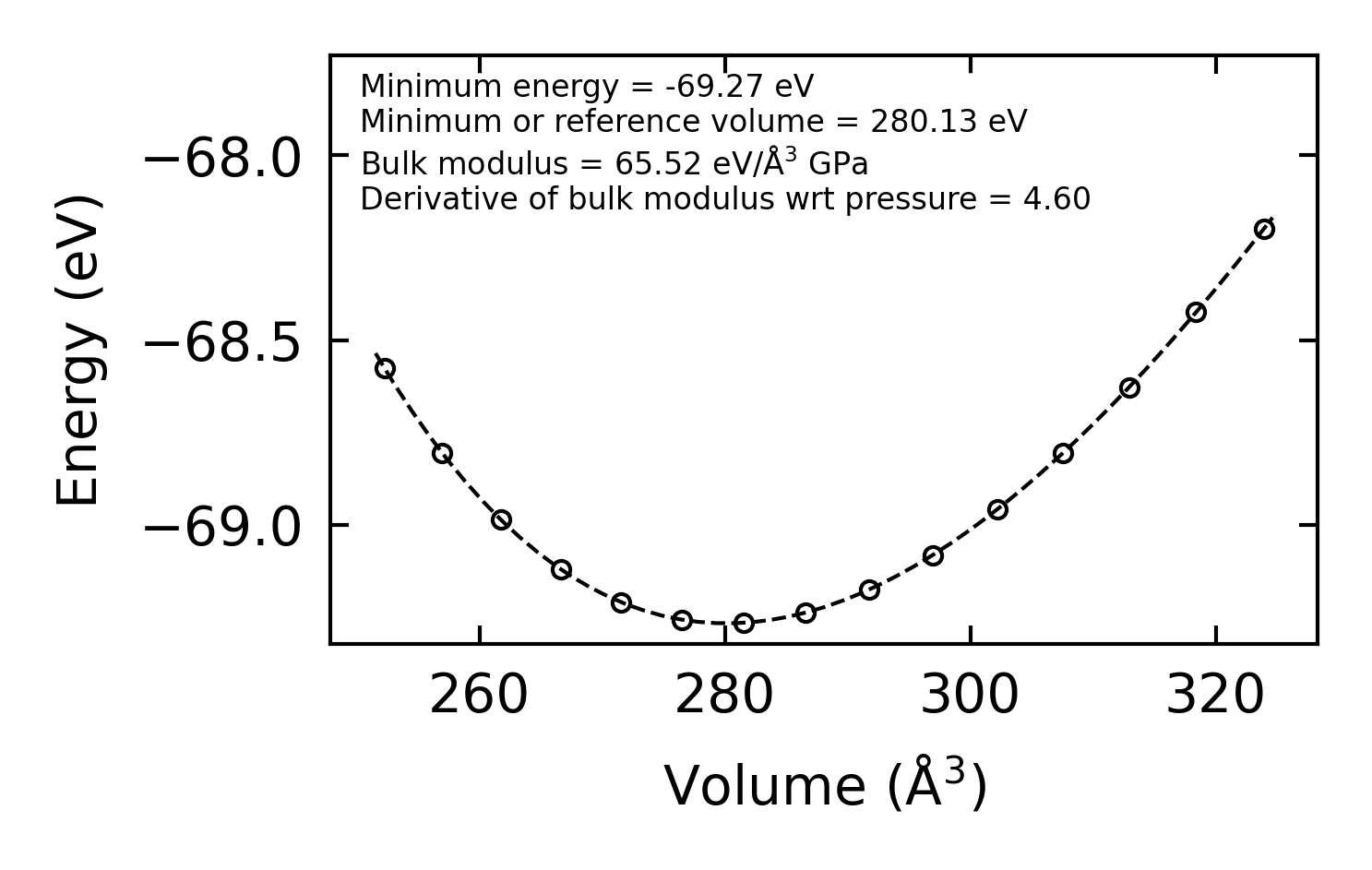

../../_images/fig_bm1896.png — (a) Equation of state

Harmonic properties

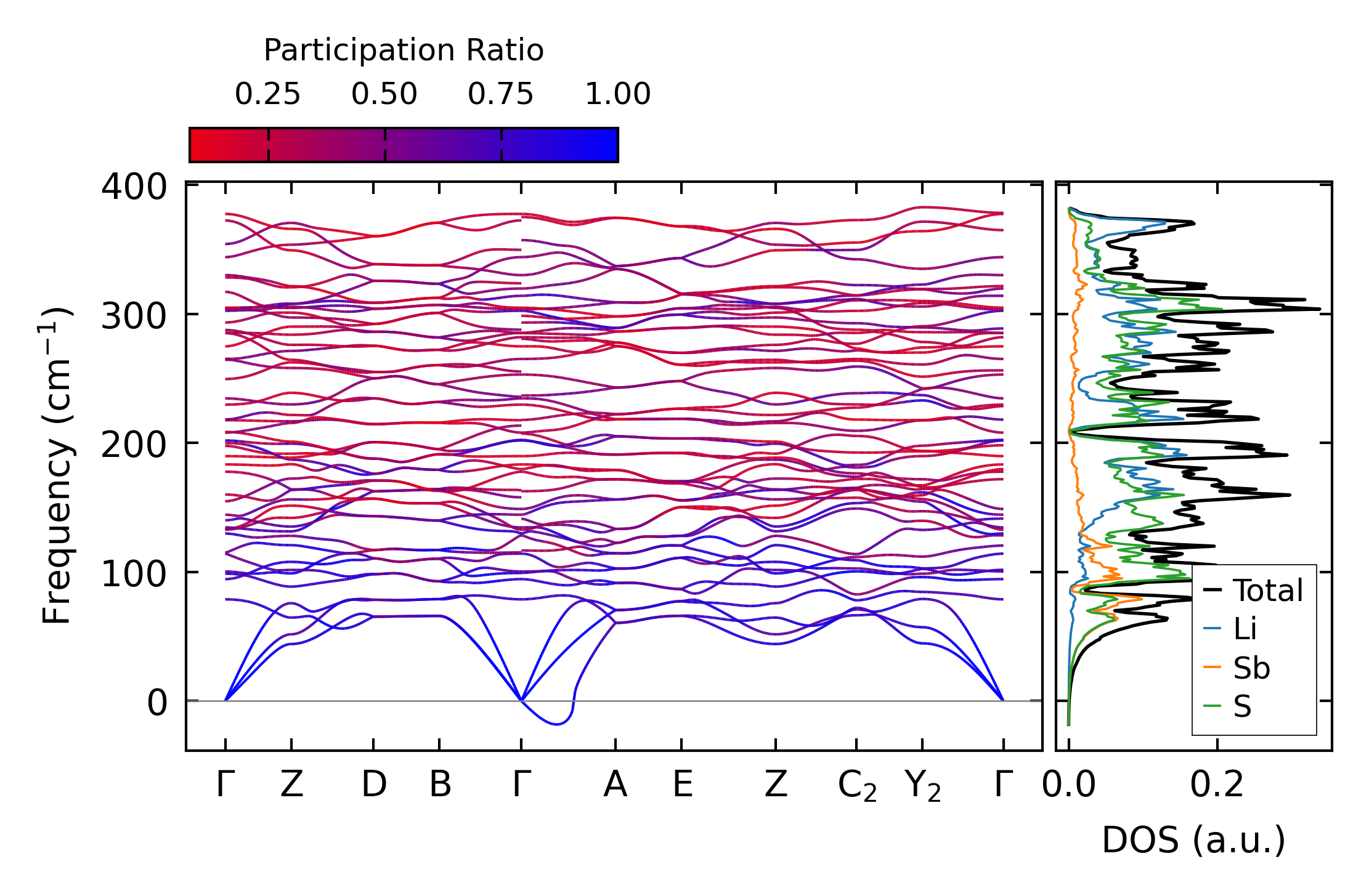

../../_images/fig_bandos_pr3891.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos5156.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo3891.png — (c) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all1765.png — (a) Grüneisen parameters

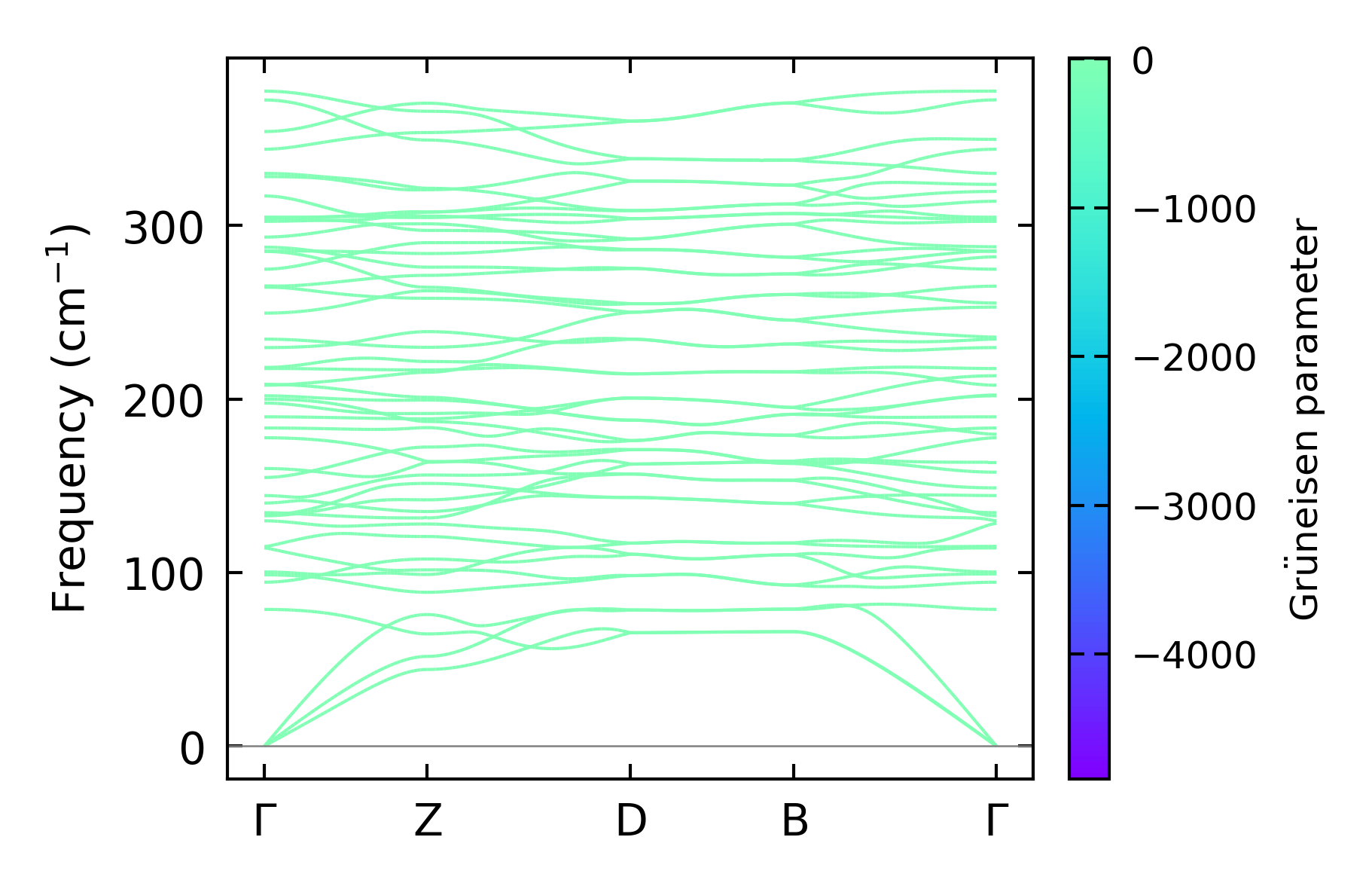

../../_images/fig_gruneisen1765.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x2x3 — q-mesh: 11x9x11, supercell: 2x2x3

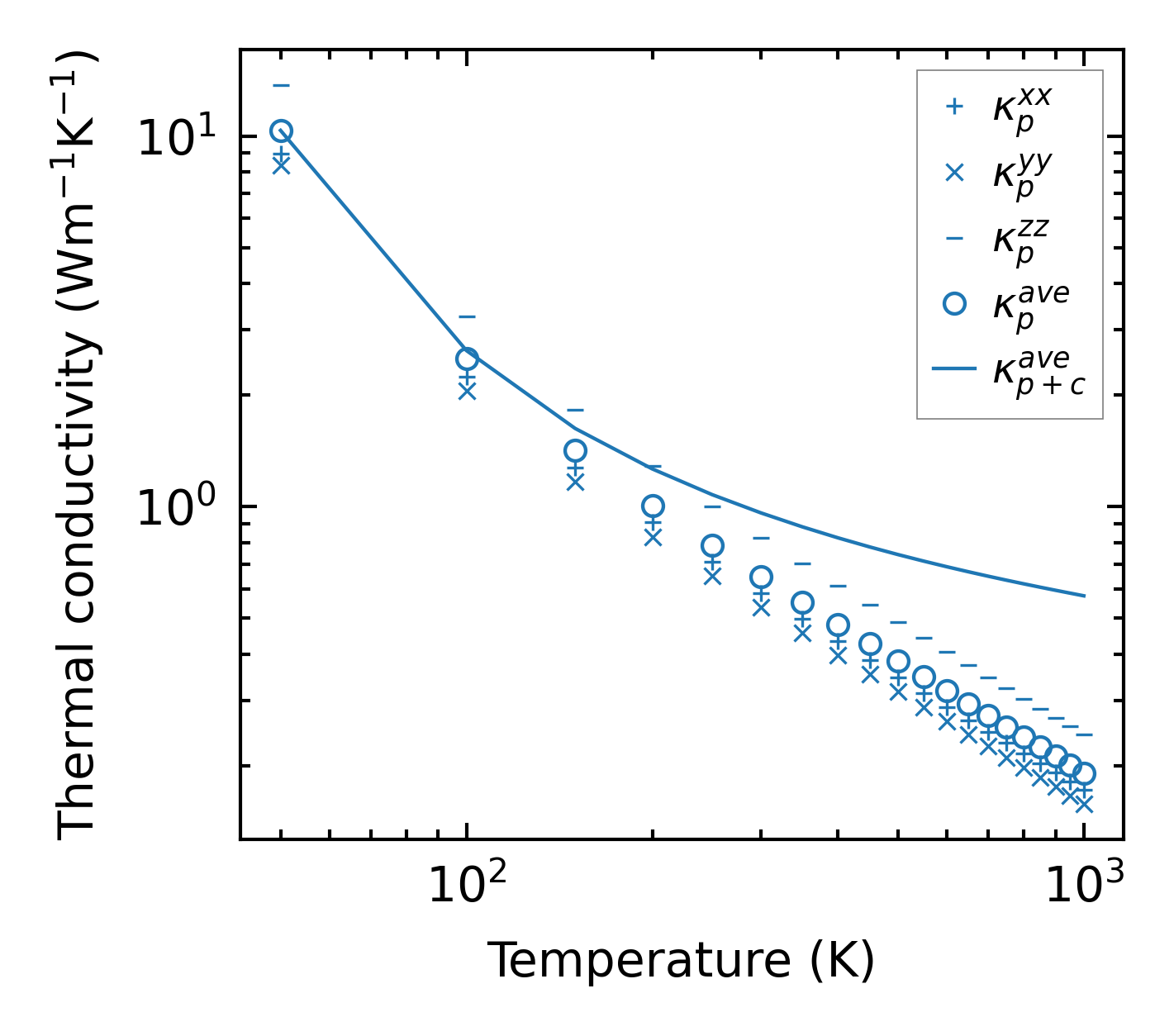

../../_images/fig_kappa3395.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size1793.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

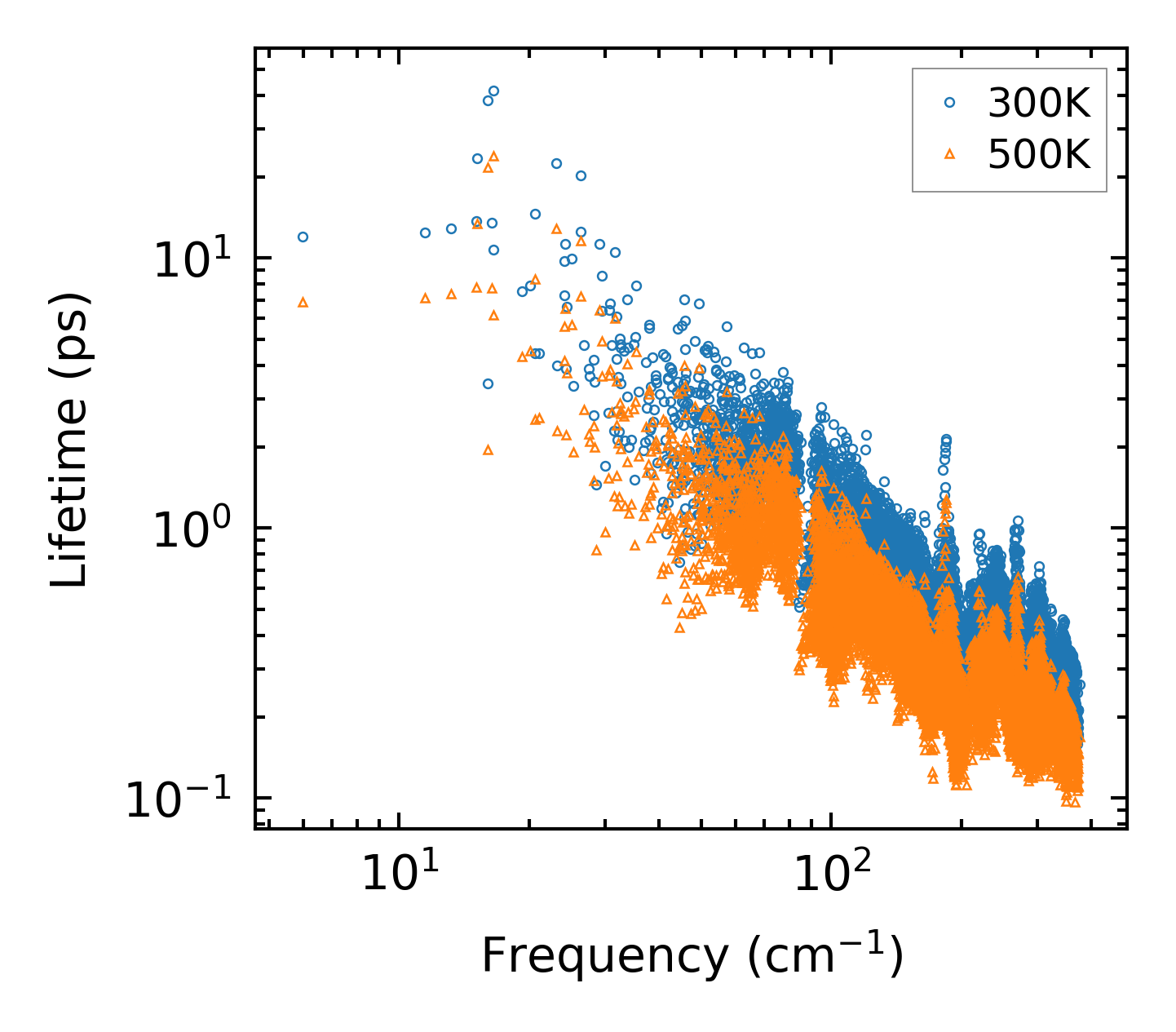

../../_images/fig_lifetime1755.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates1754.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

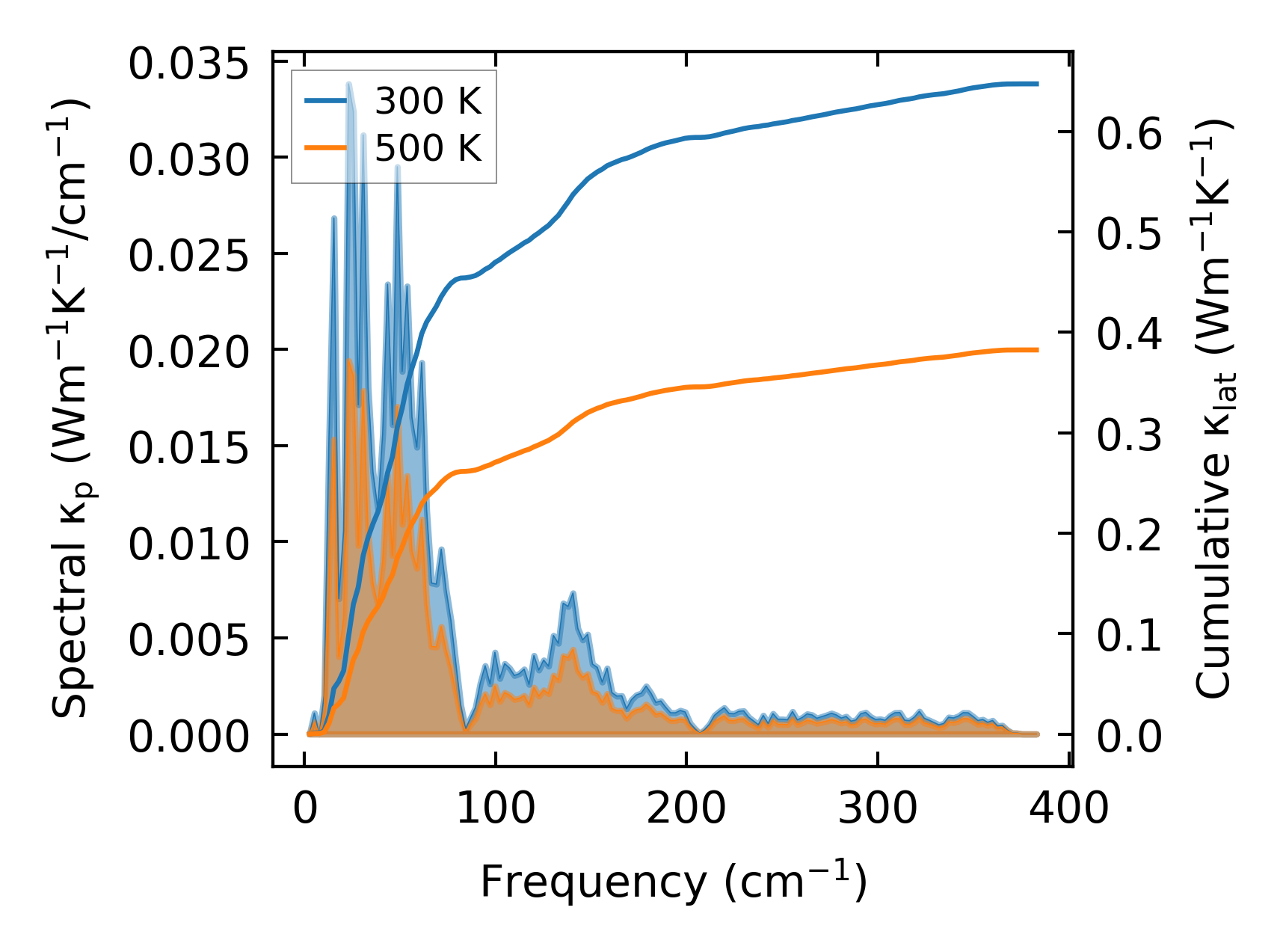

../../_images/fig_cumu_frequency1755.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp1755.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

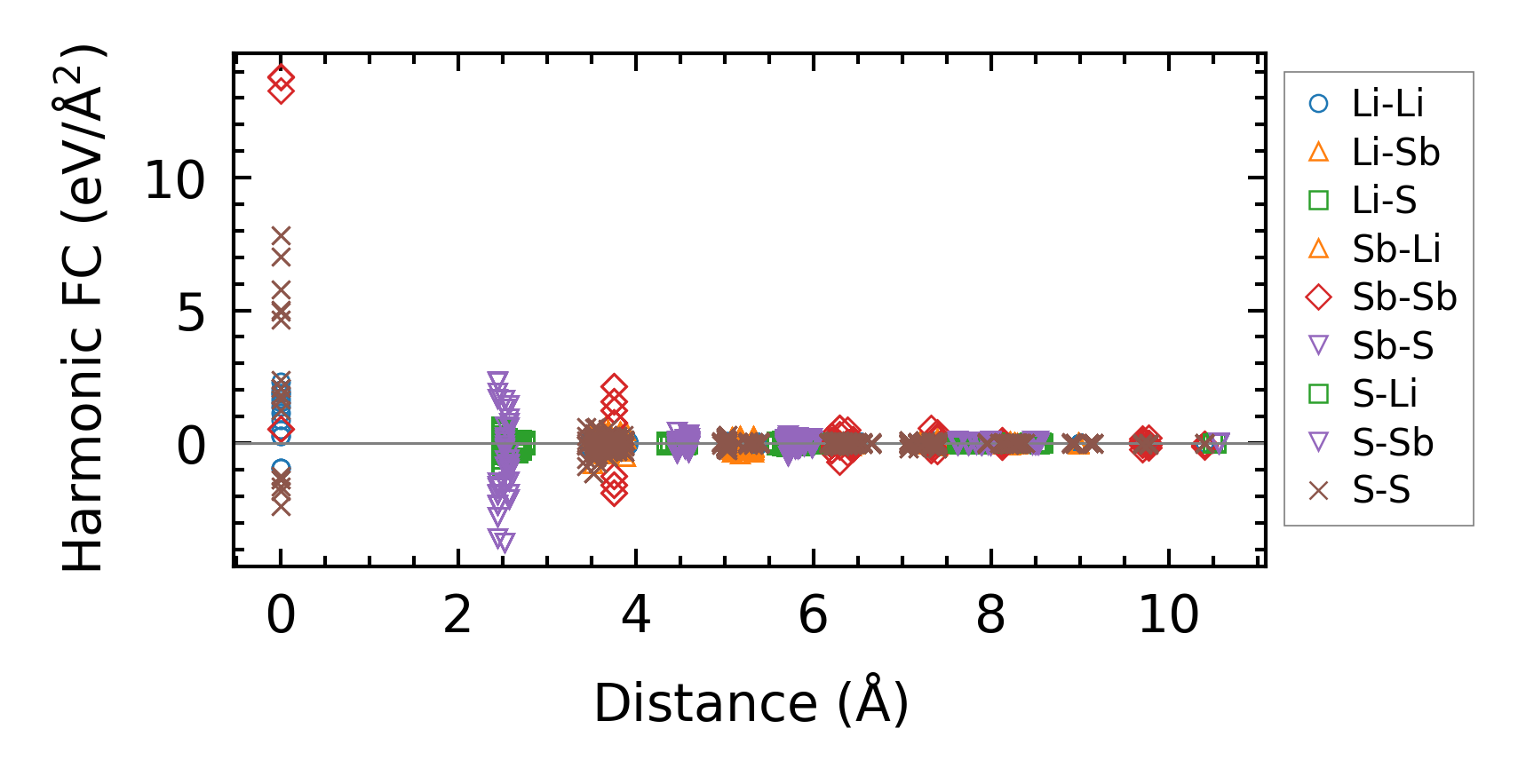

../../_images/fig_fc23704.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_times6730.png — (a) Computation time
