mp-675857-2/Cd2SnO4/anharm

Space group: Imma (74)
Link: Materials Project
Download: mp-675857-2.tar.gz

Harmonic properties

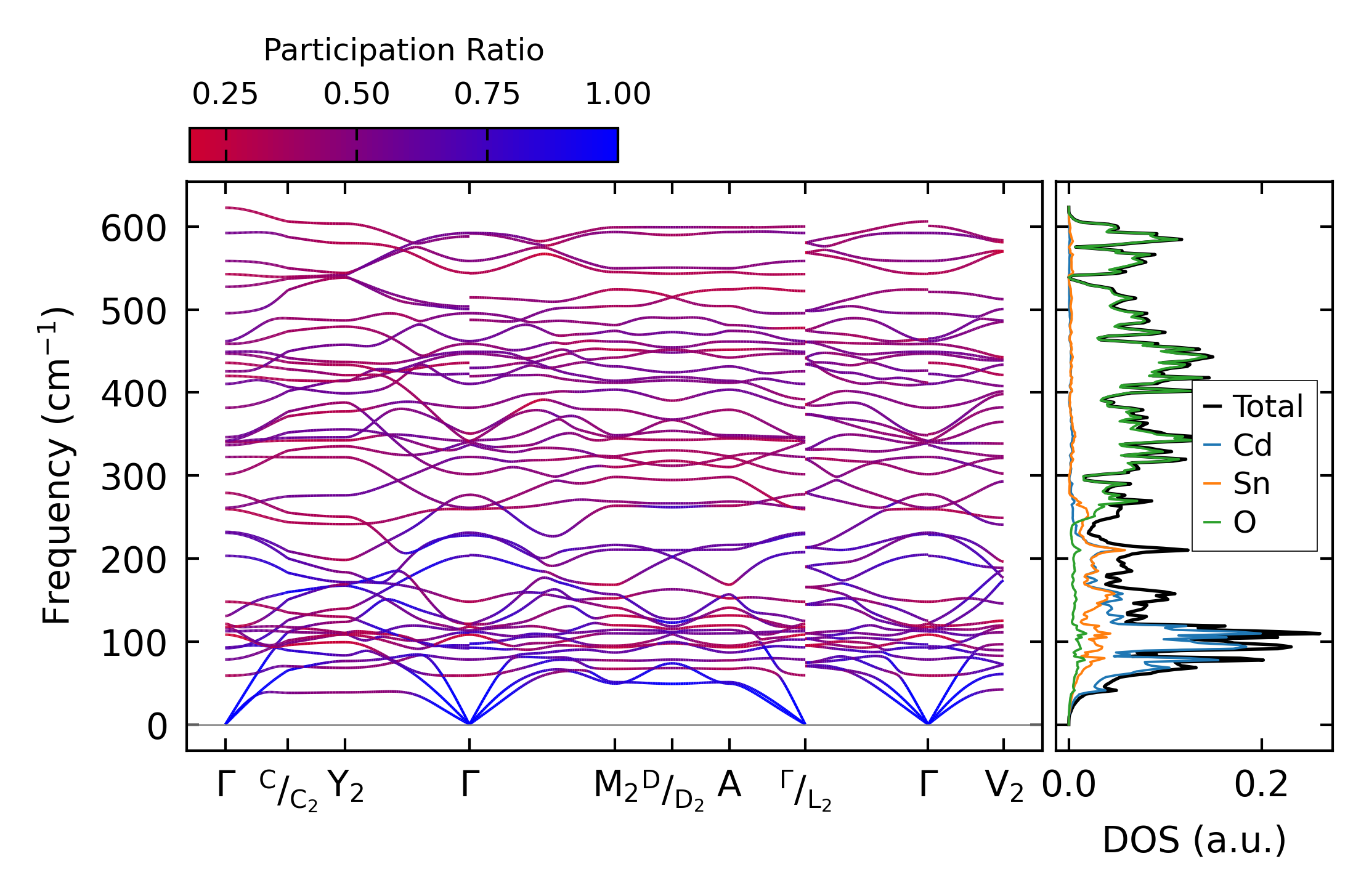

../../_images/fig_bandos_pr5269.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo5269.png — (b) Thermodynamic properties

Grüneisen parameters

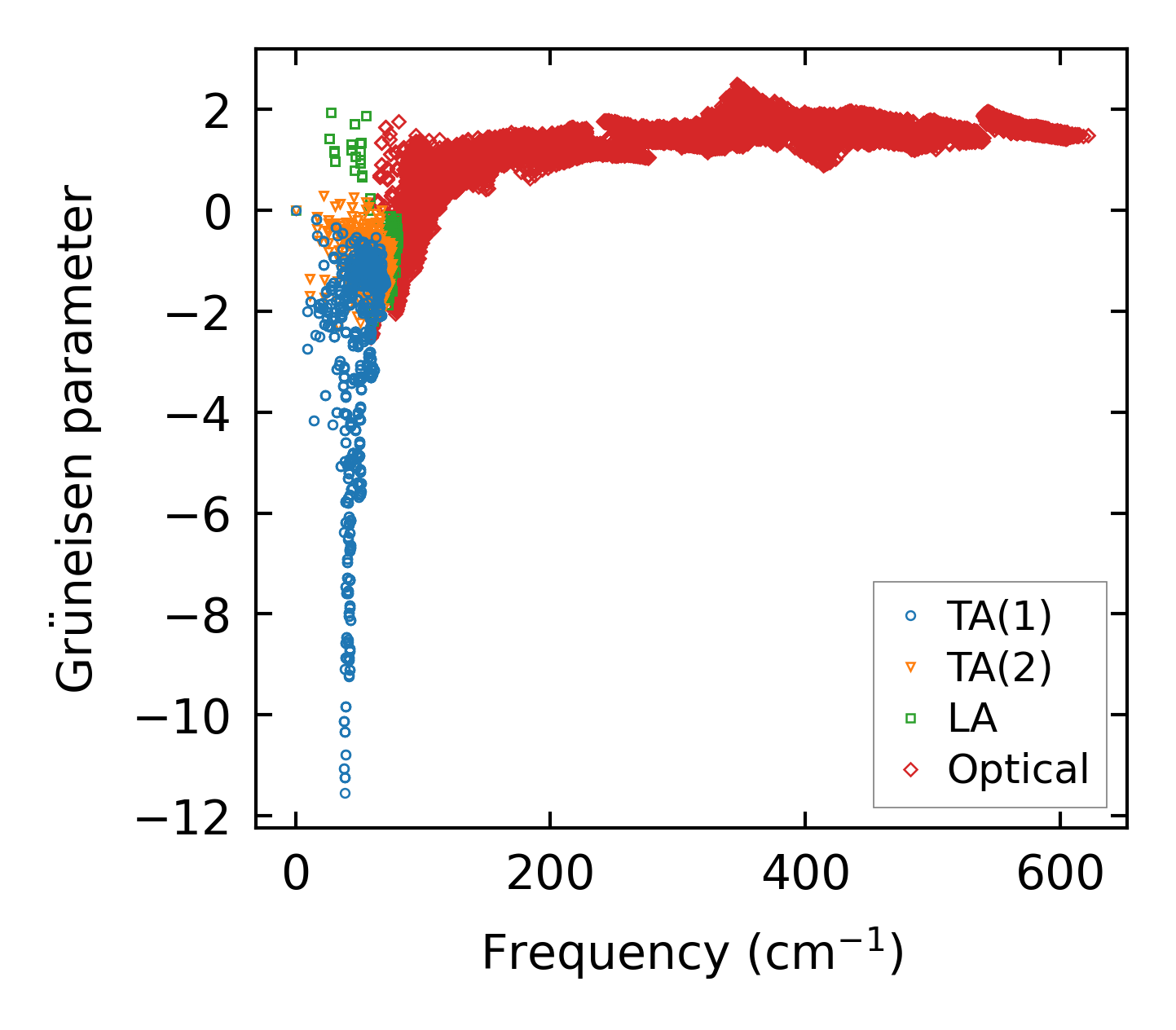

../../_images/fig_gru_all2202.png — (a) Grüneisen parameters

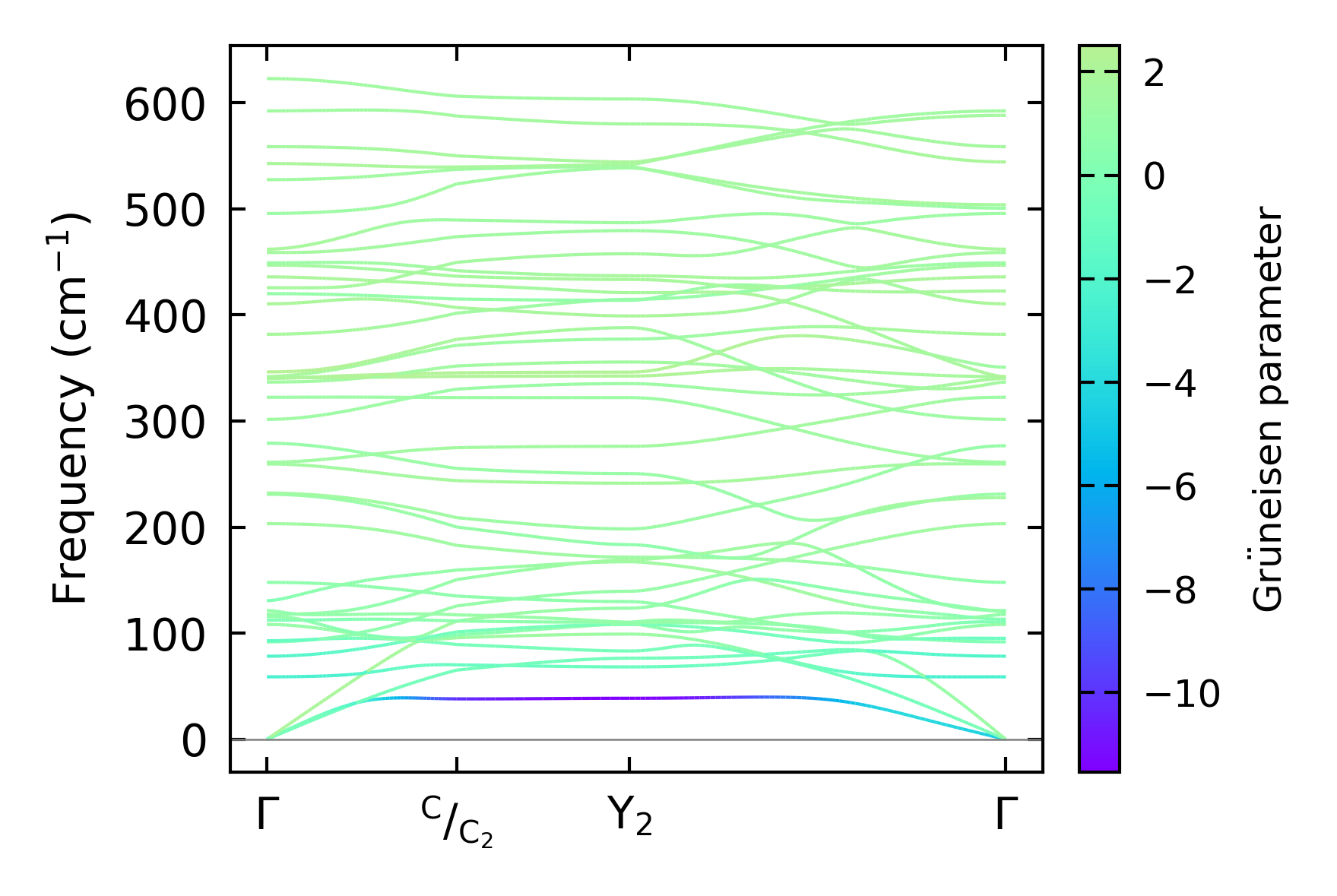

../../_images/fig_gruneisen2202.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x12, supercell: 1x2x2

../../_images/fig_kappa4214.png — (a) Temperature-dependent lattice thermal conductivity

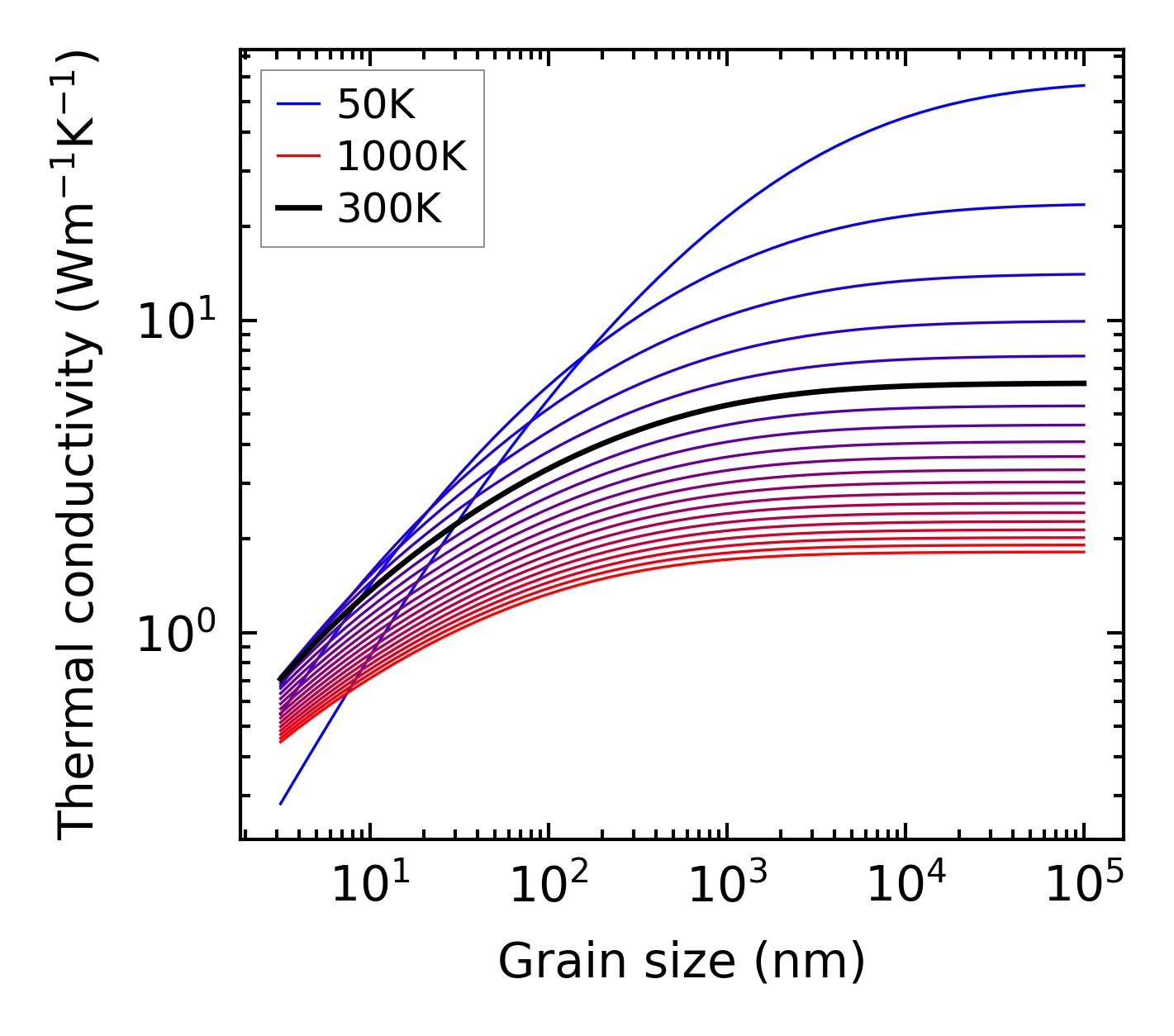

../../_images/fig_kappa_vs_grain_size2233.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

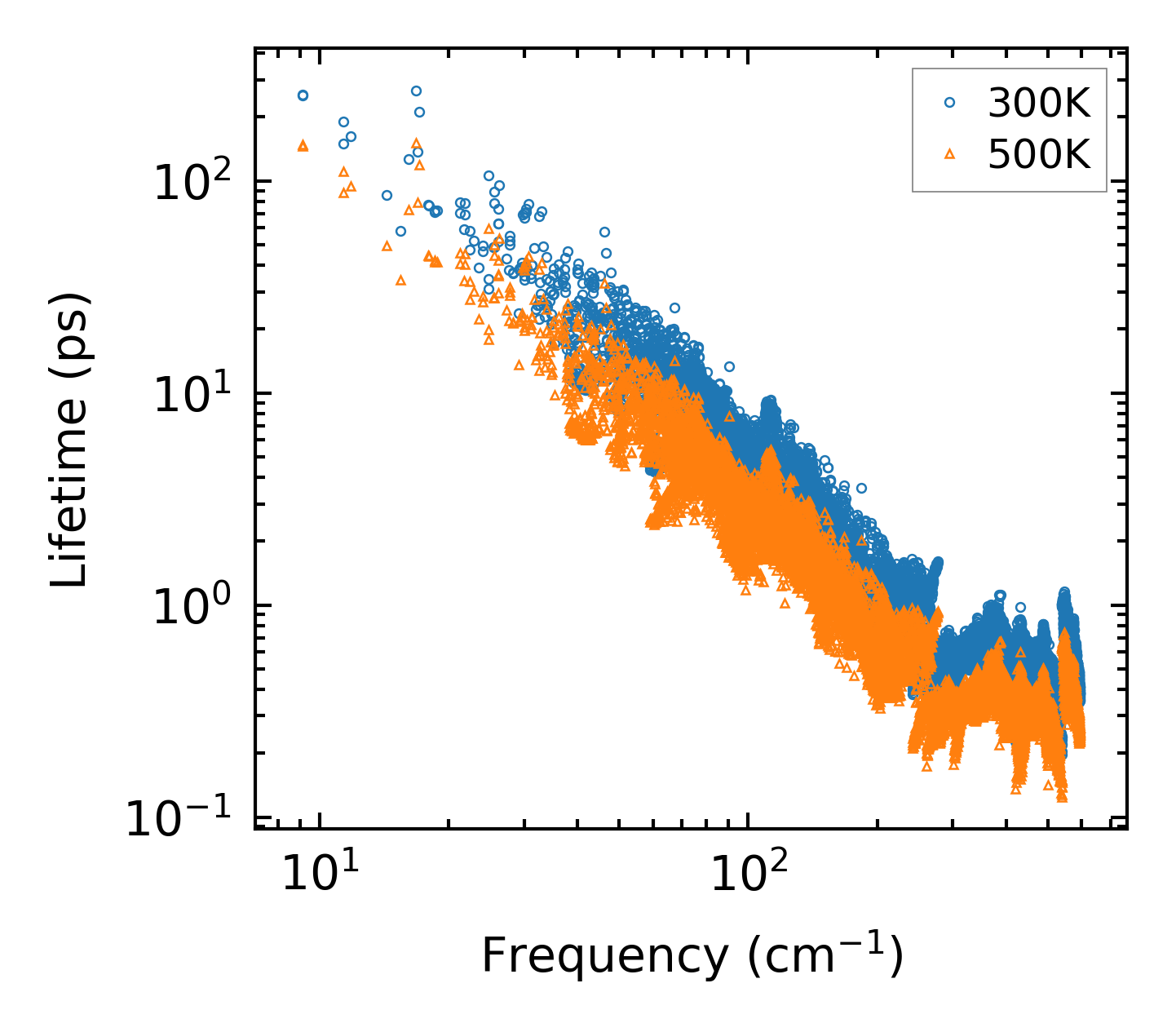

../../_images/fig_lifetime2188.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates2187.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency2188.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

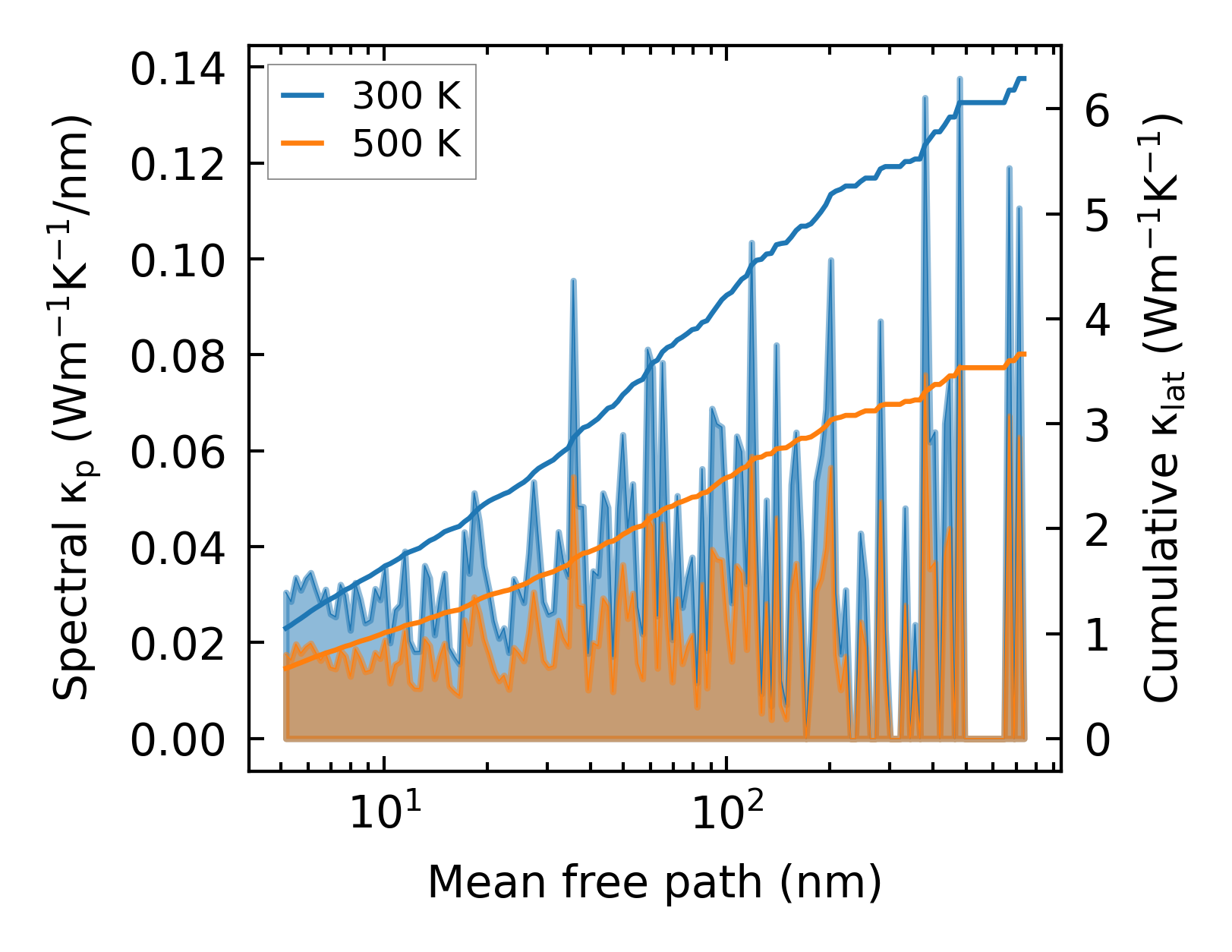

../../_images/fig_cumu_mfp2188.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

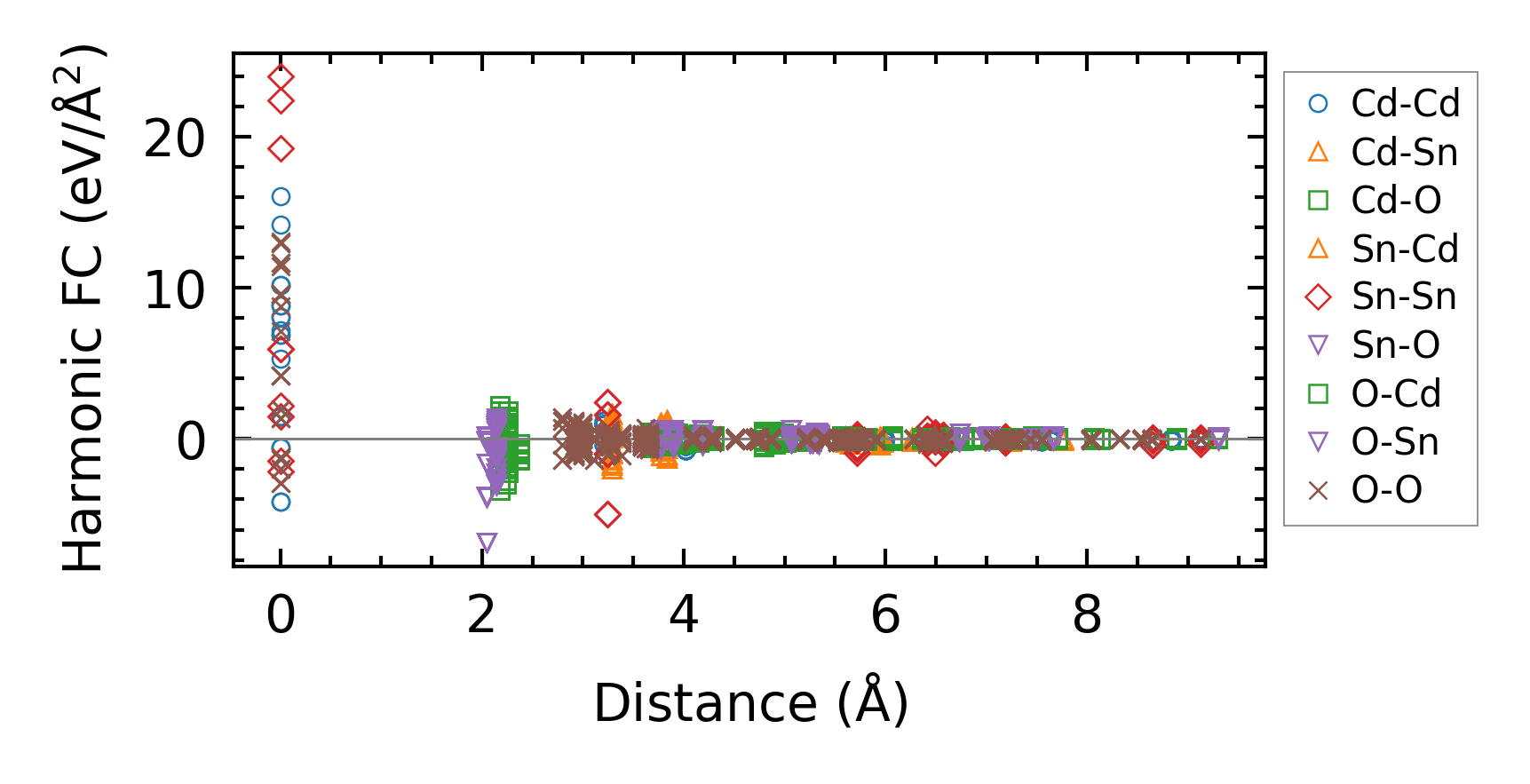

../../_images/fig_fc25074.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa4215.png — (a) Temperature-dependent lattice thermal conductivity

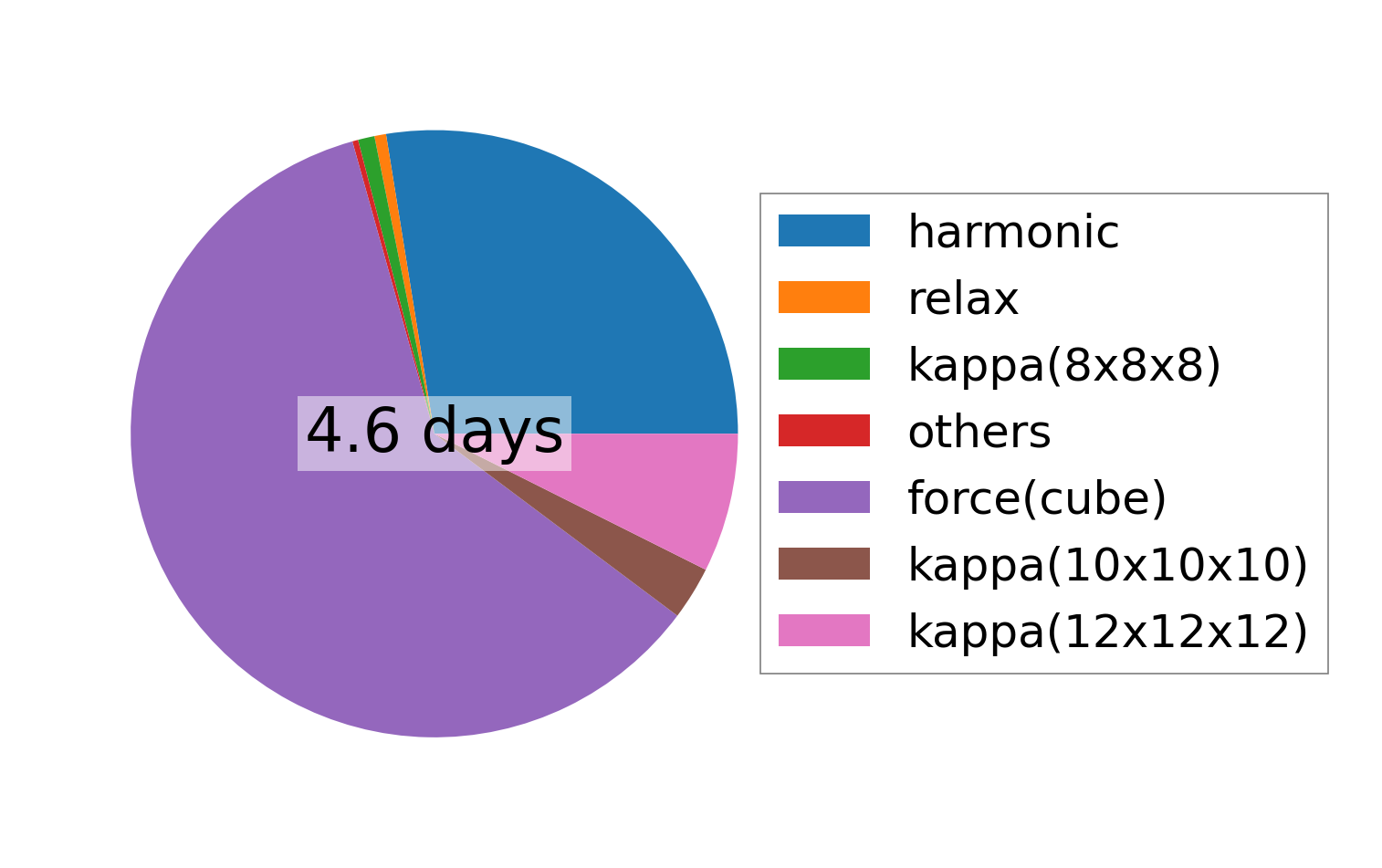

../../_images/fig_times9481.png — (b) Computation time
