mp-675680/SrSb2O6/anharm

Space group: C2/c (15)
Link: Materials Project
Download: mp-675680.tar.gz

Harmonic properties

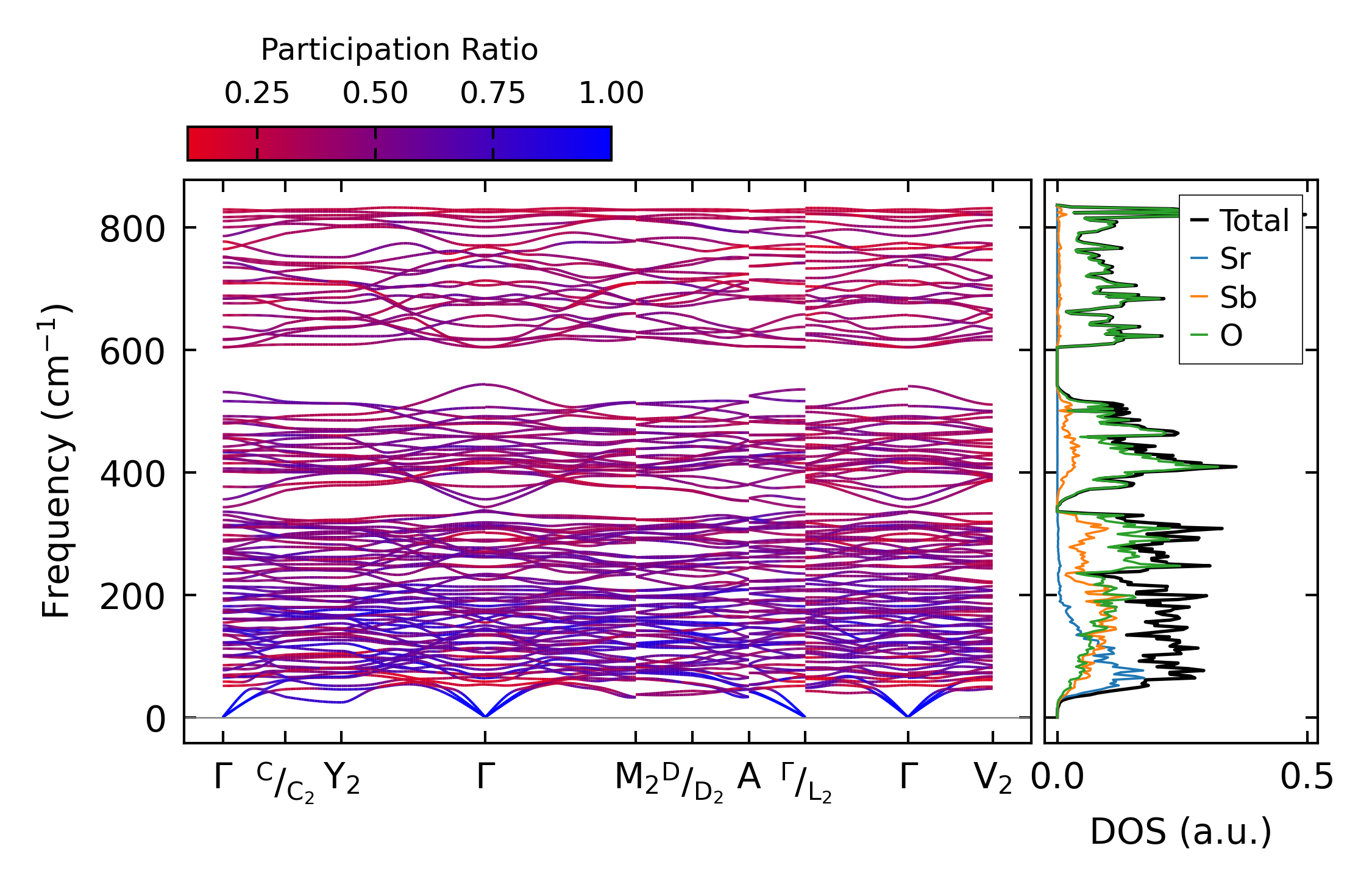

../../_images/fig_bandos_pr5255.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo5255.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all2191.png — (a) Grüneisen parameters

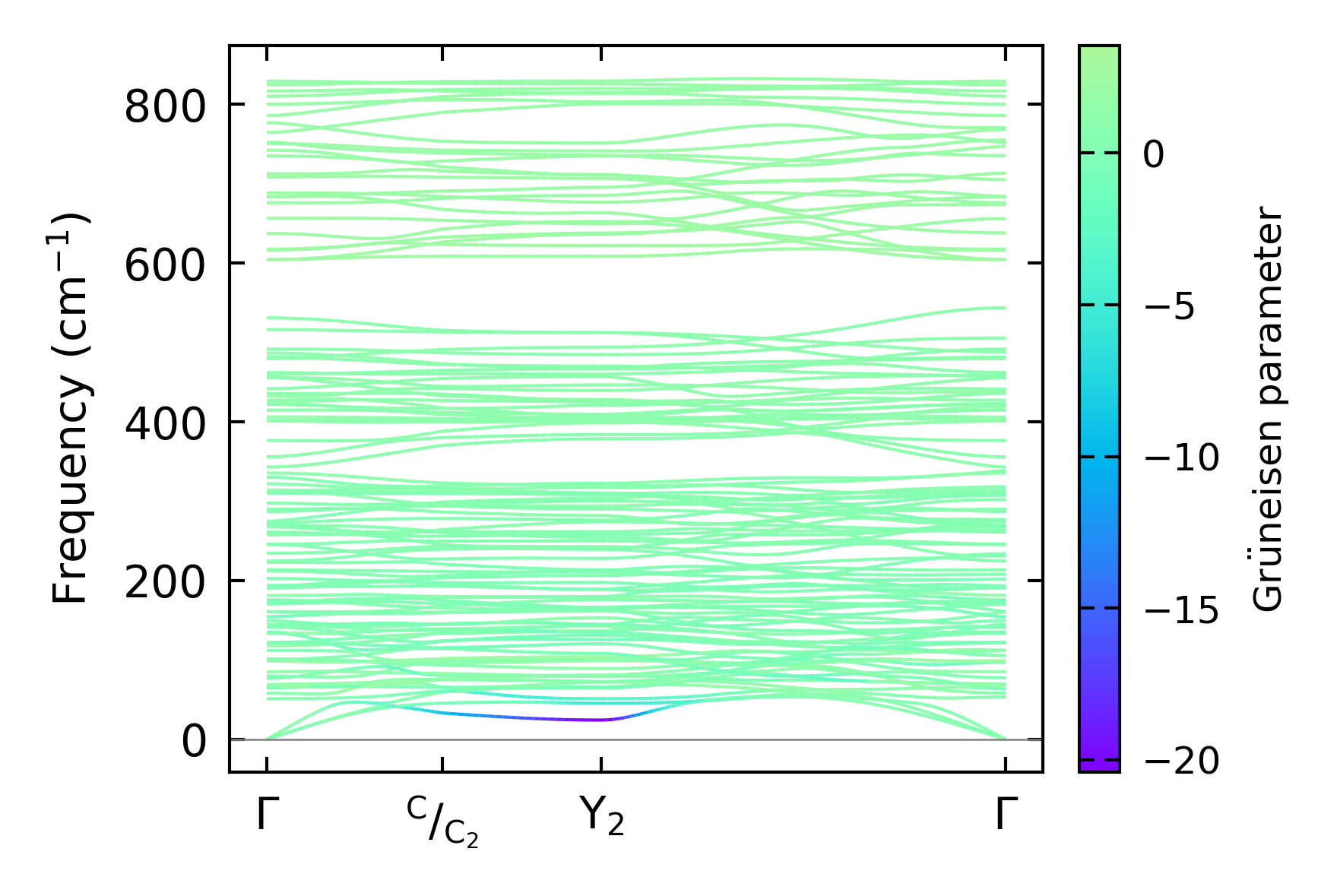

../../_images/fig_gruneisen2191.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x6, supercell: 1x2x1

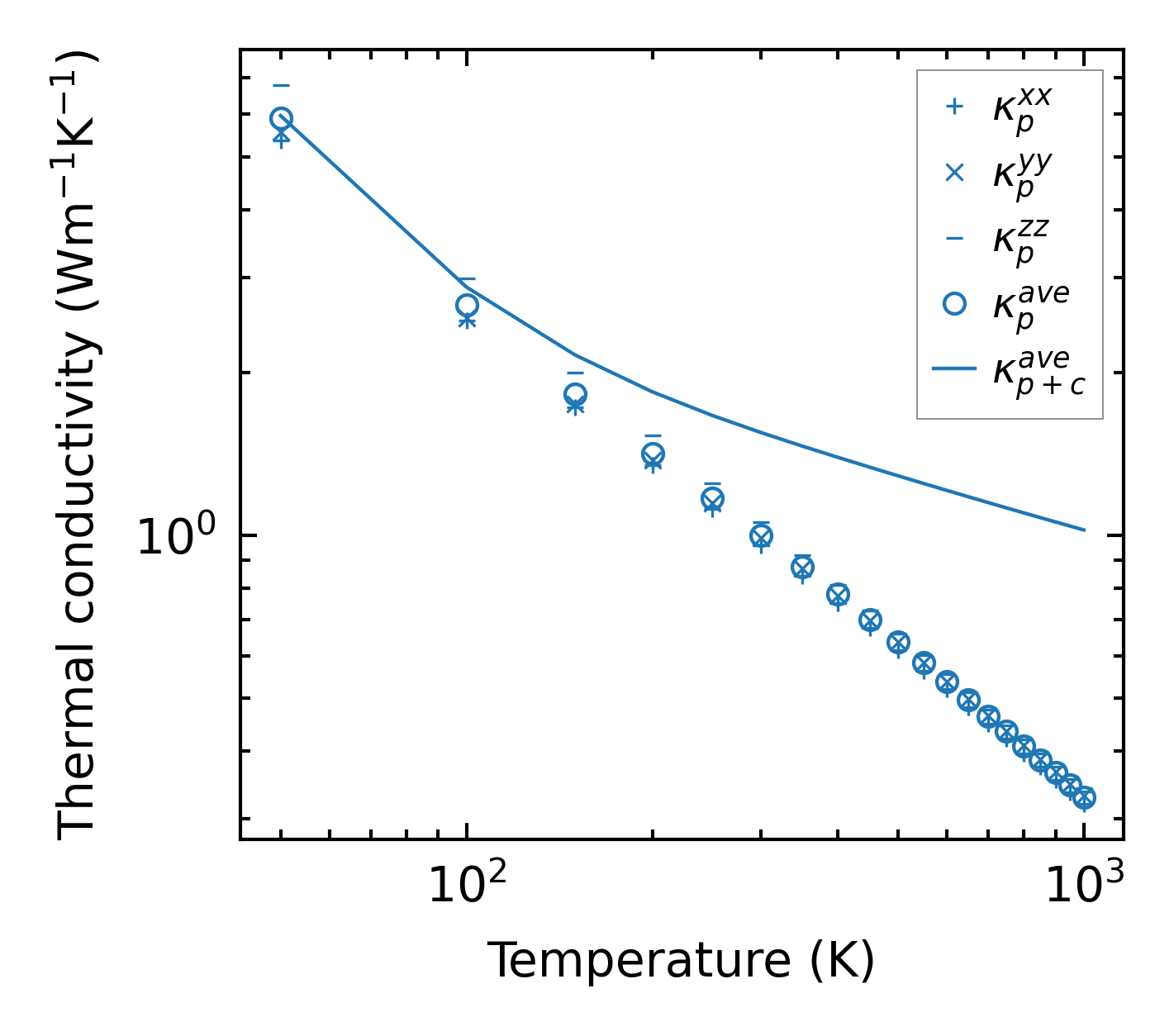

../../_images/fig_kappa4194.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size2222.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

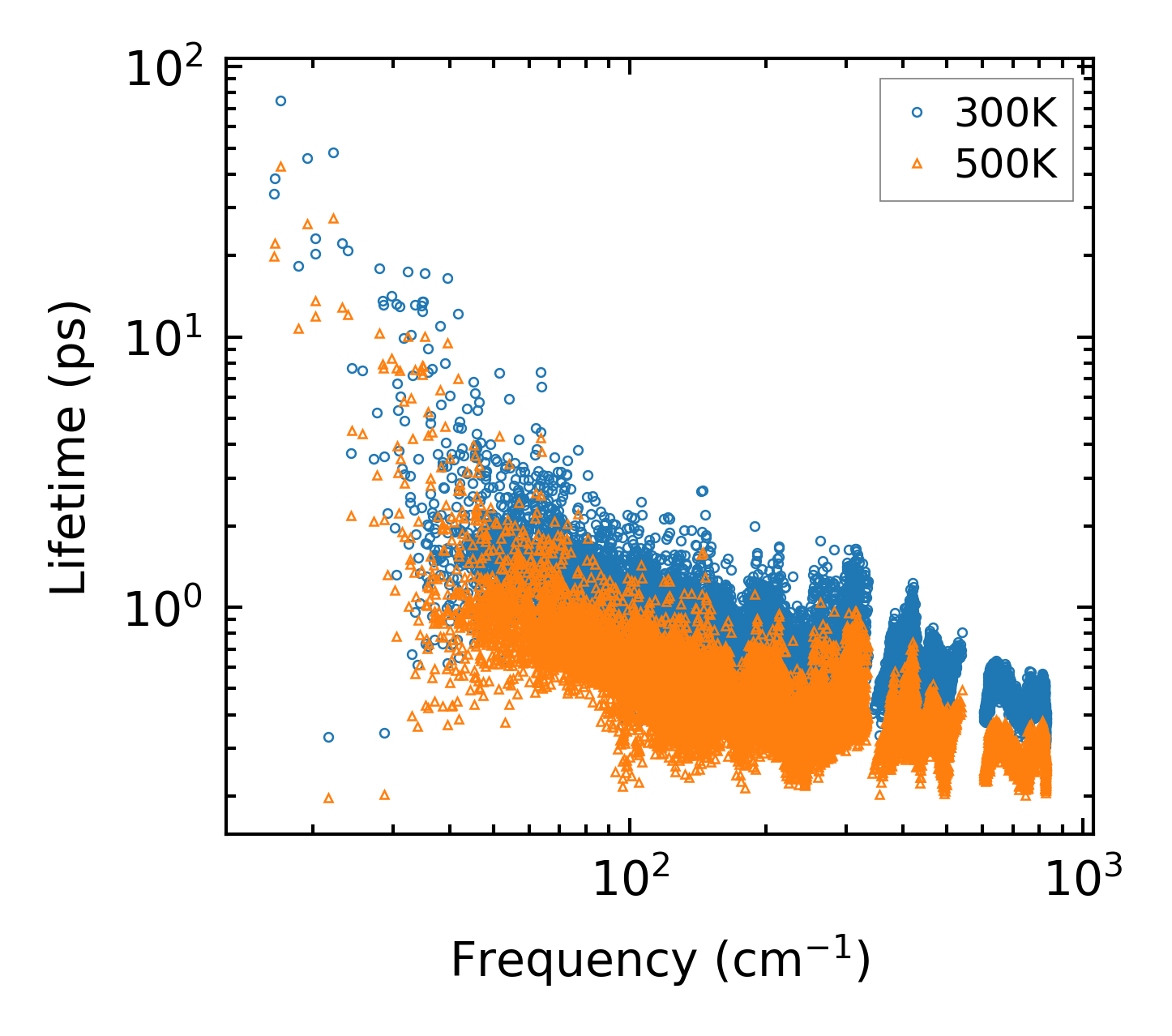

../../_images/fig_lifetime2177.png — (a) Phonon lifetime due to phonon-phonon scattering

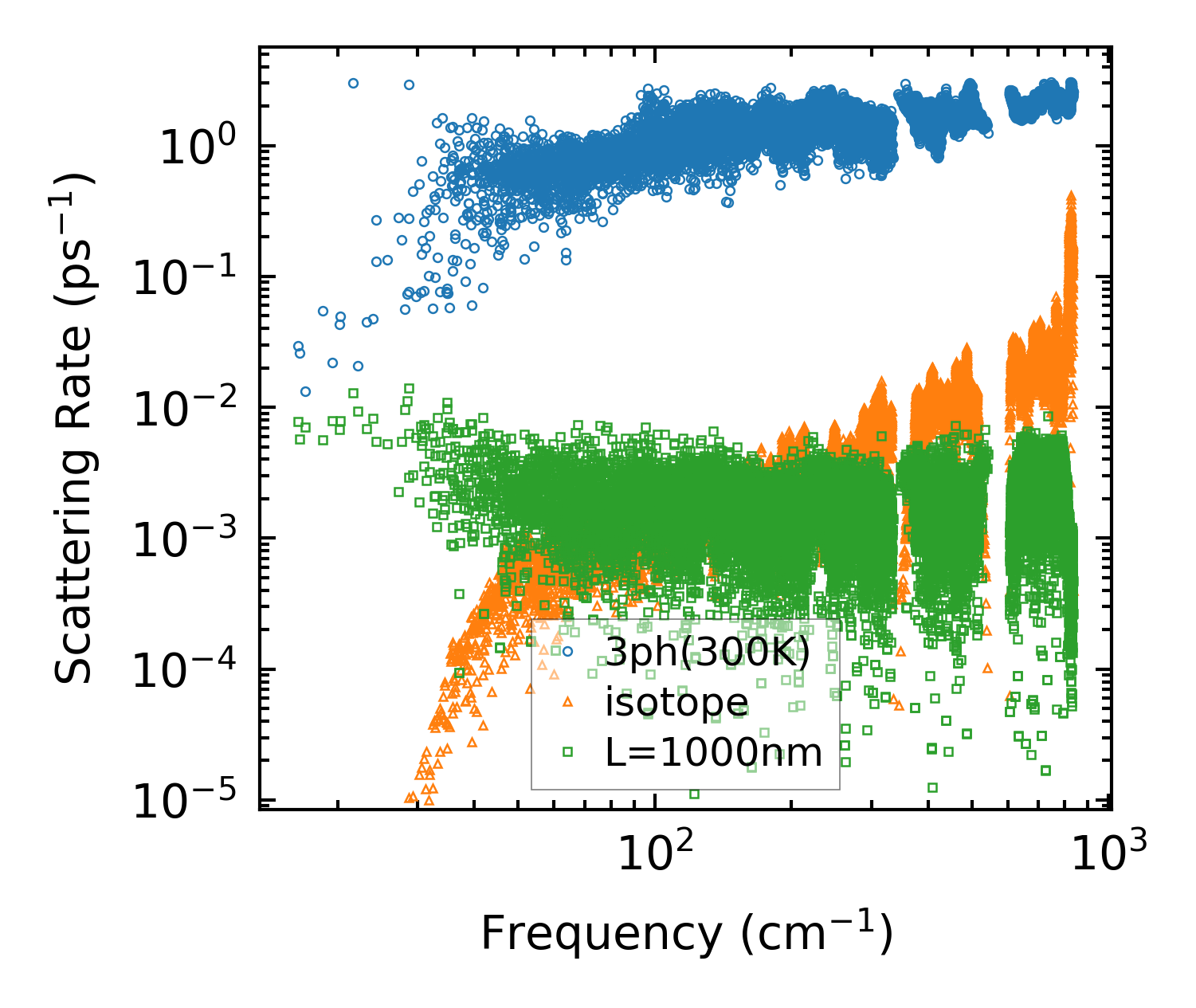

../../_images/fig_scat_rates2176.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

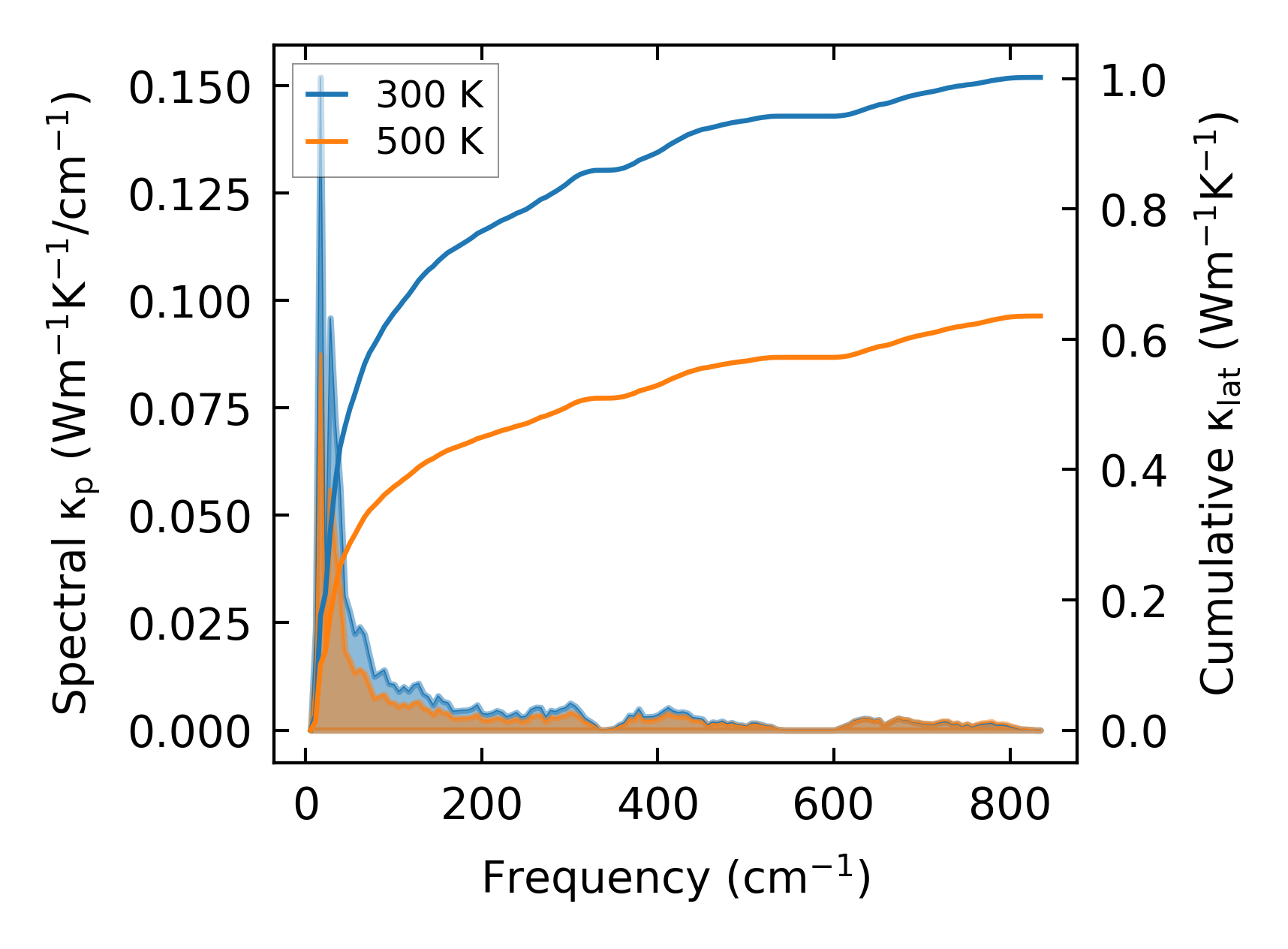

../../_images/fig_cumu_frequency2177.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp2177.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

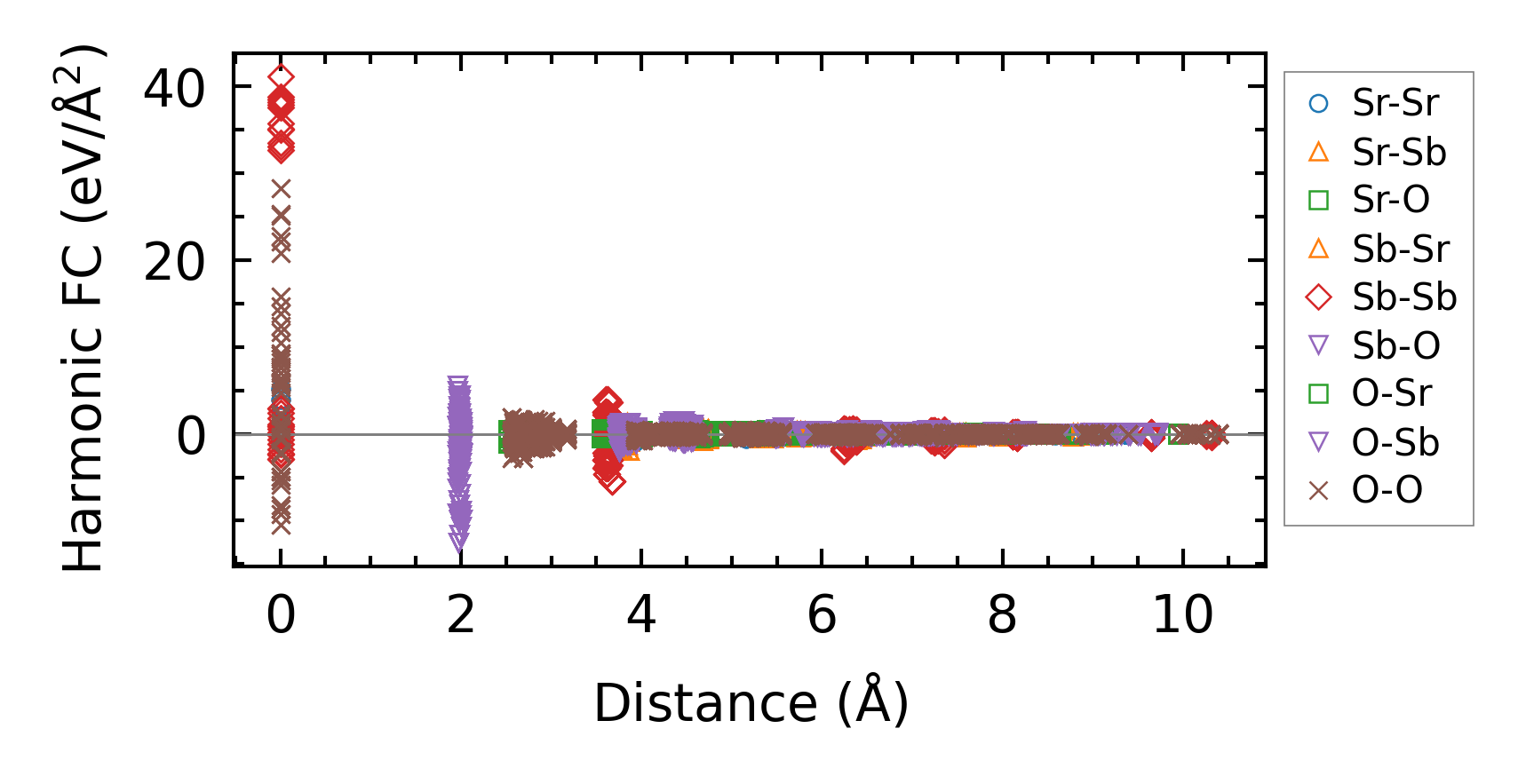

../../_images/fig_fc25060.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa4195.png — (a) Temperature-dependent lattice thermal conductivity

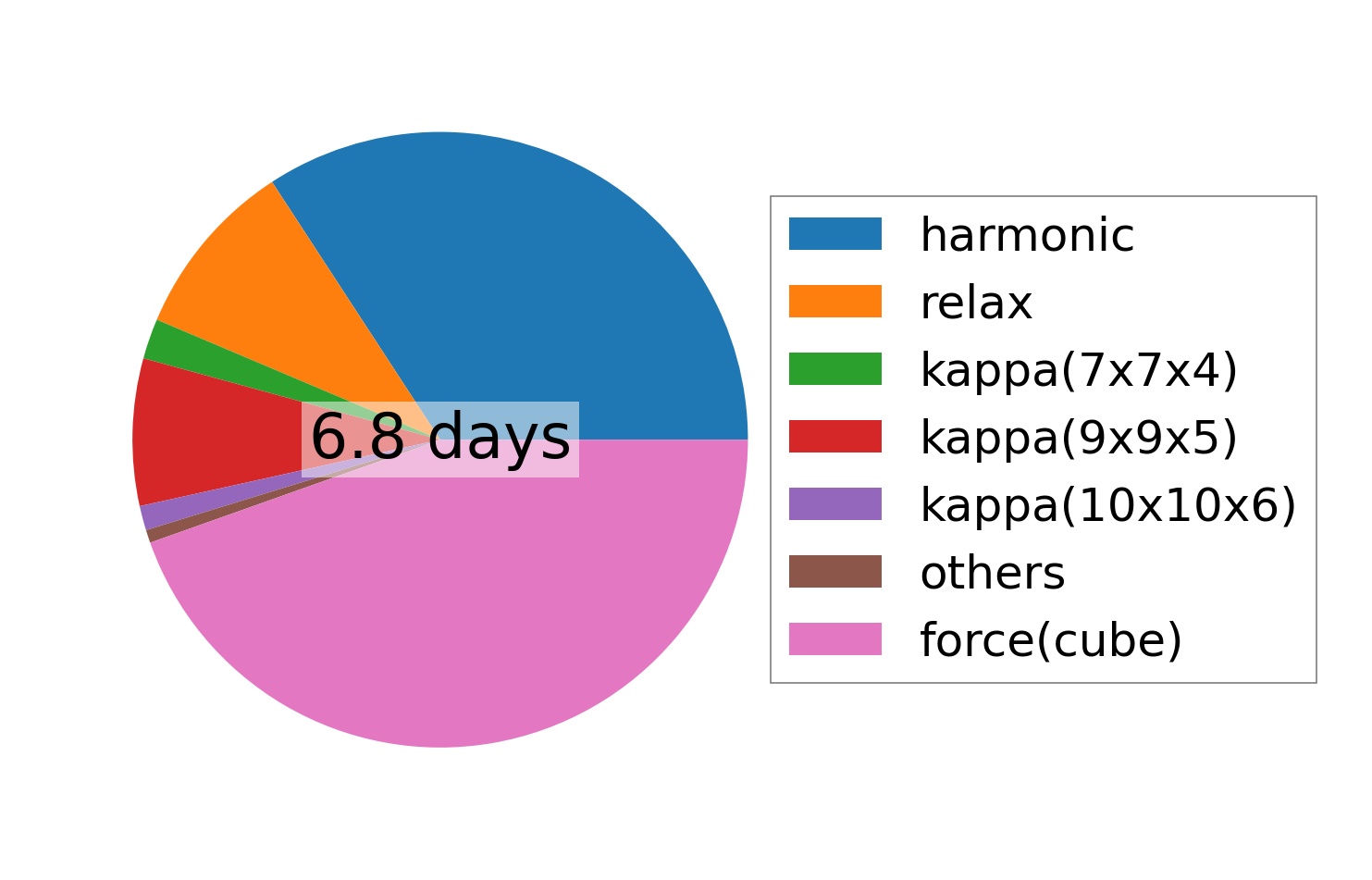

../../_images/fig_times9450.png — (b) Computation time
