mp-675779/Li2Mo3S4/anharm

Space group: P1 (1)
Link: Materials Project
Download: mp-675779.tar.gz

Harmonic properties

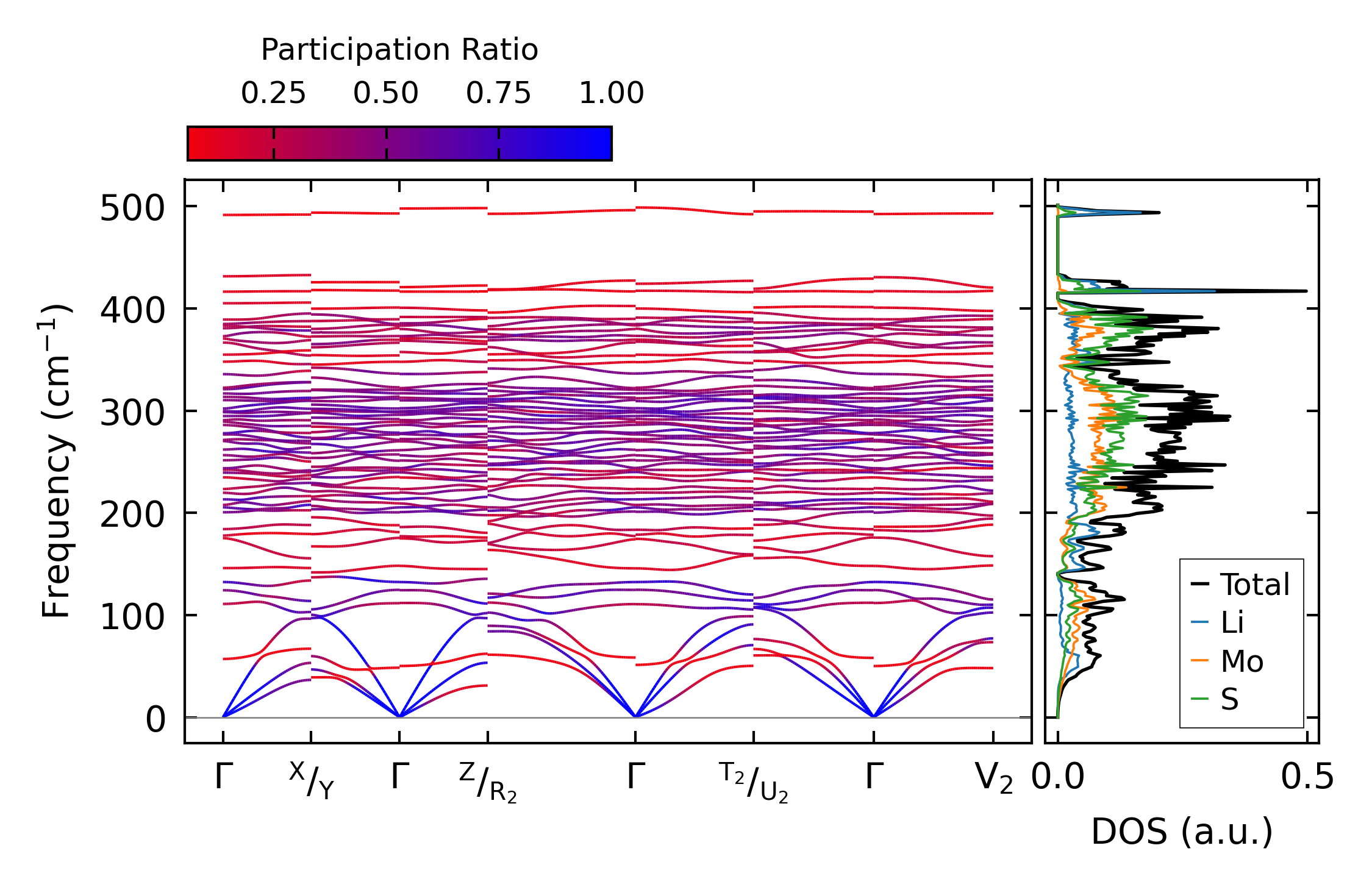

../../_images/fig_bandos_pr5263.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo5263.png — (b) Thermodynamic properties

Grüneisen parameters

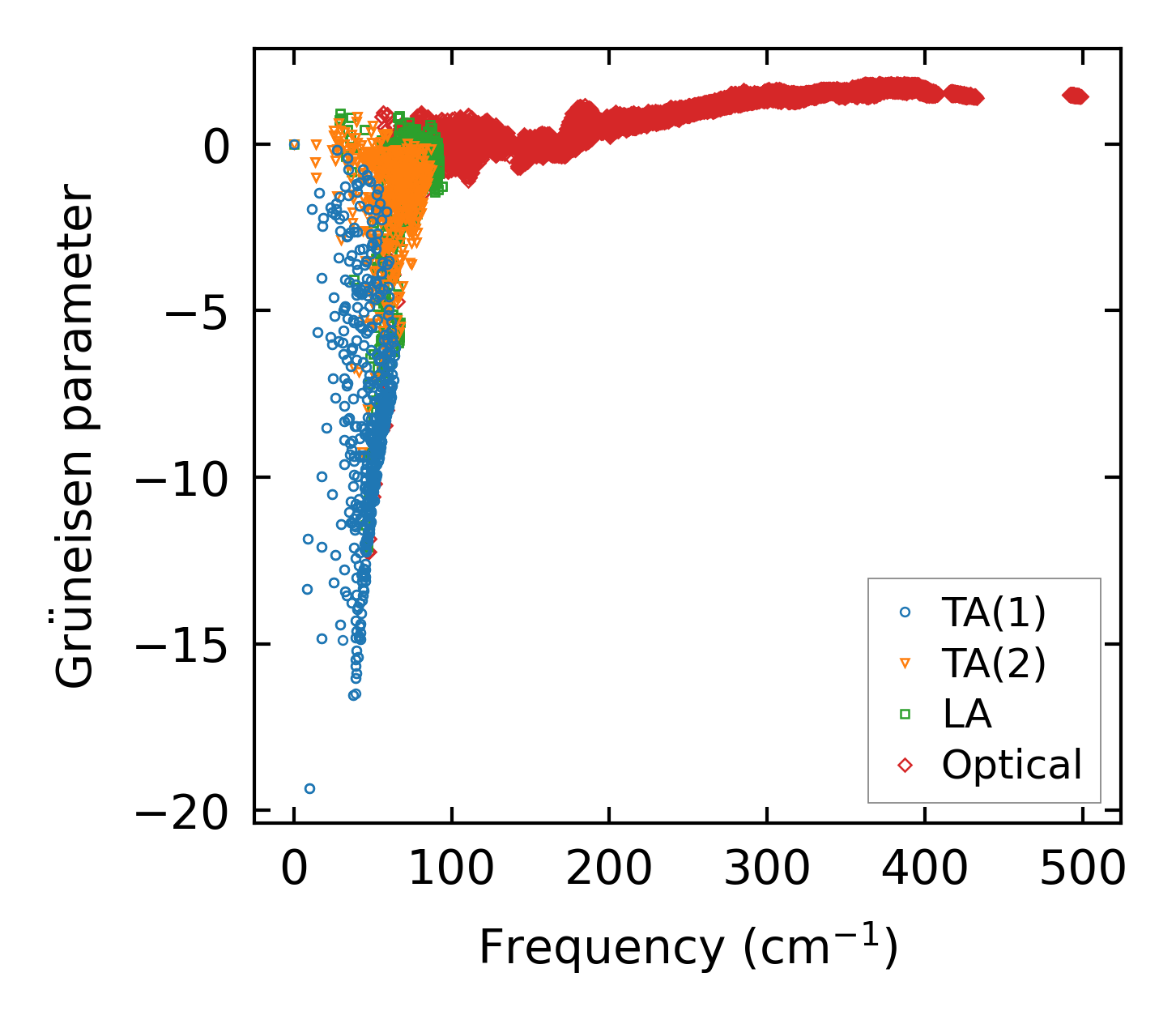

../../_images/fig_gru_all2196.png — (a) Grüneisen parameters

../../_images/fig_gruneisen2196.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x10, supercell: 2x2x2

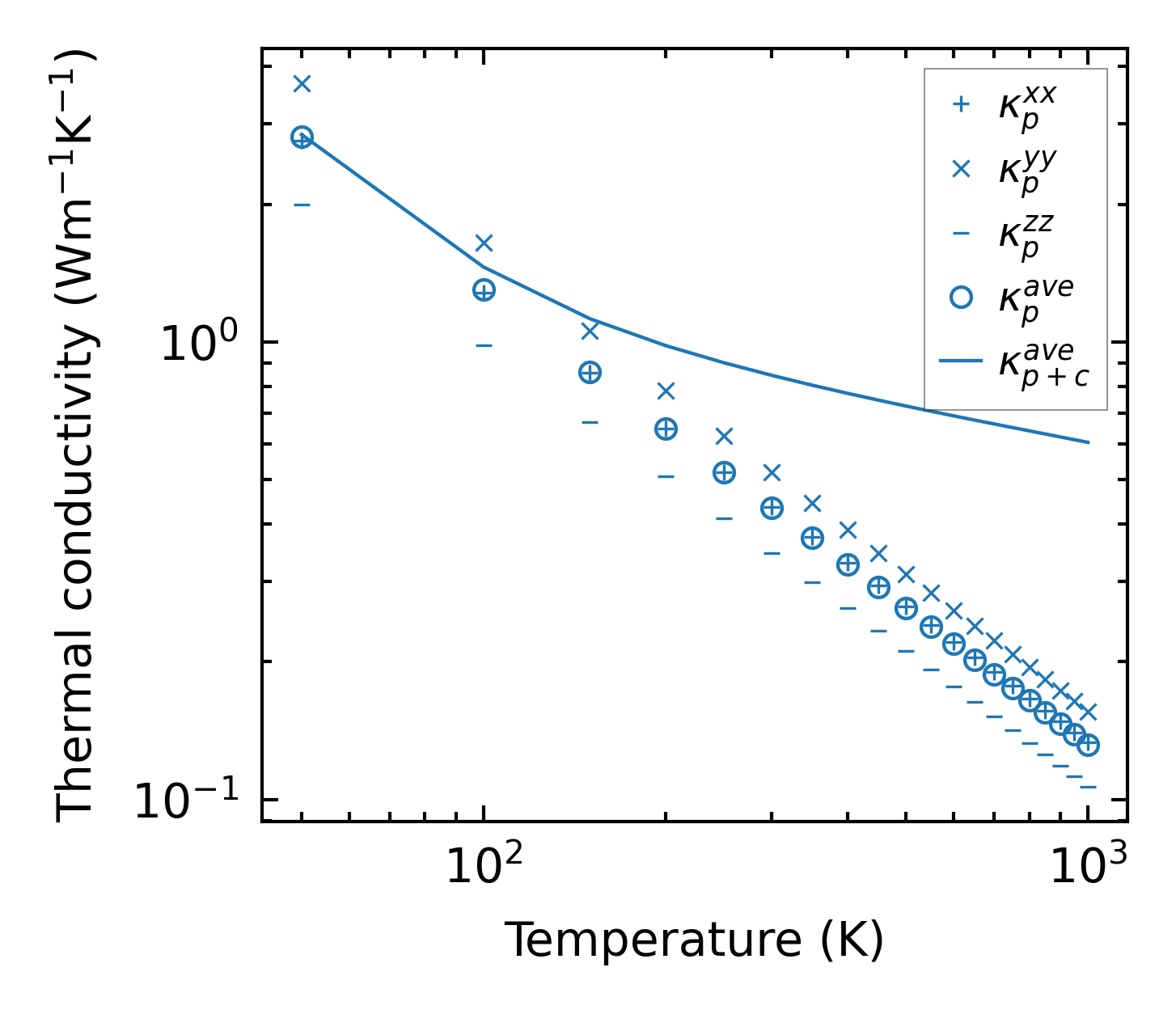

../../_images/fig_kappa4202.png — (a) Temperature-dependent lattice thermal conductivity

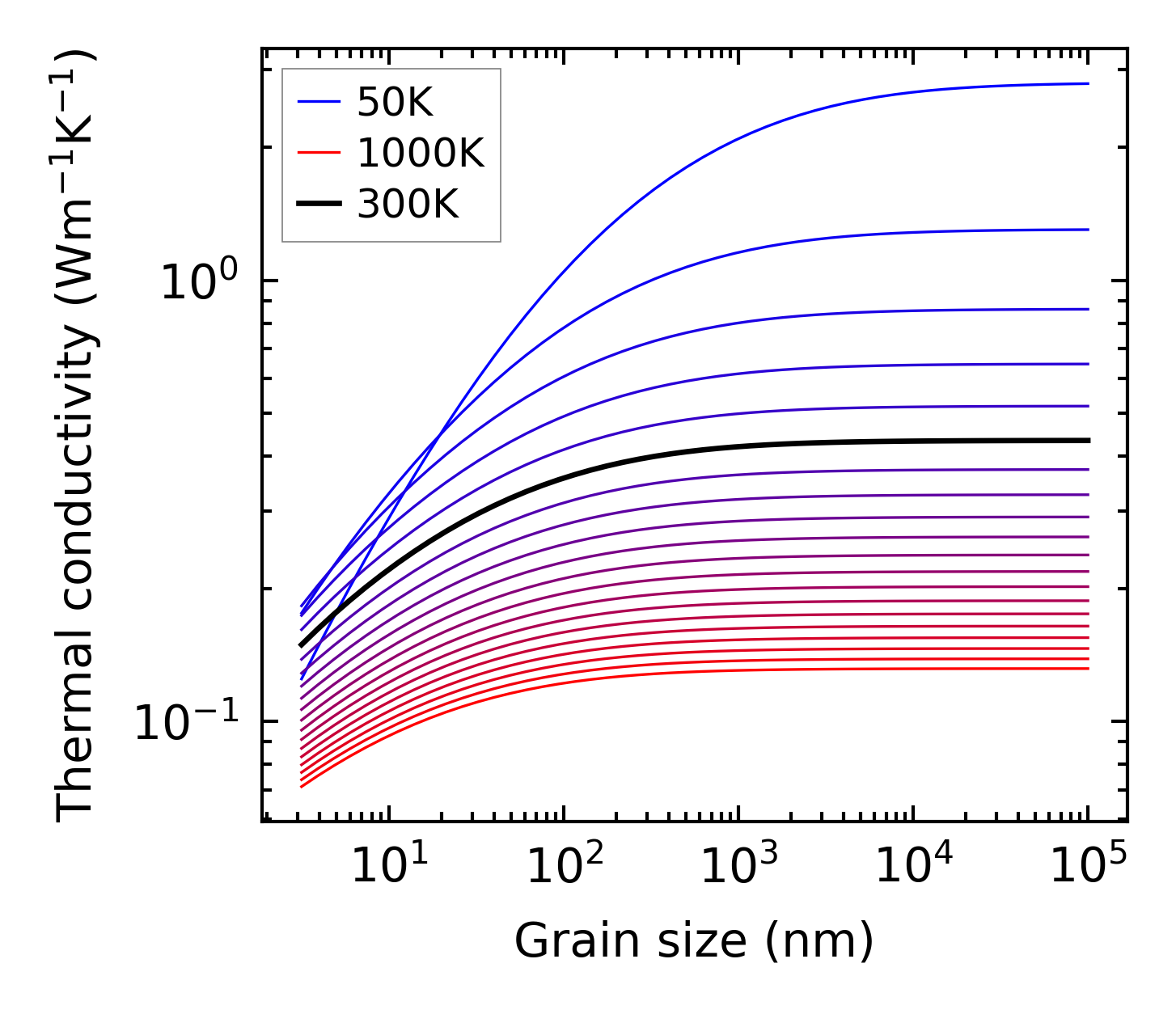

../../_images/fig_kappa_vs_grain_size2227.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

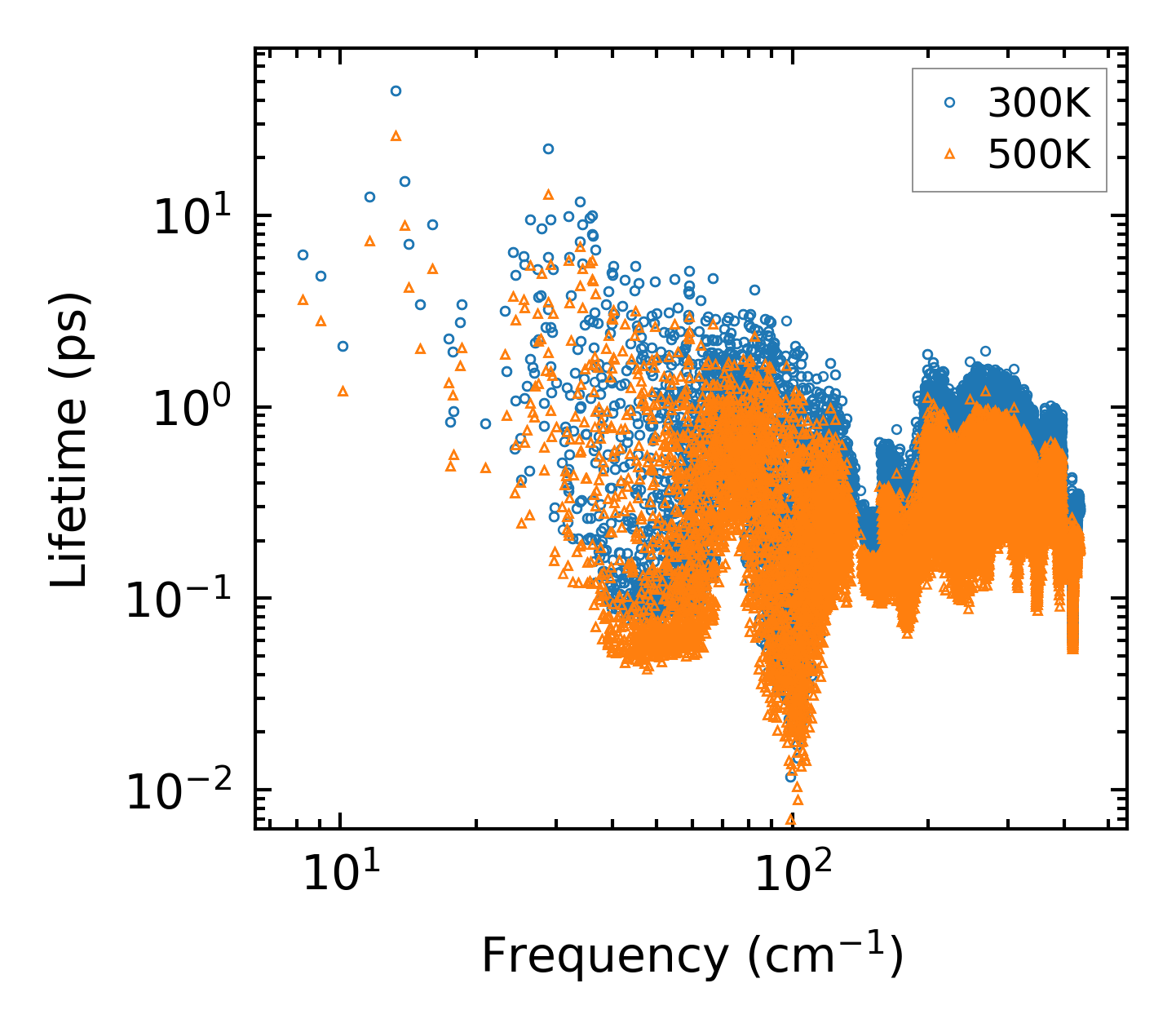

../../_images/fig_lifetime2182.png — (a) Phonon lifetime due to phonon-phonon scattering

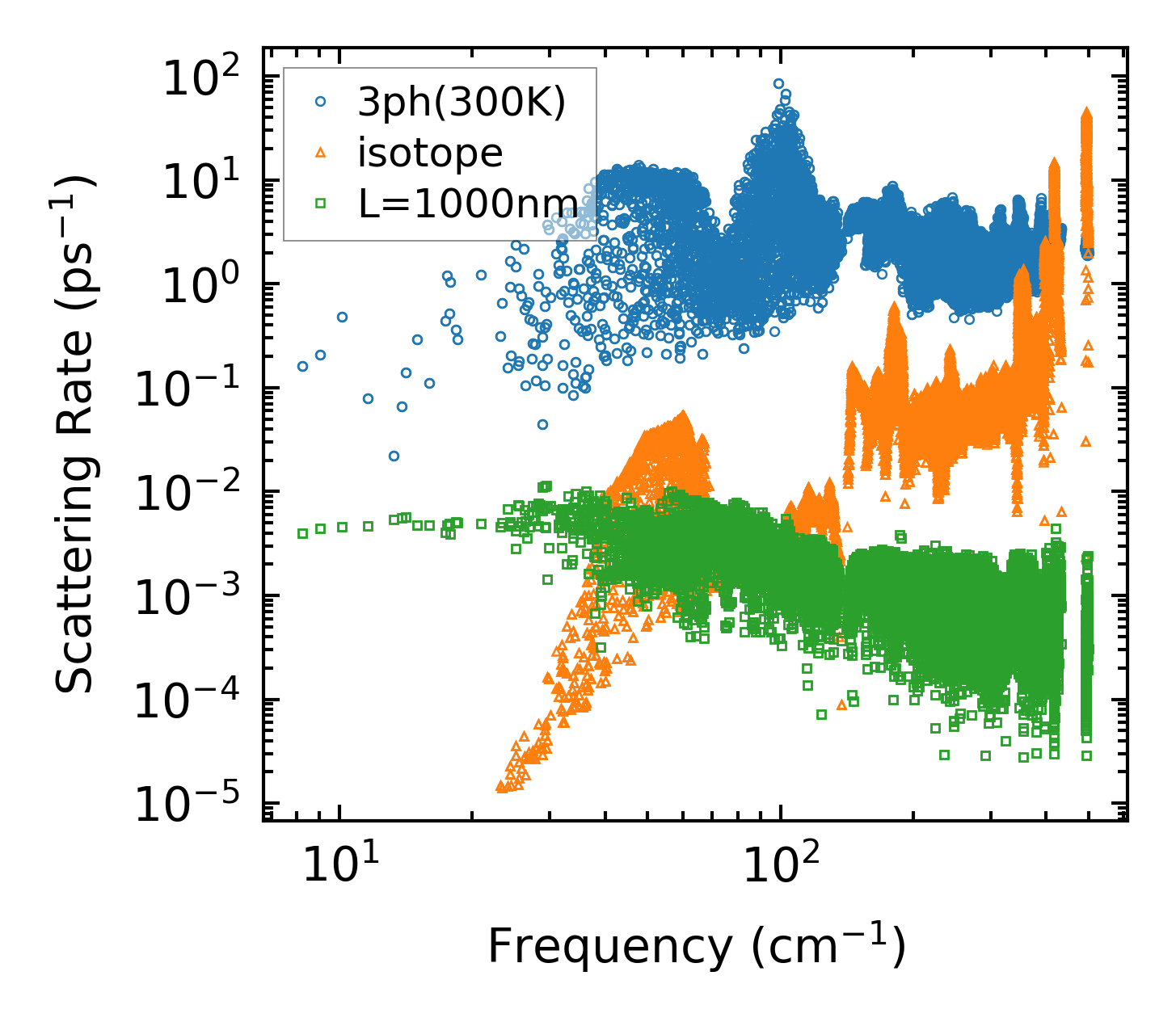

../../_images/fig_scat_rates2181.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency2182.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp2182.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

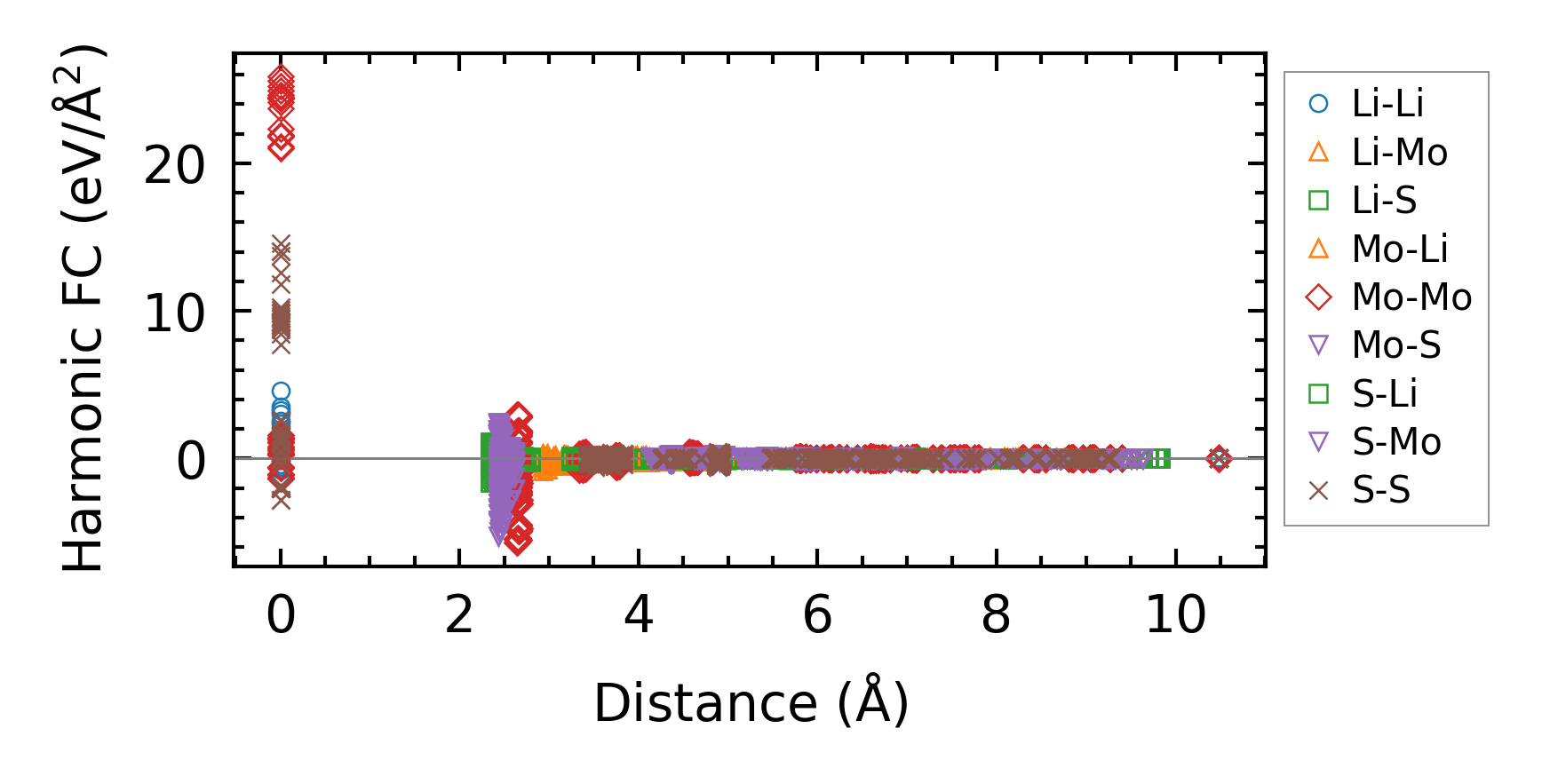

../../_images/fig_fc25068.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa4203.png — (a) Temperature-dependent lattice thermal conductivity

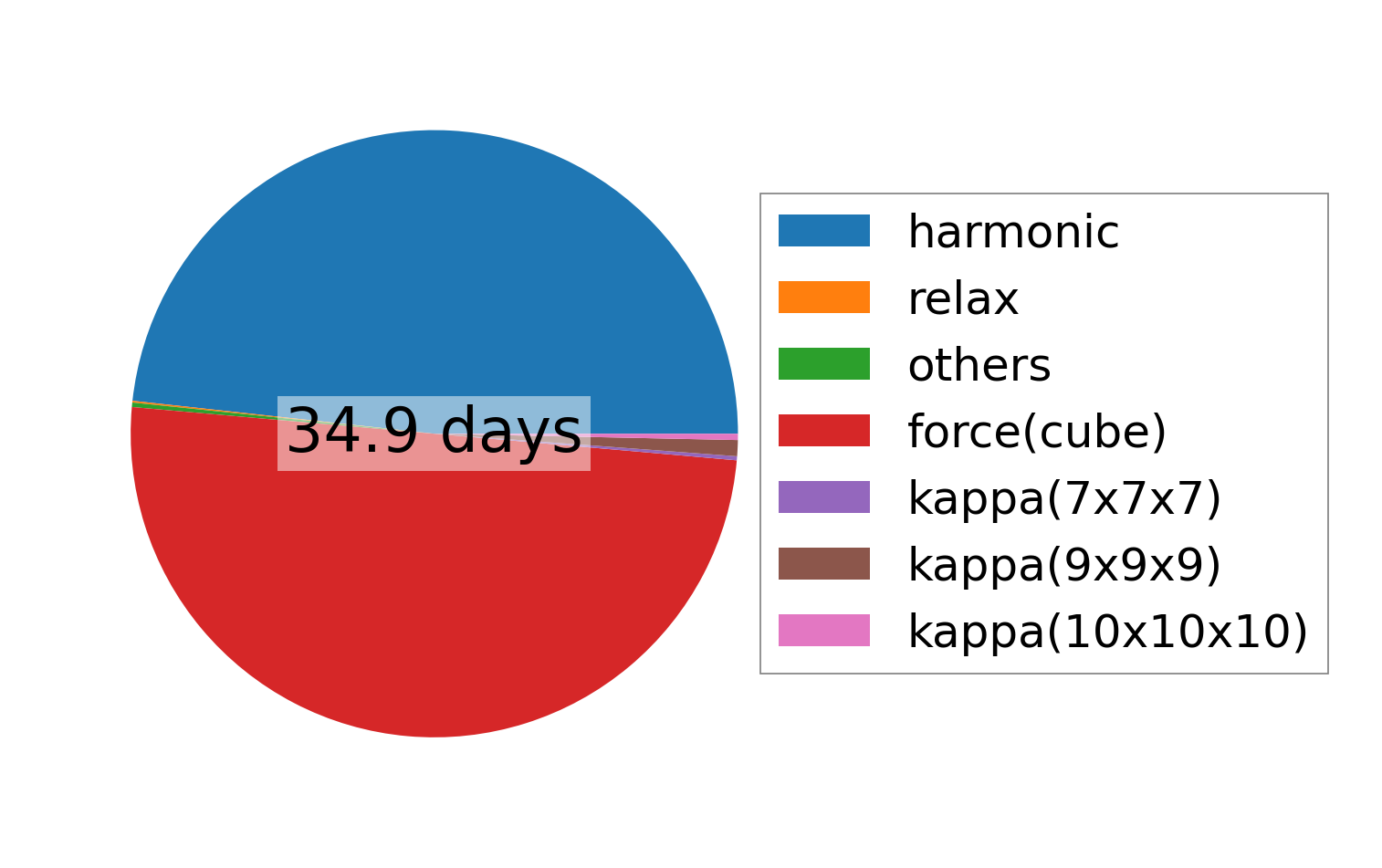

../../_images/fig_times9468.png — (b) Computation time
