mp-675601/Al3NO3/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-675601.tar.gz

Harmonic properties

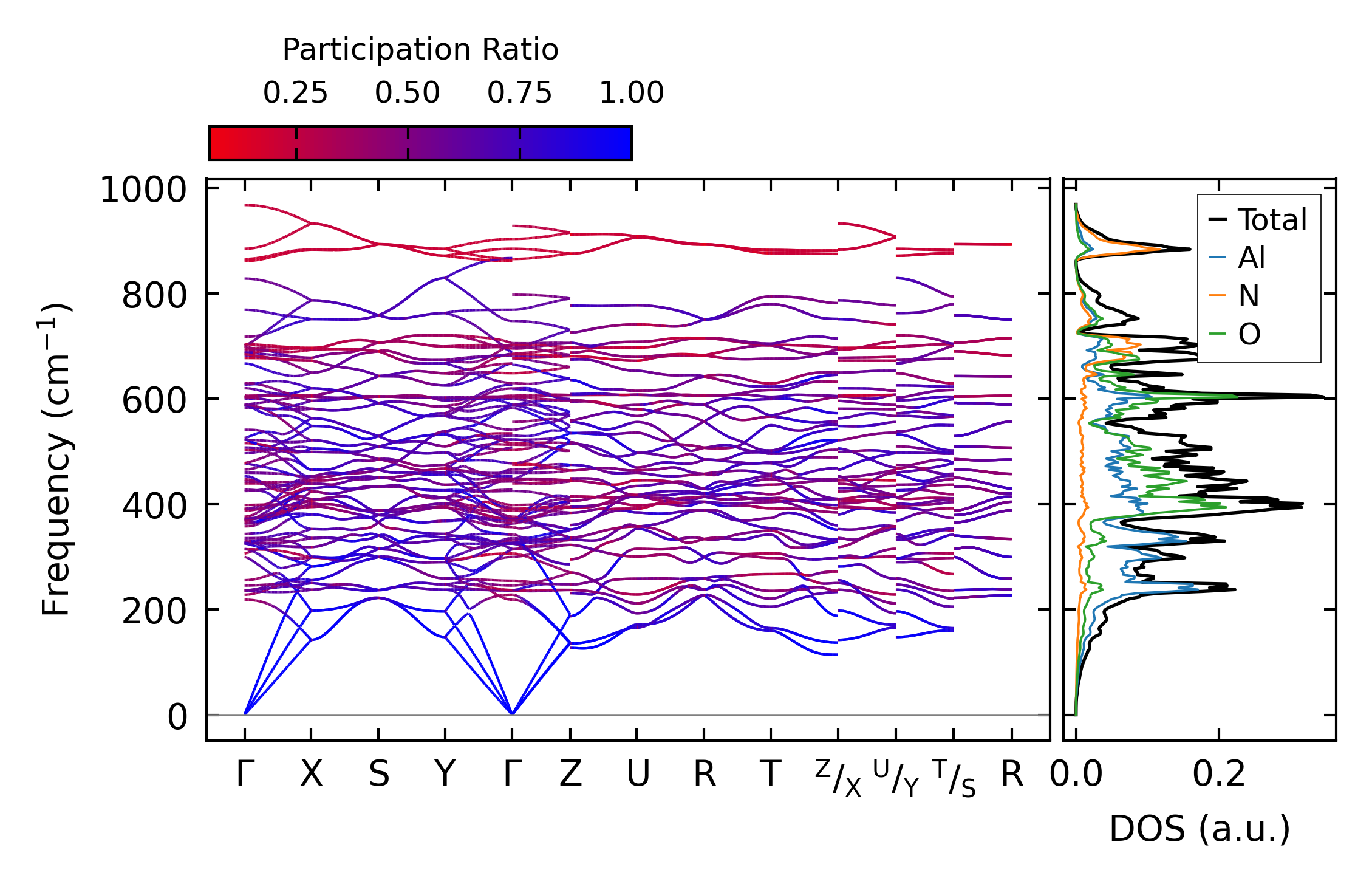

../../_images/fig_bandos_pr5243.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo5243.png — (b) Thermodynamic properties

Grüneisen parameters

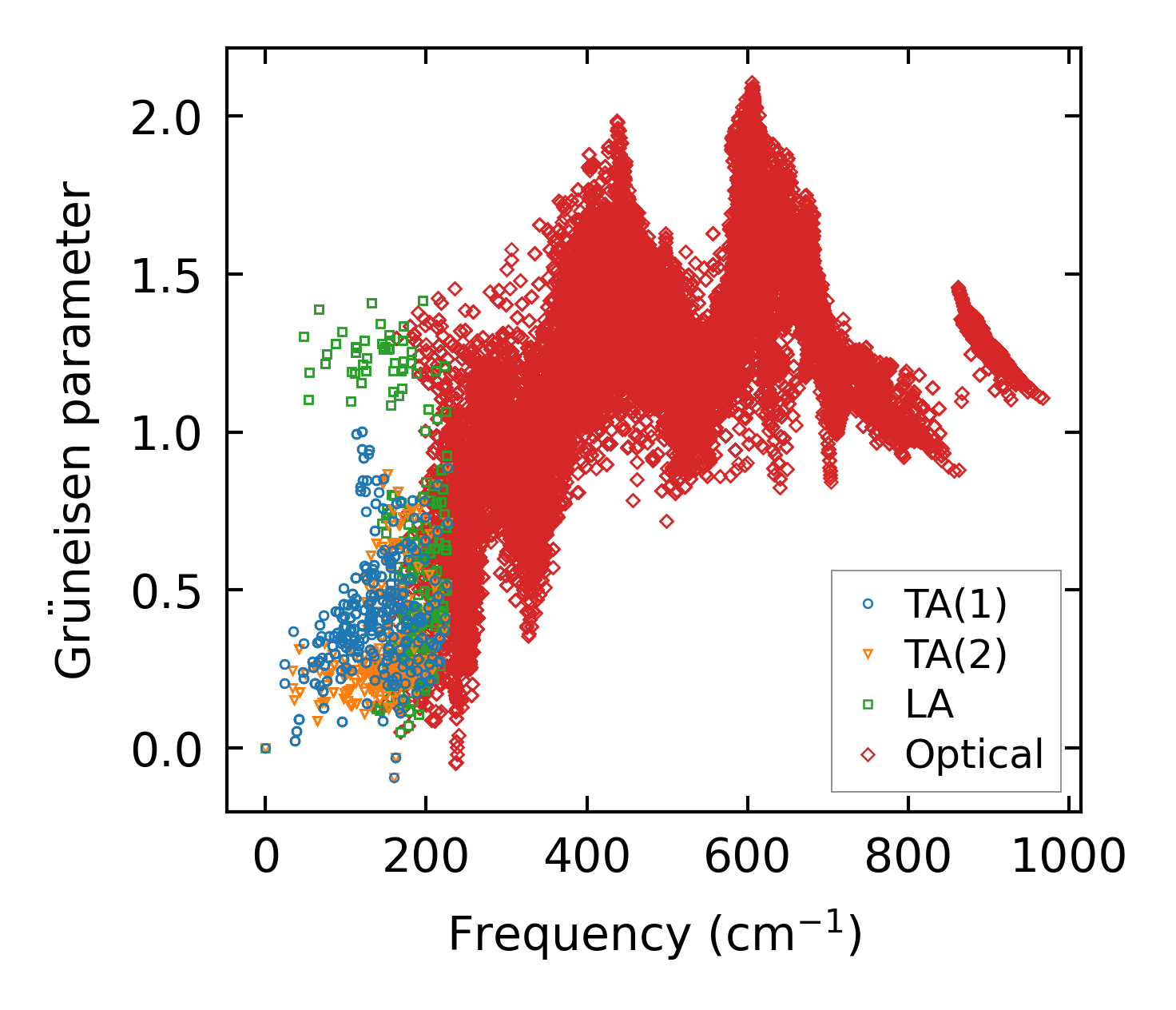

../../_images/fig_gru_all2185.png — (a) Grüneisen parameters

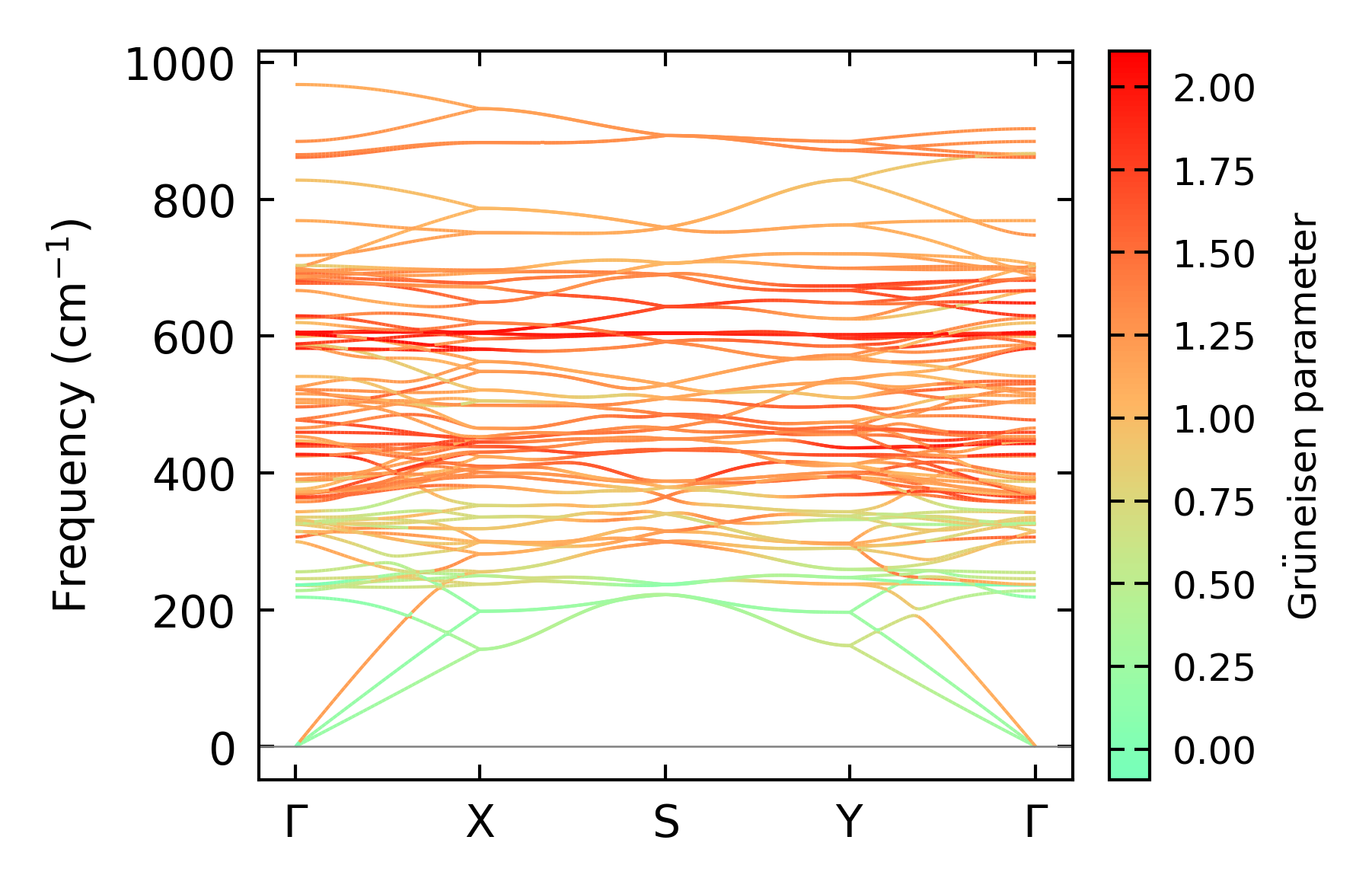

../../_images/fig_gruneisen2185.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x8, supercell: 2x2x1

../../_images/fig_kappa4184.png — (a) Temperature-dependent lattice thermal conductivity

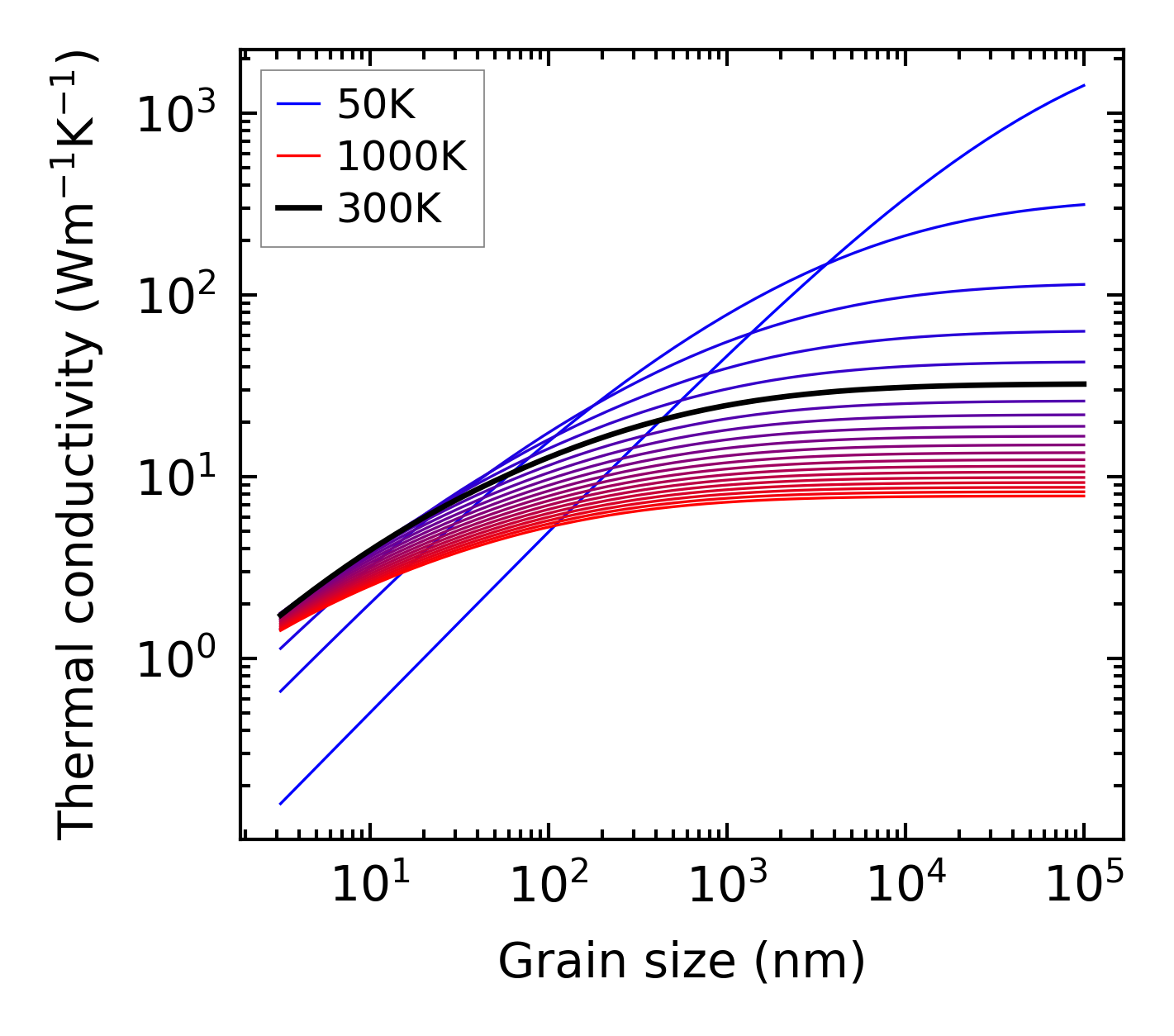

../../_images/fig_kappa_vs_grain_size2216.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

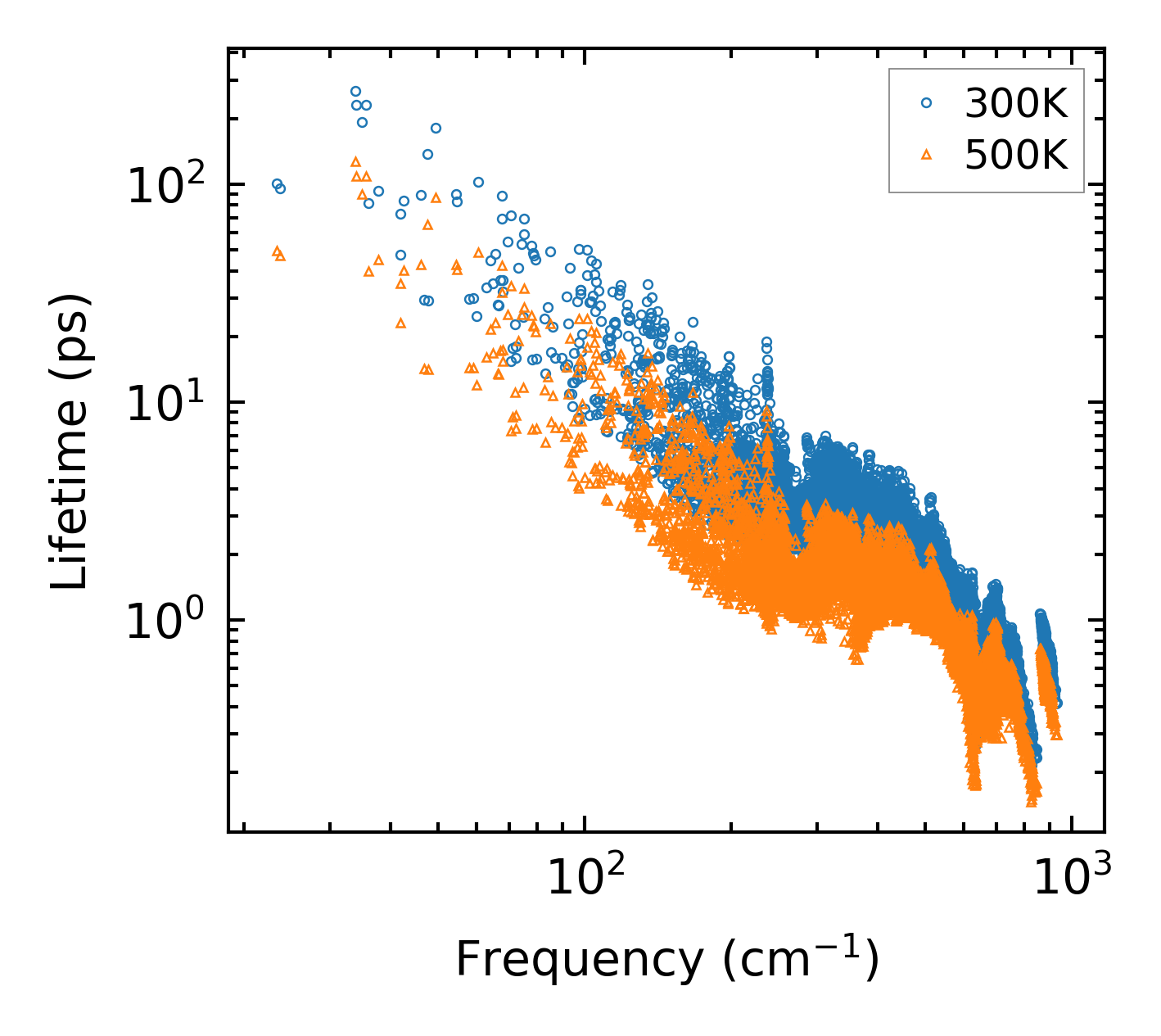

../../_images/fig_lifetime2171.png — (a) Phonon lifetime due to phonon-phonon scattering

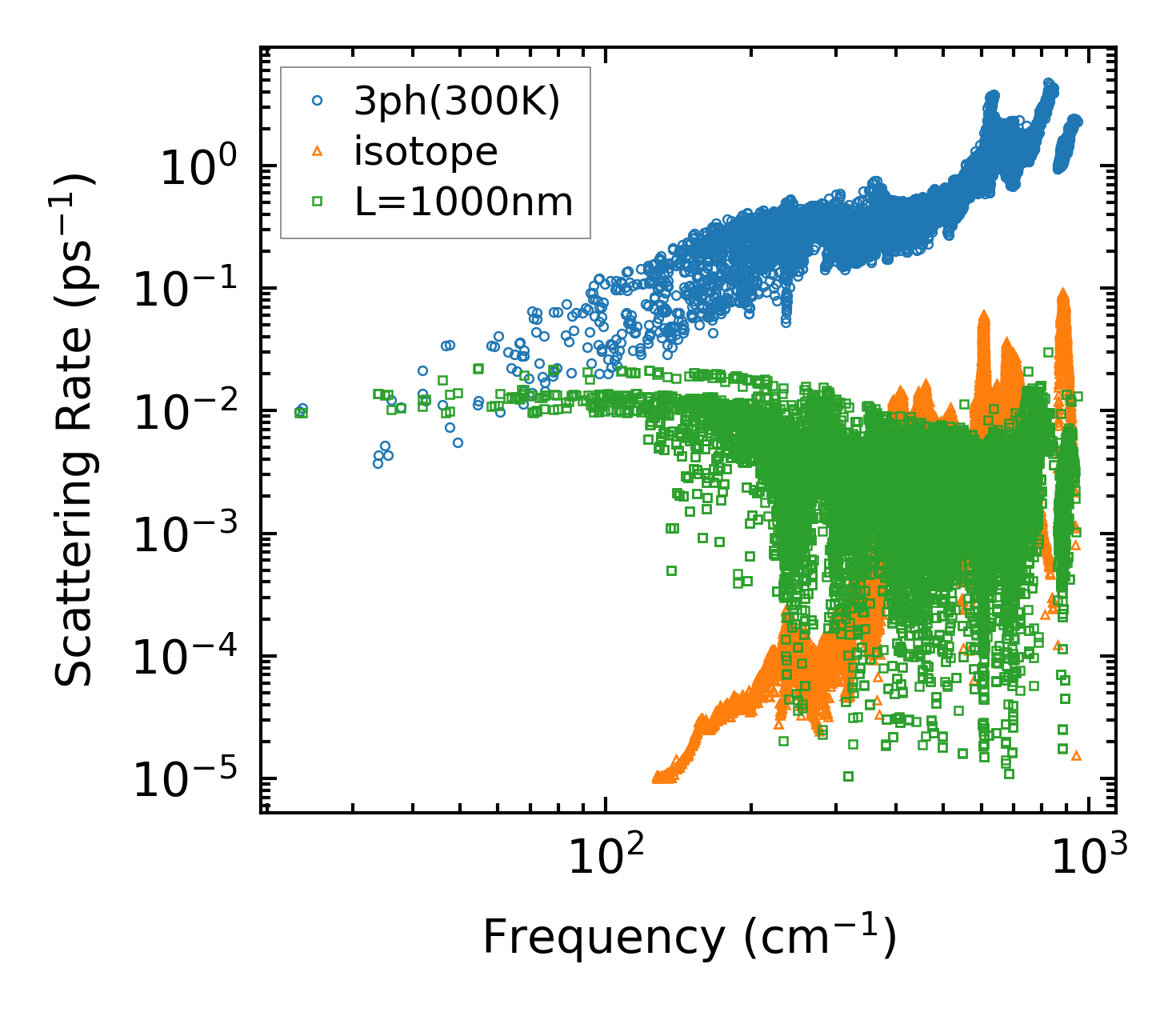

../../_images/fig_scat_rates2170.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

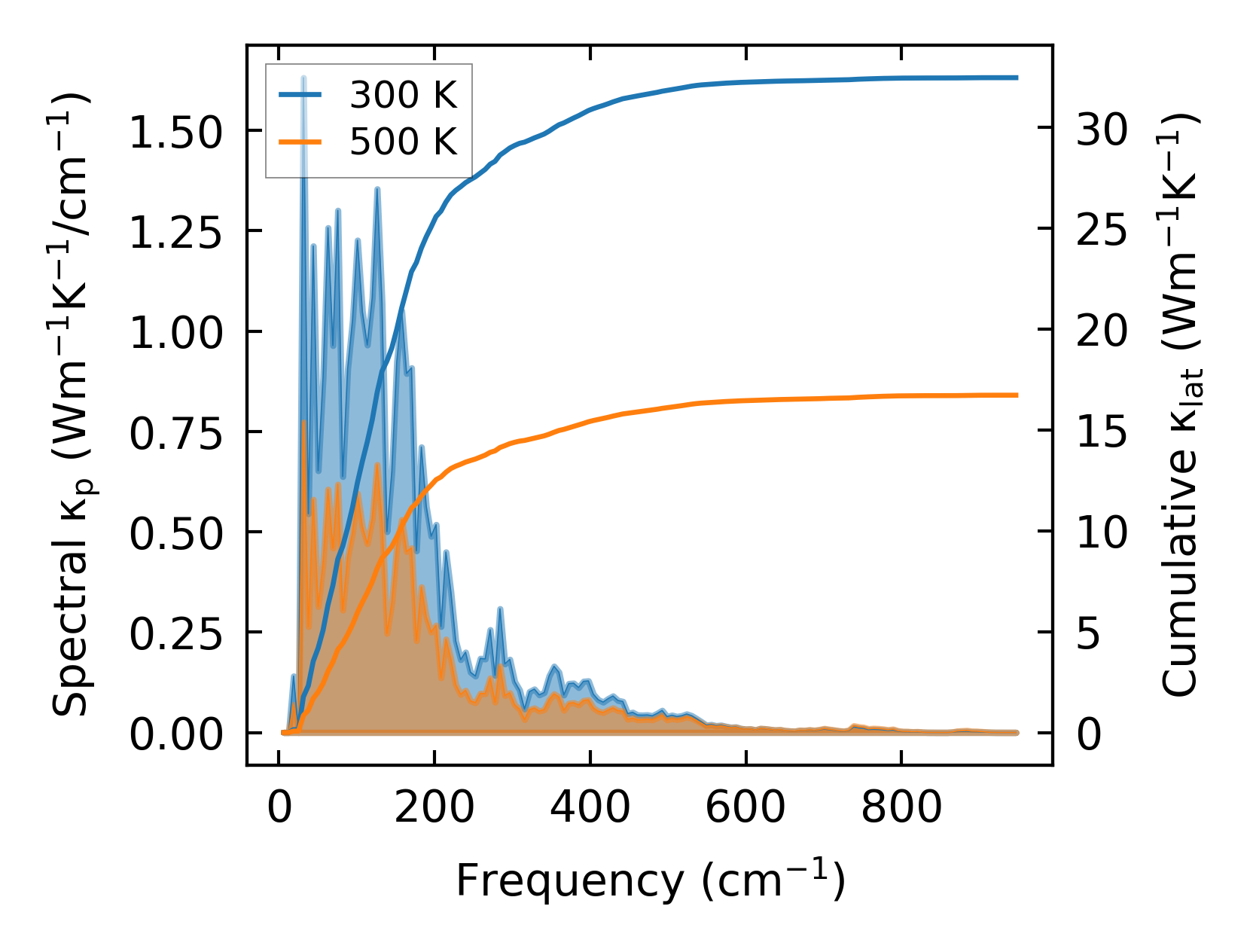

../../_images/fig_cumu_frequency2171.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

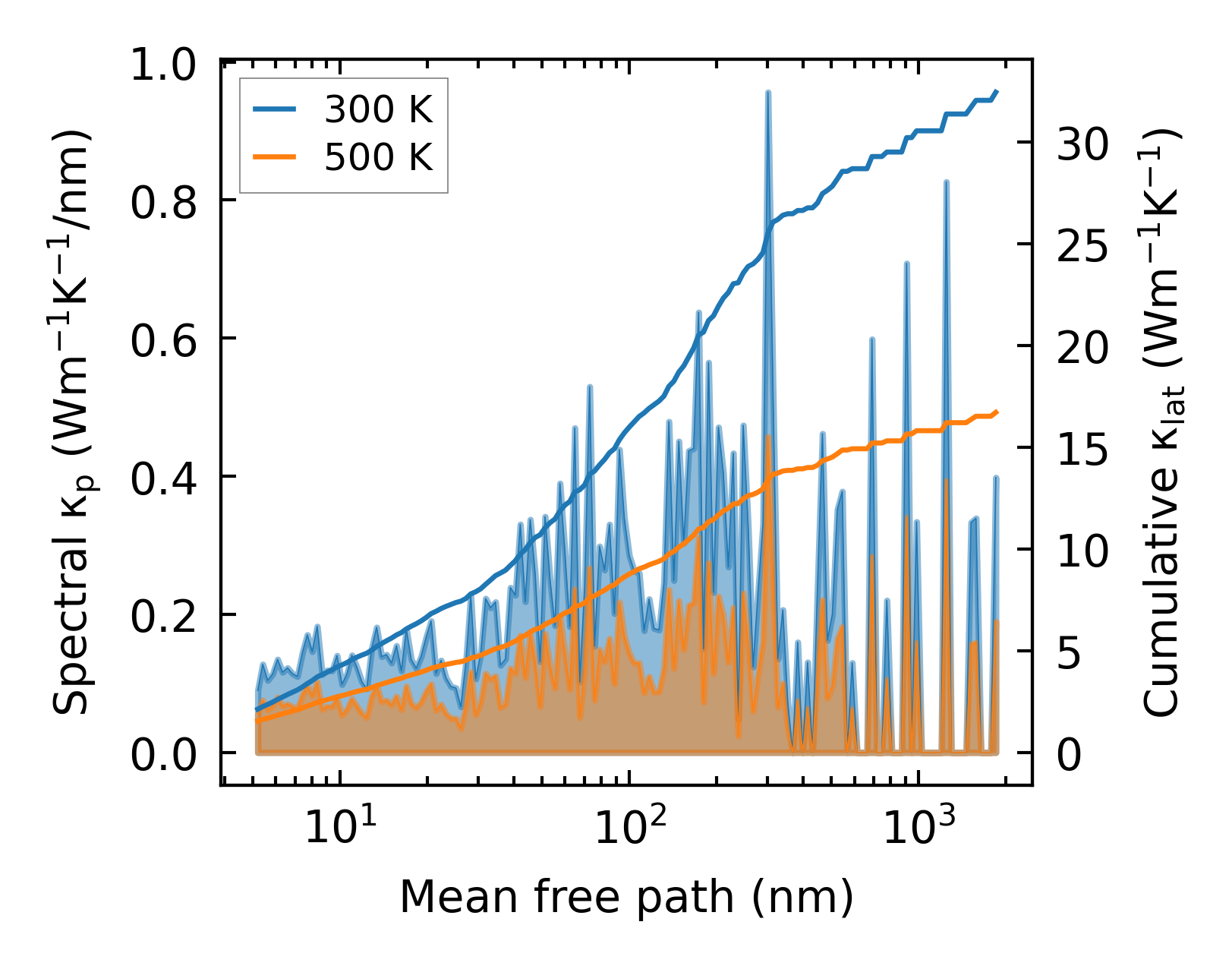

../../_images/fig_cumu_mfp2171.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

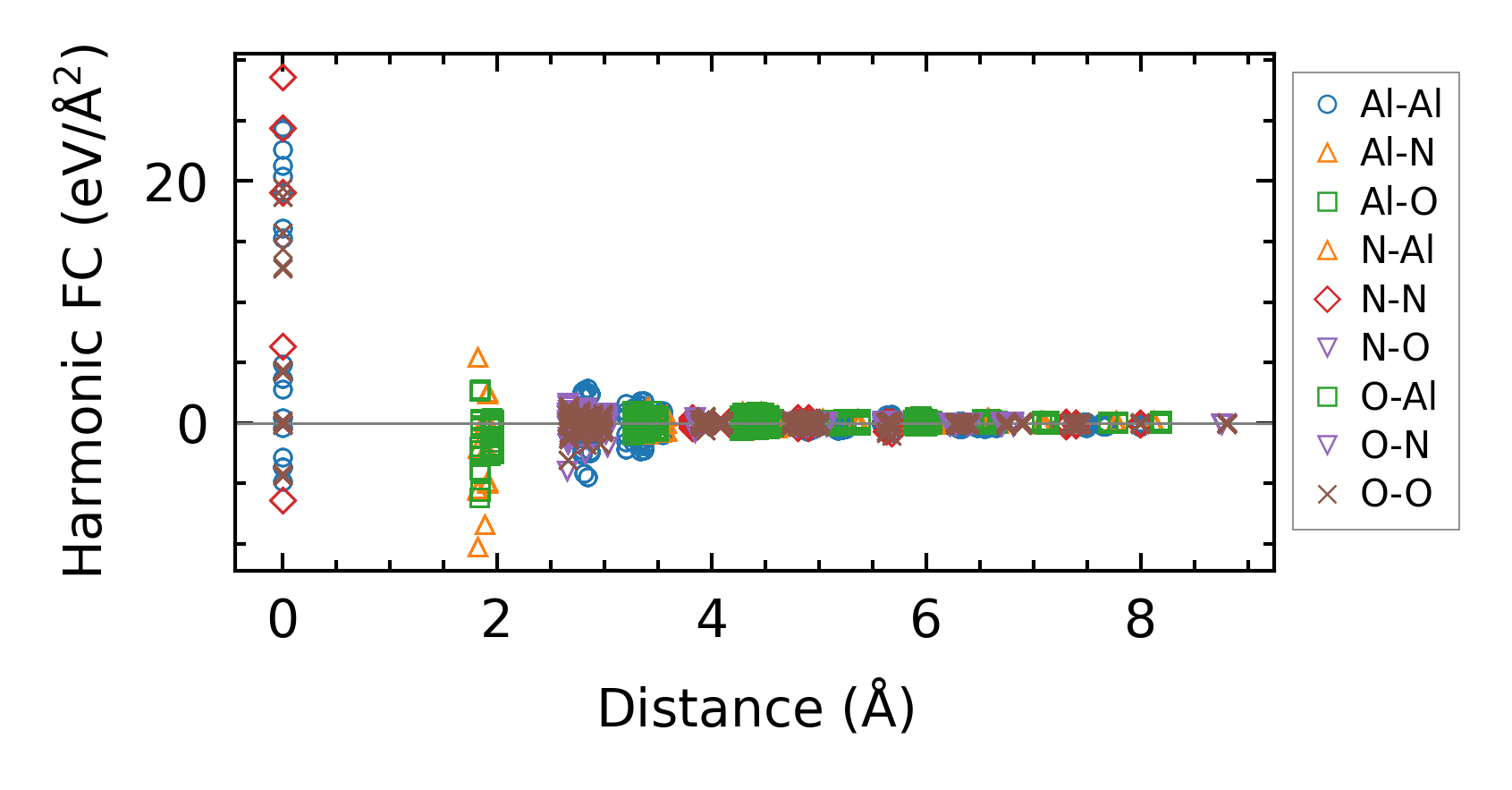

../../_images/fig_fc25048.png — (a) Force constants w.r.t atomic distance

Summary

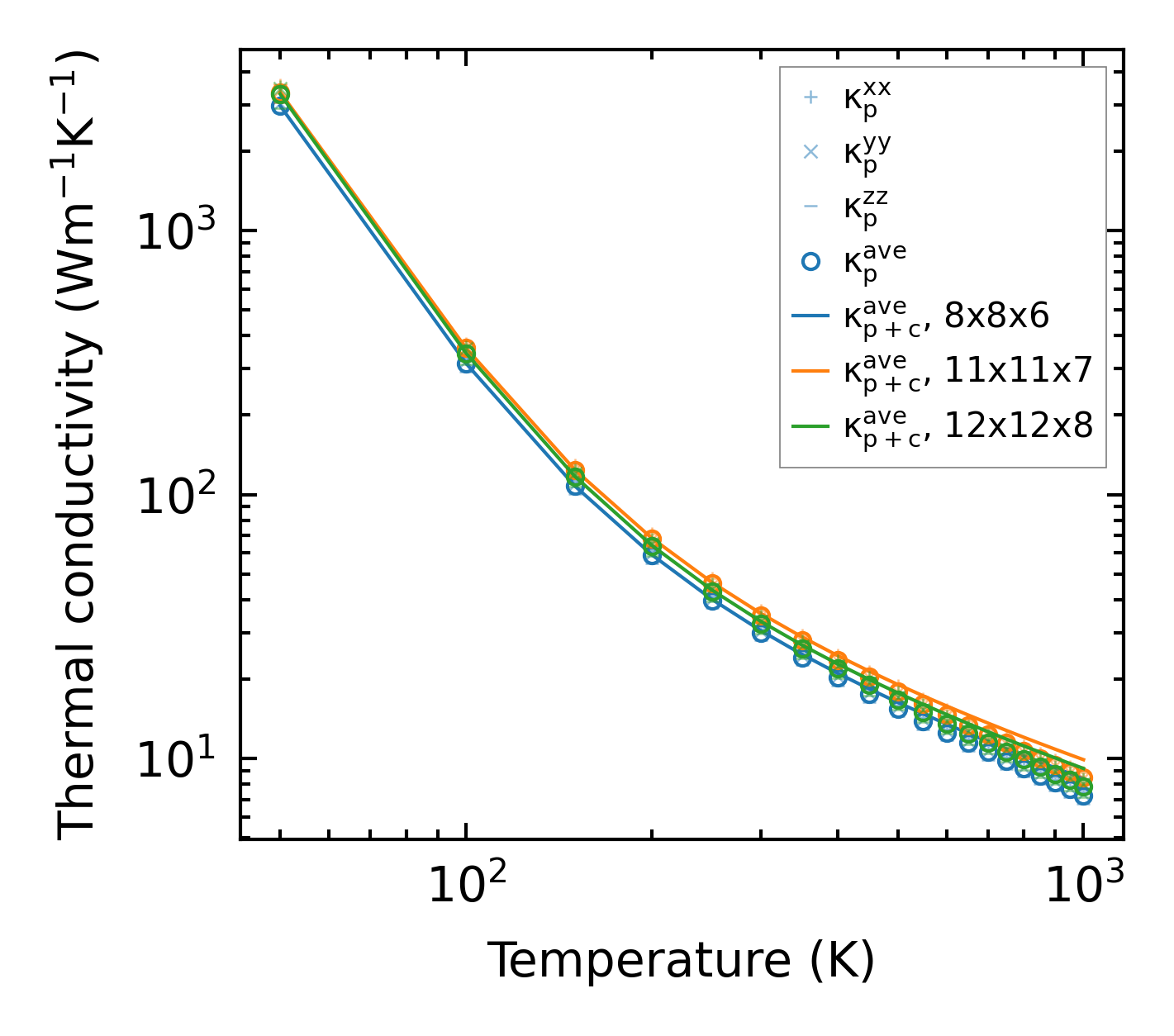

../../_images/fig_kappa4185.png — (a) Temperature-dependent lattice thermal conductivity

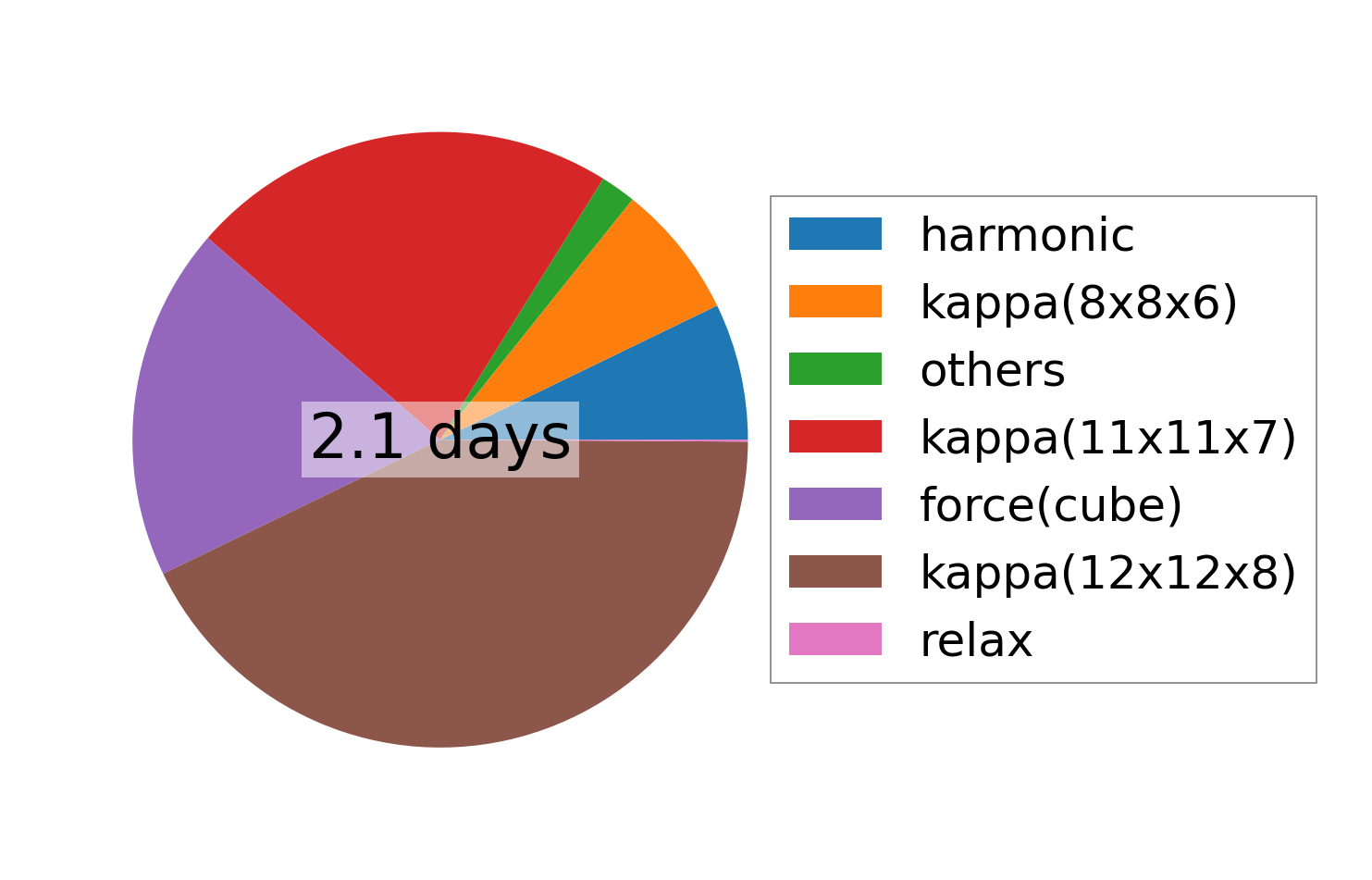

../../_images/fig_times9433.png — (b) Computation time
