mp-625565-2/CdH2O2/anharm

Space group: P-3m1 (164)
Link: Materials Project
Download: mp-625565-2.tar.gz

Equation of state

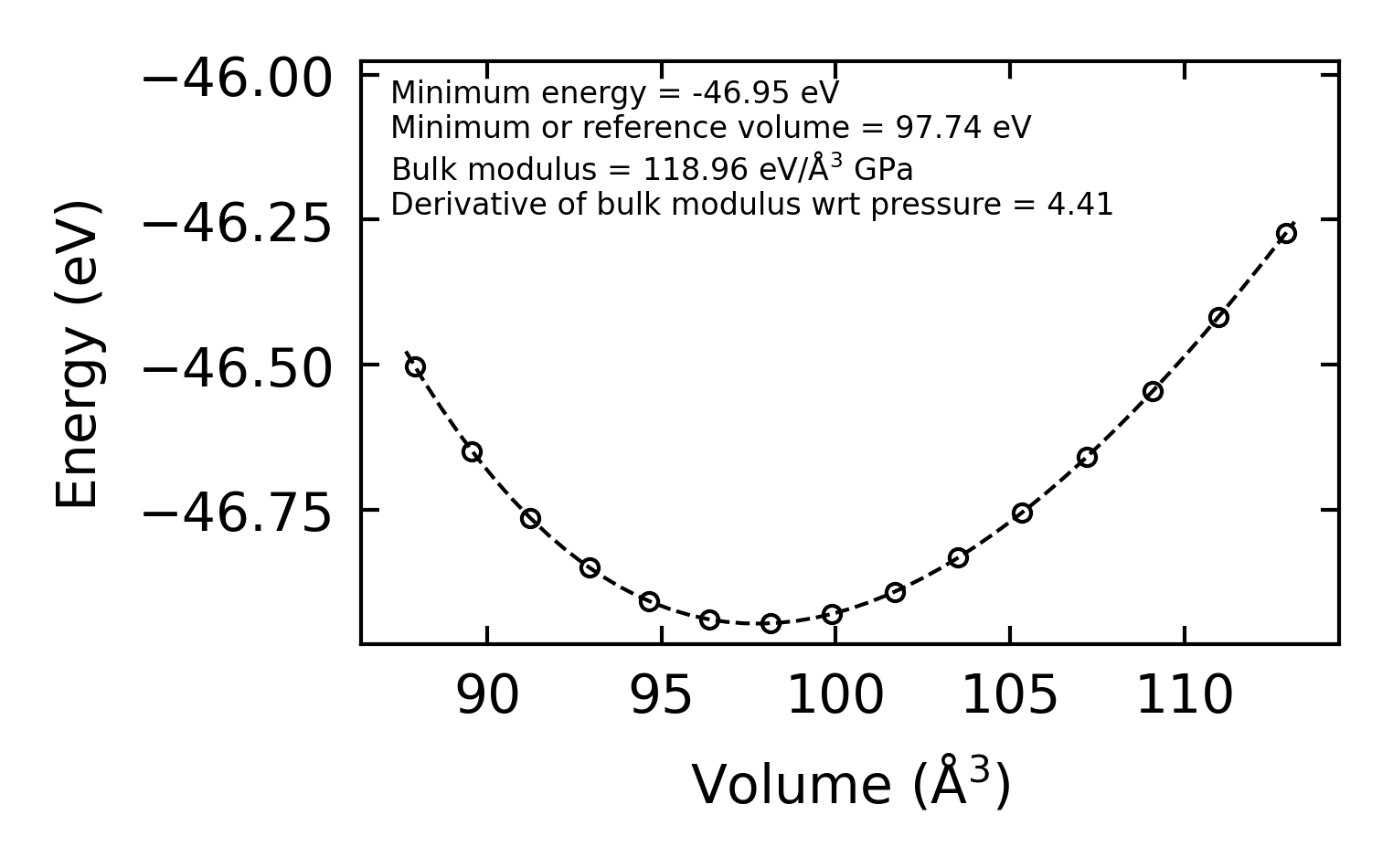

../../_images/fig_bm3047.png — (a) Equation of state

Harmonic properties

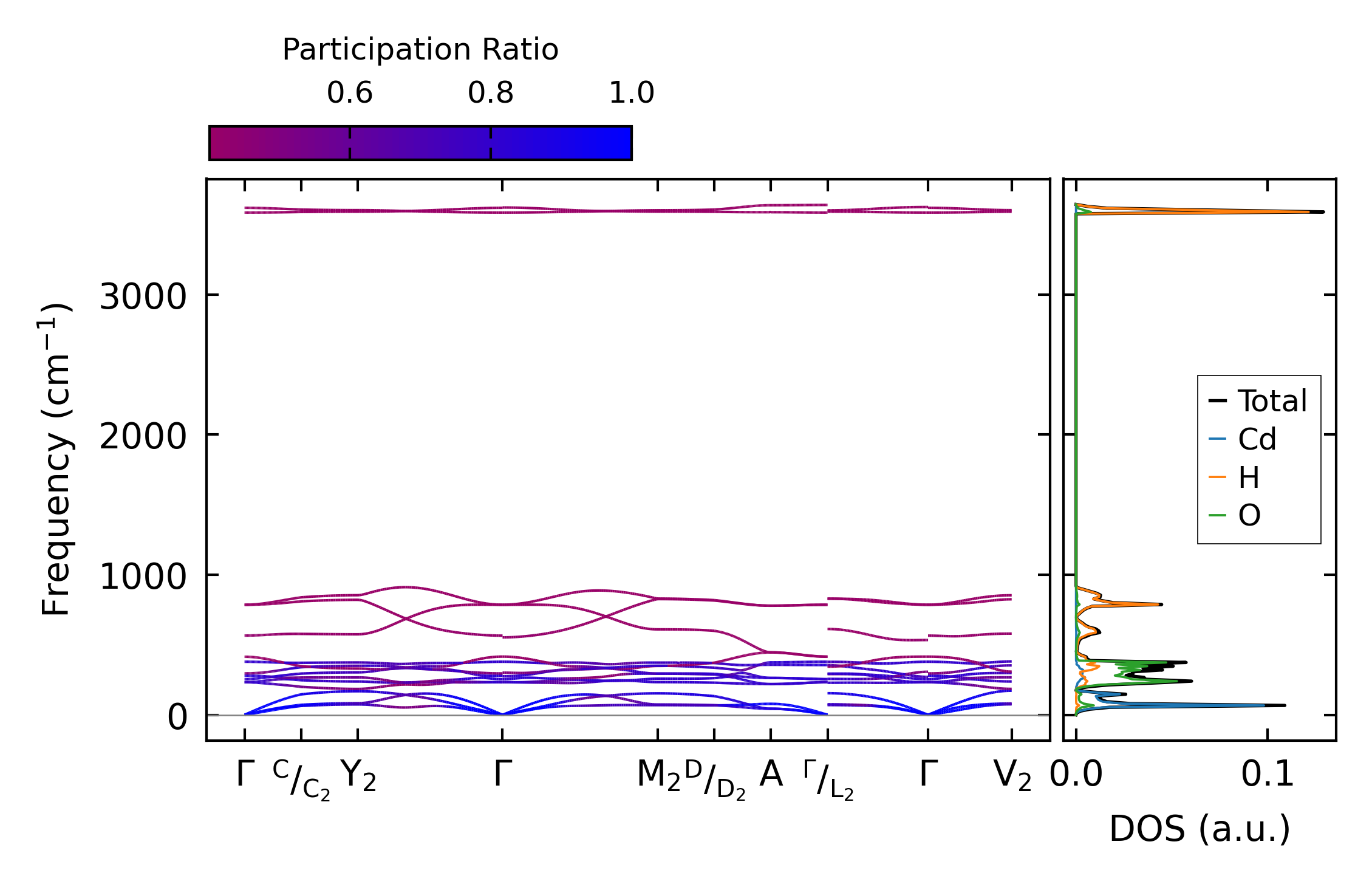

../../_images/fig_bandos_pr5909.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo5909.png — (b) Thermodynamic properties

Grüneisen parameters

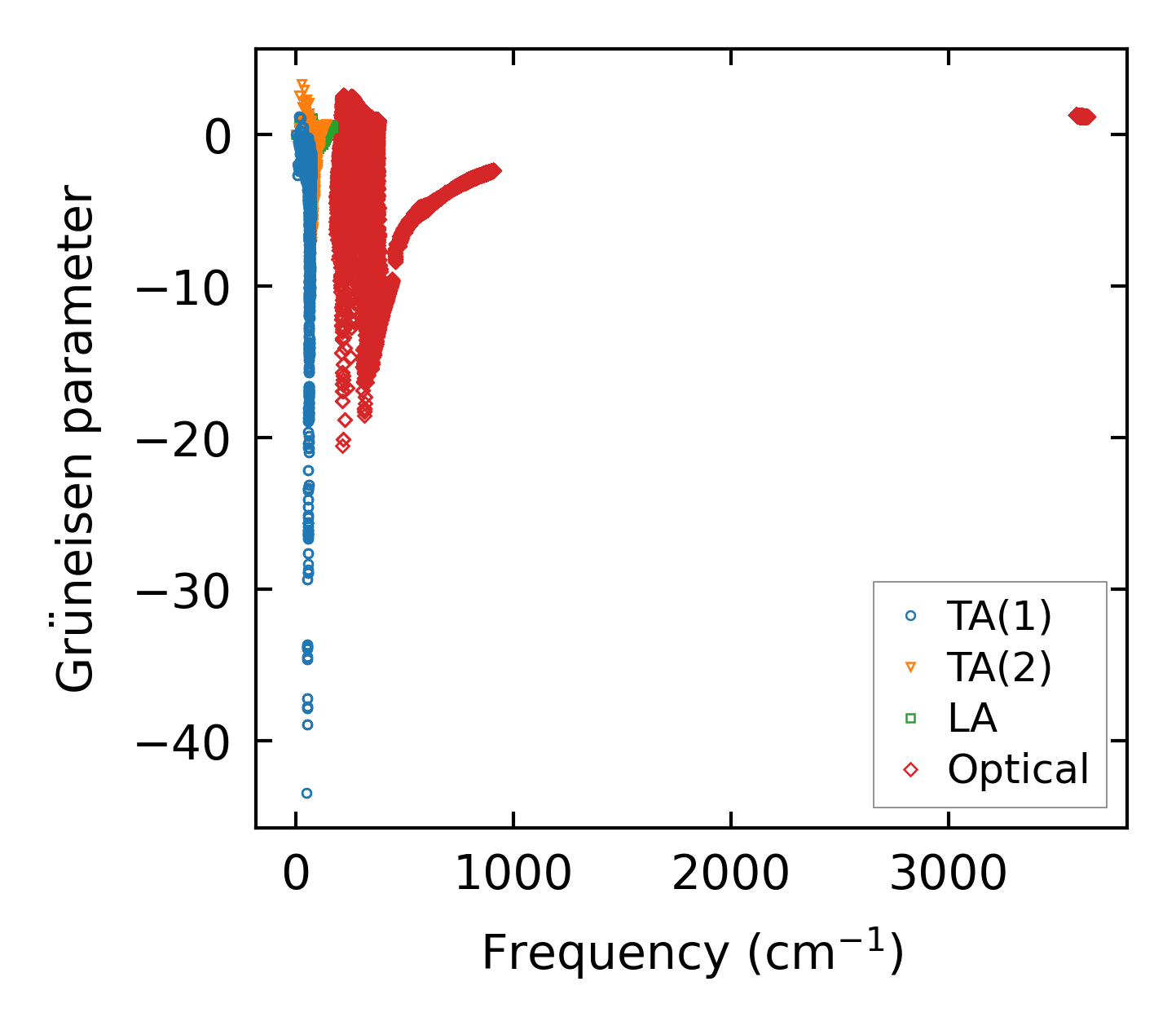

../../_images/fig_gru_all2421.png — (a) Grüneisen parameters

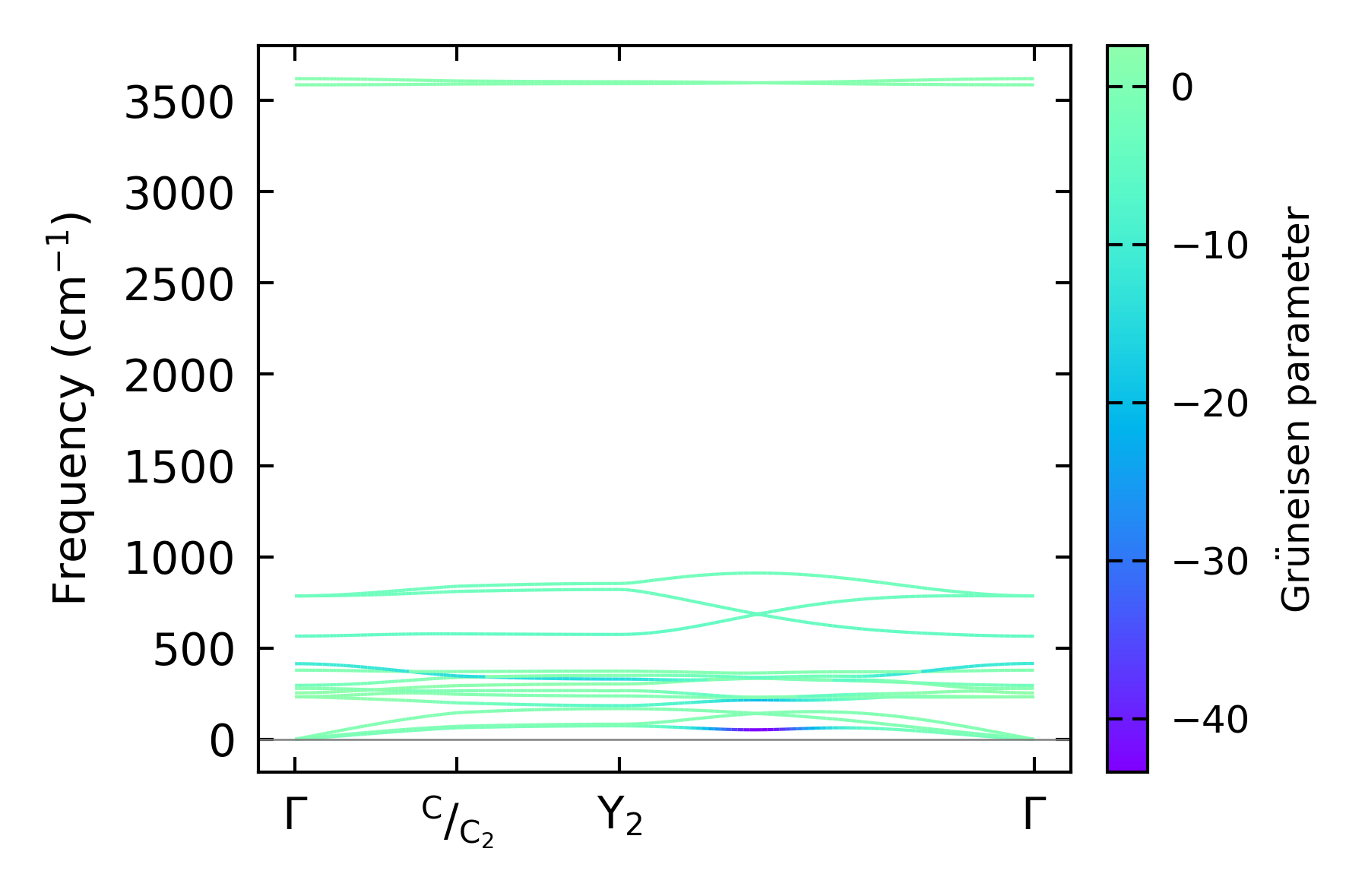

../../_images/fig_gruneisen2421.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 21x21x16, supercell: 2x3x2

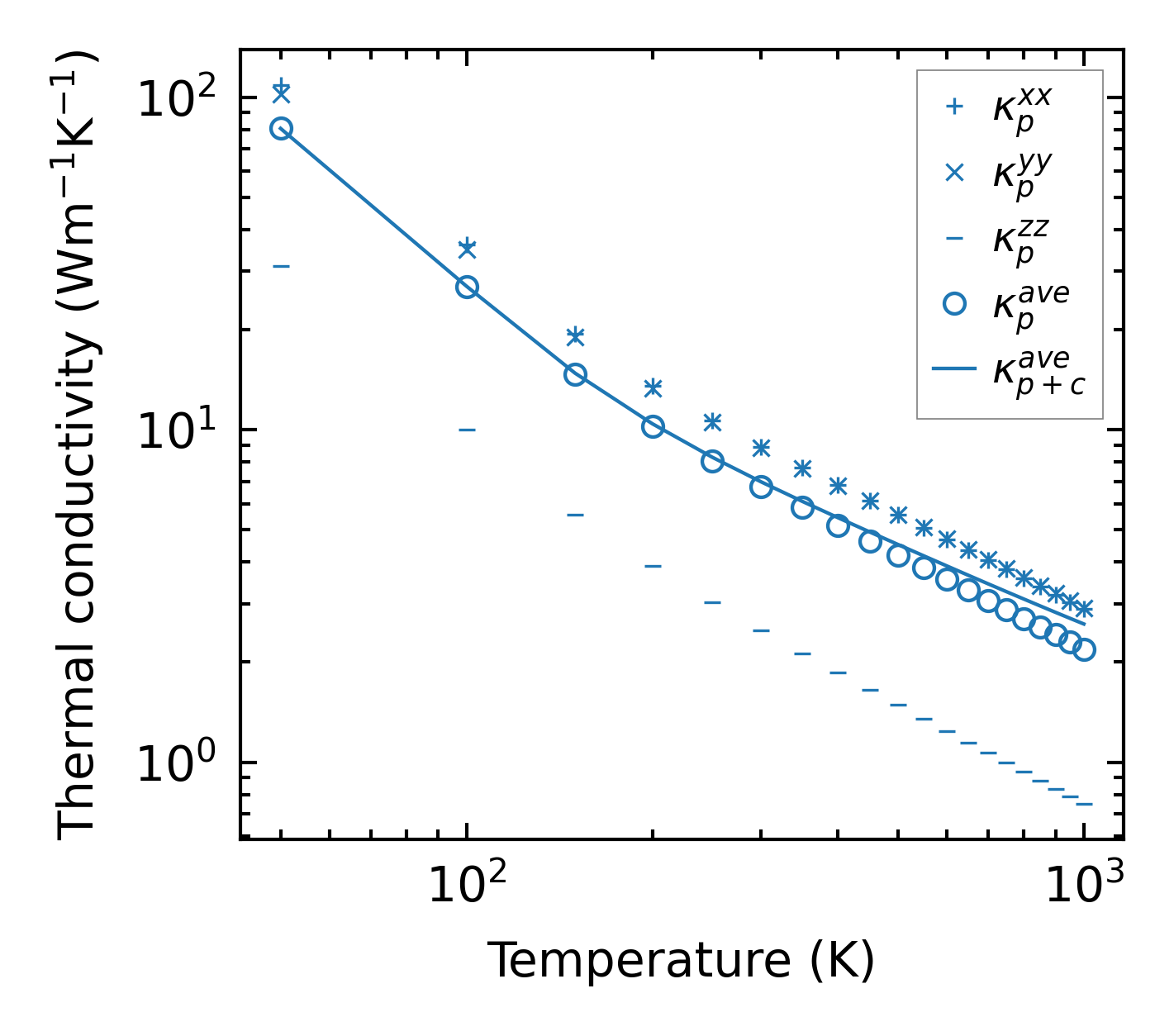

../../_images/fig_kappa4610.png — (a) Temperature-dependent lattice thermal conductivity

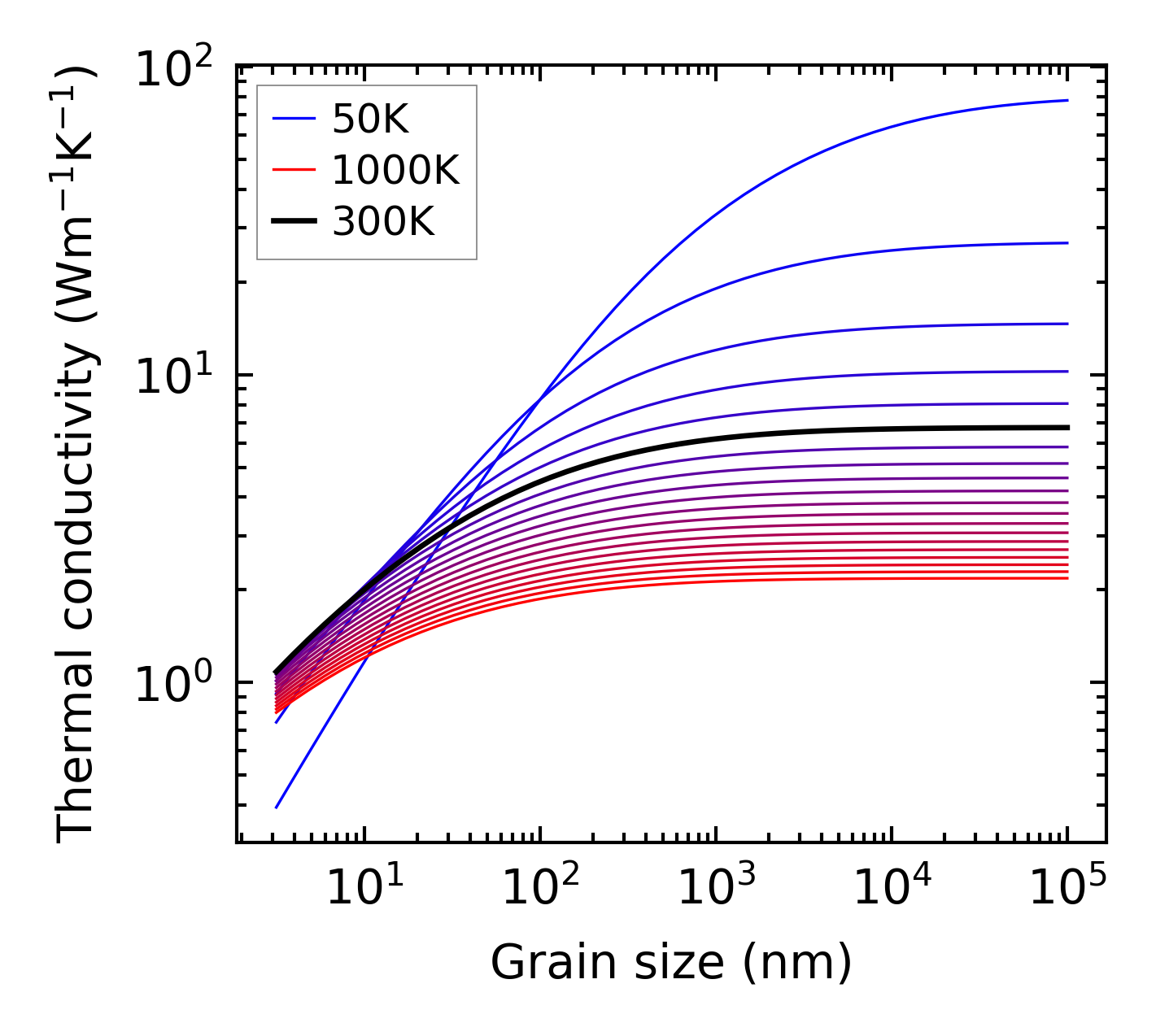

../../_images/fig_kappa_vs_grain_size2452.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

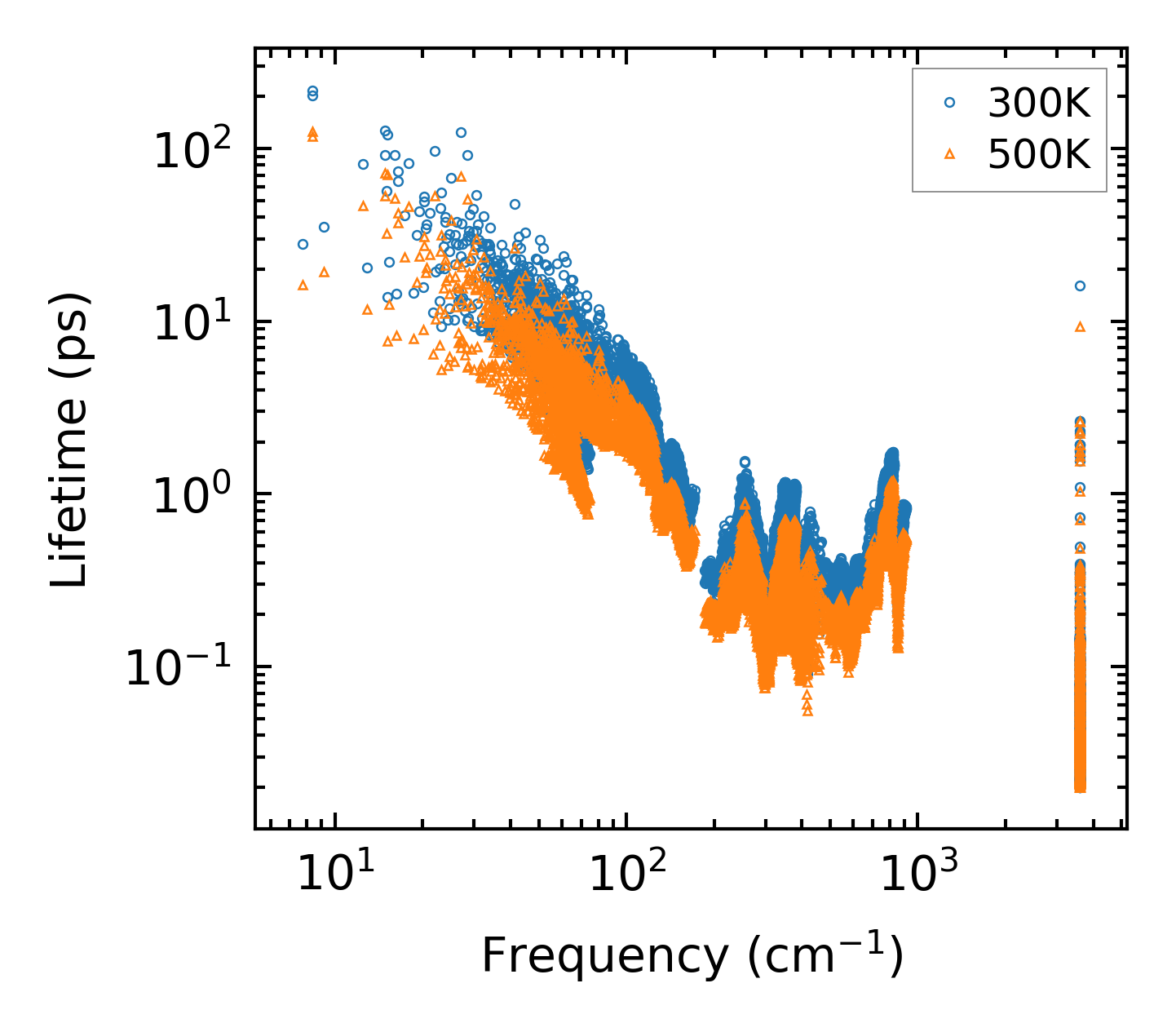

../../_images/fig_lifetime2404.png — (a) Phonon lifetime due to phonon-phonon scattering

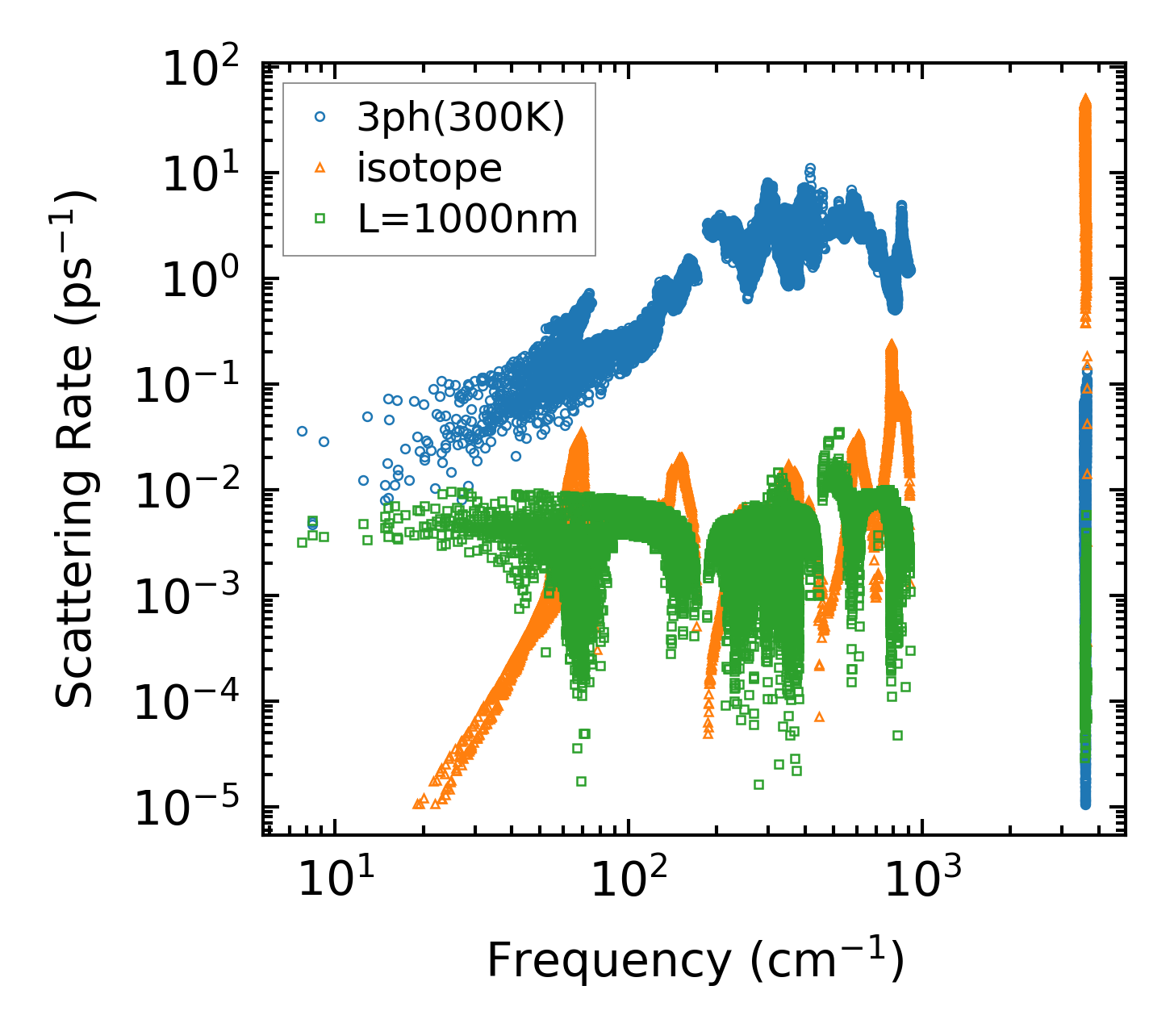

../../_images/fig_scat_rates2403.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

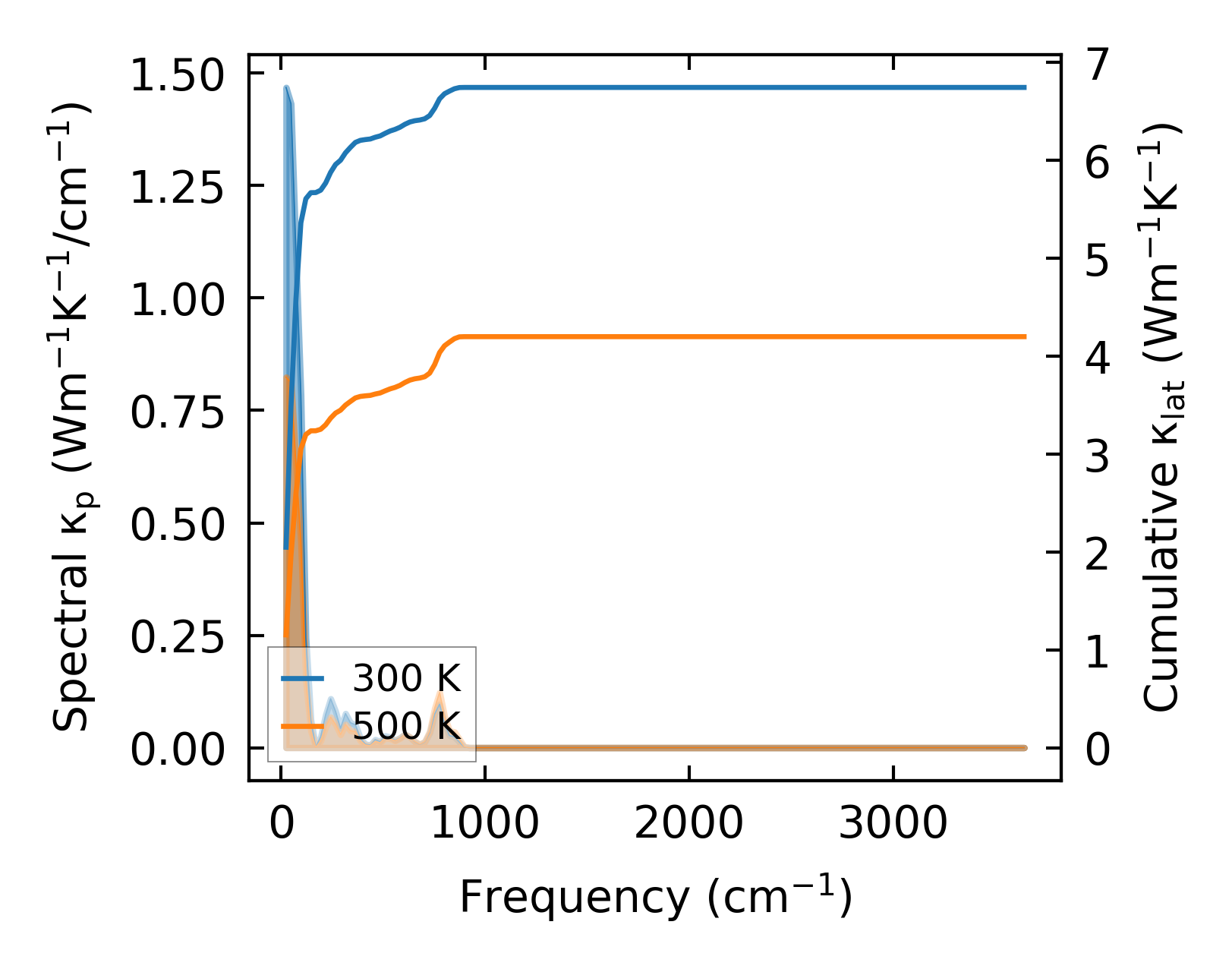

../../_images/fig_cumu_frequency2404.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

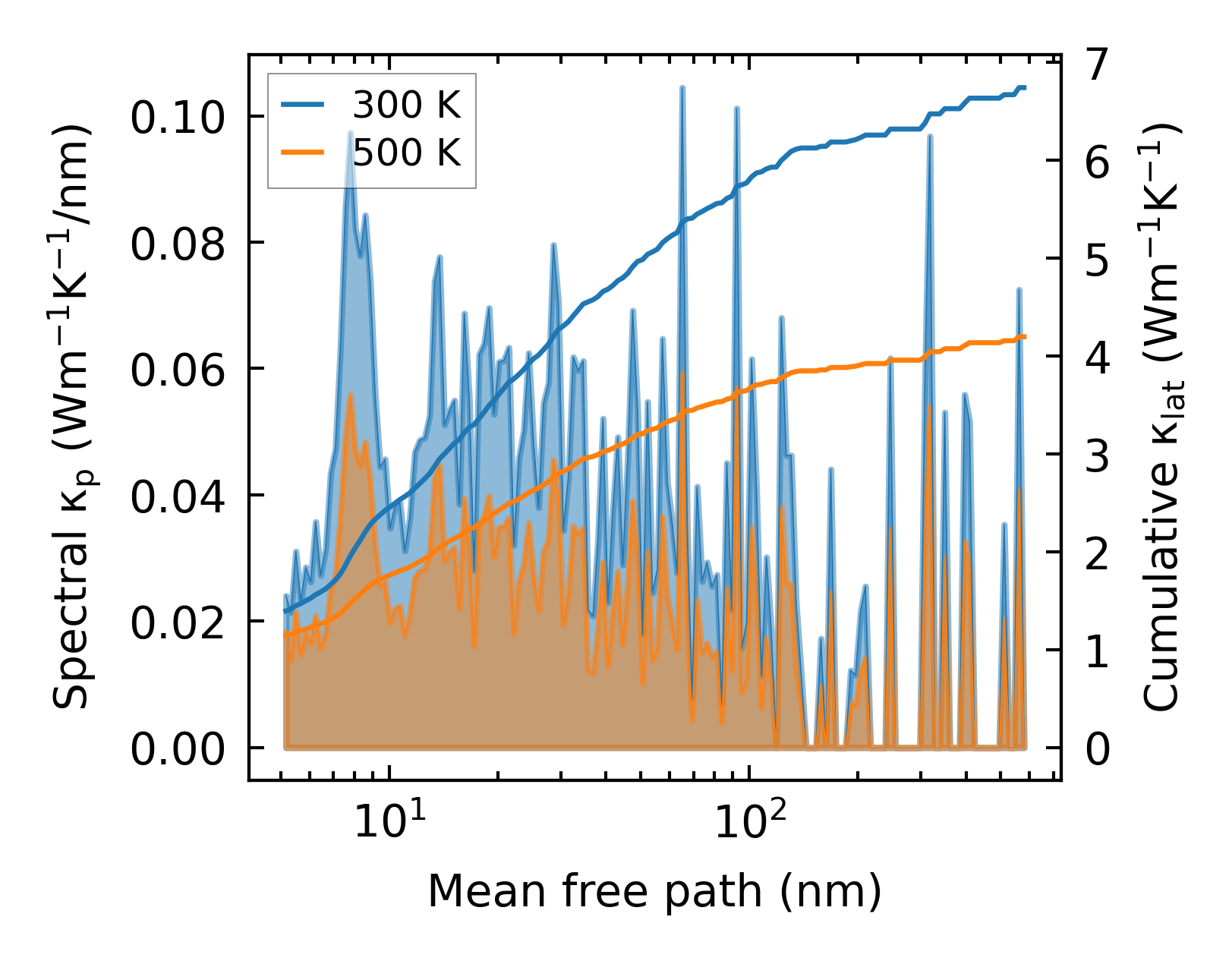

../../_images/fig_cumu_mfp2404.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

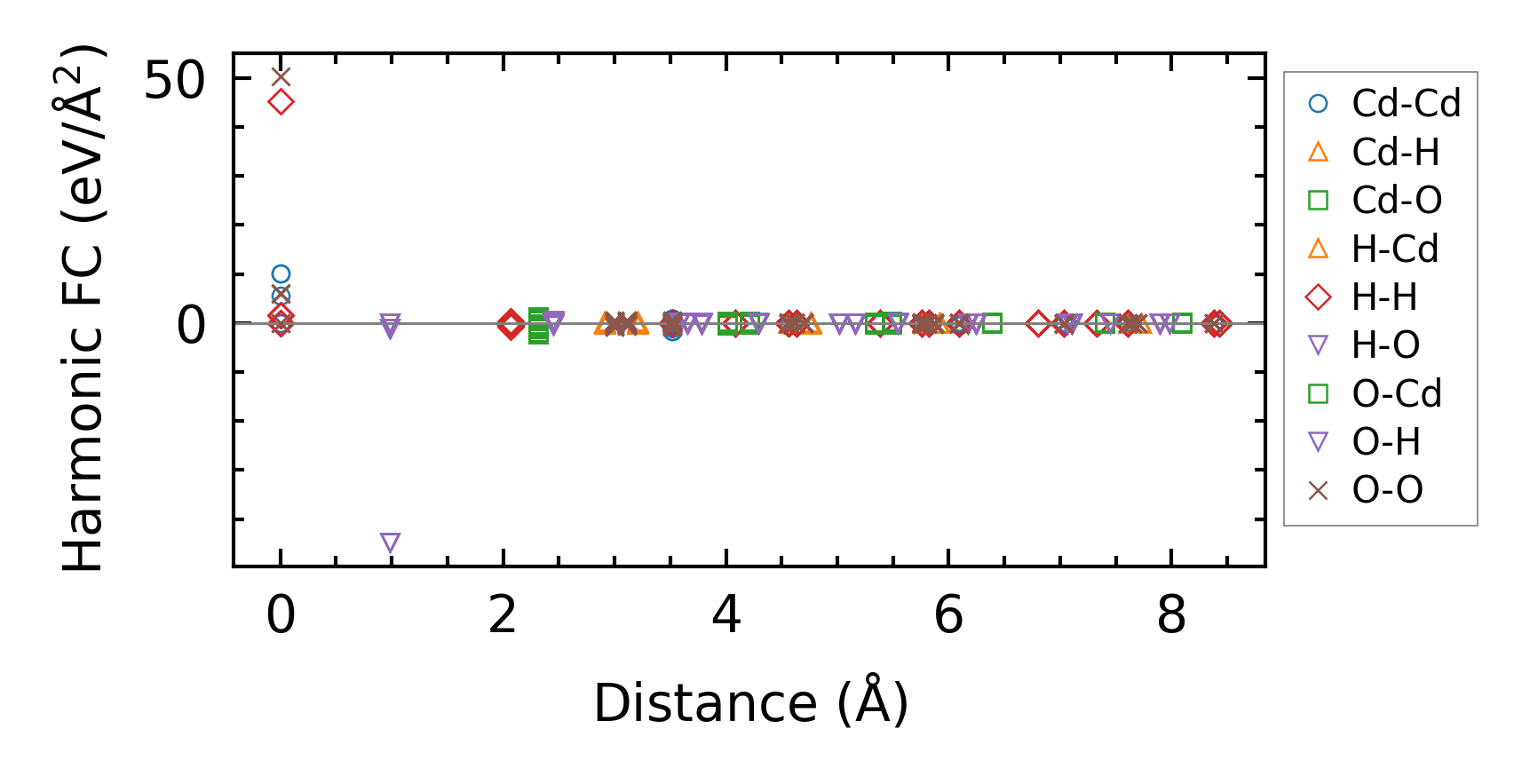

../../_images/fig_fc25705.png — (a) Force constants w.r.t atomic distance

Summary

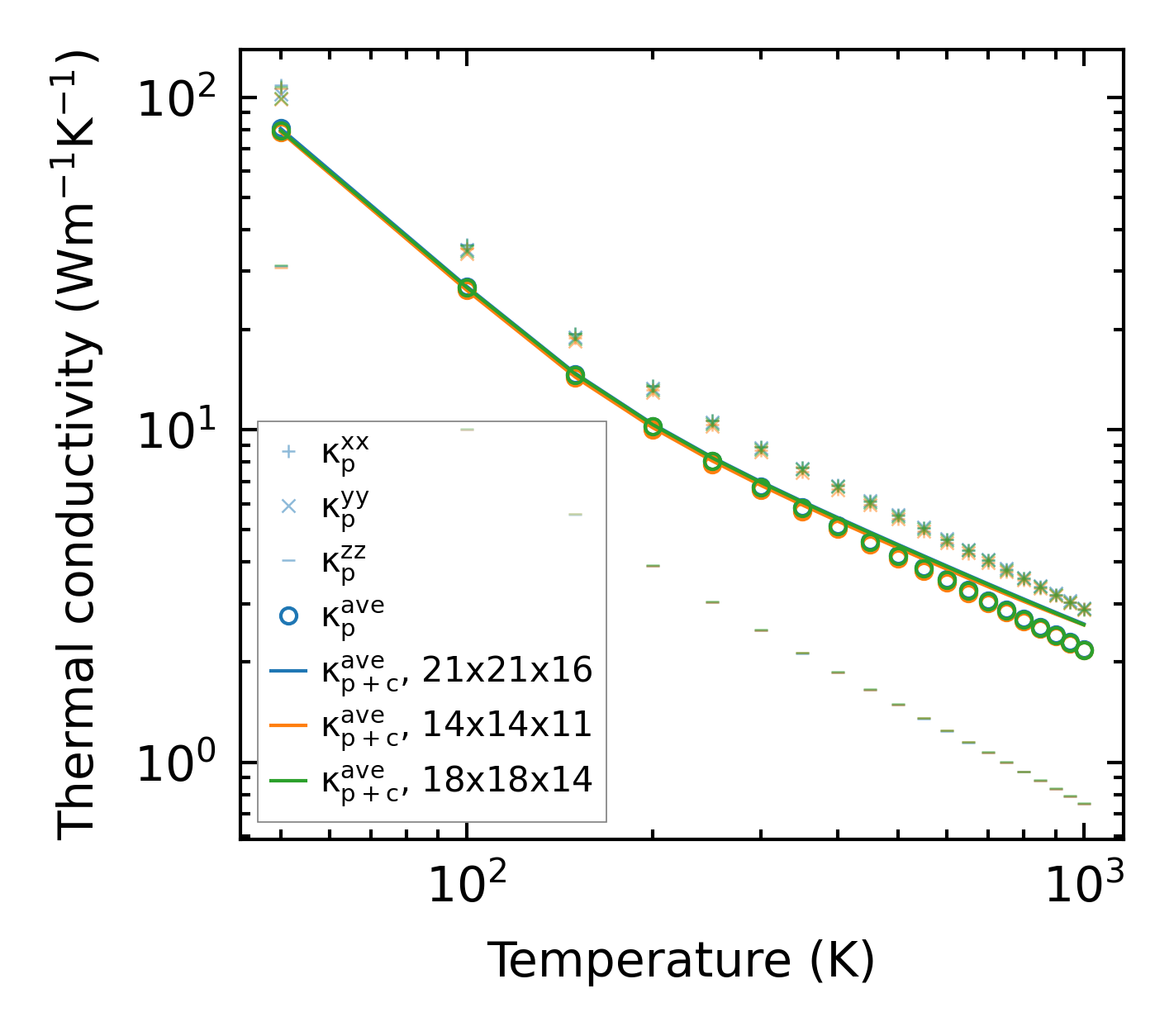

../../_images/fig_kappa4611.png — (a) Temperature-dependent lattice thermal conductivity

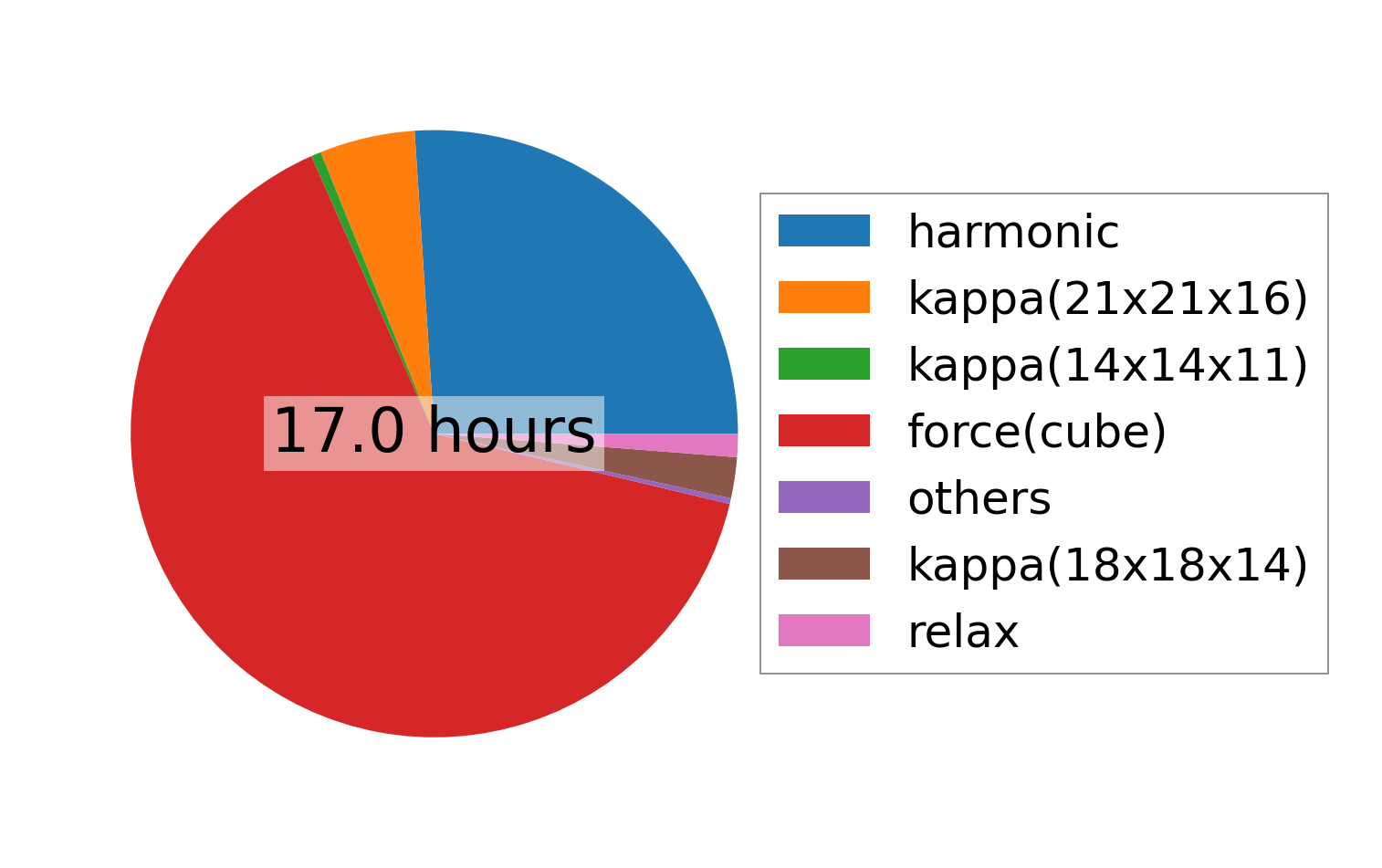

../../_images/fig_times10781.png — (b) Computation time
