mp-625152/AlHO2/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-625152.tar.gz

Harmonic properties

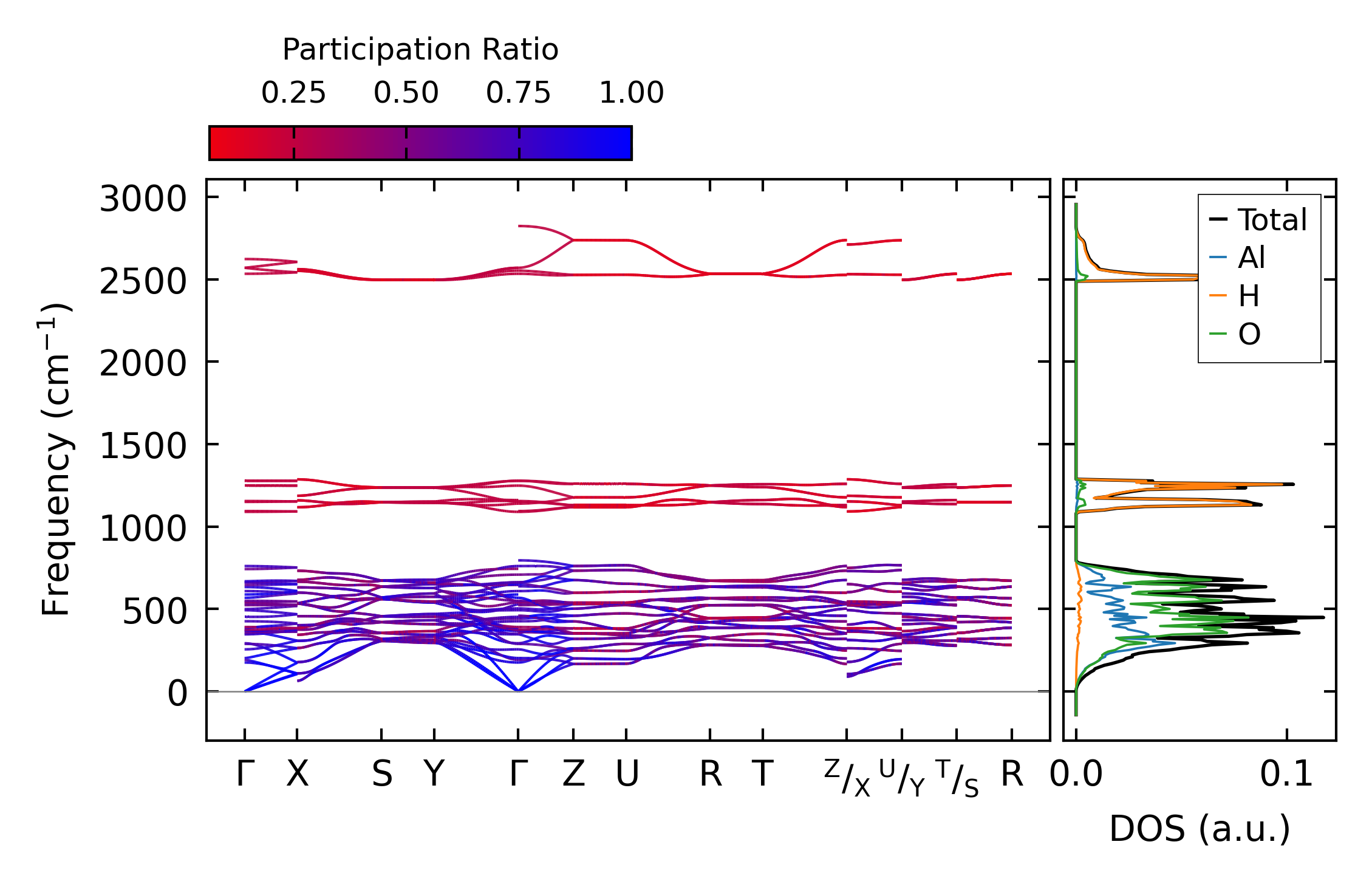

../../_images/fig_bandos_pr5861.png — (a) Phonon dispersion with participation ratio and DOS

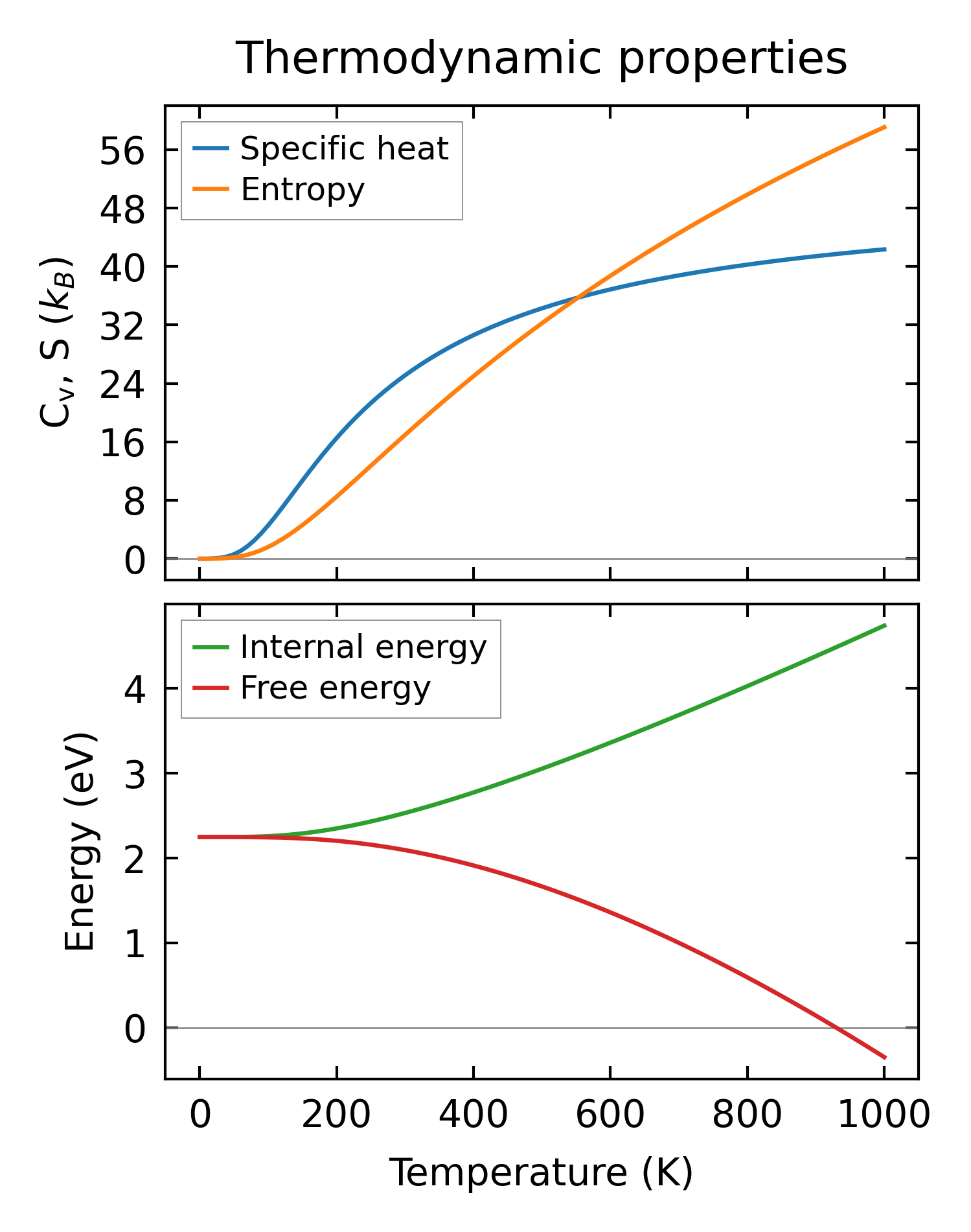

../../_images/fig_thermo5861.png — (b) Thermodynamic properties

Grüneisen parameters

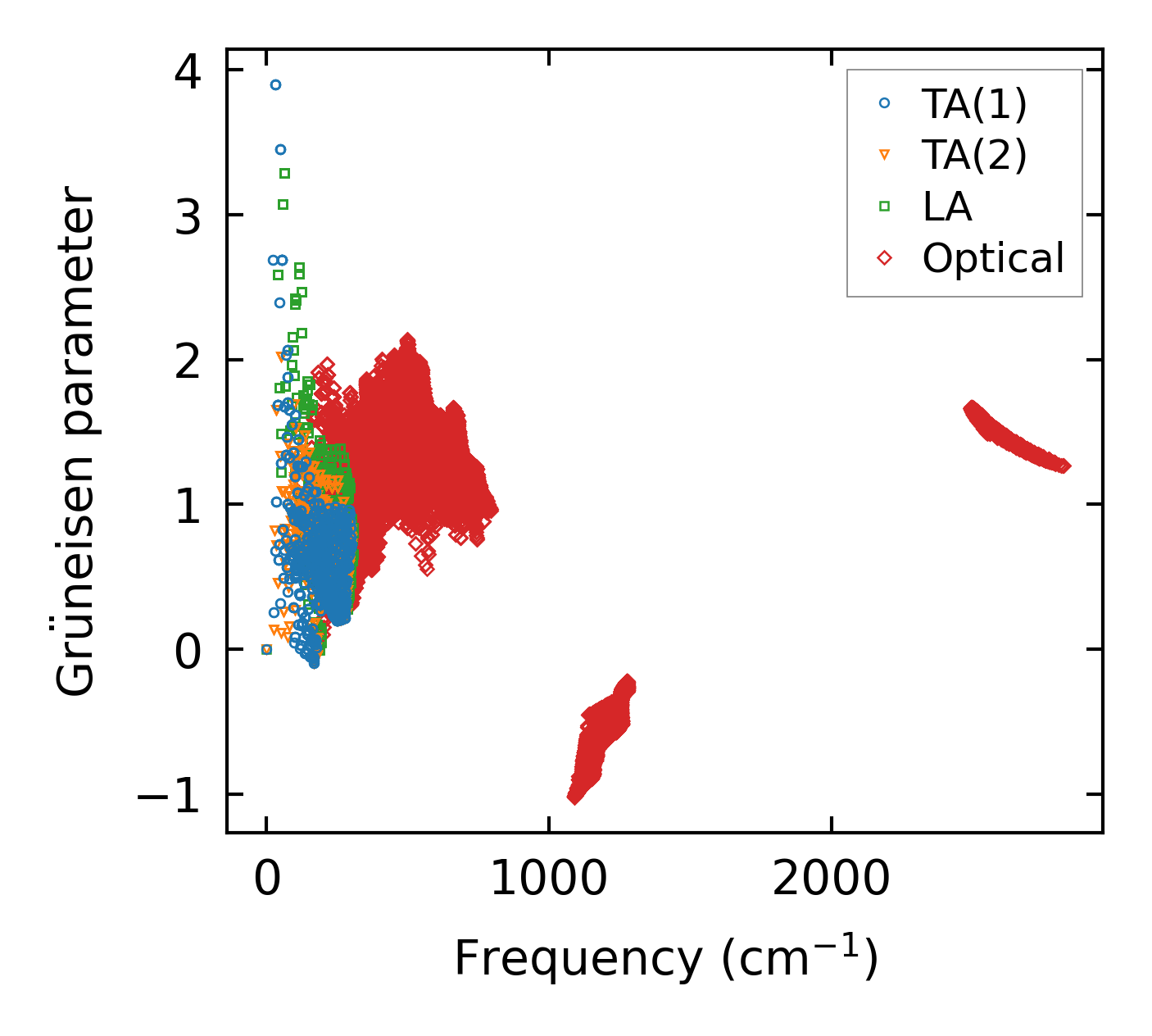

../../_images/fig_gru_all2415.png — (a) Grüneisen parameters

../../_images/fig_gruneisen2415.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x25x16, supercell: 1x4x2

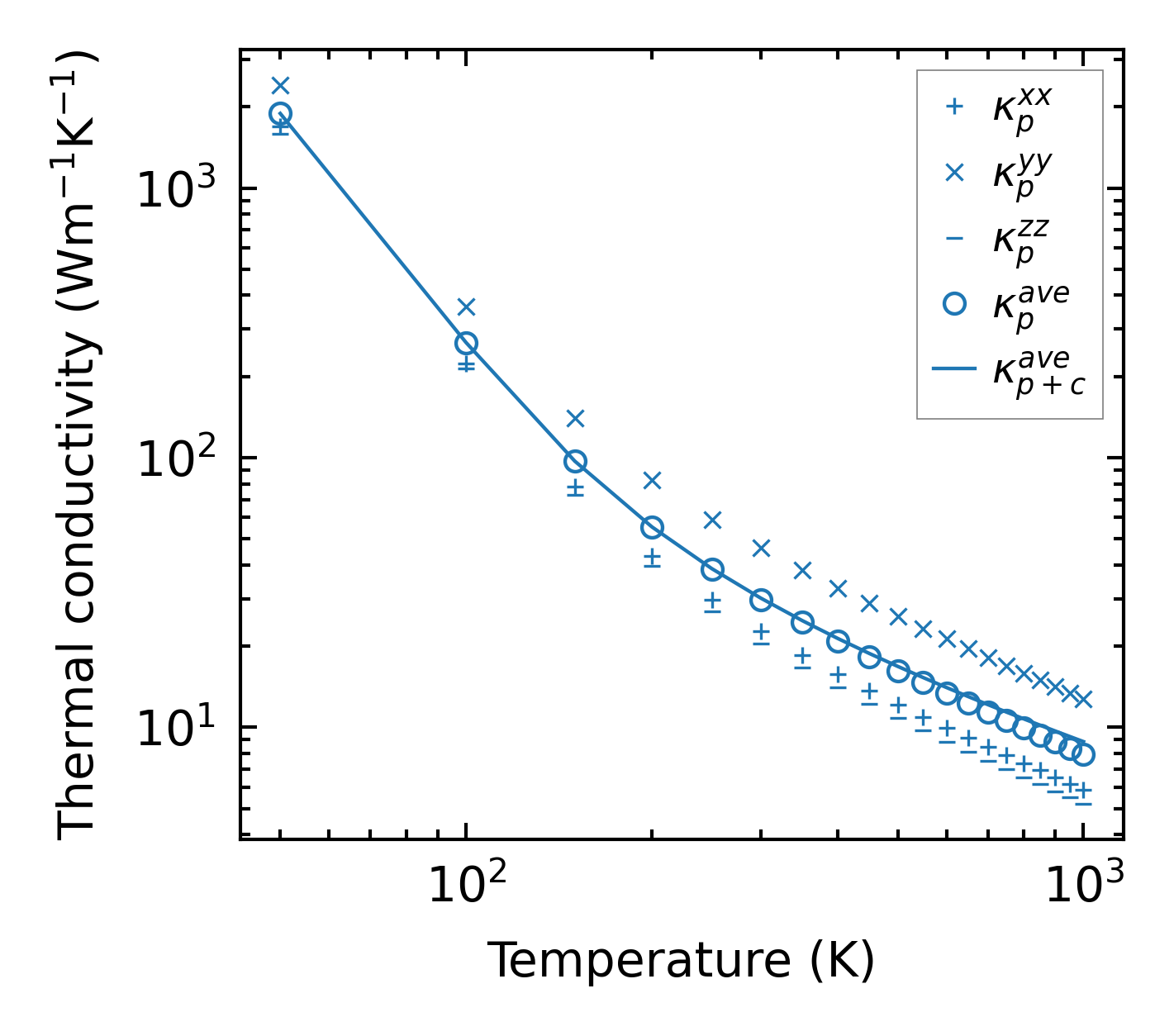

../../_images/fig_kappa4600.png — (a) Temperature-dependent lattice thermal conductivity

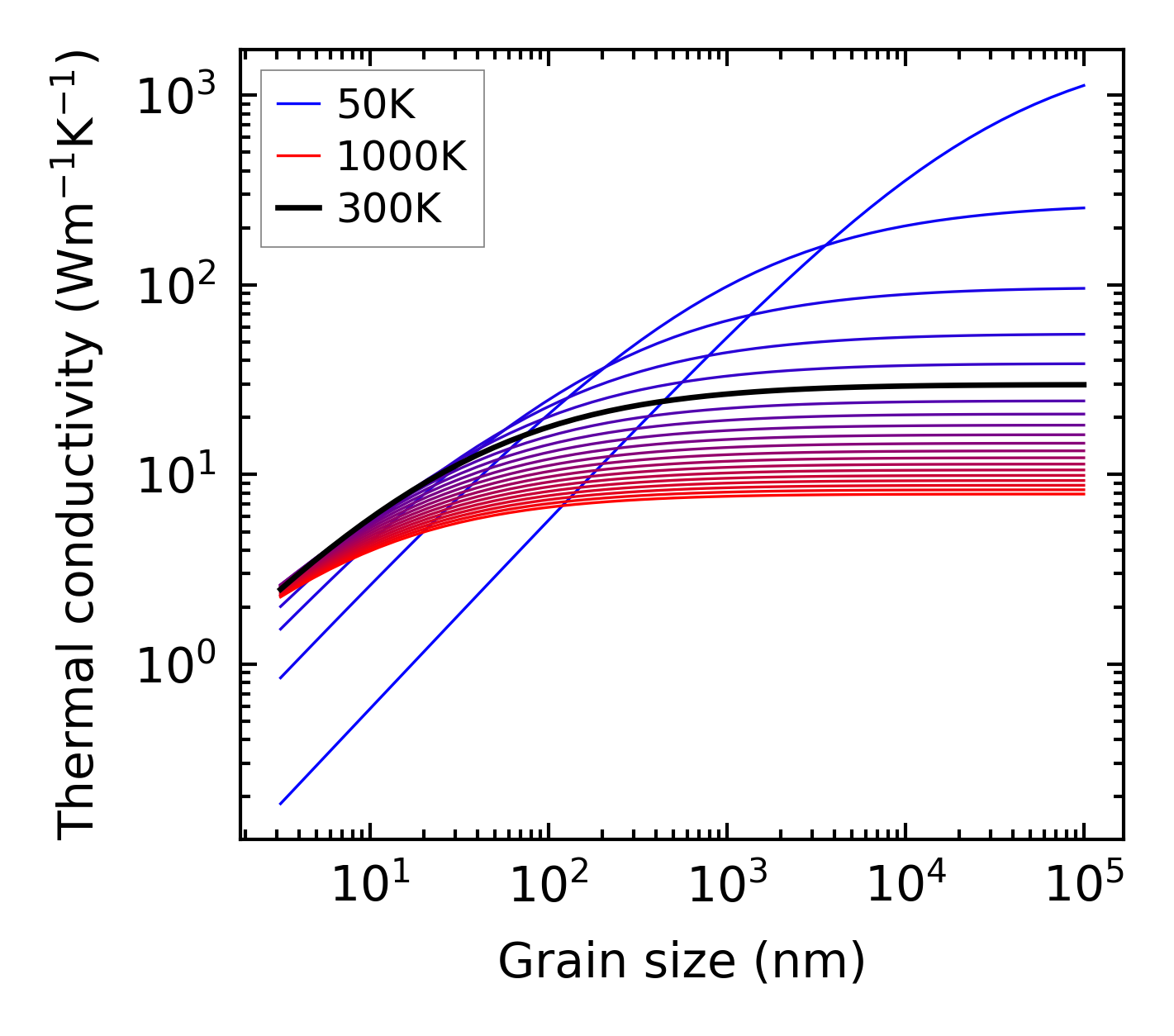

../../_images/fig_kappa_vs_grain_size2446.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

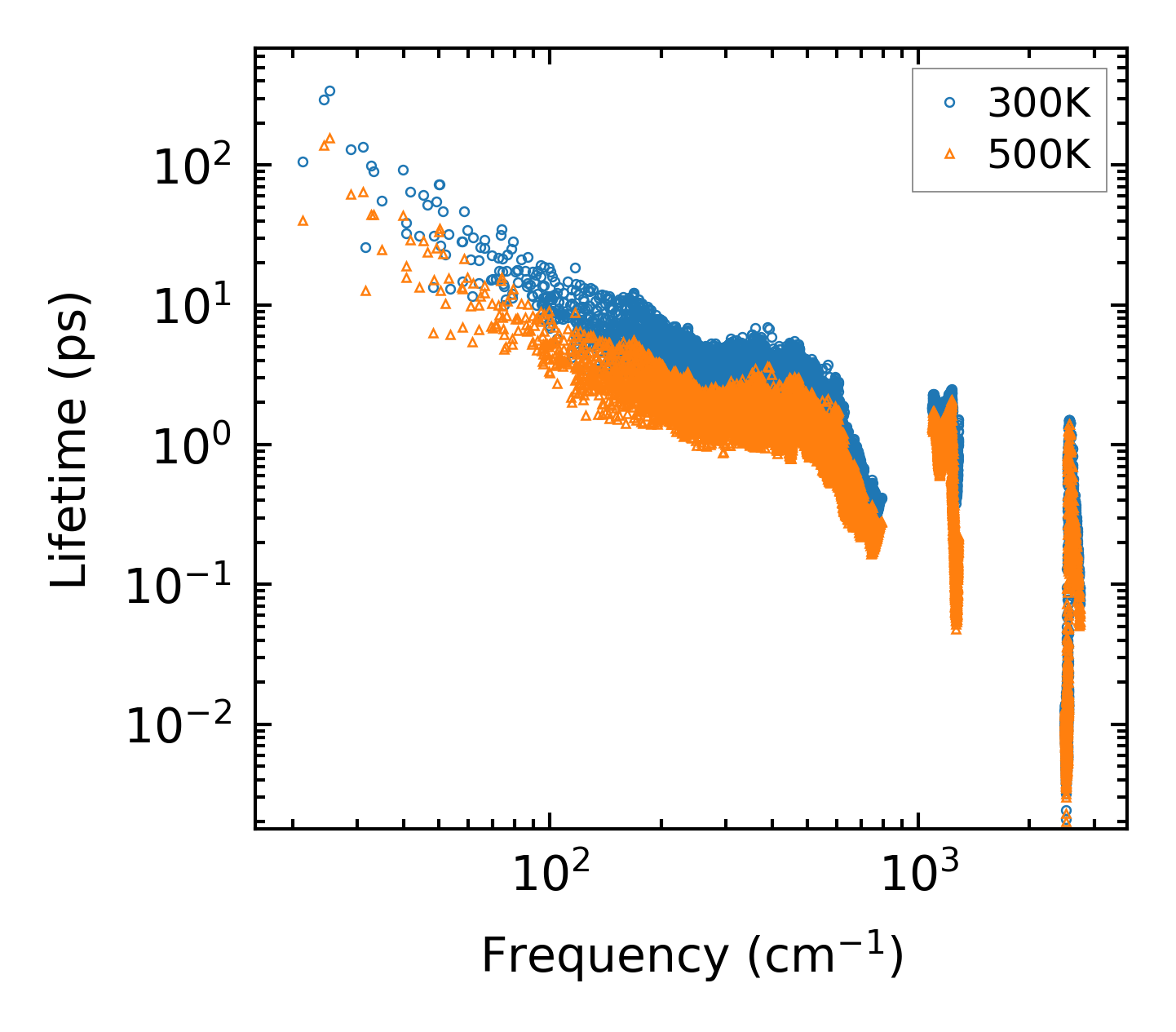

../../_images/fig_lifetime2398.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates2397.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

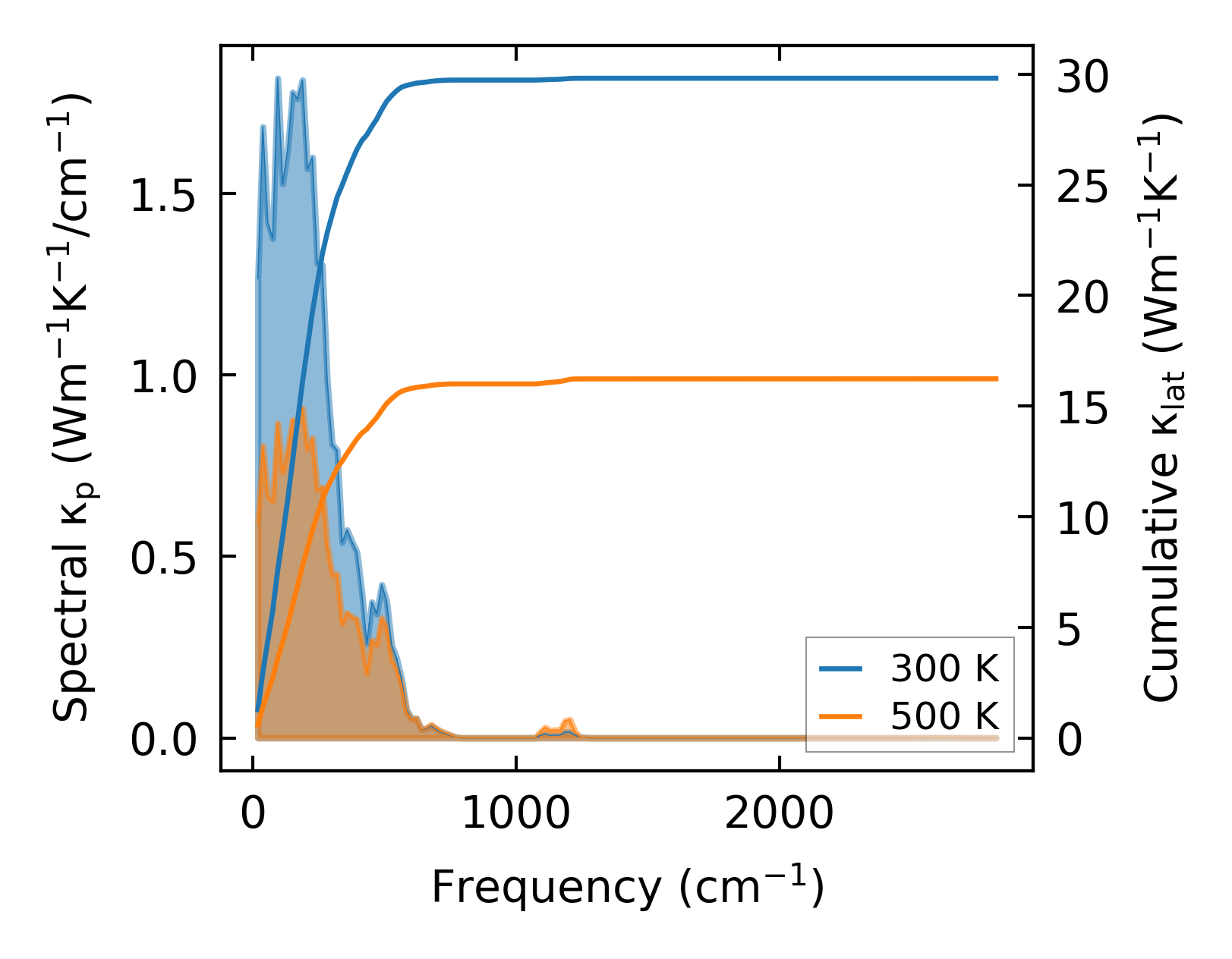

../../_images/fig_cumu_frequency2398.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp2398.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc25657.png — (a) Force constants w.r.t atomic distance

Summary

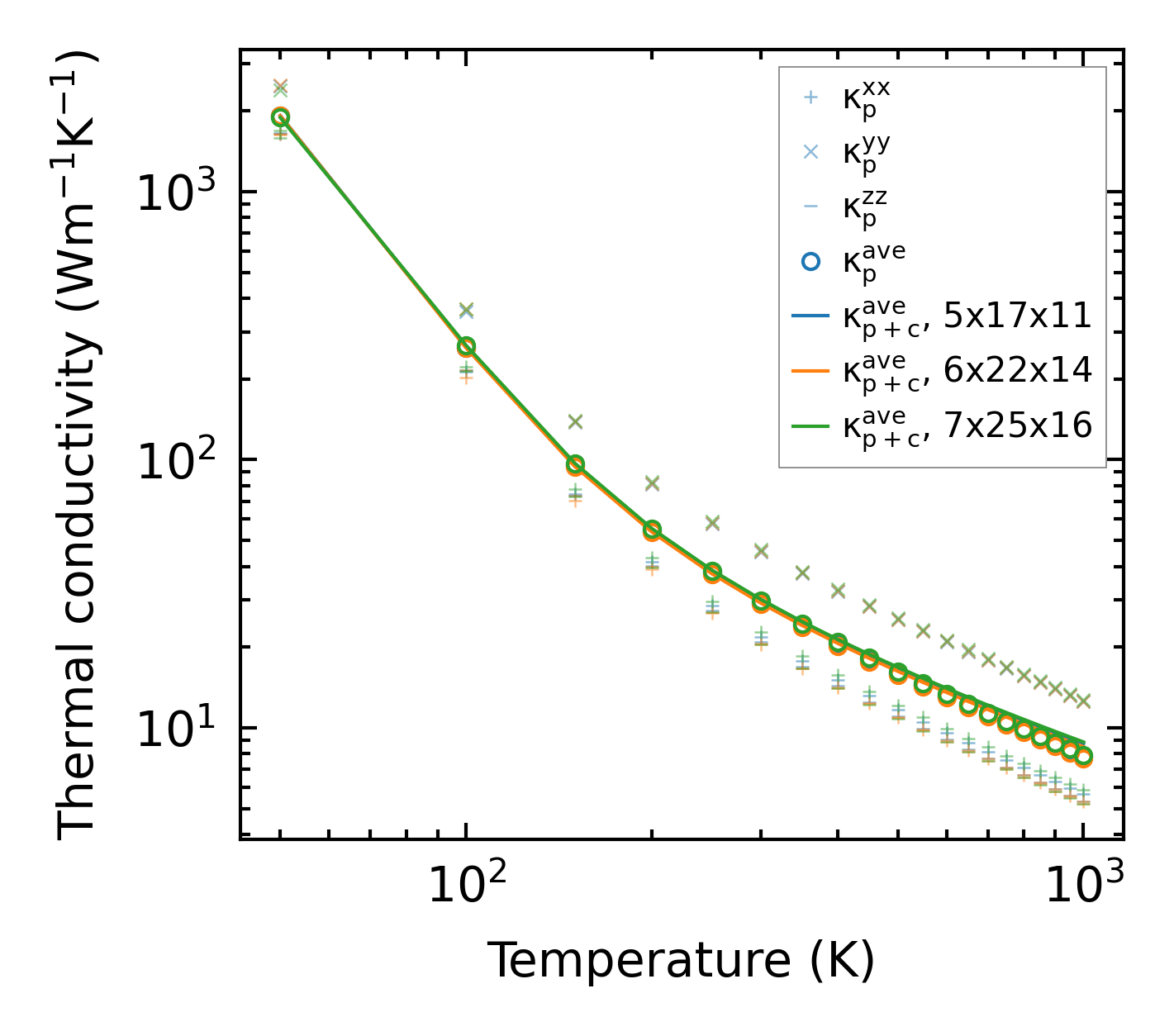

../../_images/fig_kappa4601.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times10688.png — (b) Computation time
