mp-625056/AlHO2/anharm

Space group: Cmc2_1 (36)
Link: Materials Project
Download: mp-625056.tar.gz

Equation of state

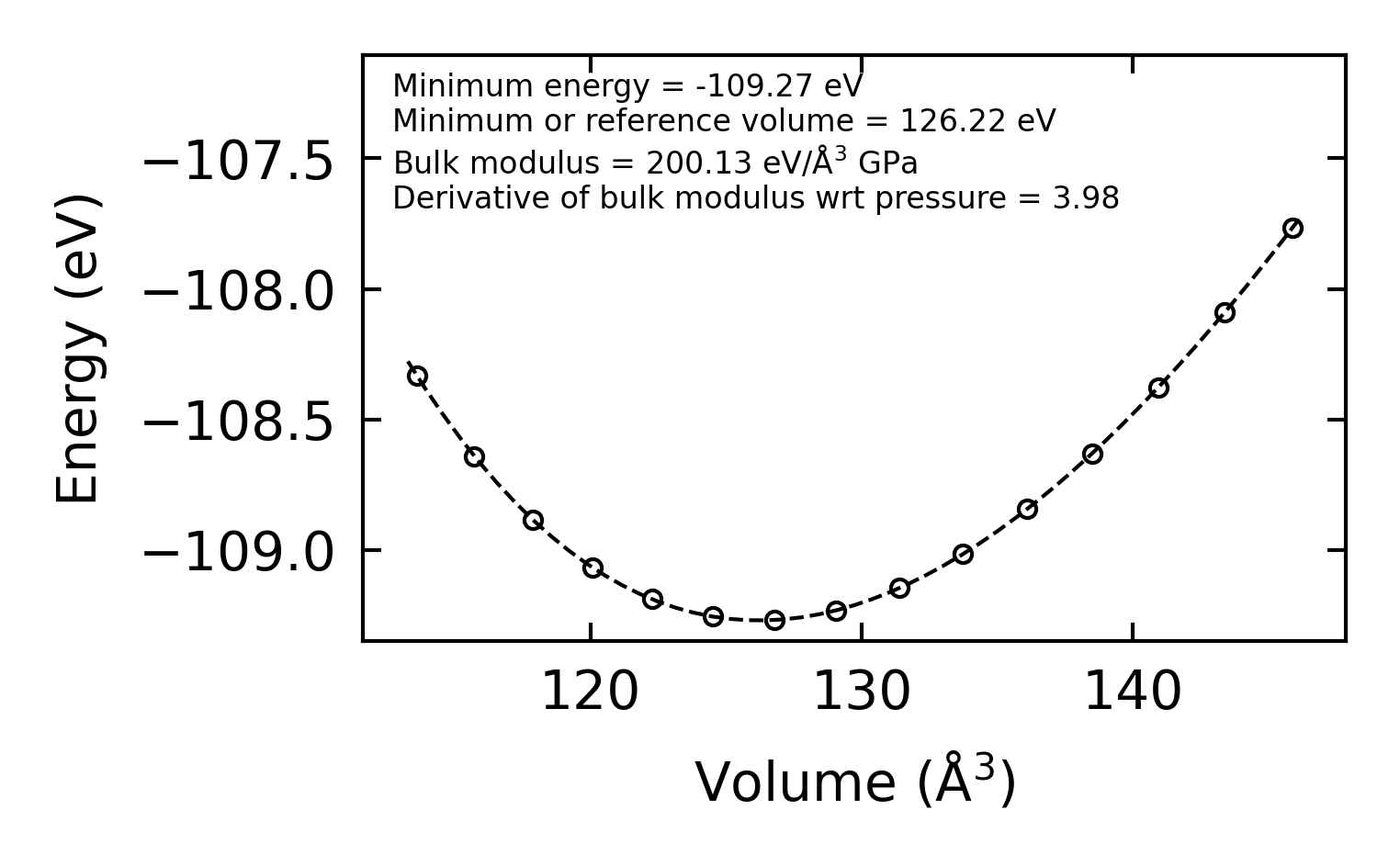

../../_images/fig_bm2987.png — (a) Equation of state

Harmonic properties

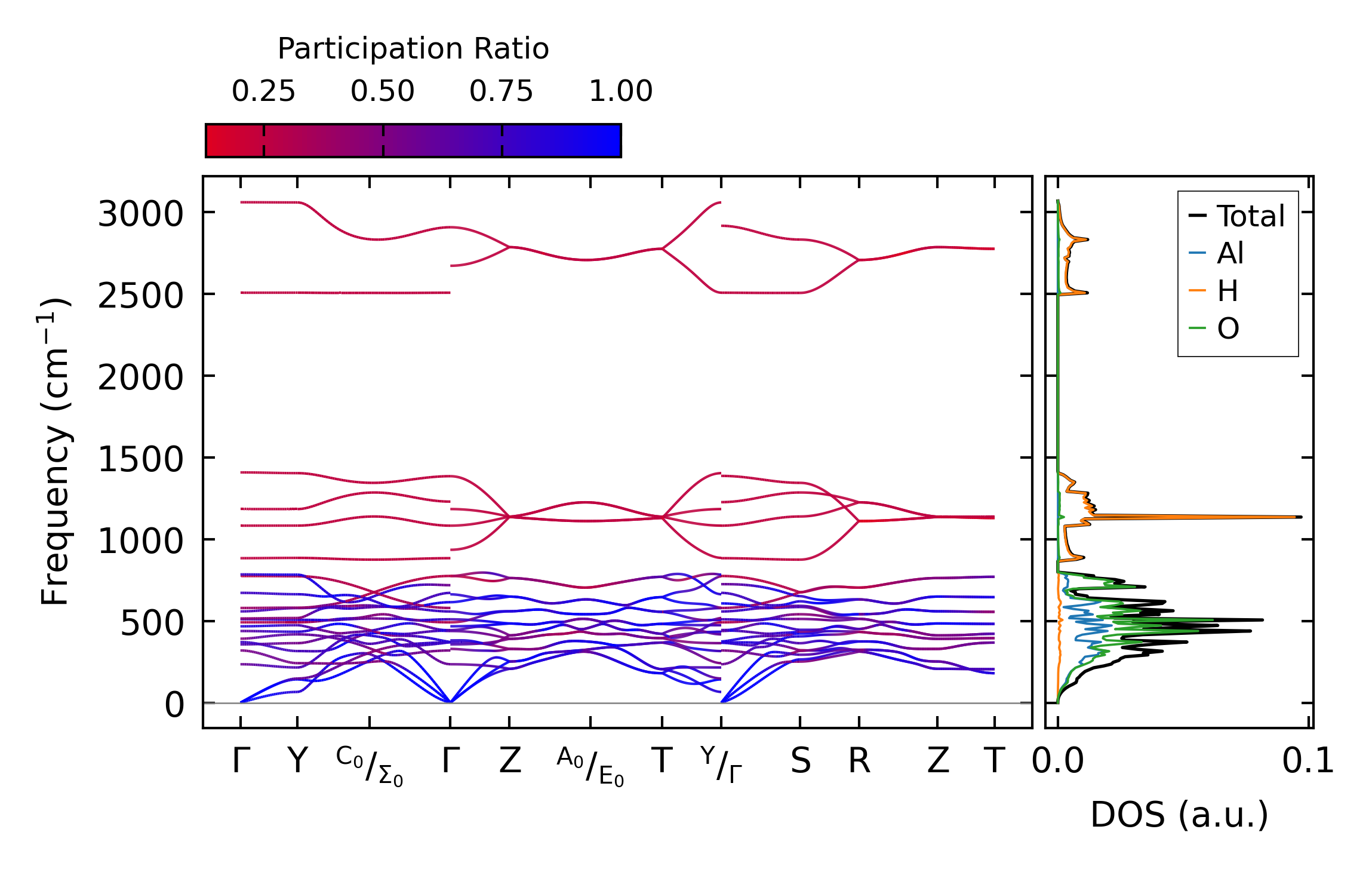

../../_images/fig_bandos_pr5851.png — (a) Phonon dispersion with participation ratio and DOS

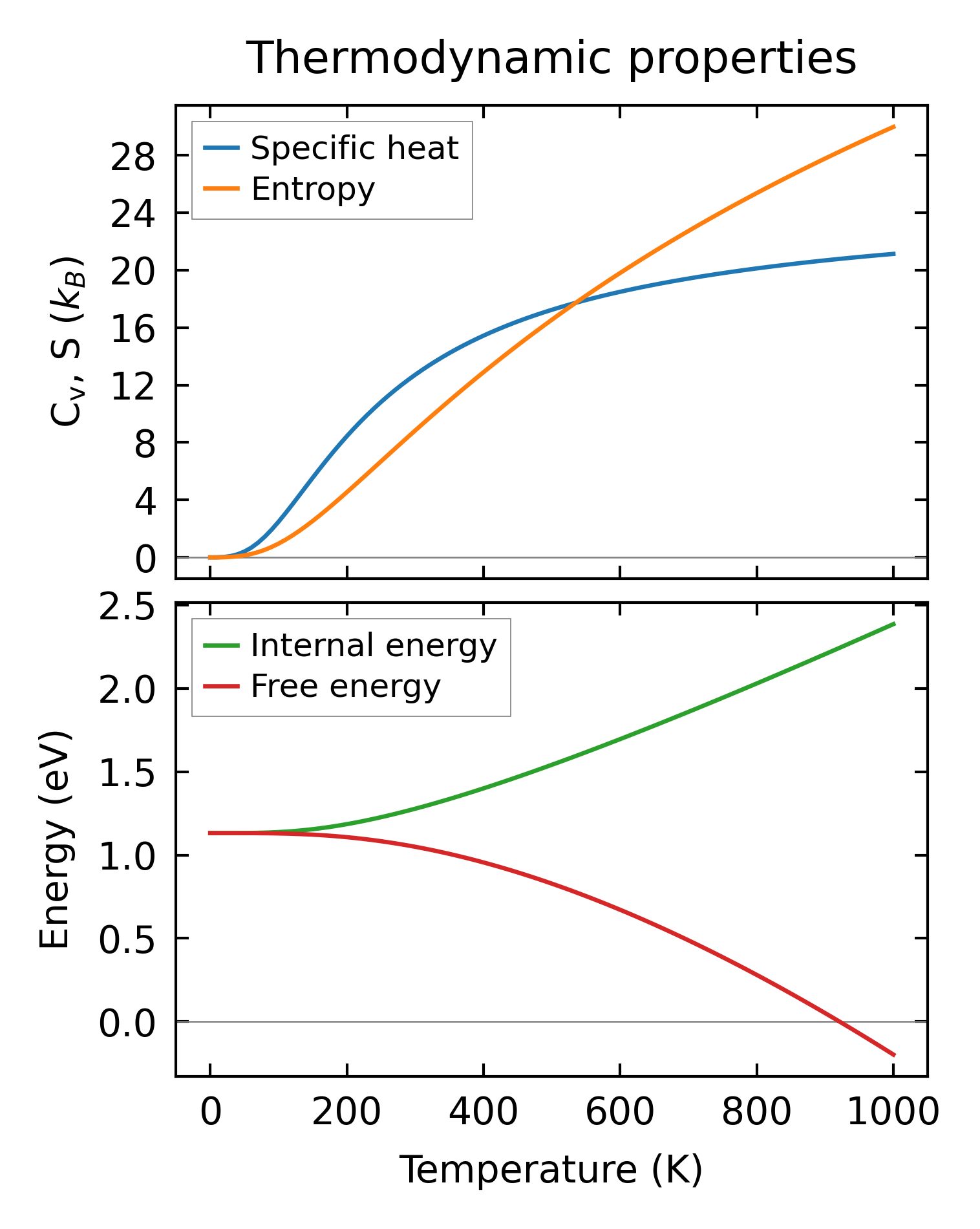

../../_images/fig_thermo5851.png — (b) Thermodynamic properties

Grüneisen parameters

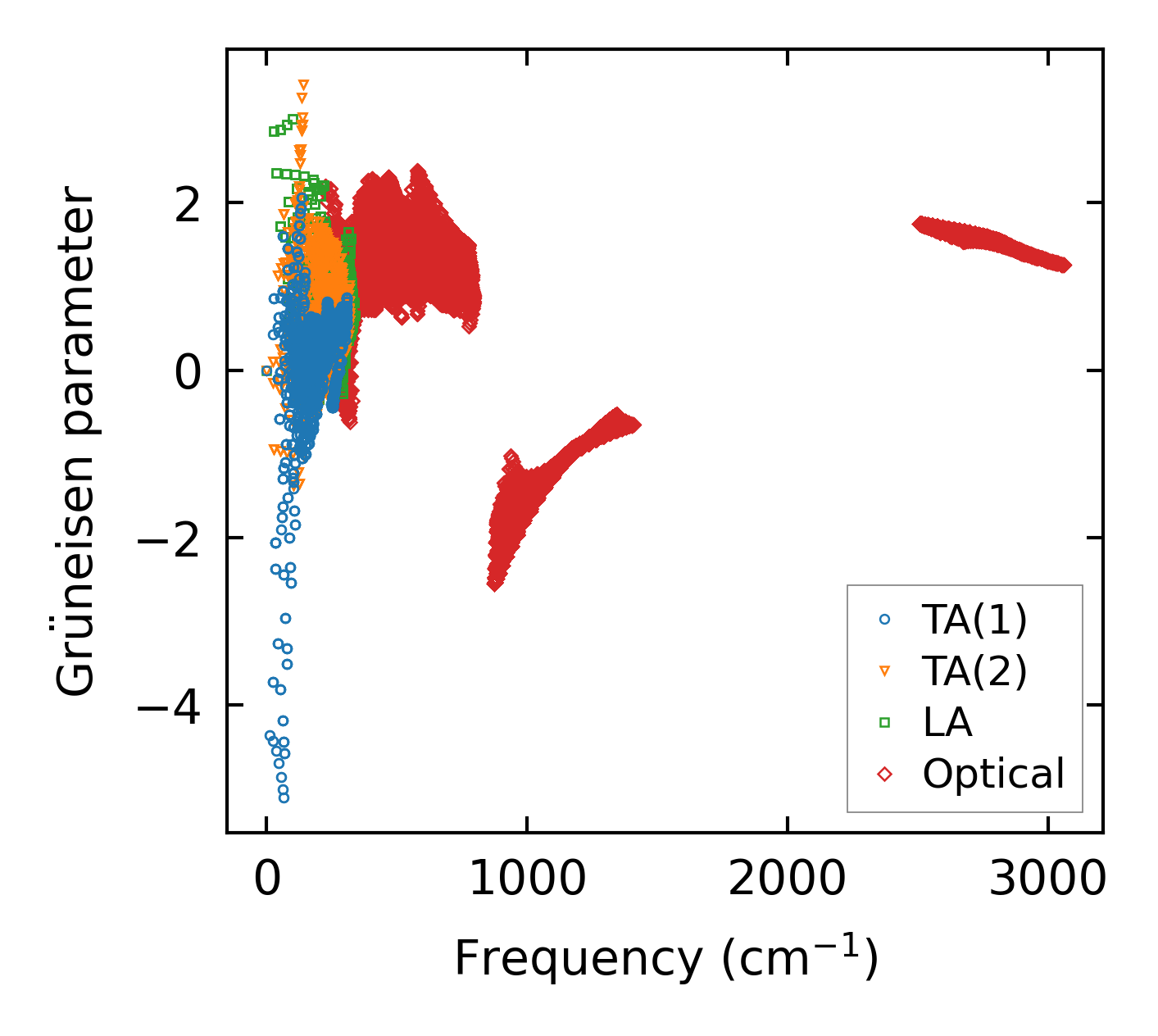

../../_images/fig_gru_all2410.png — (a) Grüneisen parameters

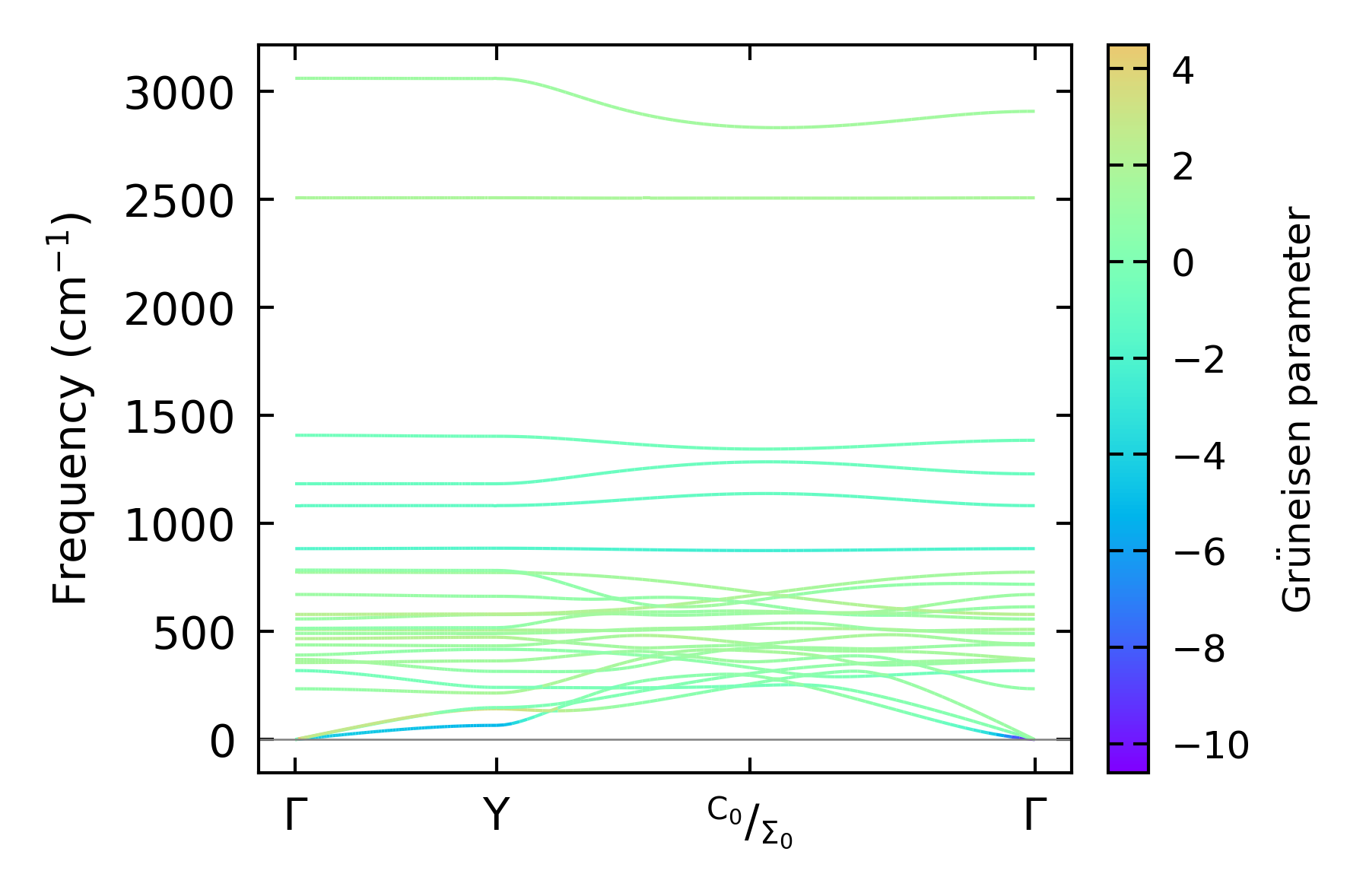

../../_images/fig_gruneisen2410.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 15x15x25, supercell: 3x1x3

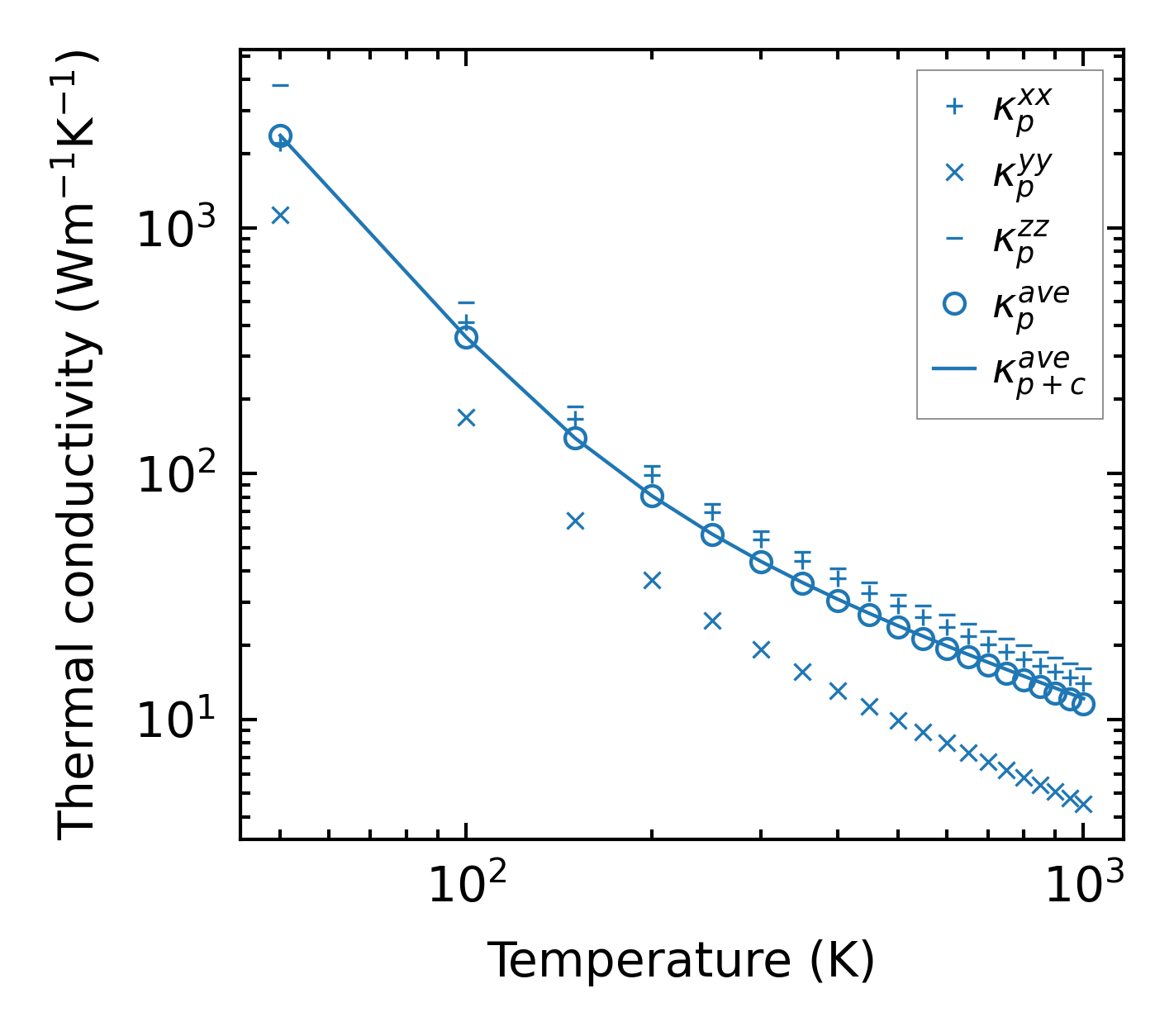

../../_images/fig_kappa4591.png — (a) Temperature-dependent lattice thermal conductivity

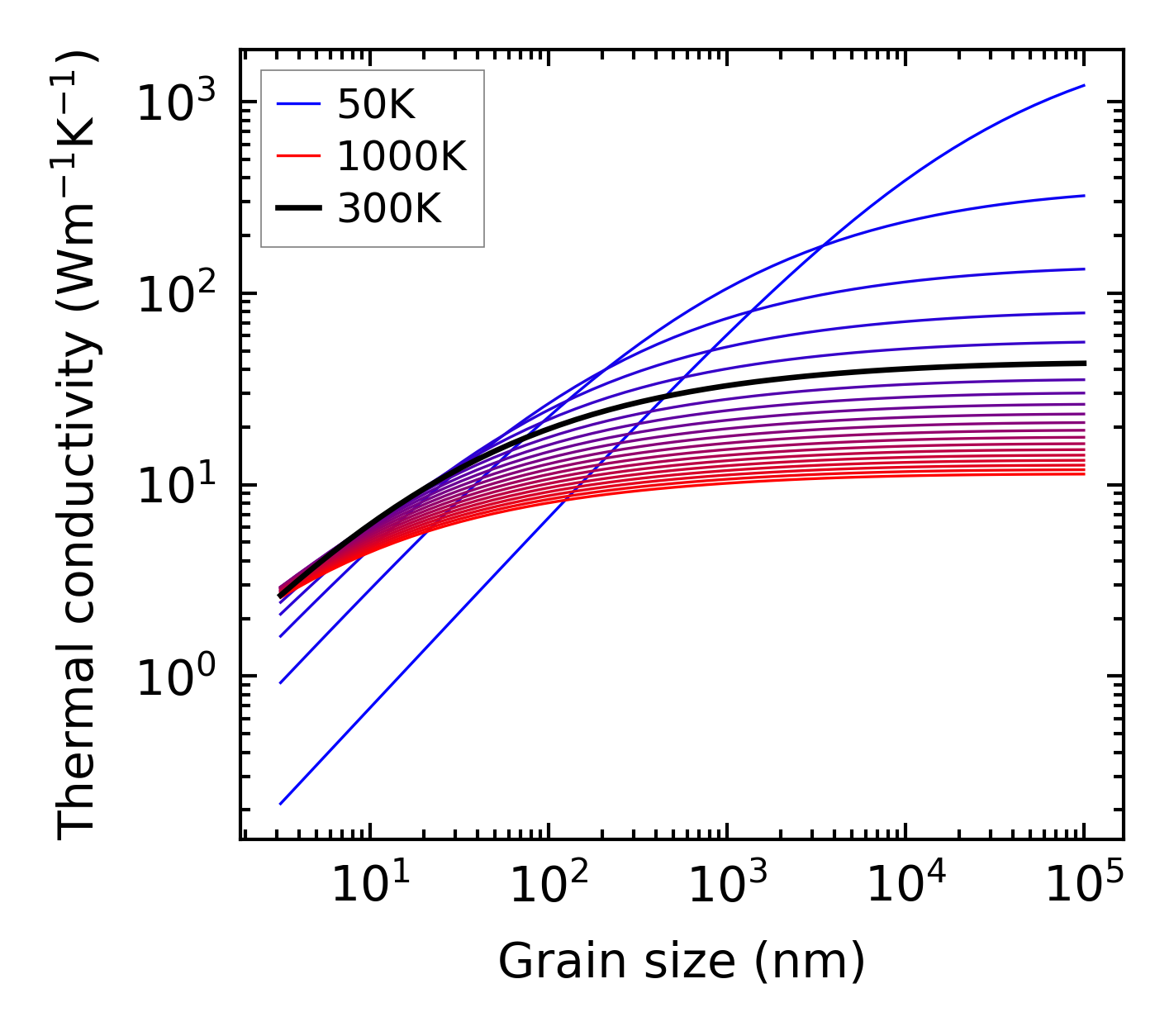

../../_images/fig_kappa_vs_grain_size2441.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

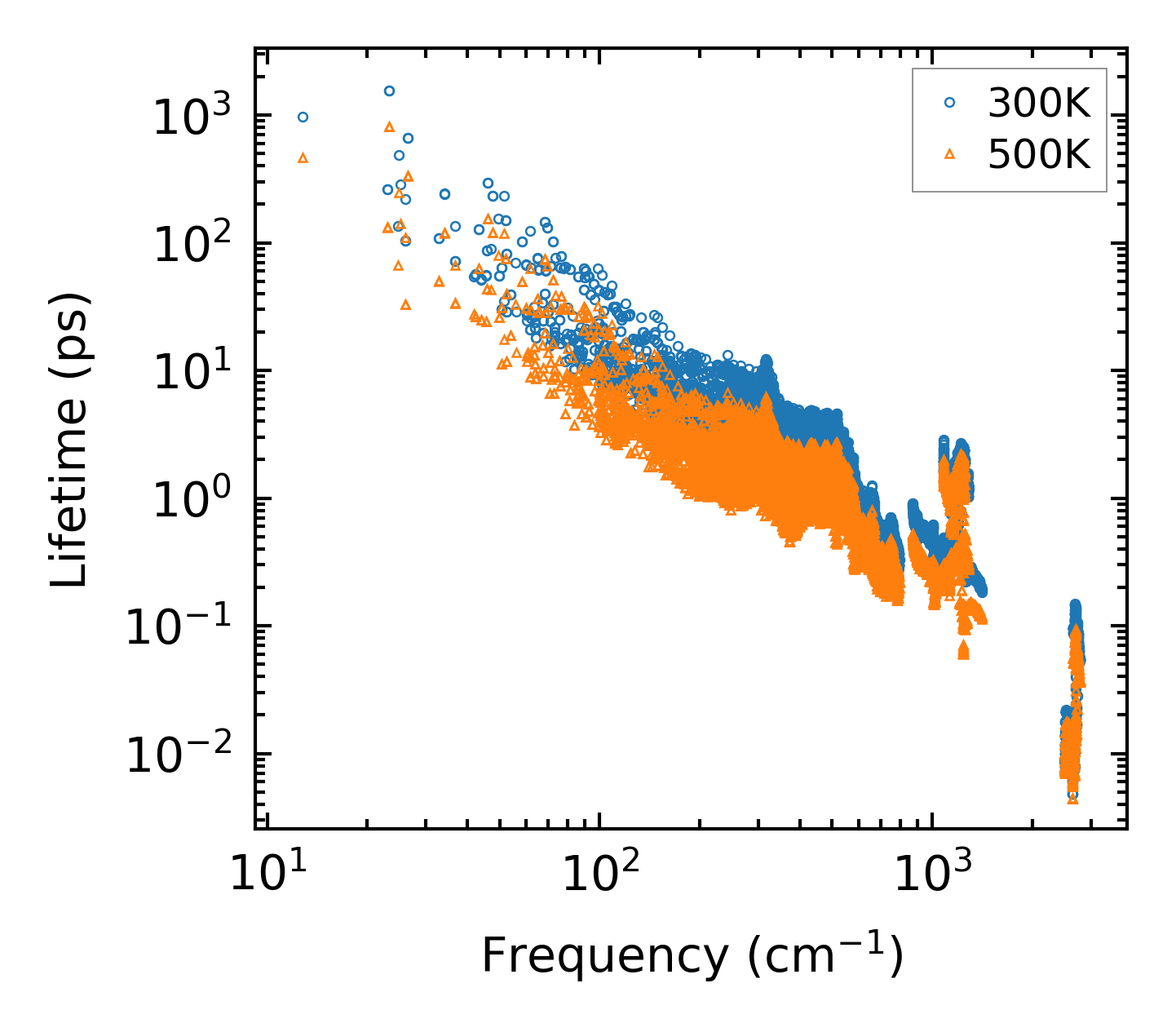

../../_images/fig_lifetime2394.png — (a) Phonon lifetime due to phonon-phonon scattering

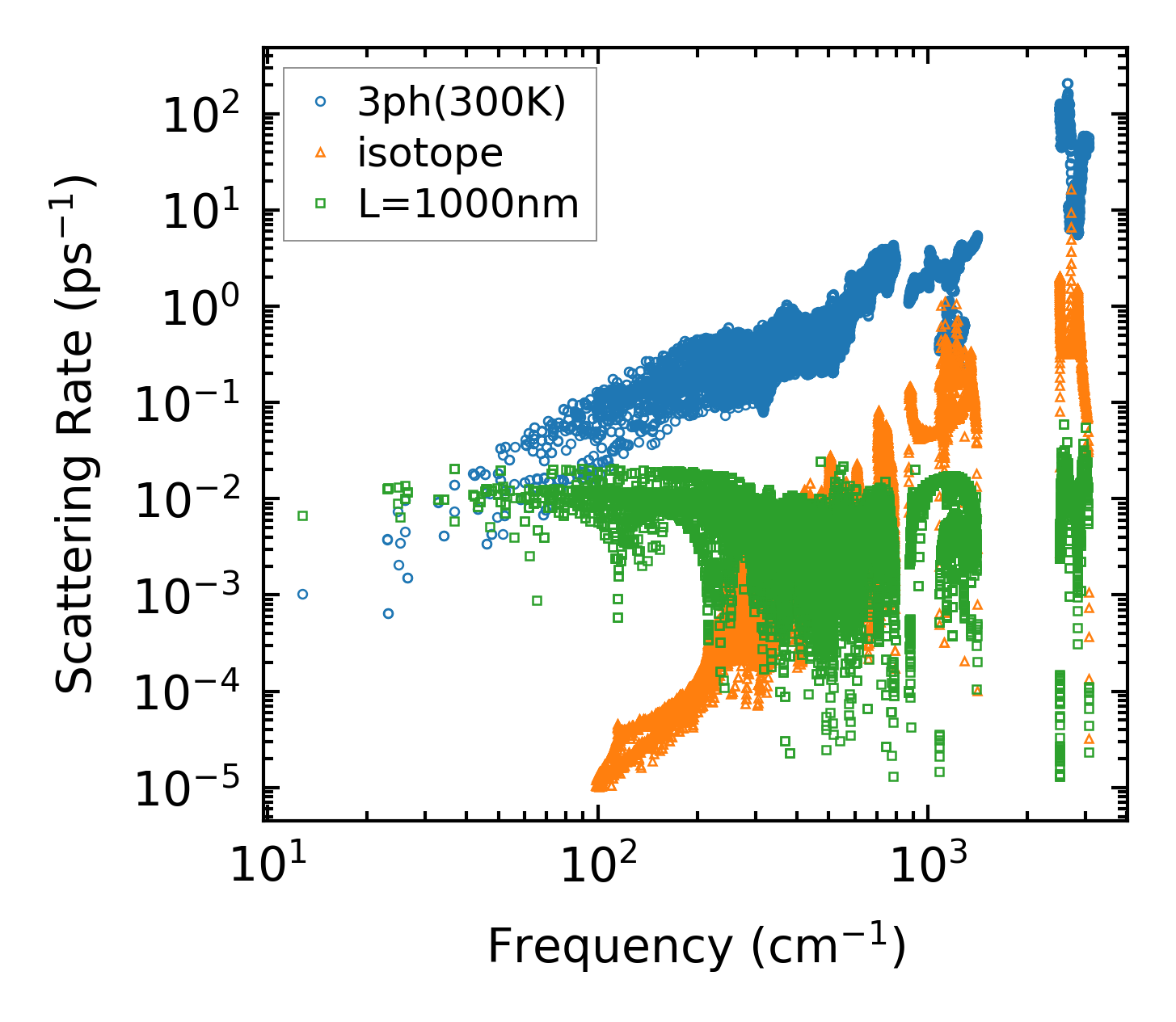

../../_images/fig_scat_rates2393.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

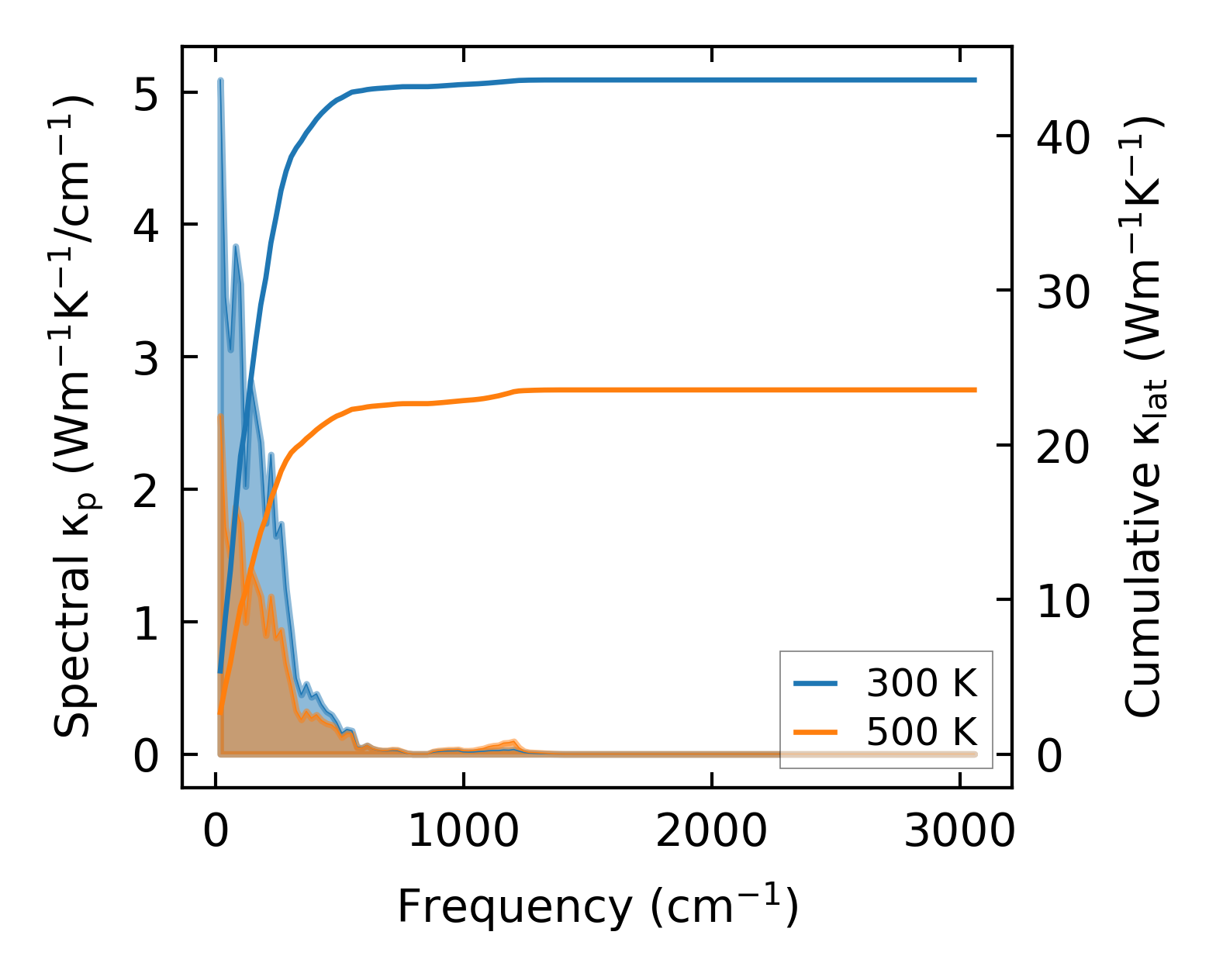

../../_images/fig_cumu_frequency2394.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

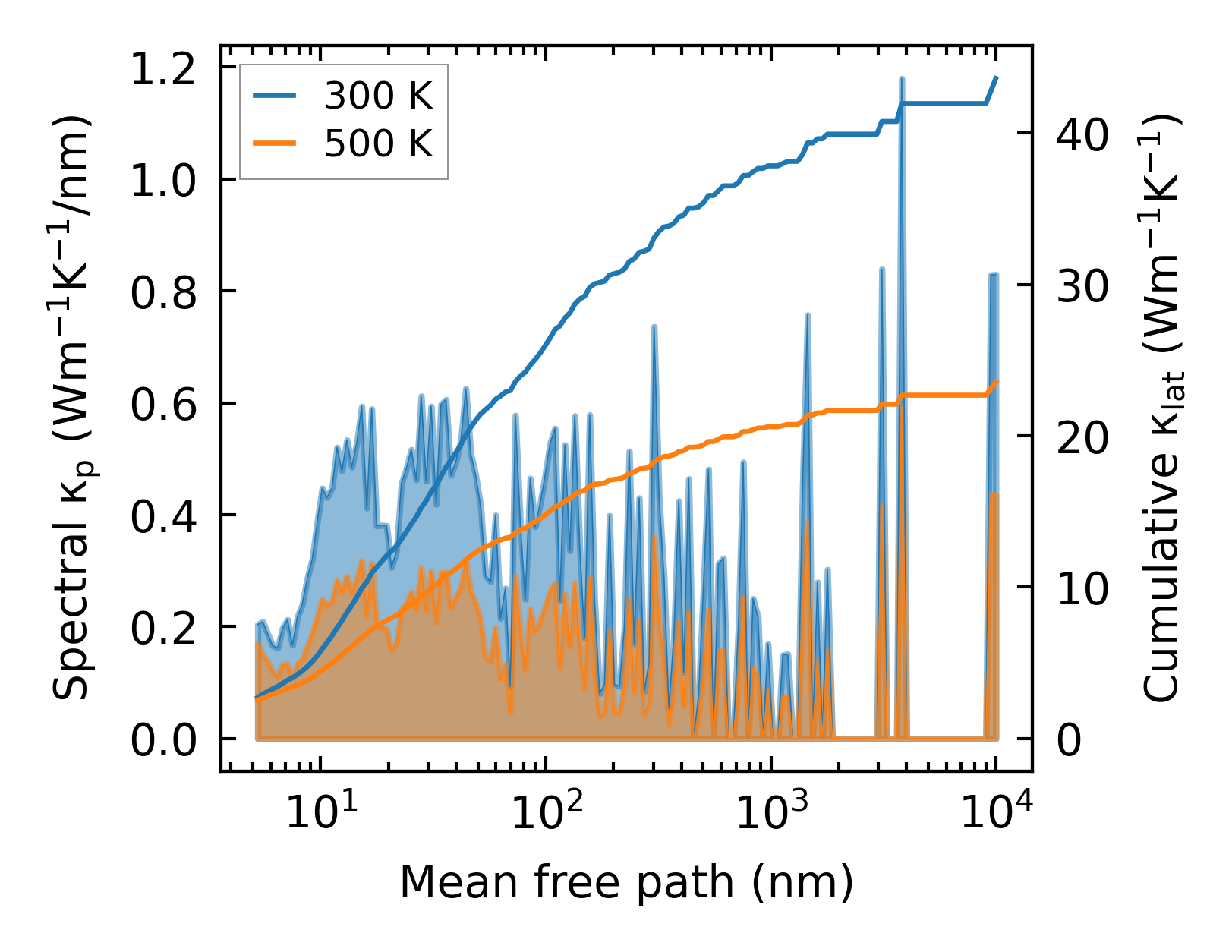

../../_images/fig_cumu_mfp2394.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

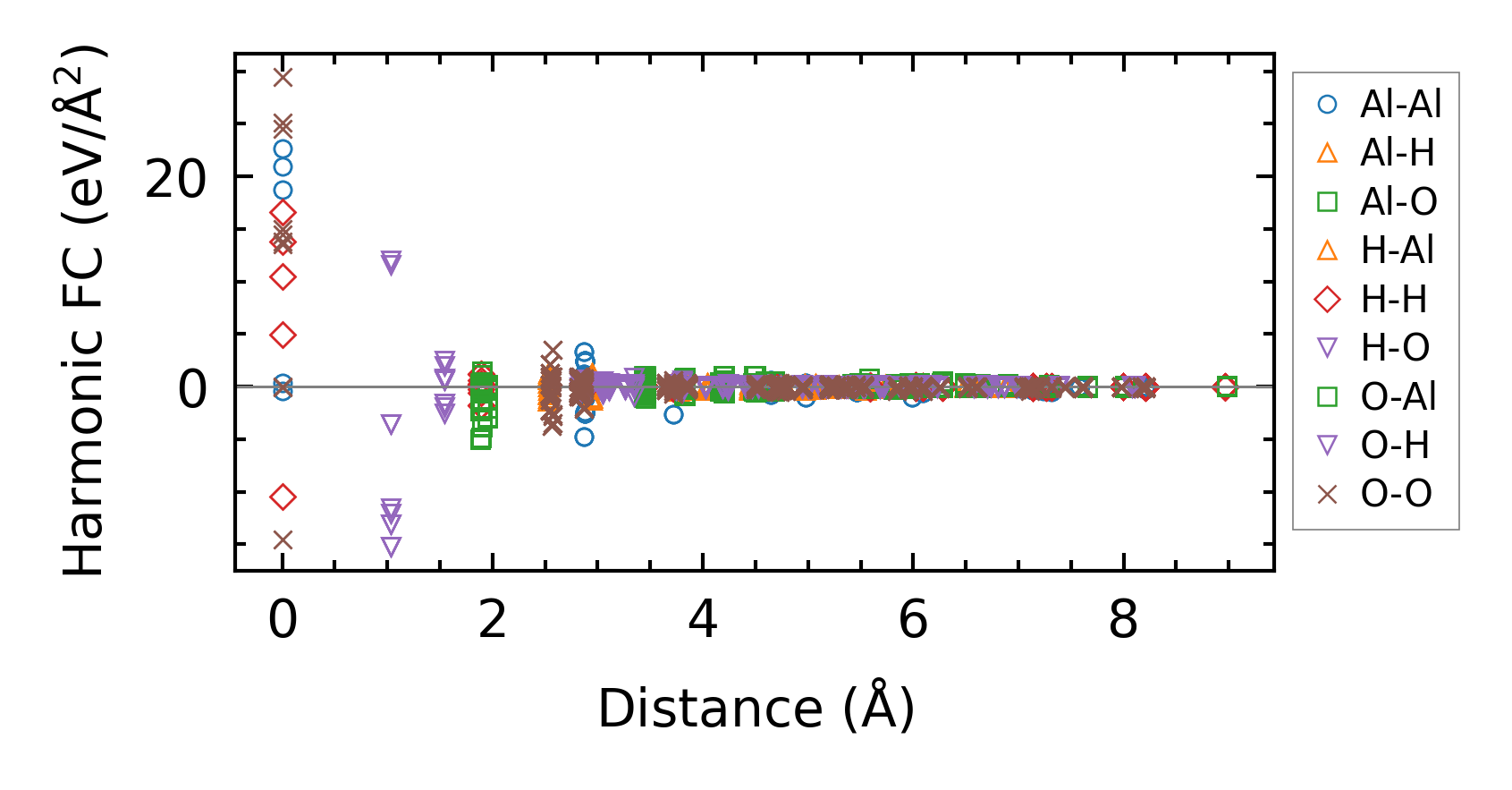

../../_images/fig_fc25647.png — (a) Force constants w.r.t atomic distance

Summary

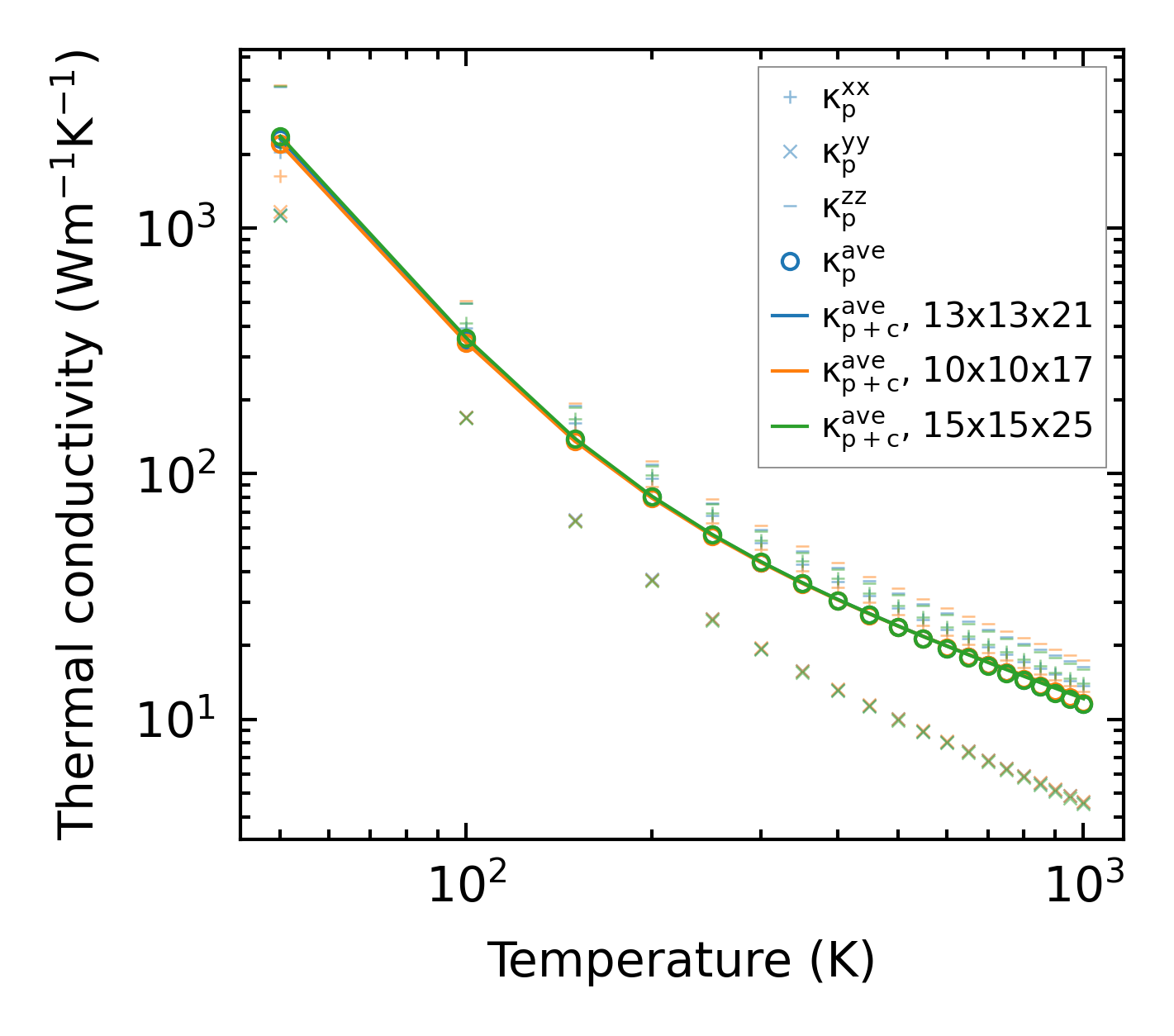

../../_images/fig_kappa4592.png — (a) Temperature-dependent lattice thermal conductivity

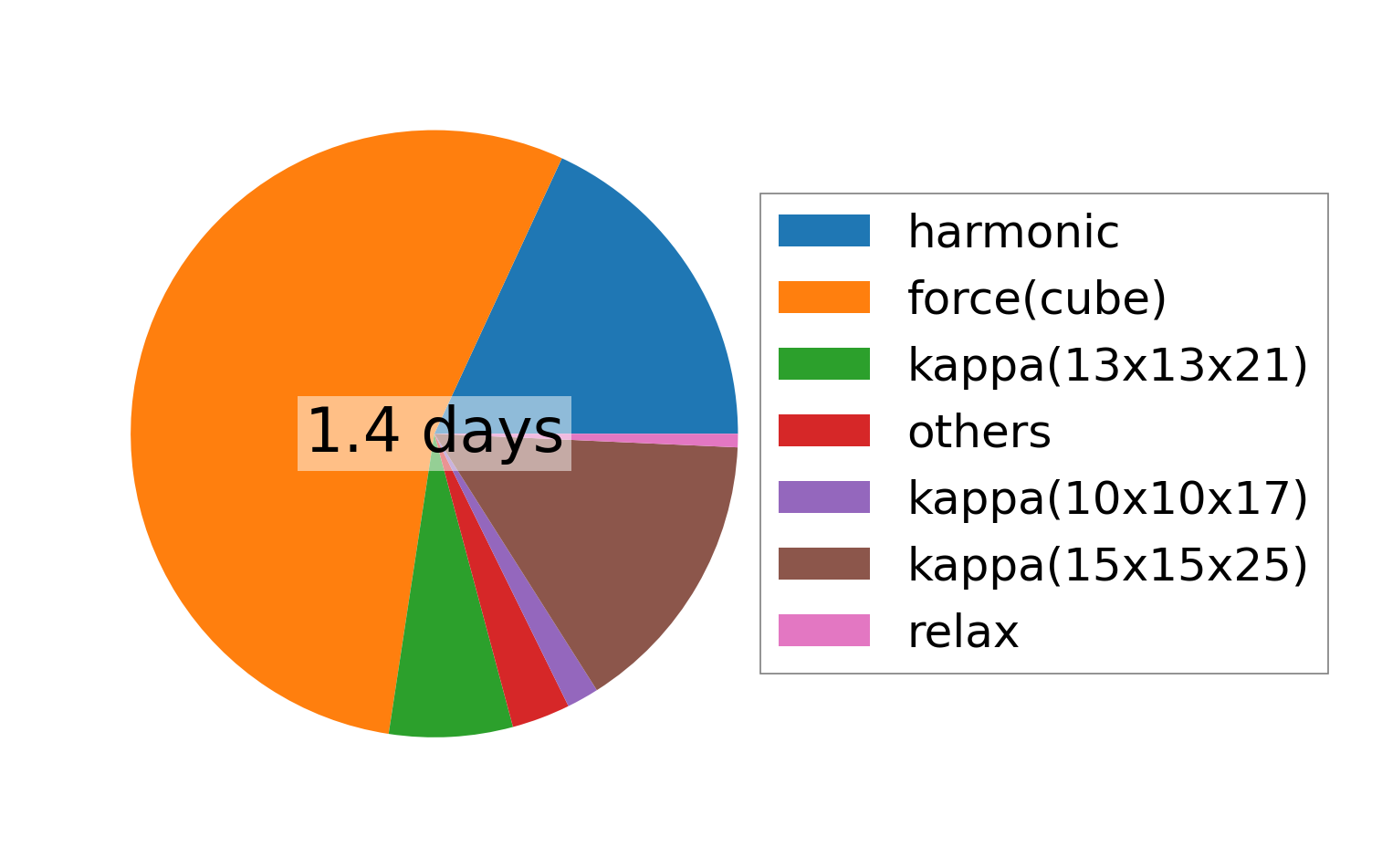

../../_images/fig_times10665.png — (b) Computation time
