mp-625404/AlHO2/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-625404.tar.gz

Harmonic properties

../../_images/fig_bandos_pr5889.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo5889.png — (b) Thermodynamic properties

Grüneisen parameters

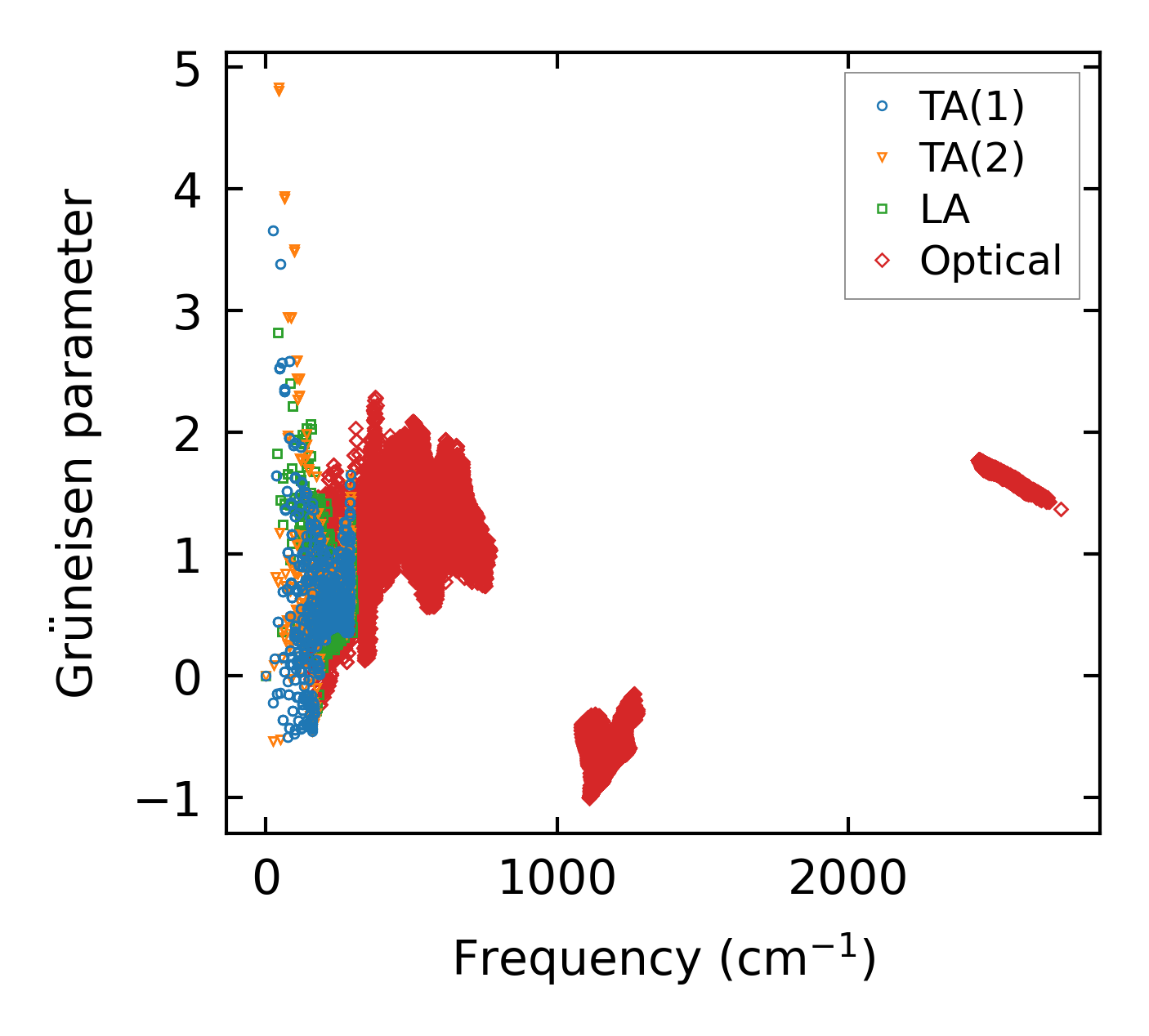

../../_images/fig_gru_all2417.png — (a) Grüneisen parameters

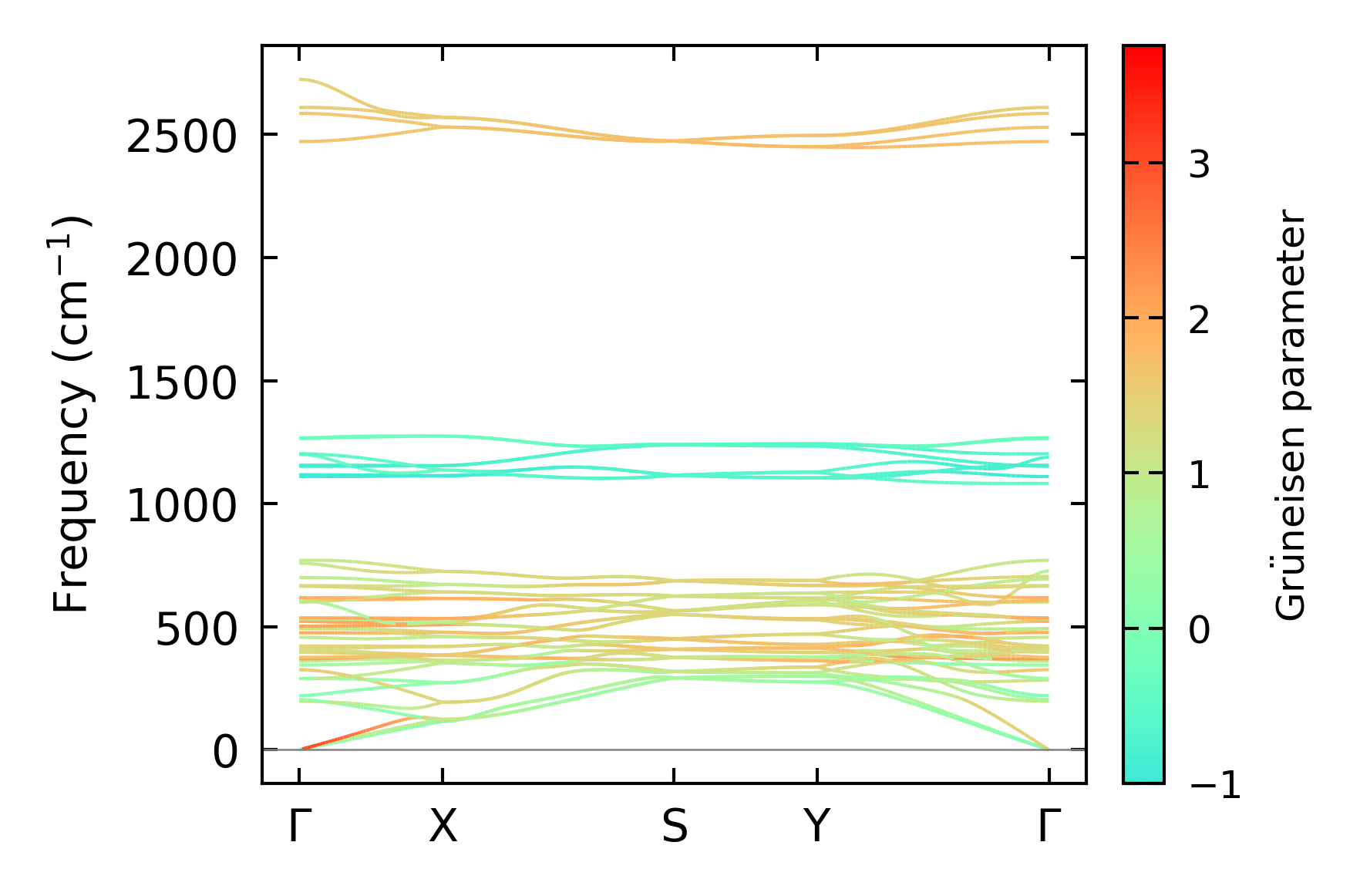

../../_images/fig_gruneisen2417.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x25x14, supercell: 1x3x2

../../_images/fig_kappa4603.png — (a) Temperature-dependent lattice thermal conductivity

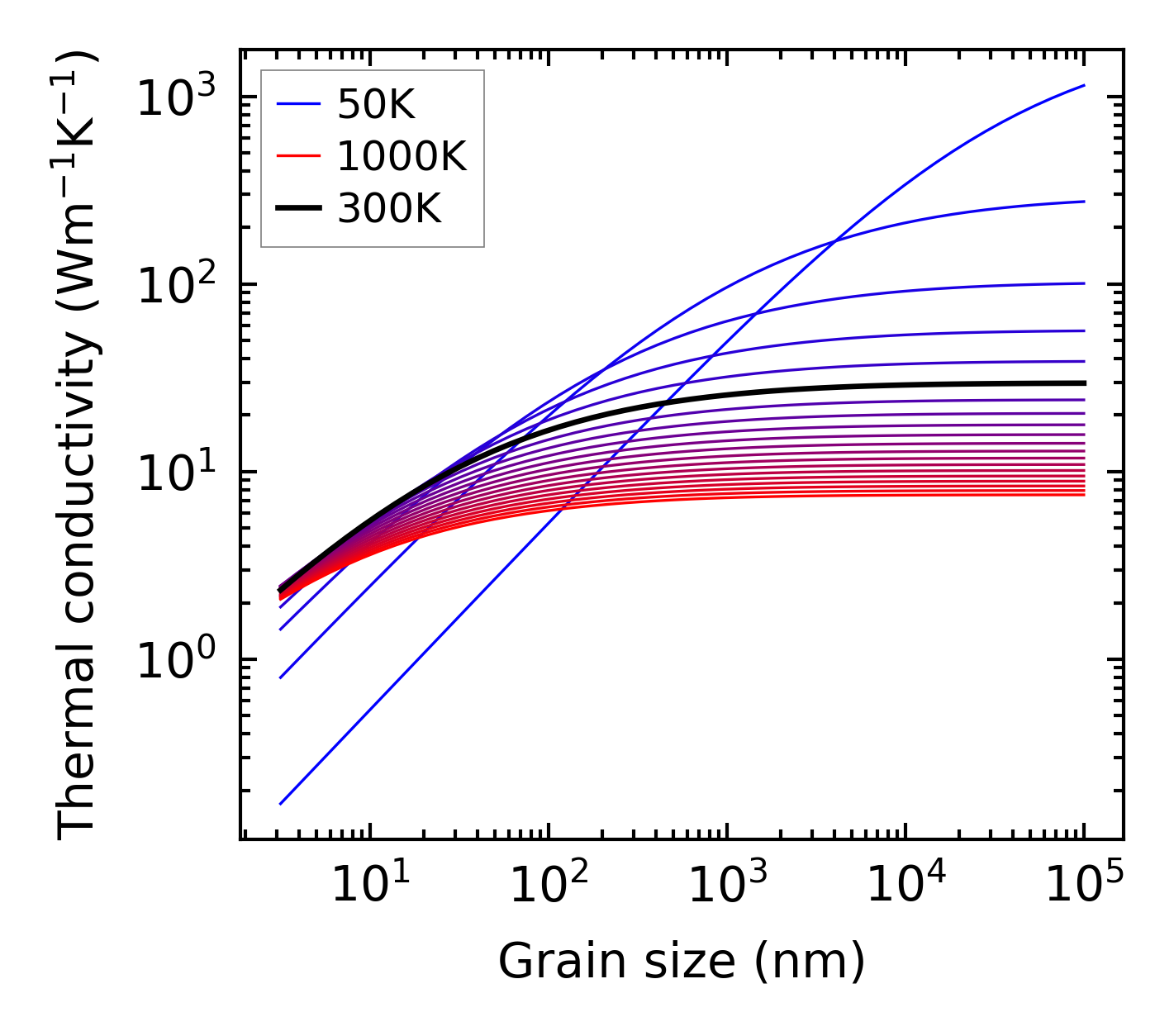

../../_images/fig_kappa_vs_grain_size2448.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

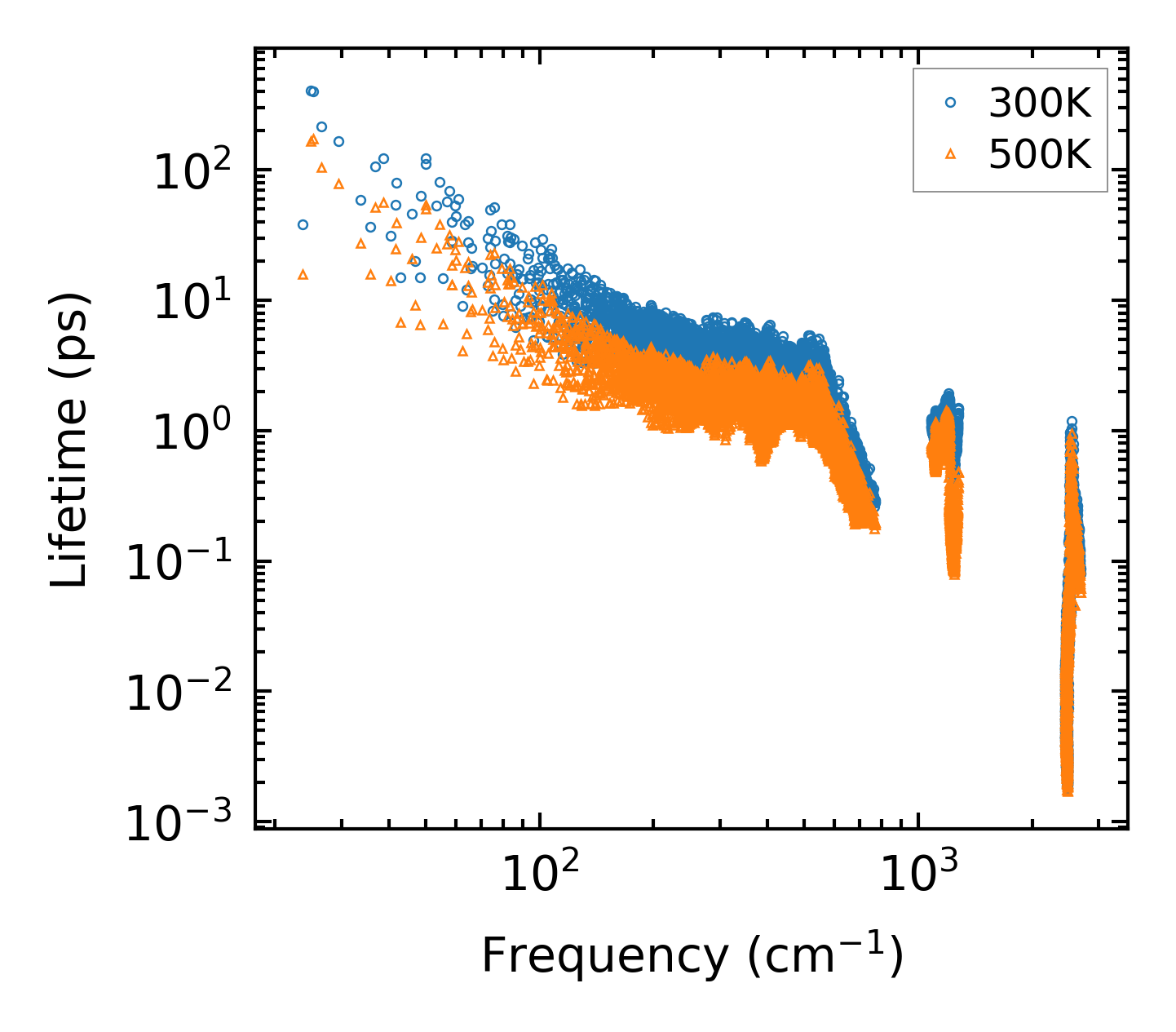

../../_images/fig_lifetime2400.png — (a) Phonon lifetime due to phonon-phonon scattering

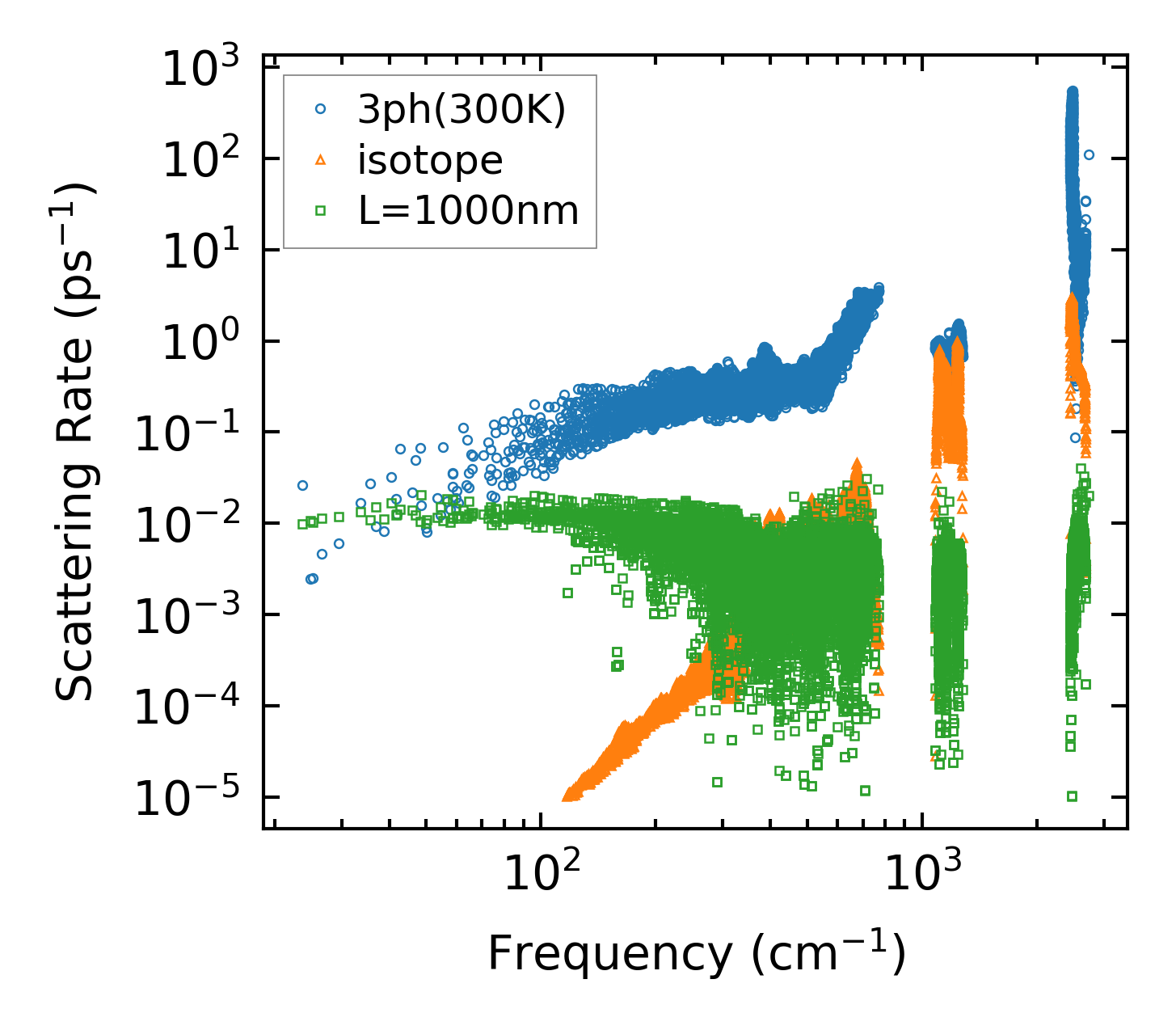

../../_images/fig_scat_rates2399.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

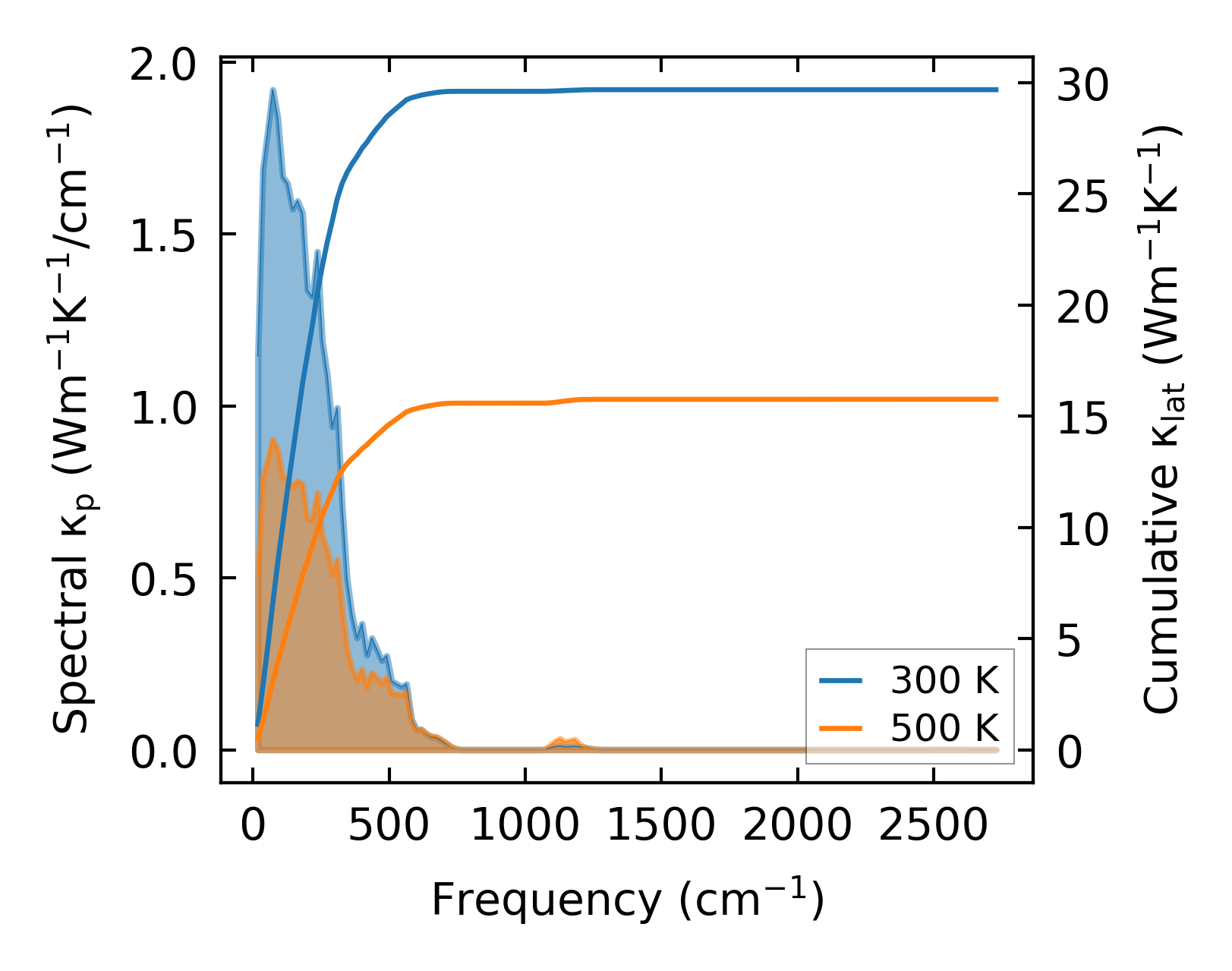

../../_images/fig_cumu_frequency2400.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp2400.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc25685.png — (a) Force constants w.r.t atomic distance

Summary

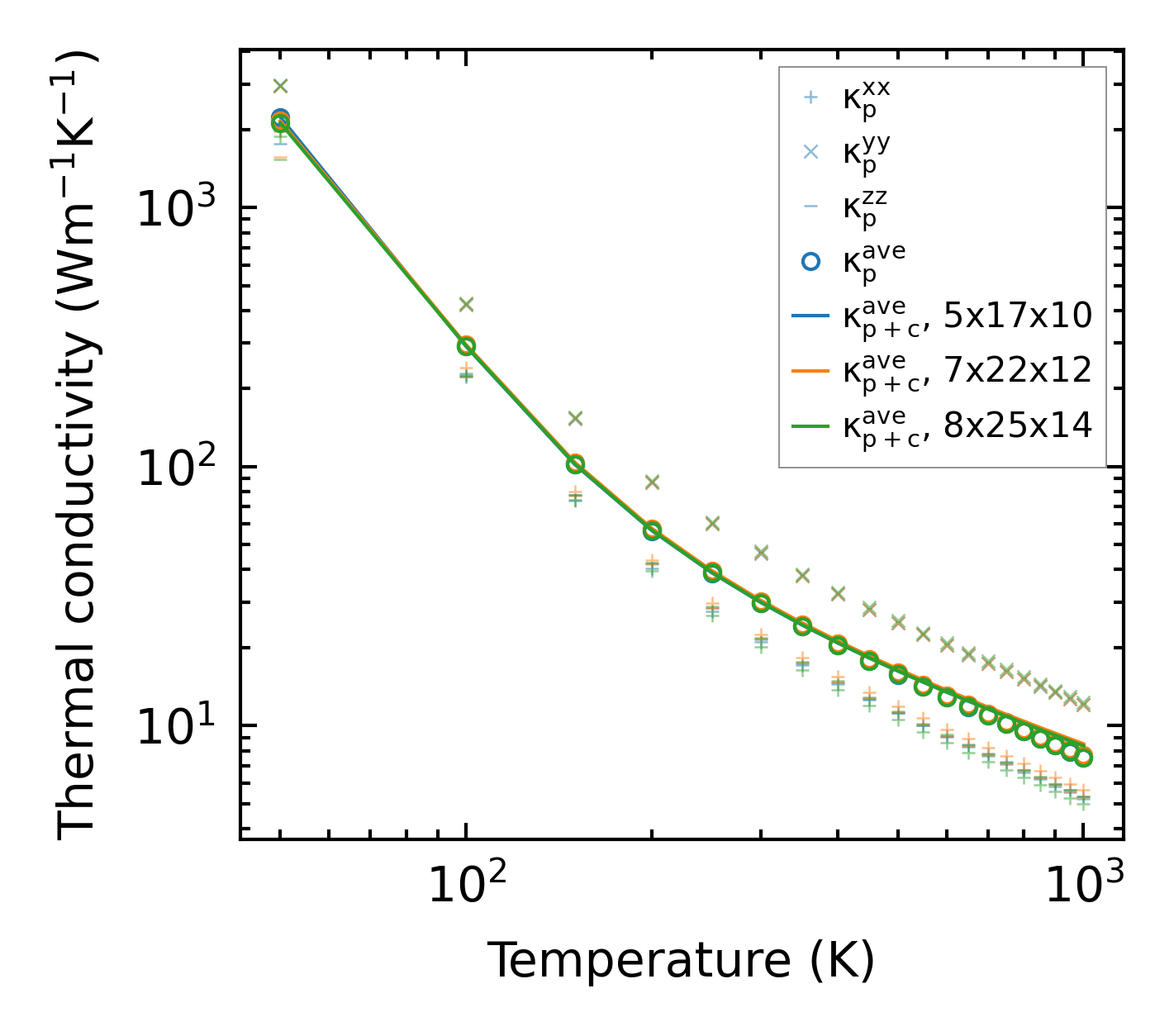

../../_images/fig_kappa4604.png — (a) Temperature-dependent lattice thermal conductivity

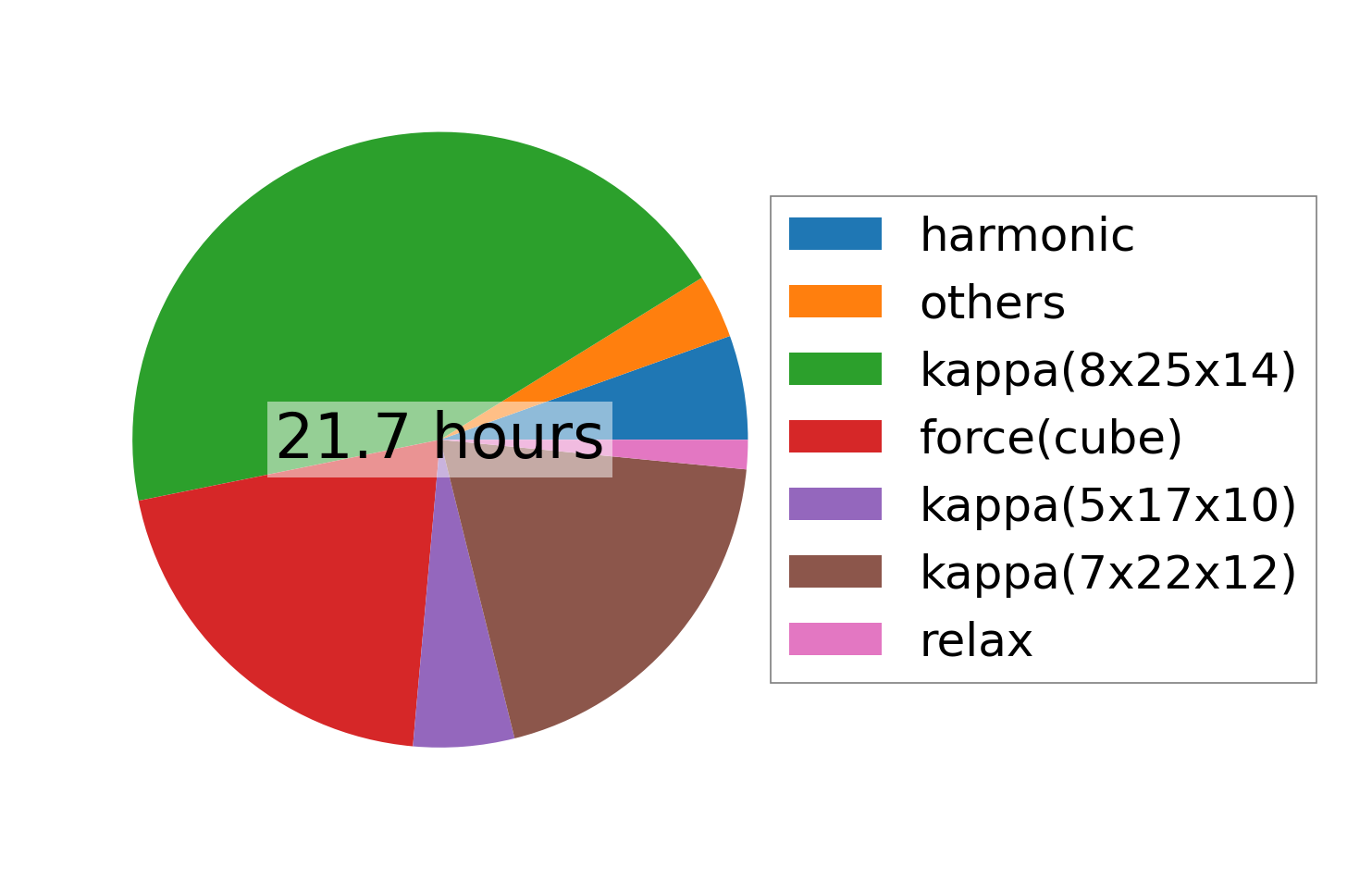

../../_images/fig_times10741.png — (b) Computation time
