mp-19795/InS/anharm

Space group: Pnnm (58)
Link: Materials Project
Download: mp-19795.tar.gz

Harmonic properties

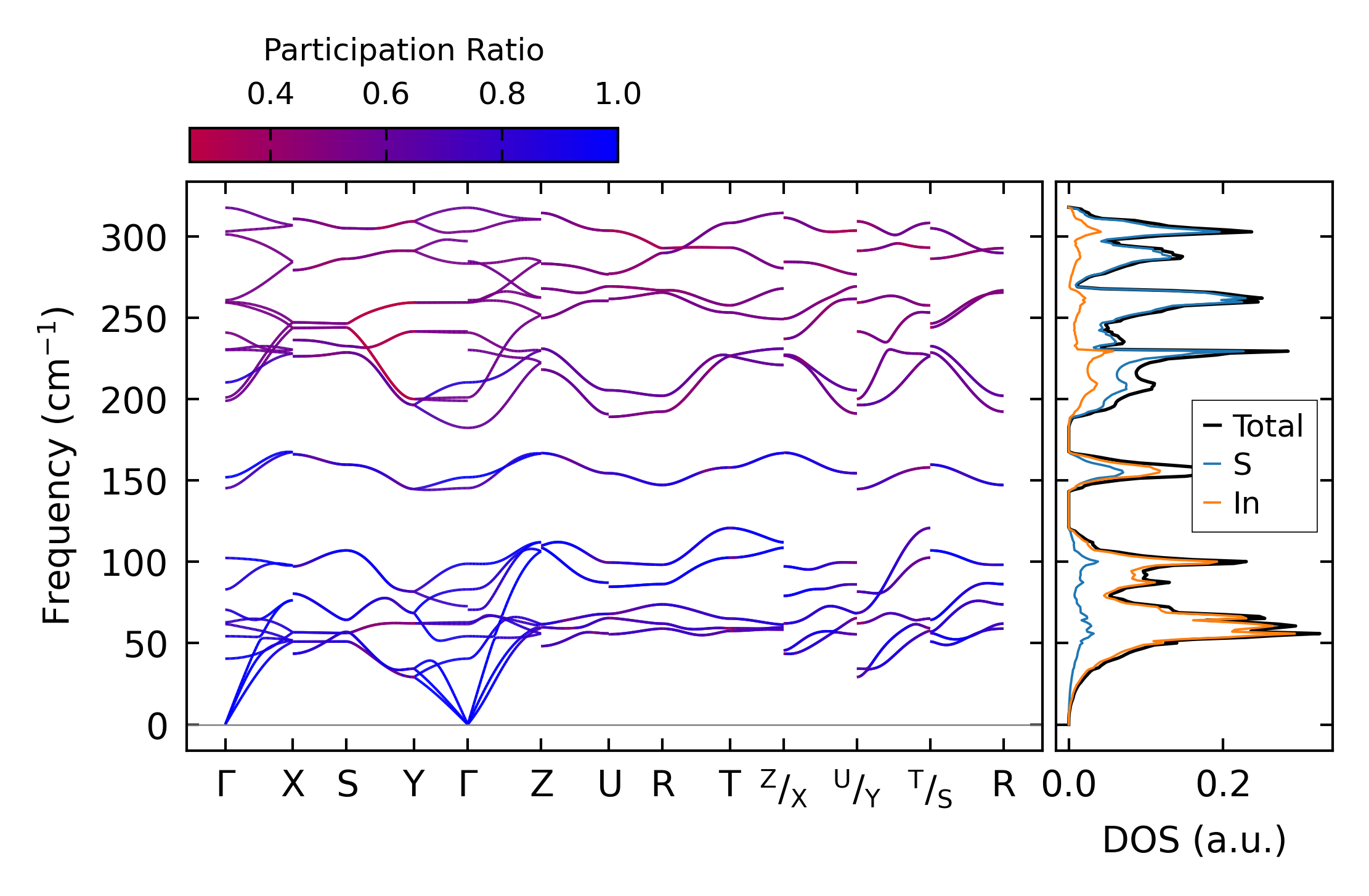

../../_images/fig_bandos_pr13395.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo13395.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all5646.png — (a) Grüneisen parameters

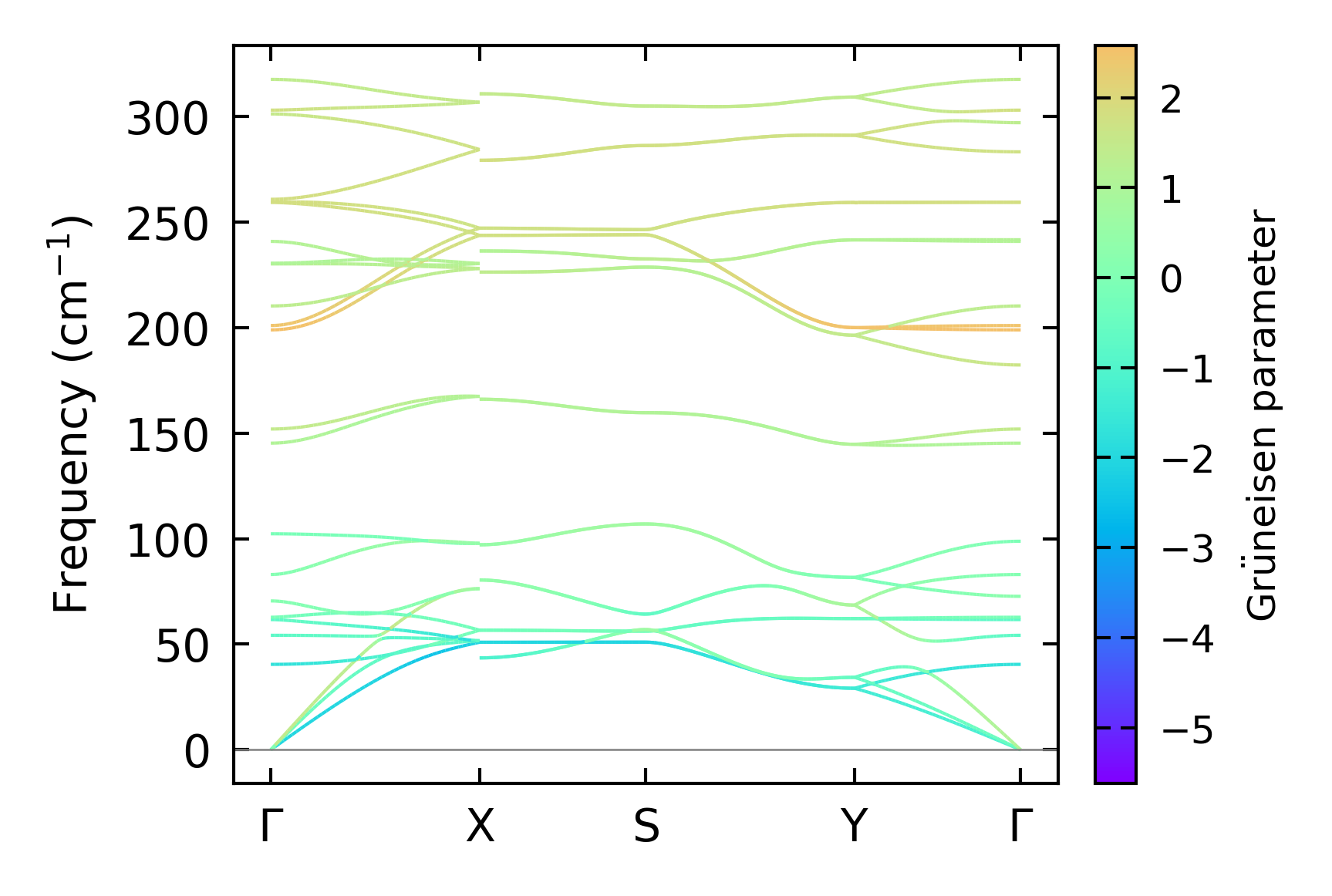

../../_images/fig_gruneisen5646.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 16x6x18, supercell: 3x2x3

../../_images/fig_kappa10608.png — (a) Temperature-dependent lattice thermal conductivity

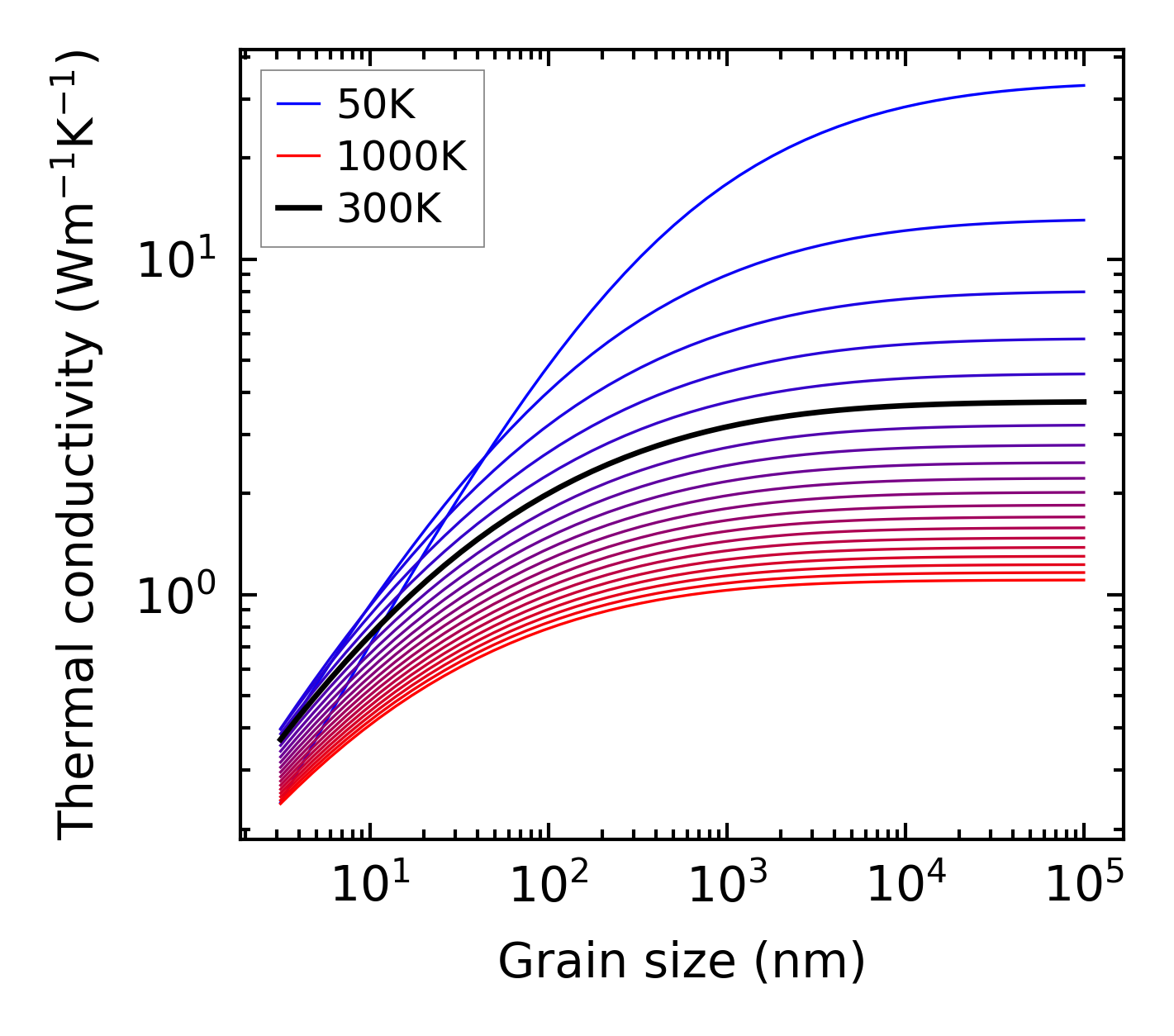

../../_images/fig_kappa_vs_grain_size5711.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

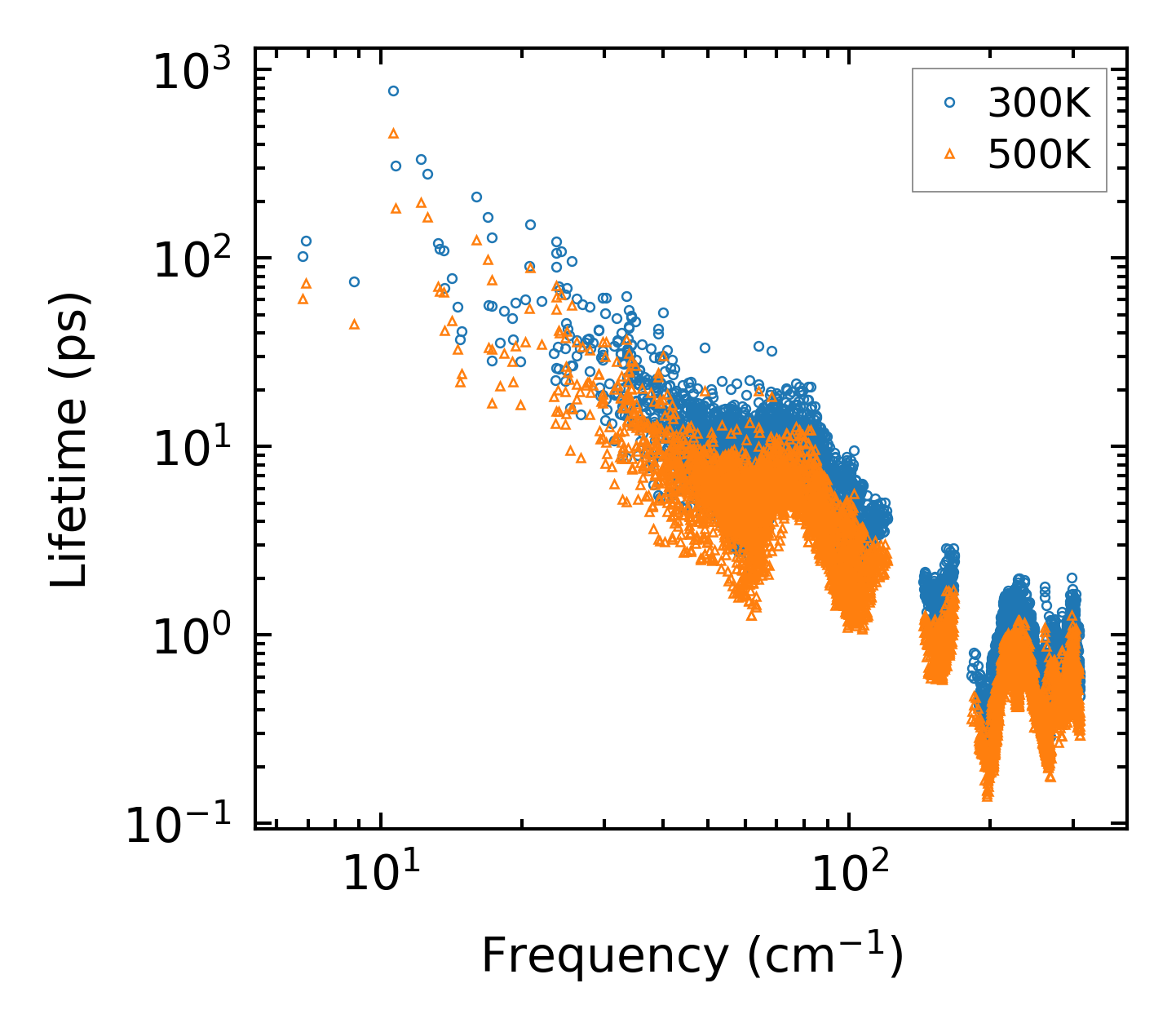

../../_images/fig_lifetime5591.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates5590.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

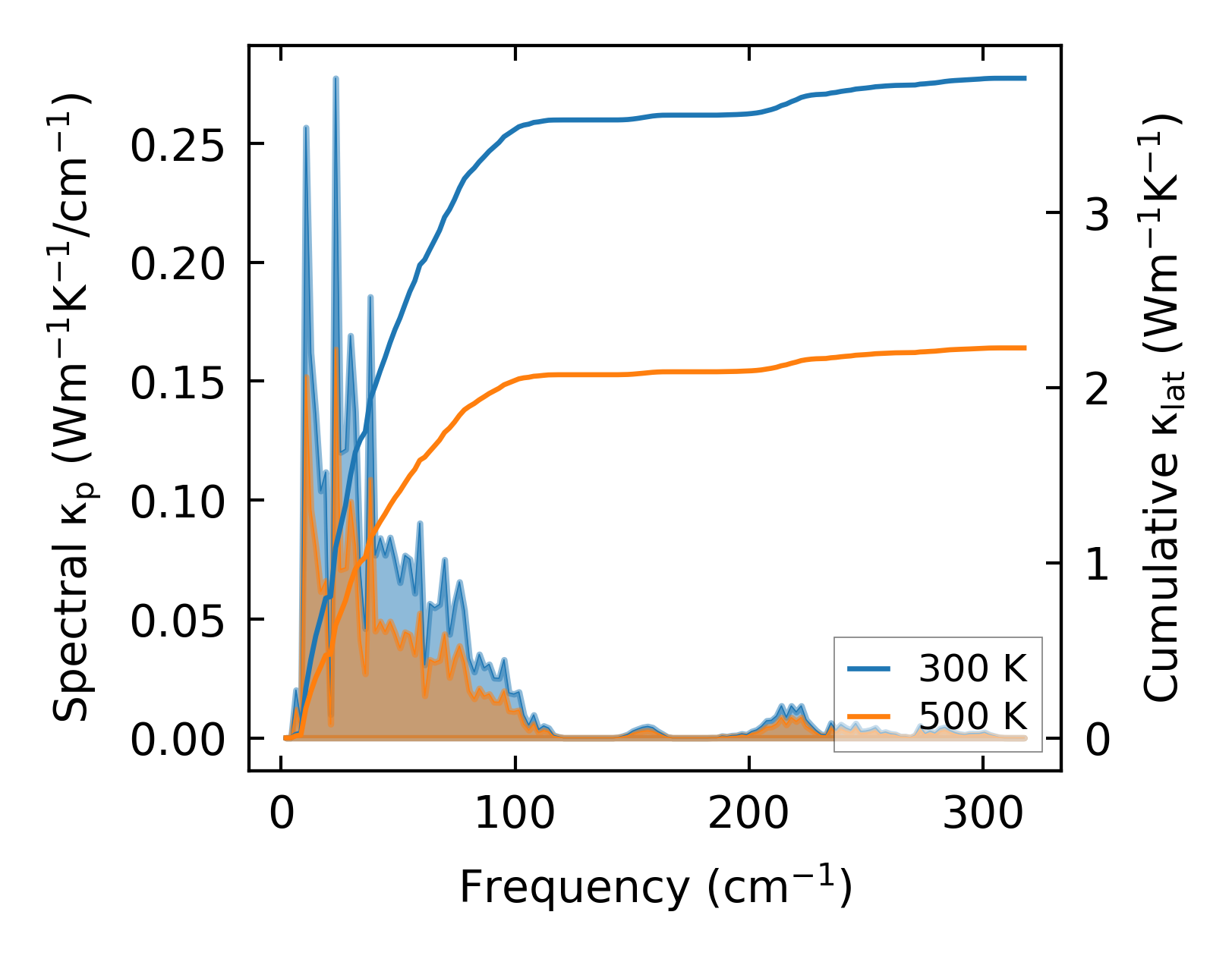

../../_images/fig_cumu_frequency5591.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp5590.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

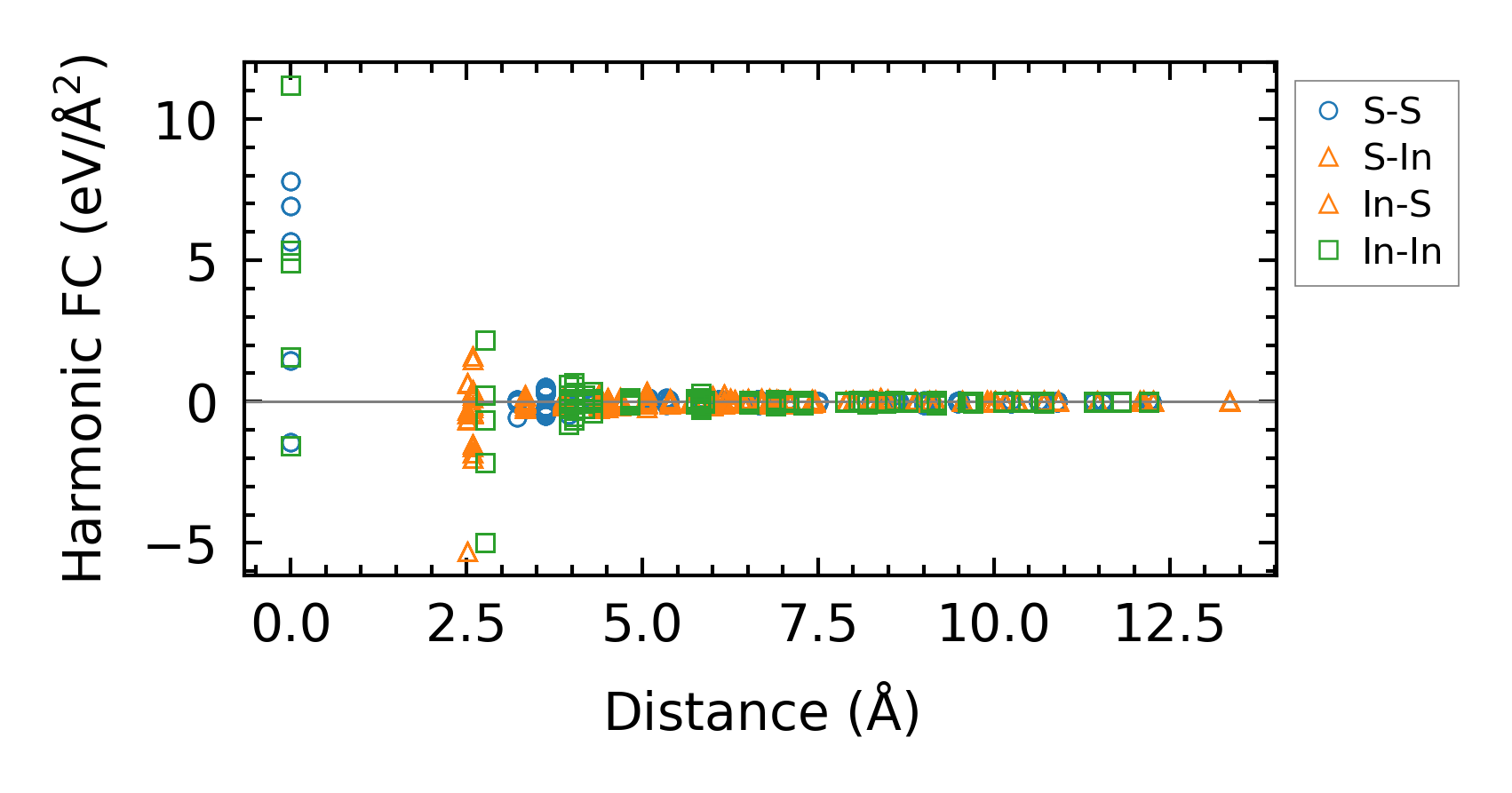

../../_images/fig_fc213034.png — (a) Force constants w.r.t atomic distance

Summary

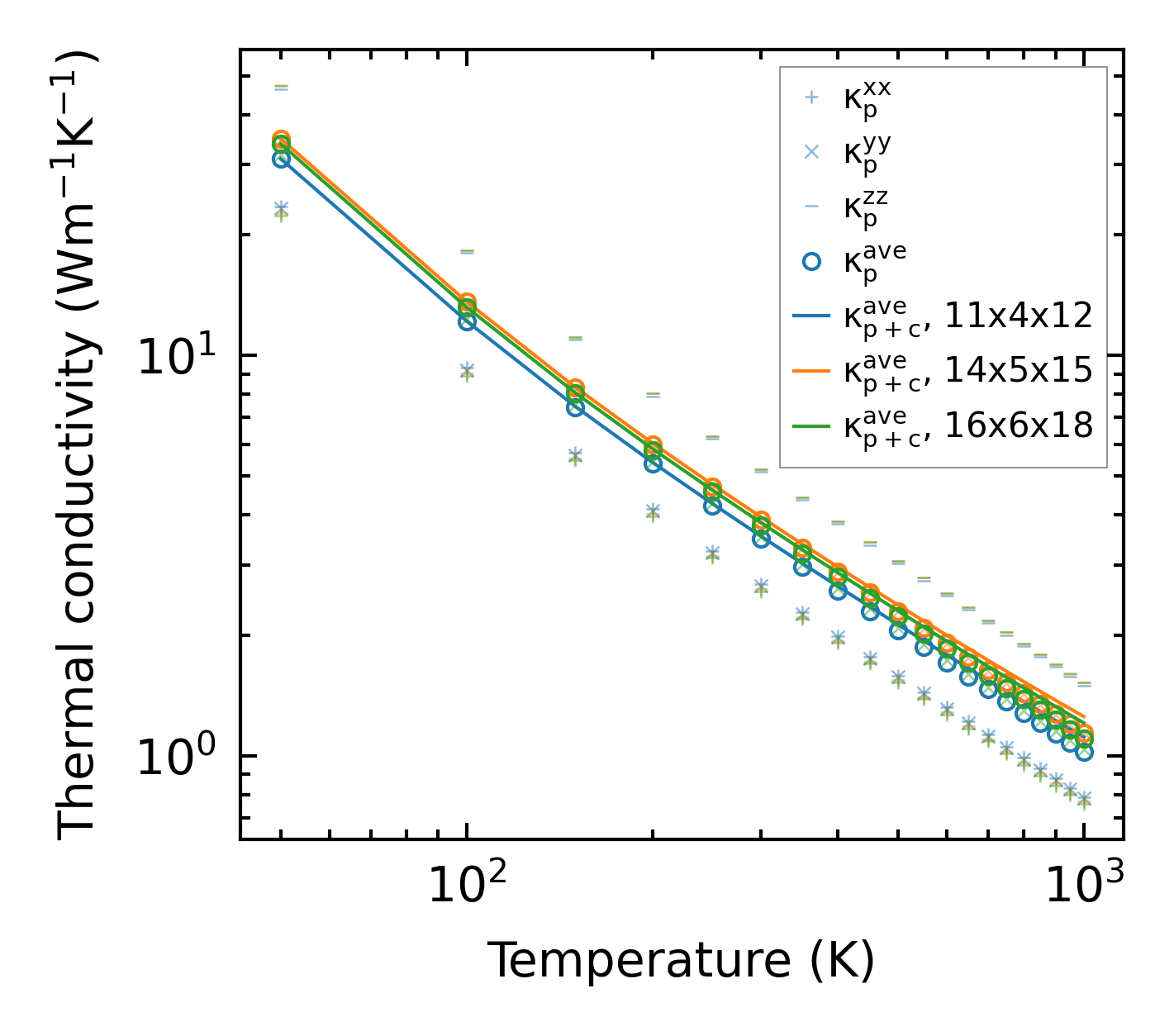

../../_images/fig_kappa10609.png — (a) Temperature-dependent lattice thermal conductivity

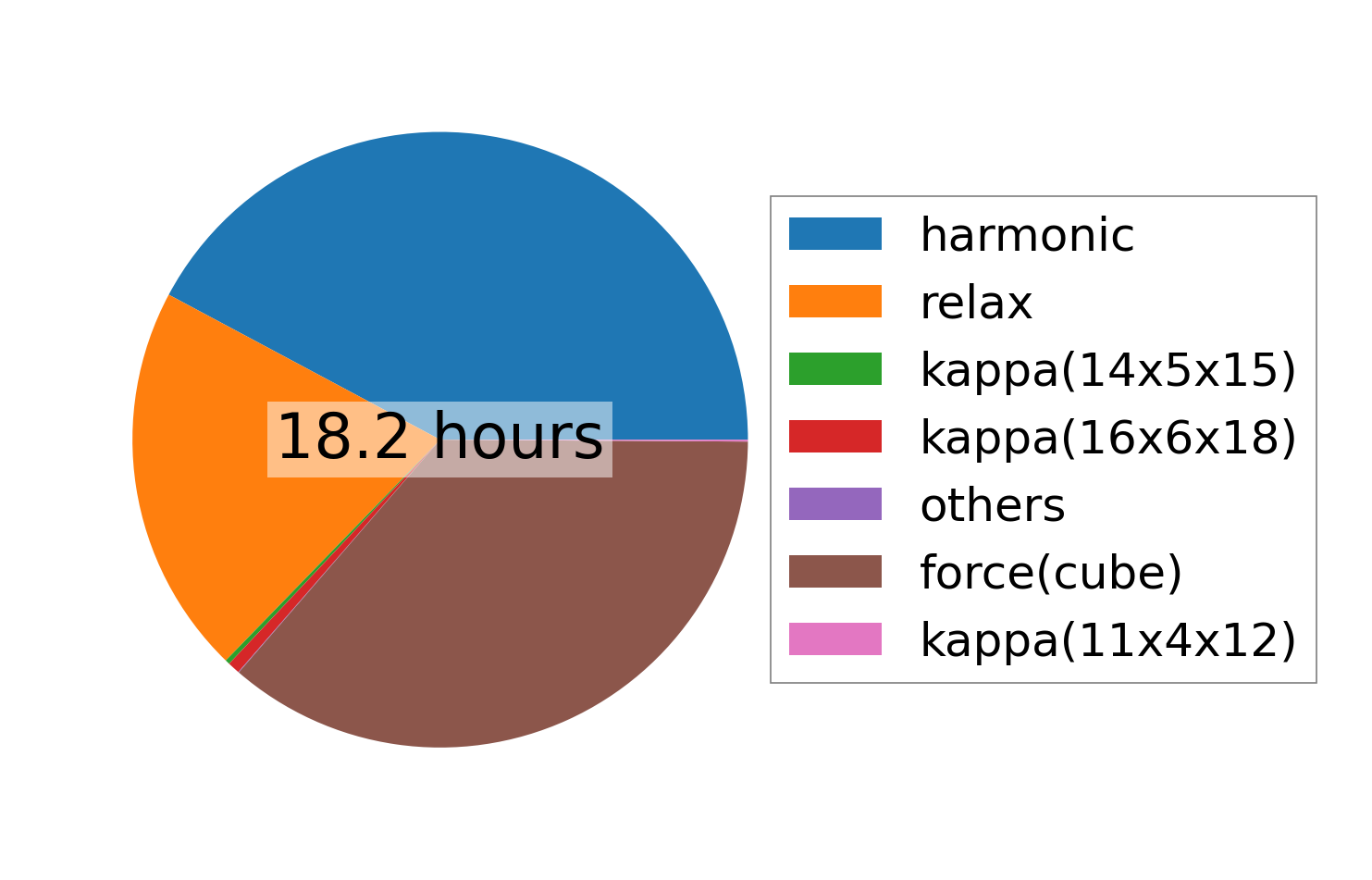

../../_images/fig_times22560.png — (b) Computation time
