mp-19496-2/KV2SbO8/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-19496-2.tar.gz

Equation of state

../../_images/fig_bm6683.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr13384.png — (a) Phonon dispersion with participation ratio and DOS

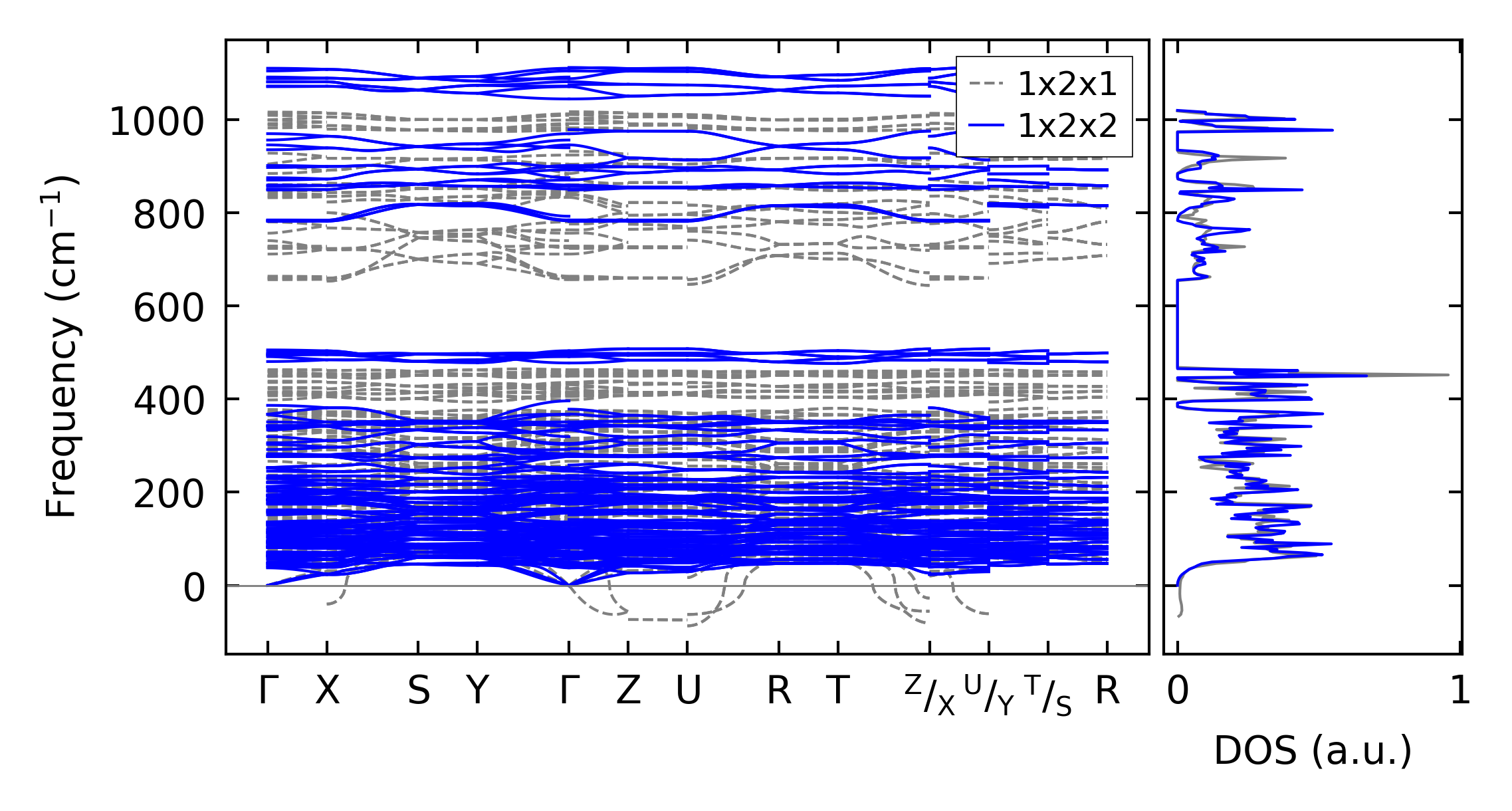

../../_images/fig_bandos17745.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo13384.png — (c) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all5640.png — (a) Grüneisen parameters

../../_images/fig_gruneisen5640.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 1x2x2 — q-mesh: 4x12x8, supercell: 1x2x2

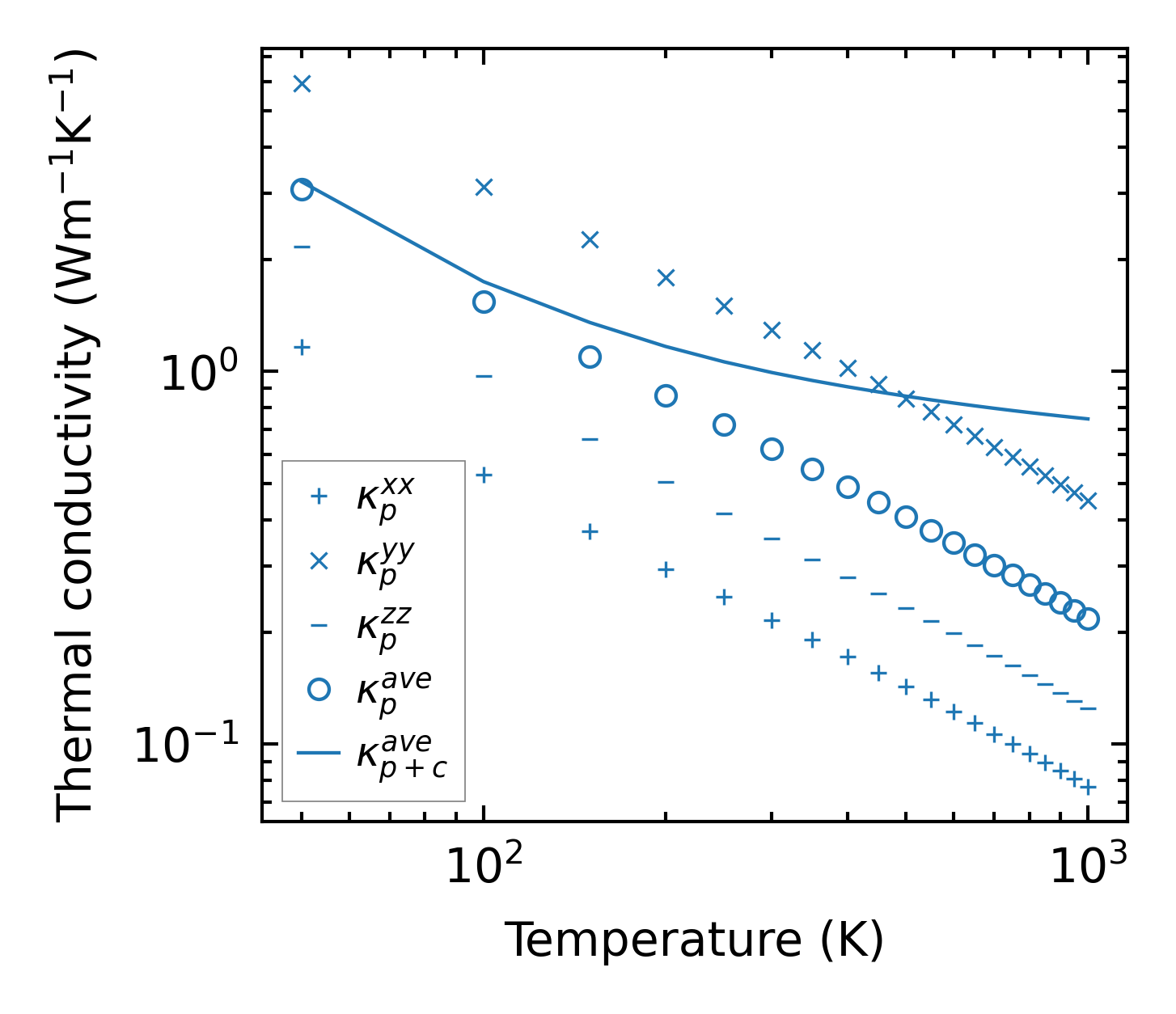

../../_images/fig_kappa10597.png — (a) Temperature-dependent lattice thermal conductivity

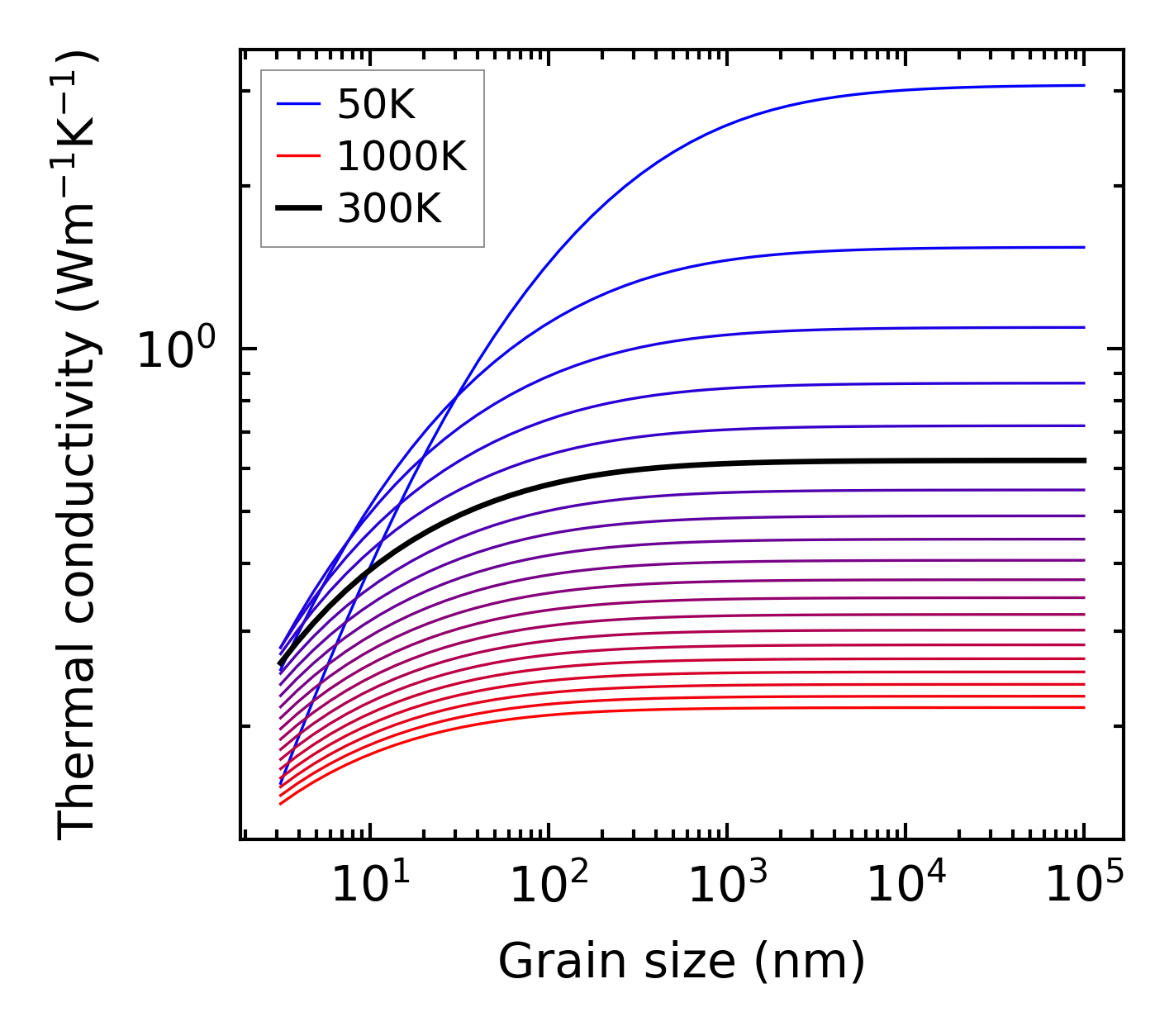

../../_images/fig_kappa_vs_grain_size5704.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime5585.png — (a) Phonon lifetime due to phonon-phonon scattering

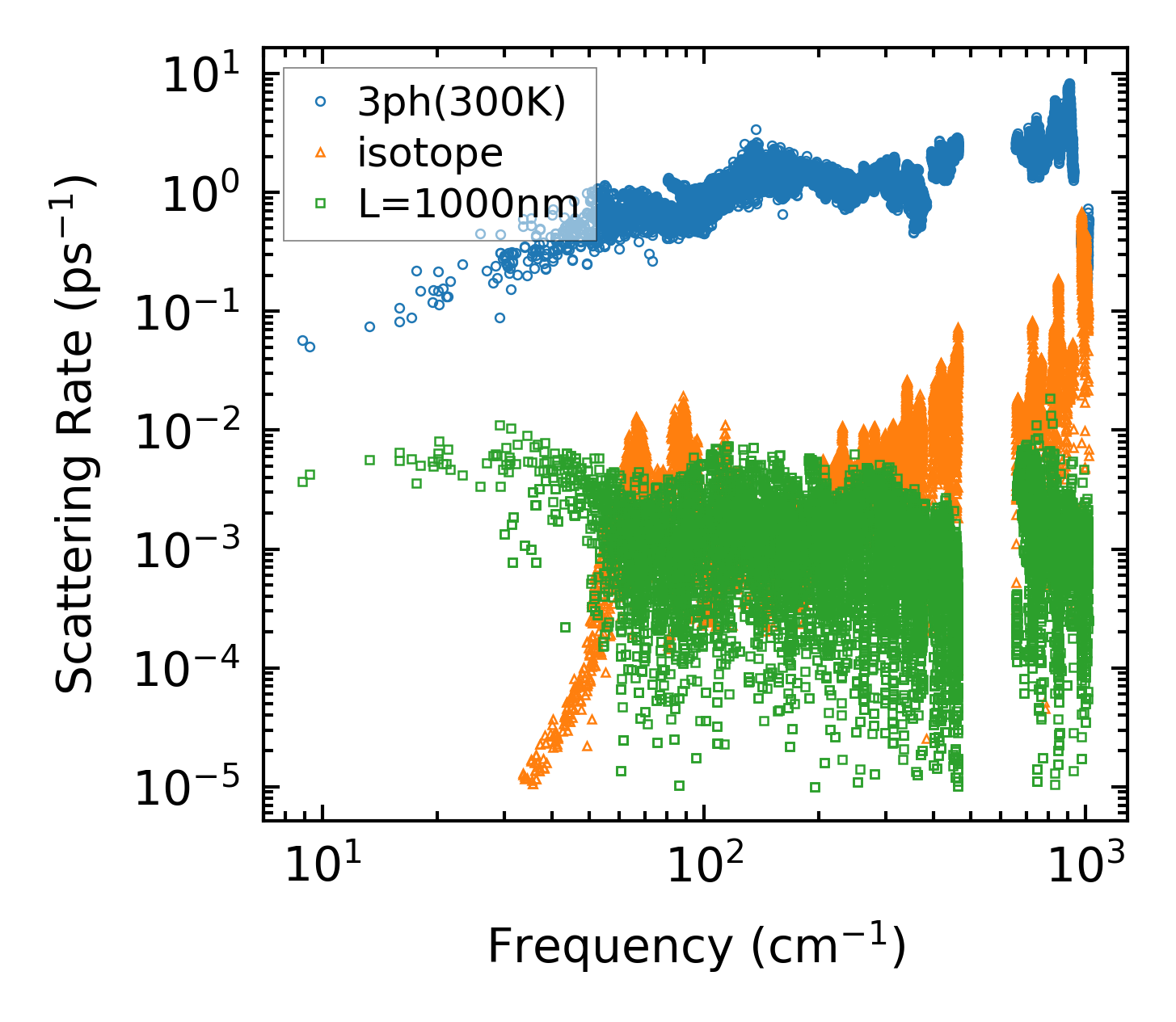

../../_images/fig_scat_rates5584.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

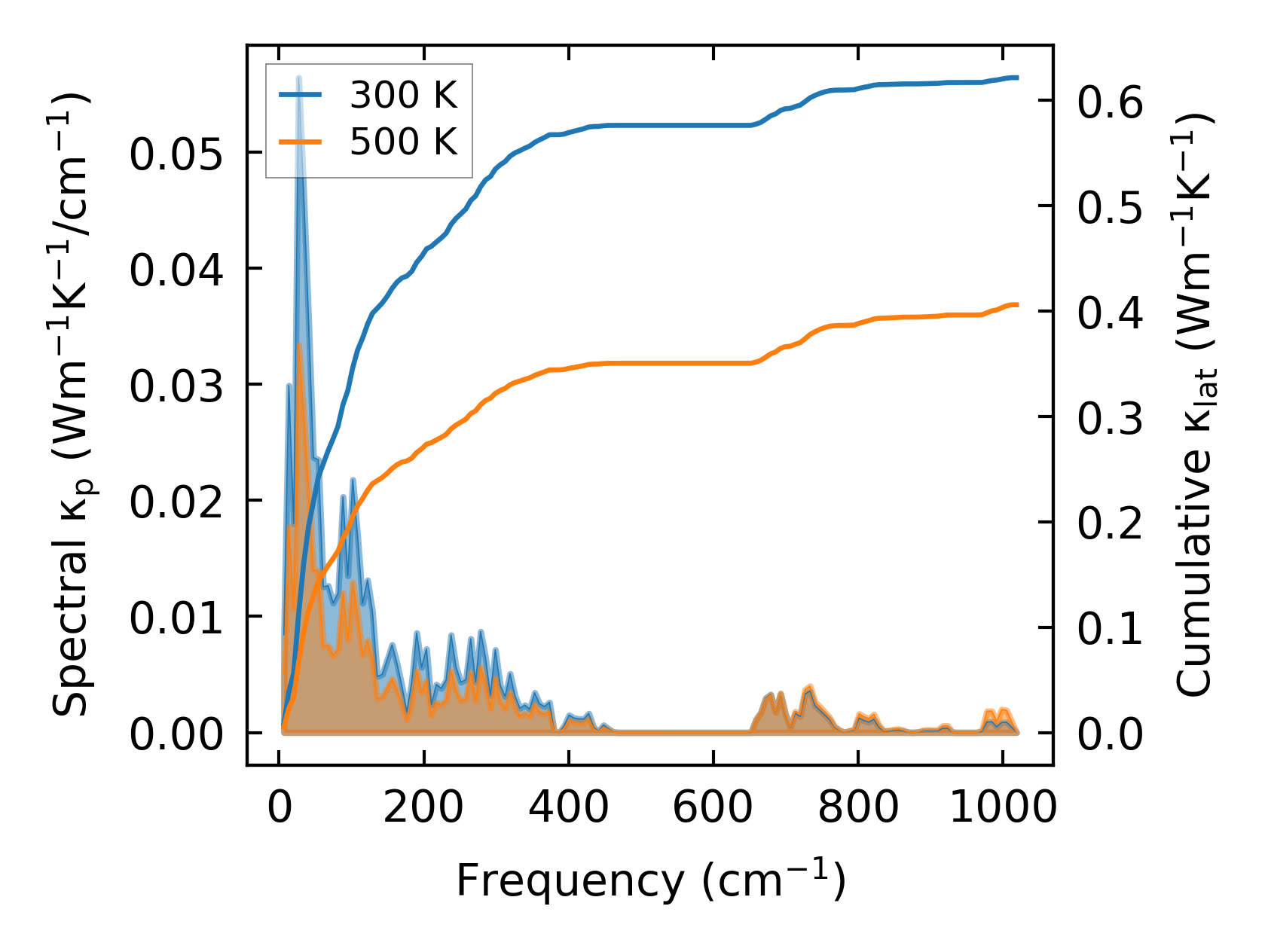

../../_images/fig_cumu_frequency5585.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

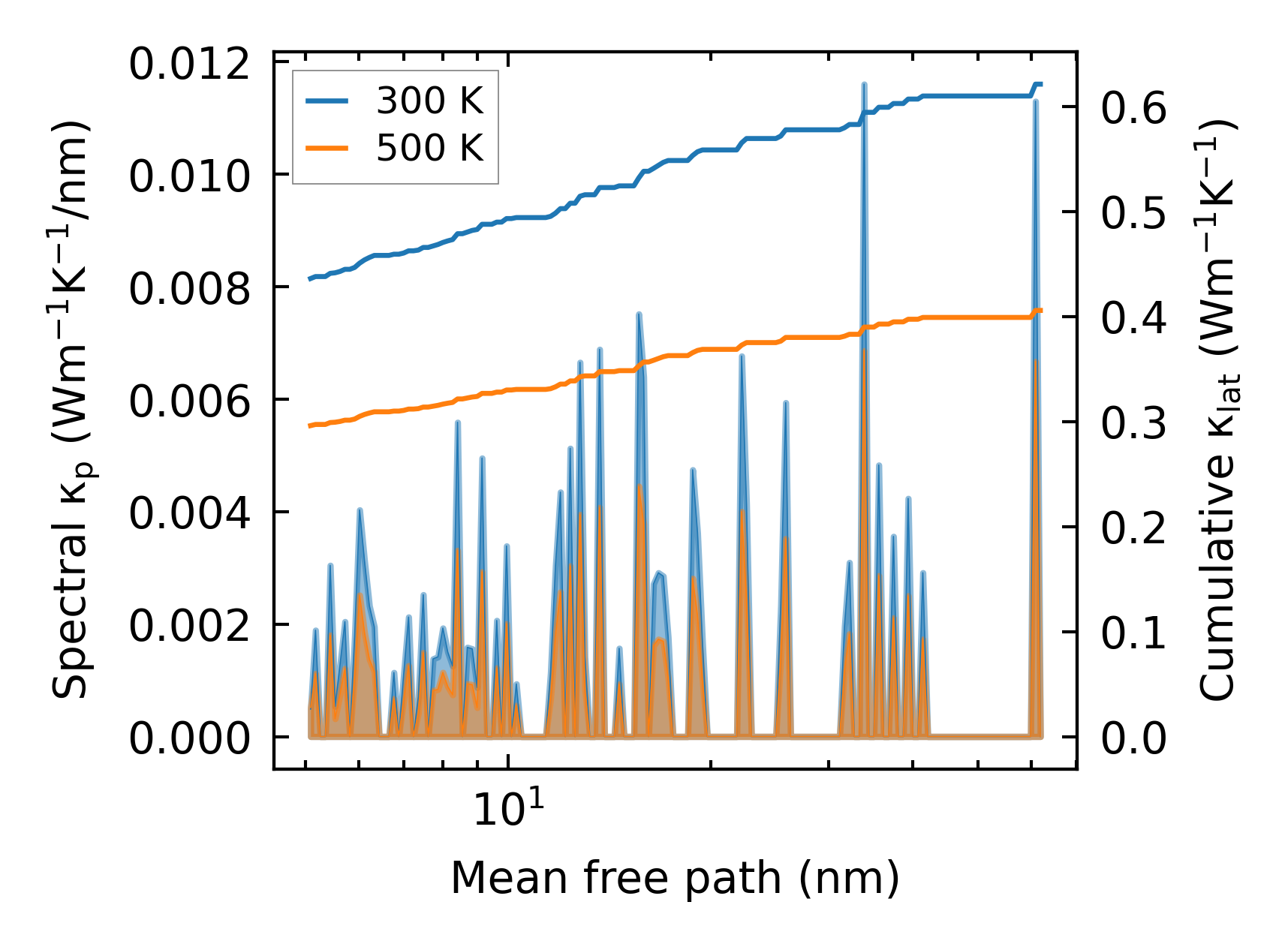

../../_images/fig_cumu_mfp5584.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

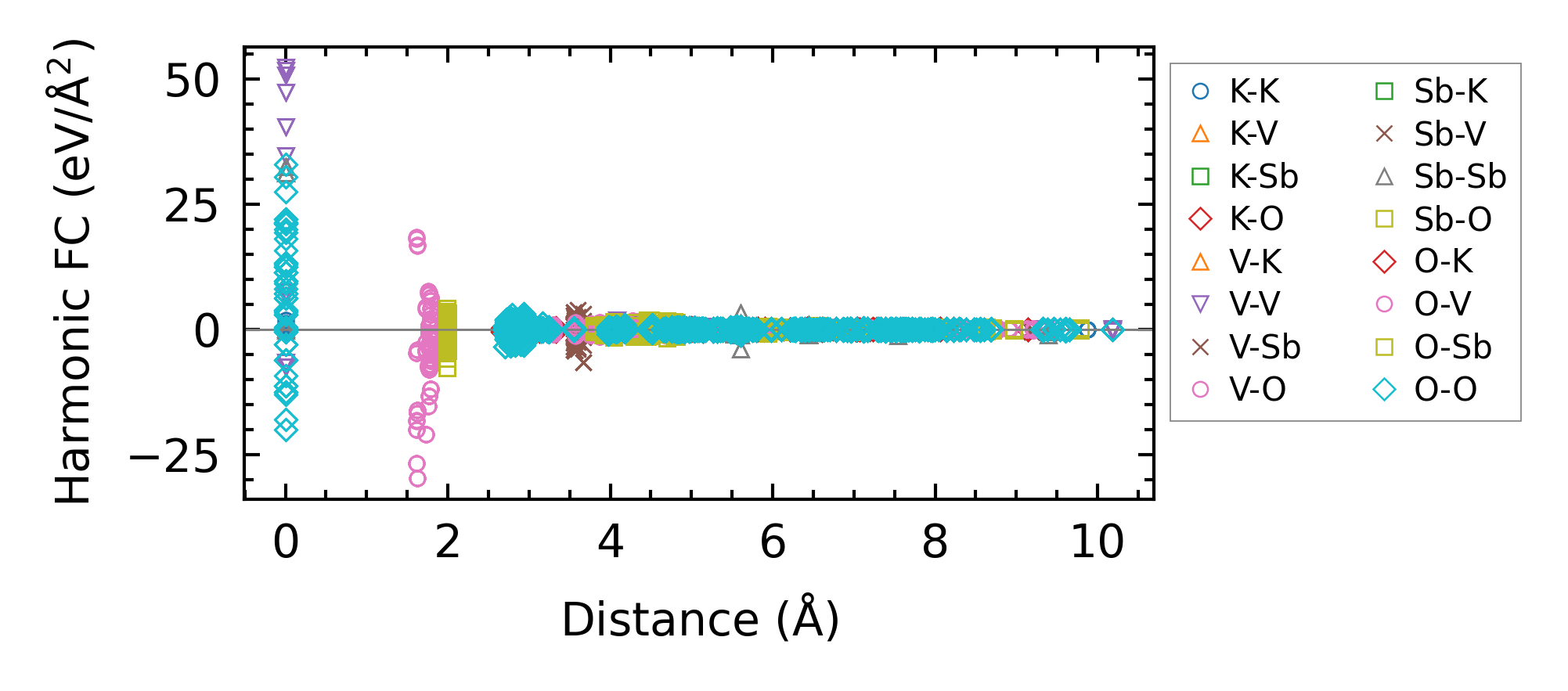

../../_images/fig_fc213024.png — (a) Force constants w.r.t atomic distance

Summary

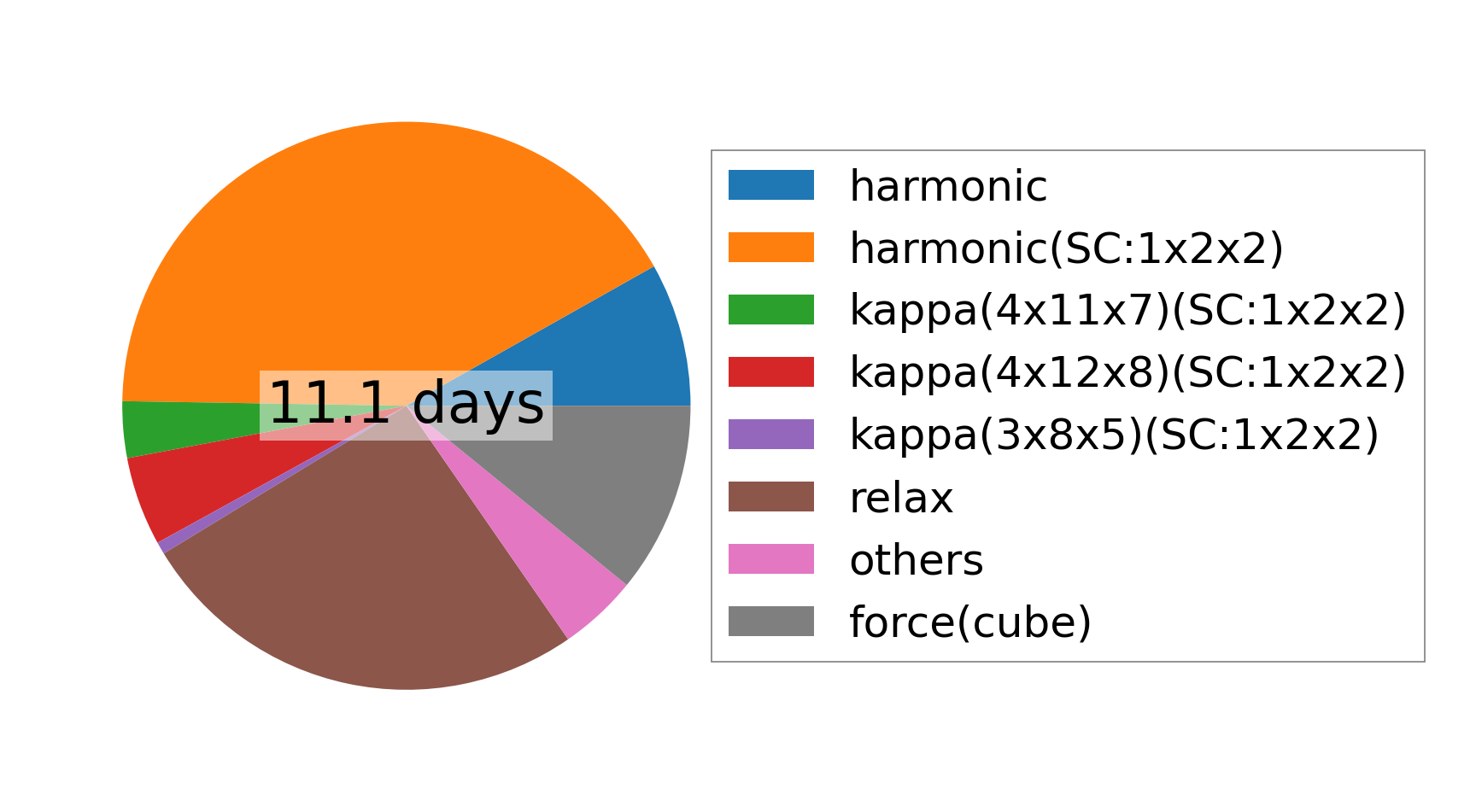

../../_images/fig_times22543.png — (a) Computation time
