mp-19034-2/Mg3V2O8/anharm

Space group: Cmce (64)
Link: Materials Project
Download: mp-19034-2.tar.gz

Equation of state

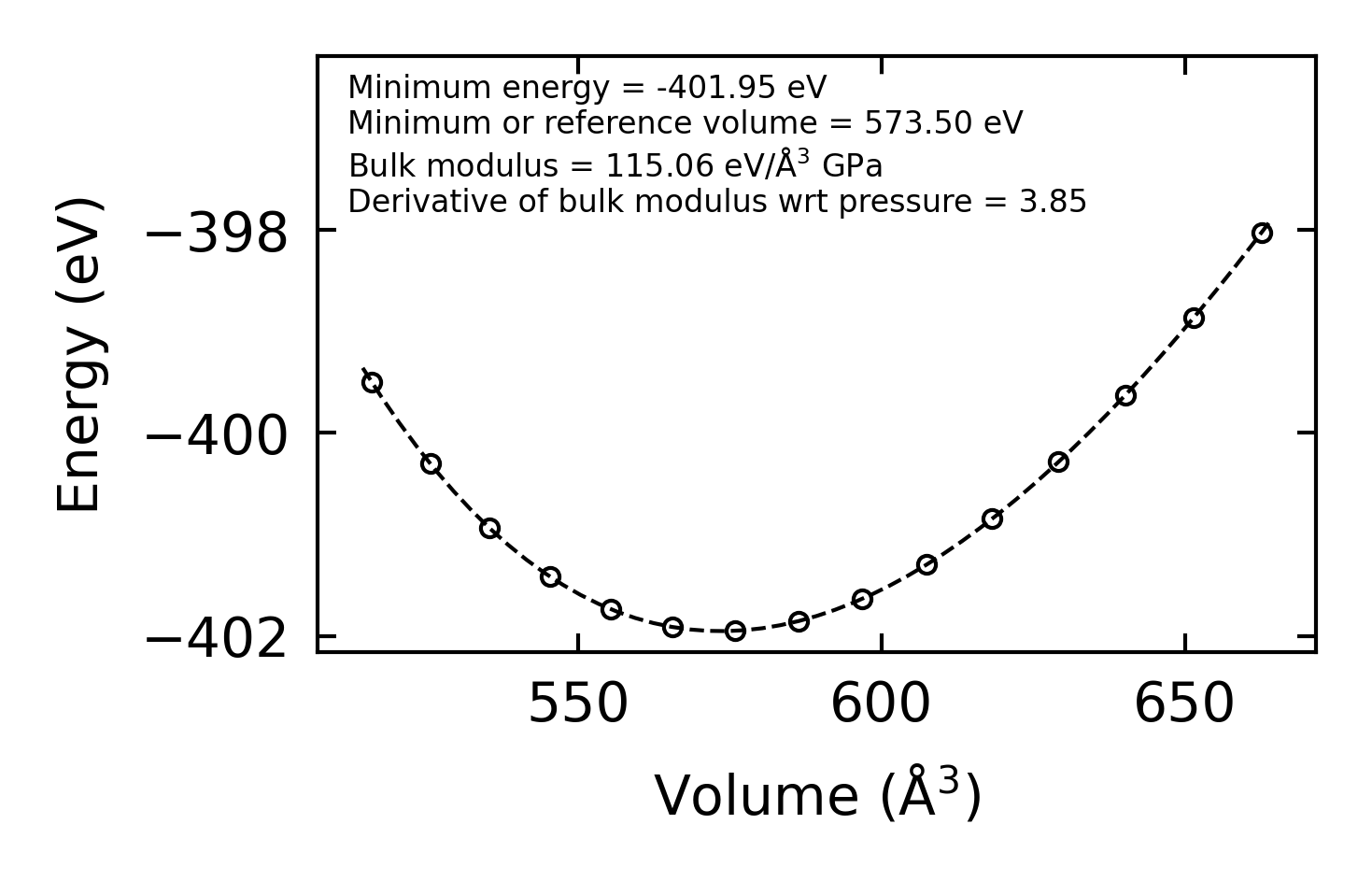

../../_images/fig_bm6827.png — (a) Equation of state

Harmonic properties

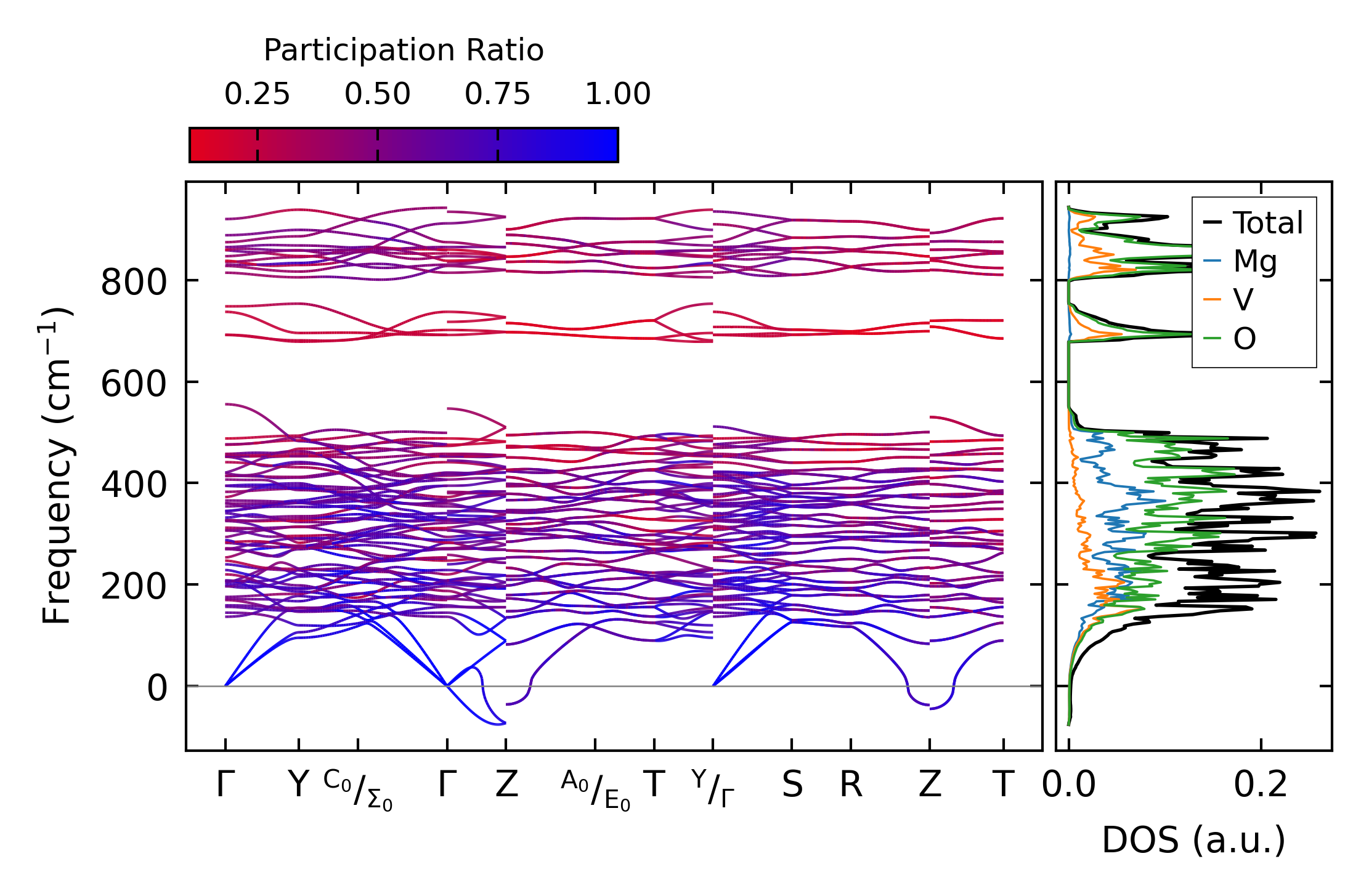

../../_images/fig_bandos_pr13668.png — (a) Phonon dispersion with participation ratio and DOS

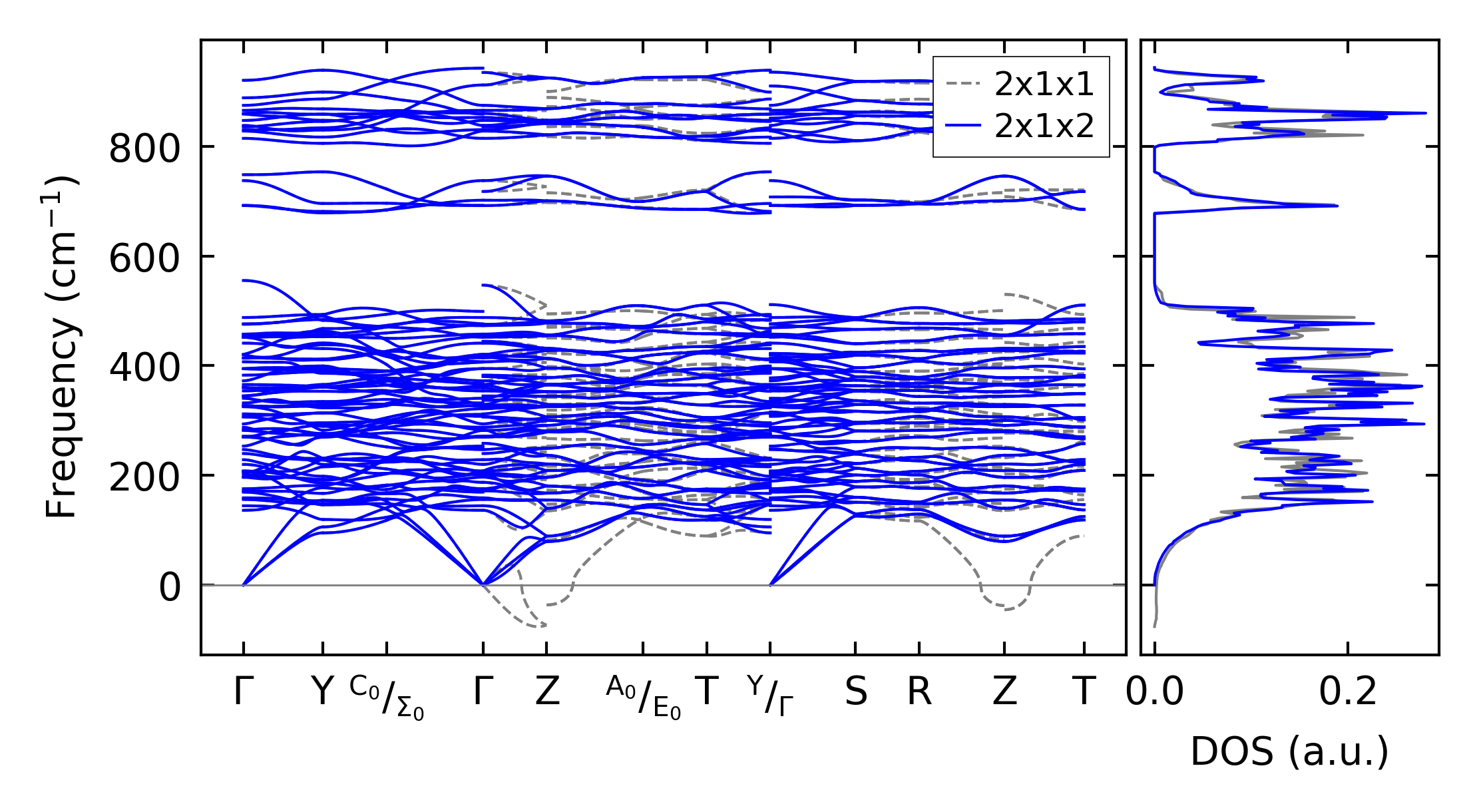

../../_images/fig_bandos18040.png — (b) Phonon dispersion and DOS

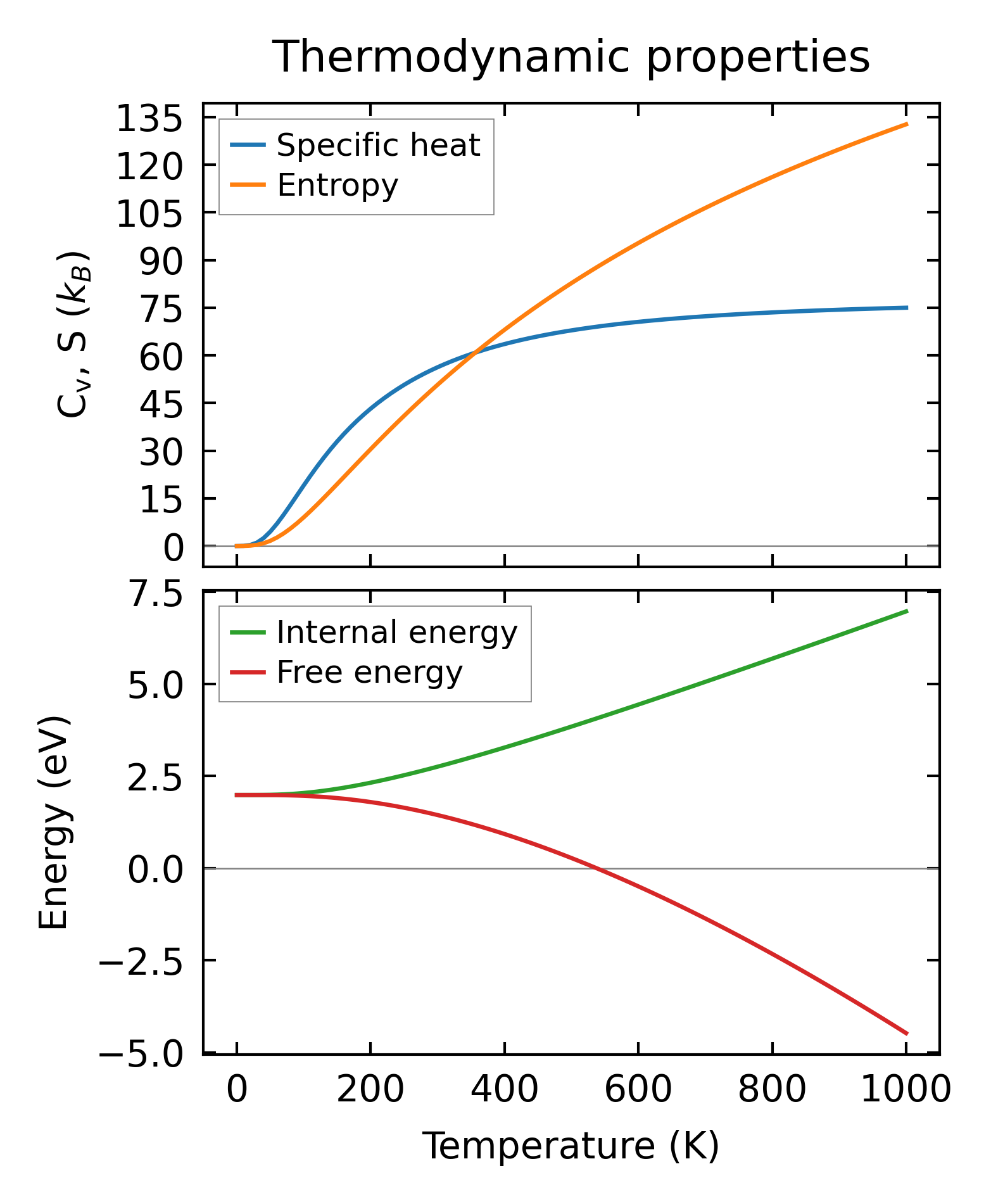

../../_images/fig_thermo13668.png — (c) Thermodynamic properties

Grüneisen parameters

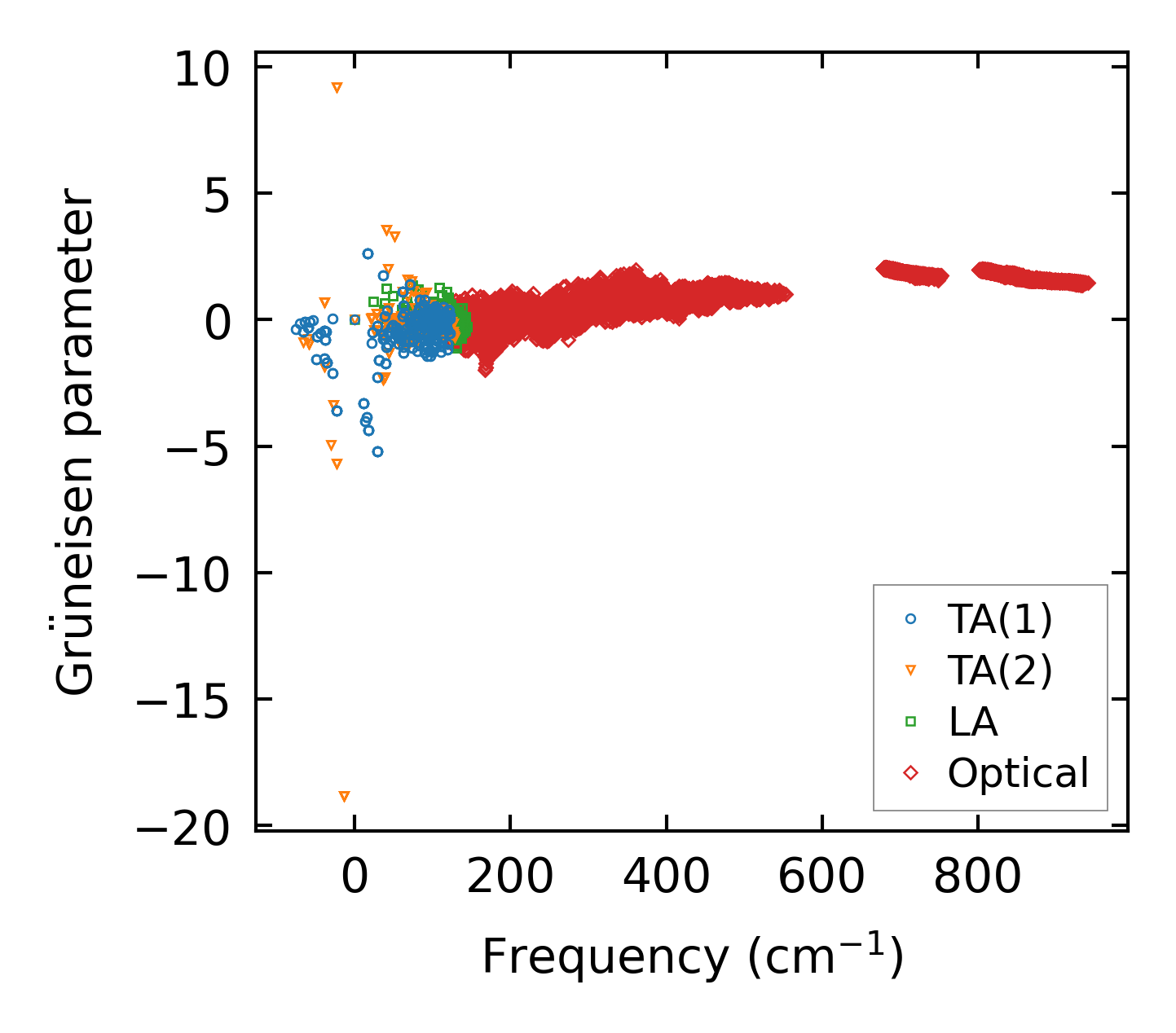

../../_images/fig_gru_all5771.png — (a) Grüneisen parameters

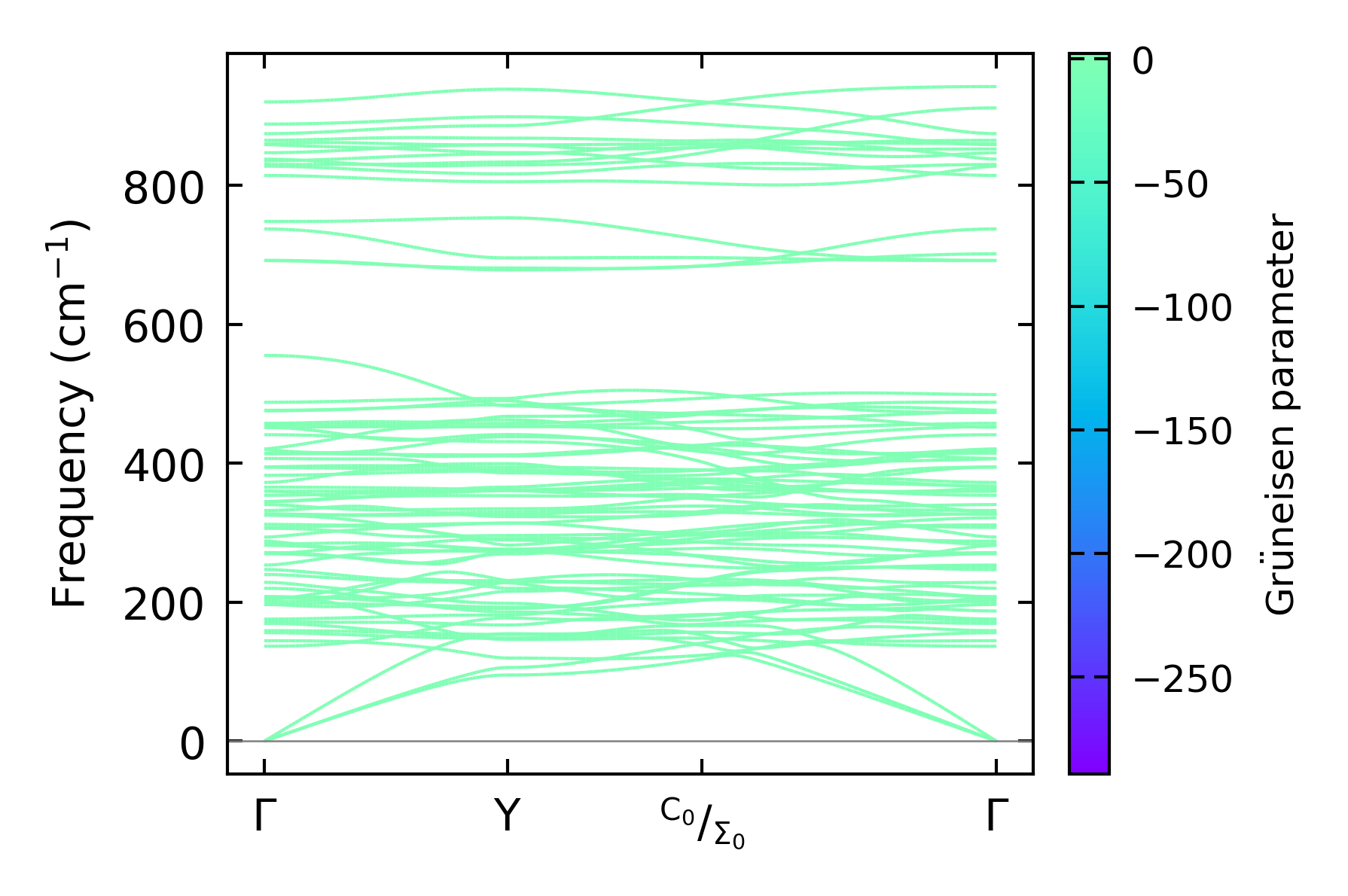

../../_images/fig_gruneisen5771.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x1x2 — q-mesh: 11x11x9, supercell: 2x1x2

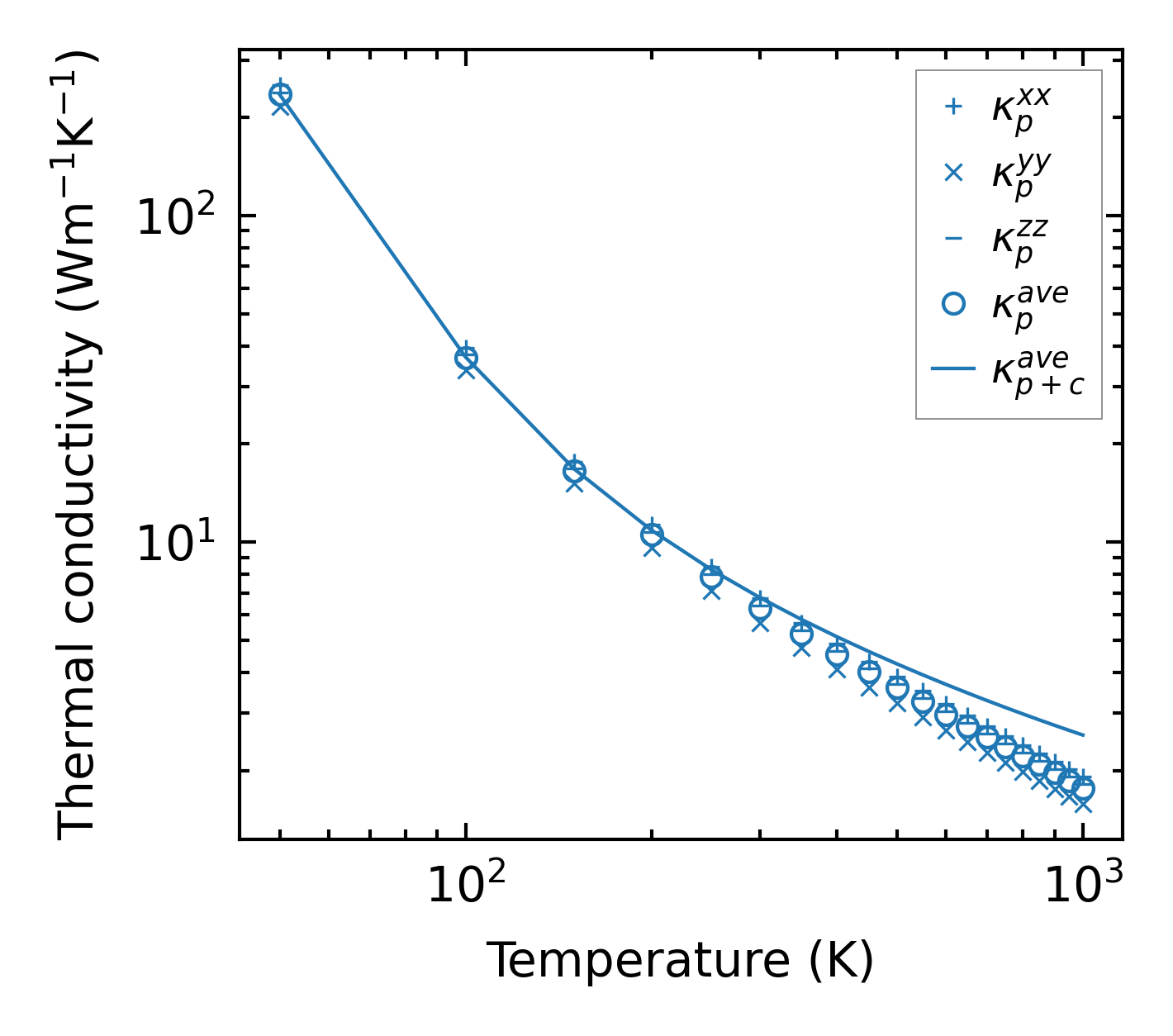

../../_images/fig_kappa10853.png — (a) Temperature-dependent lattice thermal conductivity

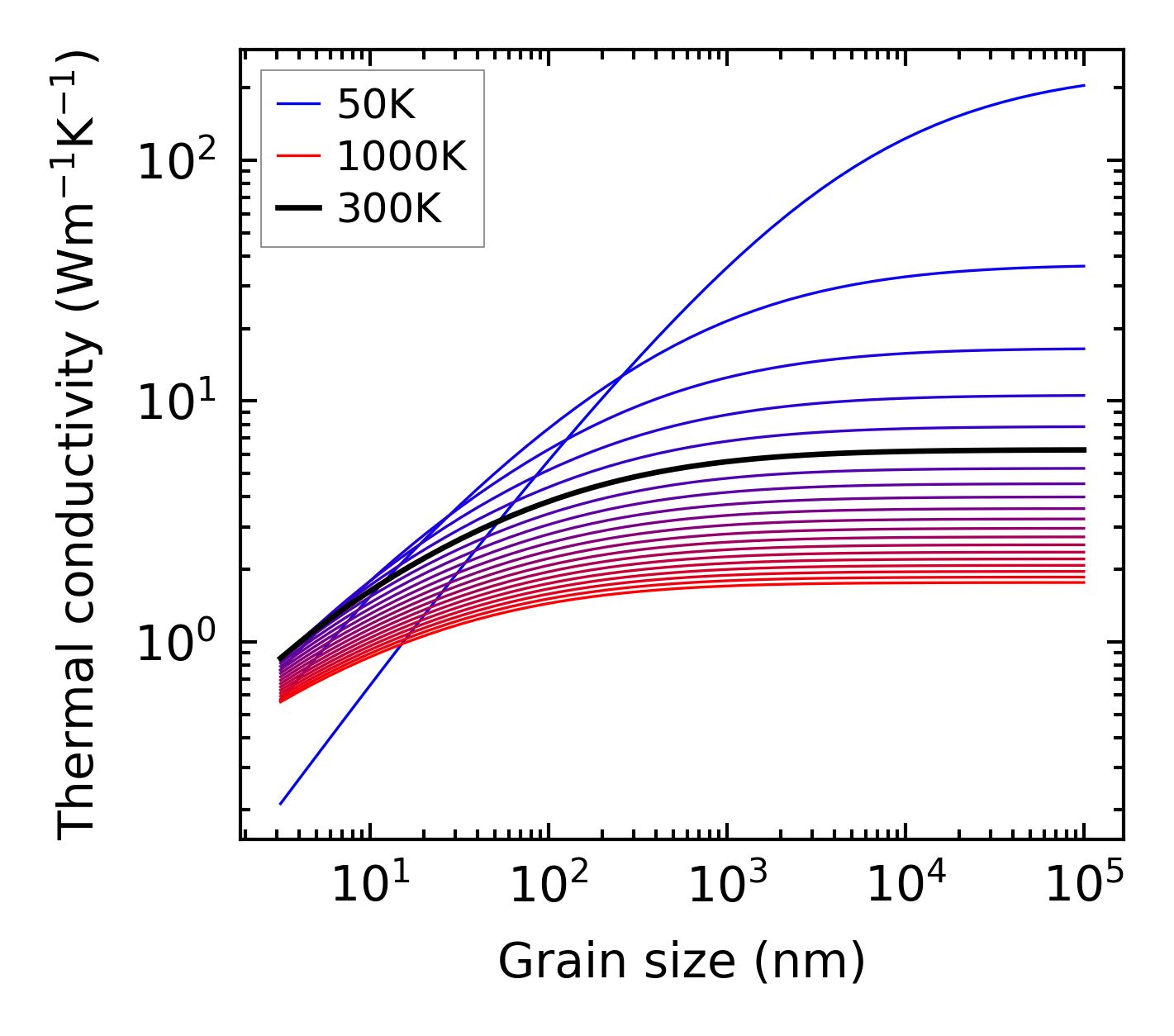

../../_images/fig_kappa_vs_grain_size5842.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

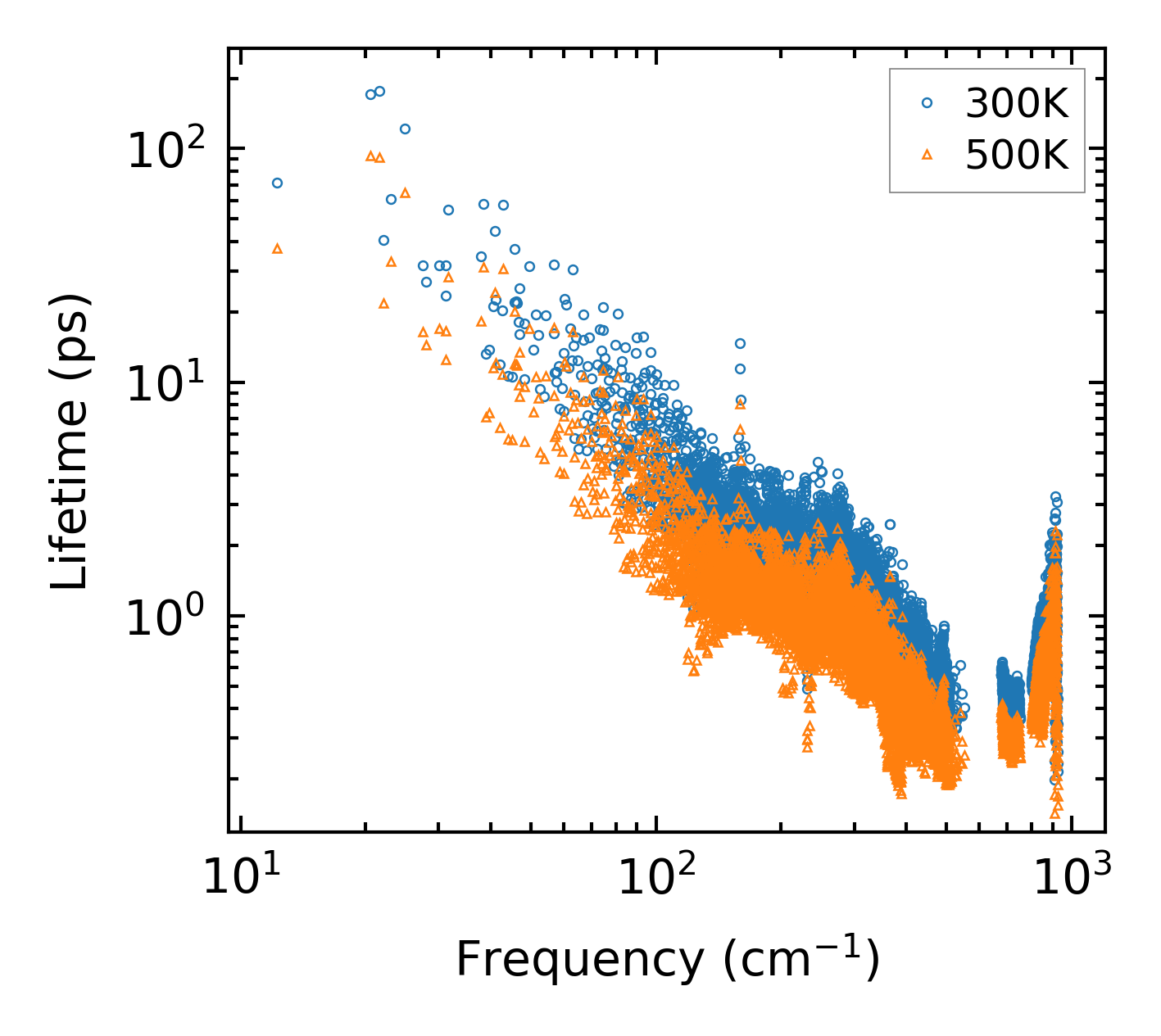

../../_images/fig_lifetime5716.png — (a) Phonon lifetime due to phonon-phonon scattering

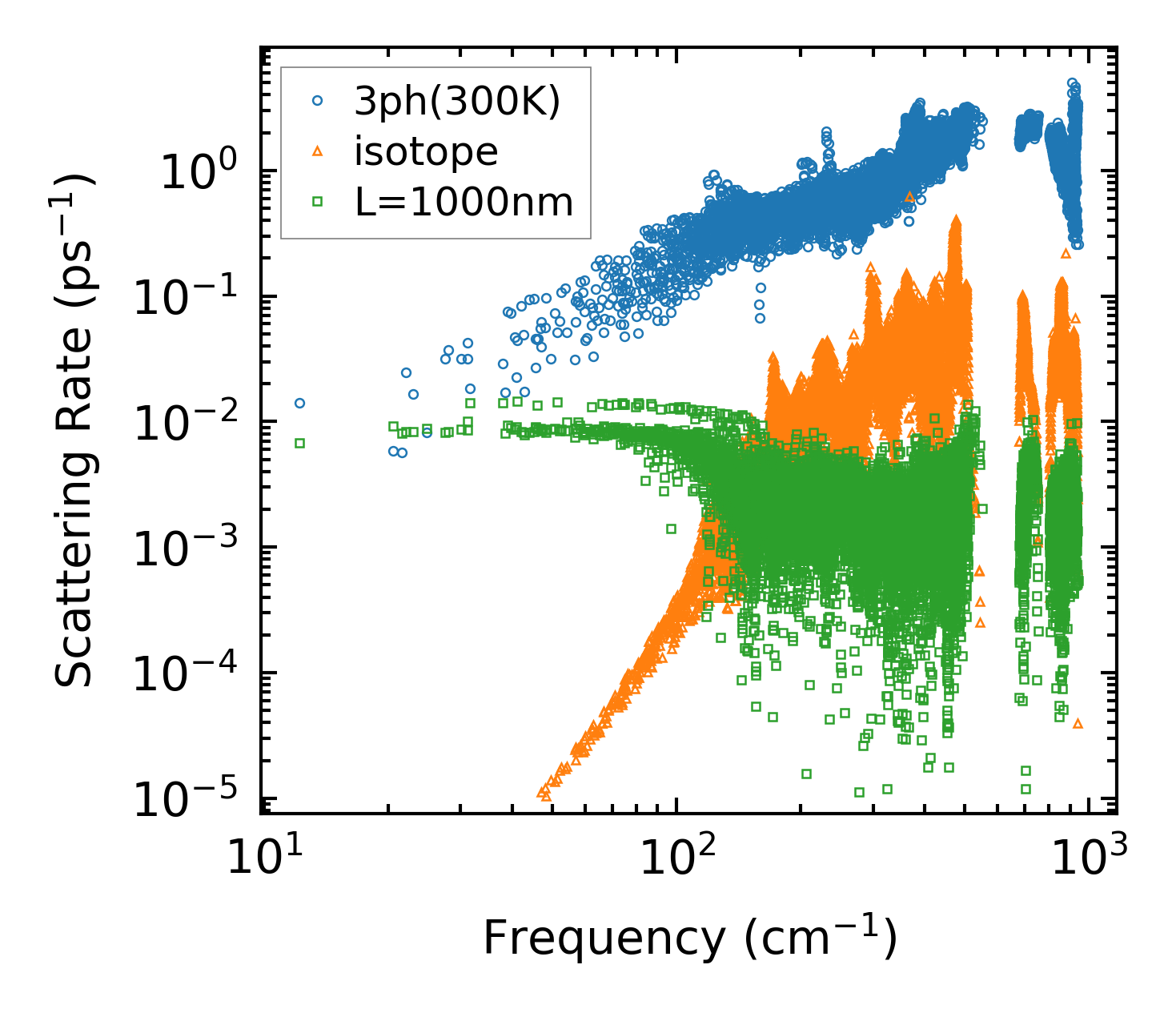

../../_images/fig_scat_rates5715.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

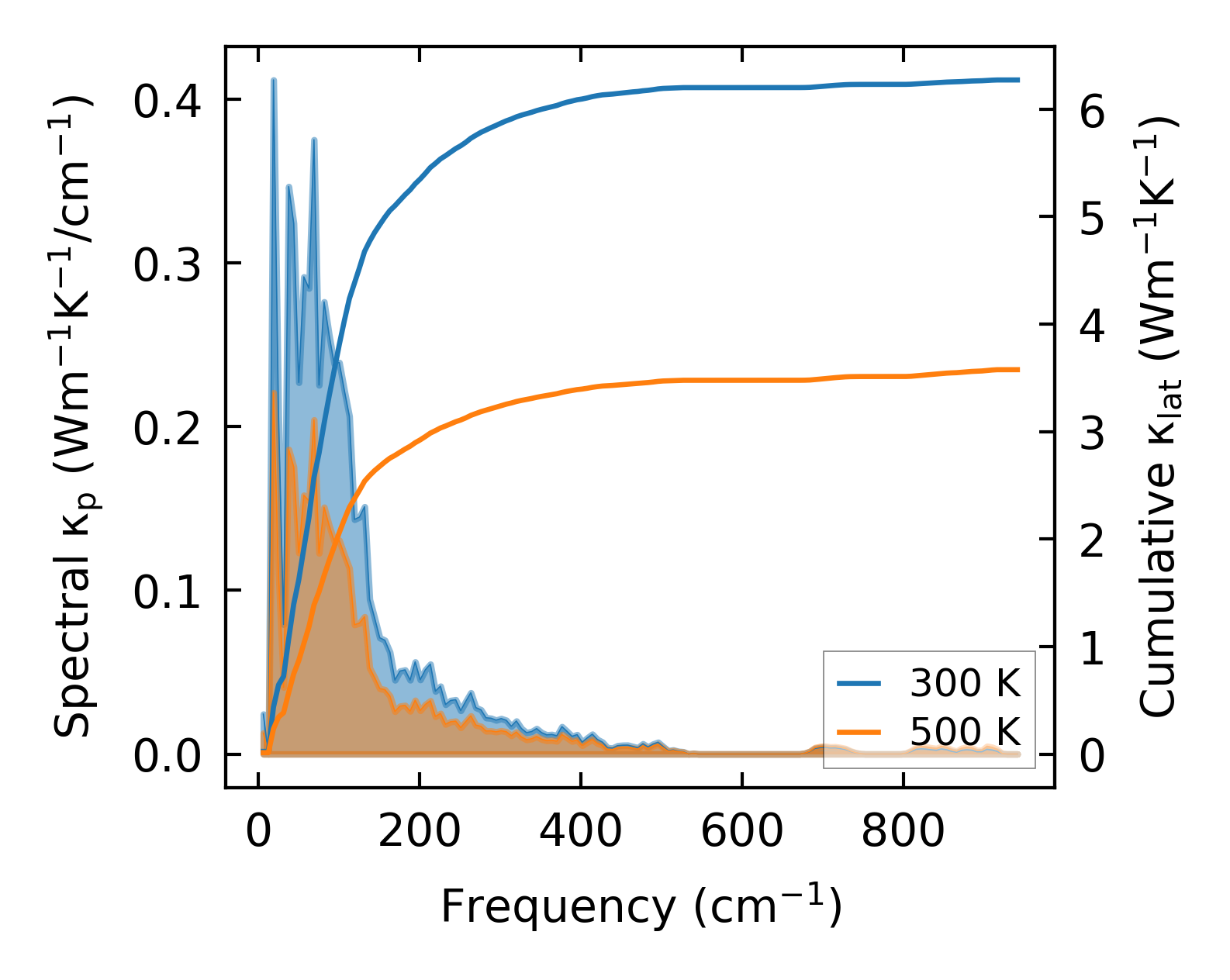

../../_images/fig_cumu_frequency5716.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

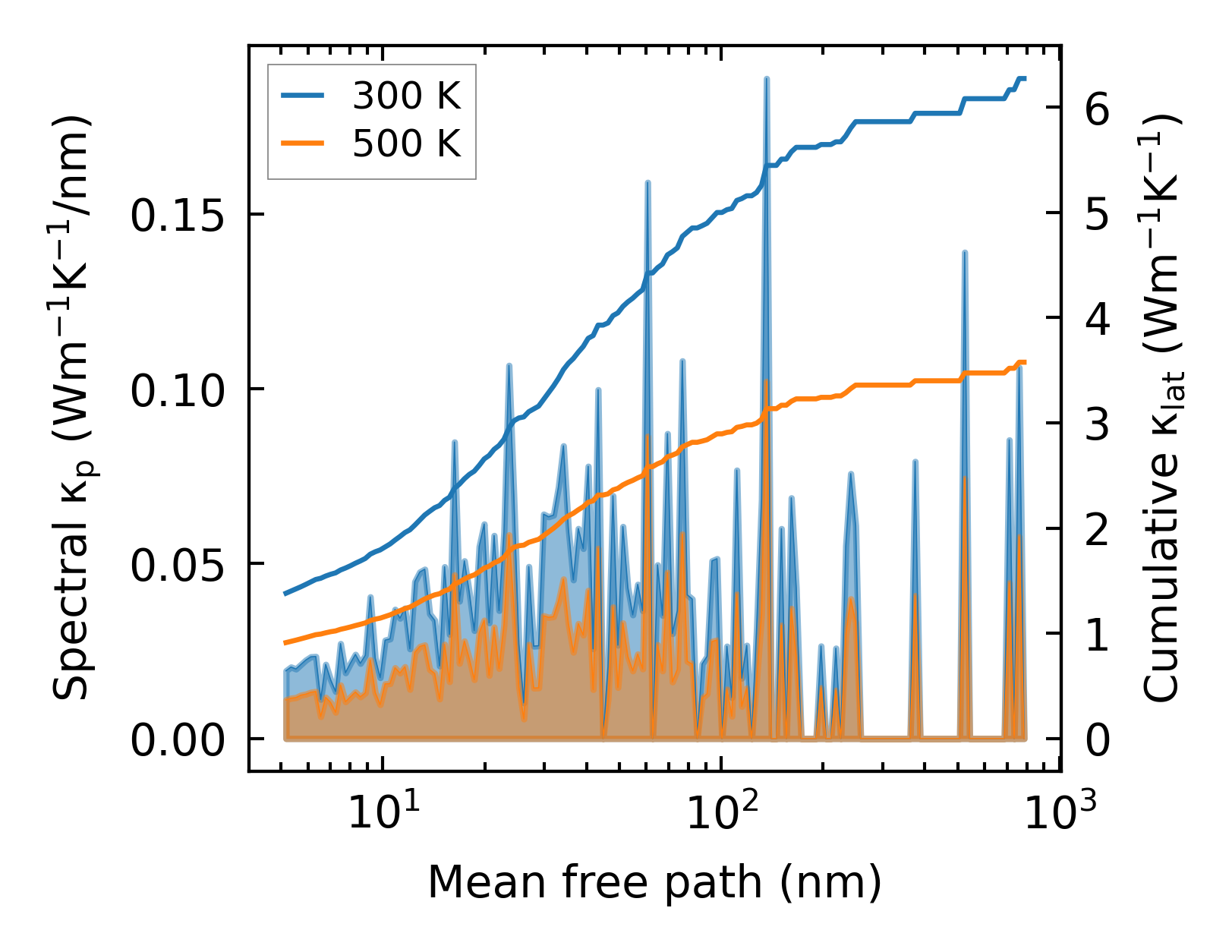

../../_images/fig_cumu_mfp5715.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

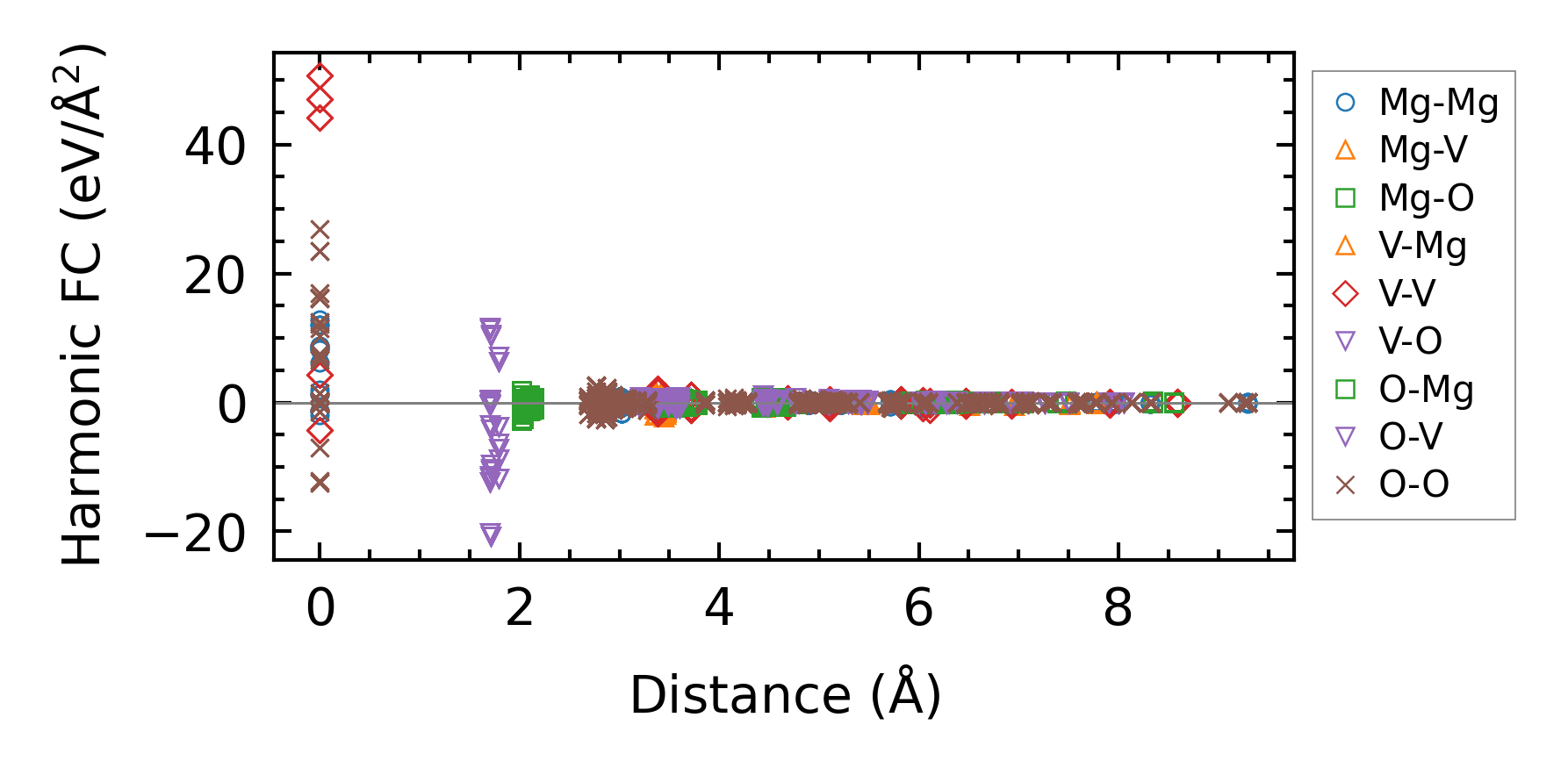

../../_images/fig_fc213296.png — (a) Force constants w.r.t atomic distance

Summary

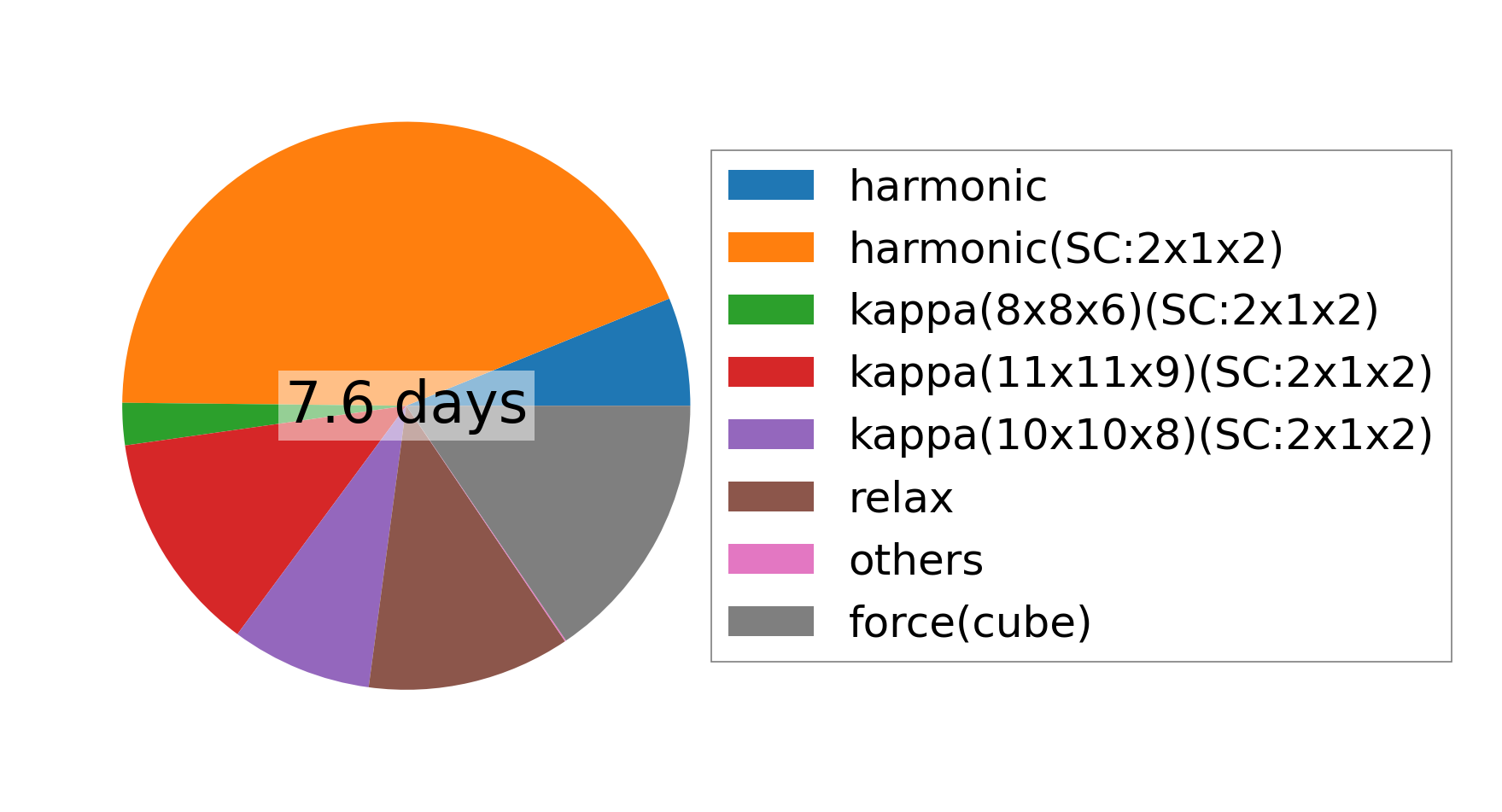

../../_images/fig_times22950.png — (a) Computation time
