mp-19784-2/In2Si2O7/anharm

Space group: Fd-3m (227)
Link: Materials Project
Download: mp-19784-2.tar.gz

Harmonic properties

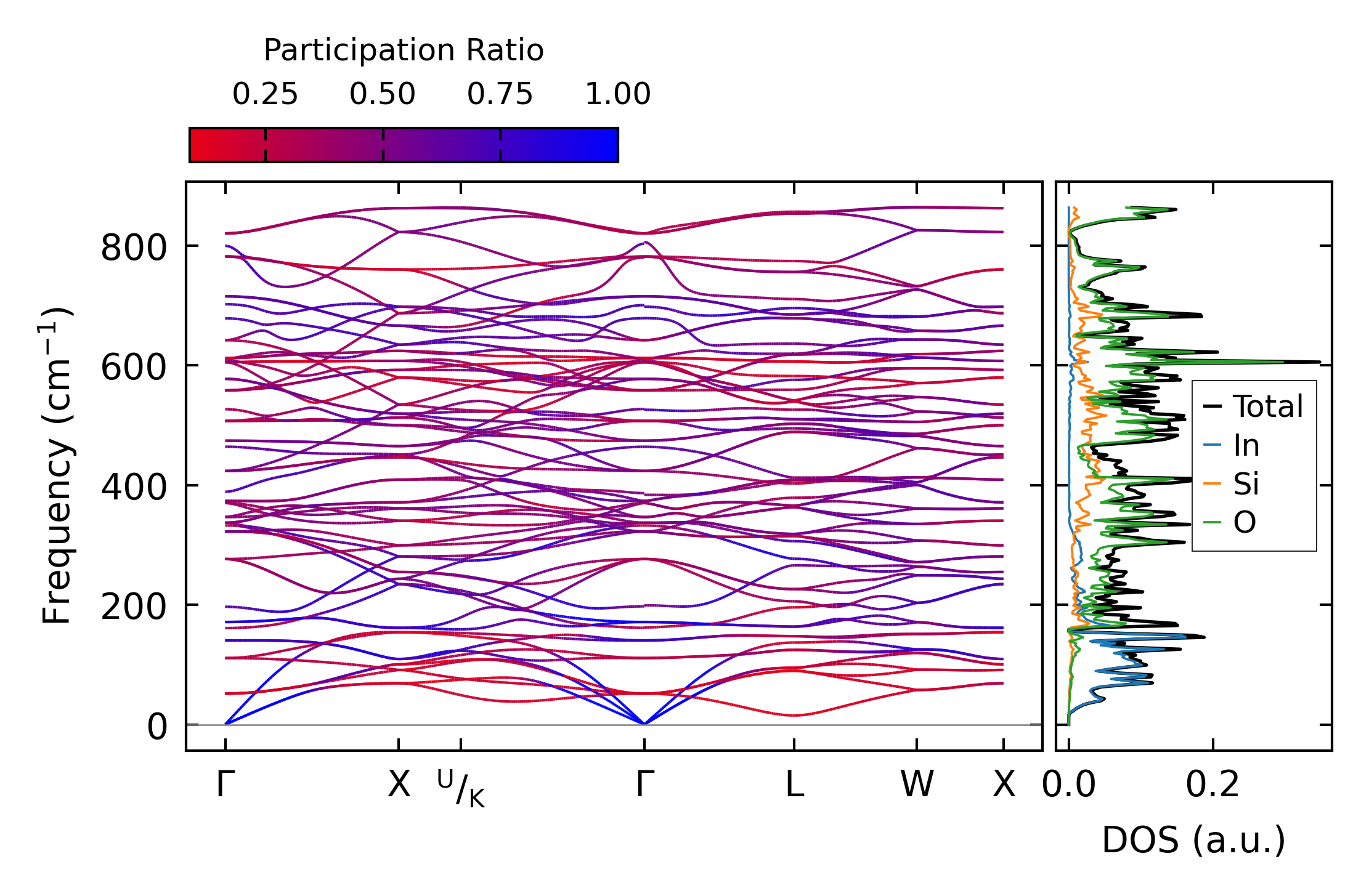

../../_images/fig_bandos_pr13394.png — (a) Phonon dispersion with participation ratio and DOS

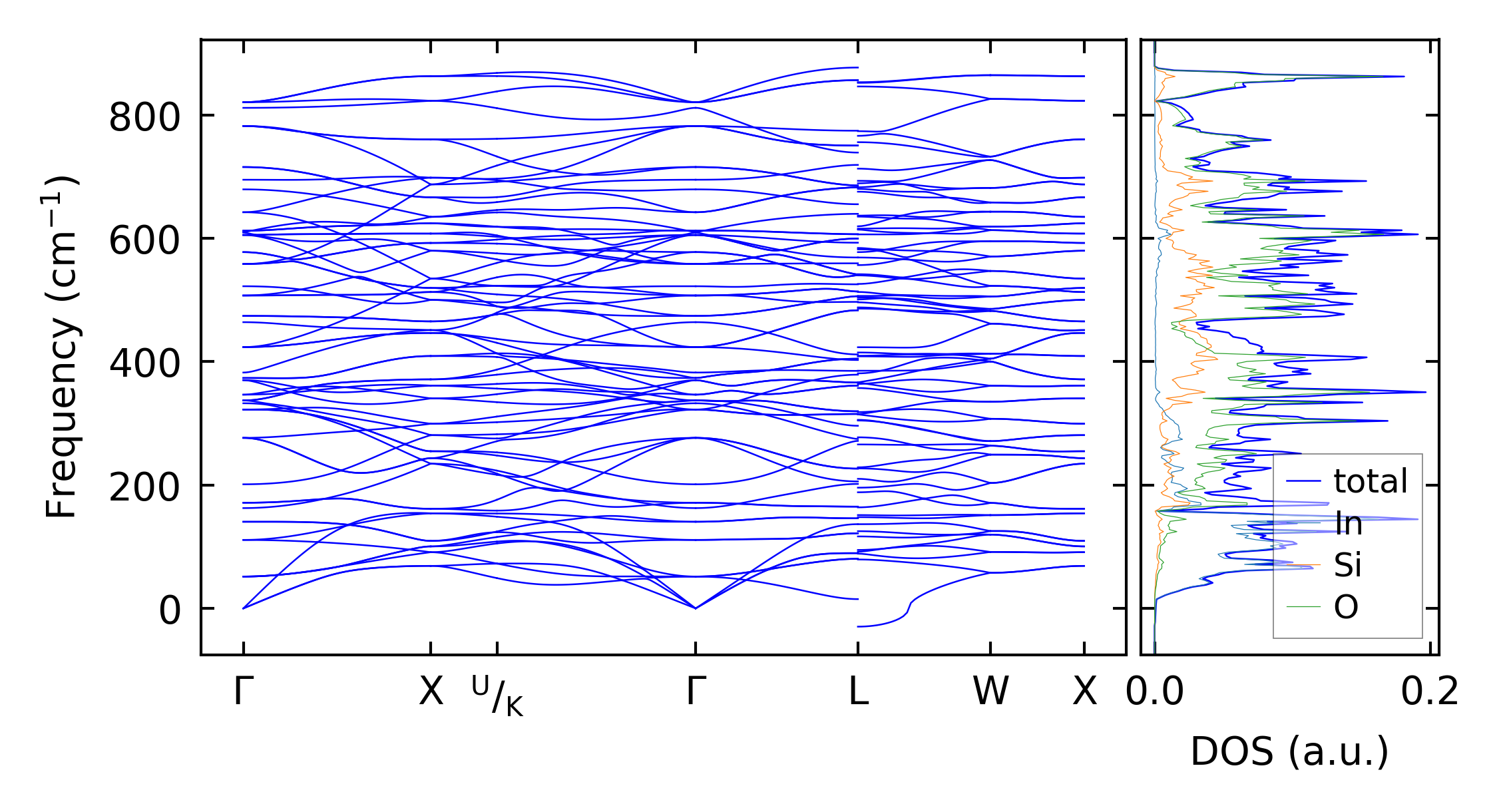

../../_images/fig_bandos17759.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo13394.png — (c) Thermodynamic properties

Grüneisen parameters

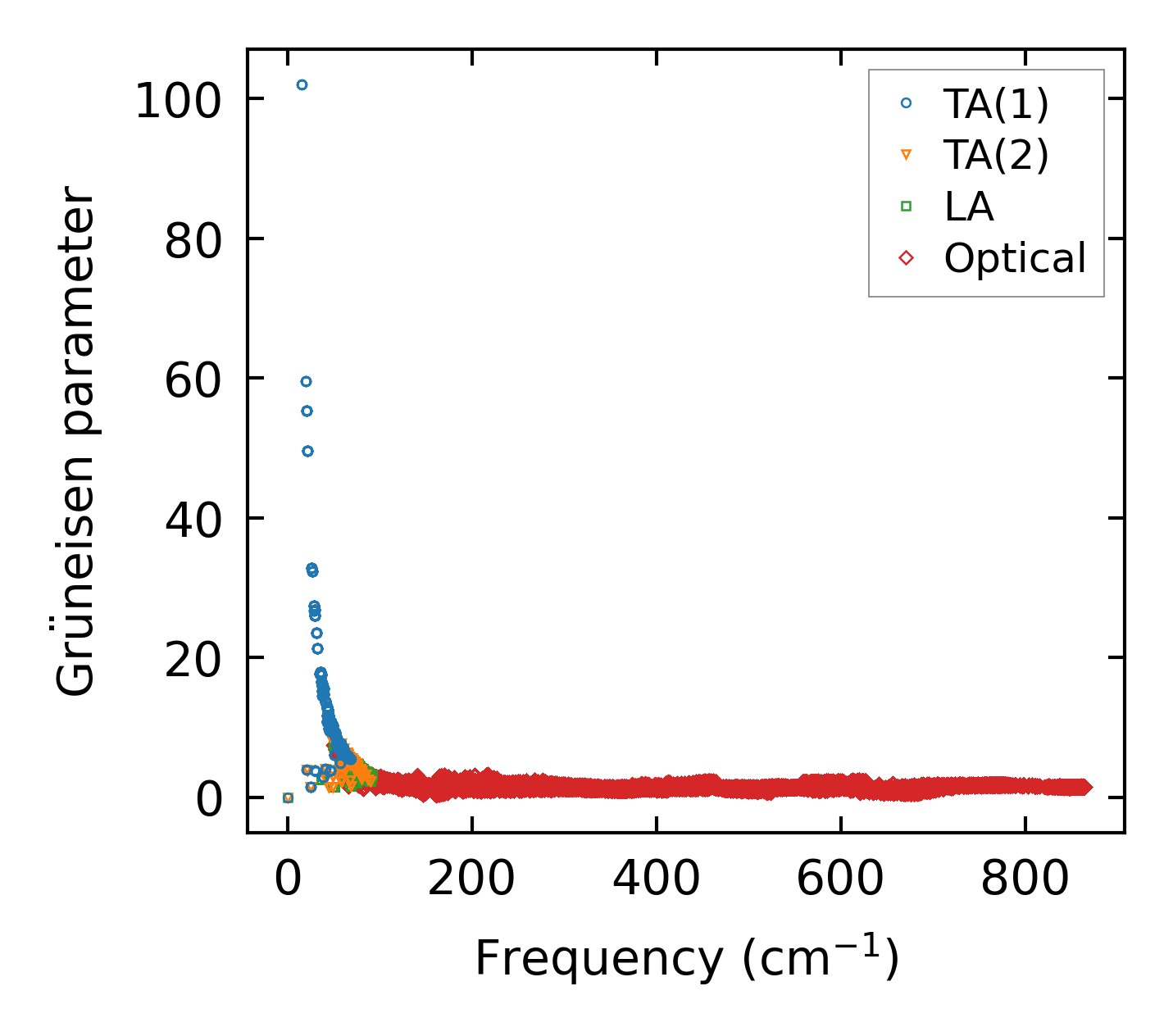

../../_images/fig_gru_all5645.png — (a) Grüneisen parameters

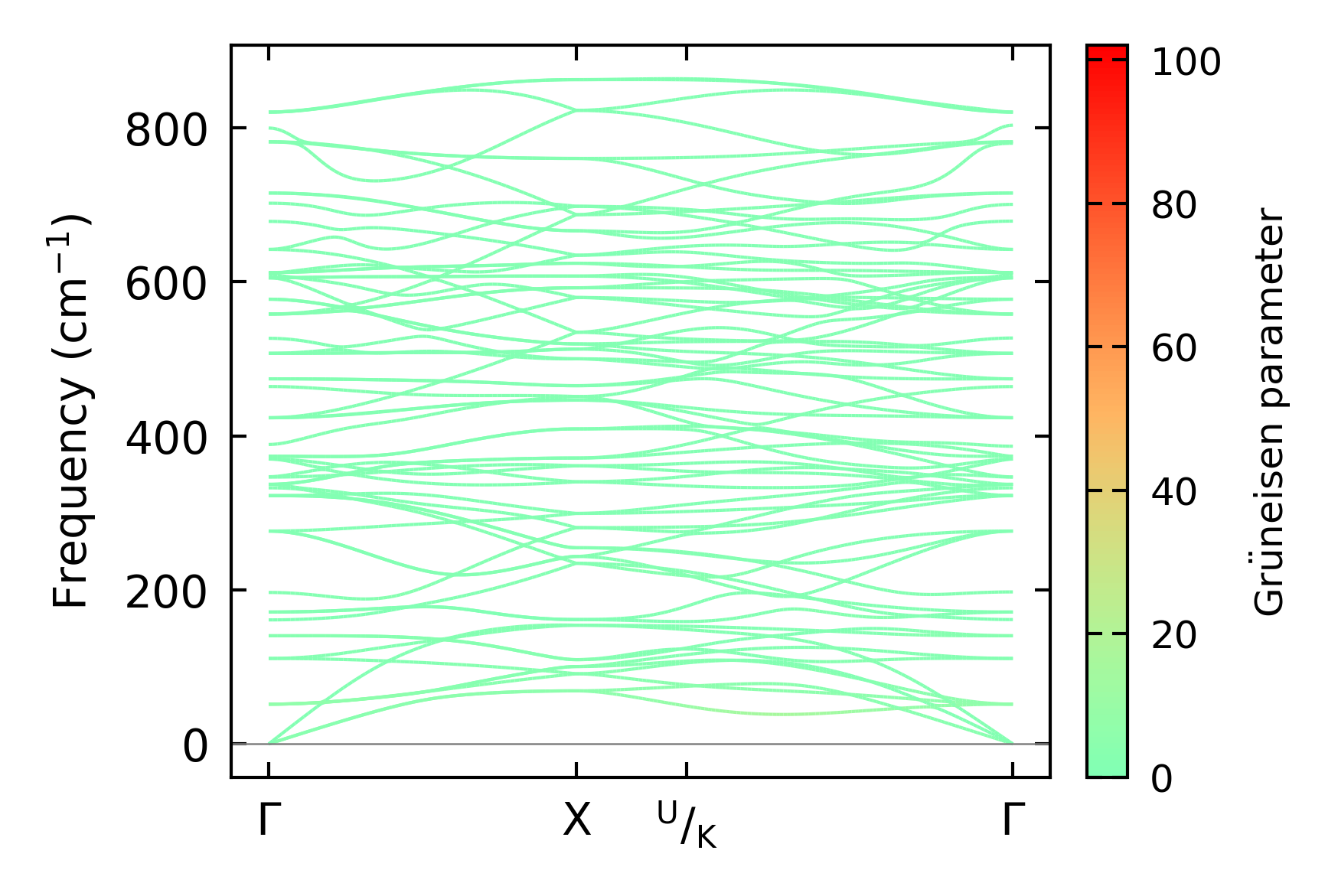

../../_images/fig_gruneisen5645.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x12, supercell: 1x1x1

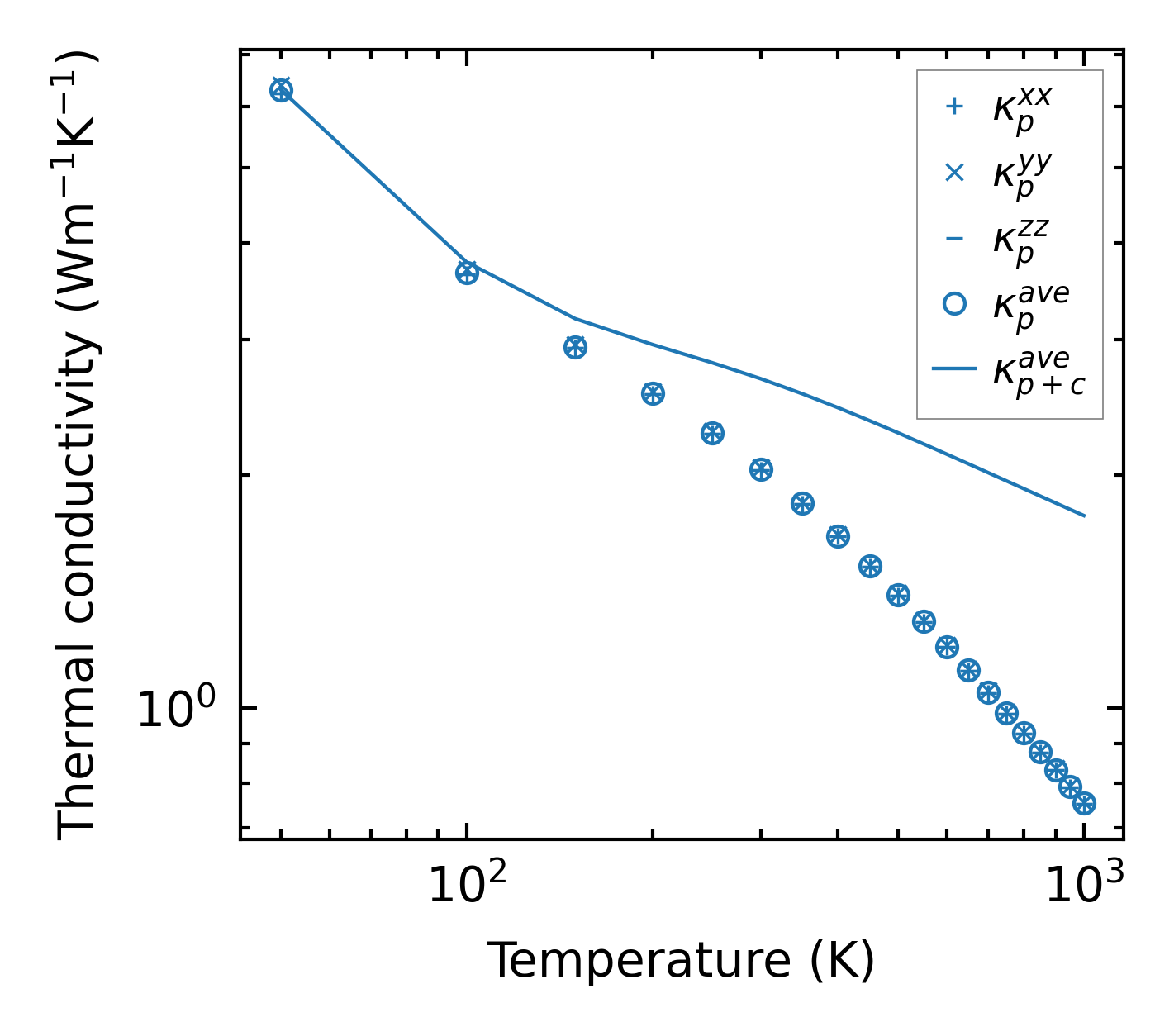

../../_images/fig_kappa10606.png — (a) Temperature-dependent lattice thermal conductivity

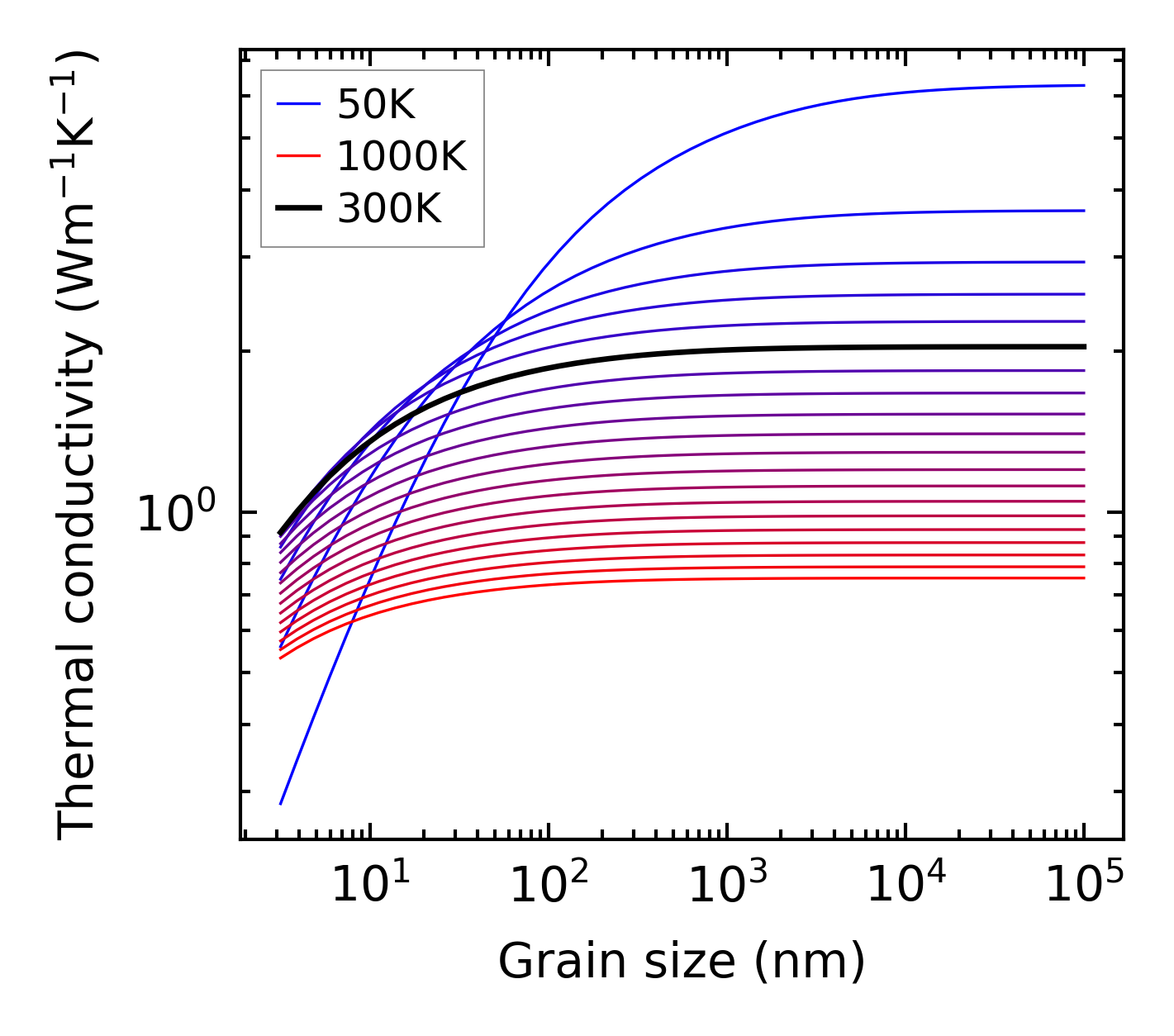

../../_images/fig_kappa_vs_grain_size5710.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

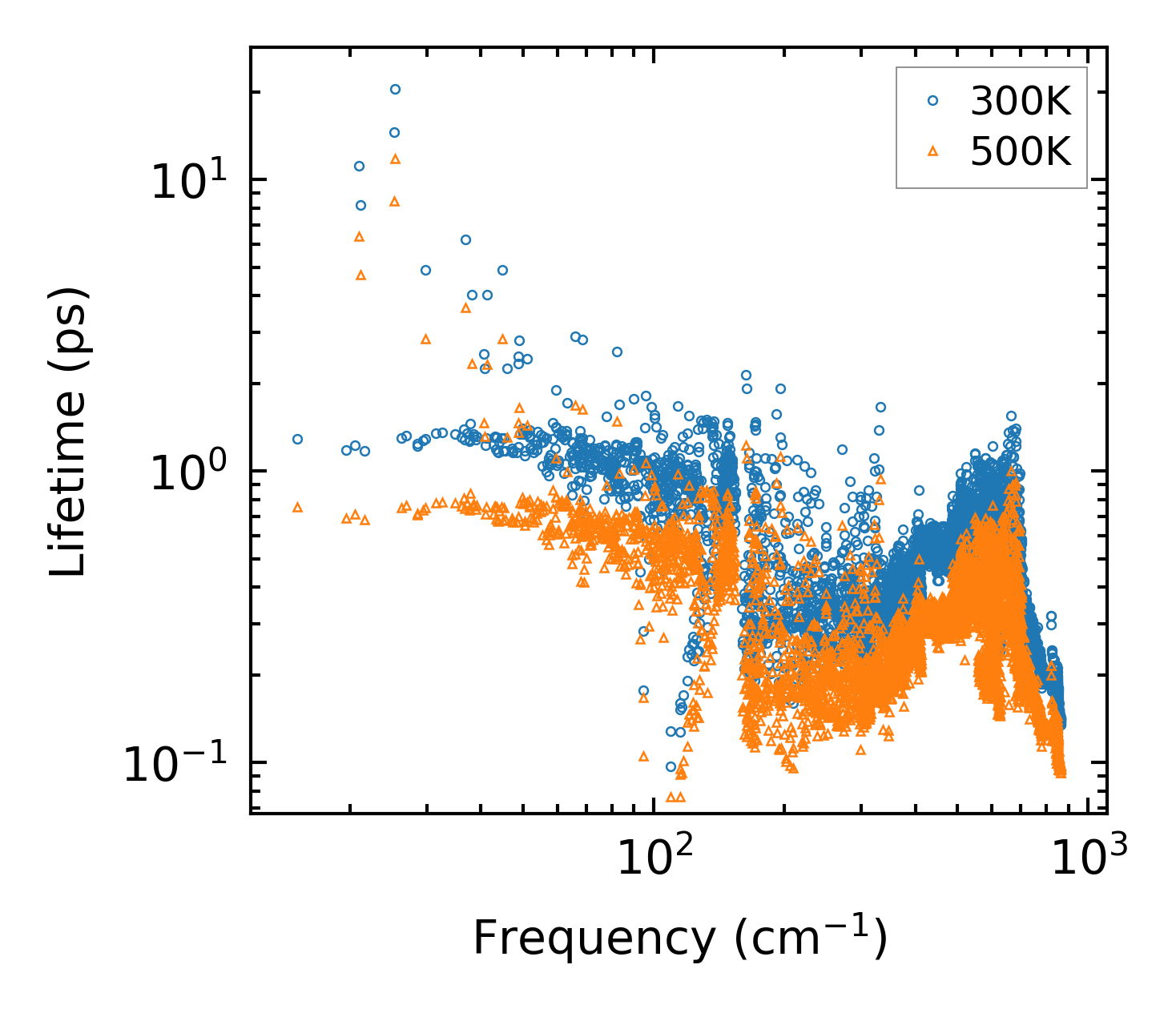

../../_images/fig_lifetime5590.png — (a) Phonon lifetime due to phonon-phonon scattering

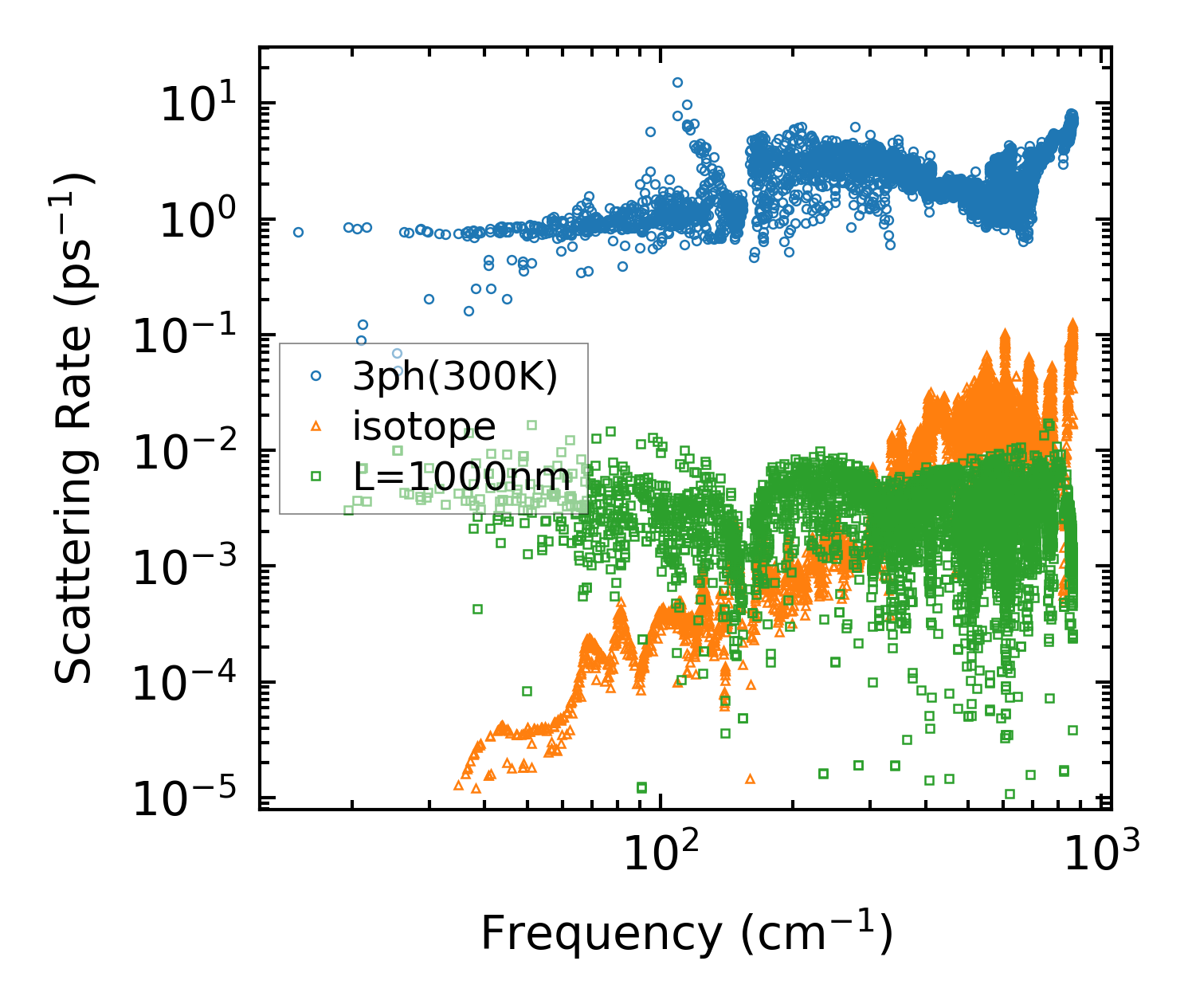

../../_images/fig_scat_rates5589.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

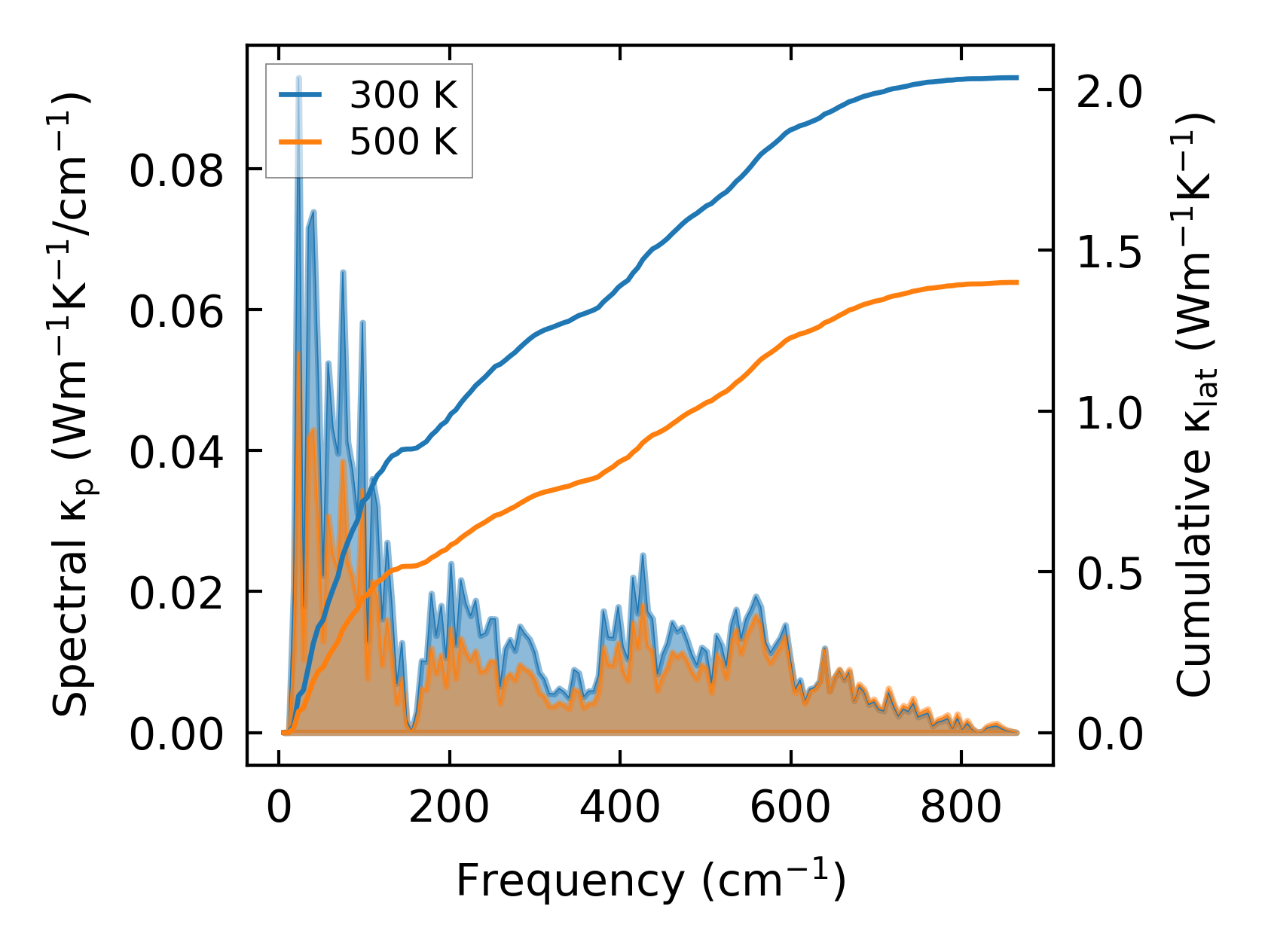

../../_images/fig_cumu_frequency5590.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

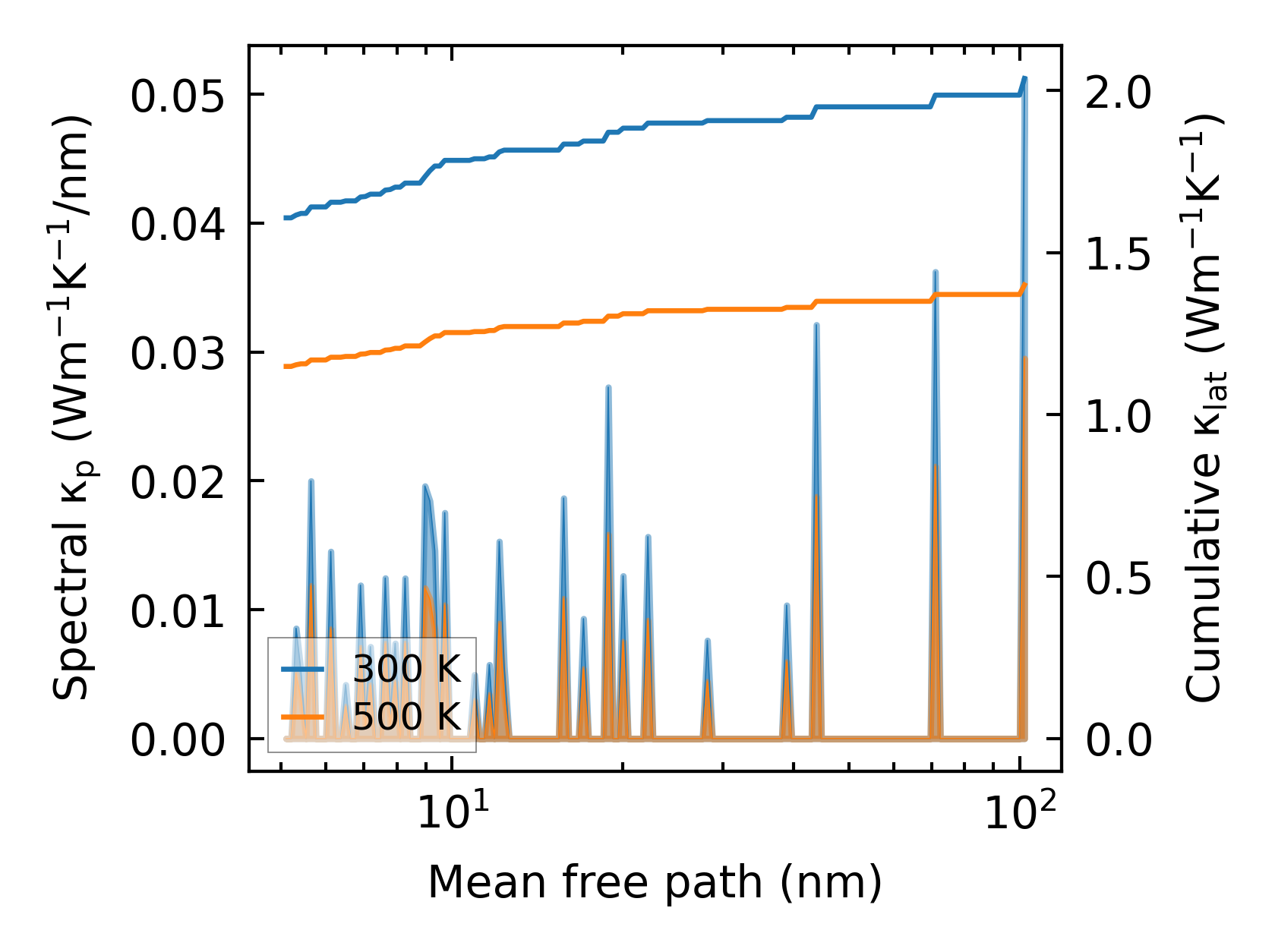

../../_images/fig_cumu_mfp5589.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

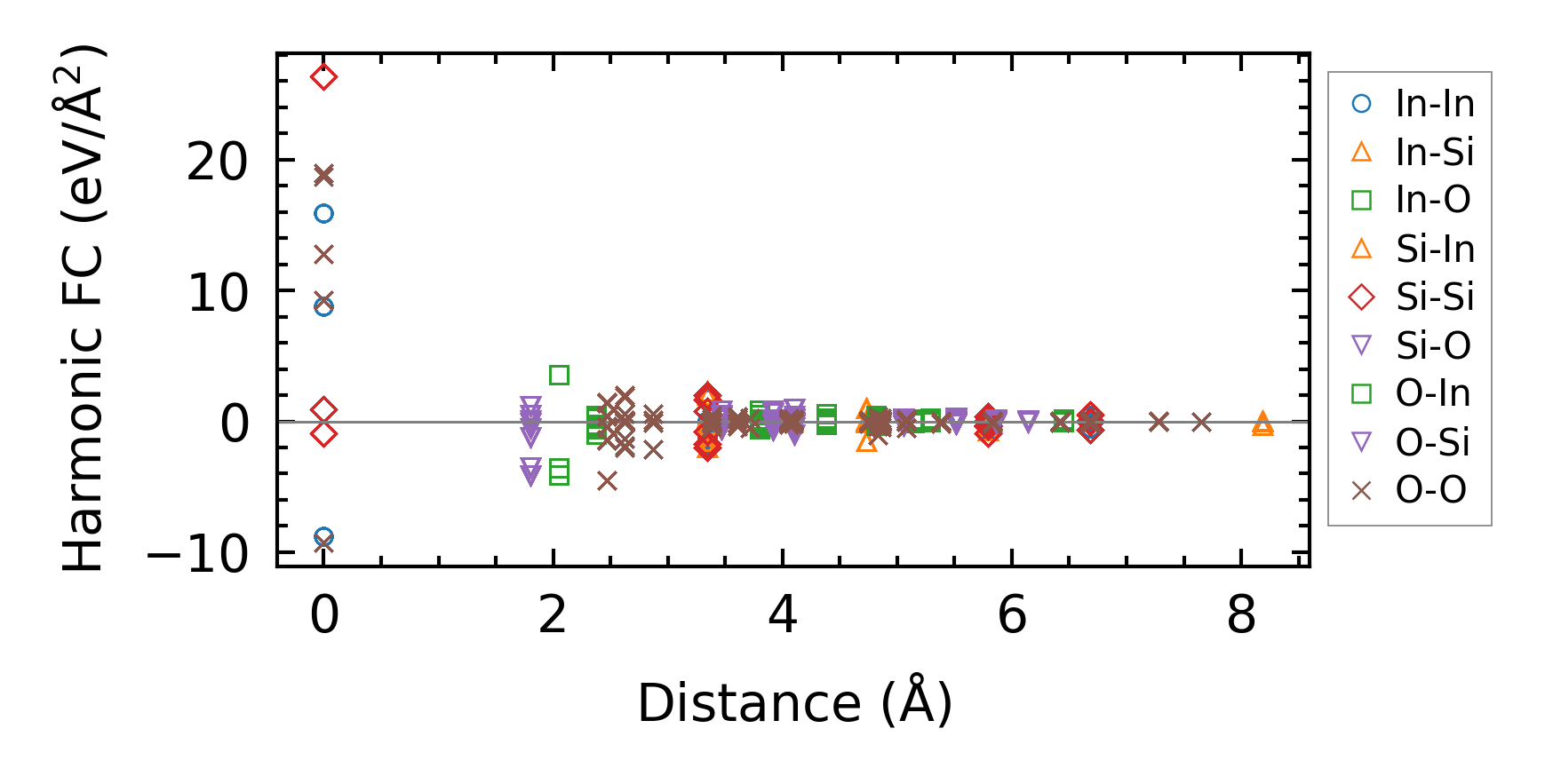

../../_images/fig_fc213033.png — (a) Force constants w.r.t atomic distance

Summary

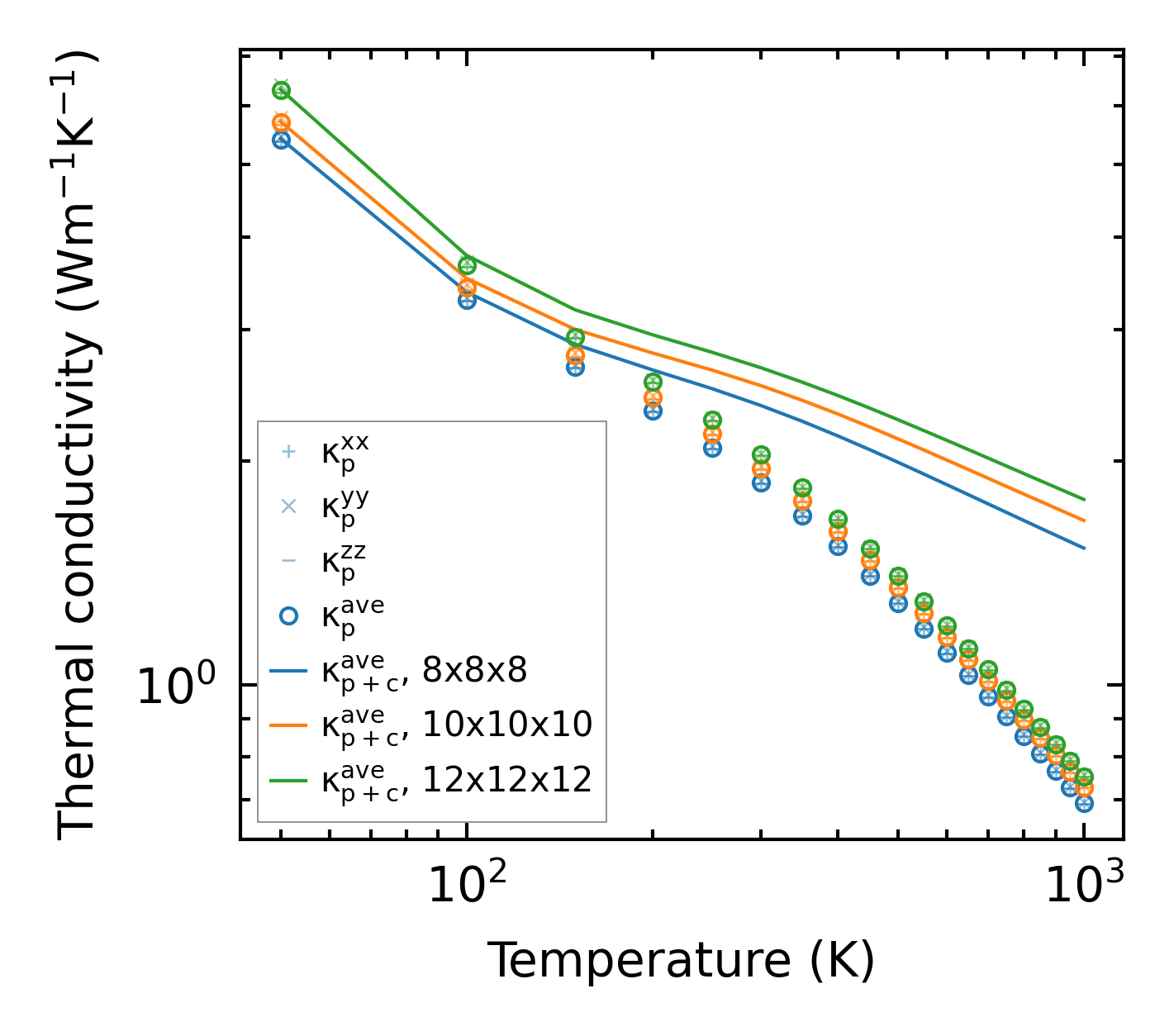

../../_images/fig_kappa10607.png — (a) Temperature-dependent lattice thermal conductivity

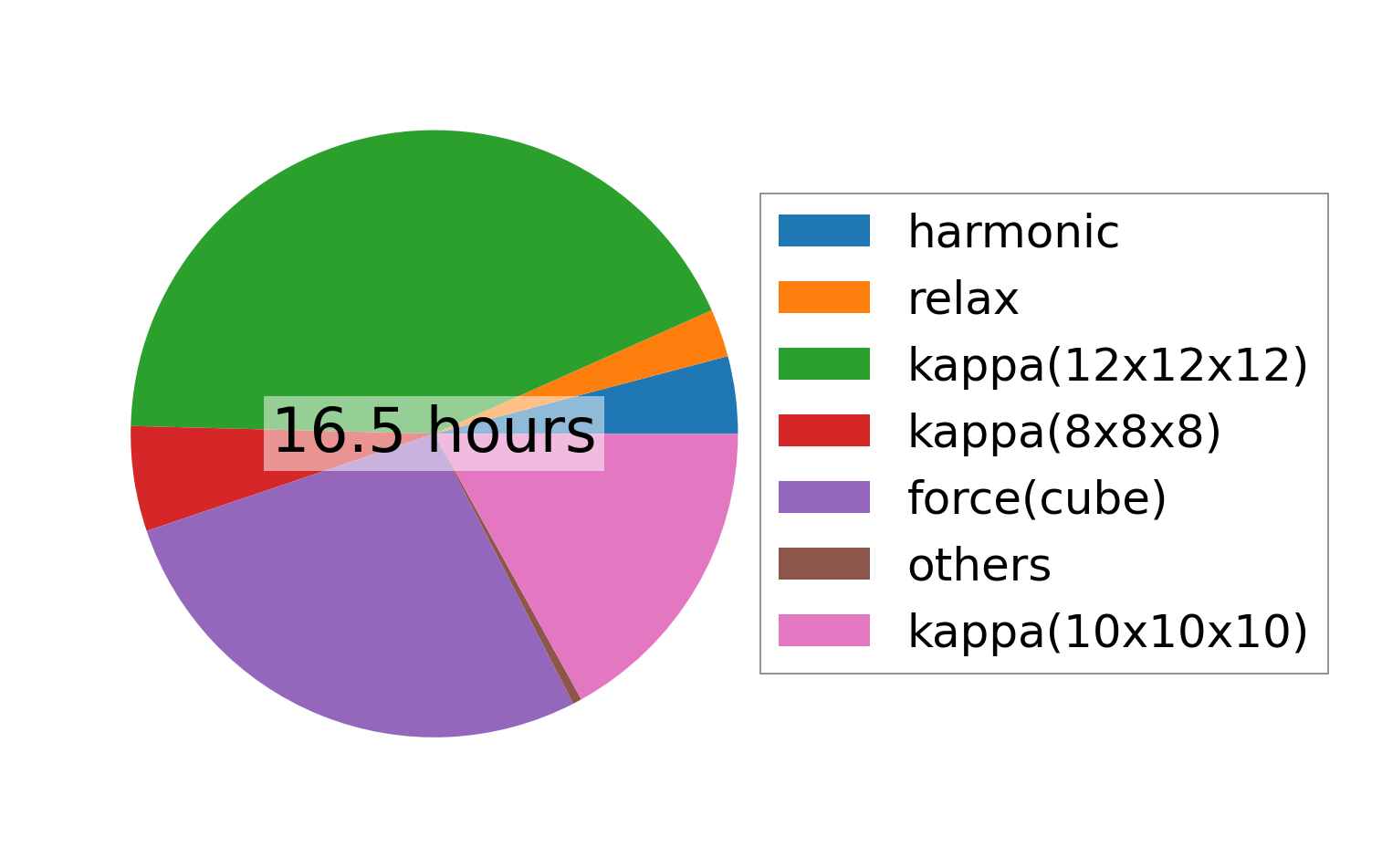

../../_images/fig_times22559.png — (b) Computation time
