mp-19046-2/KMnO4/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-19046-2.tar.gz

Equation of state

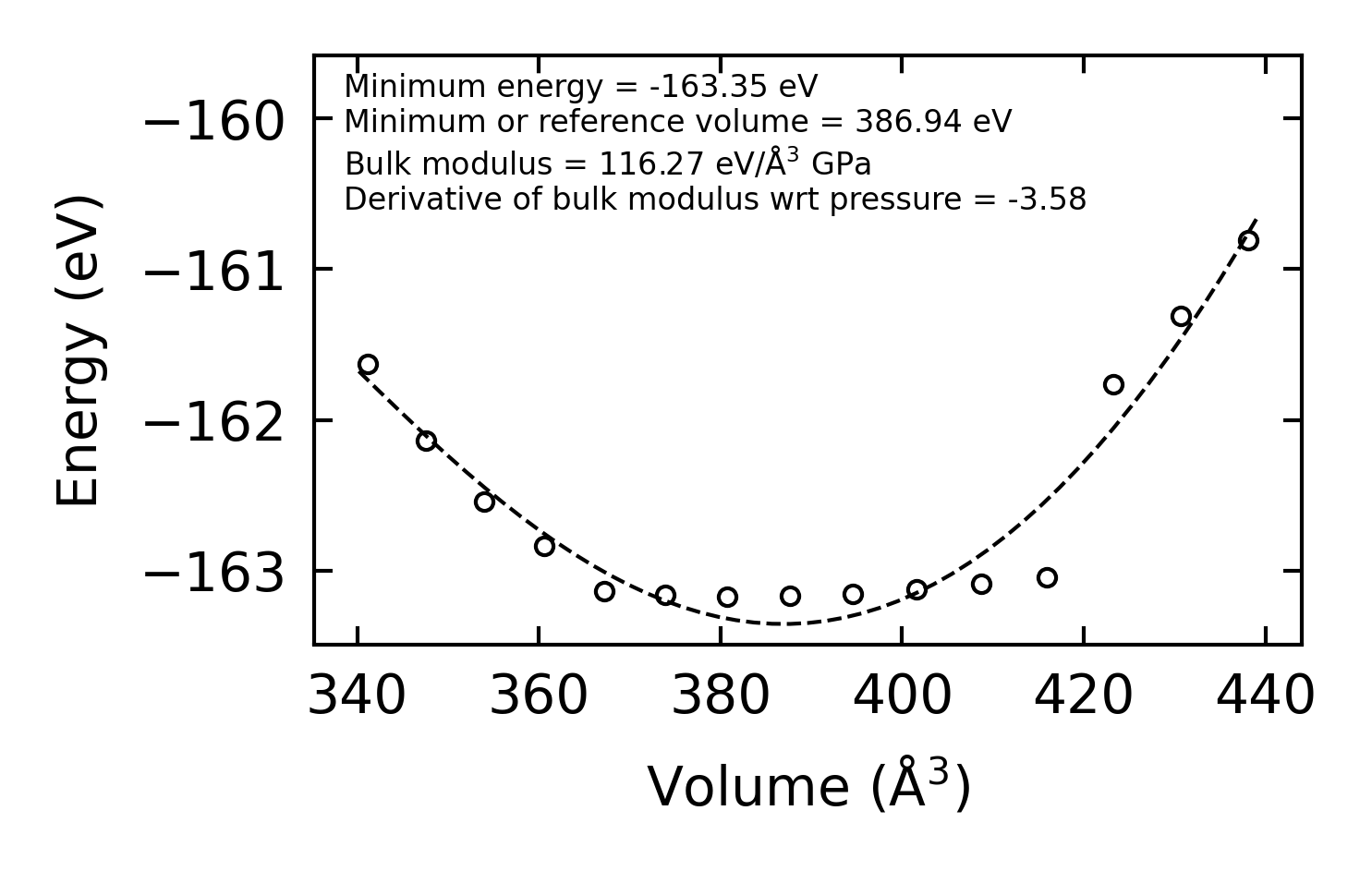

../../_images/fig_bm6829.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr13672.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo13672.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all5772.png — (a) Grüneisen parameters

../../_images/fig_gruneisen5772.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x12x9, supercell: 1x2x2

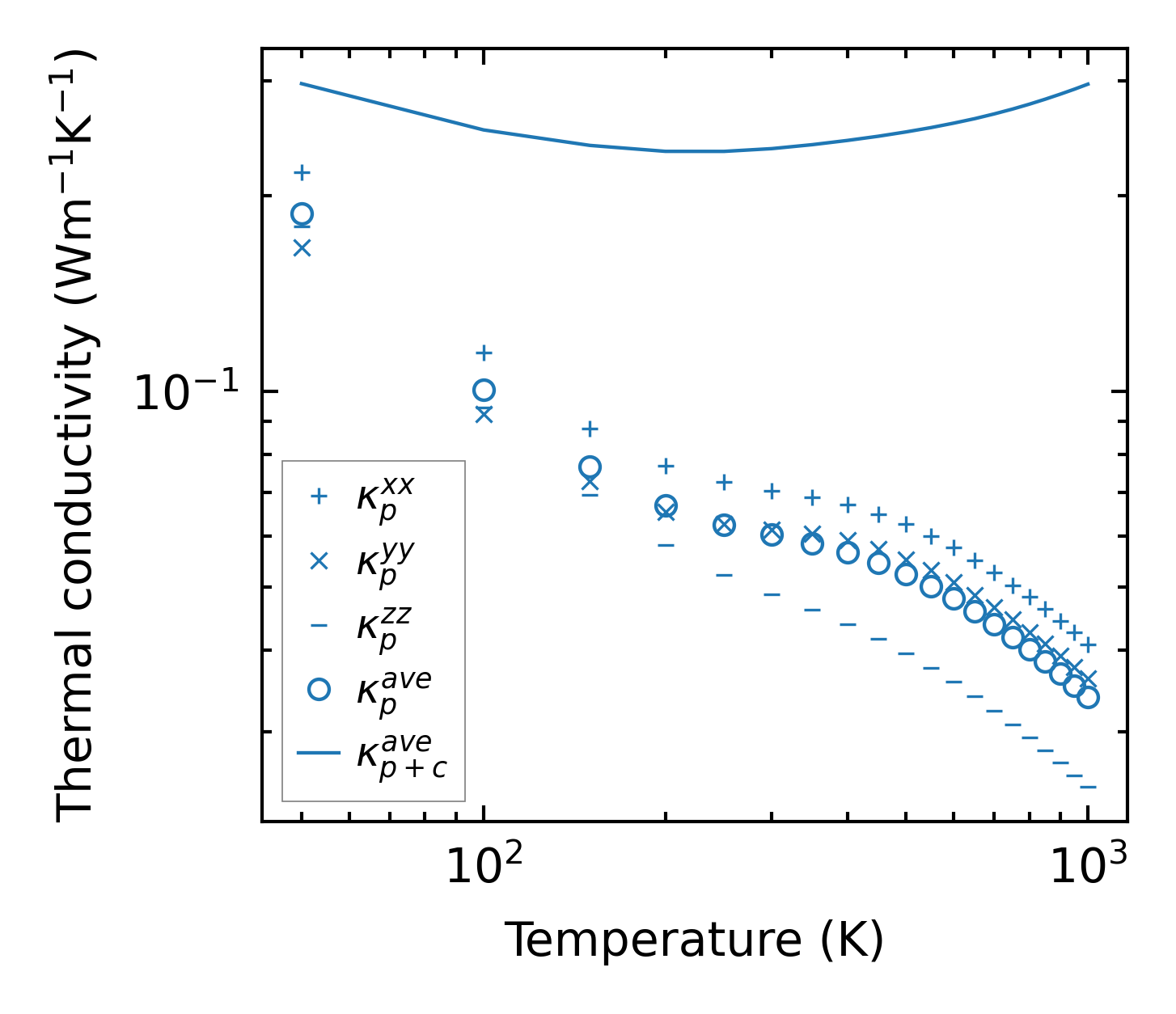

../../_images/fig_kappa10854.png — (a) Temperature-dependent lattice thermal conductivity

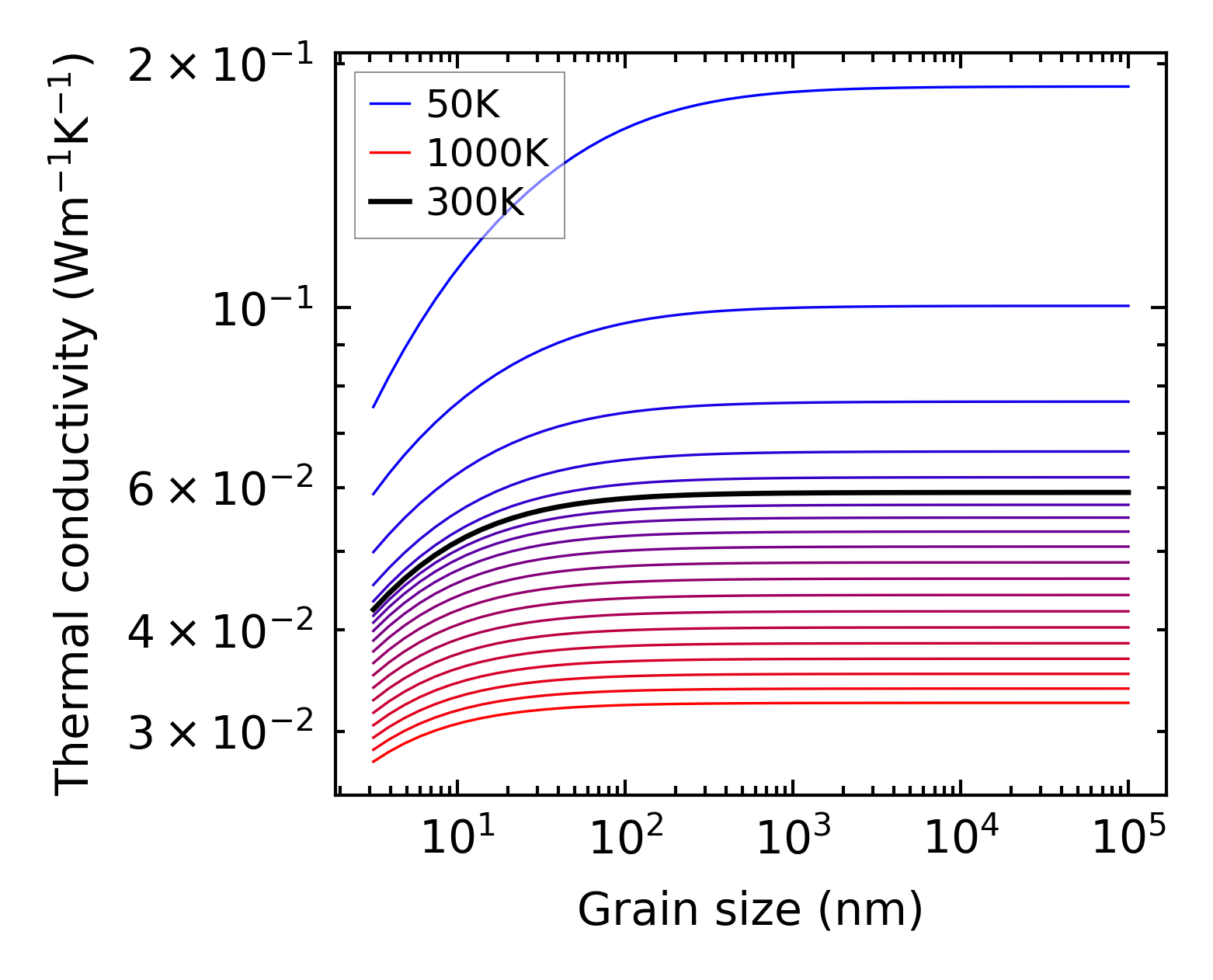

../../_images/fig_kappa_vs_grain_size5843.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

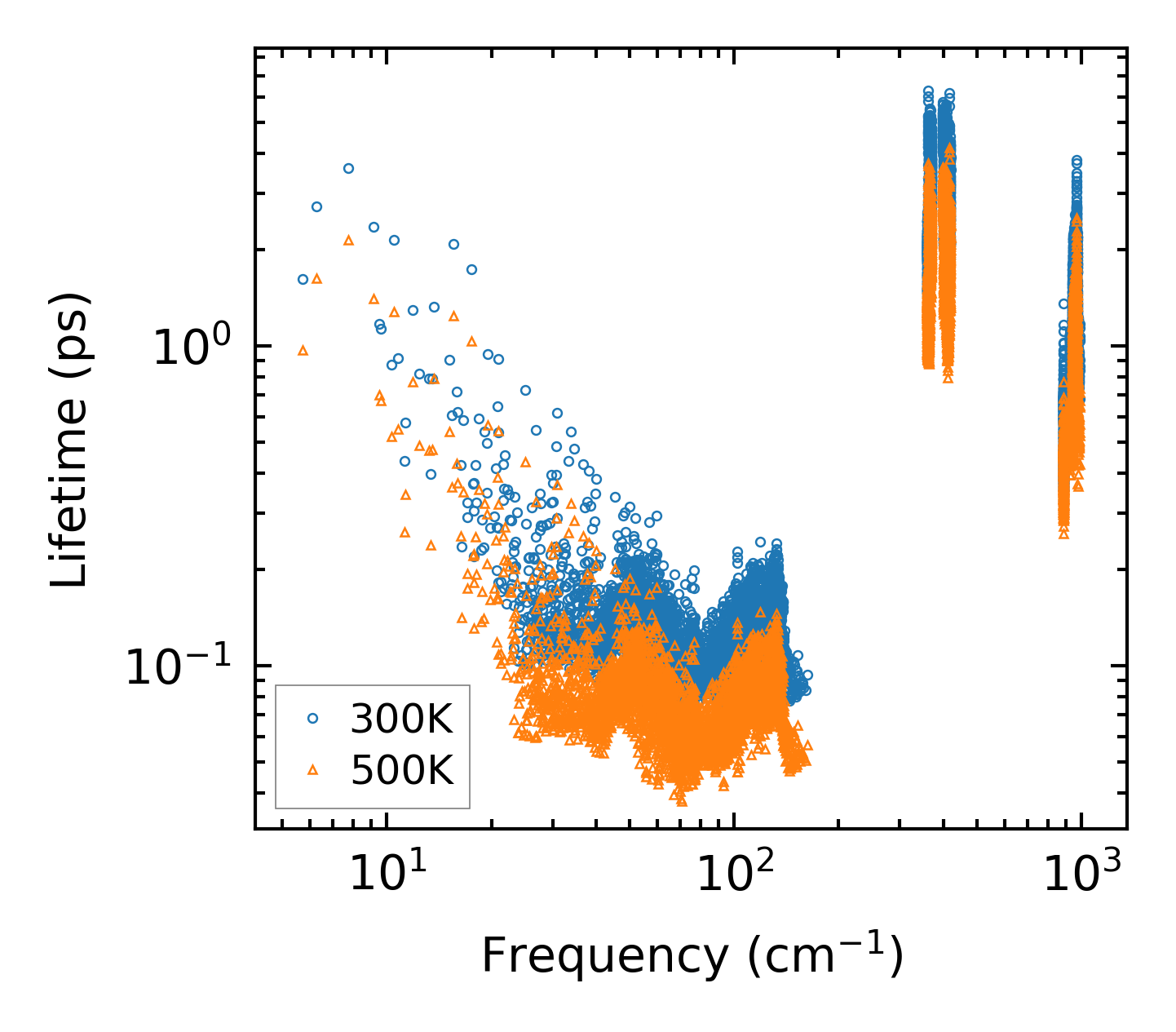

../../_images/fig_lifetime5717.png — (a) Phonon lifetime due to phonon-phonon scattering

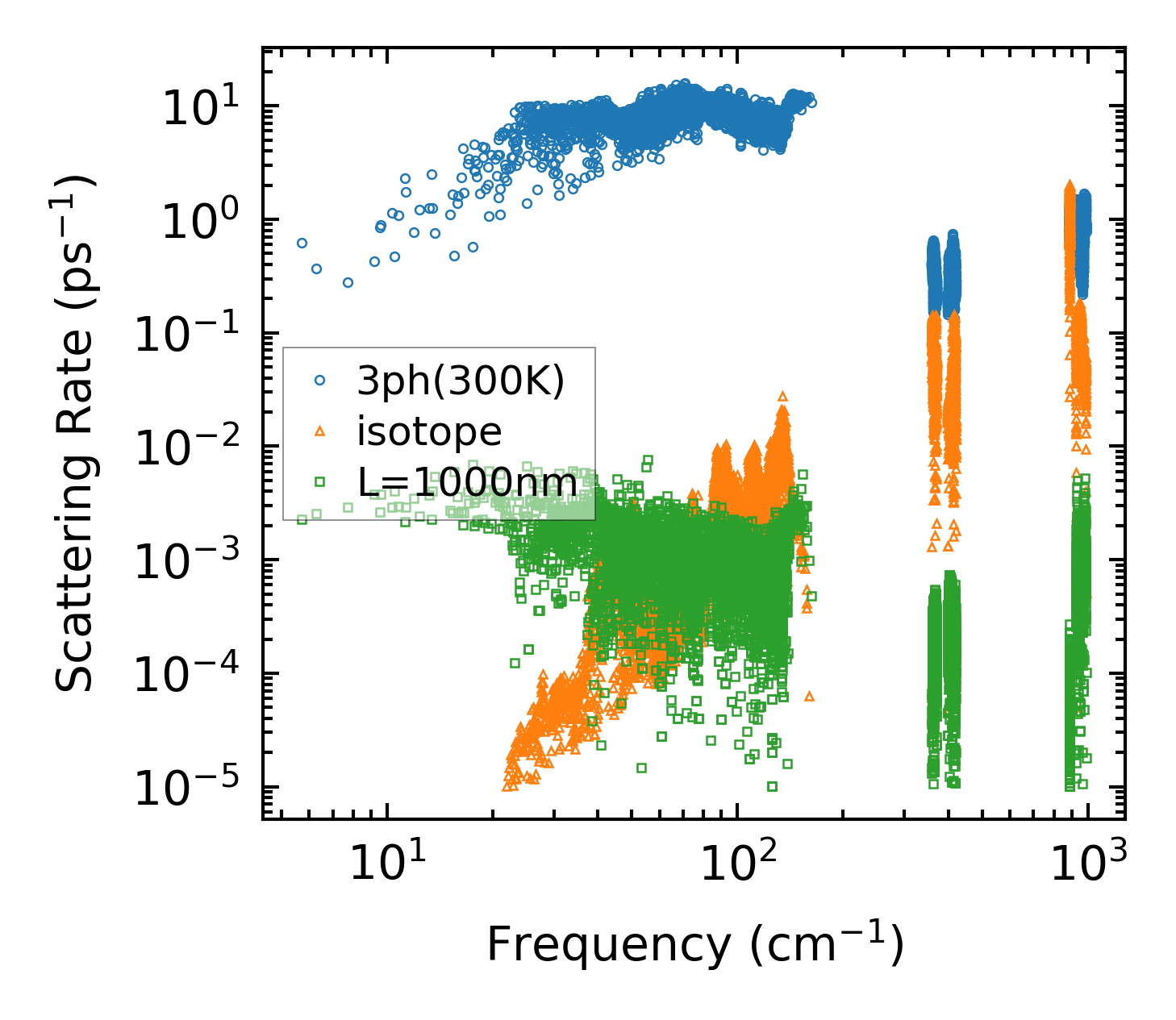

../../_images/fig_scat_rates5716.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency5717.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp5716.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

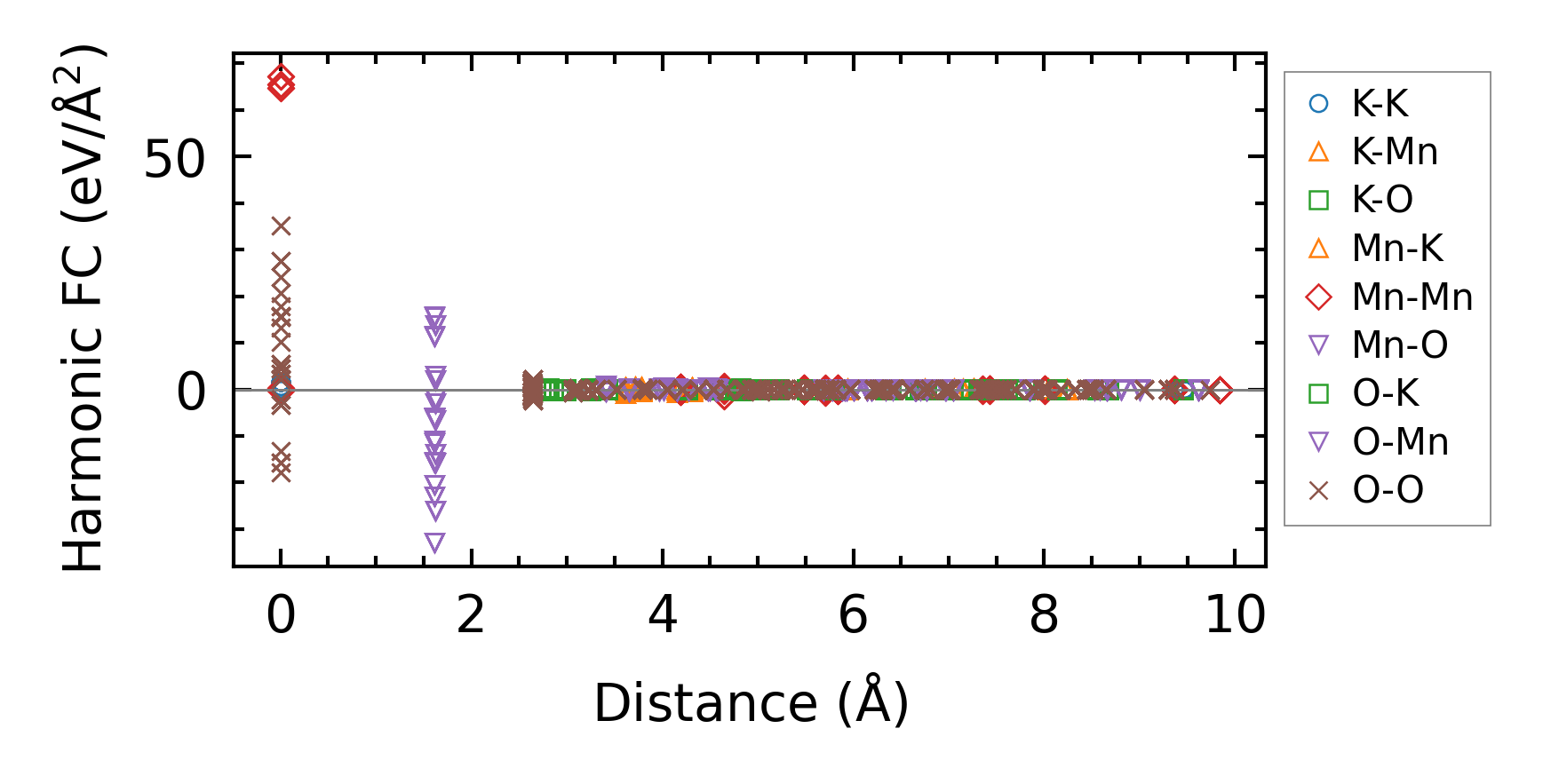

../../_images/fig_fc213300.png — (a) Force constants w.r.t atomic distance

Summary

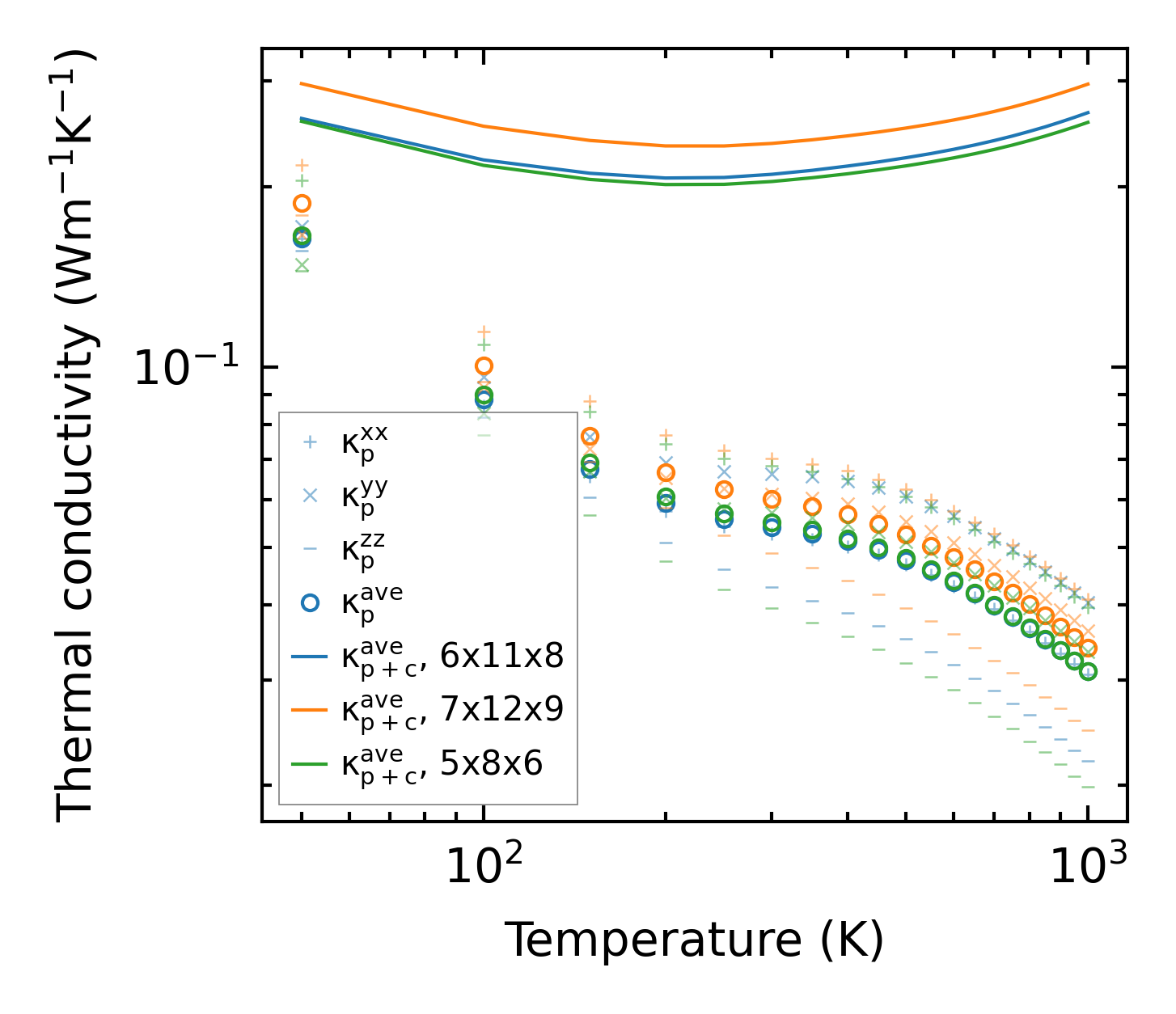

../../_images/fig_kappa10855.png — (a) Temperature-dependent lattice thermal conductivity

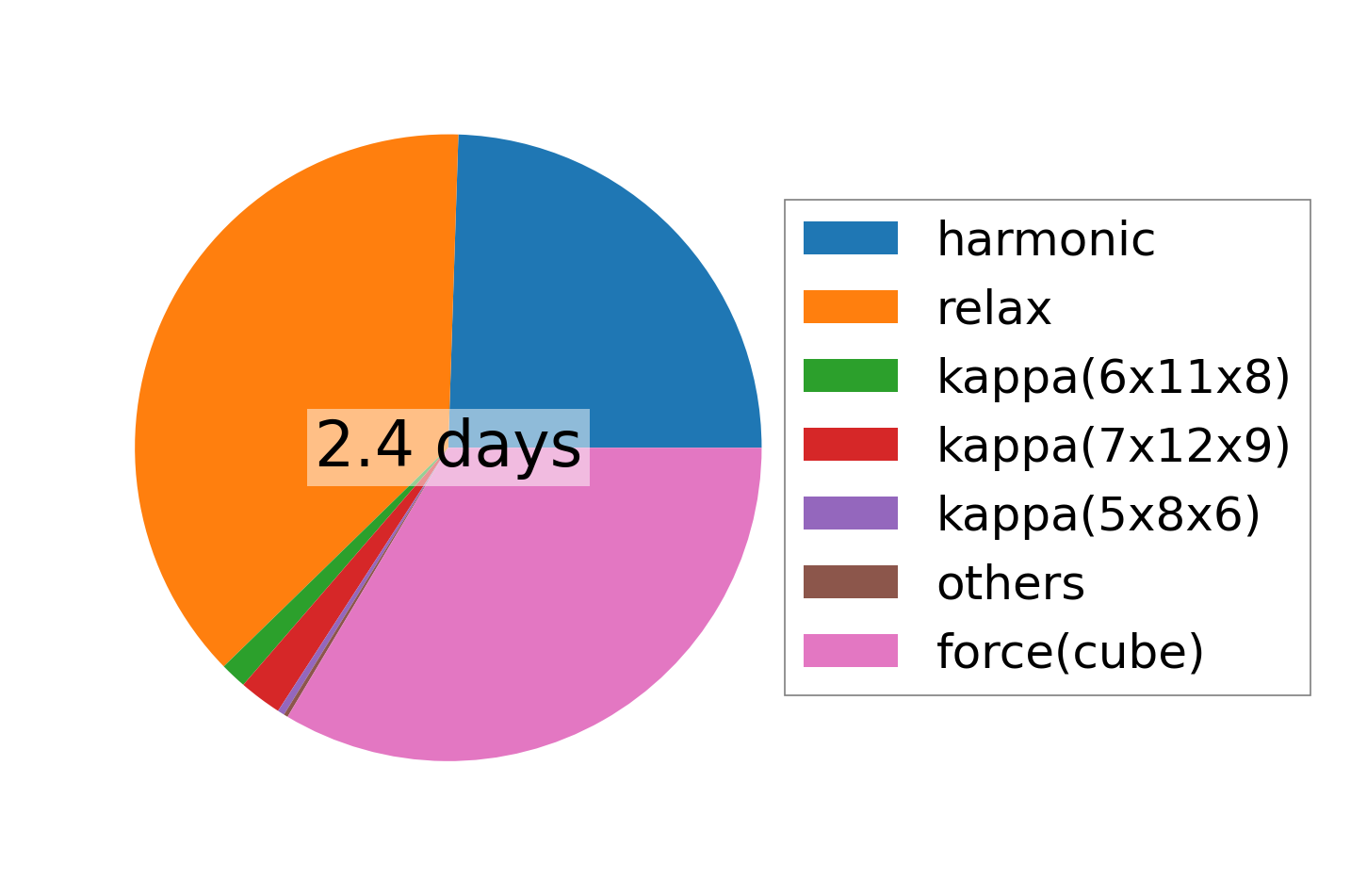

../../_images/fig_times22956.png — (b) Computation time
