mp-1191736/YF3/anharm

Space group: P-3c1 (165)
Link: Materials Project
Download: mp-1191736.tar.gz

Harmonic properties

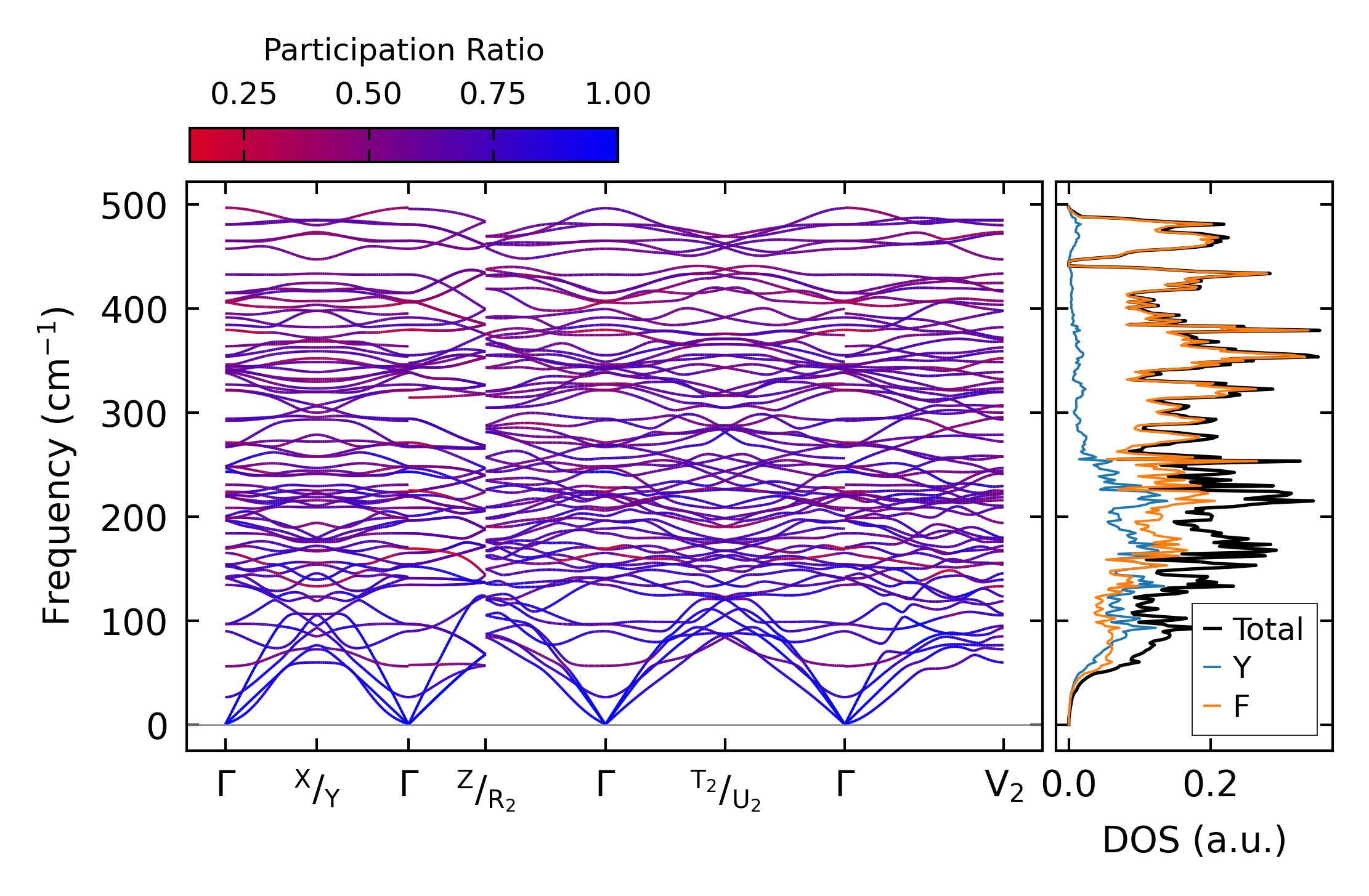

../../_images/fig_bandos_pr15747.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo15746.png — (b) Thermodynamic properties

Grüneisen parameters

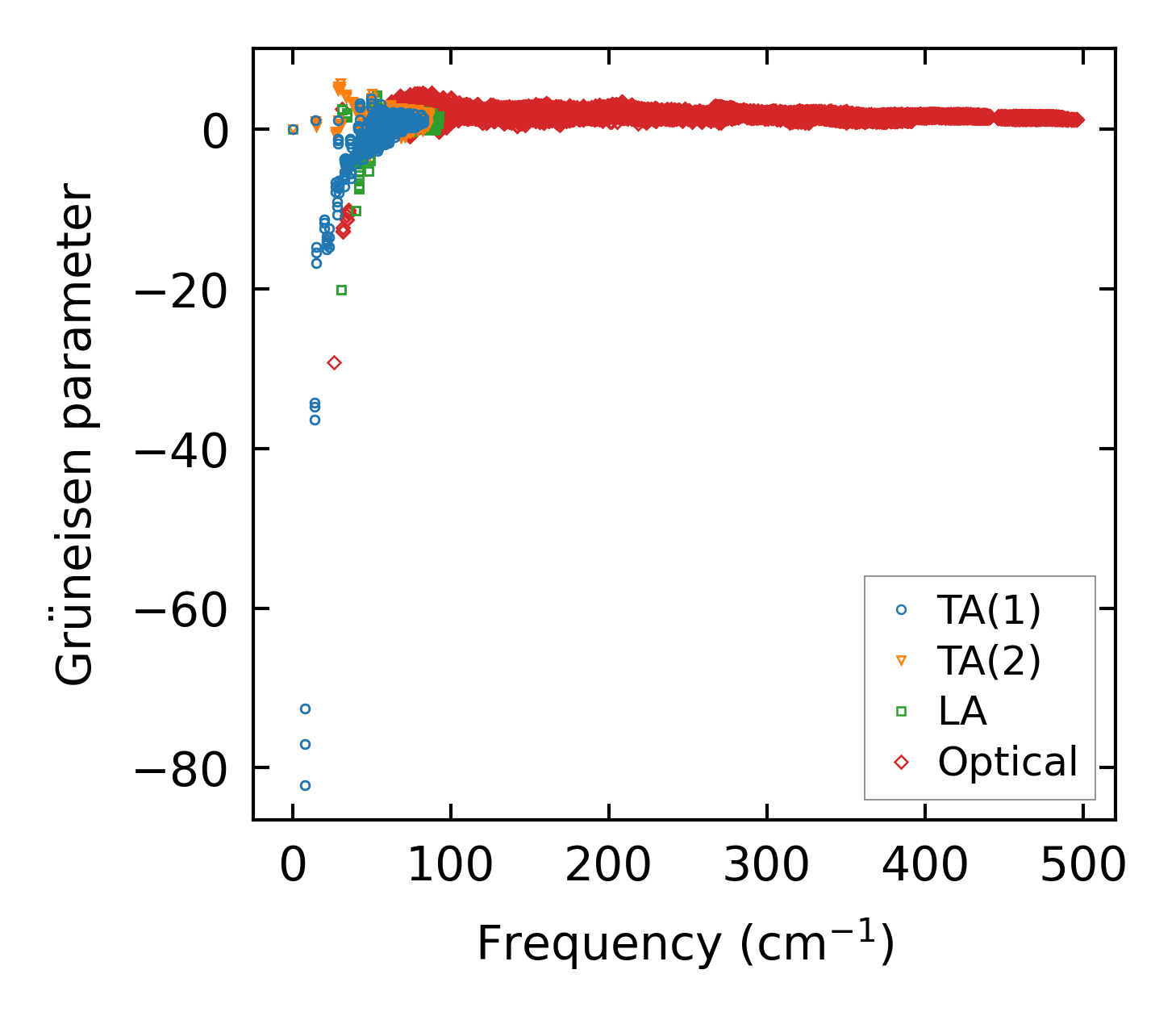

../../_images/fig_gru_all6819.png — (a) Grüneisen parameters

../../_images/fig_gruneisen6819.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x11x10, supercell: 2x2x1

../../_images/fig_kappa12844.png — (a) Temperature-dependent lattice thermal conductivity

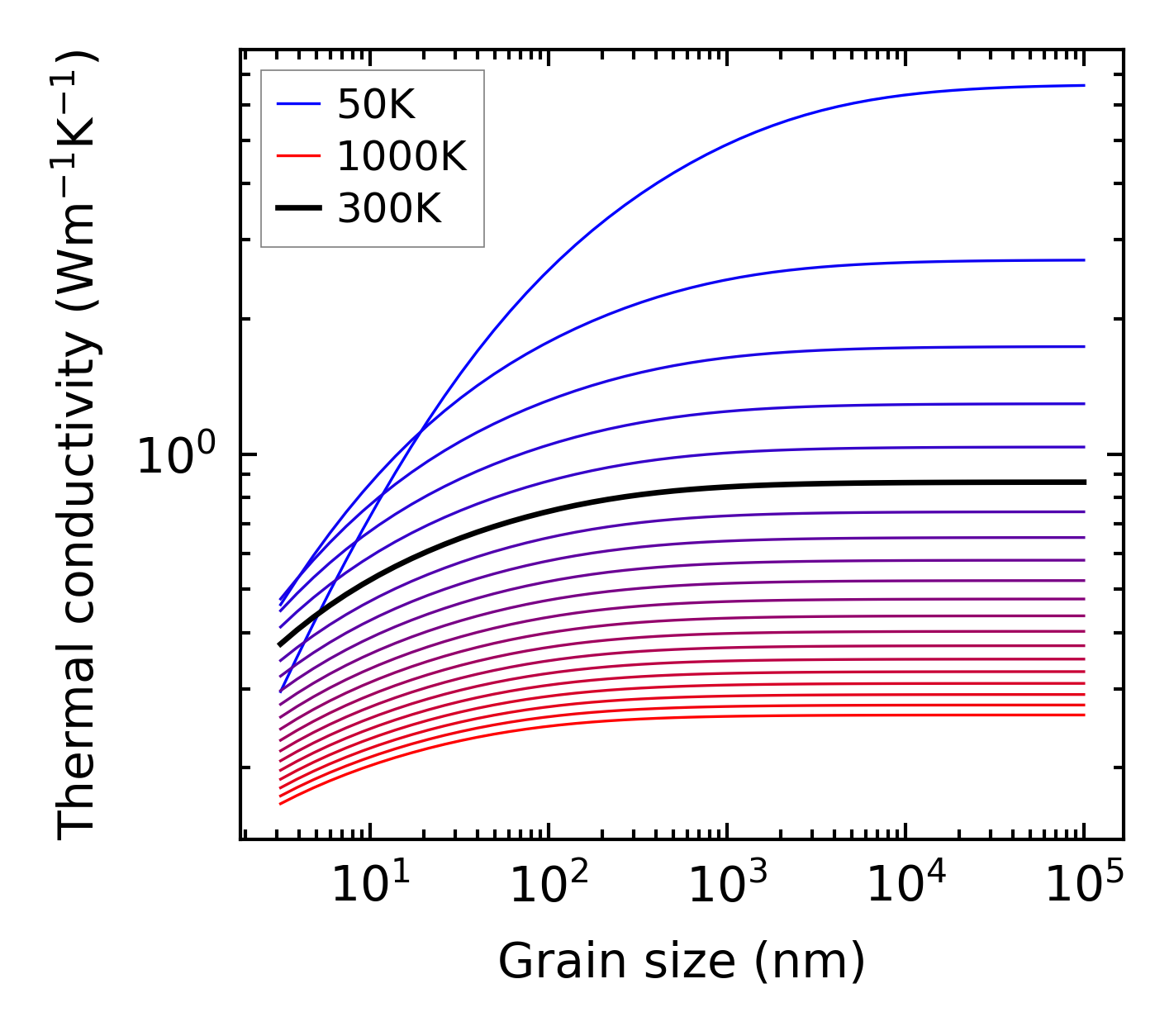

../../_images/fig_kappa_vs_grain_size6899.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

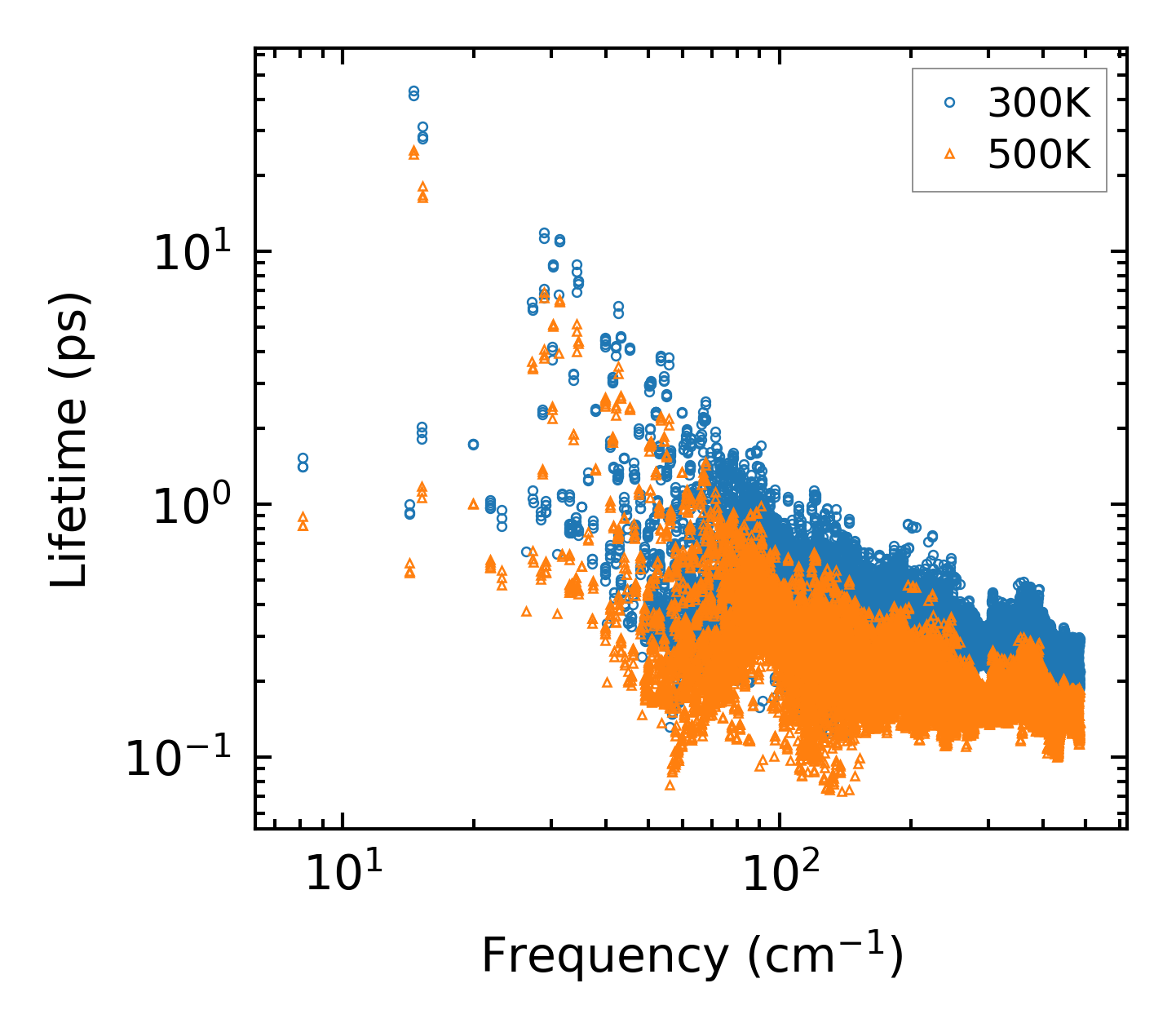

../../_images/fig_lifetime6753.png — (a) Phonon lifetime due to phonon-phonon scattering

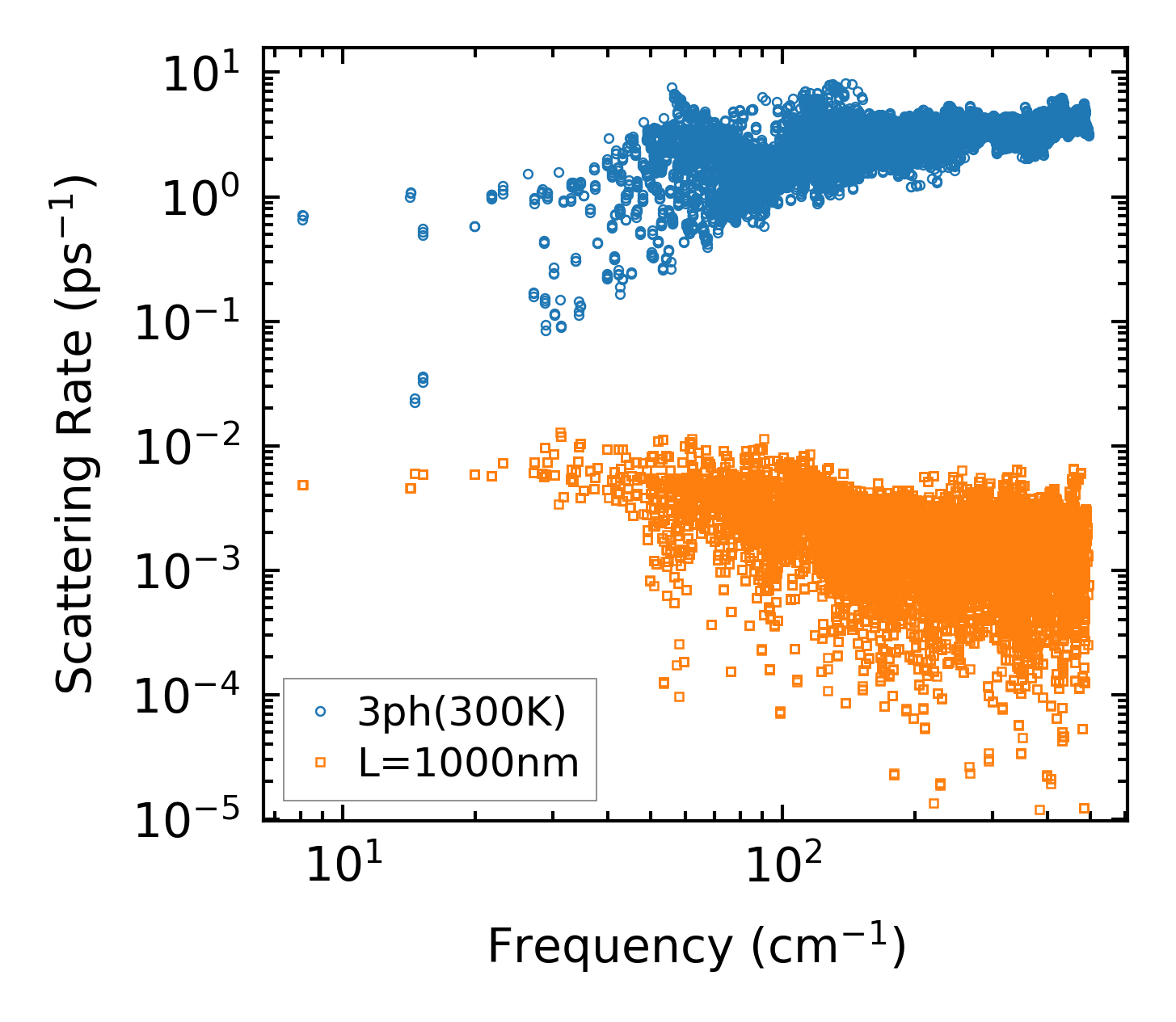

../../_images/fig_scat_rates6752.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

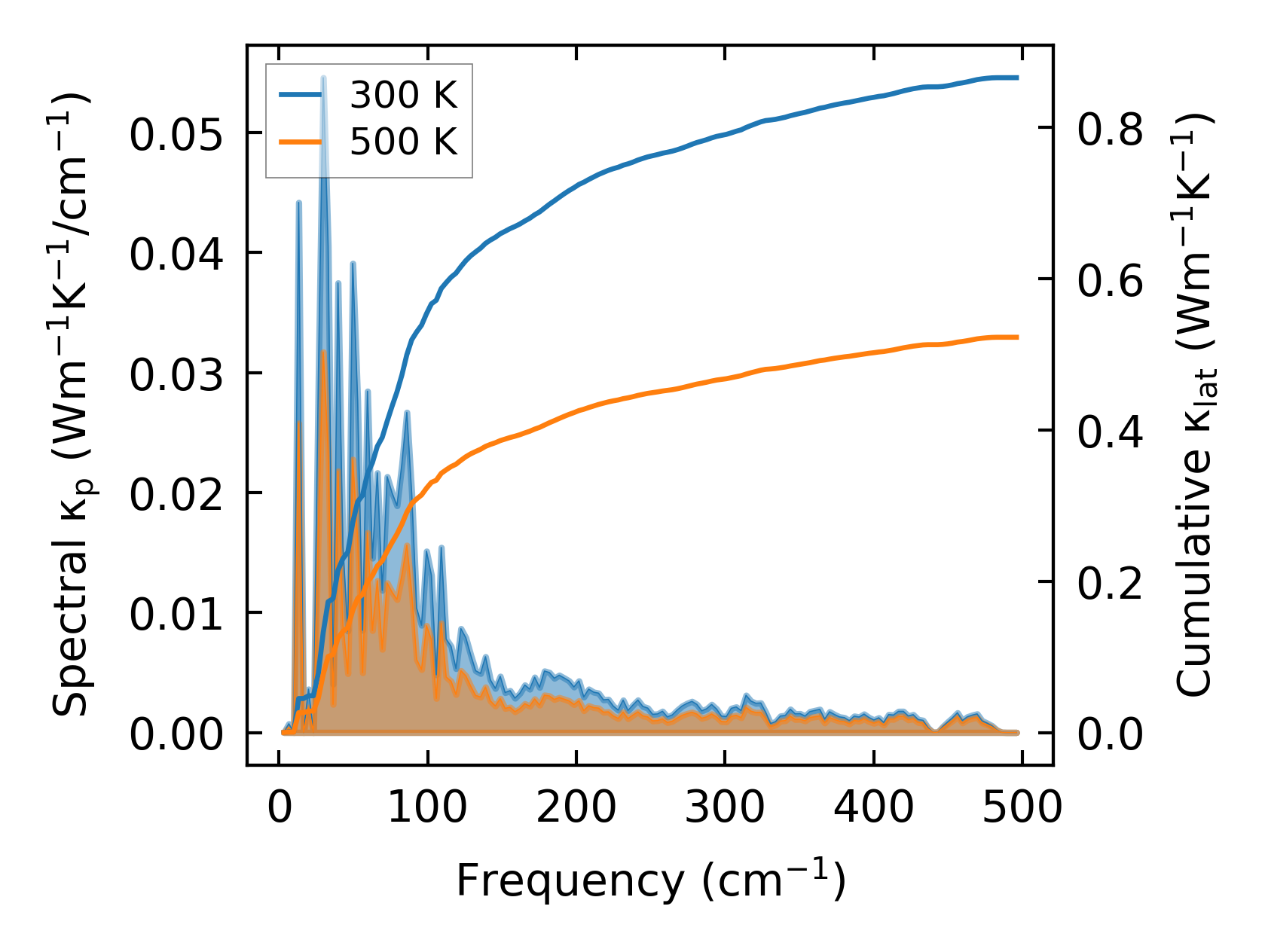

../../_images/fig_cumu_frequency6753.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp6752.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc215342.png — (a) Force constants w.r.t atomic distance

Summary

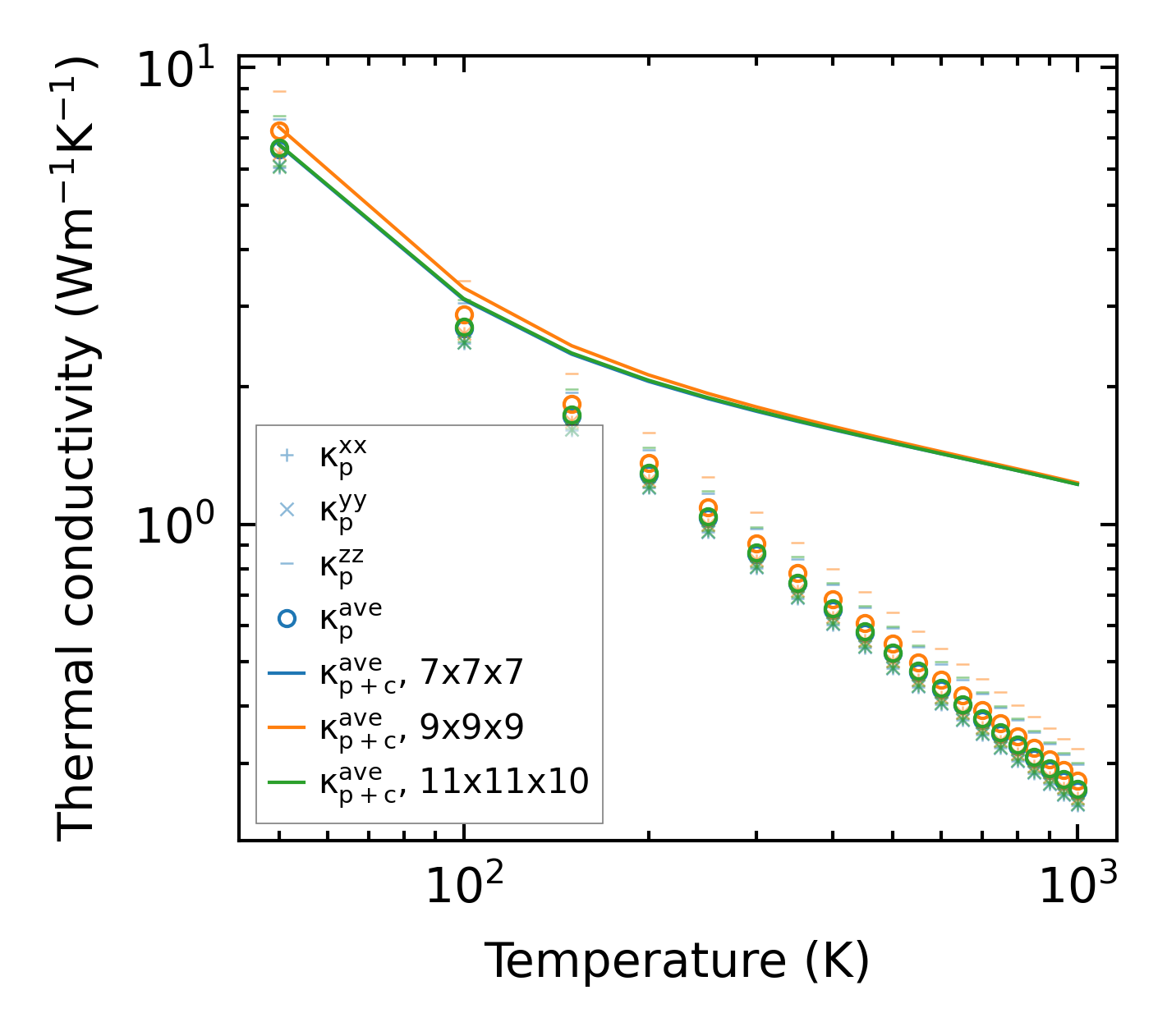

../../_images/fig_kappa12845.png — (a) Temperature-dependent lattice thermal conductivity

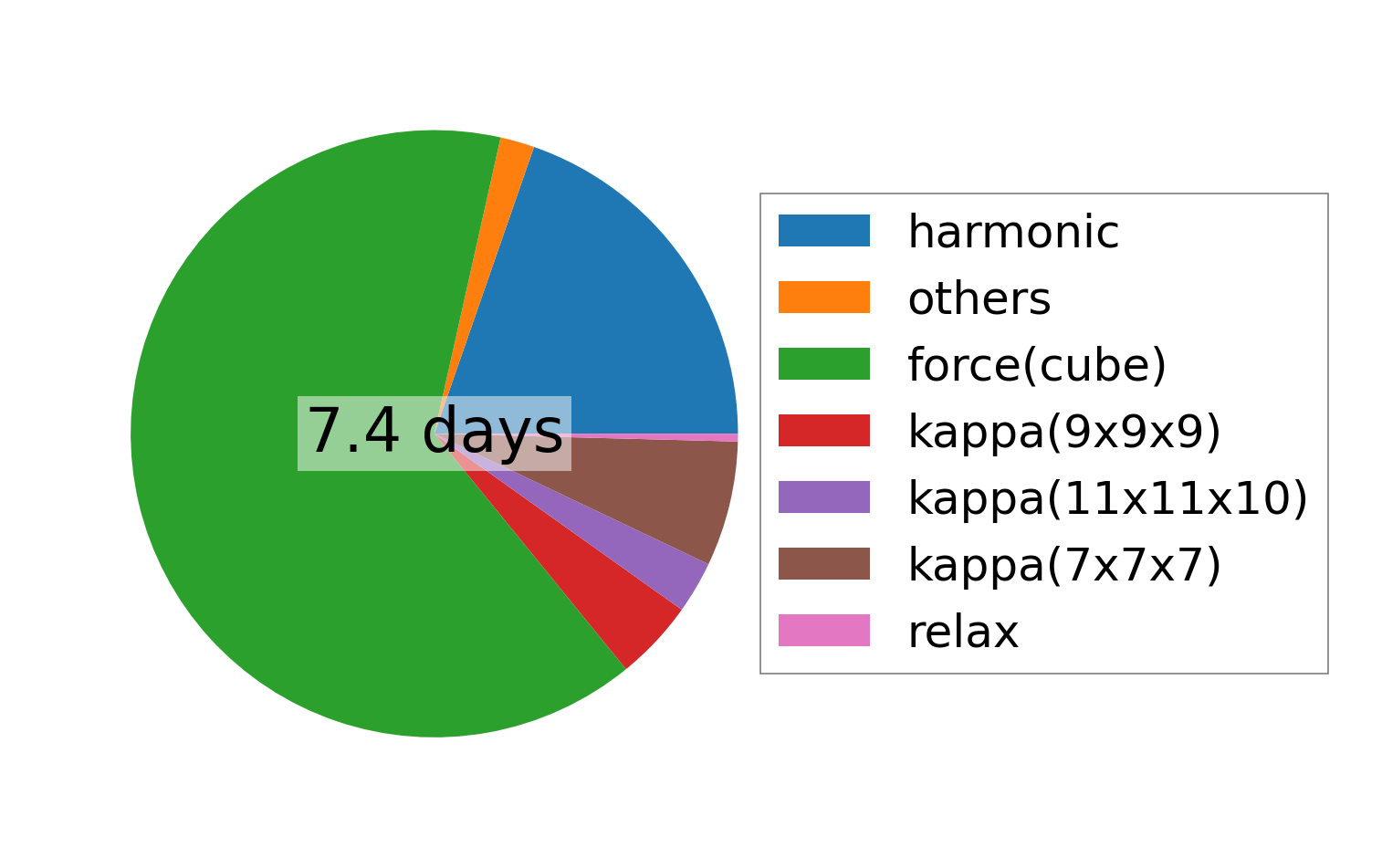

../../_images/fig_times25934.png — (b) Computation time
