mp-1191554/CsRbC2/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-1191554.tar.gz

Harmonic properties

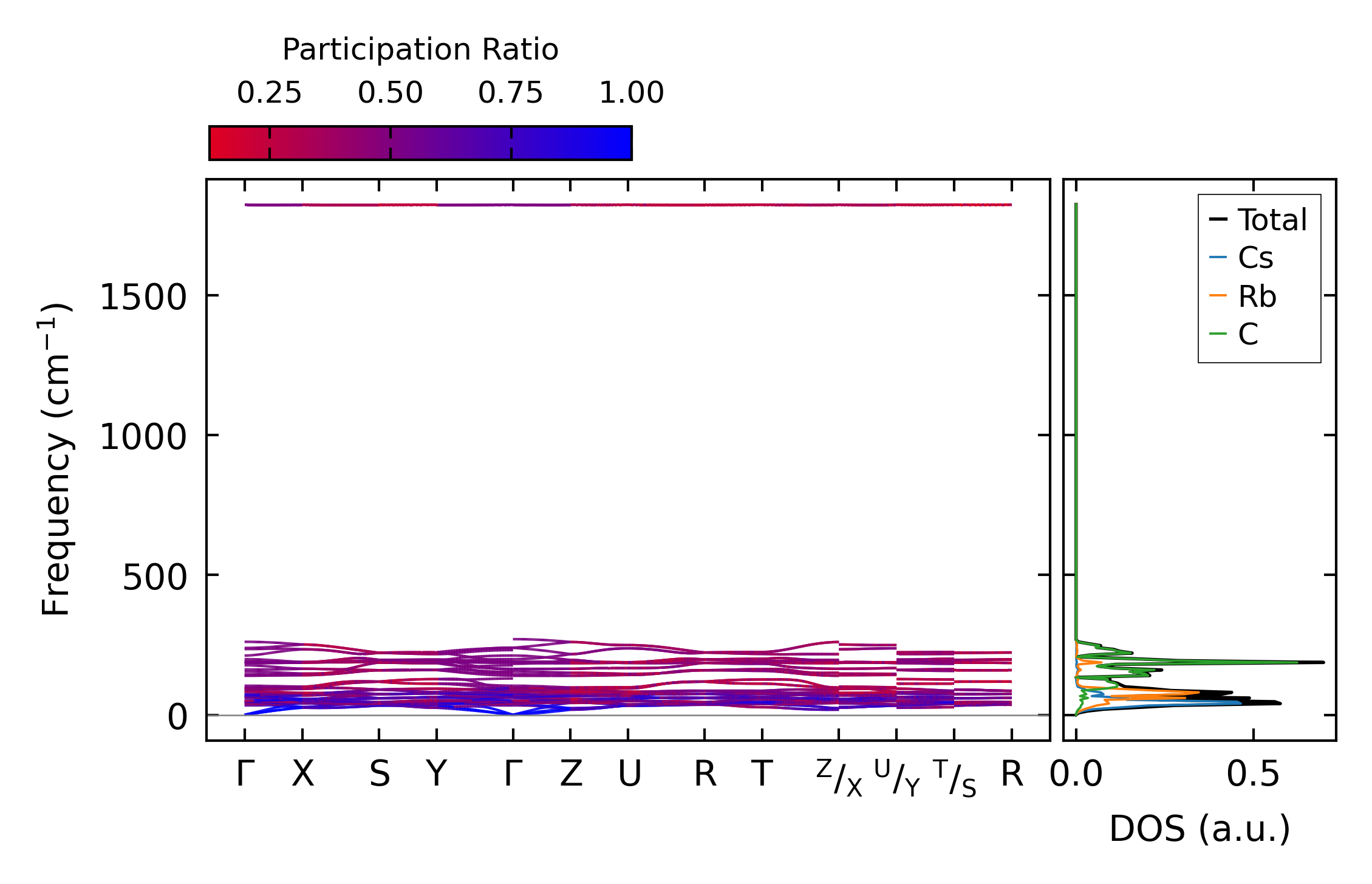

../../_images/fig_bandos_pr15736.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo15735.png — (b) Thermodynamic properties

Grüneisen parameters

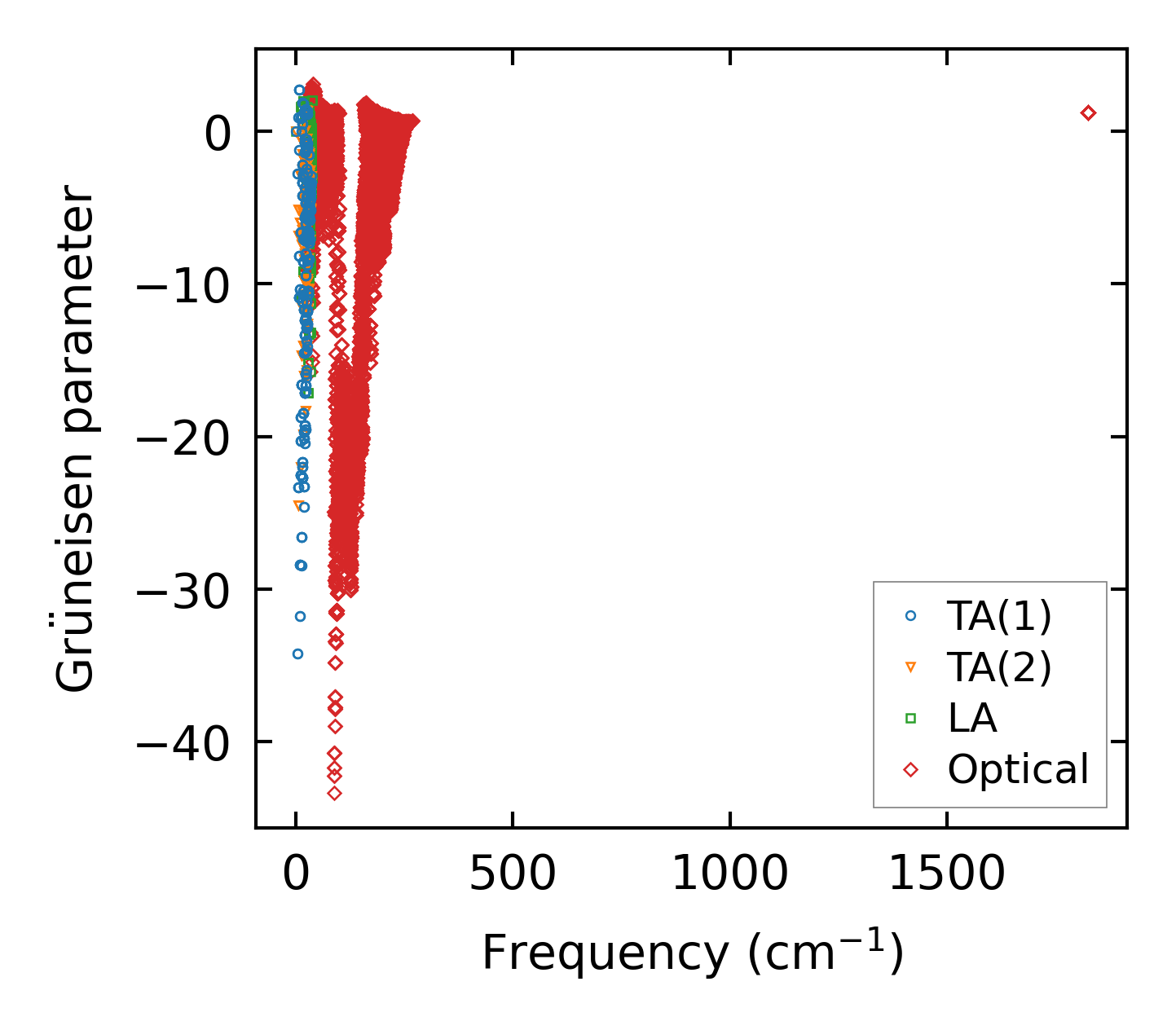

../../_images/fig_gru_all6814.png — (a) Grüneisen parameters

../../_images/fig_gruneisen6814.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x12x7, supercell: 2x2x2

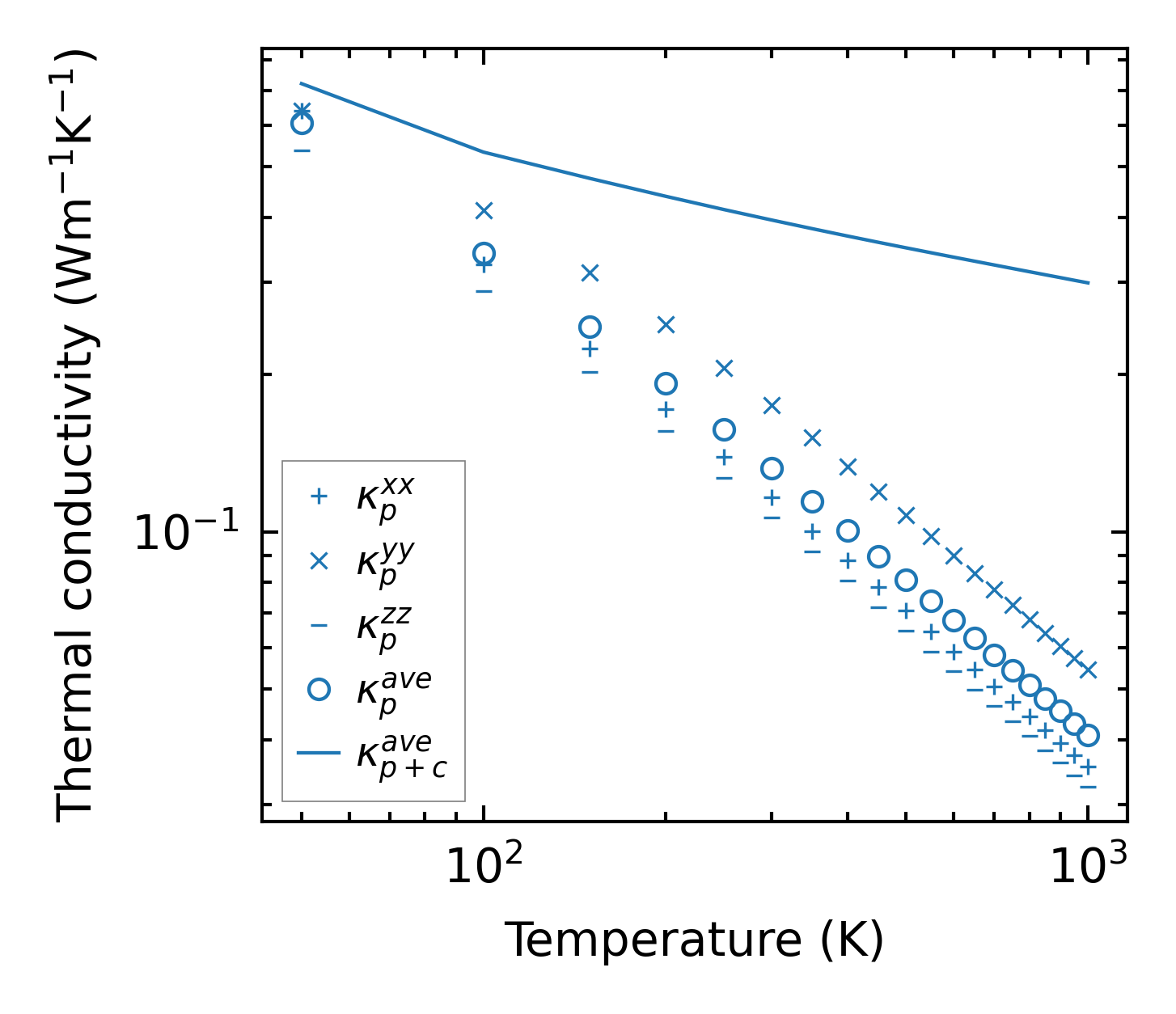

../../_images/fig_kappa12835.png — (a) Temperature-dependent lattice thermal conductivity

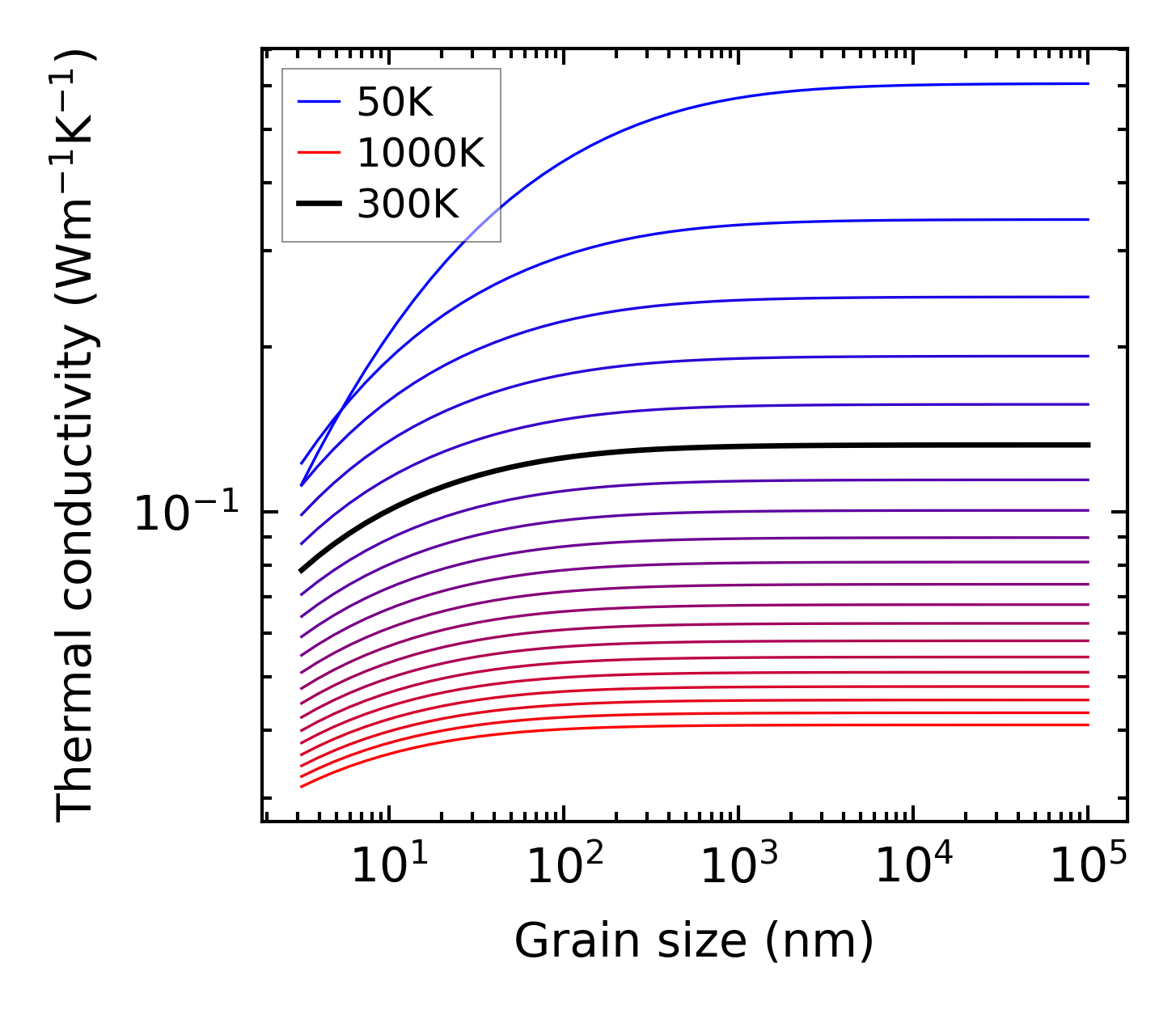

../../_images/fig_kappa_vs_grain_size6894.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime6748.png — (a) Phonon lifetime due to phonon-phonon scattering

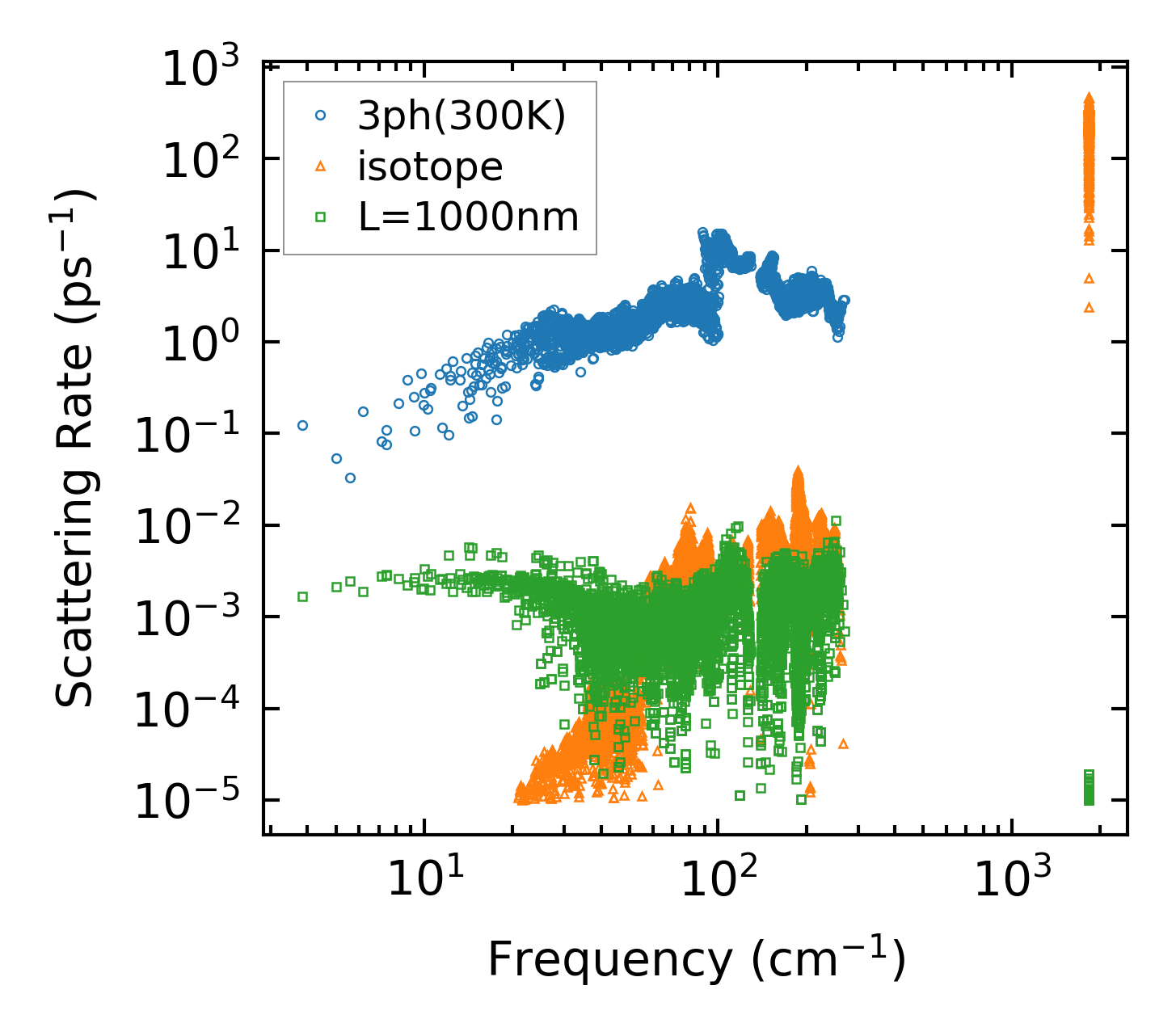

../../_images/fig_scat_rates6747.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency6748.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

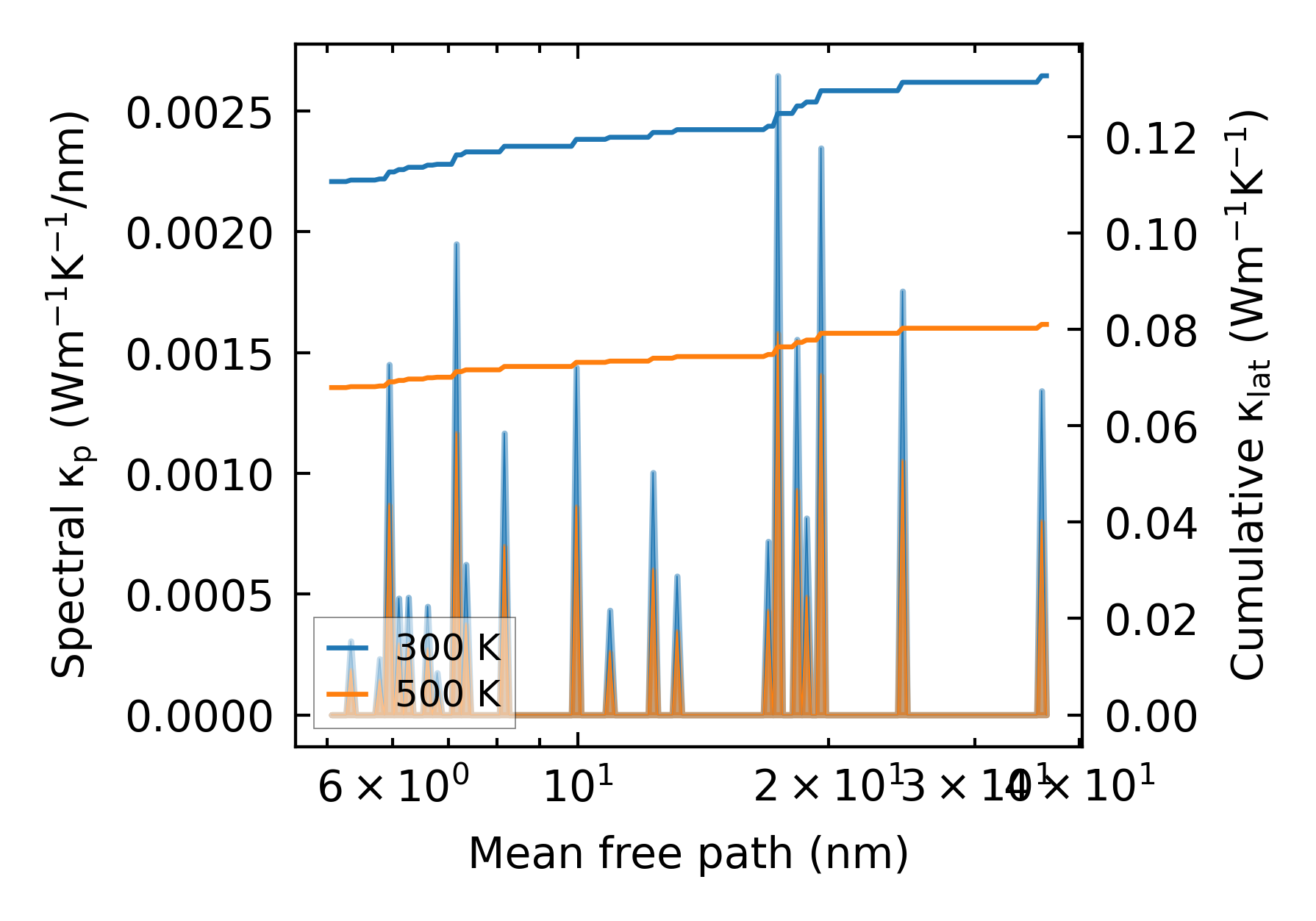

../../_images/fig_cumu_mfp6747.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

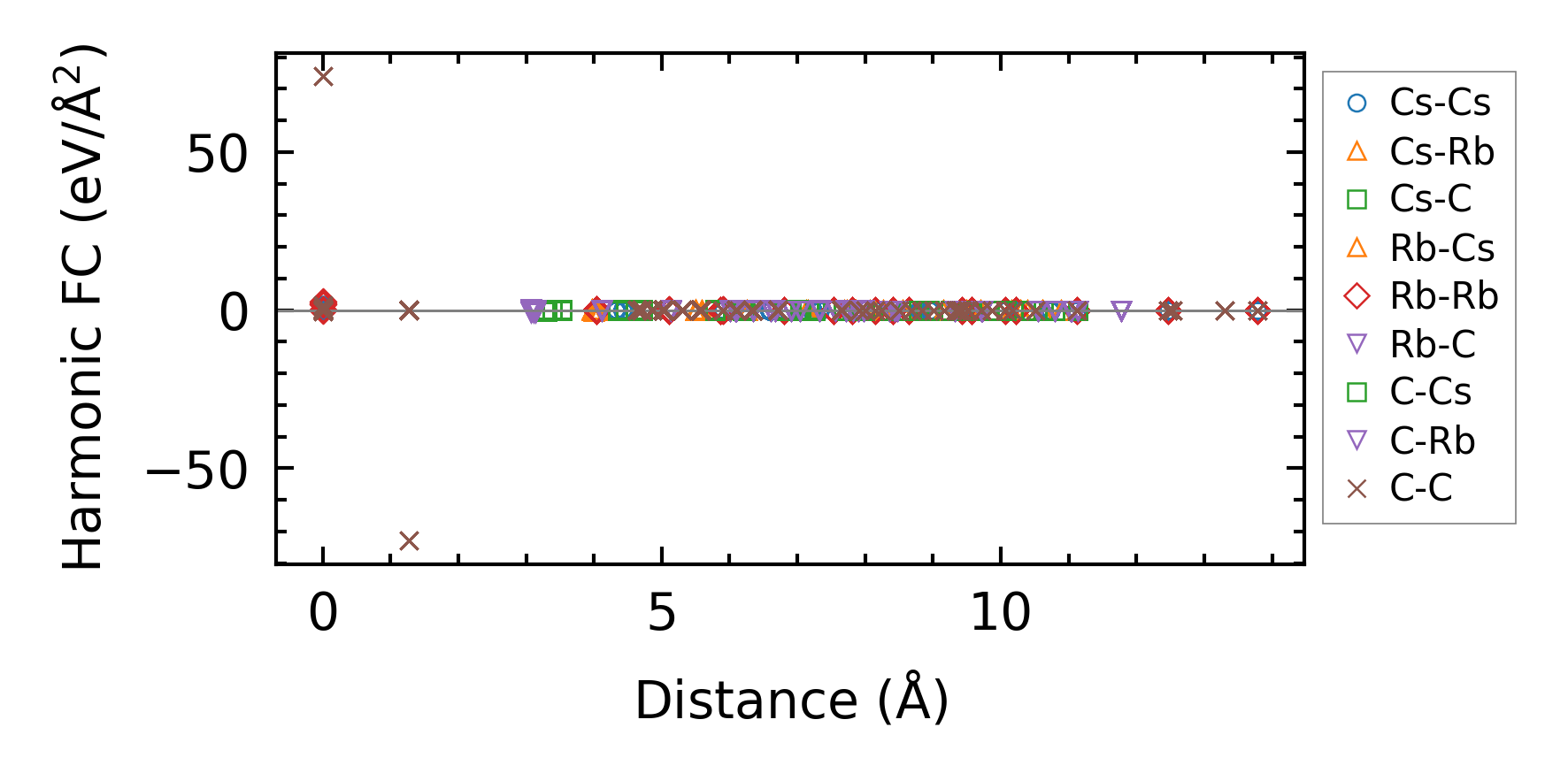

../../_images/fig_fc215331.png — (a) Force constants w.r.t atomic distance

Summary

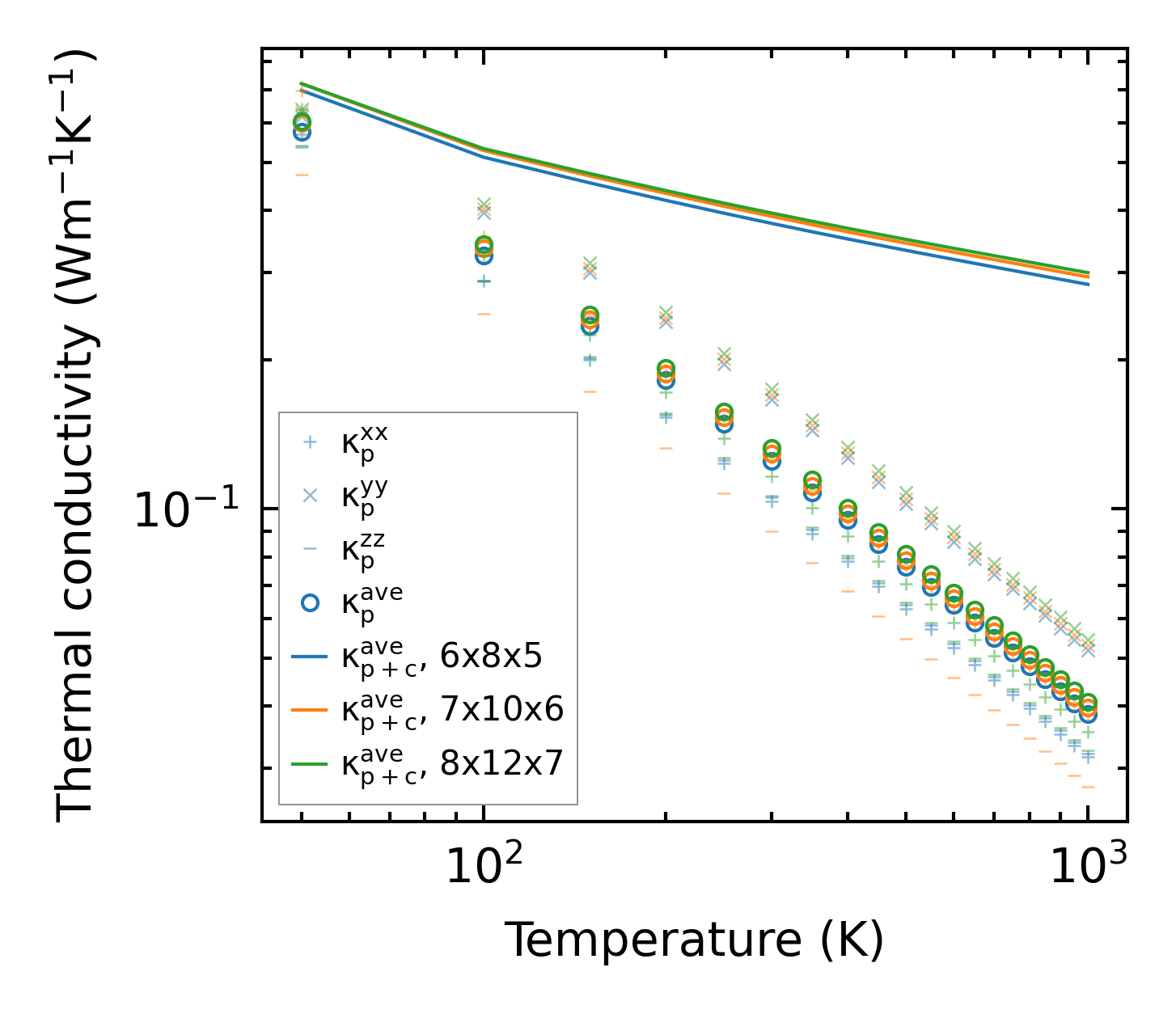

../../_images/fig_kappa12836.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times25920.png — (b) Computation time
