mp-1020663/SiGe2N4/anharm

Space group: Fd-3m (227)
Link: Materials Project
Download: mp-1020663.tar.gz

Harmonic properties

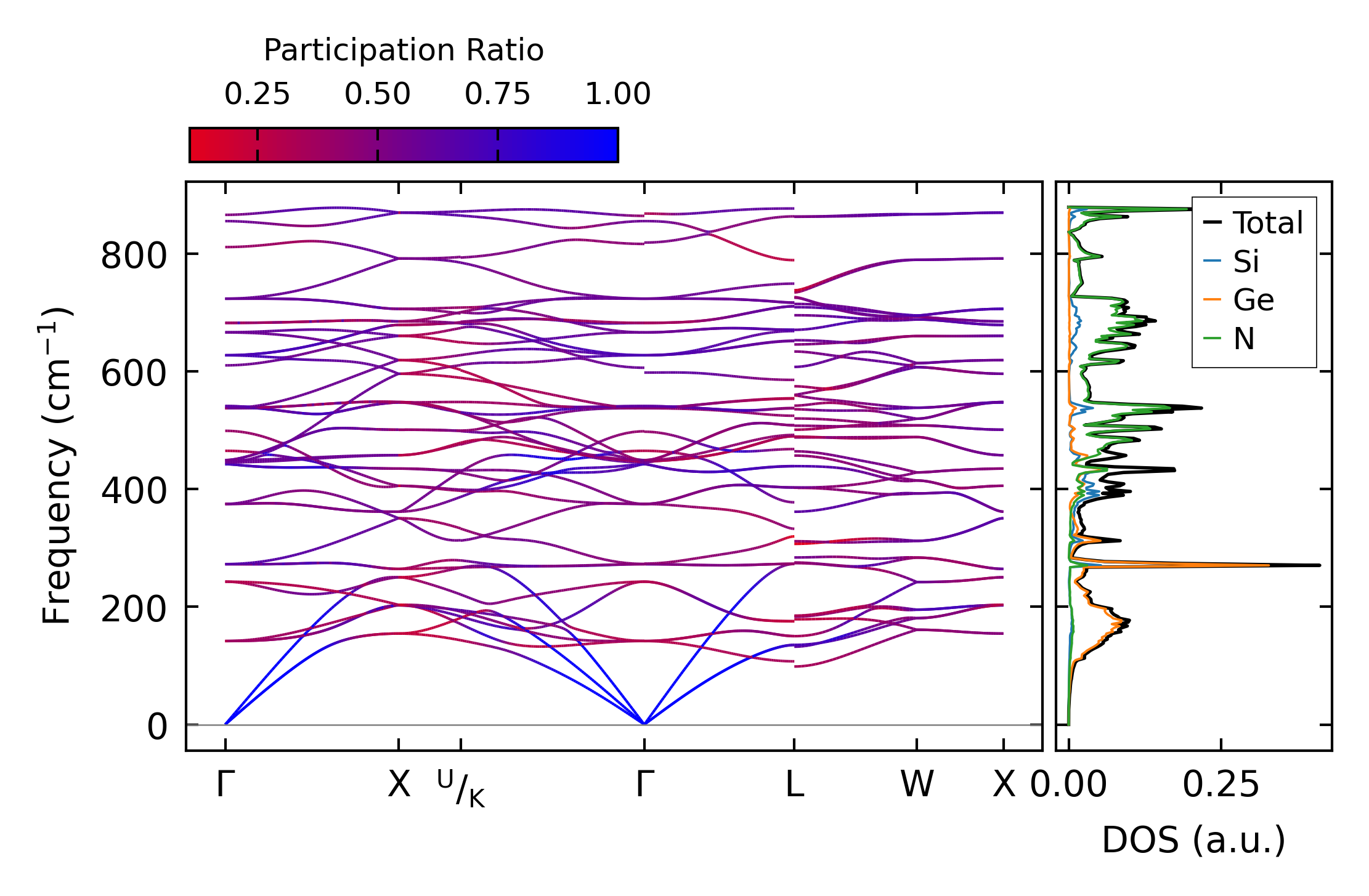

../../_images/fig_bandos_pr124.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo124.png — (b) Thermodynamic properties

Grüneisen parameters

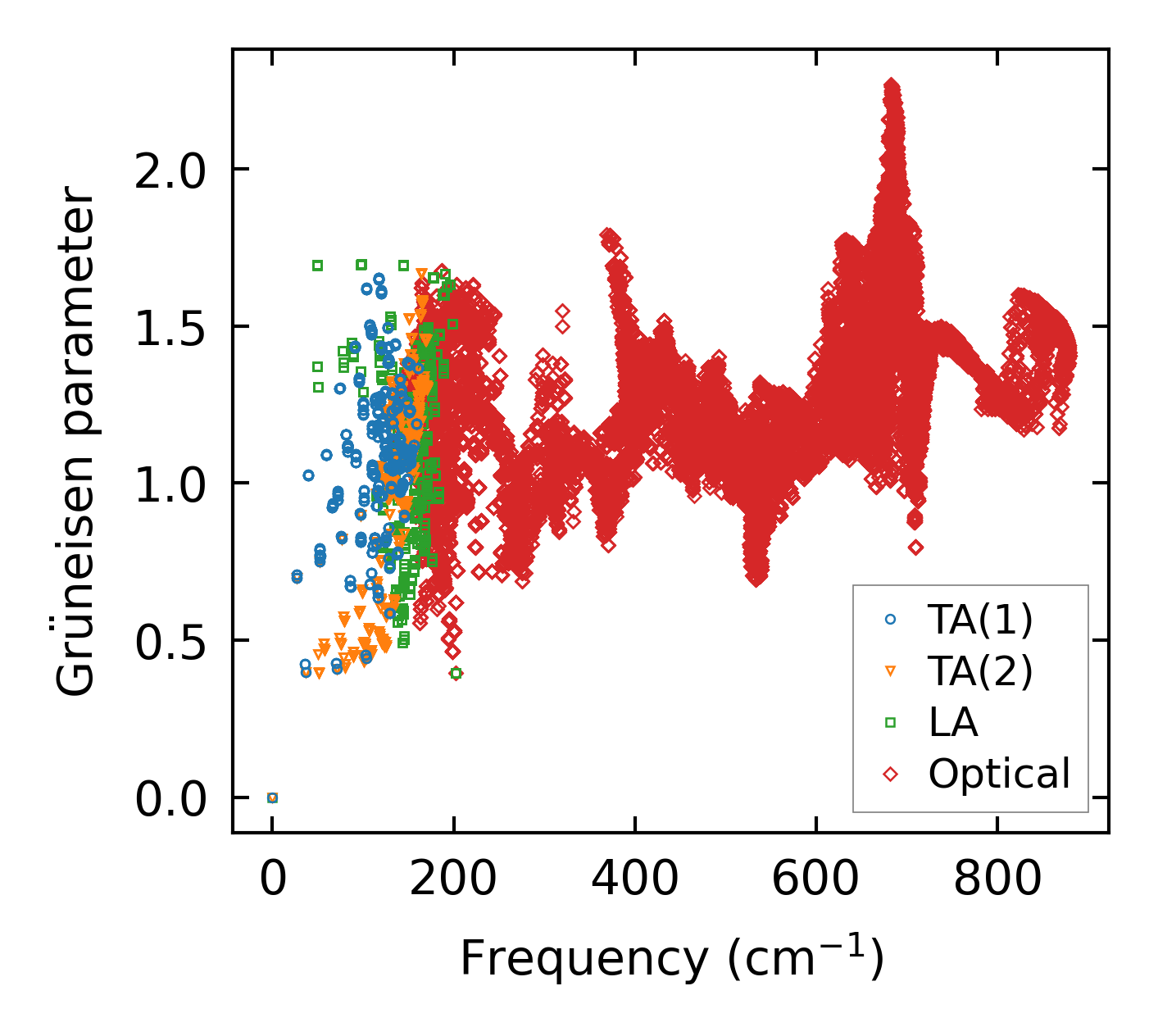

../../_images/fig_gru_all73.png — (a) Grüneisen parameters

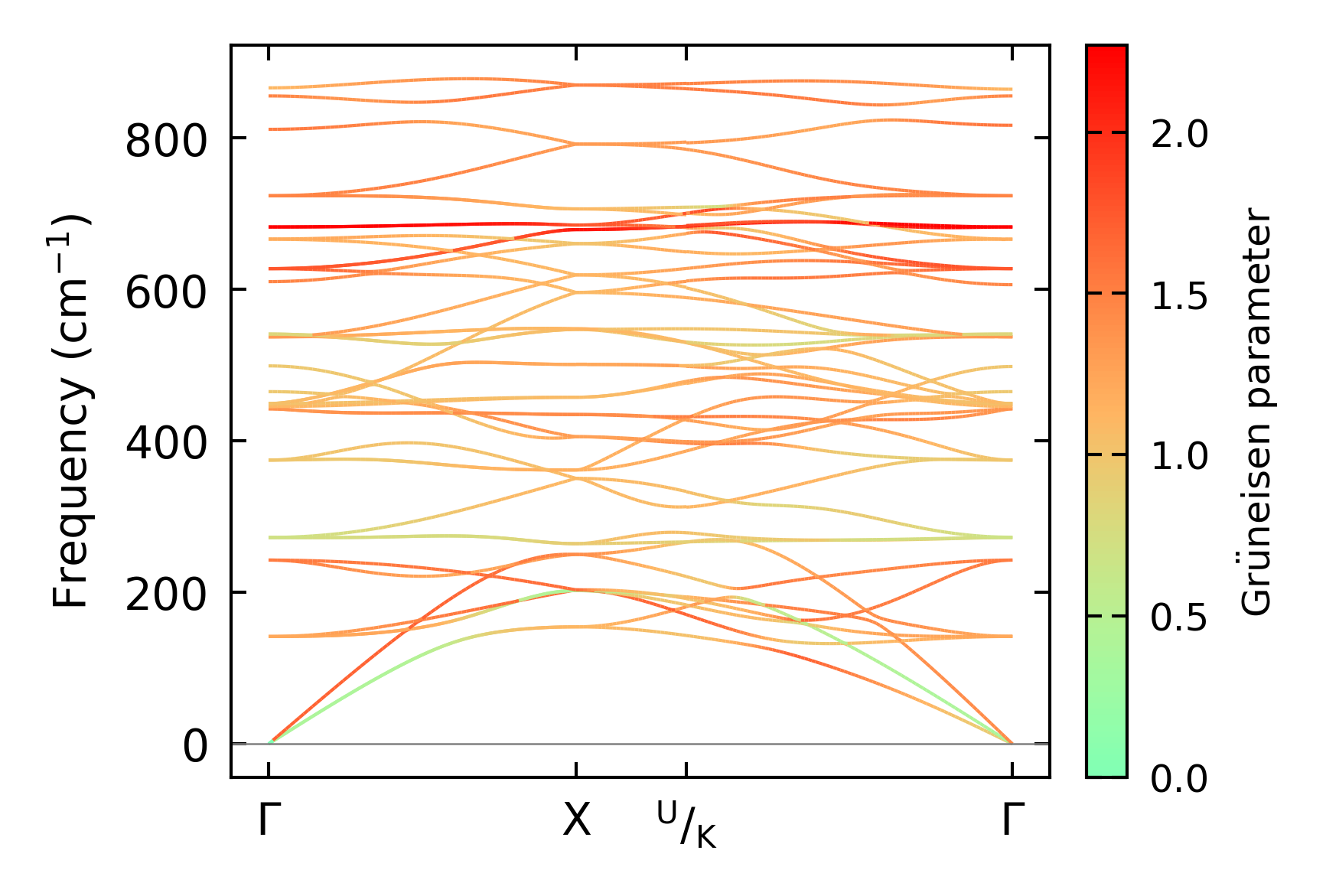

../../_images/fig_gruneisen73.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x14x14, supercell: 1x1x1

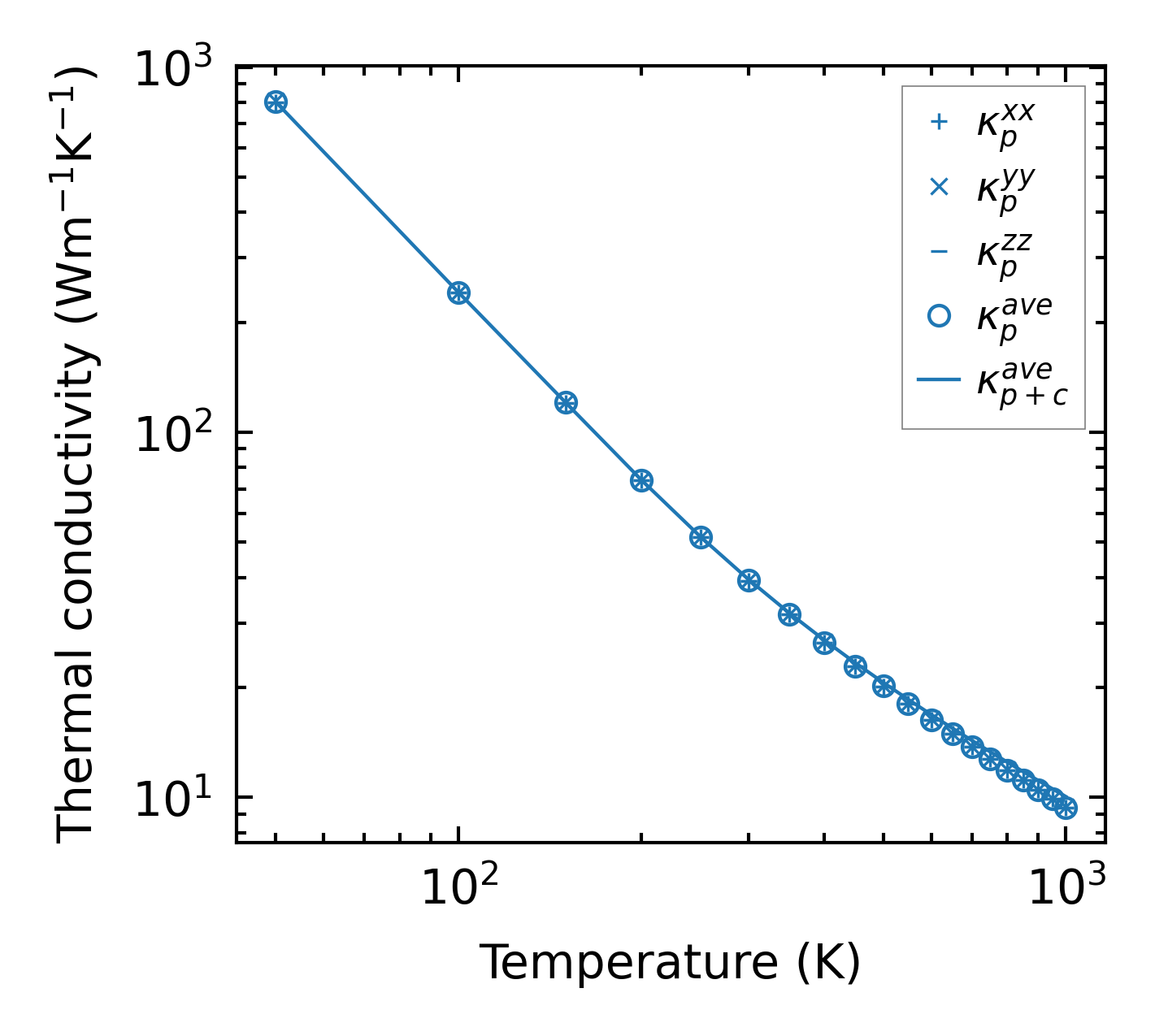

../../_images/fig_kappa141.png — (a) Temperature-dependent lattice thermal conductivity

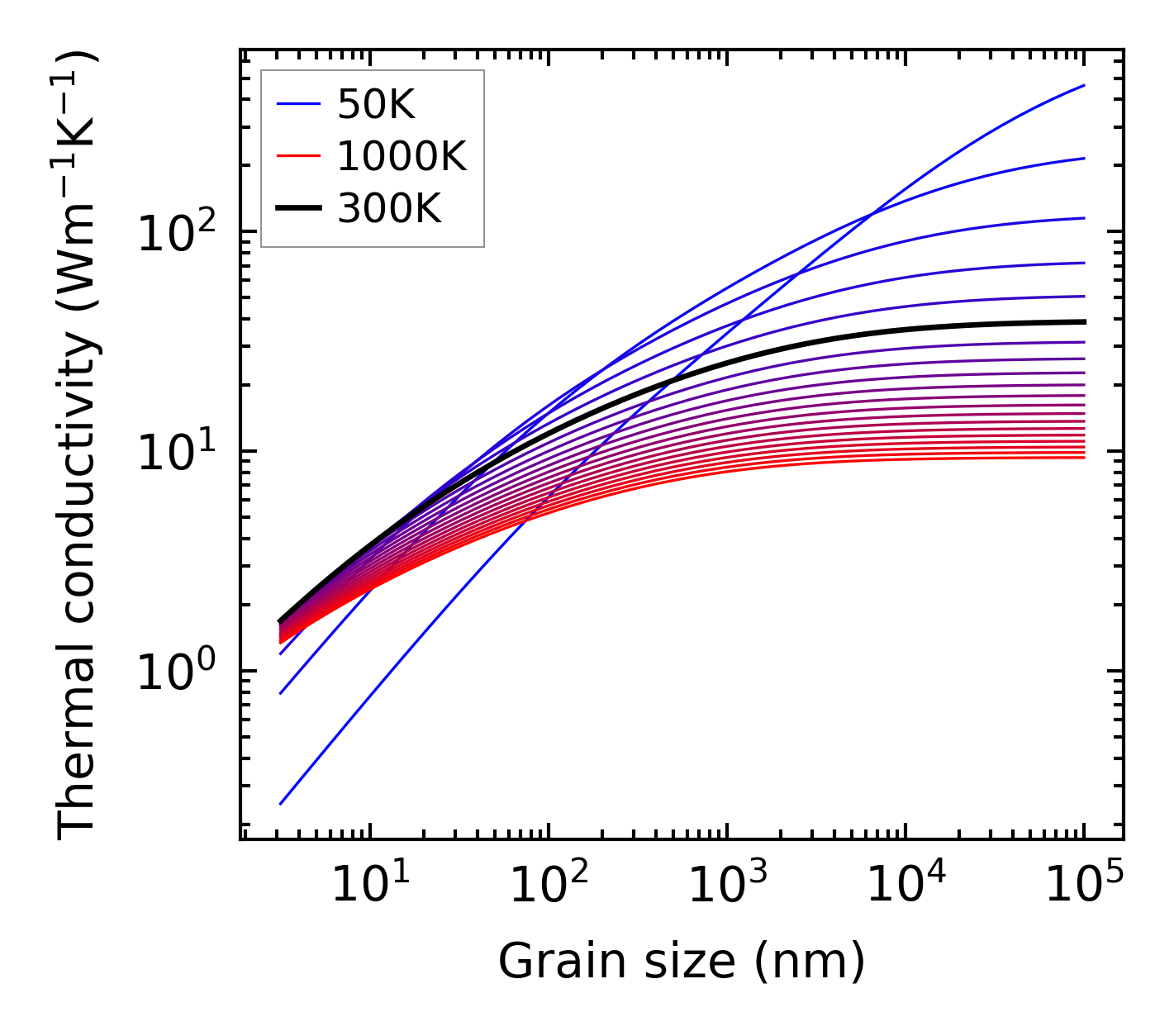

../../_images/fig_kappa_vs_grain_size75.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

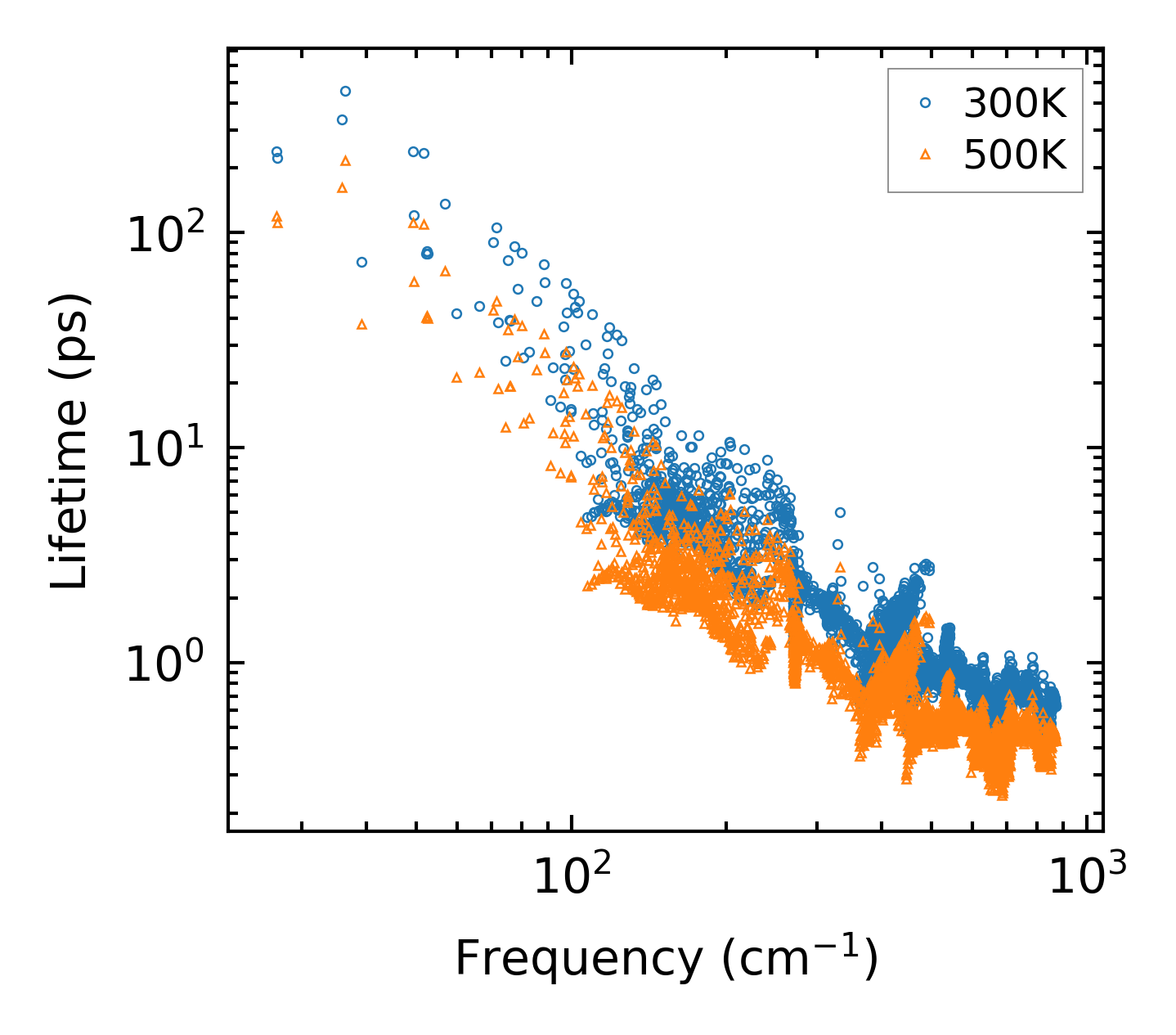

../../_images/fig_lifetime73.png — (a) Phonon lifetime due to phonon-phonon scattering

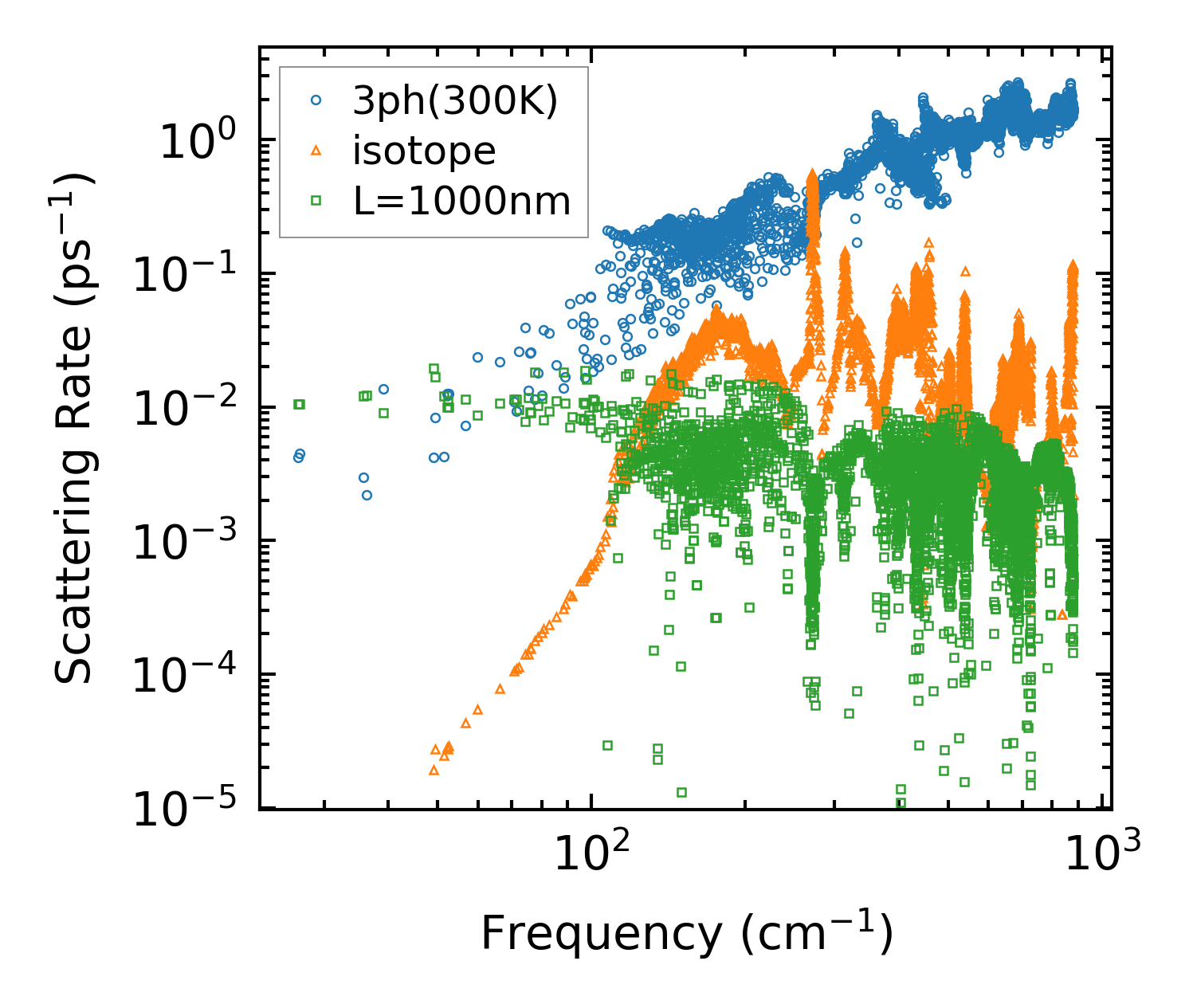

../../_images/fig_scat_rates73.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

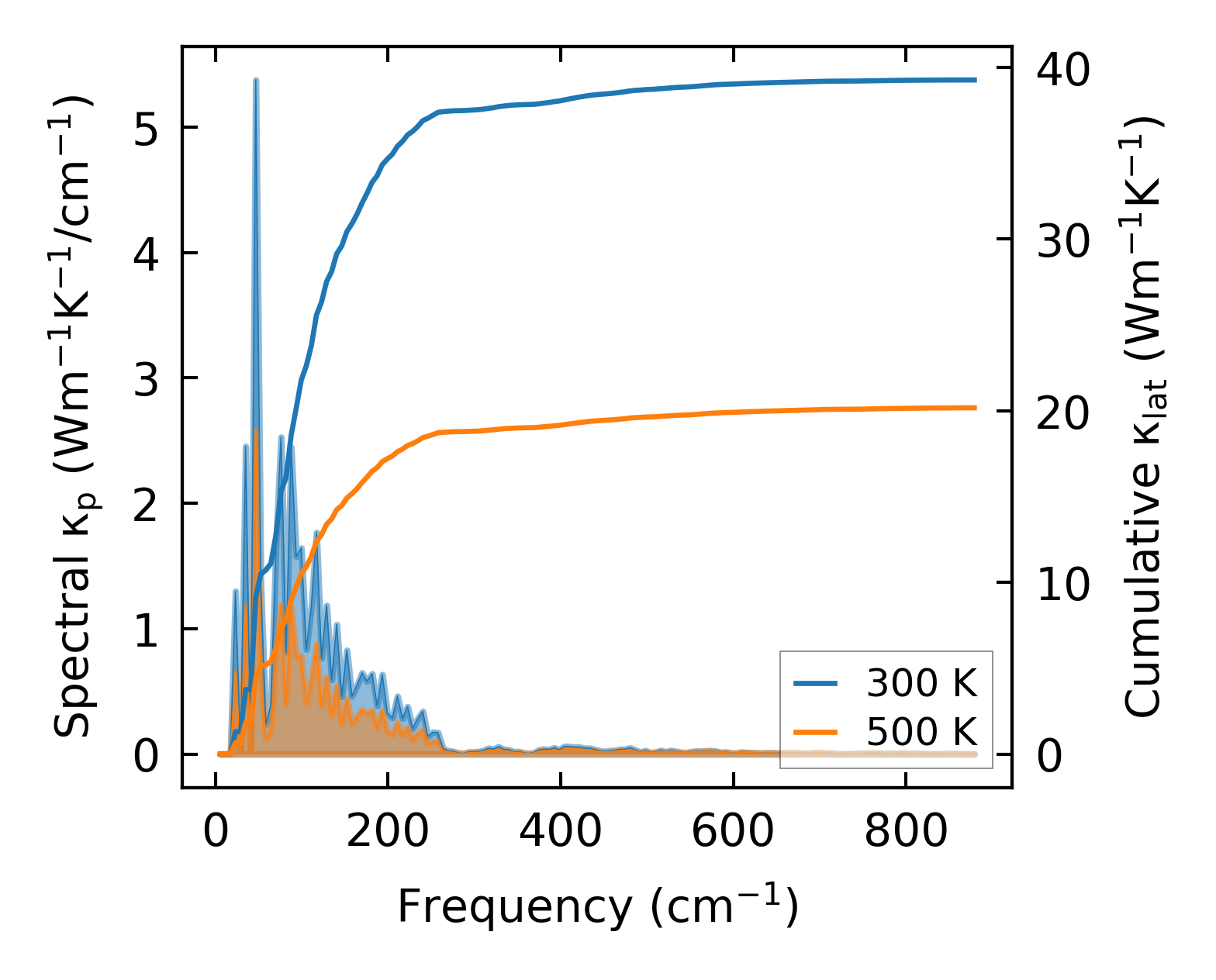

../../_images/fig_cumu_frequency73.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

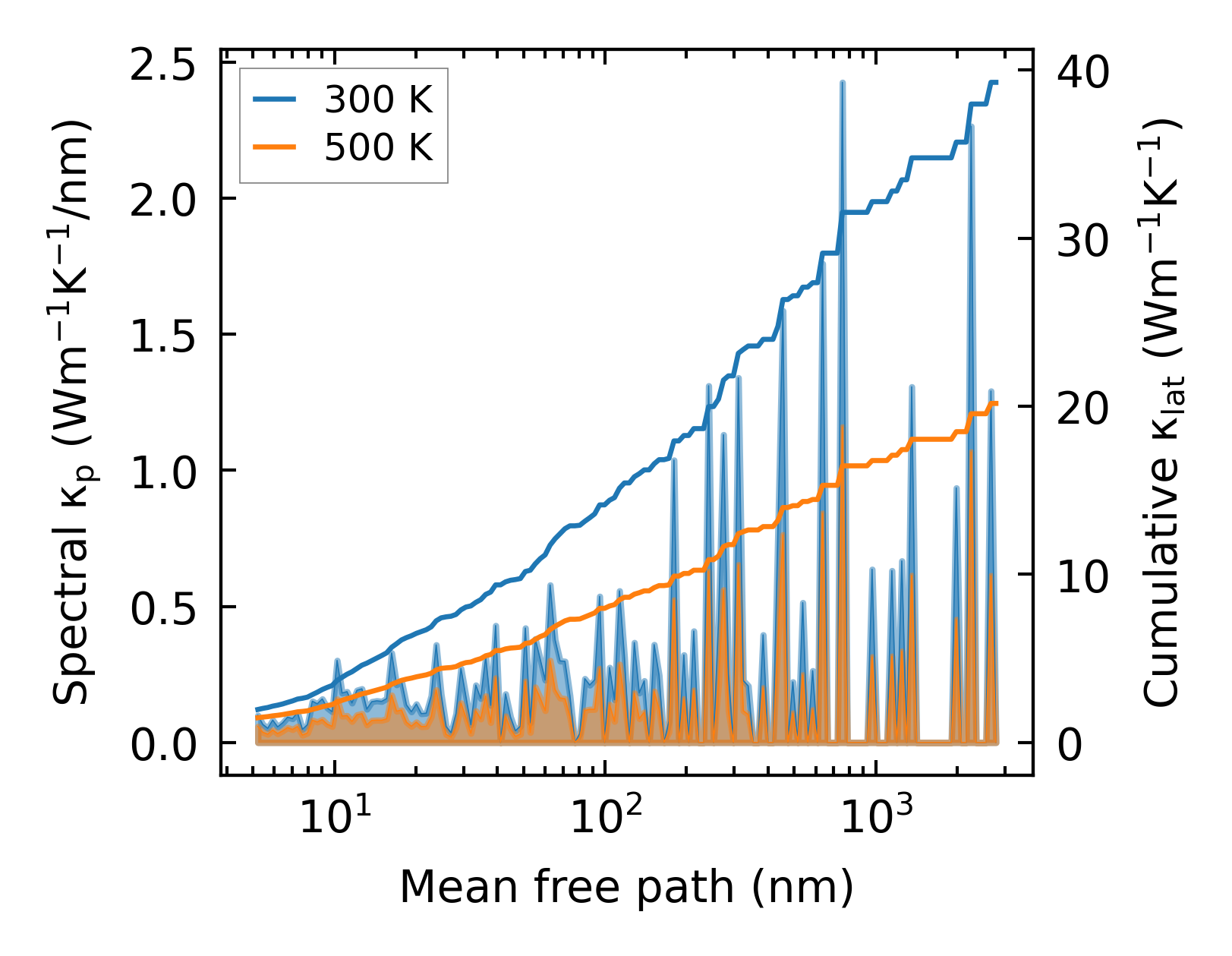

../../_images/fig_cumu_mfp73.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

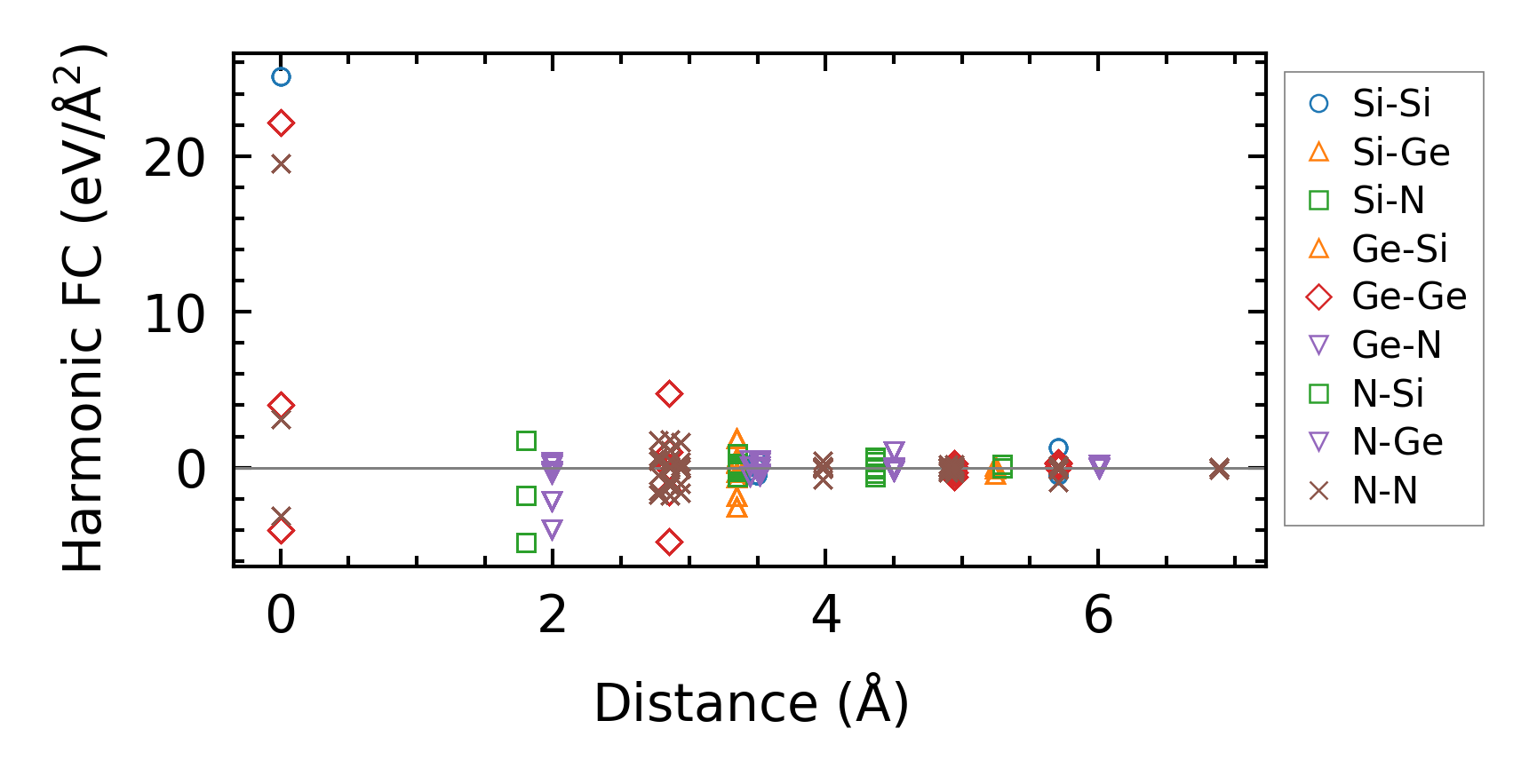

../../_images/fig_fc2123.png — (a) Force constants w.r.t atomic distance

Summary

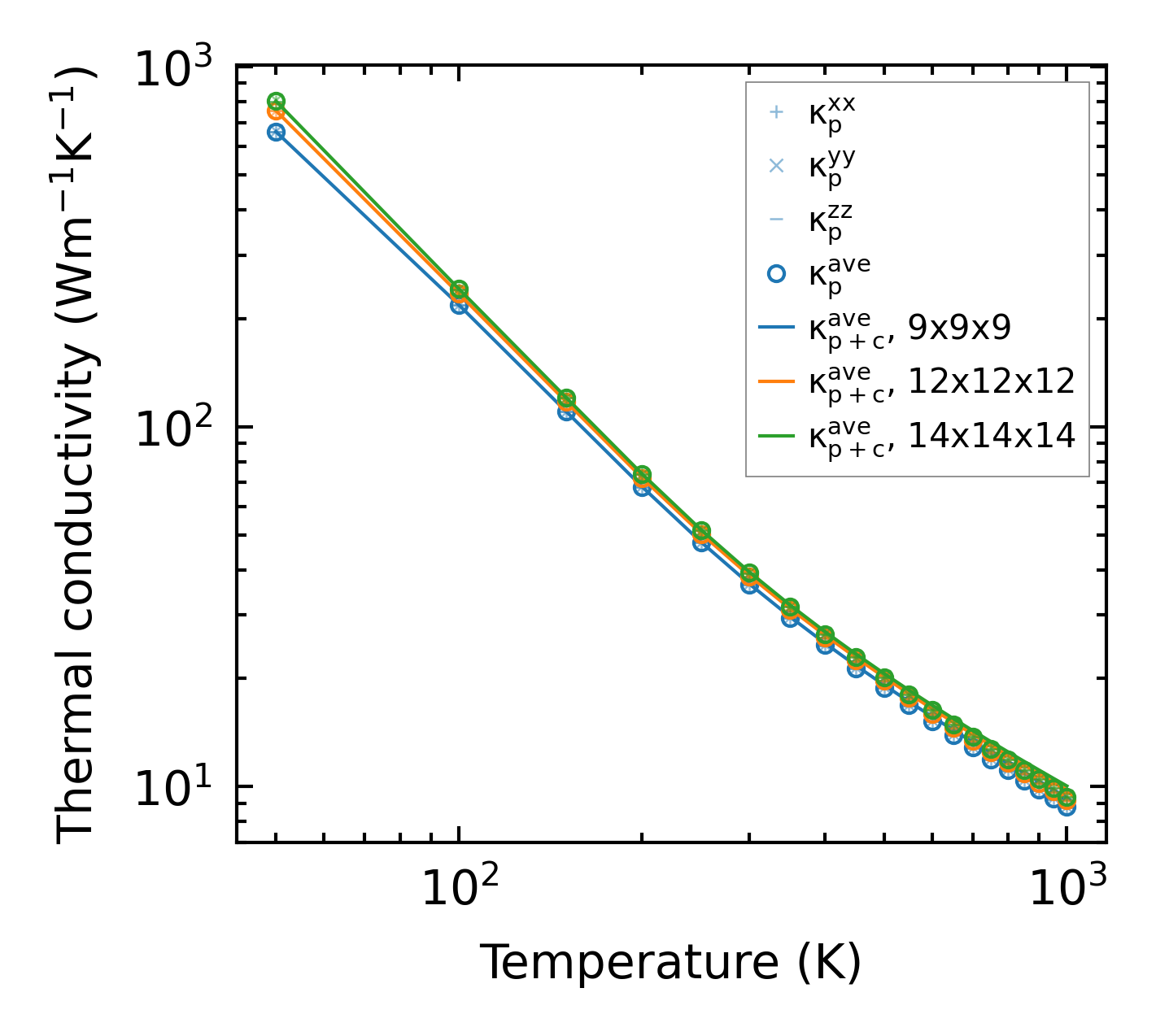

../../_images/fig_kappa142.png — (a) Temperature-dependent lattice thermal conductivity

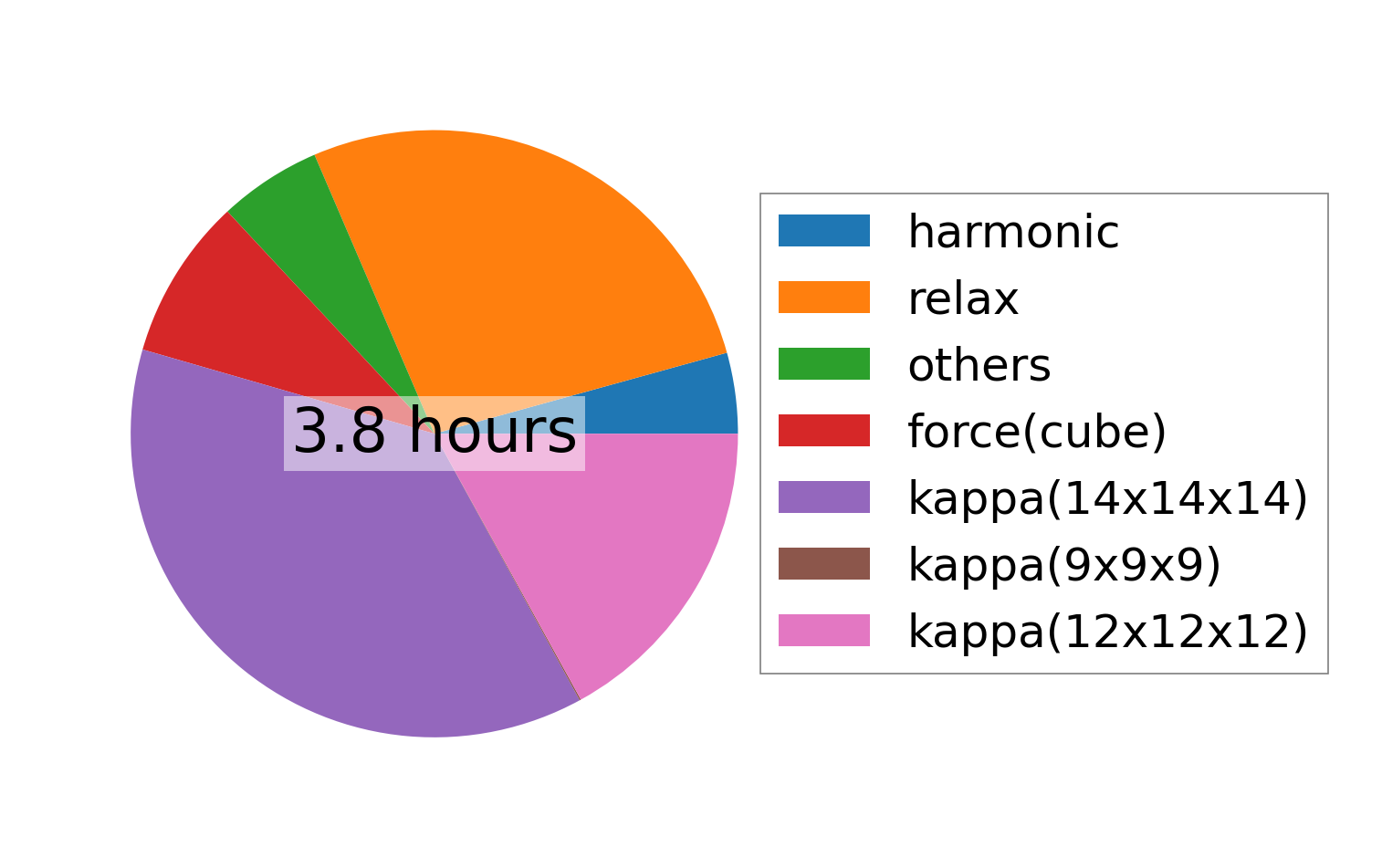

../../_images/fig_times215.png — (b) Computation time
