mp-1020163/Na3Li2AlSi2O8/anharm

Space group: Cmce (64)
Link: Materials Project
Download: mp-1020163.tar.gz

Harmonic properties

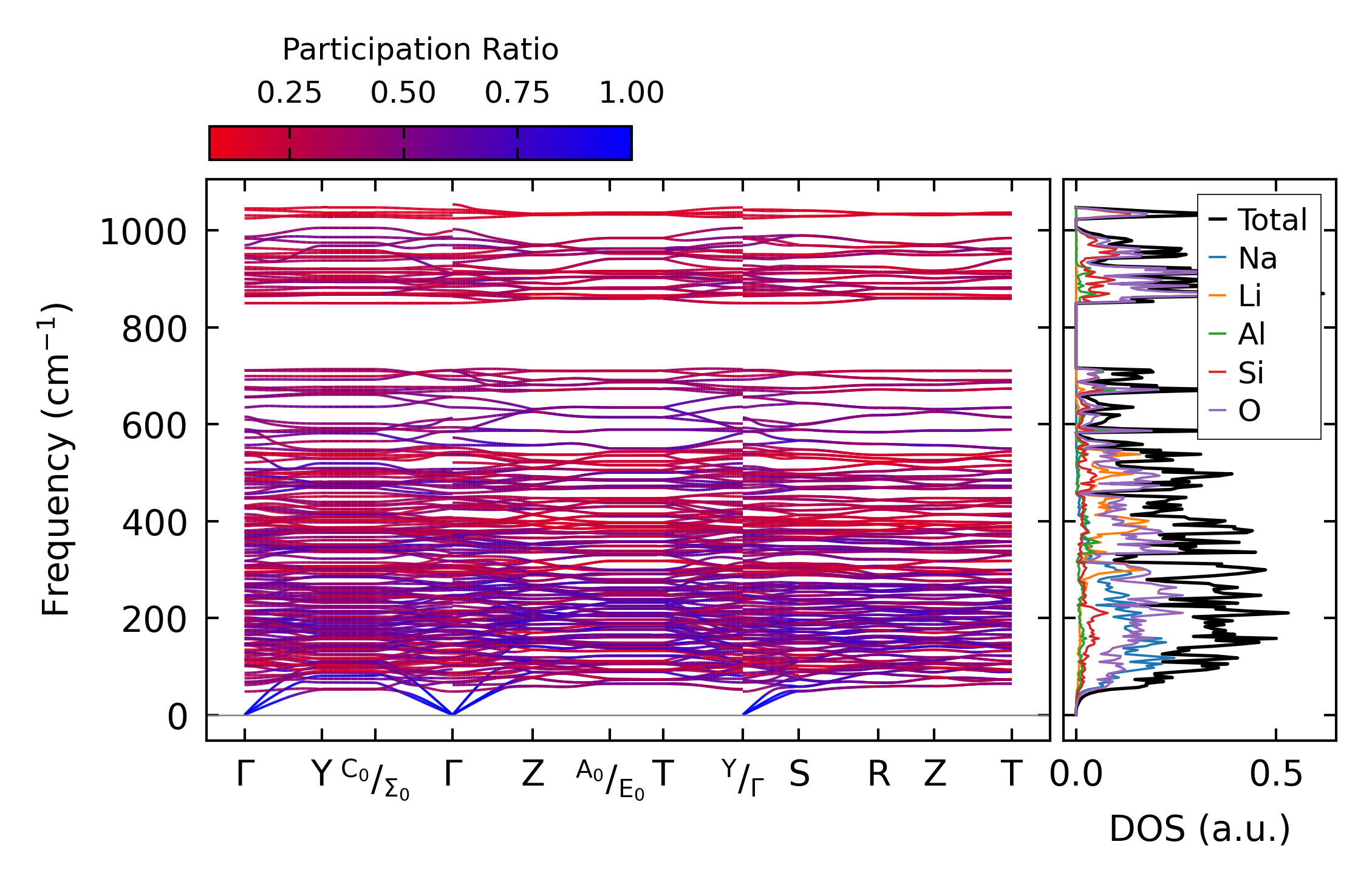

../../_images/fig_bandos_pr92.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo92.png — (b) Thermodynamic properties

Grüneisen parameters

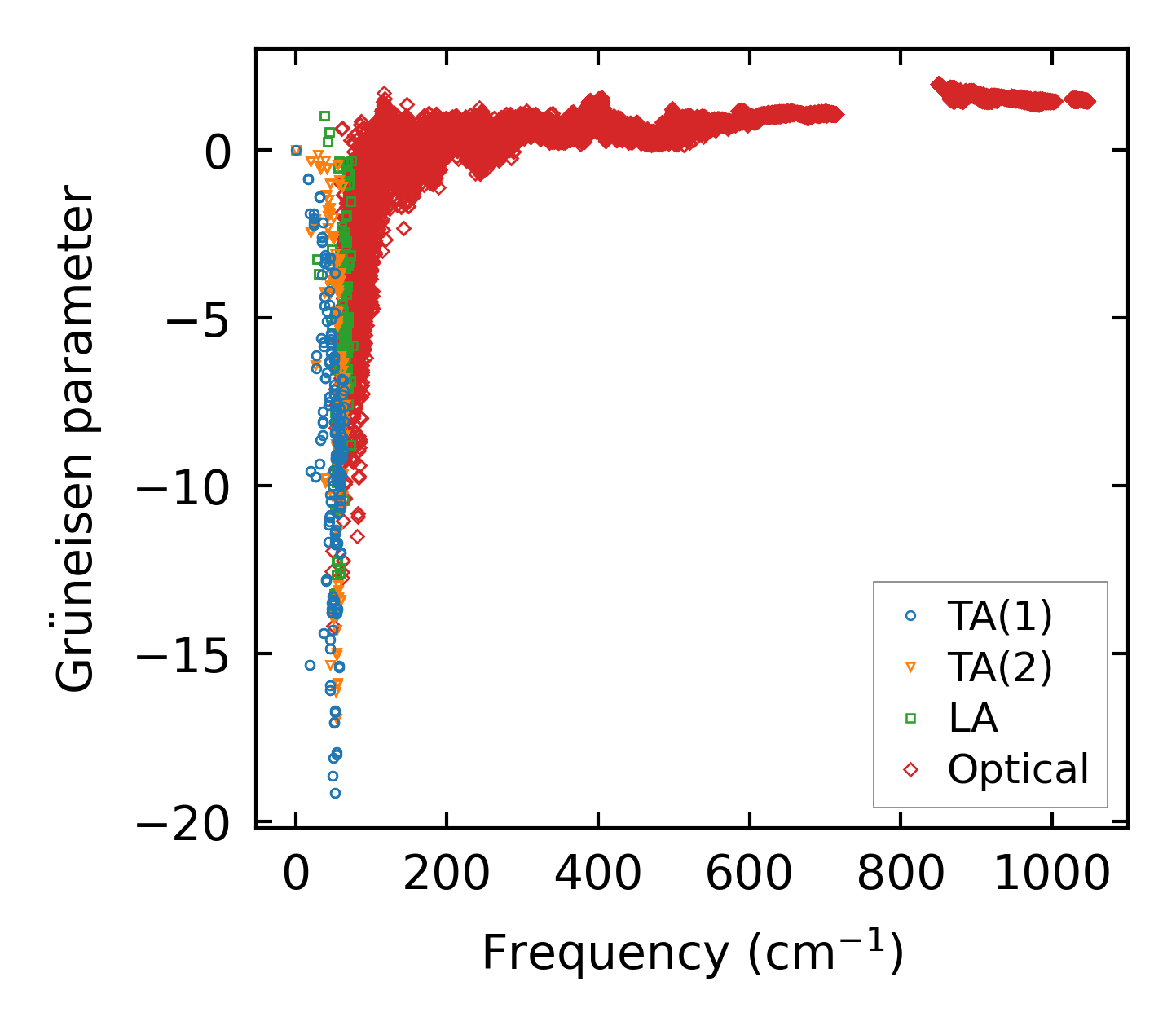

../../_images/fig_gru_all56.png — (a) Grüneisen parameters

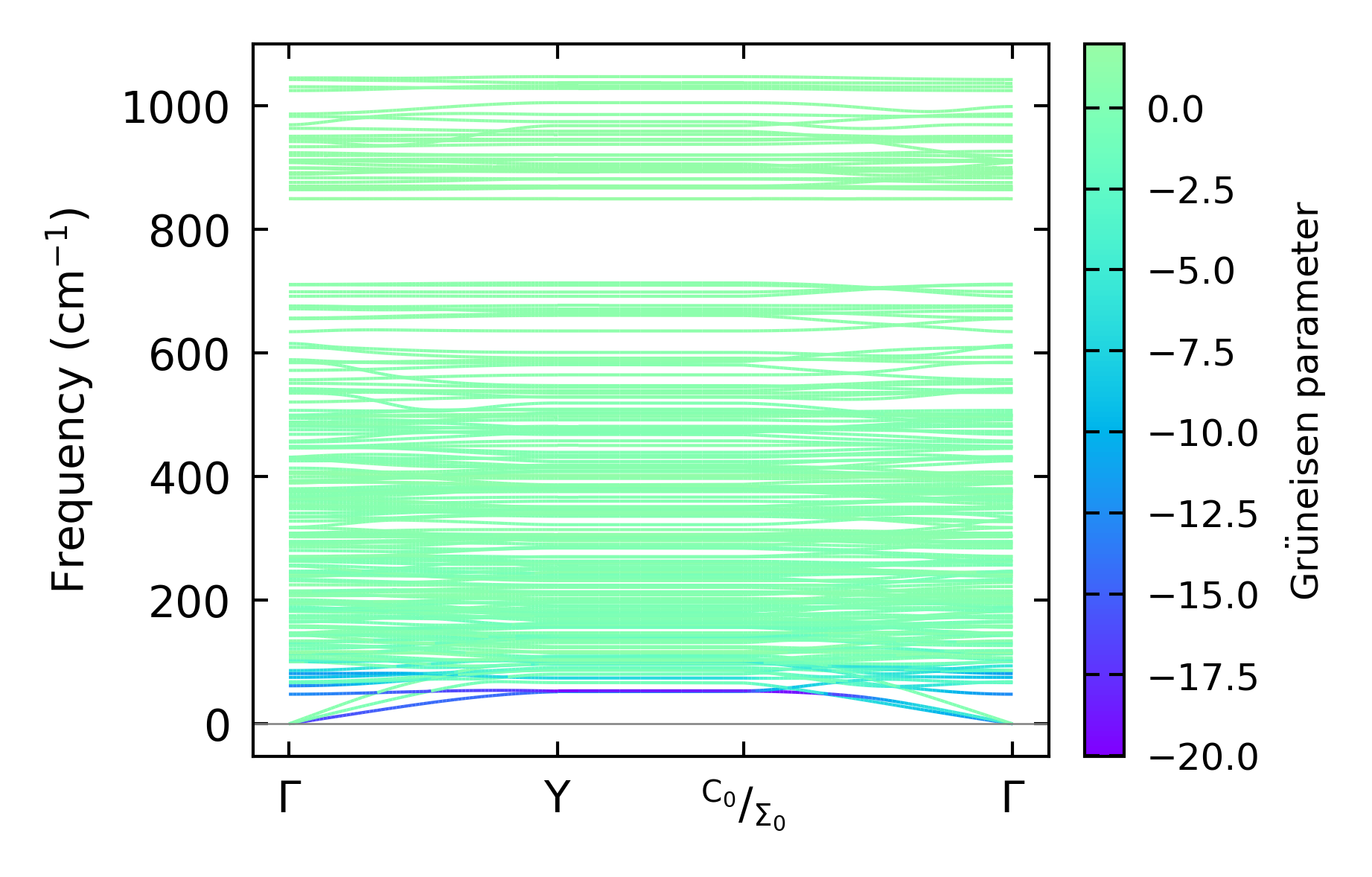

../../_images/fig_gruneisen56.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x7x10, supercell: 1x1x1

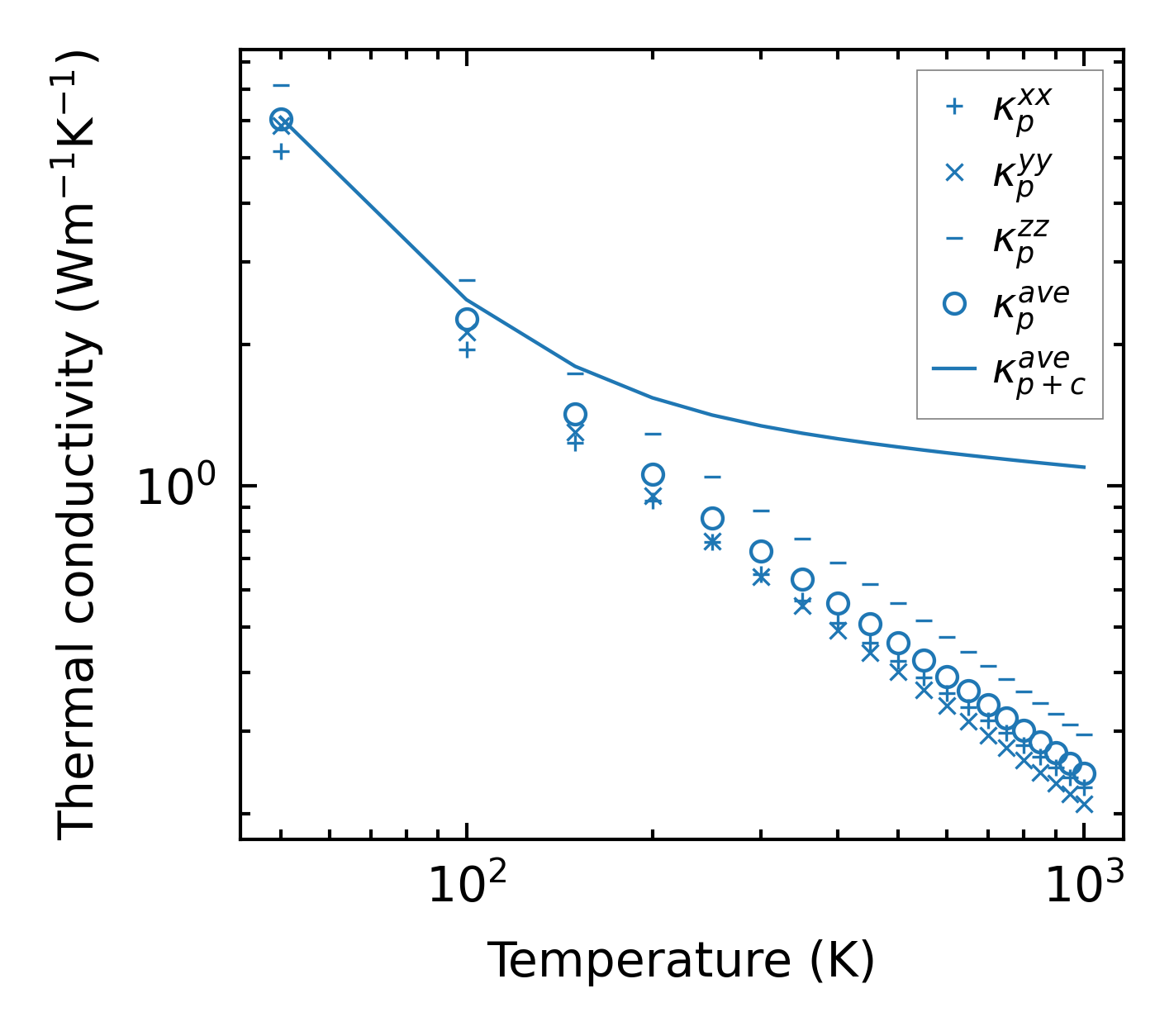

../../_images/fig_kappa110.png — (a) Temperature-dependent lattice thermal conductivity

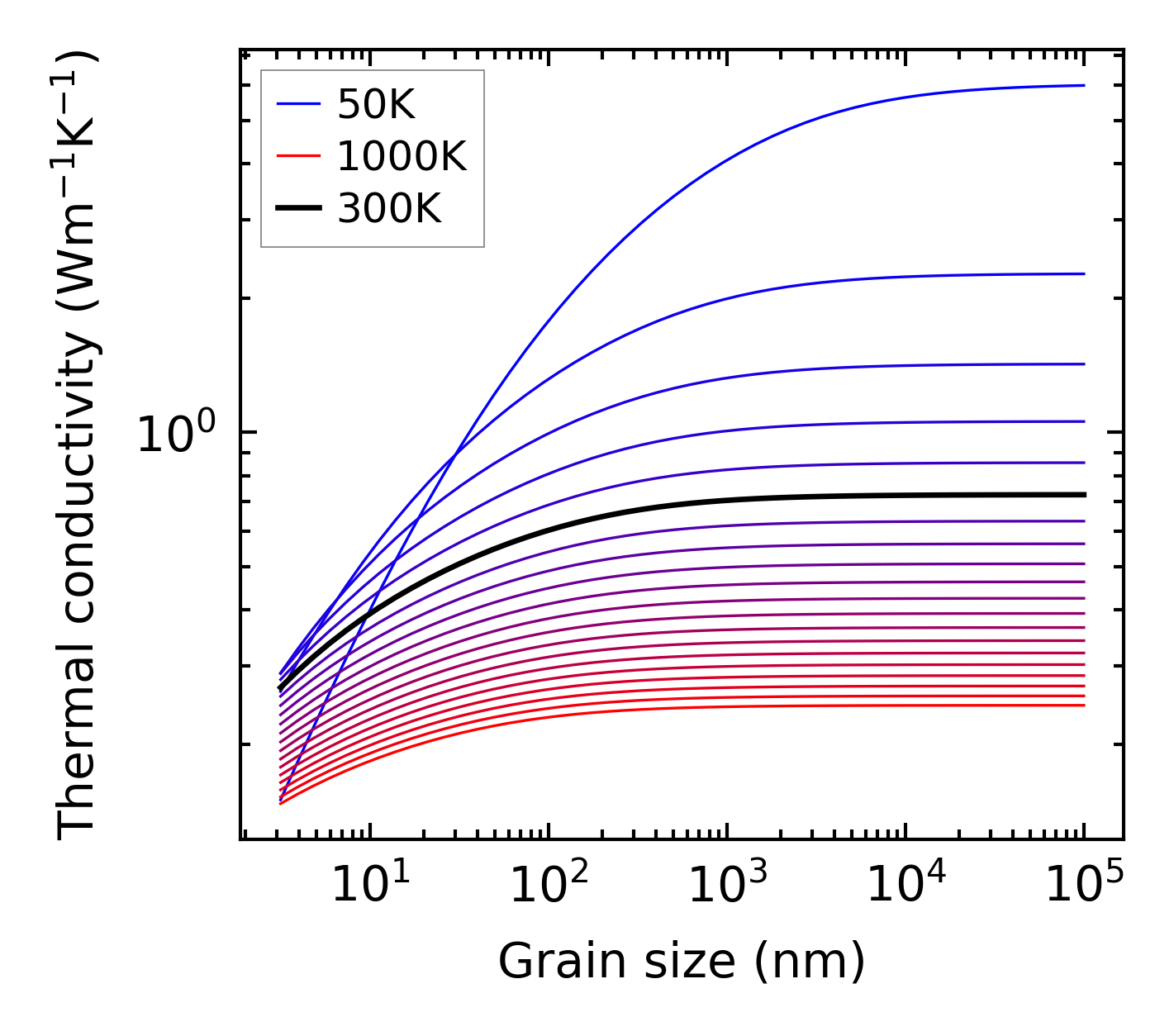

../../_images/fig_kappa_vs_grain_size58.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

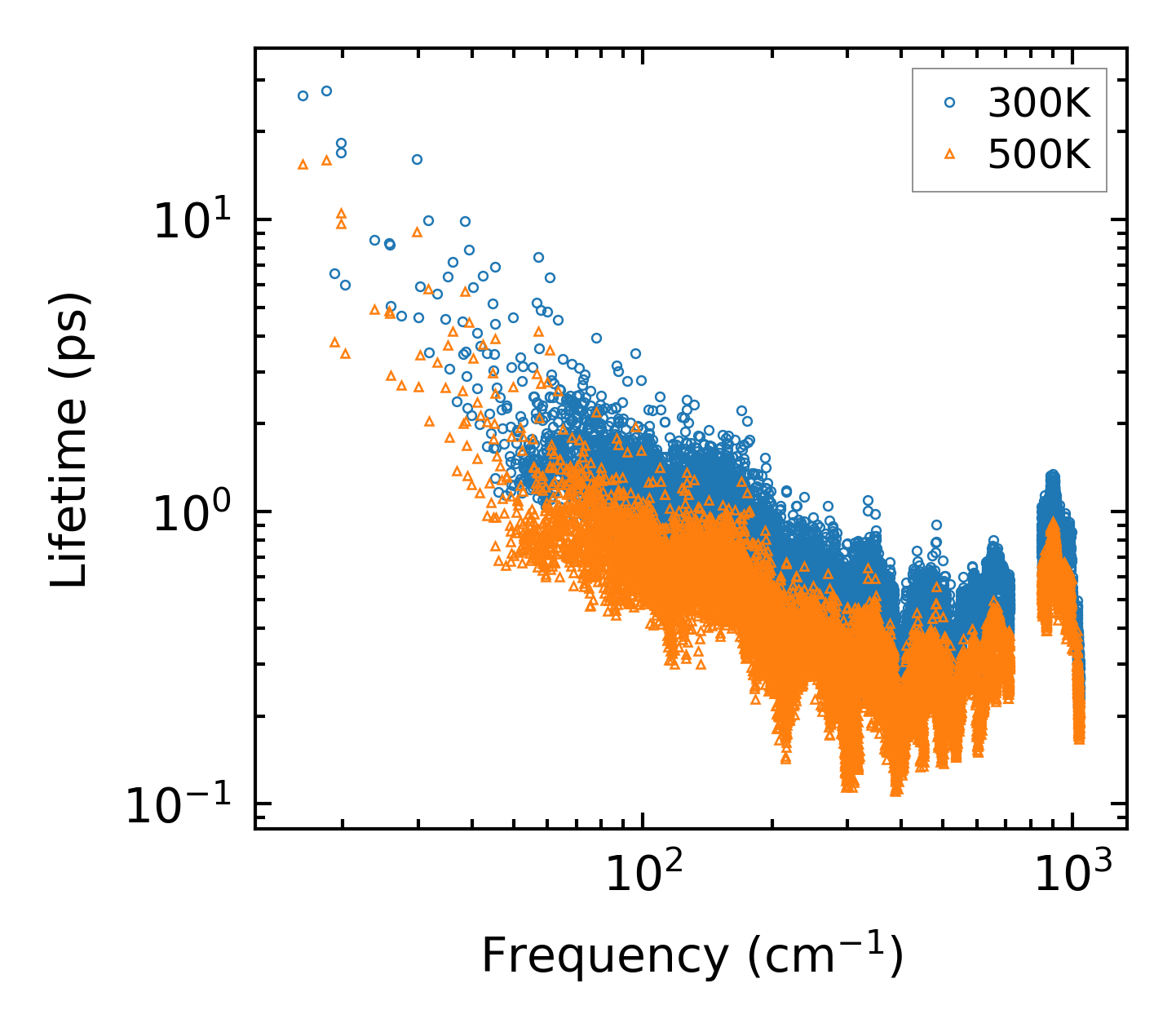

../../_images/fig_lifetime56.png — (a) Phonon lifetime due to phonon-phonon scattering

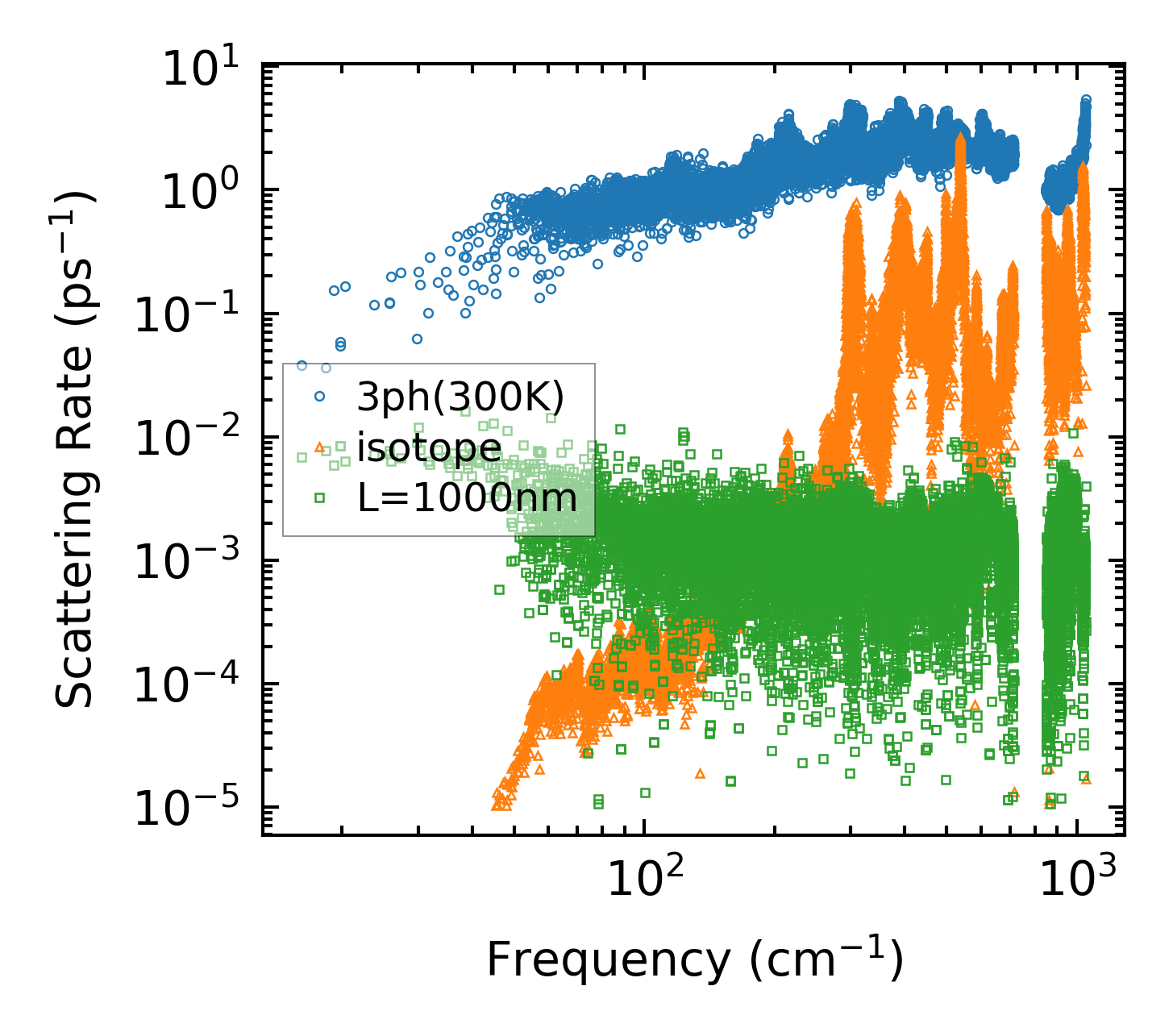

../../_images/fig_scat_rates56.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

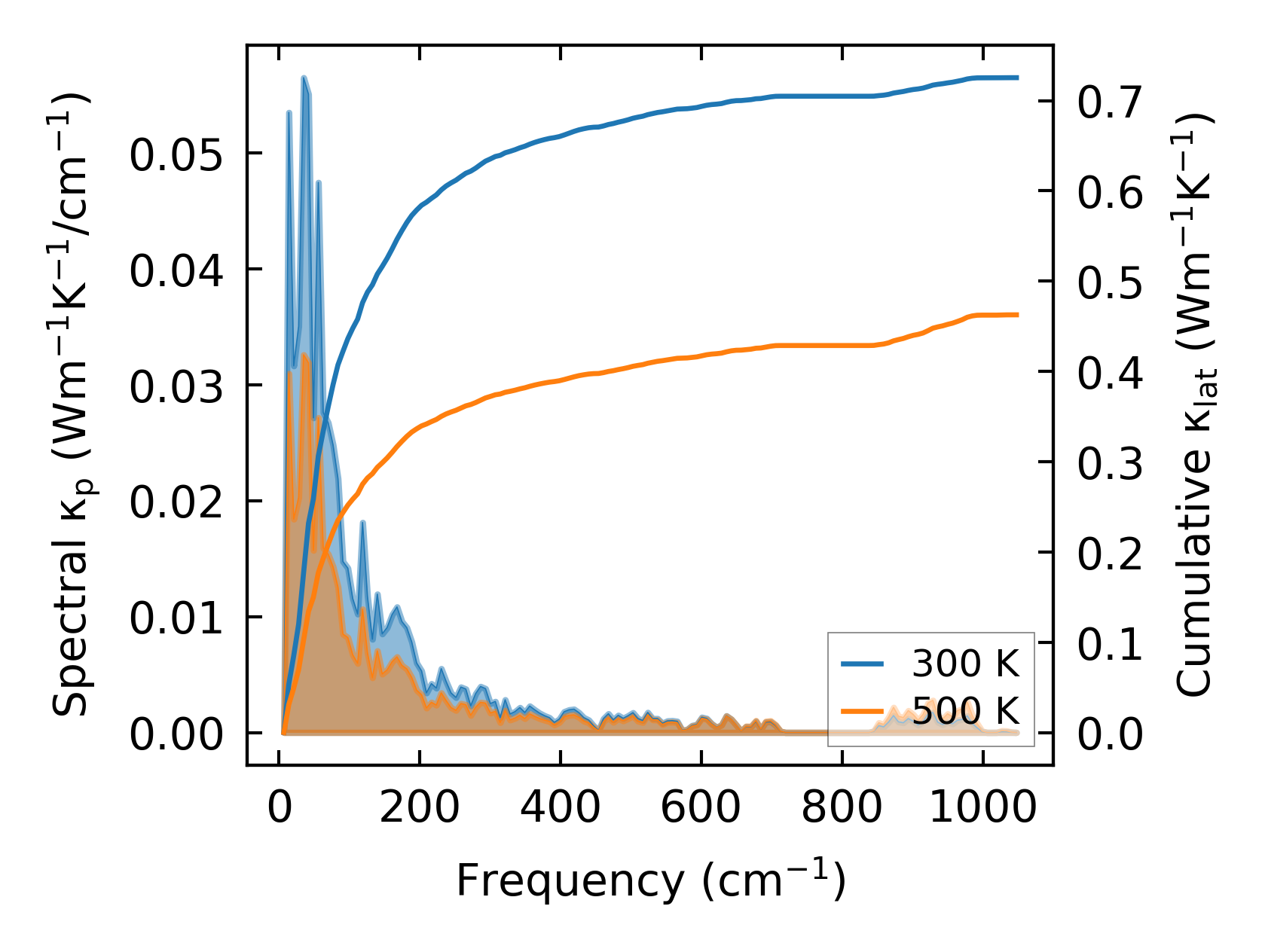

../../_images/fig_cumu_frequency56.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

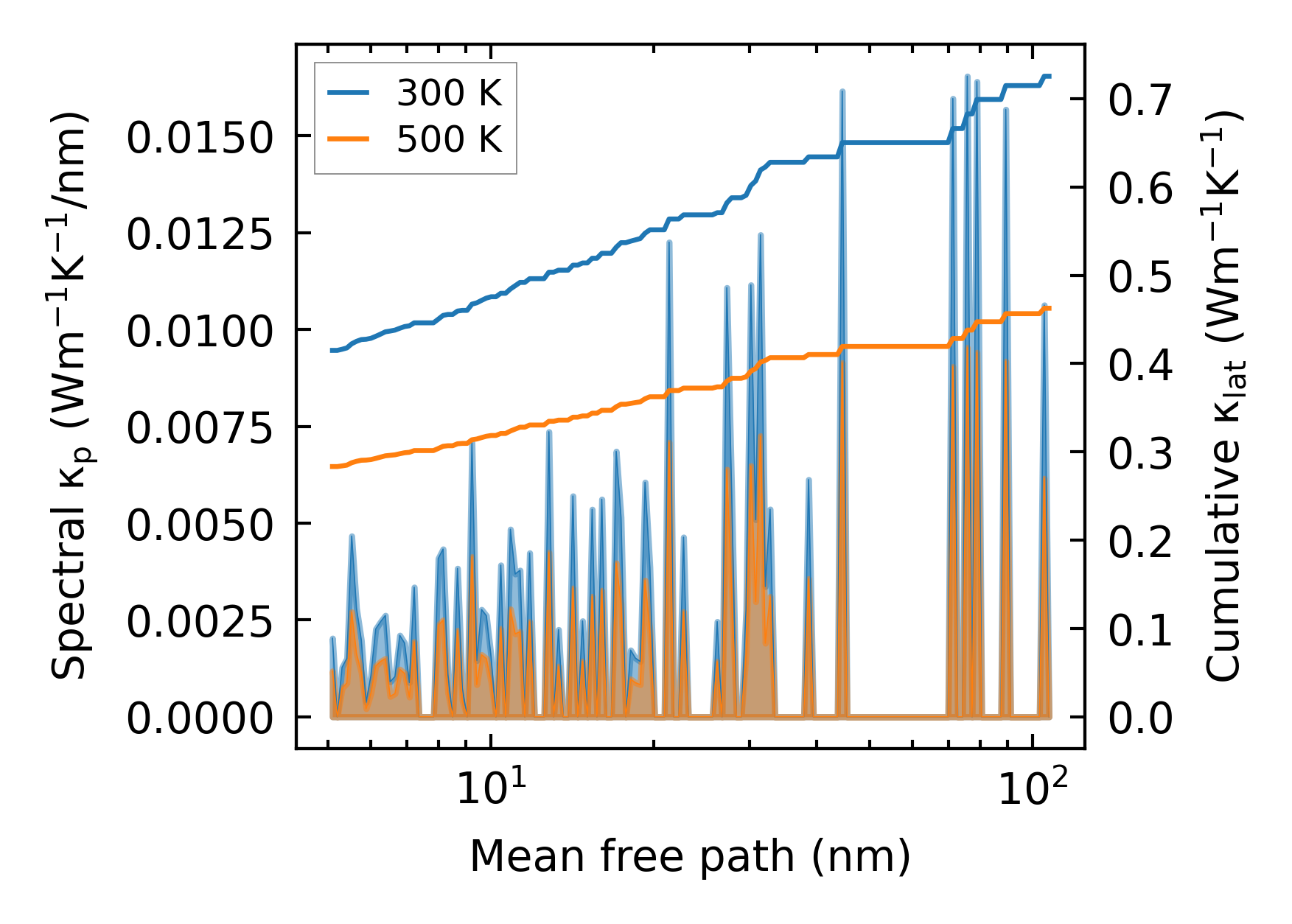

../../_images/fig_cumu_mfp56.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

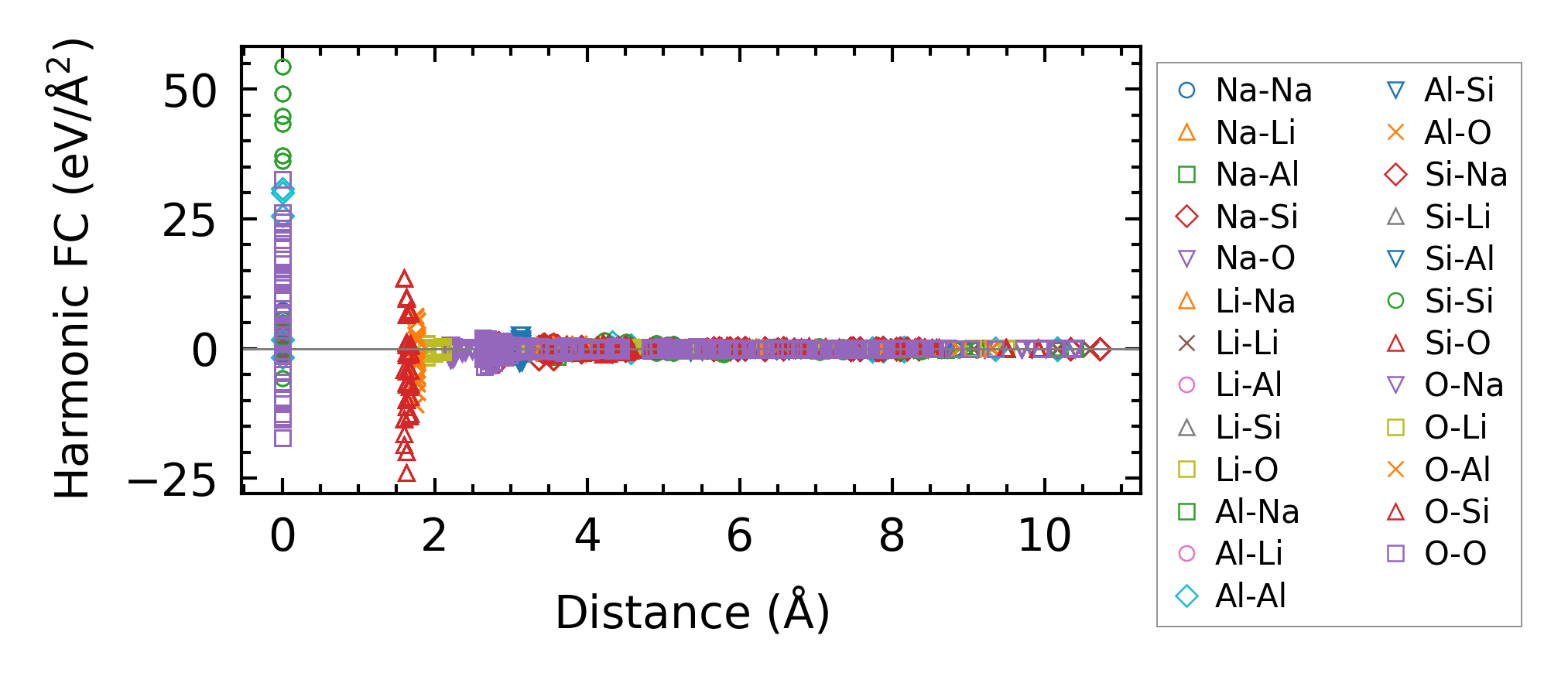

../../_images/fig_fc291.png — (a) Force constants w.r.t atomic distance

Summary

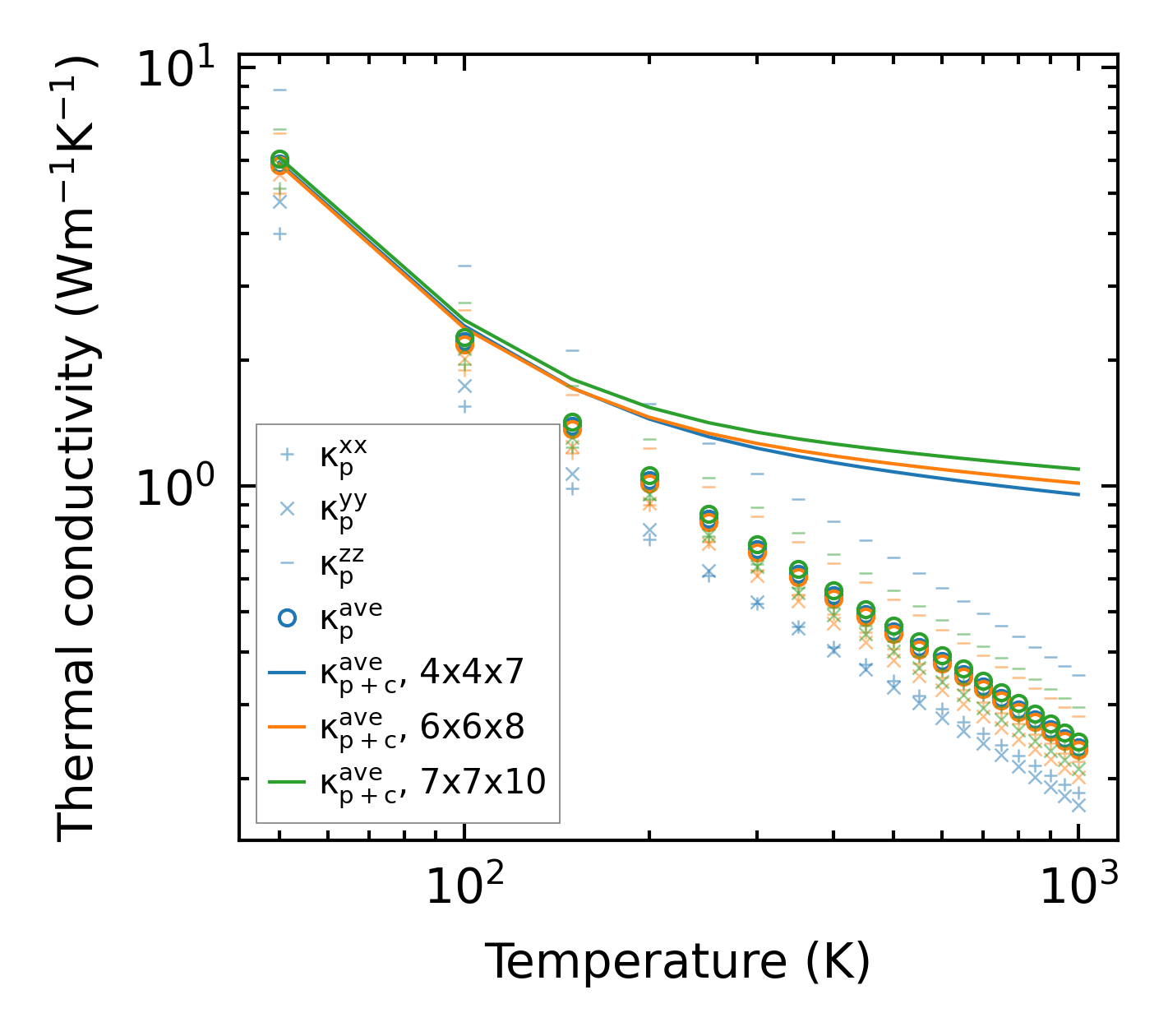

../../_images/fig_kappa111.png — (a) Temperature-dependent lattice thermal conductivity

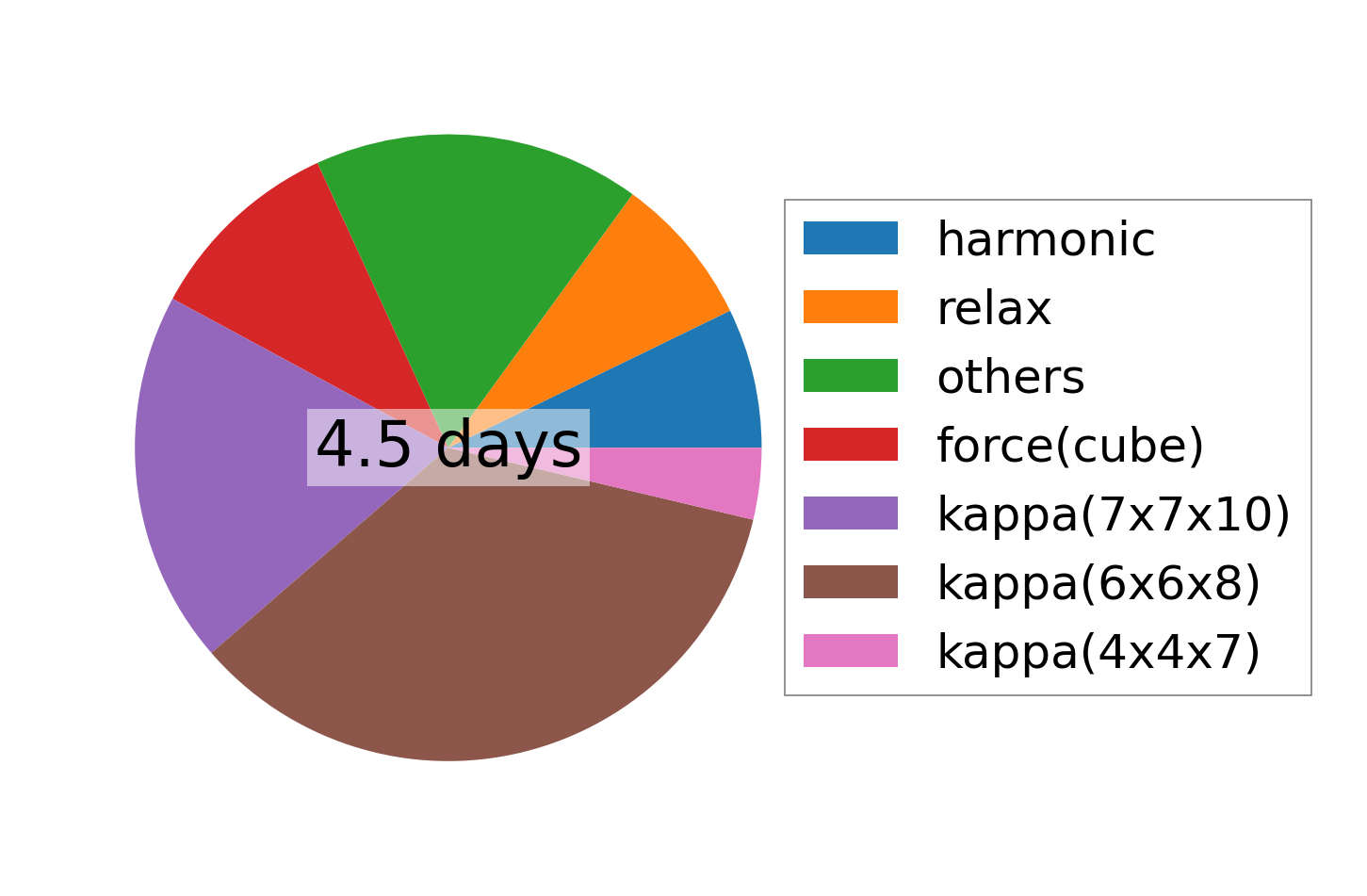

../../_images/fig_times157.png — (b) Computation time
