mp-866314/Ca5Al2Si2N8/anharm

Space group: Pbcn (60)
Link: Materials Project
Download: mp-866314.tar.gz

Harmonic properties

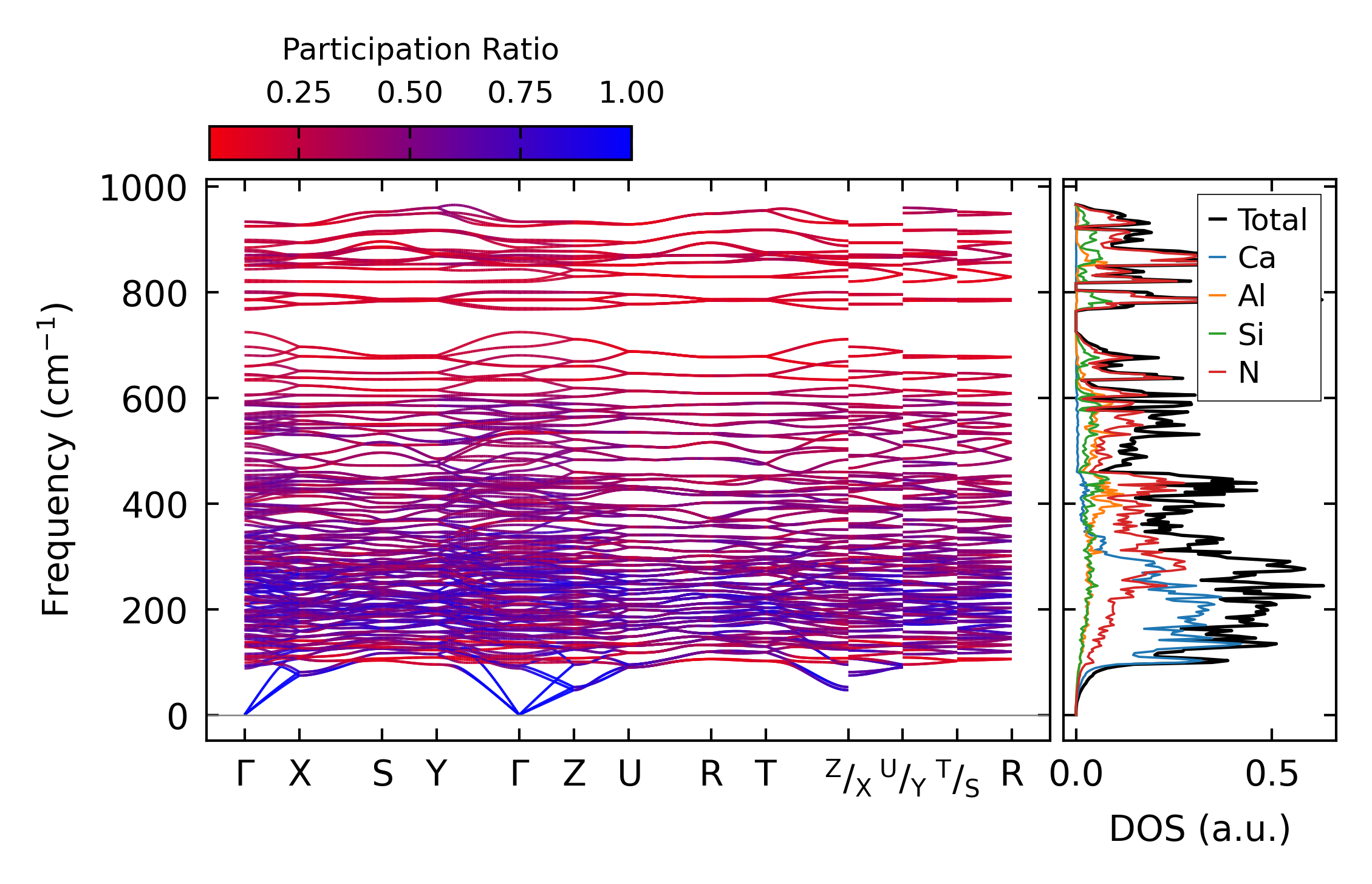

../../_images/fig_bandos_pr1601.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo1601.png — (b) Thermodynamic properties

Grüneisen parameters

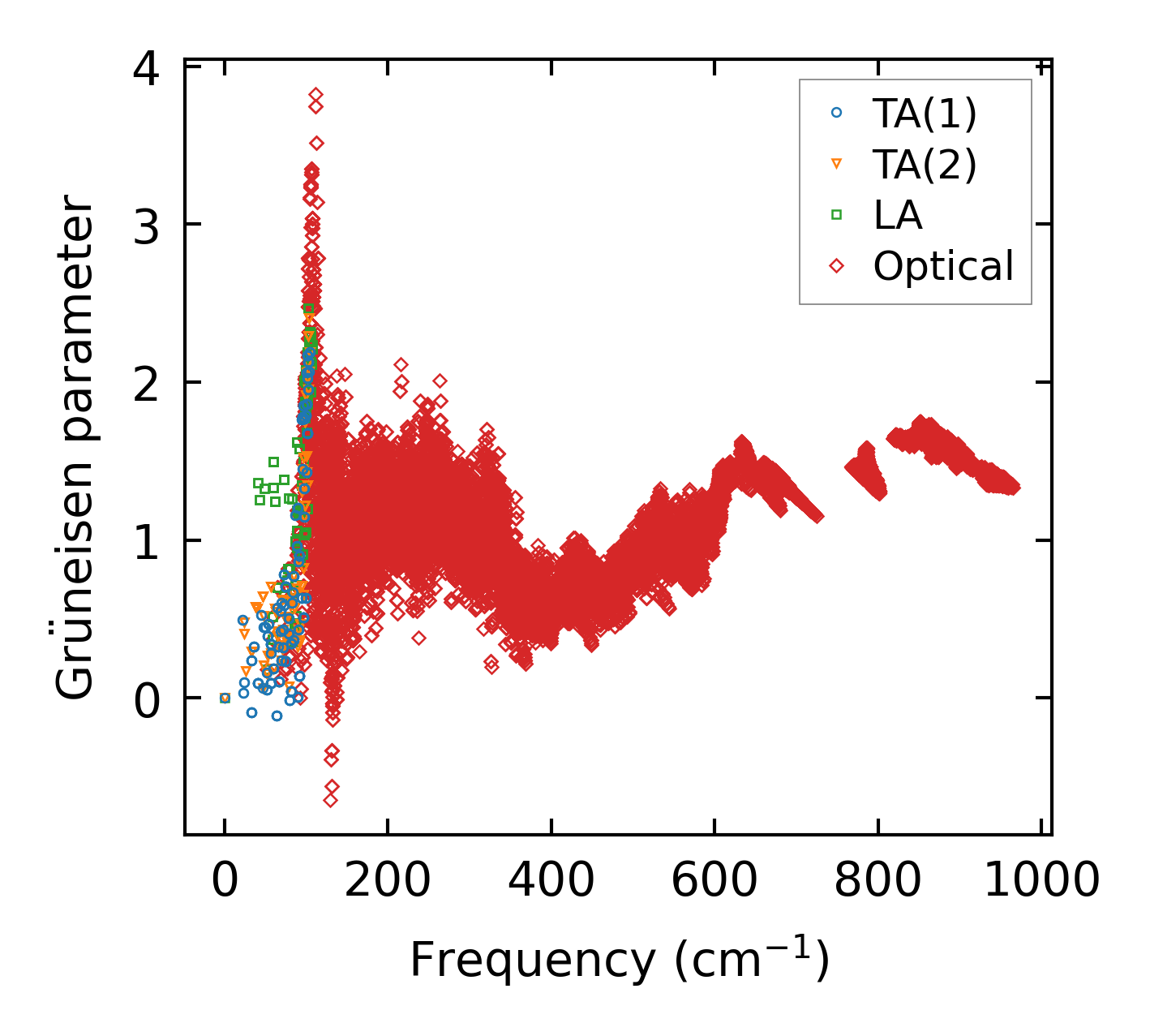

../../_images/fig_gru_all955.png — (a) Grüneisen parameters

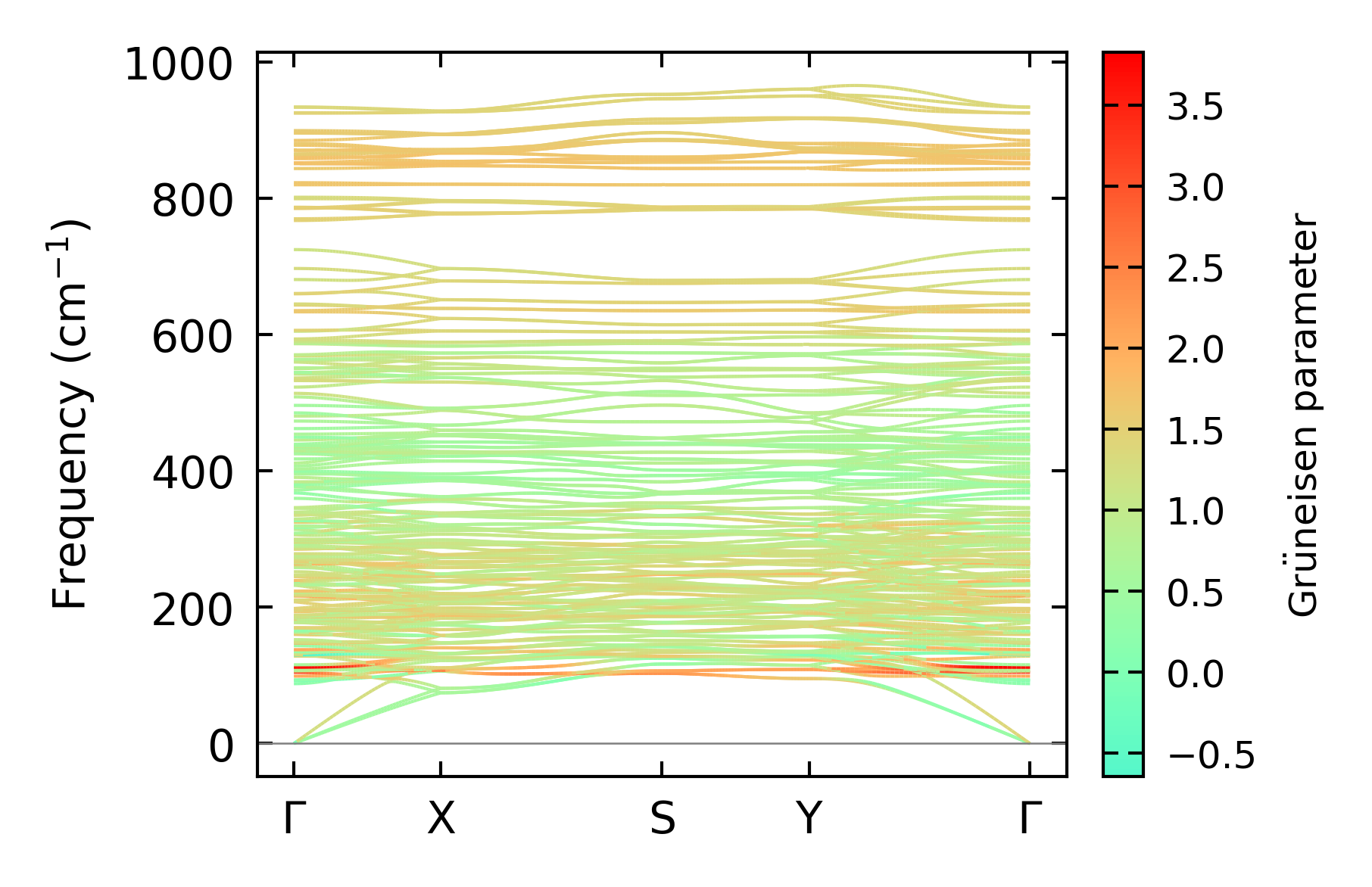

../../_images/fig_gruneisen955.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x11x4, supercell: 1x2x1

../../_images/fig_kappa1852.png — (a) Temperature-dependent lattice thermal conductivity

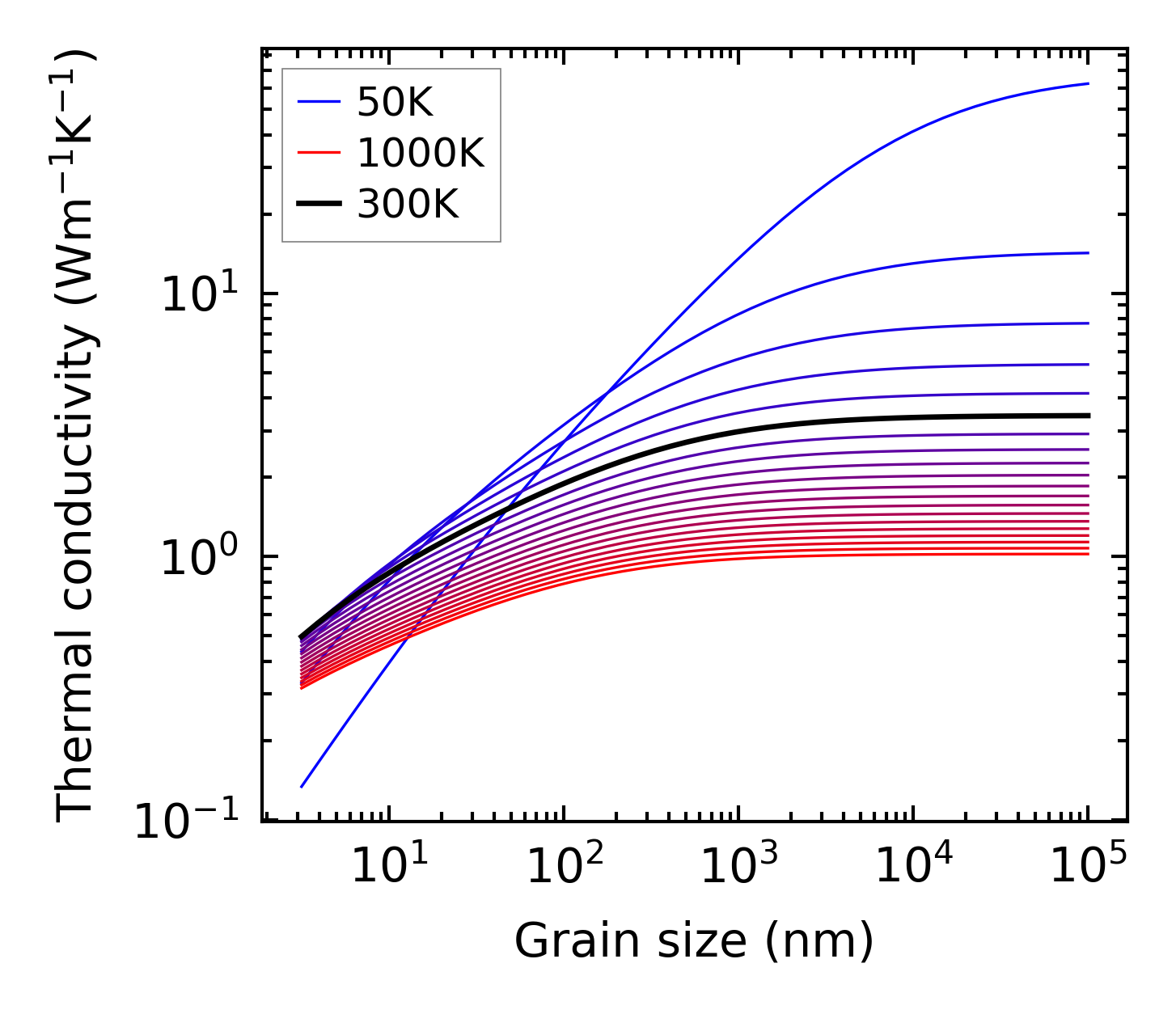

../../_images/fig_kappa_vs_grain_size965.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime948.png — (a) Phonon lifetime due to phonon-phonon scattering

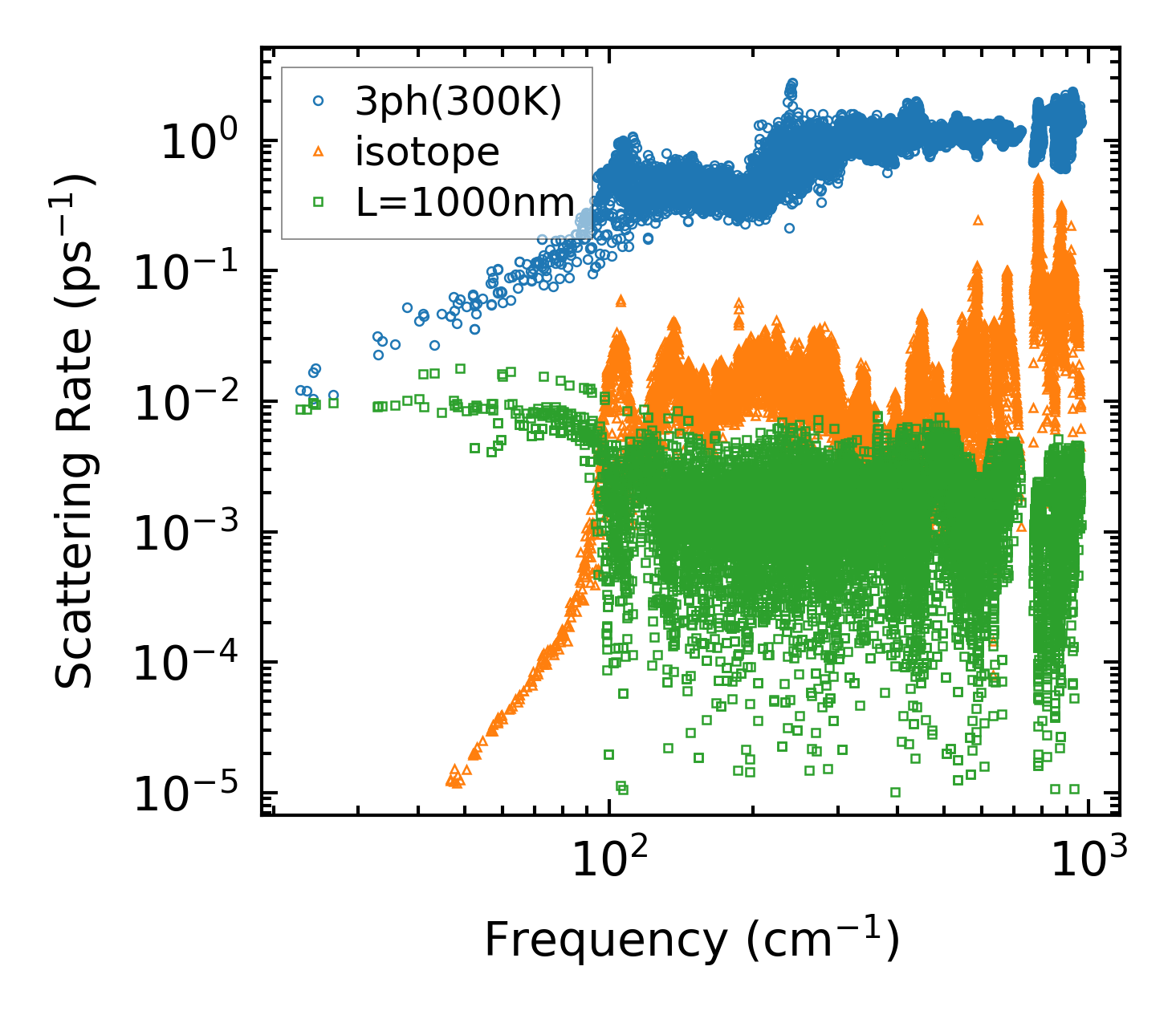

../../_images/fig_scat_rates947.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency948.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp948.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

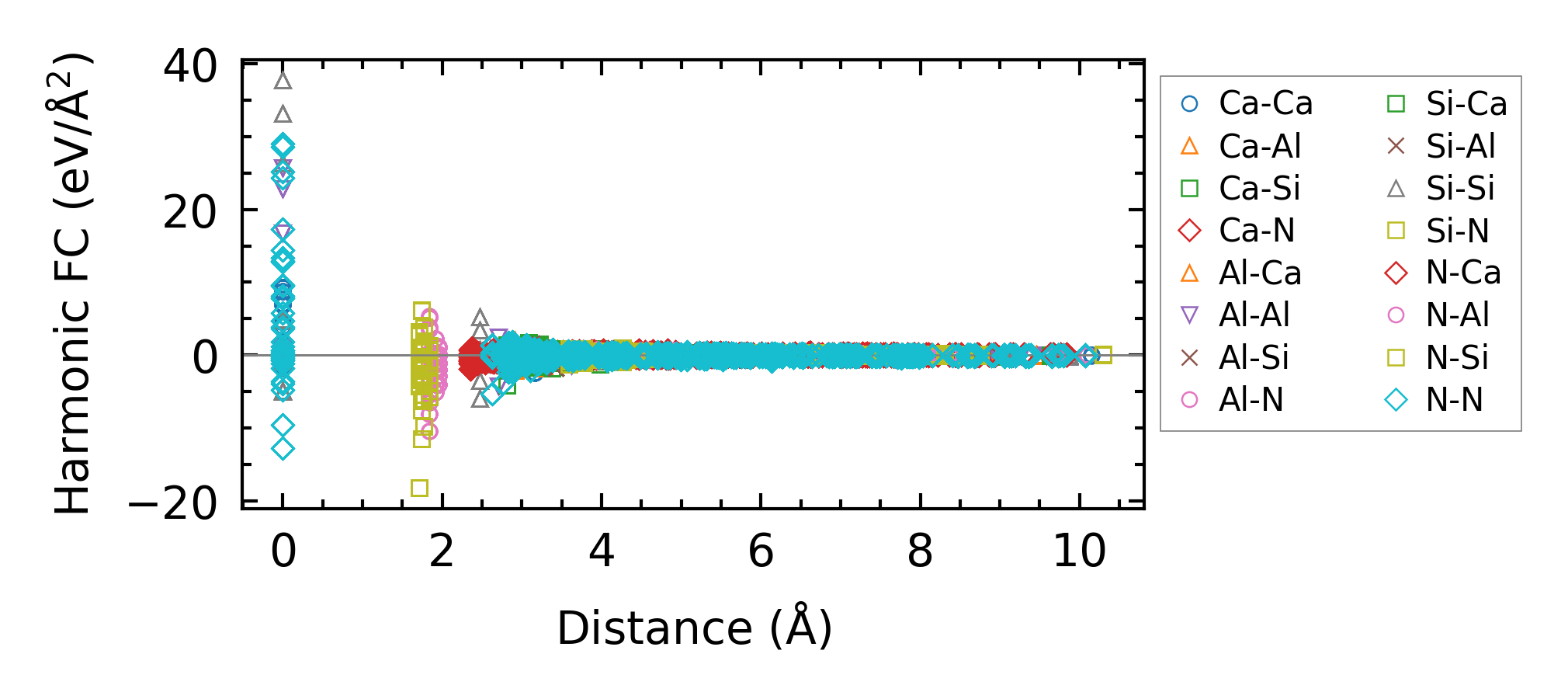

../../_images/fig_fc21434.png — (a) Force constants w.r.t atomic distance

Summary

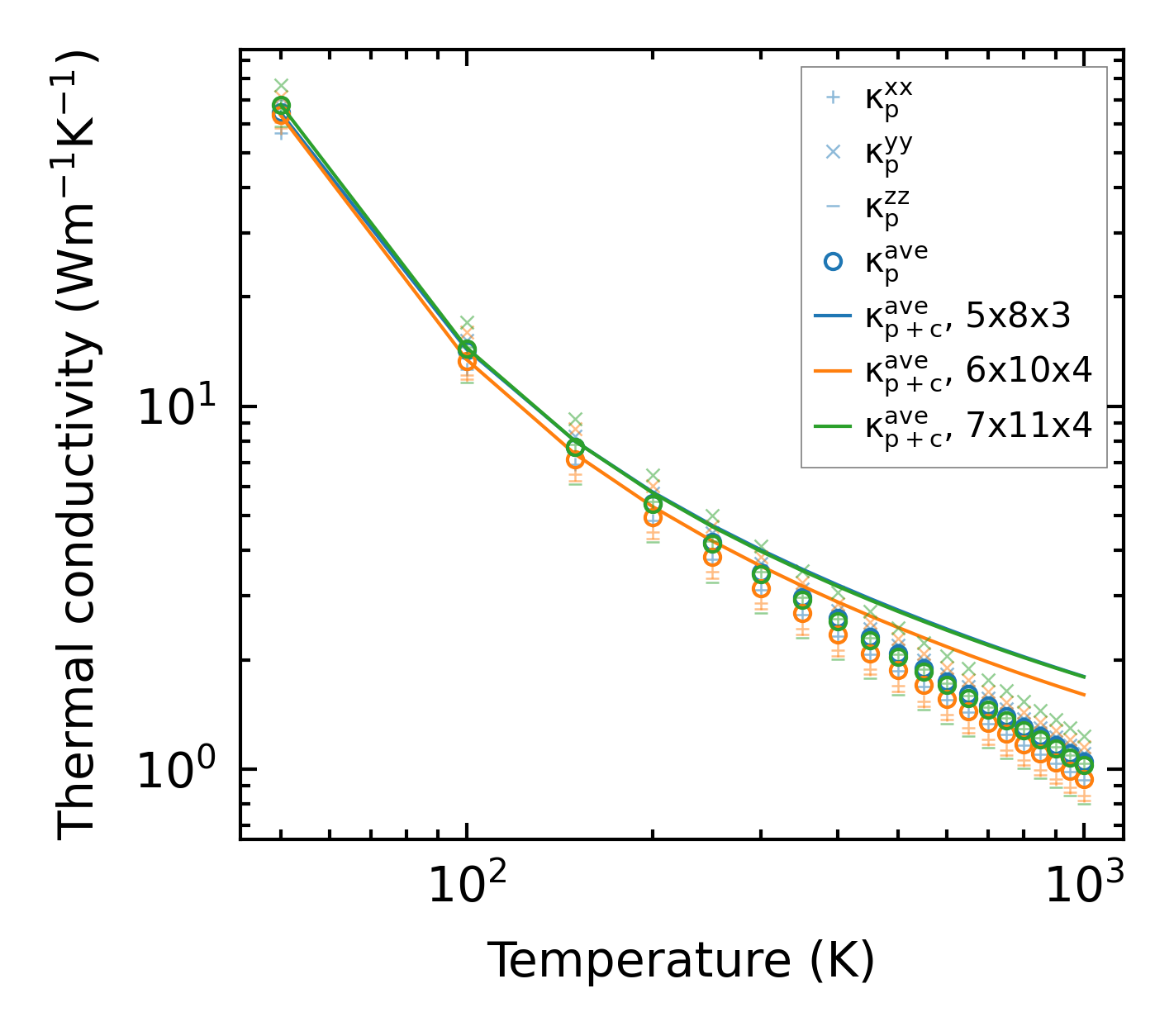

../../_images/fig_kappa1853.png — (a) Temperature-dependent lattice thermal conductivity

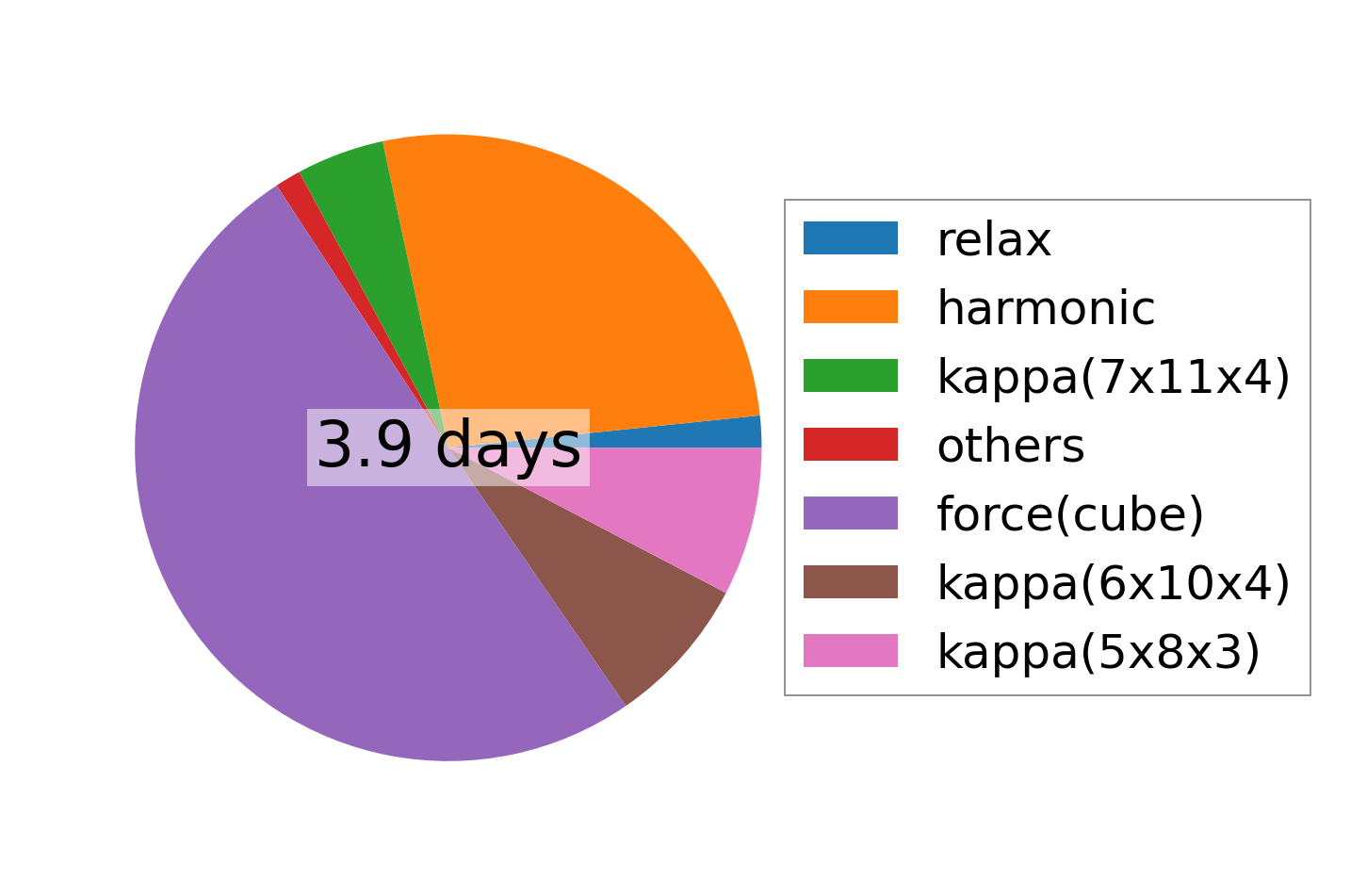

../../_images/fig_times2406.png — (b) Computation time
