mp-866291/AgBr/anharm

Space group: F-43m (216)
Link: Materials Project
Download: mp-866291.tar.gz

Harmonic properties

../../_images/fig_bandos_pr1594.png — (a) Phonon dispersion with participation ratio and DOS

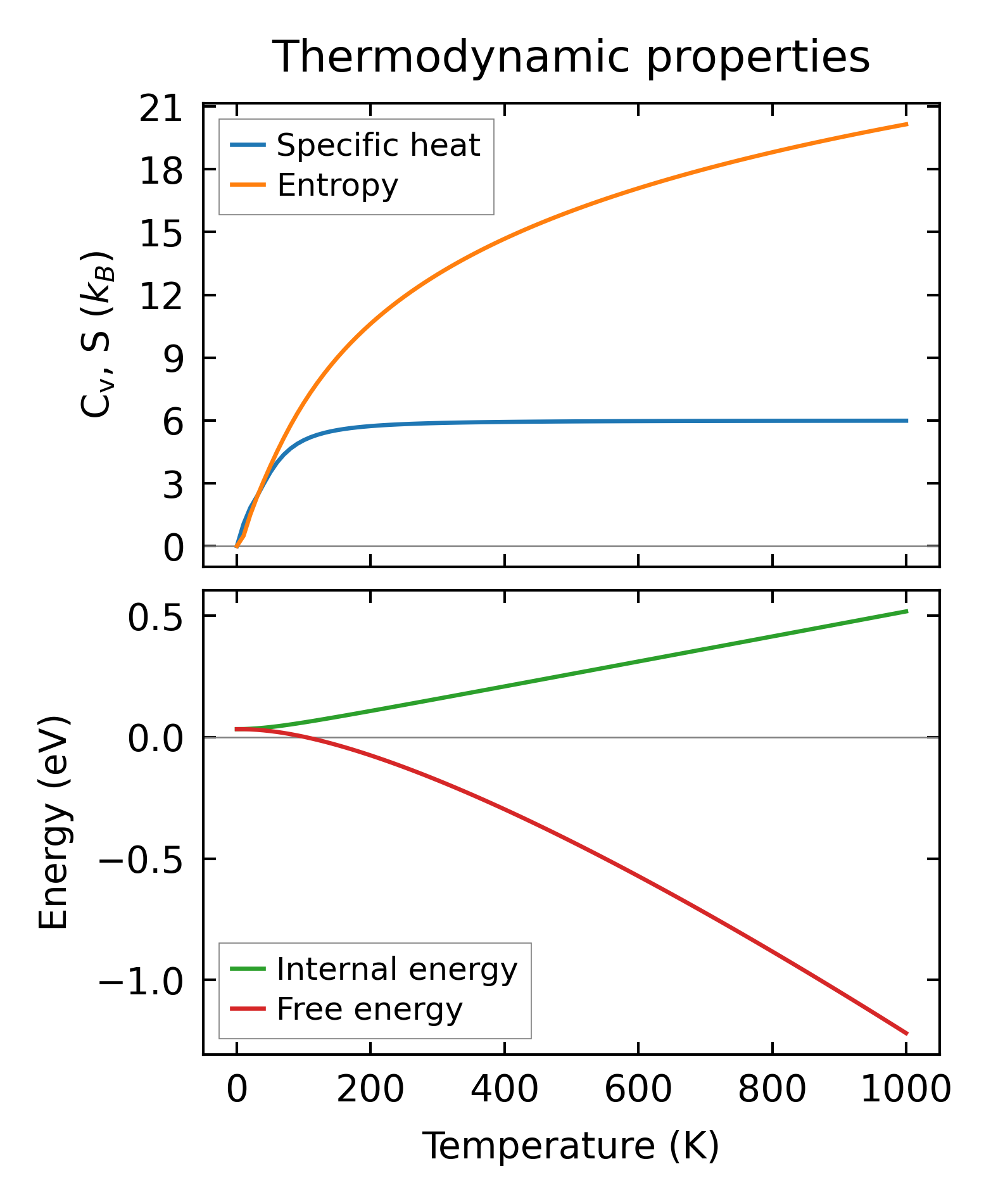

../../_images/fig_thermo1594.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all949.png — (a) Grüneisen parameters

../../_images/fig_gruneisen949.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon — q-mesh: 18x18x18, supercell: 2x2x2

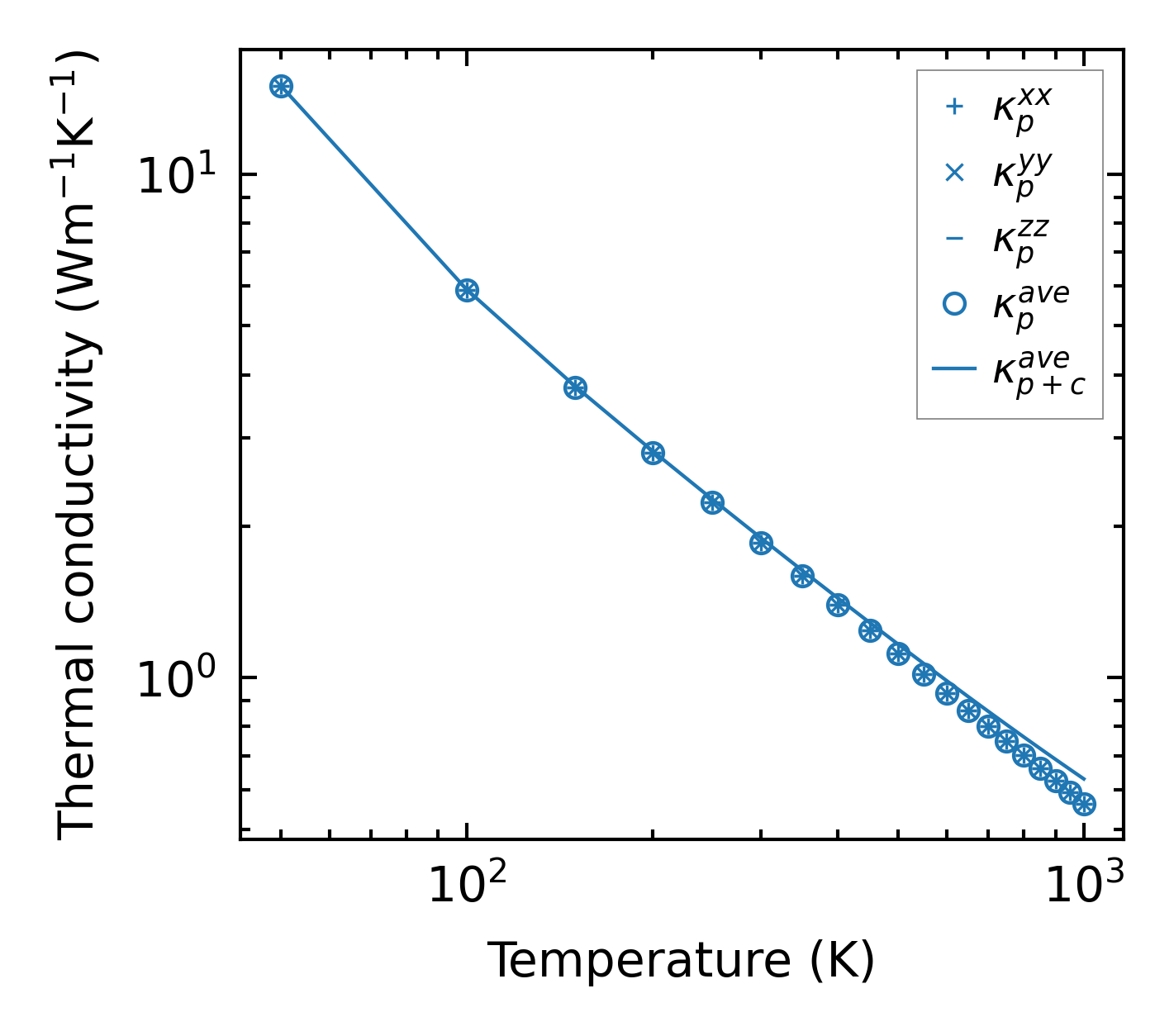

../../_images/fig_kappa1840.png — (a) Temperature-dependent lattice thermal conductivity

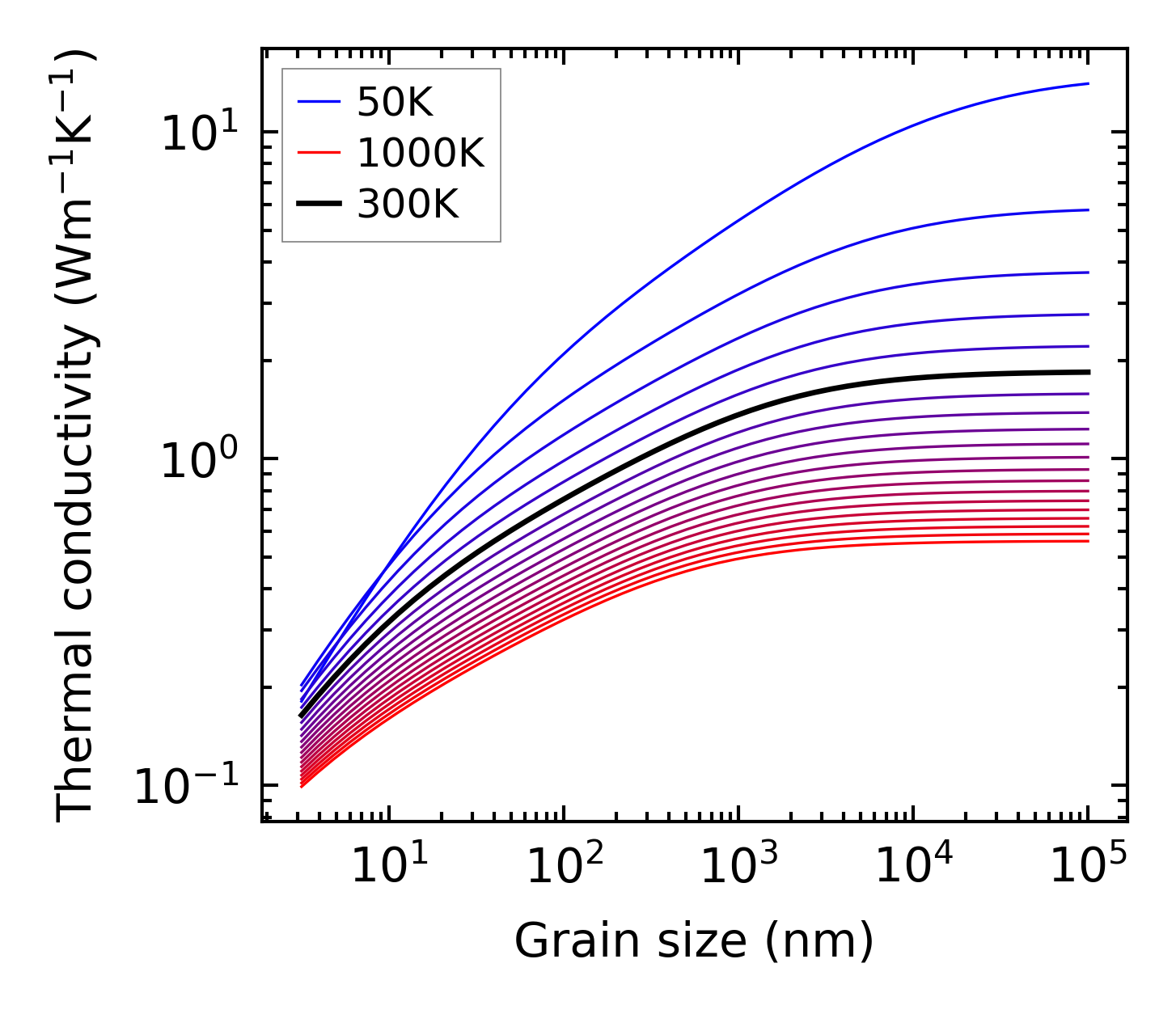

../../_images/fig_kappa_vs_grain_size959.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime942.png — (a) Phonon lifetime due to phonon-phonon scattering

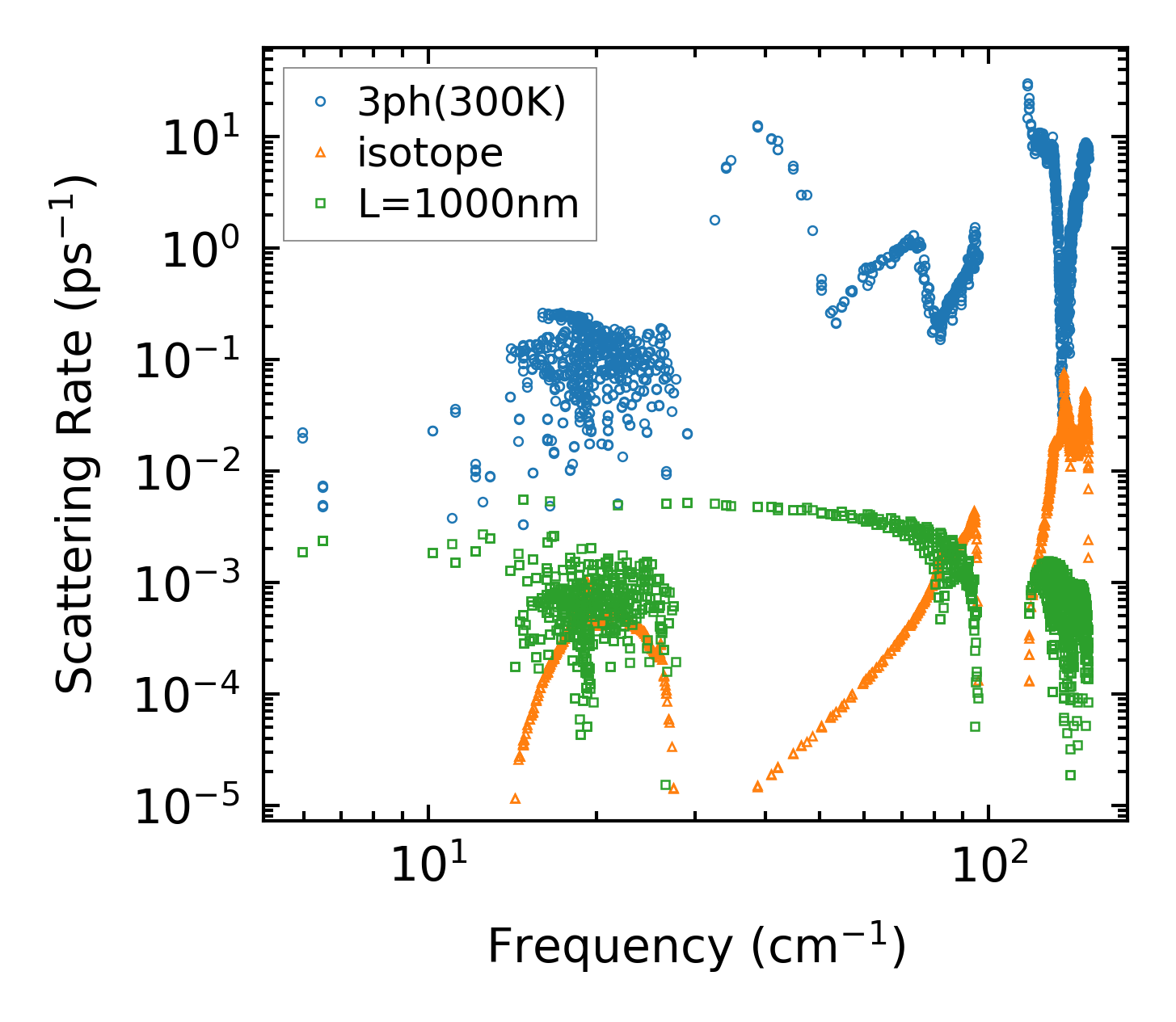

../../_images/fig_scat_rates941.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency942.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

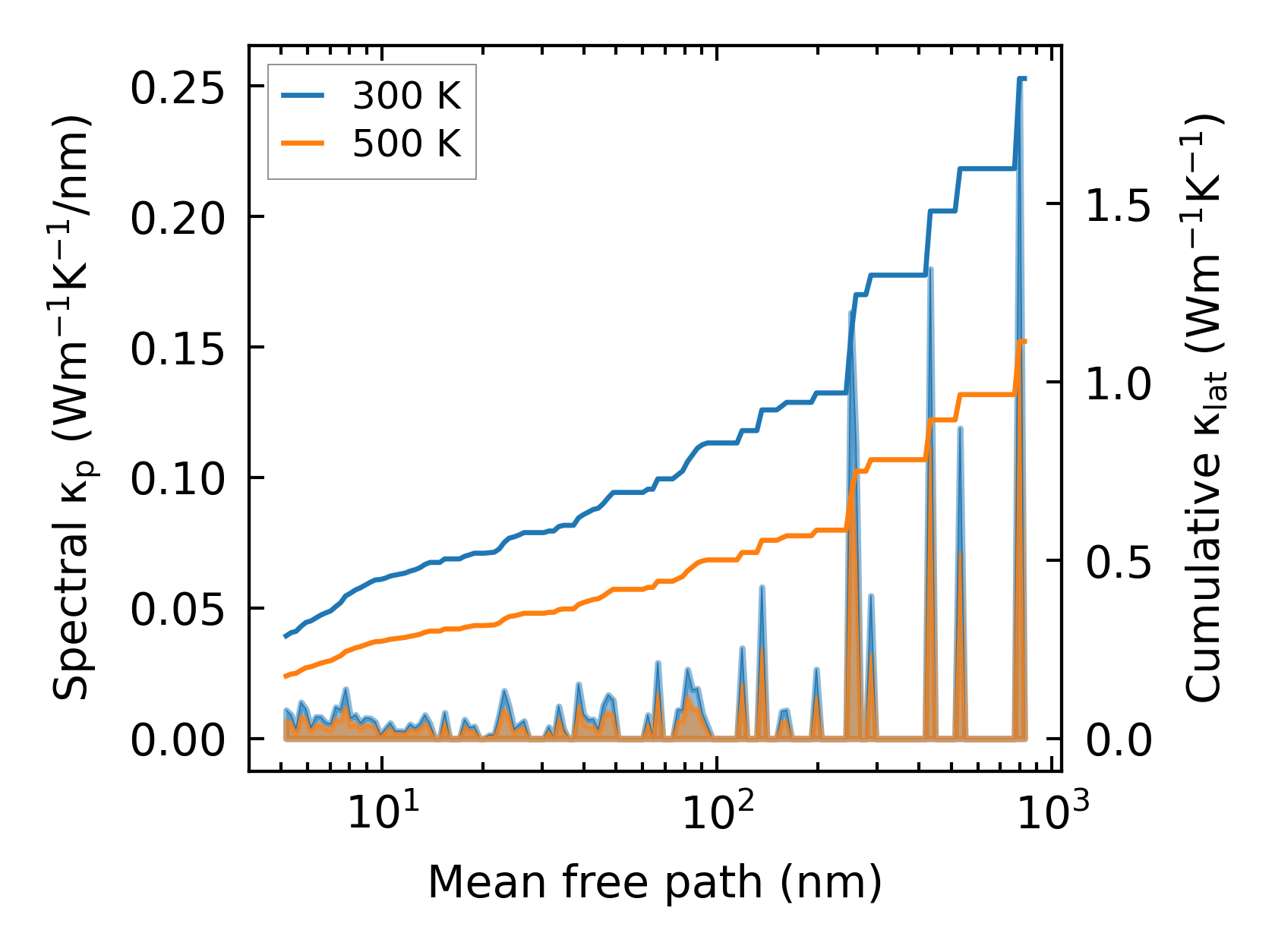

../../_images/fig_cumu_mfp942.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

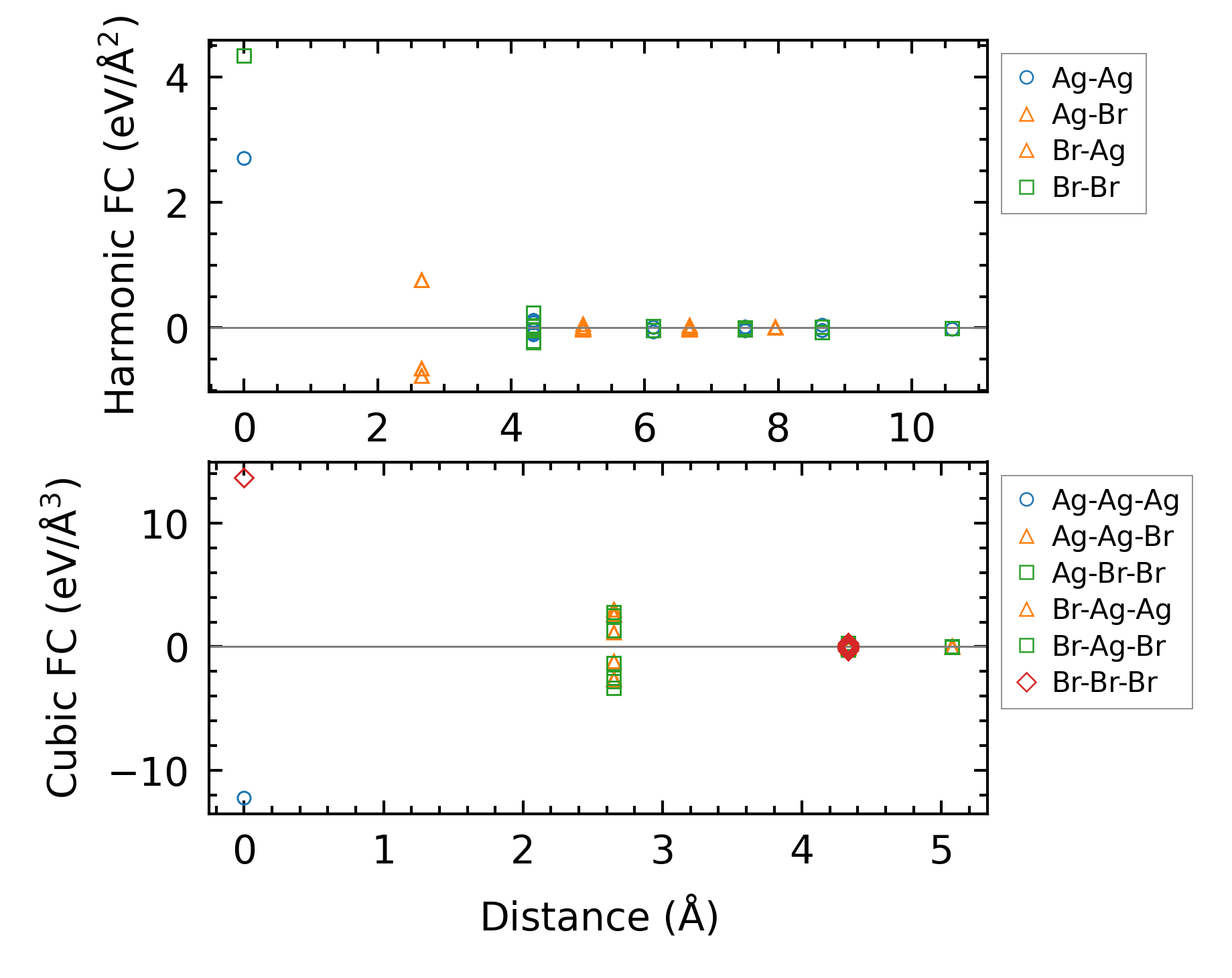

../../_images/fig_fc3166.png — (a) Force constants w.r.t atomic distance

Summary

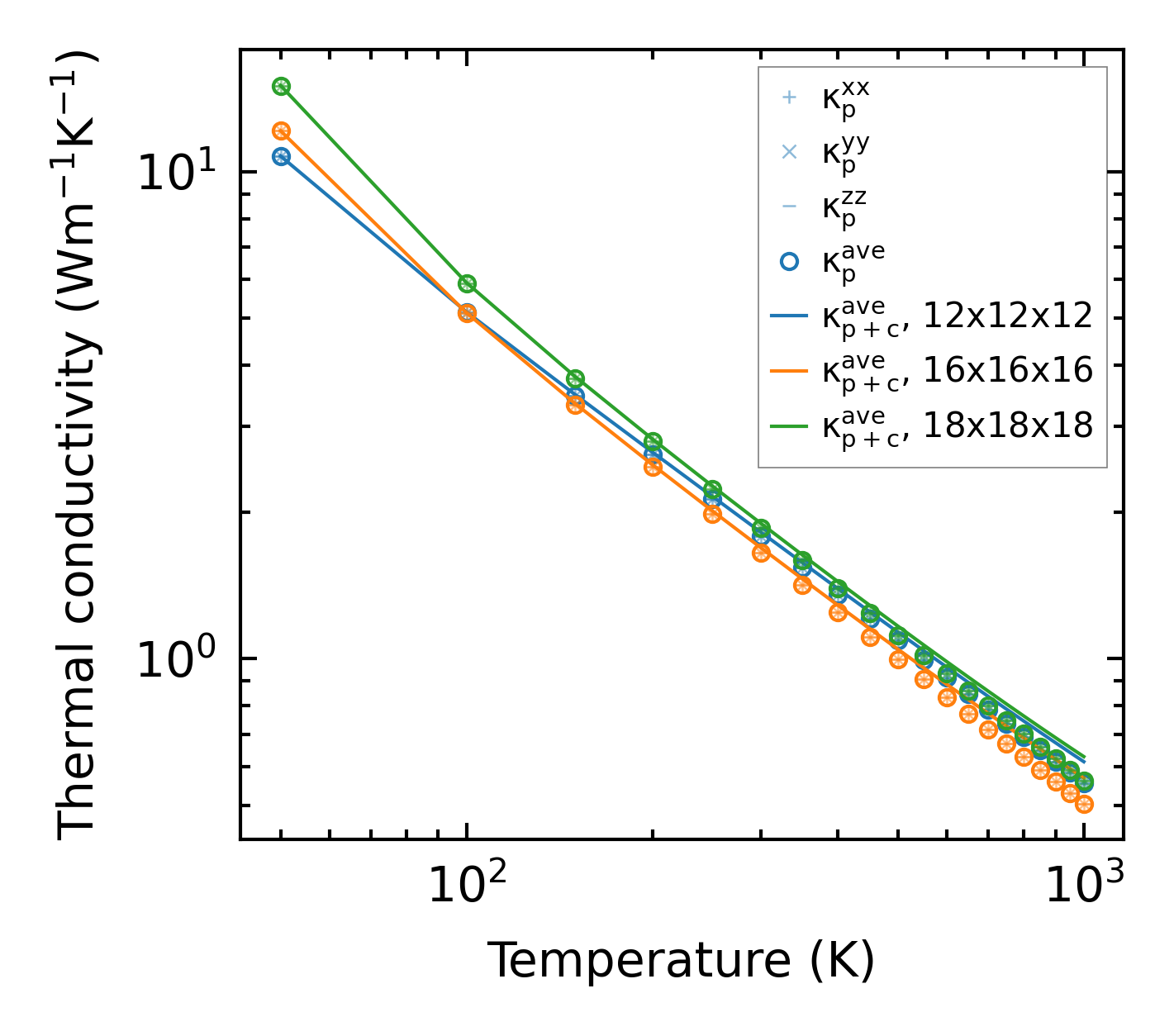

../../_images/fig_kappa1841.png — (a) Temperature-dependent lattice thermal conductivity

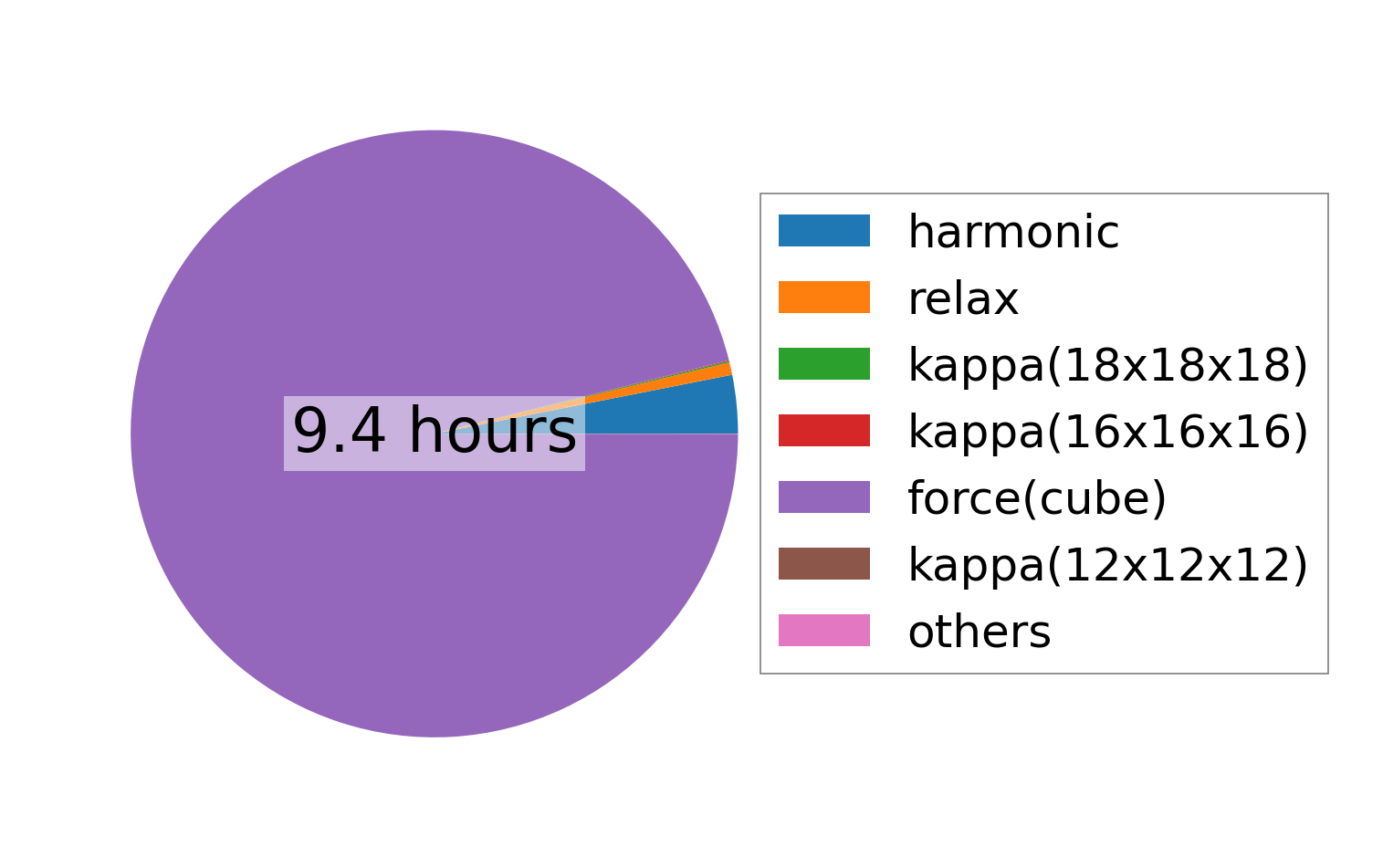

../../_images/fig_times2396.png — (b) Computation time
