mp-776894/NaTiO2/anharm

Space group: Pbca (61)
Link: Materials Project
Download: mp-776894.tar.gz

Harmonic properties

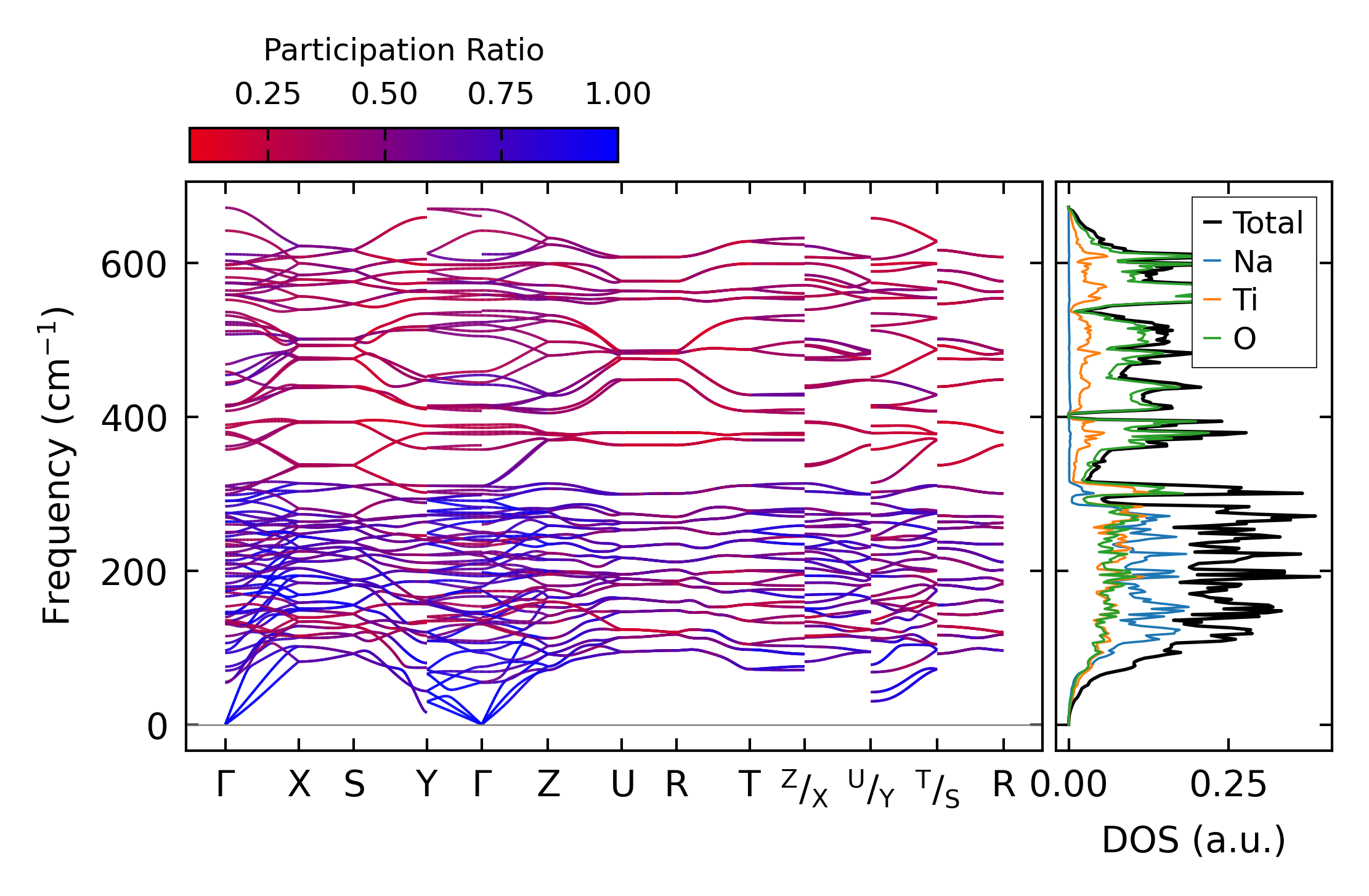

../../_images/fig_bandos_pr2310.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo2310.png — (b) Thermodynamic properties

Grüneisen parameters

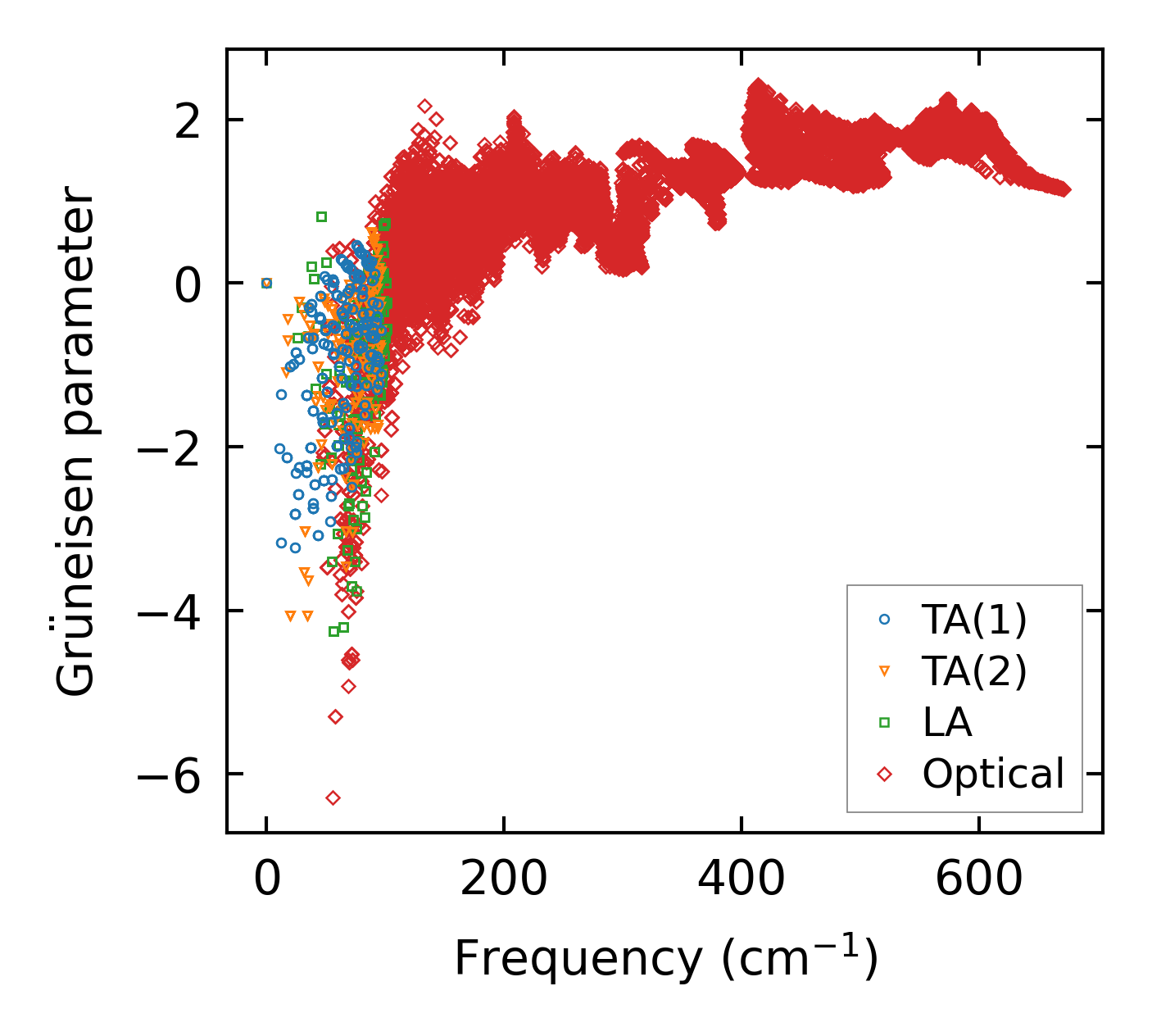

../../_images/fig_gru_all1268.png — (a) Grüneisen parameters

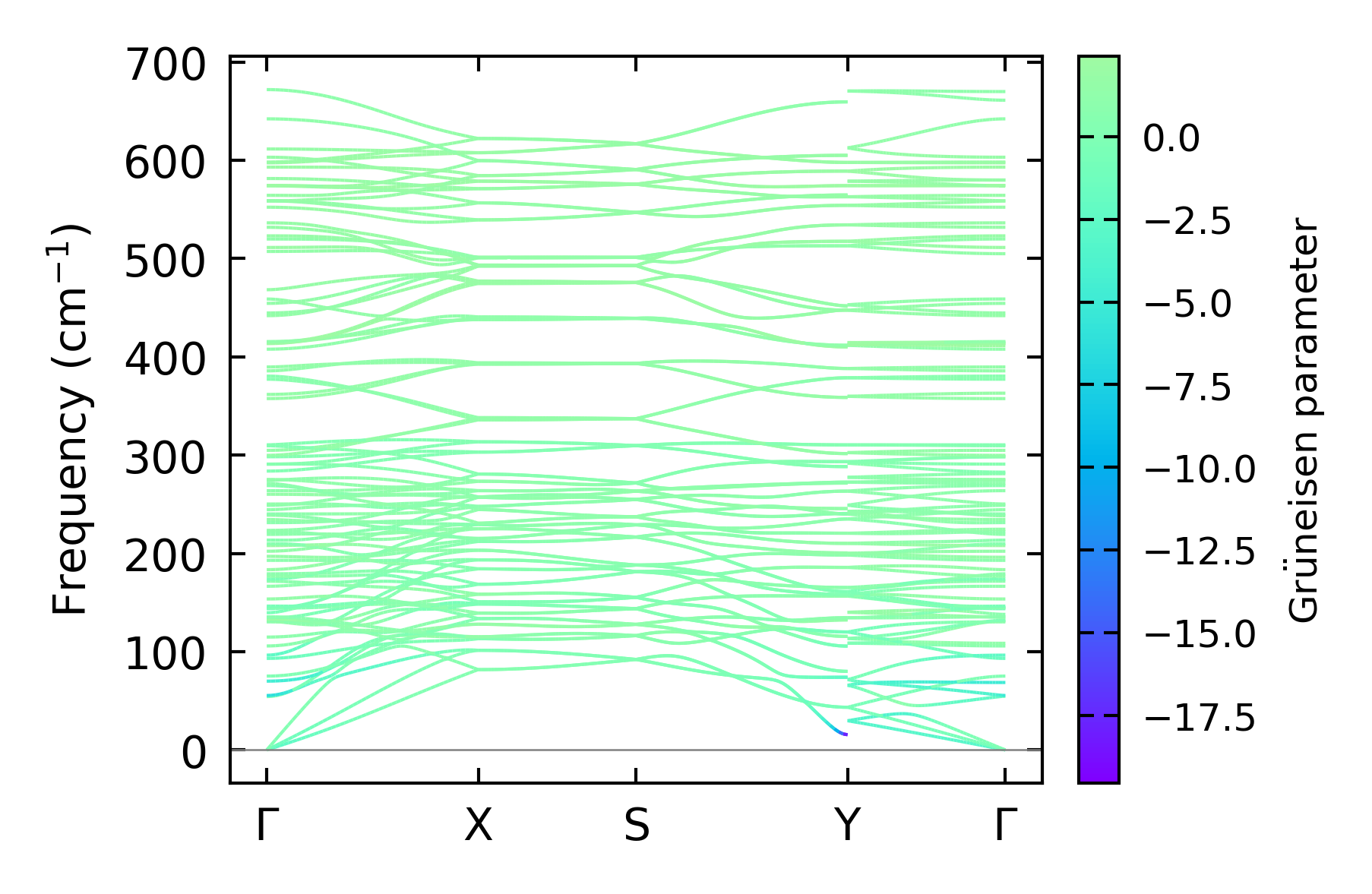

../../_images/fig_gruneisen1268.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x5x12, supercell: 2x1x2

../../_images/fig_kappa2439.png — (a) Temperature-dependent lattice thermal conductivity

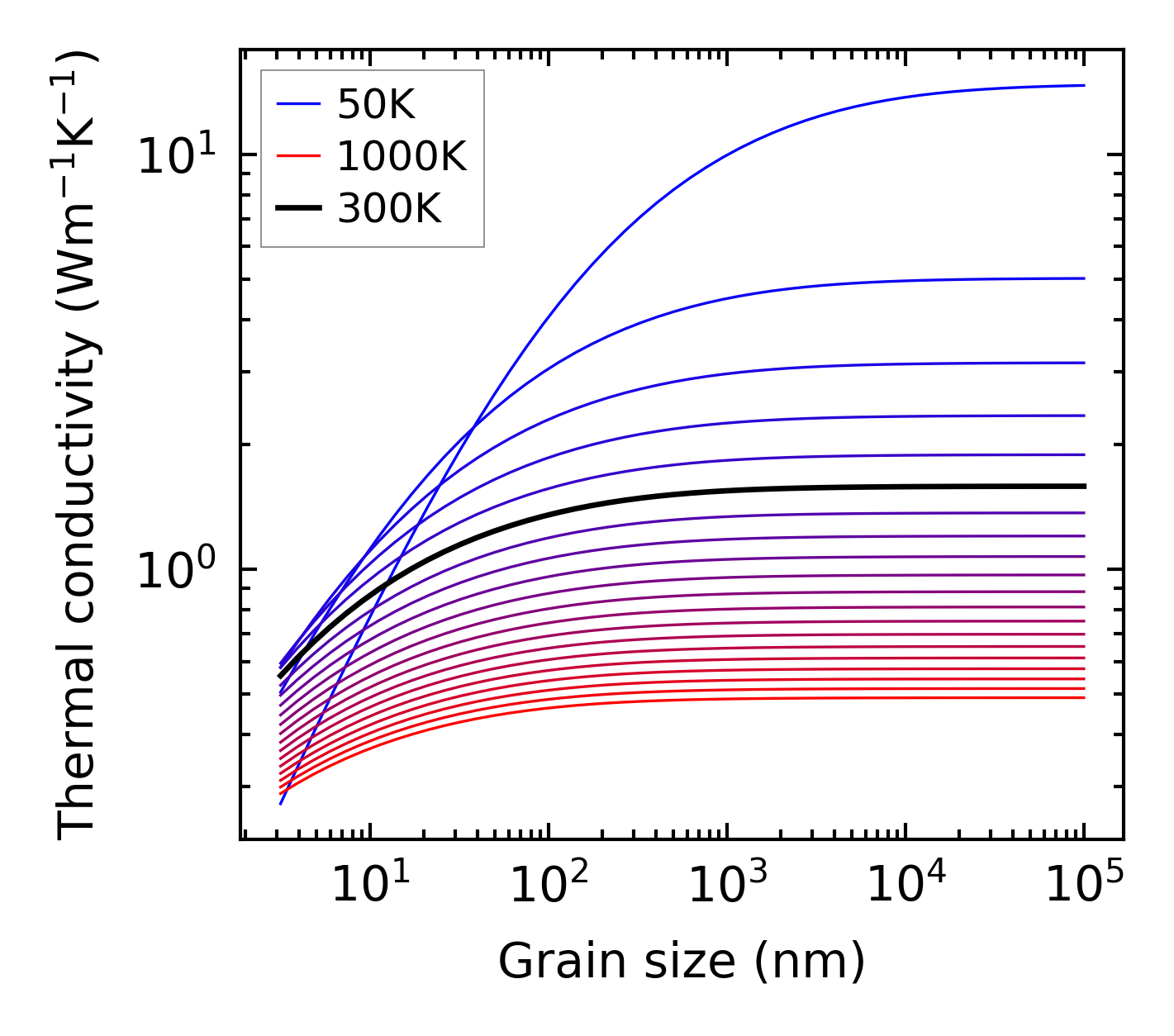

../../_images/fig_kappa_vs_grain_size1284.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

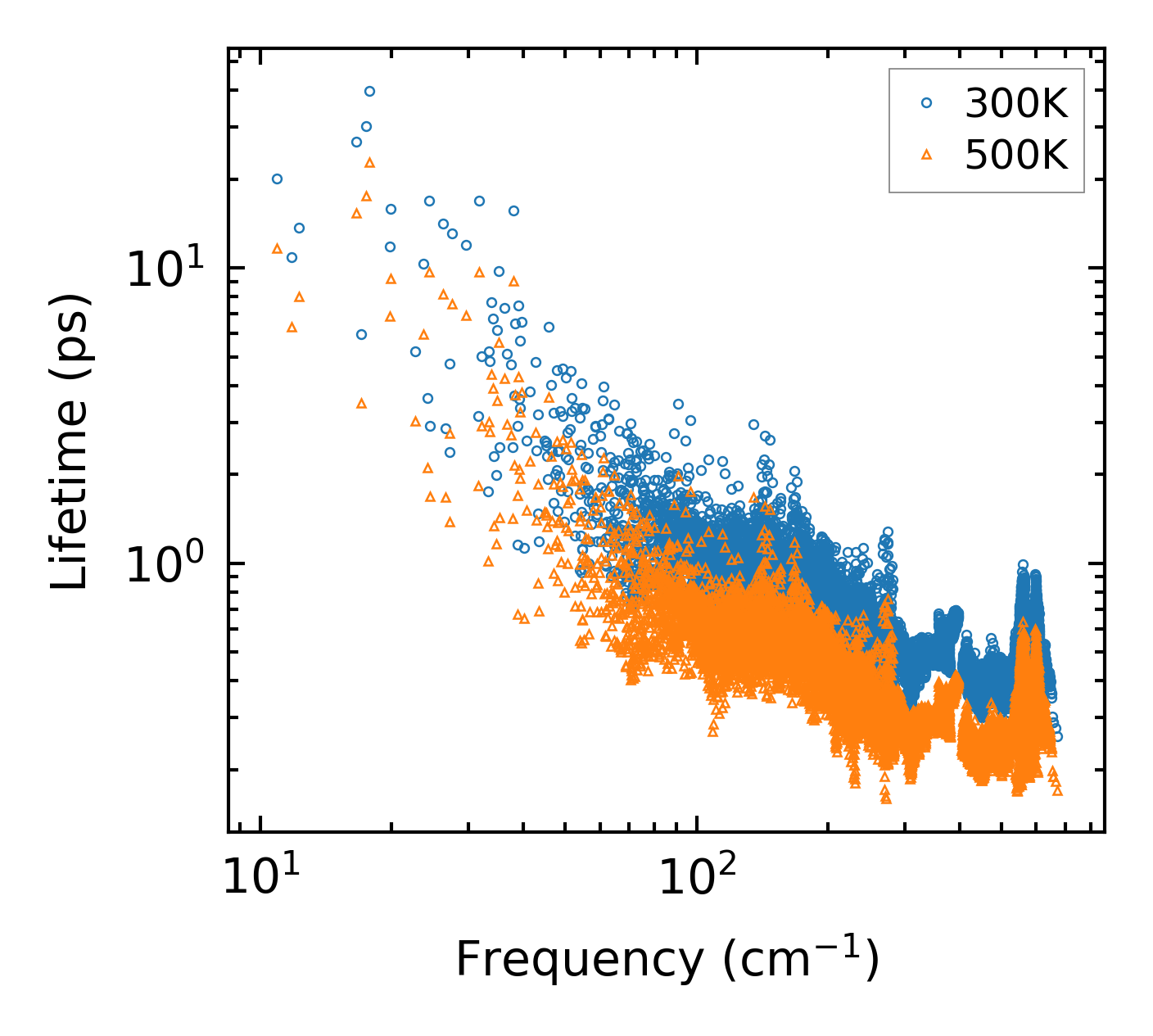

../../_images/fig_lifetime1258.png — (a) Phonon lifetime due to phonon-phonon scattering

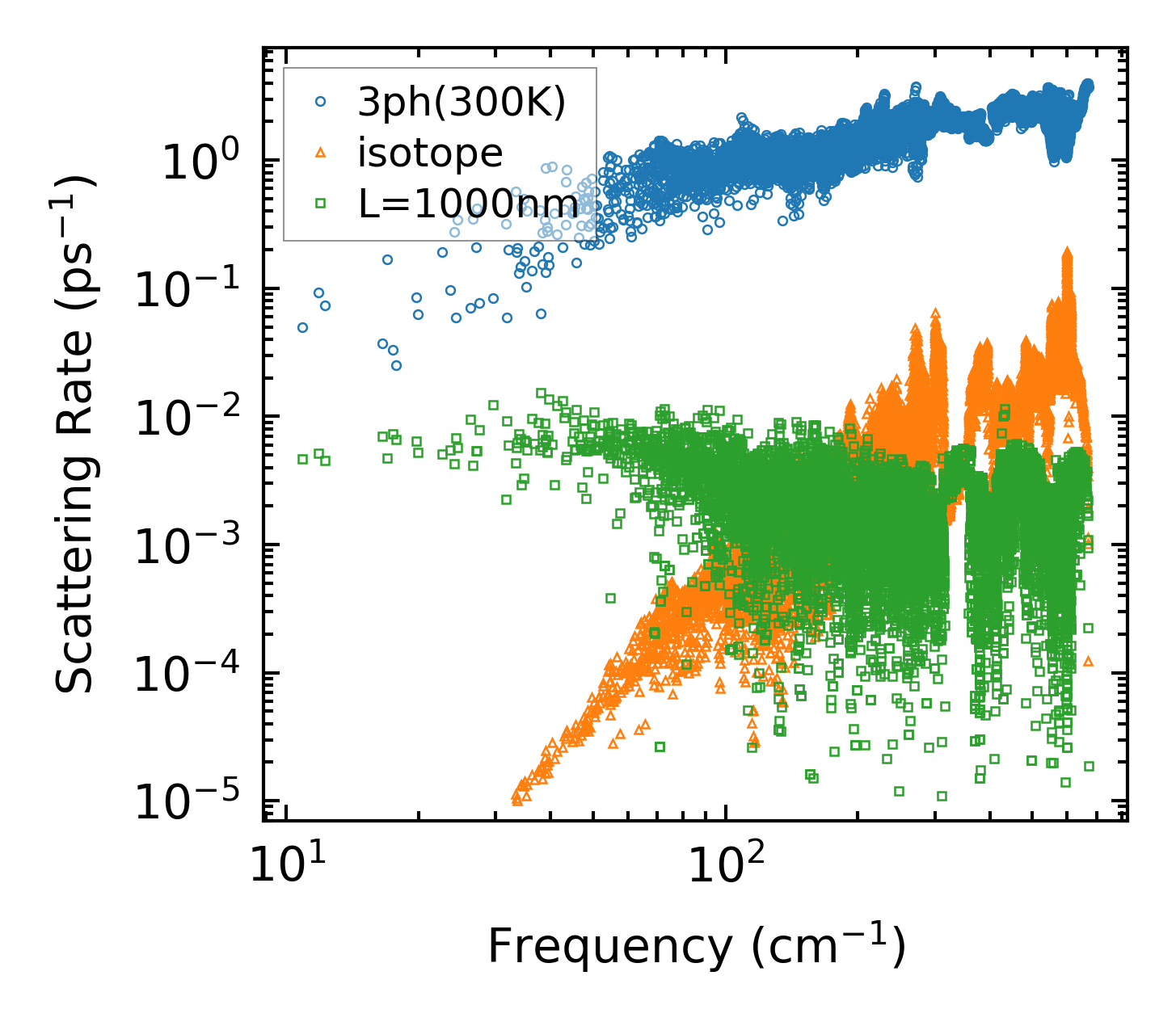

../../_images/fig_scat_rates1257.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

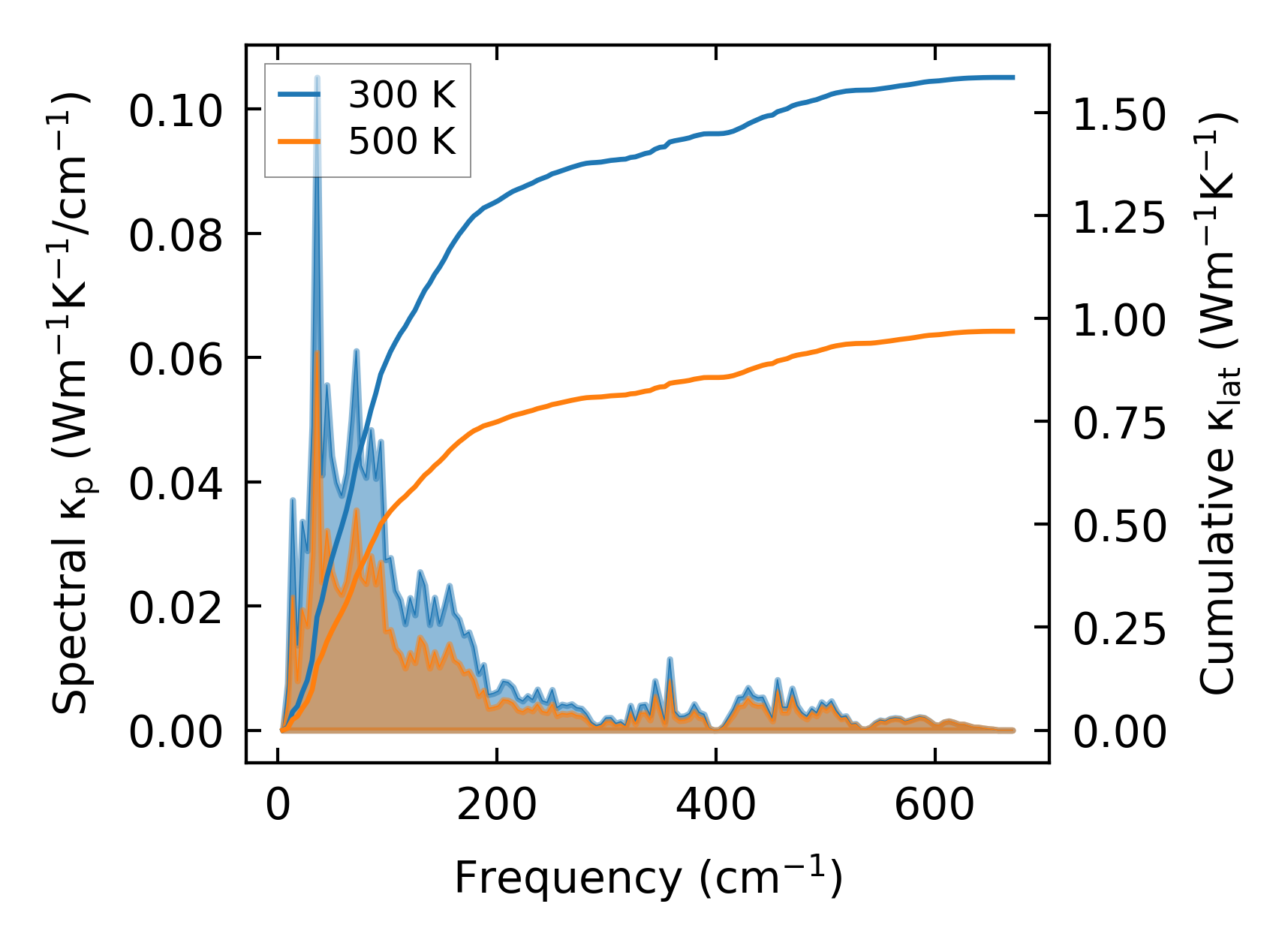

../../_images/fig_cumu_frequency1258.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

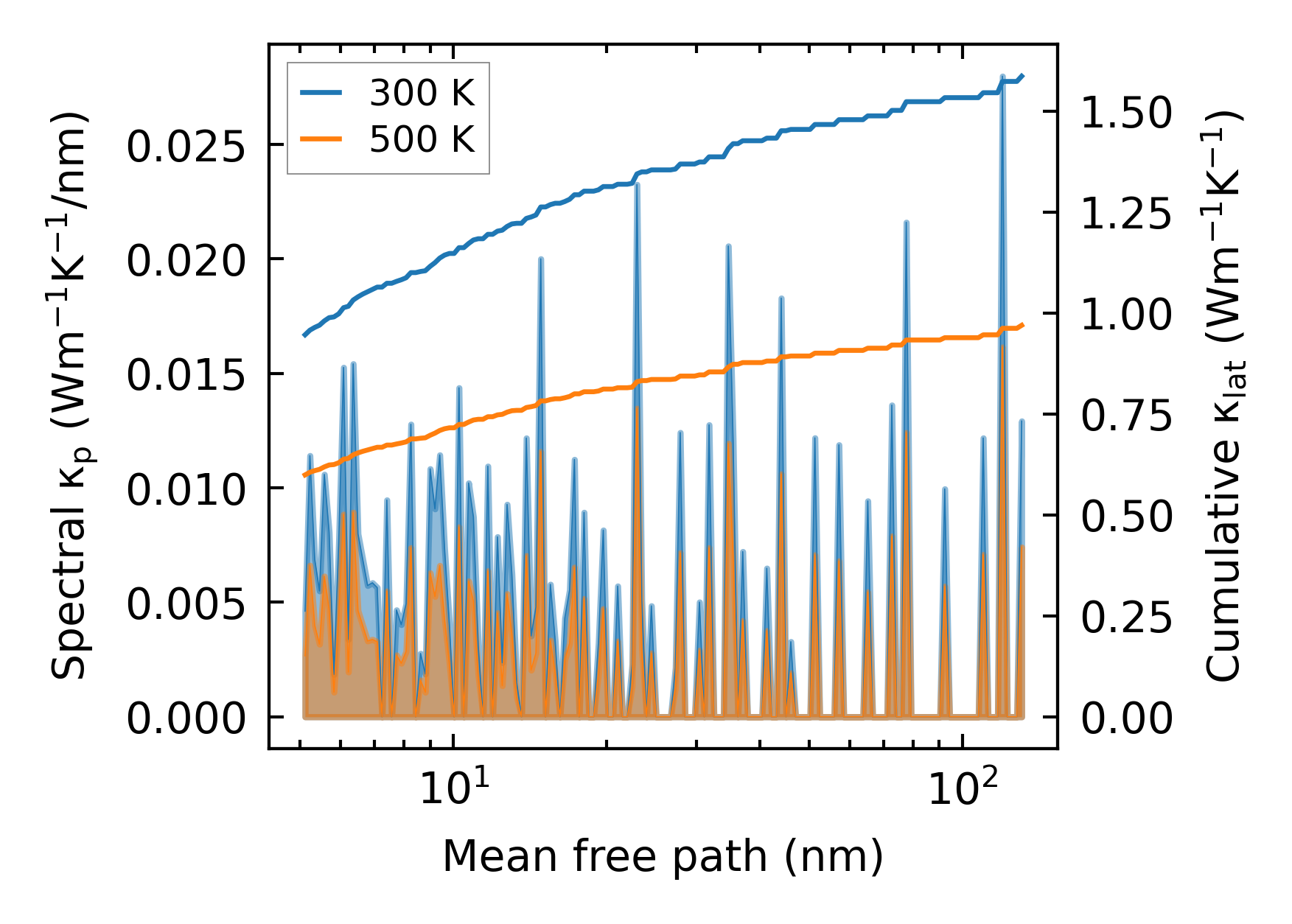

../../_images/fig_cumu_mfp1258.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

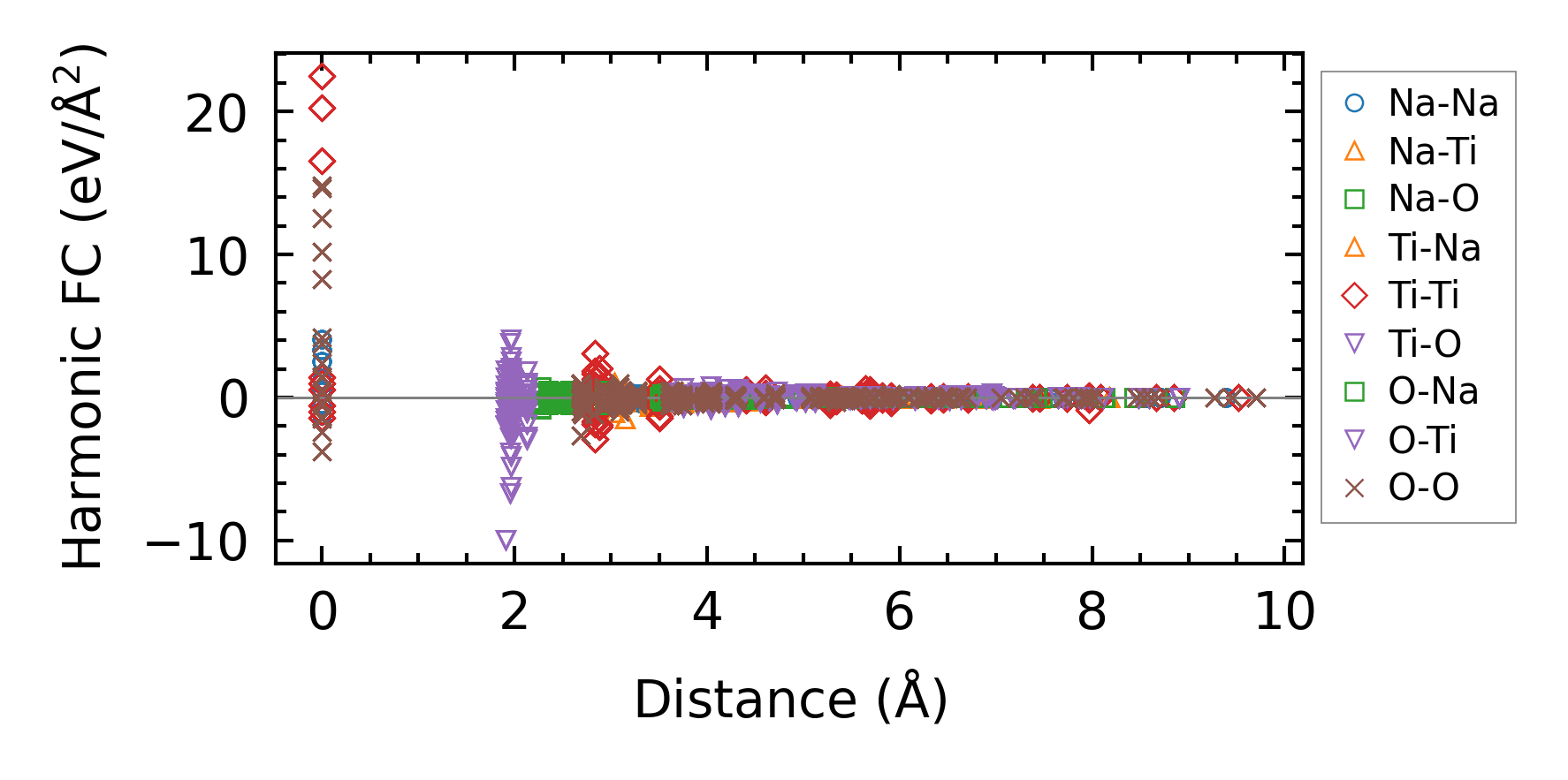

../../_images/fig_fc22131.png — (a) Force constants w.r.t atomic distance

Summary

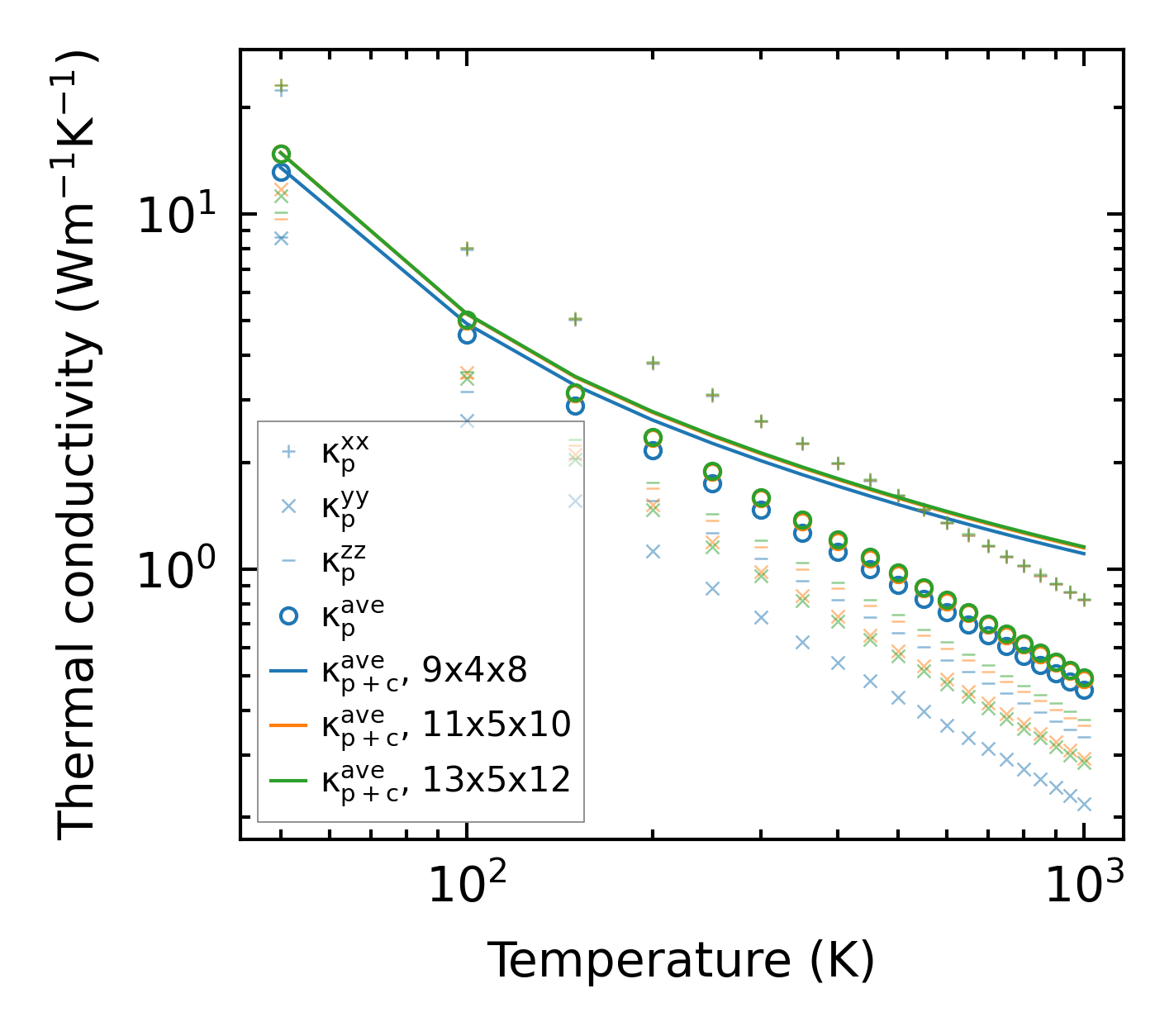

../../_images/fig_kappa2440.png — (a) Temperature-dependent lattice thermal conductivity

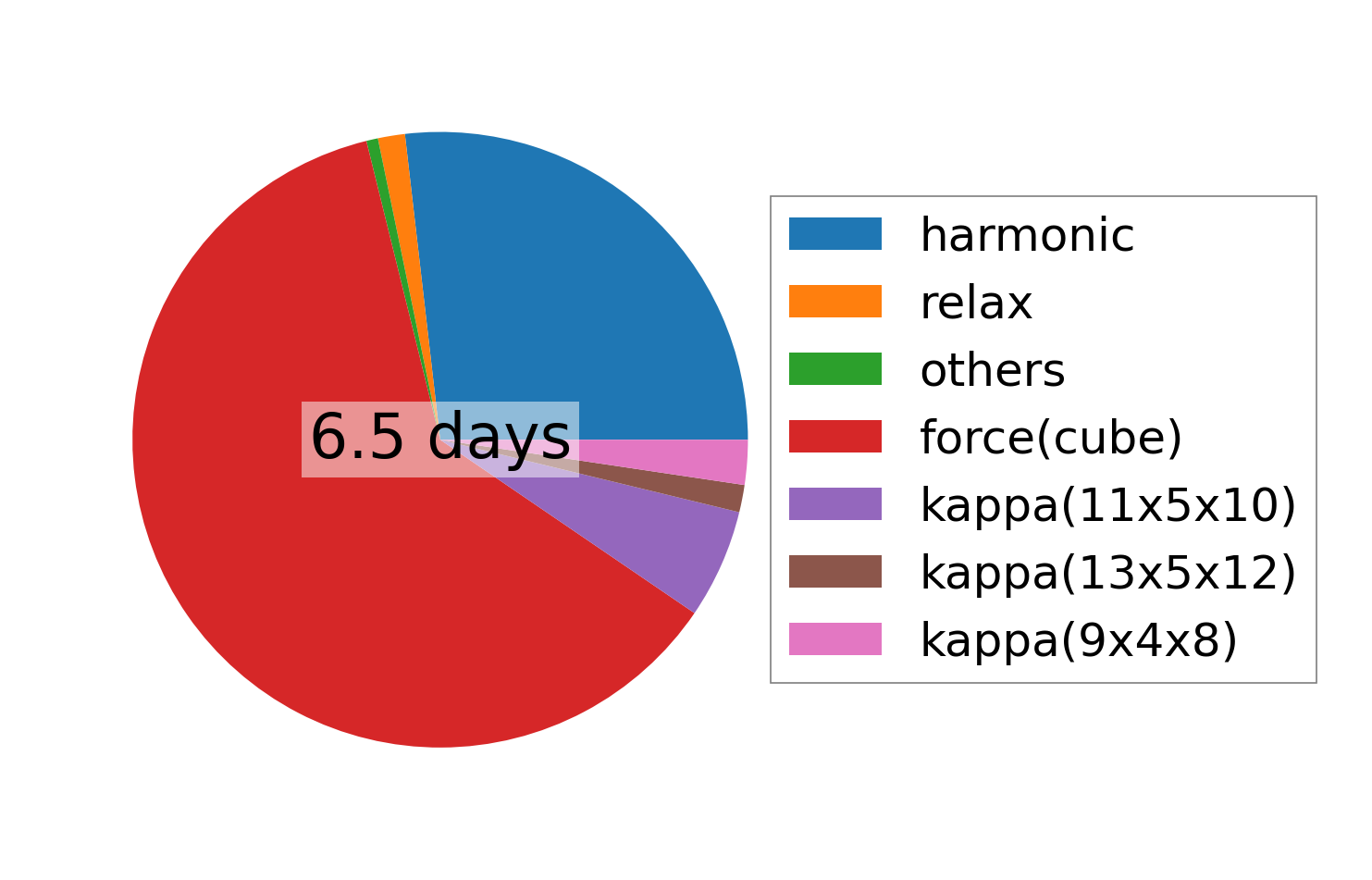

../../_images/fig_times3759.png — (b) Computation time
