mp-776084/BaSiO3/anharm

Space group: C2/c (15)
Link: Materials Project
Download: mp-776084.tar.gz

Harmonic properties

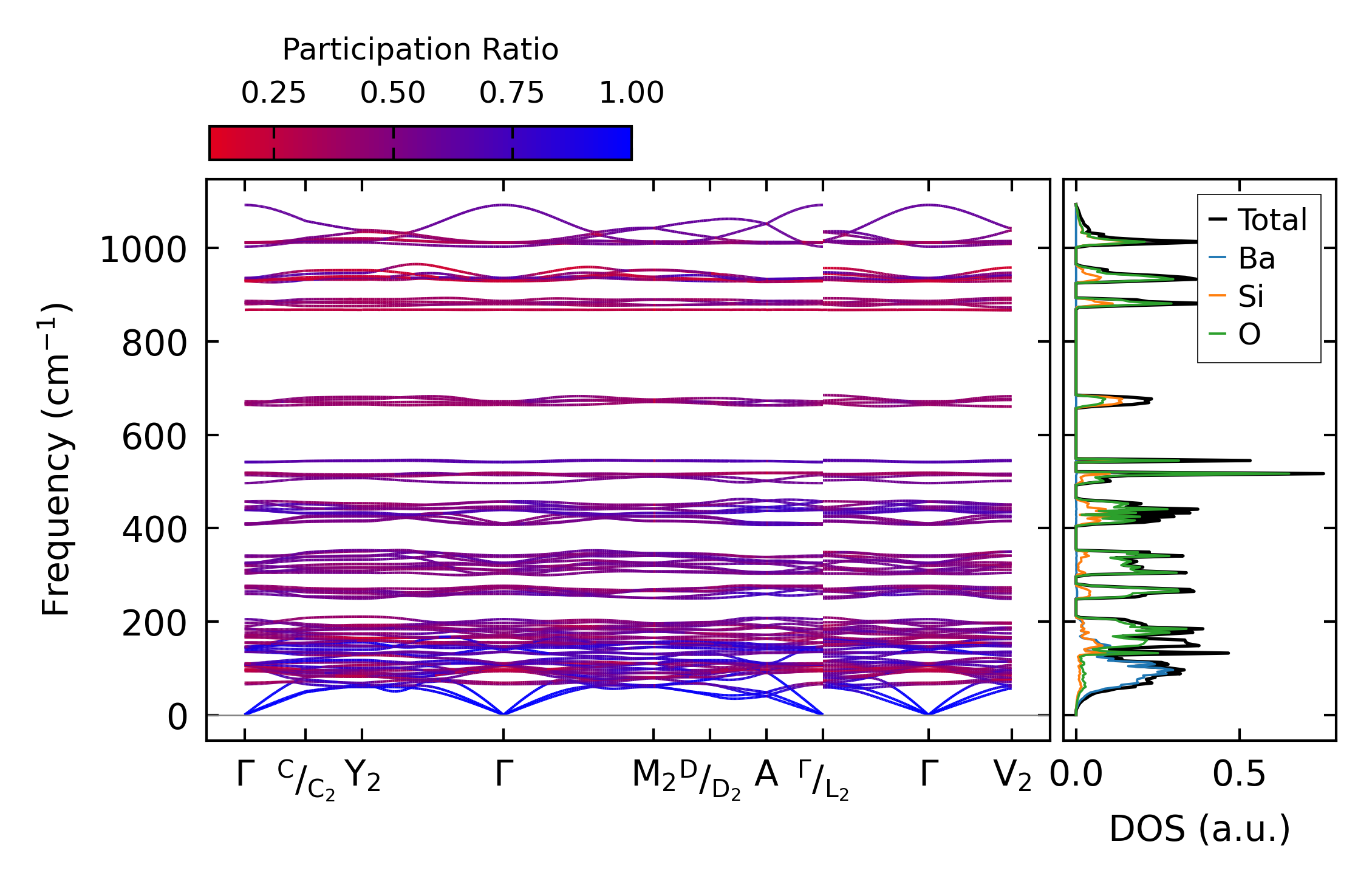

../../_images/fig_bandos_pr2257.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo2257.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all1251.png — (a) Grüneisen parameters

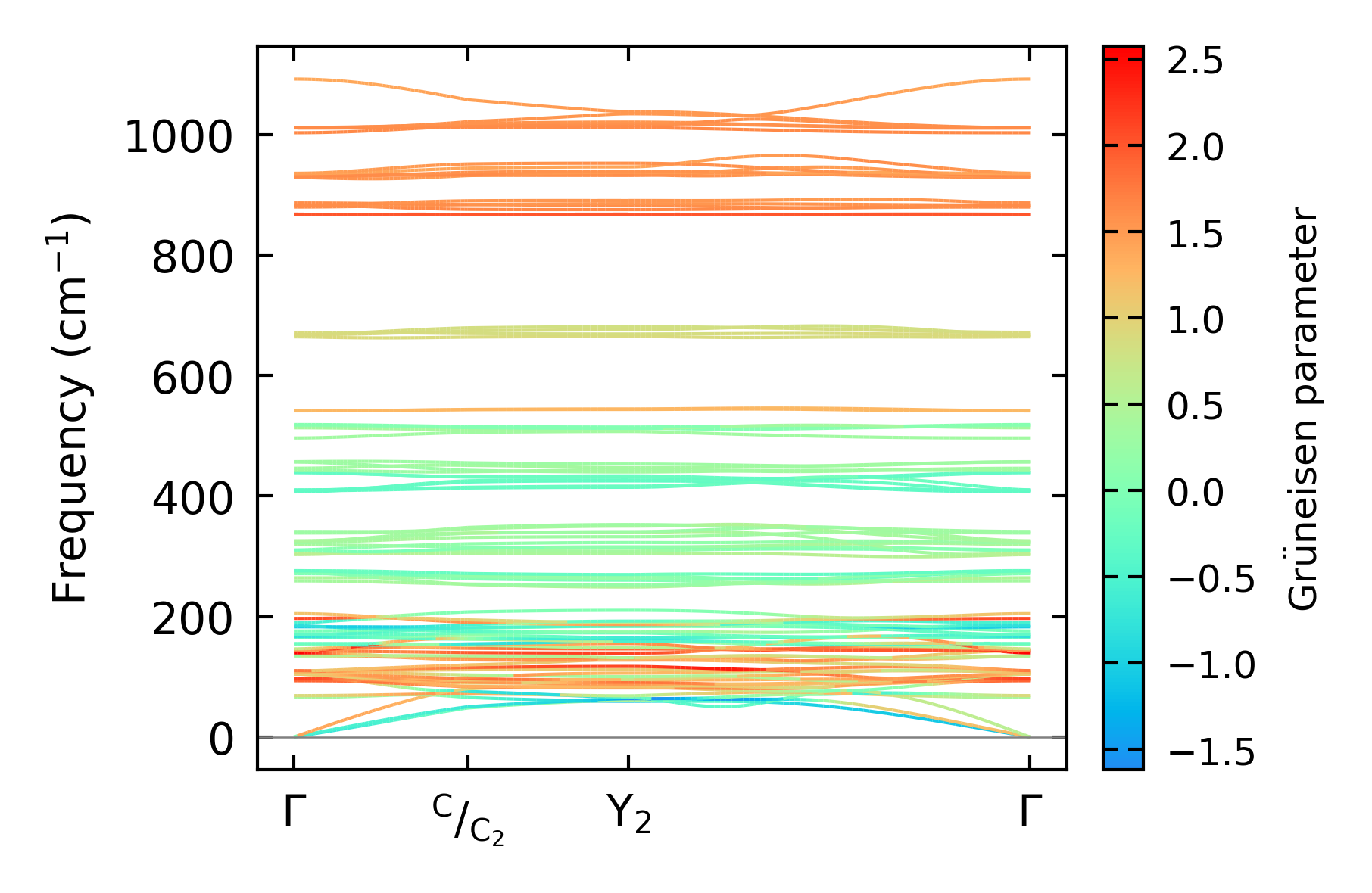

../../_images/fig_gruneisen1251.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x6, supercell: 1x2x1

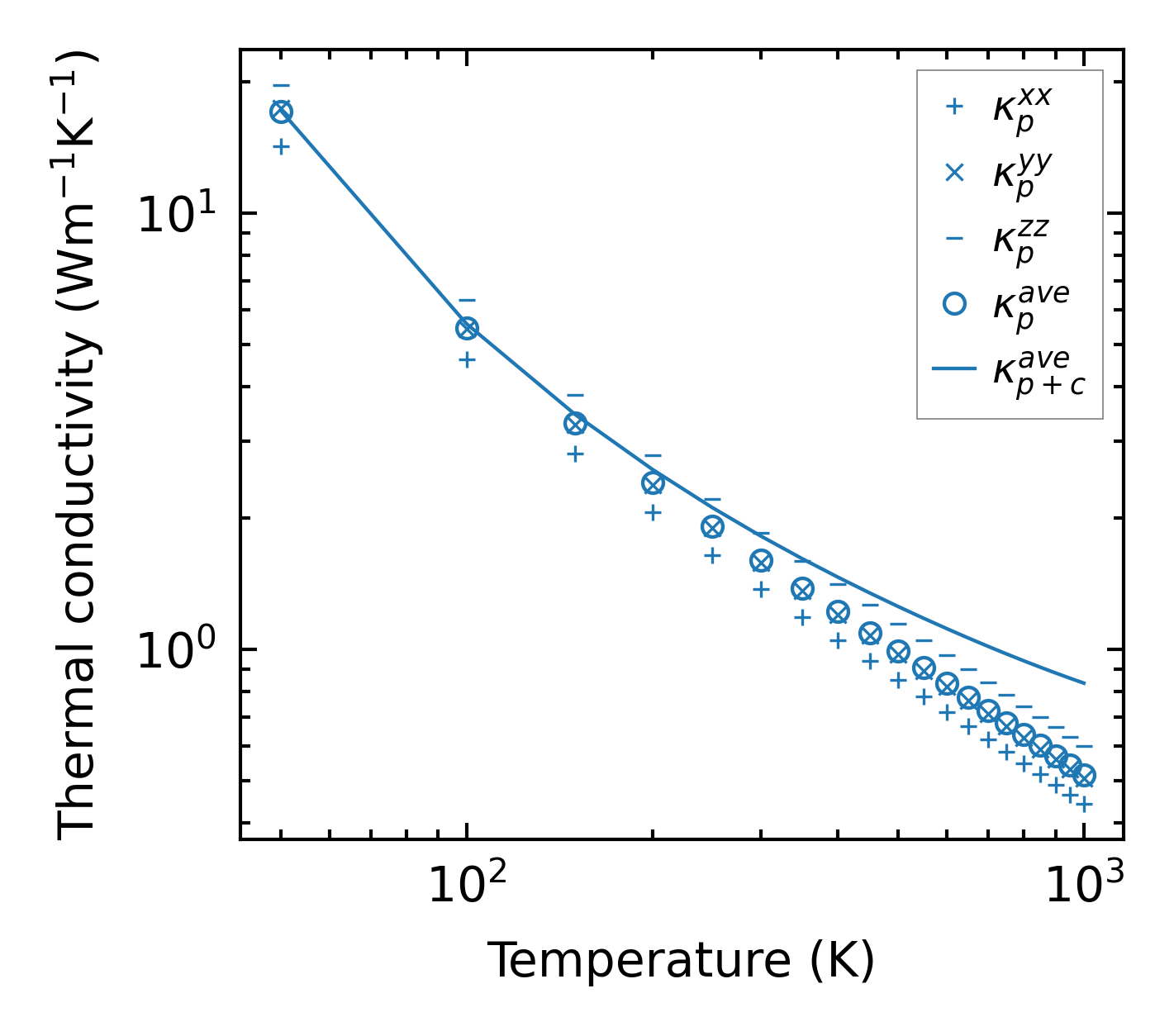

../../_images/fig_kappa2408.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size1267.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

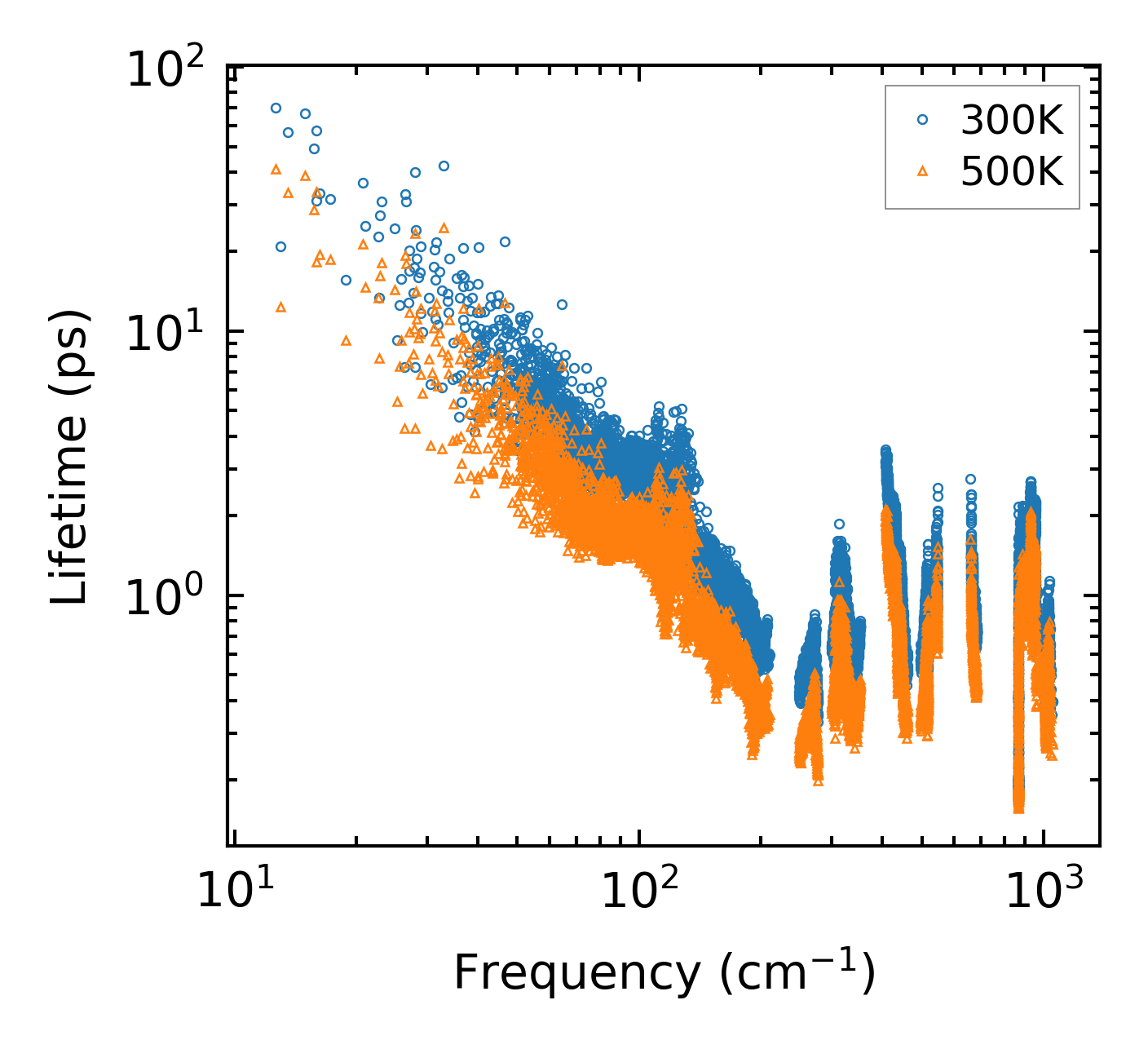

../../_images/fig_lifetime1241.png — (a) Phonon lifetime due to phonon-phonon scattering

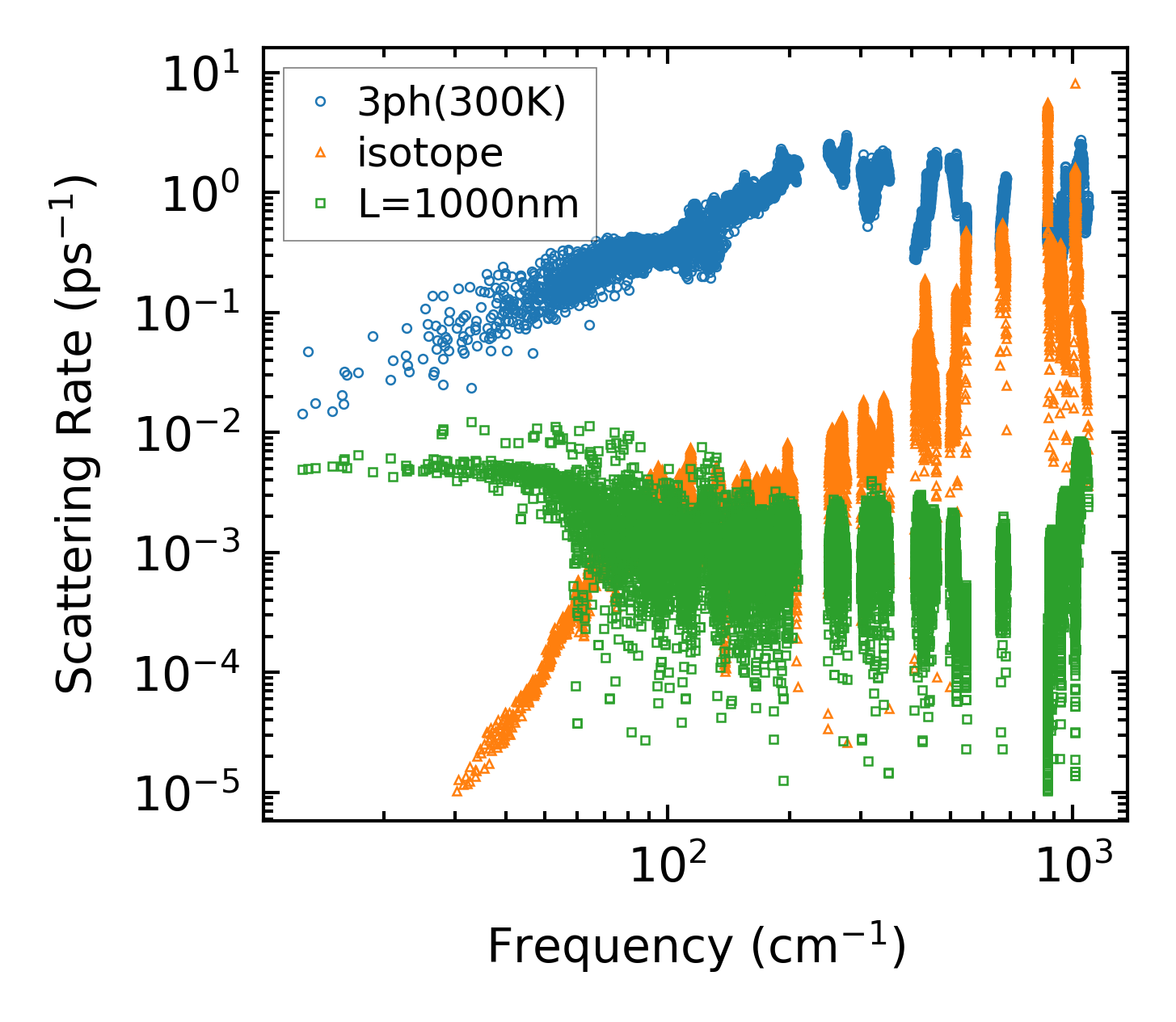

../../_images/fig_scat_rates1240.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency1241.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

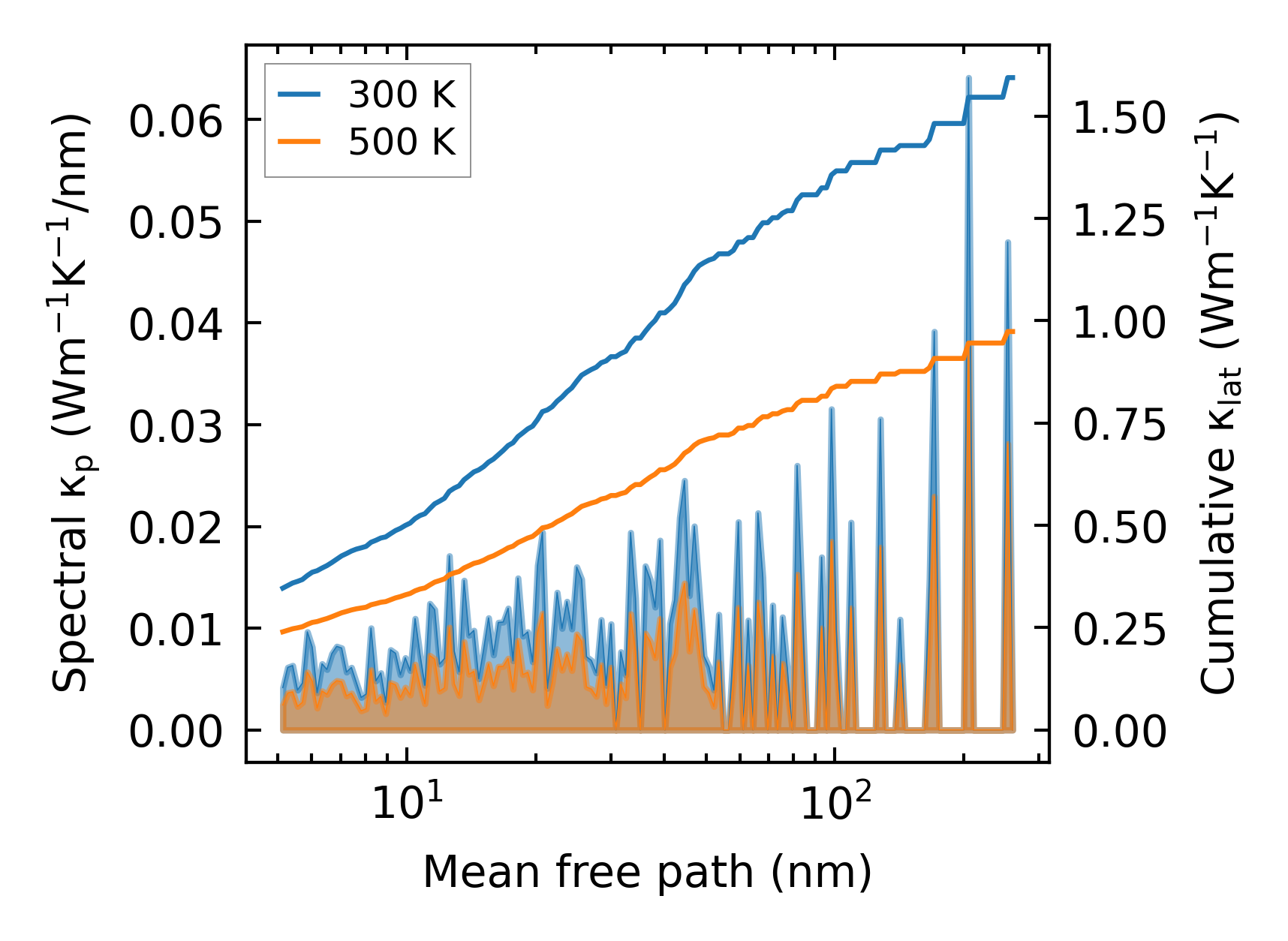

../../_images/fig_cumu_mfp1241.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

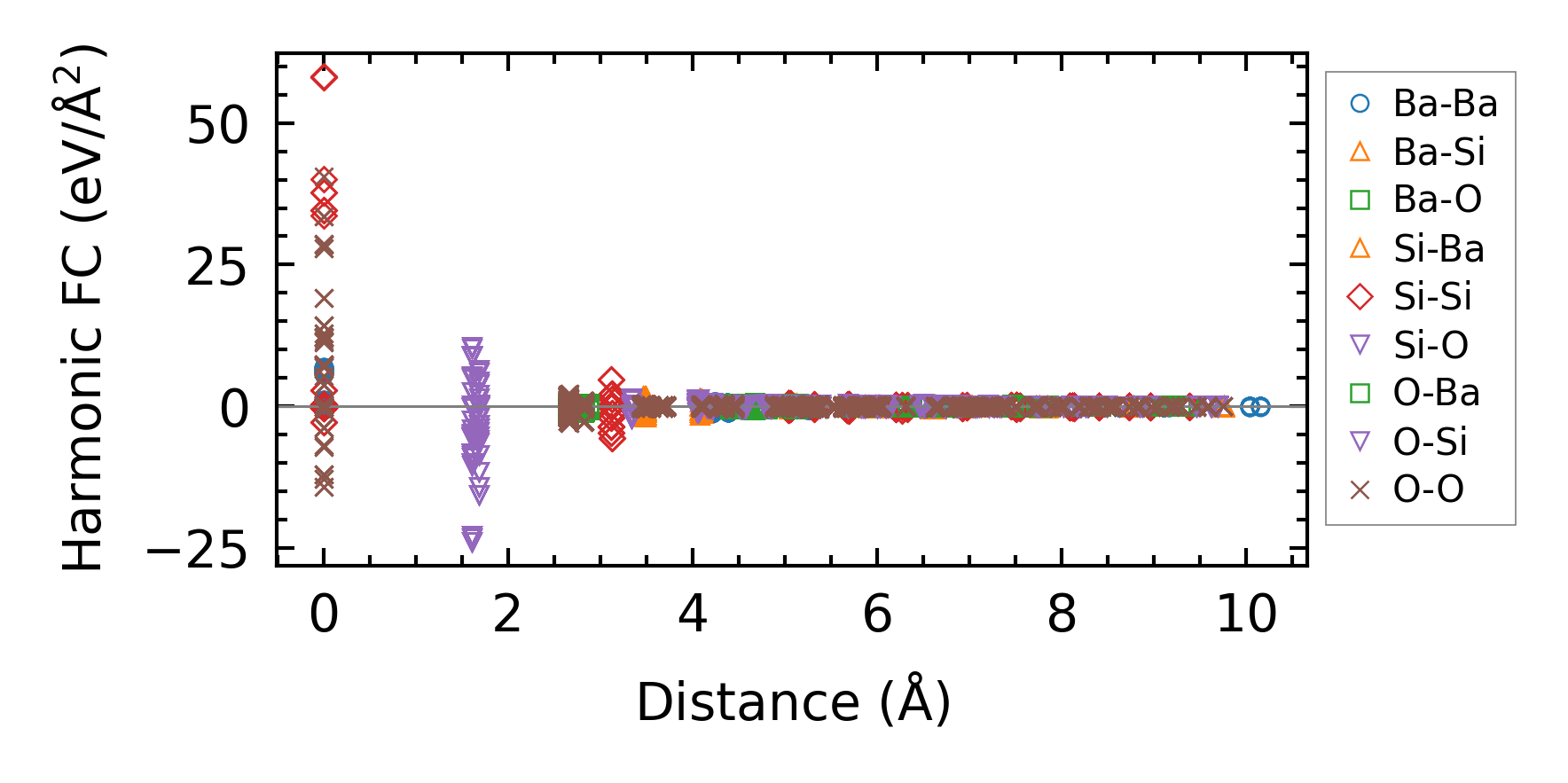

../../_images/fig_fc22078.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa2409.png — (a) Temperature-dependent lattice thermal conductivity

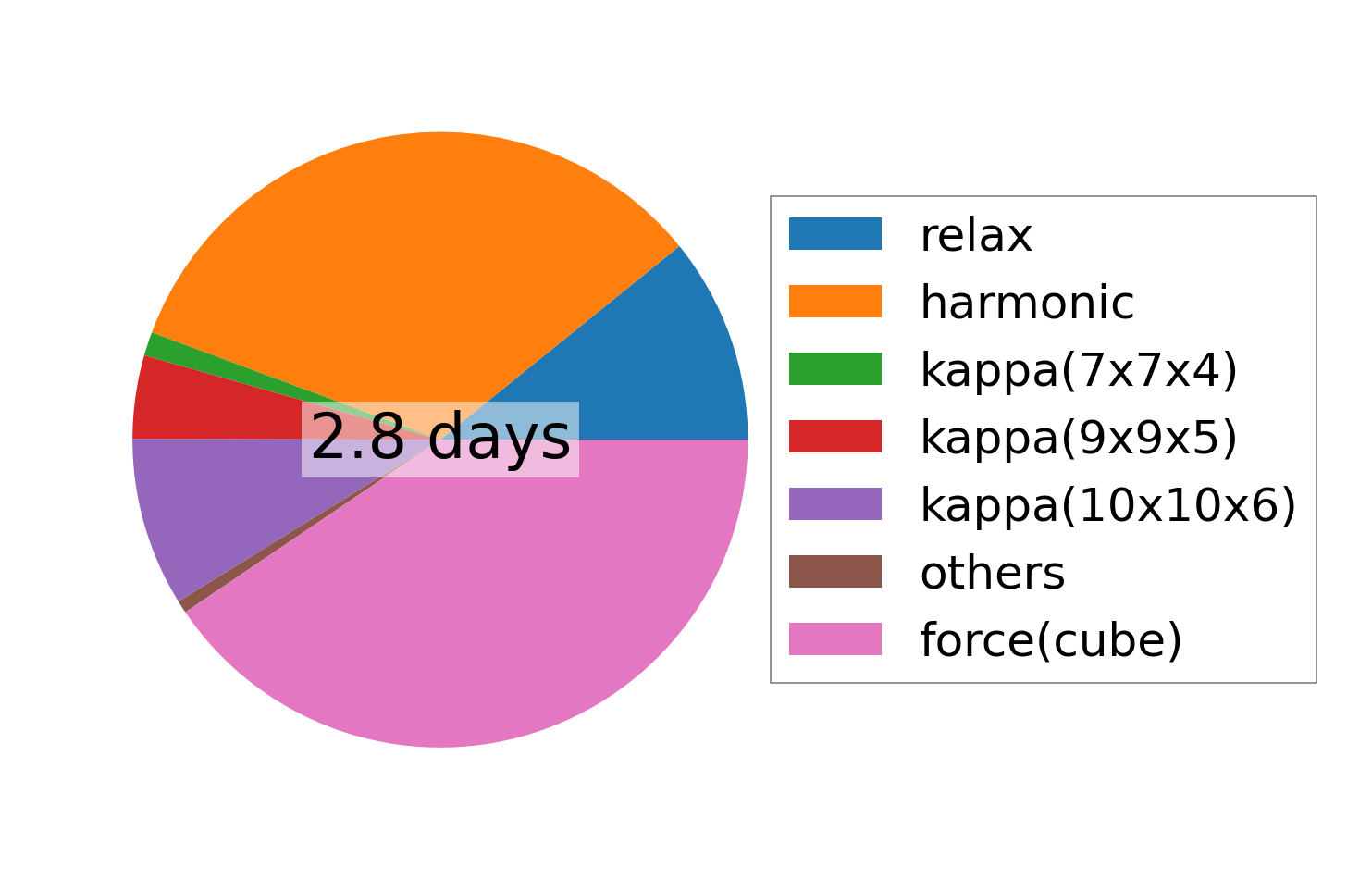

../../_images/fig_times3612.png — (b) Computation time
