mp-776532/HfO2/anharm

Space group: P4_2/mnm (136)
Link: Materials Project
Download: mp-776532.tar.gz

Harmonic properties

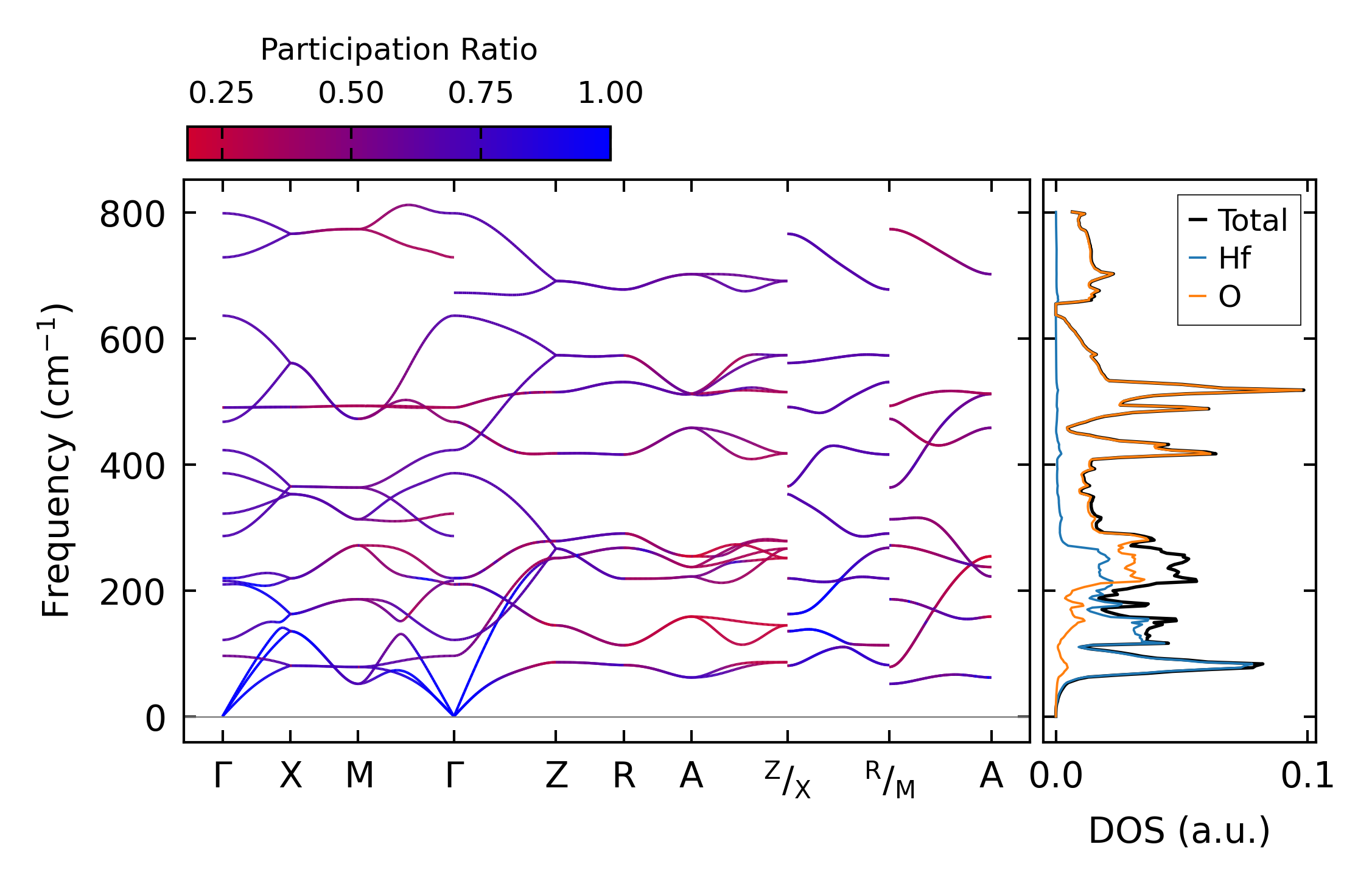

../../_images/fig_bandos_pr2295.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo2295.png — (b) Thermodynamic properties

Grüneisen parameters

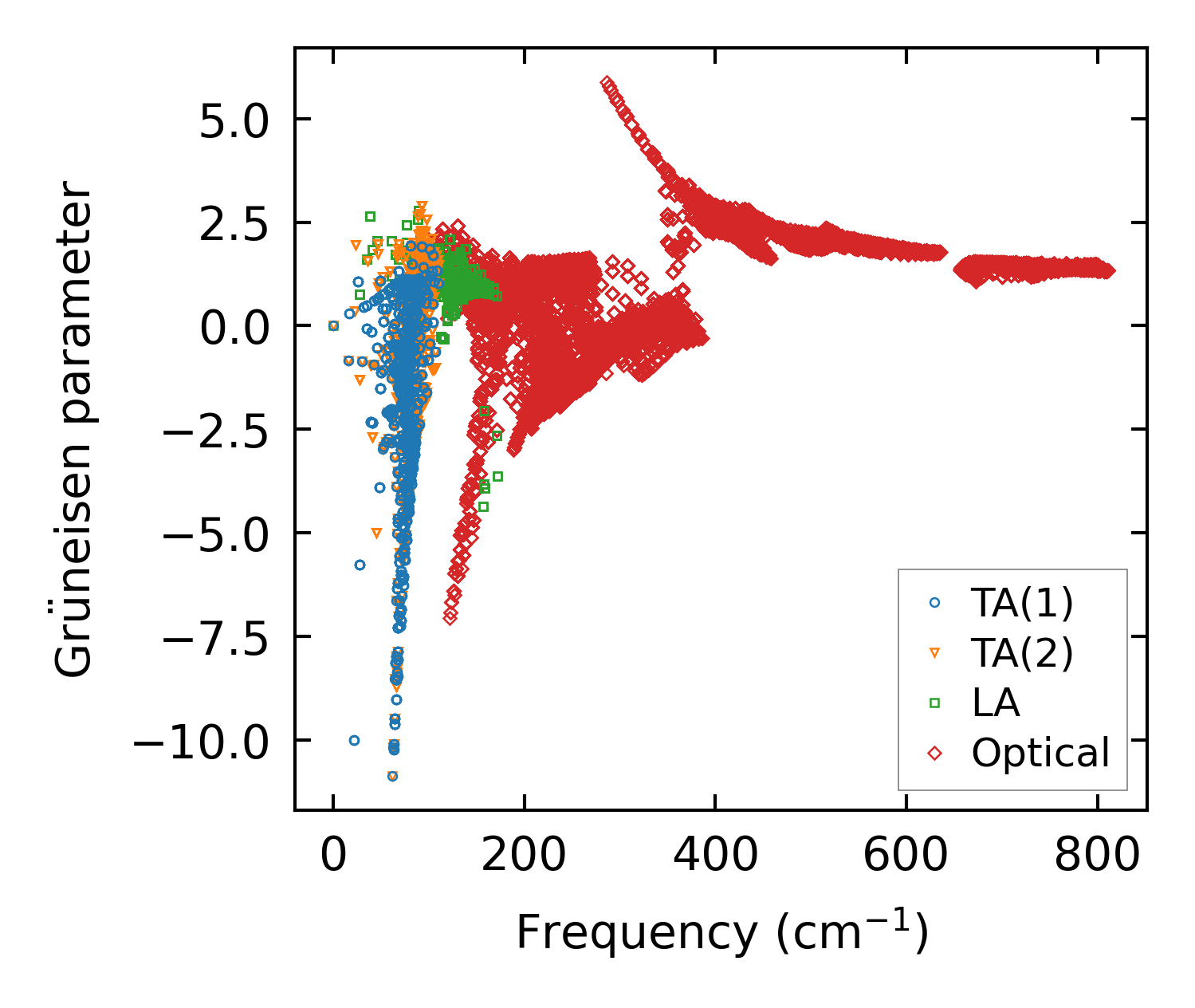

../../_images/fig_gru_all1265.png — (a) Grüneisen parameters

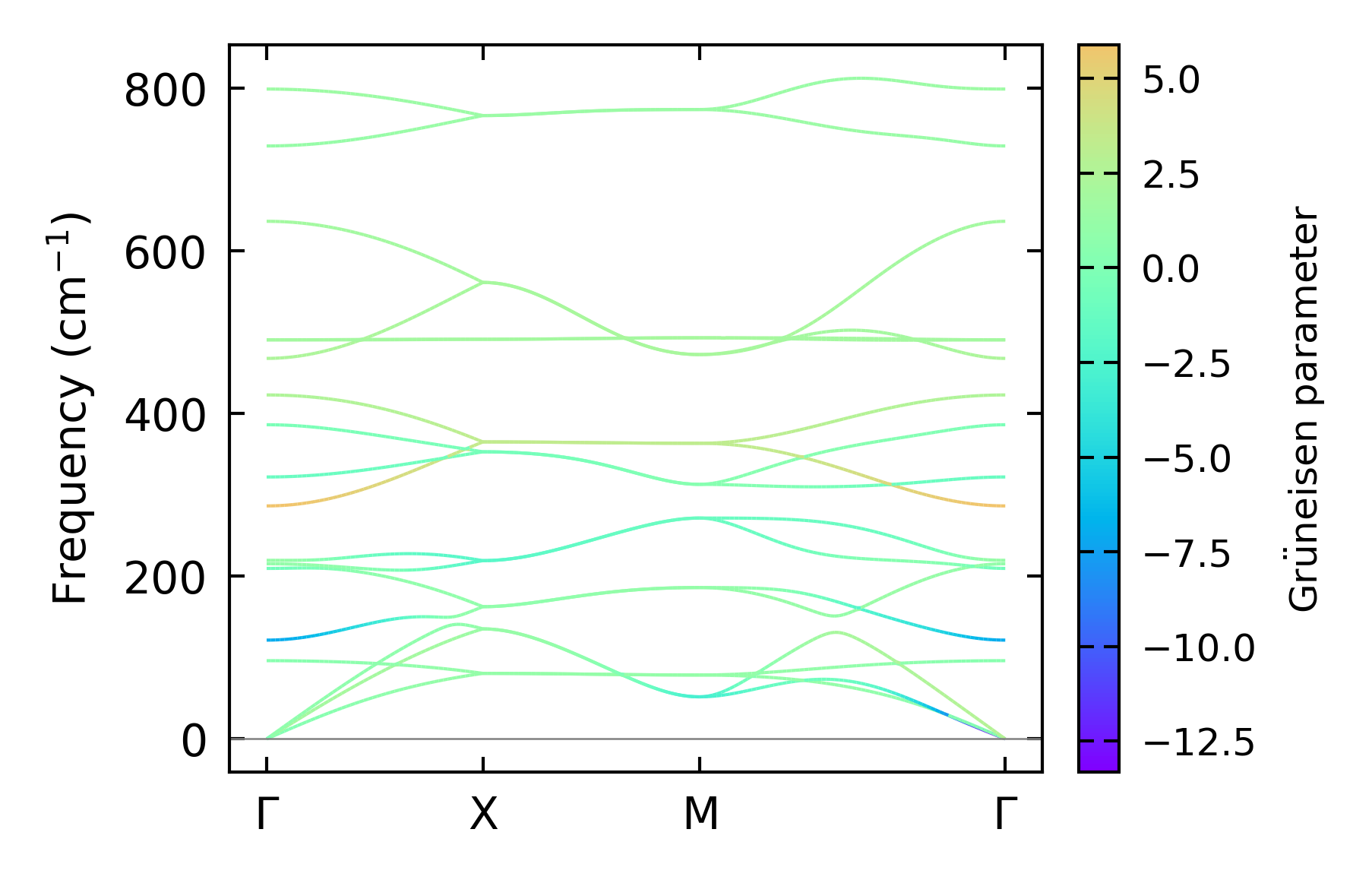

../../_images/fig_gruneisen1265.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x14x22, supercell: 2x2x4

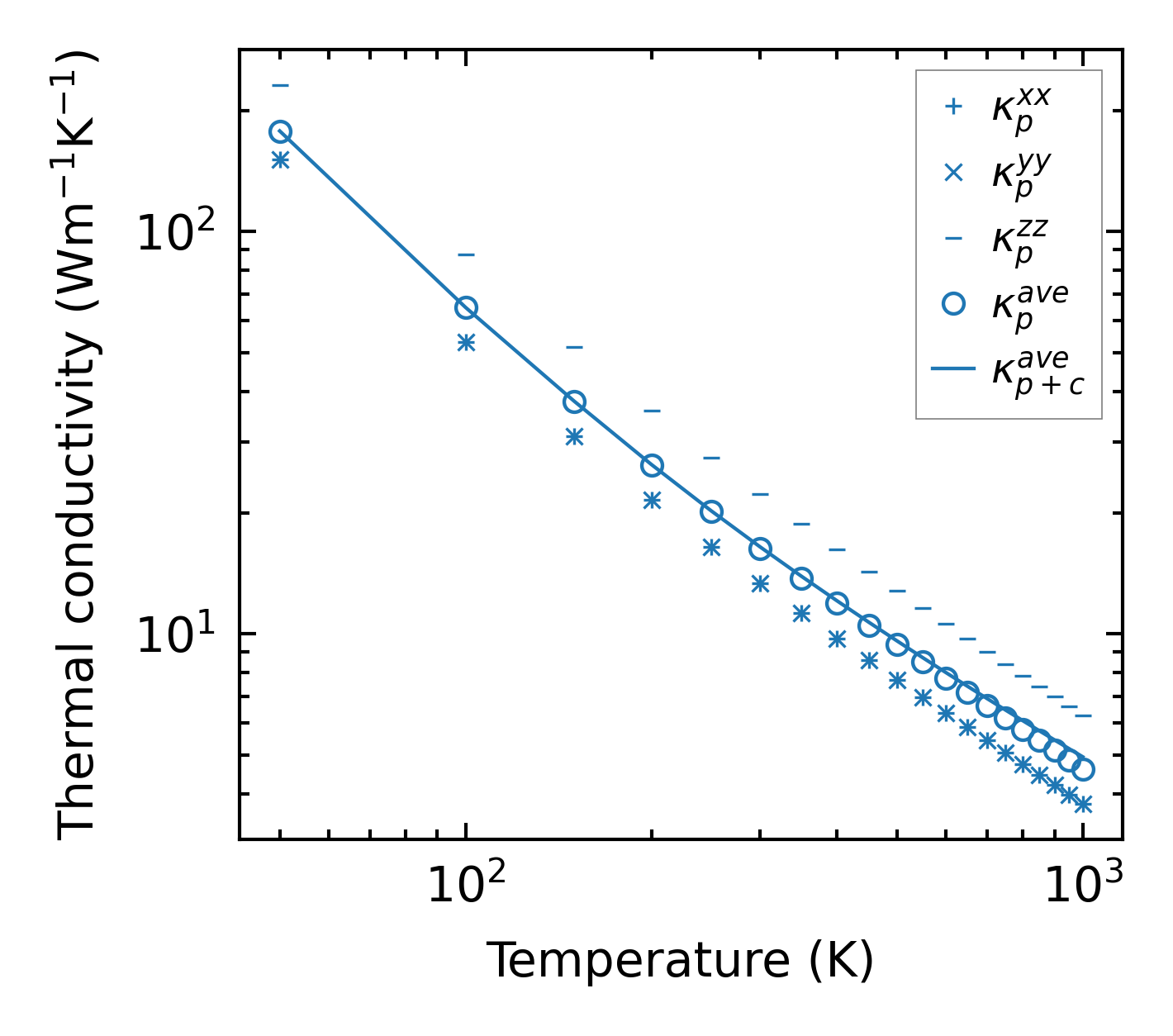

../../_images/fig_kappa2434.png — (a) Temperature-dependent lattice thermal conductivity

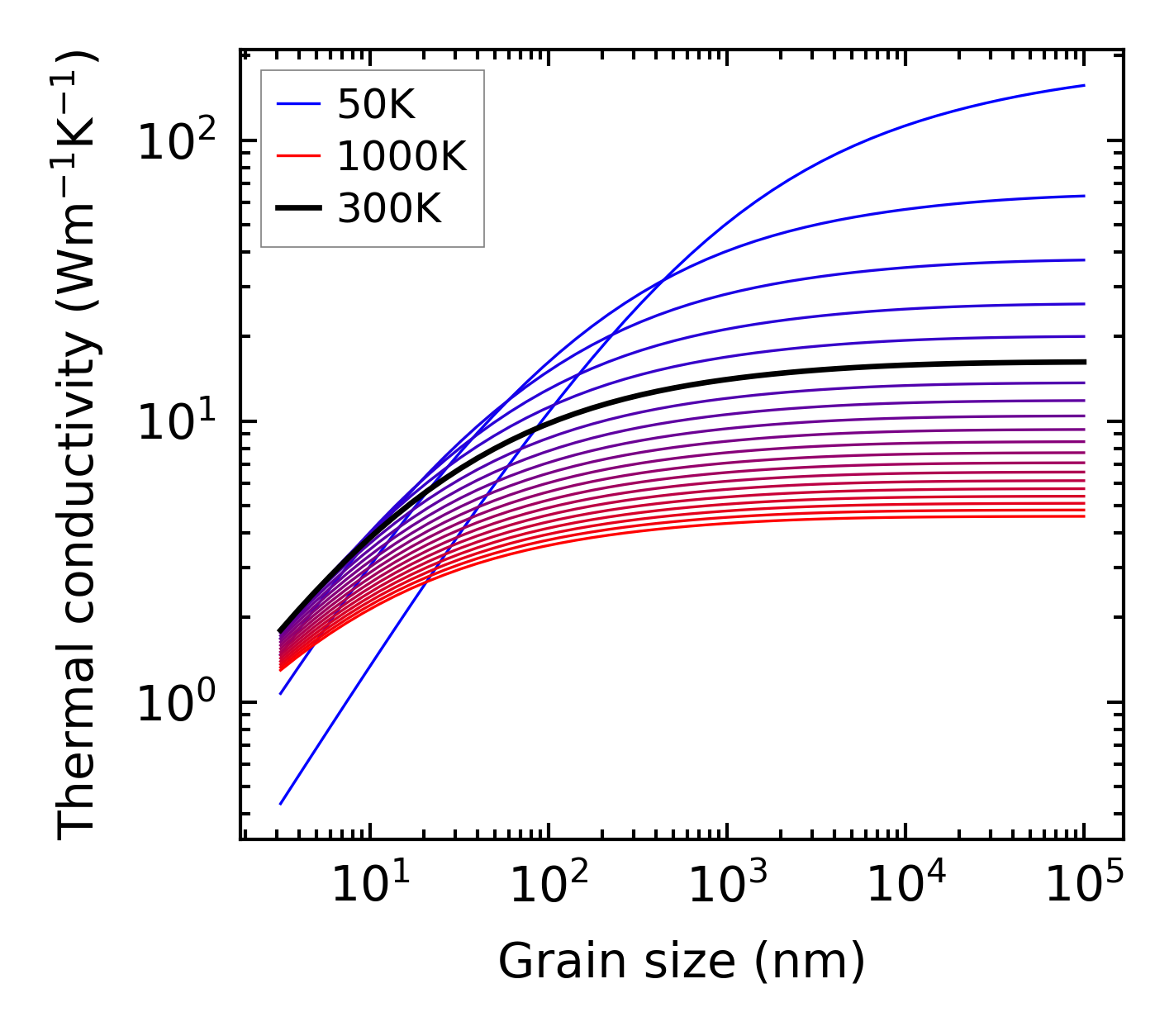

../../_images/fig_kappa_vs_grain_size1281.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

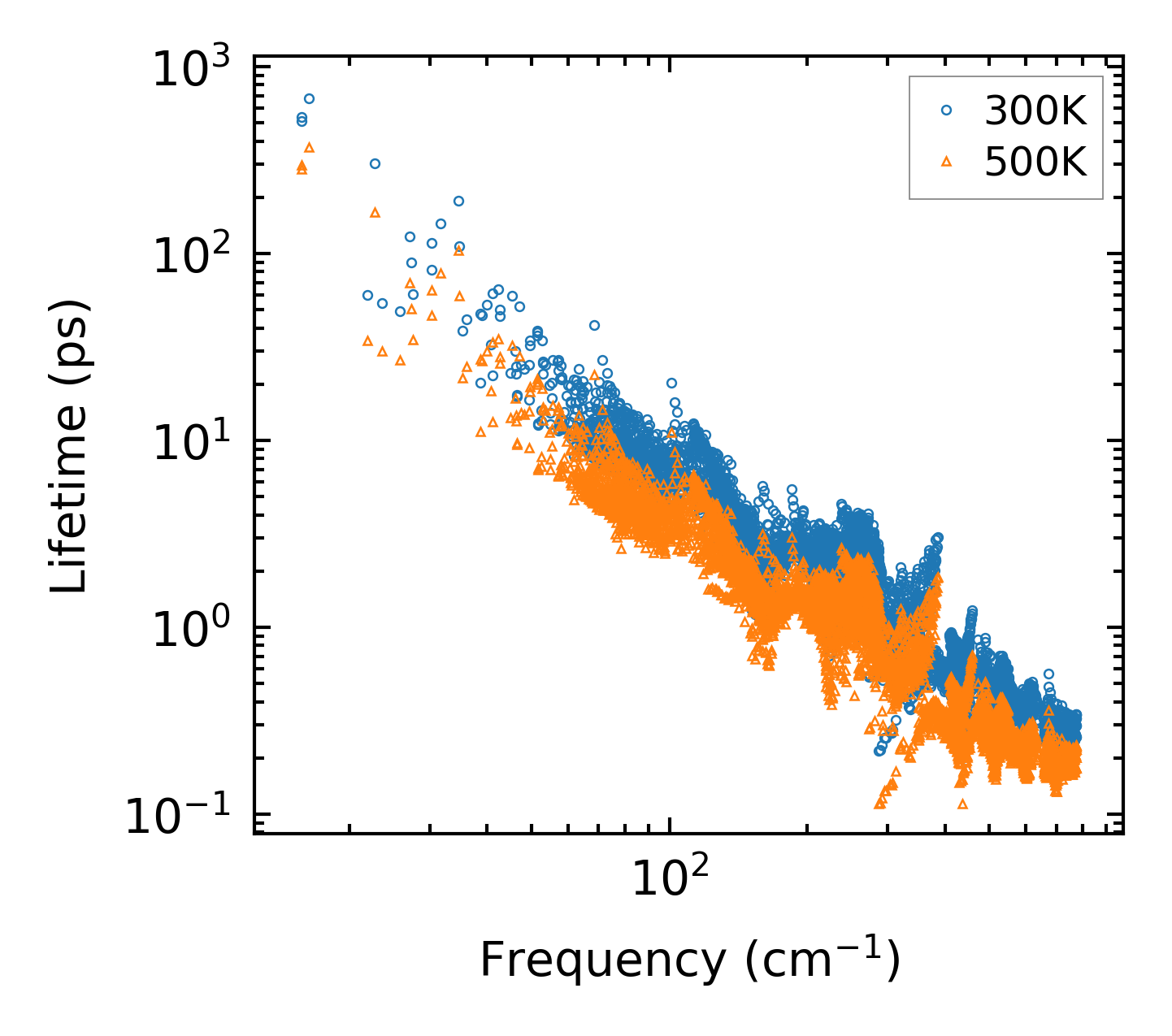

../../_images/fig_lifetime1255.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates1254.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency1255.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

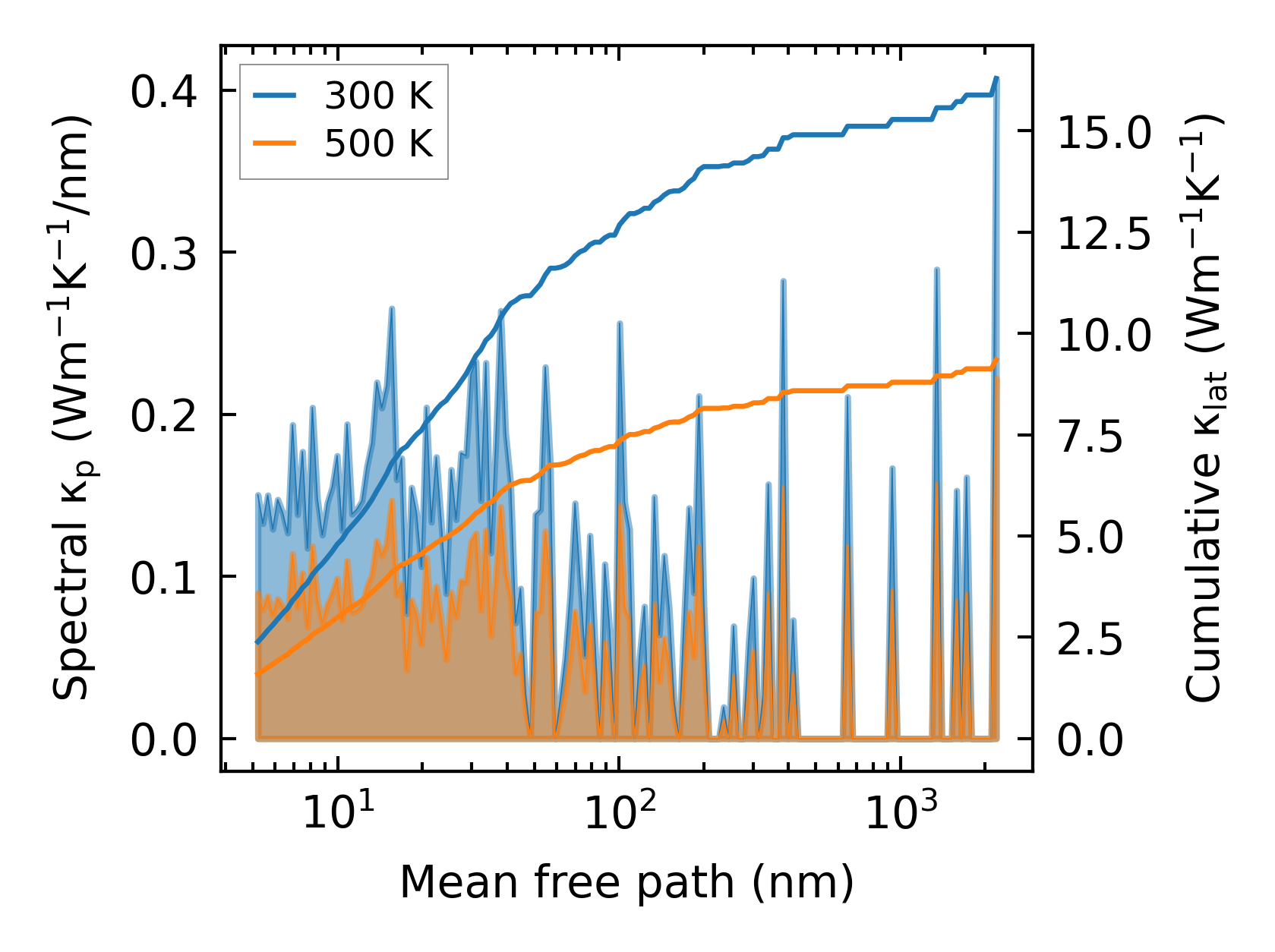

../../_images/fig_cumu_mfp1255.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc22116.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa2435.png — (a) Temperature-dependent lattice thermal conductivity

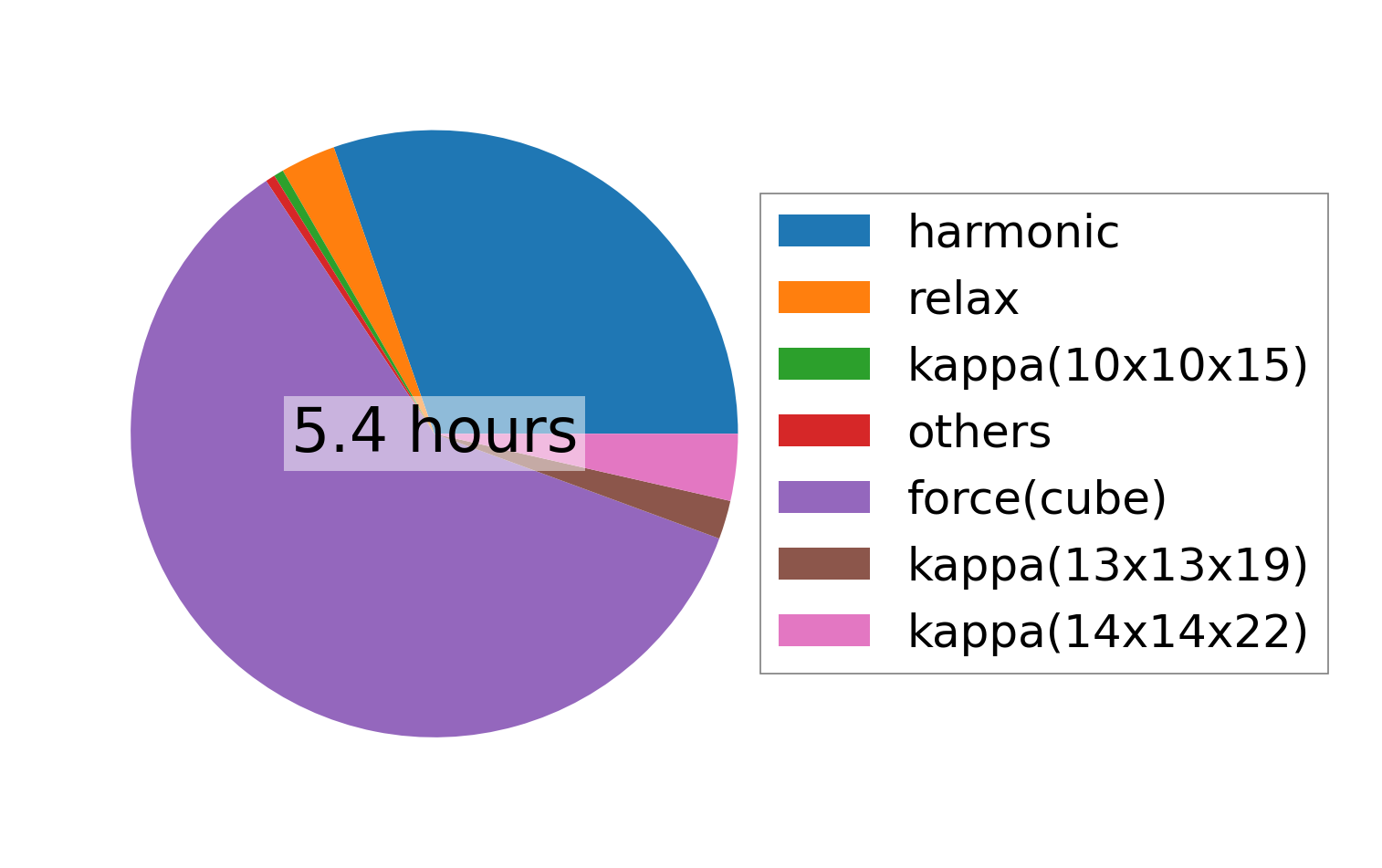

../../_images/fig_times3736.png — (b) Computation time
